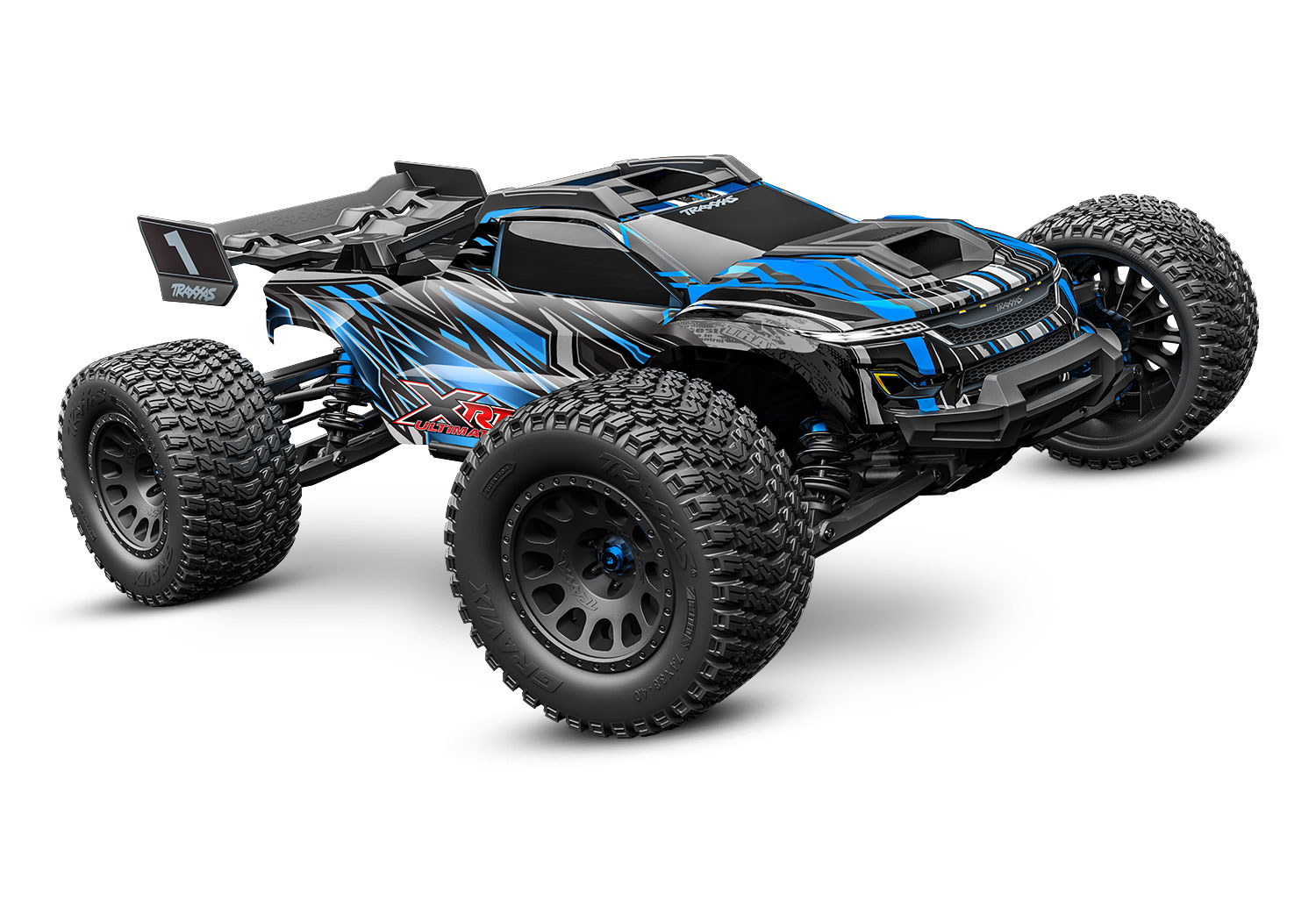

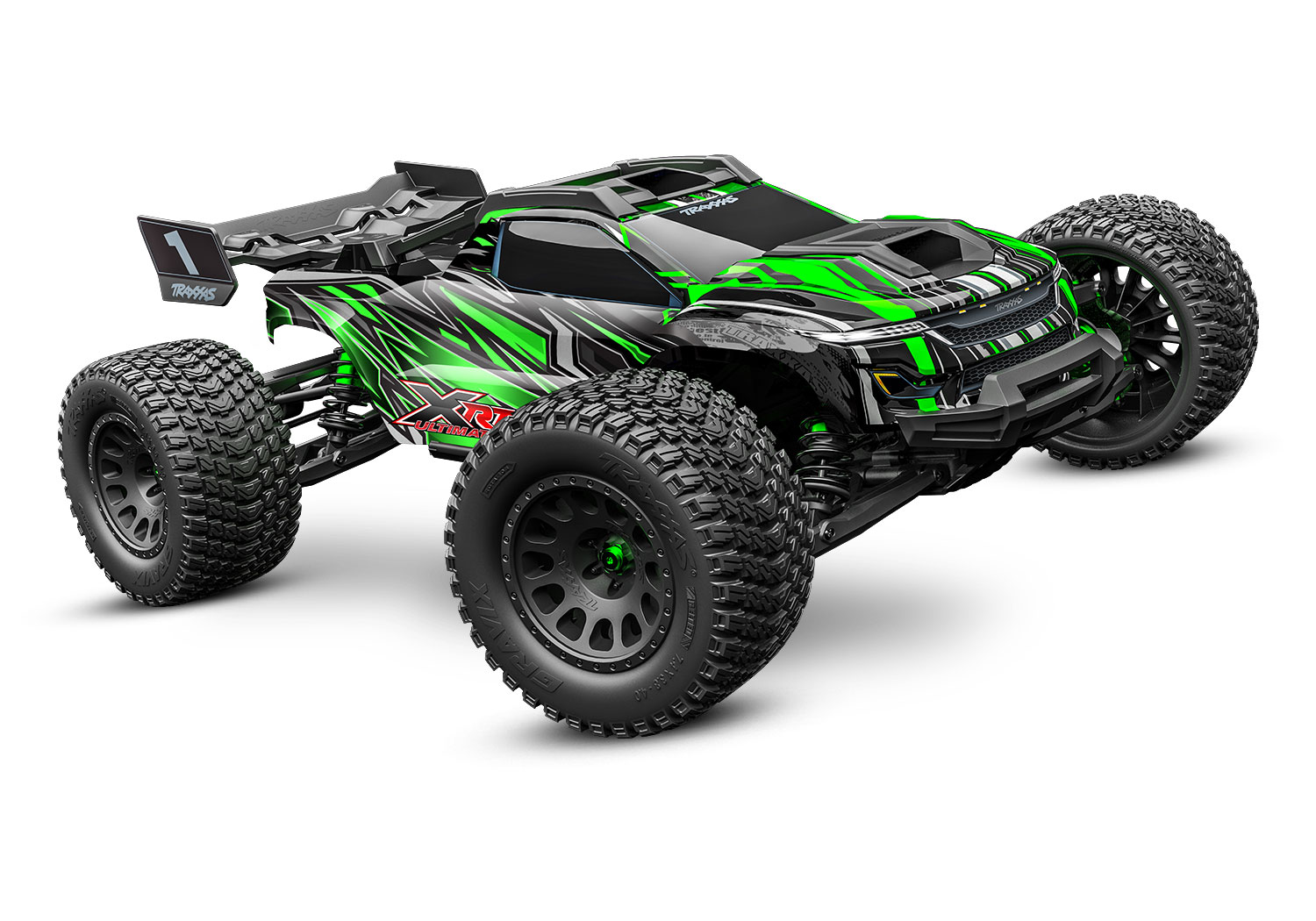

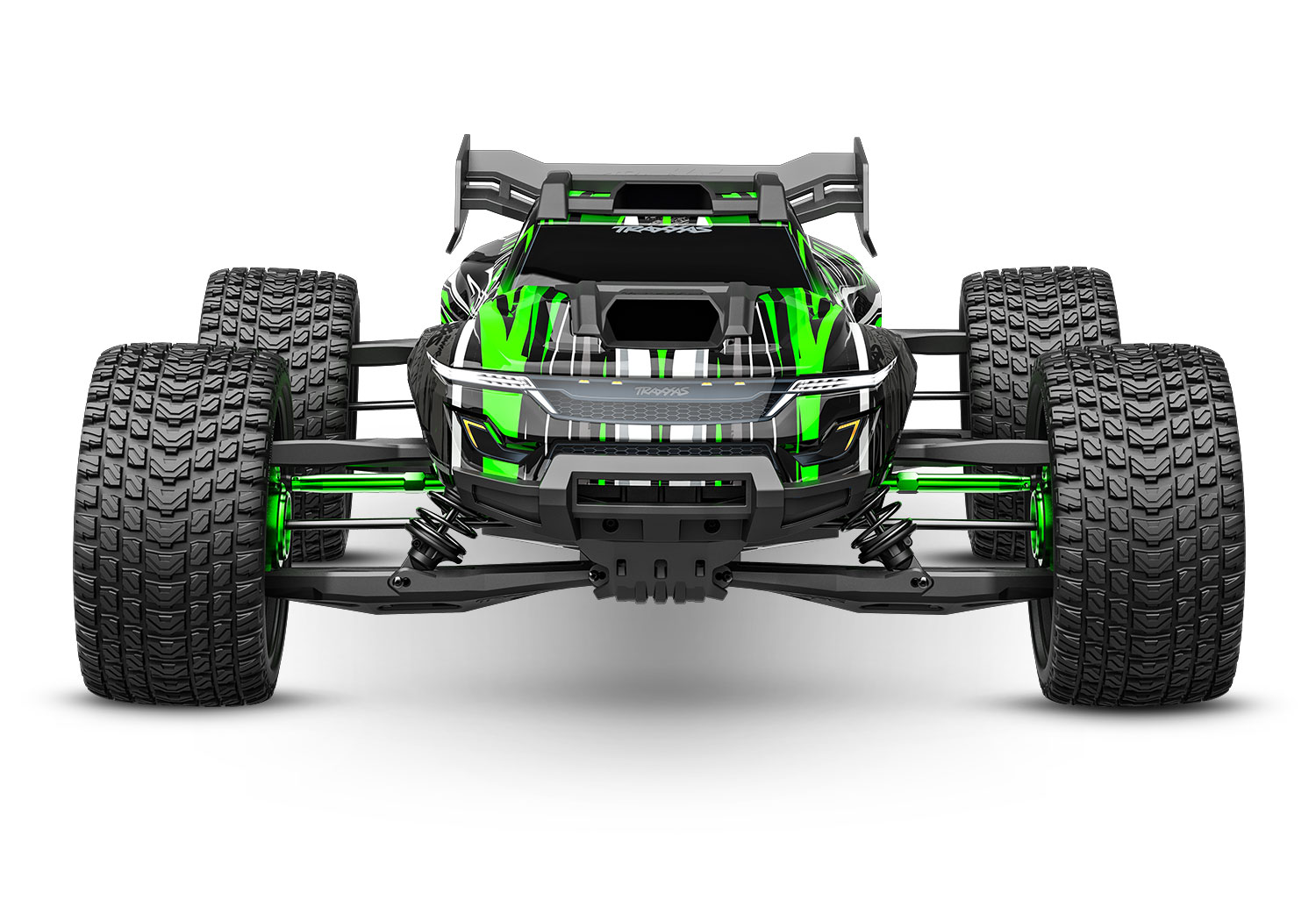

XRT® started a revolution by combining X-Maxx® strength with race truck handling. The new 2024 Limited Edition XRT Ultimate is outfitted with over $1,000 in high-strength aluminum and performance upgrades, along with all-new belted Gravix® tires. Don’t miss your chance to own the Ultimate X-Trucks™ - reserve at your dealer now.
Available Only In Stores
Quantities of this very special XRT are extremely limited.
We are making it easy to locate your X-Truck Ultimate at a Traxxas dealer.
Model #78097-4$1,499.95

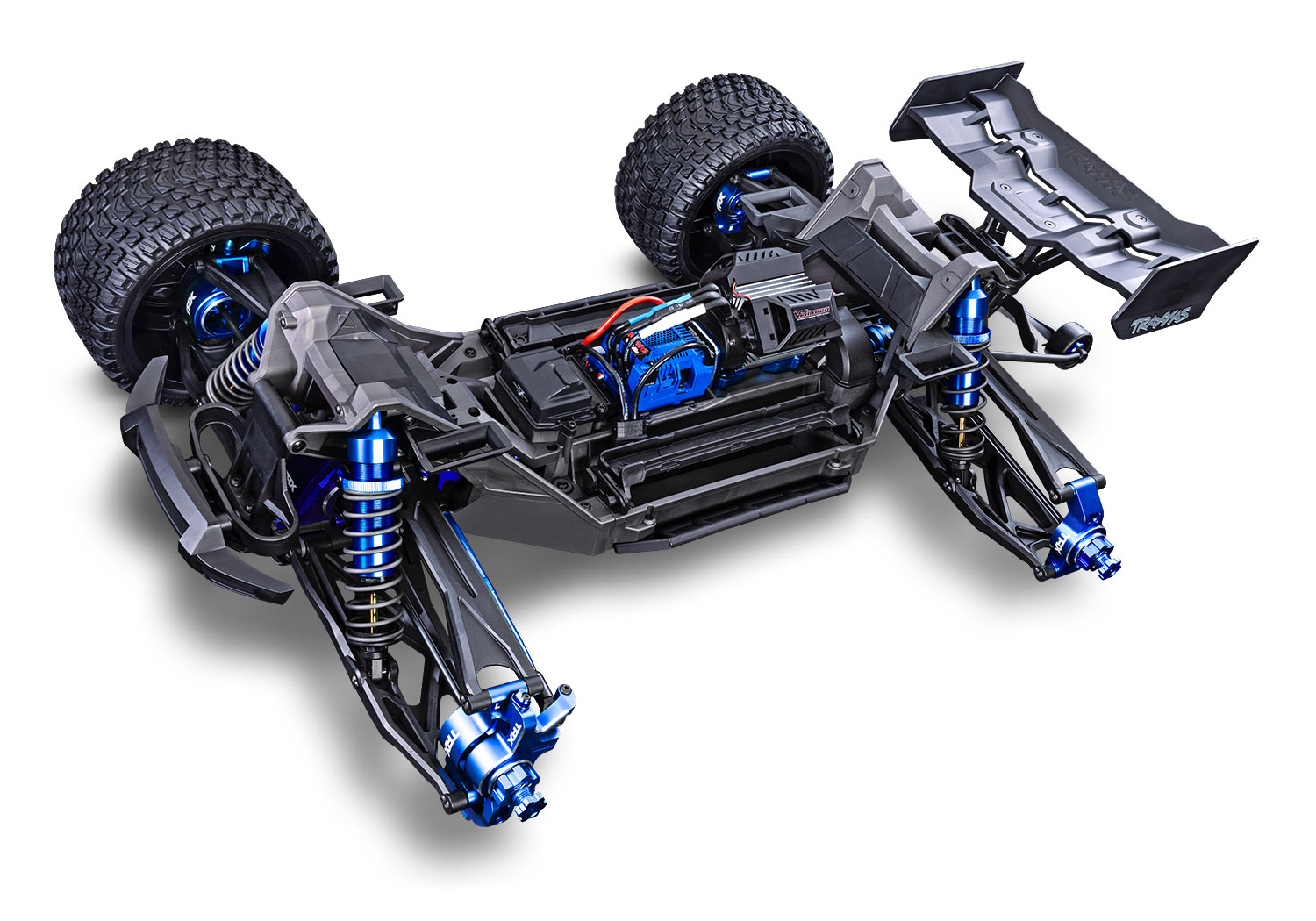

Ultimate Durability
XRT receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of X-Truck™ strength and durability. XRT’s aluminum upgrades improve high-speed stability and precision while creating the toughest truck ever to wear the Traxxas name.
Included Wireless Module
A Traxxas Link™ Wireless Module comes standard on XRT Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.
Belted Tires
XRT Ultimate’s belted Gravix® tires deliver game-changing performance on the track or in the wild. The directional tread pattern provides excellent traction and runs quieter than typical off-road tires. Lightweight belting in the carcass maintains the tire's shape for a larger contact patch, more grip, and responsive handling at any speed.
Video
Details
See all the high-performance upgrades that transform XRT into the ultimate 8s race truck.View standard XRT features here >

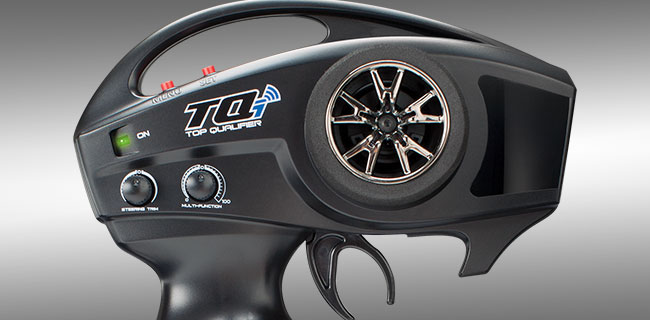

TQi Transmitter with Wireless Module
With 60+ mph of 8s power on tap, XRT Ultimate needs maximum precision and control. XRT Ultimate’s factory-installed Wireless Module adds powerful TQi tuning and telemetry tools on your mobile device. Use the free Traxxas Link™ app to control steering and throttle sensitivity; steering percentage; braking strength; and throttle trim by simply touching and dragging the sliders on the high-definition graphic interface.
Limited Edition ProGraphix® Body
XRT Ultimate comes with a limited edition body and graphics to set it apart from the pack. Tough body reinforcements and a rigid internal frame provide extra protection during rollovers to keep your body looking fresh even longer.

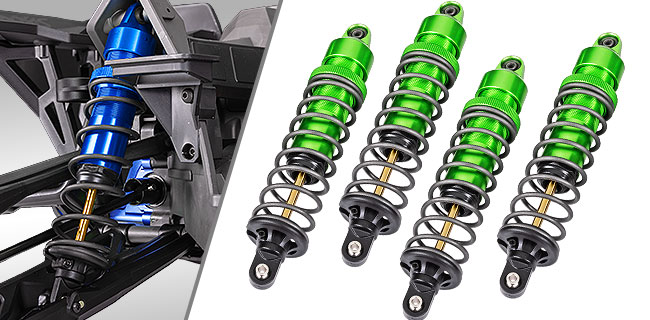

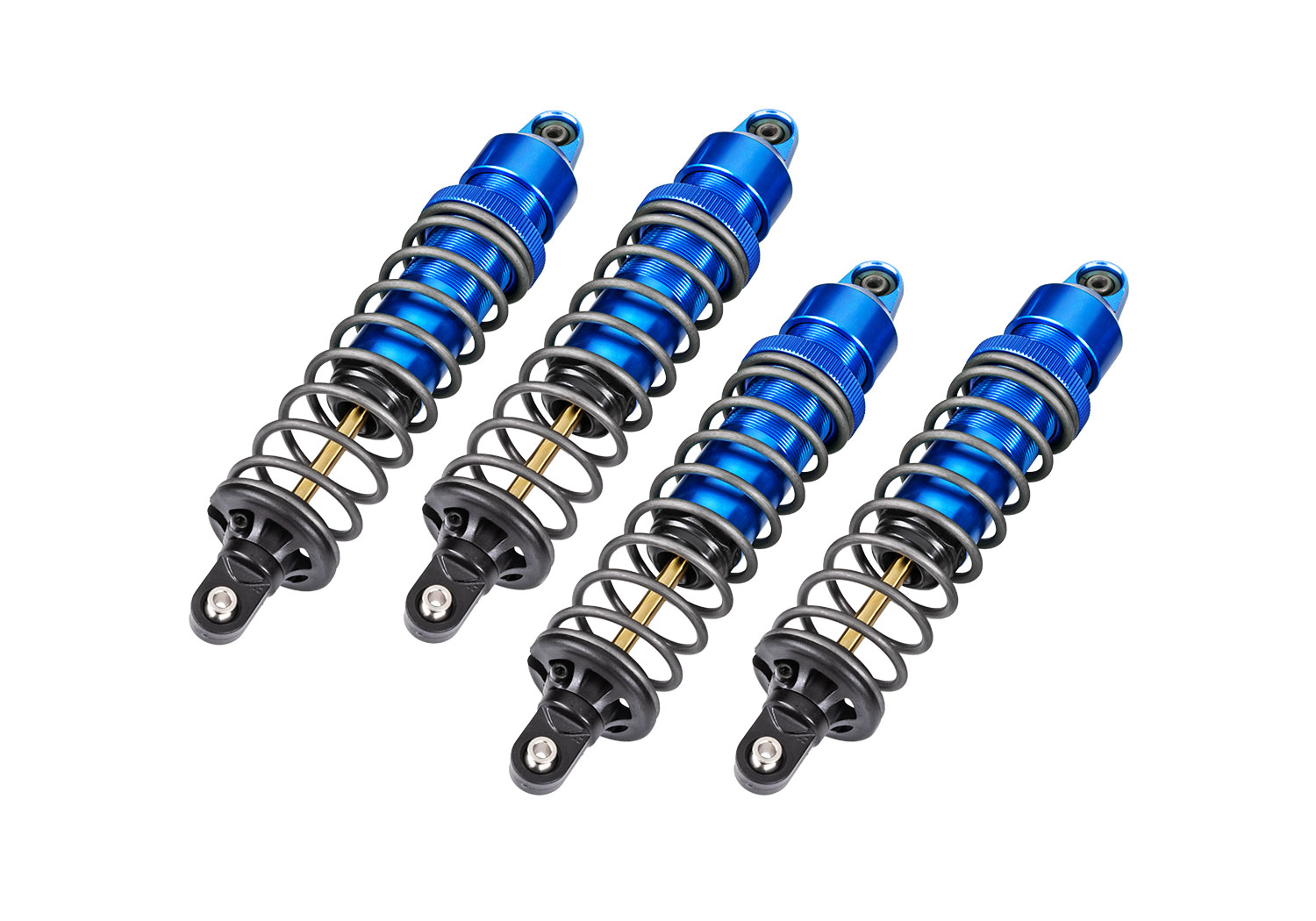

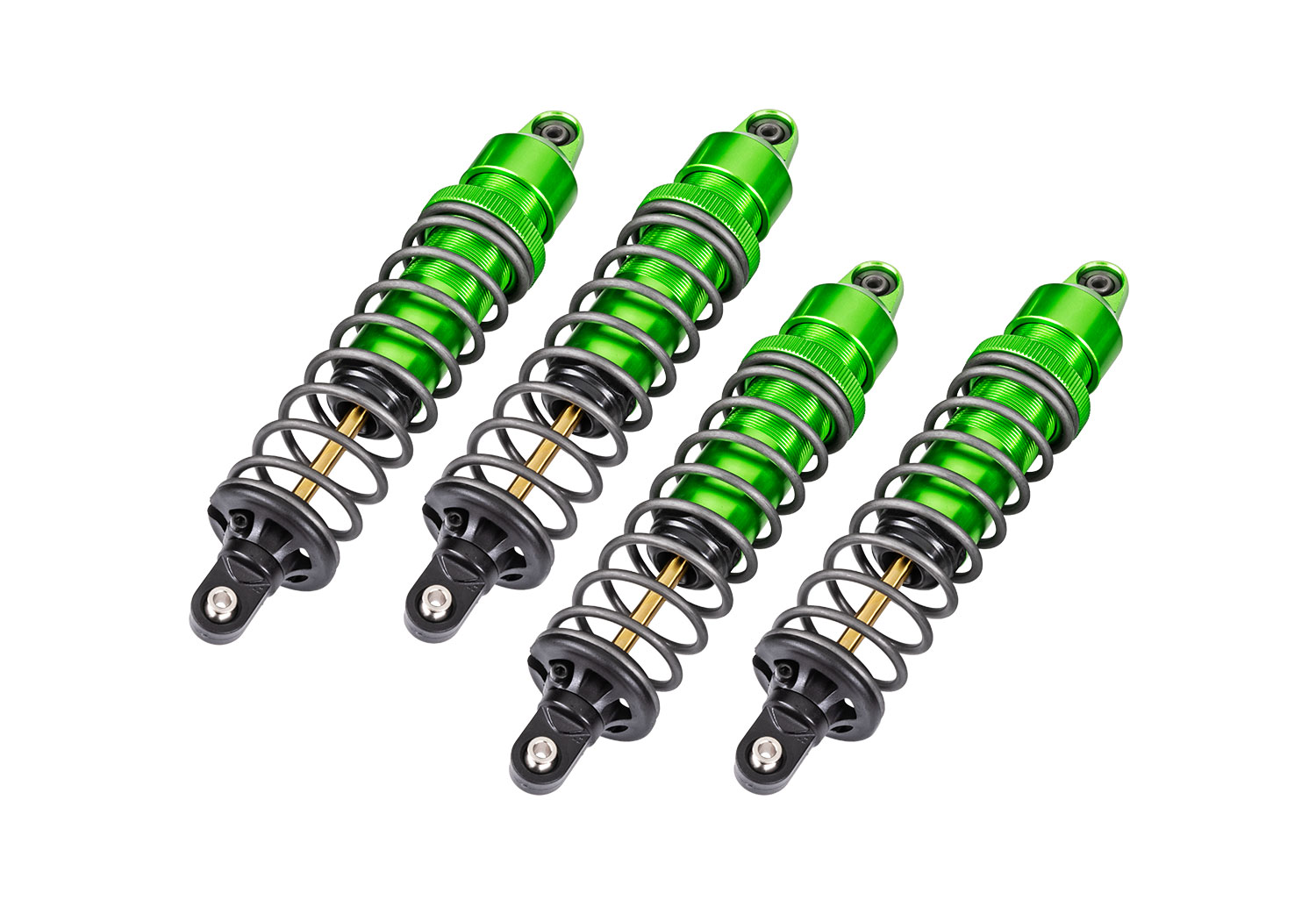

Aluminum GTX™ Shocks
XRT Ultimate adds ultra-smooth TiN-coated shafts, color-matched aluminum shock caps, and threaded adjustment rings to its proven GTX shocks. GTX shocks soak up massive bumps to smooth out the roughest terrain. Their large oil volume dissipates heat for all-day shredding while an integrated wiper seal keeps the shafts clean.

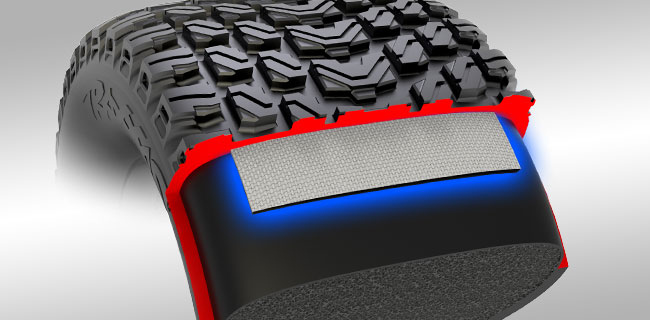

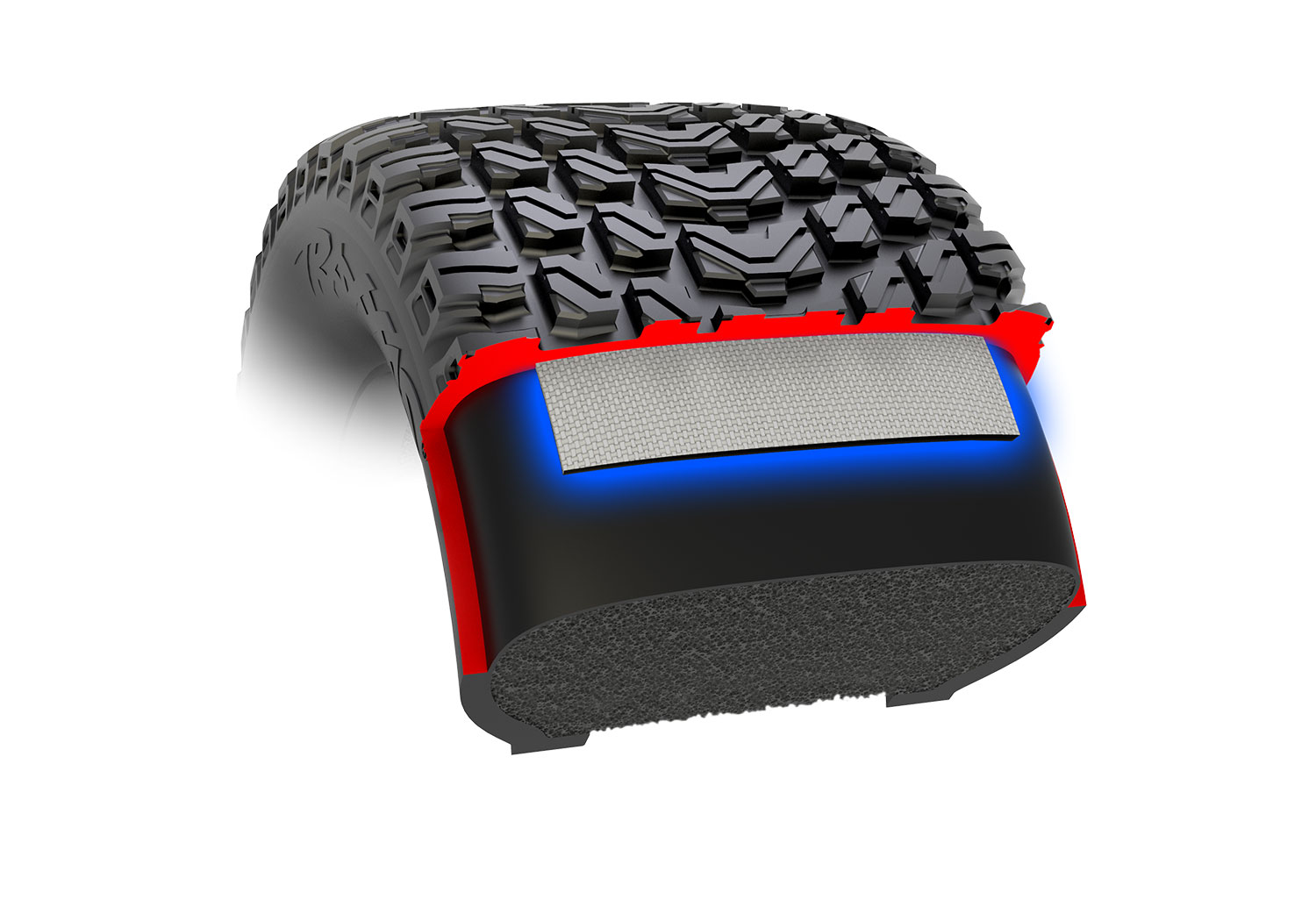

Belted Gravix Tires
In addition to their high-speed performance, belted Gravix tires deliver excellent traction at the track or in the wild. Gravix race tires are a revolutionary new hybrid design with densely packed biting edges and sipes. The directional tread pattern runs quieter than traditional off-road tires with a low-profile sidewall for excellent handling characteristics.

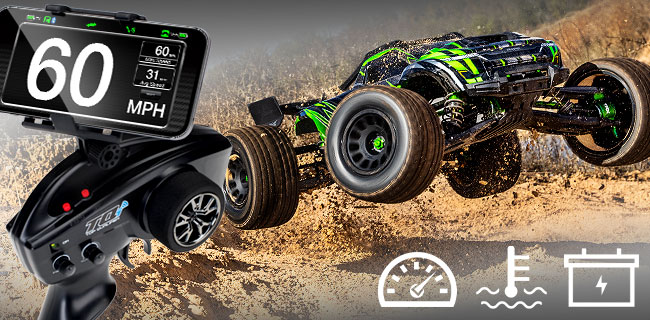

Factory-Installed Telemetry
Factory-installed telemetry sensors collect and record XRT Ultimate’s telemetry data as you drive. Add the free Traxxas Link app to your mobile device to view real-time speed, RPM, temperature, and battery voltage data. The full-color dashboard is fully customizable with up to nine different dial or digital readout gauges.

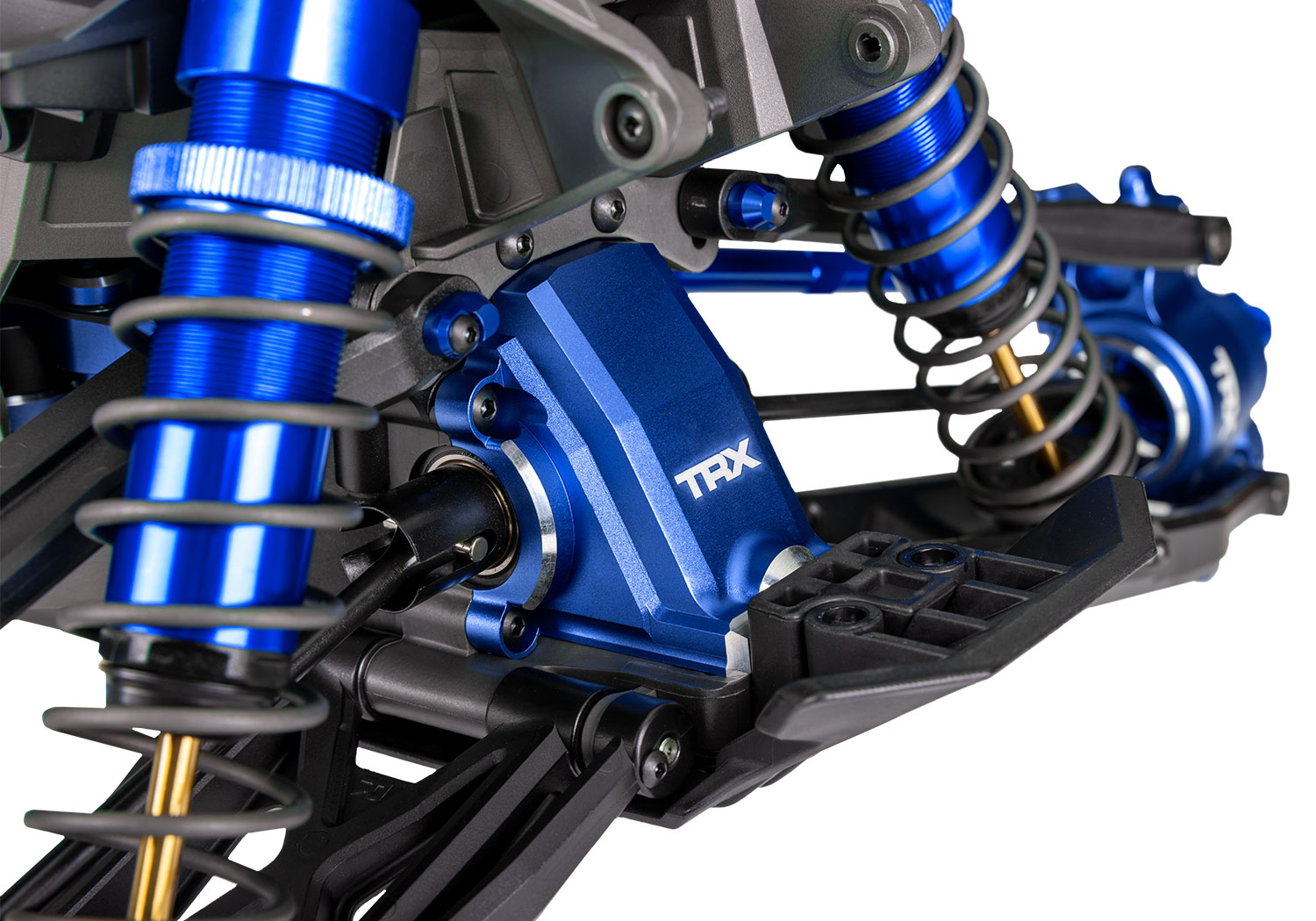

Aluminum Differential Housings
Front and rear machined aluminum housings eliminate flex to keep XRT’s huge differentials in perfect alignment jump after bone-crushing jump. The housings are milled from high-grade 6061-T6 aluminum for maximum strength and protected by a brilliant anodized finish.

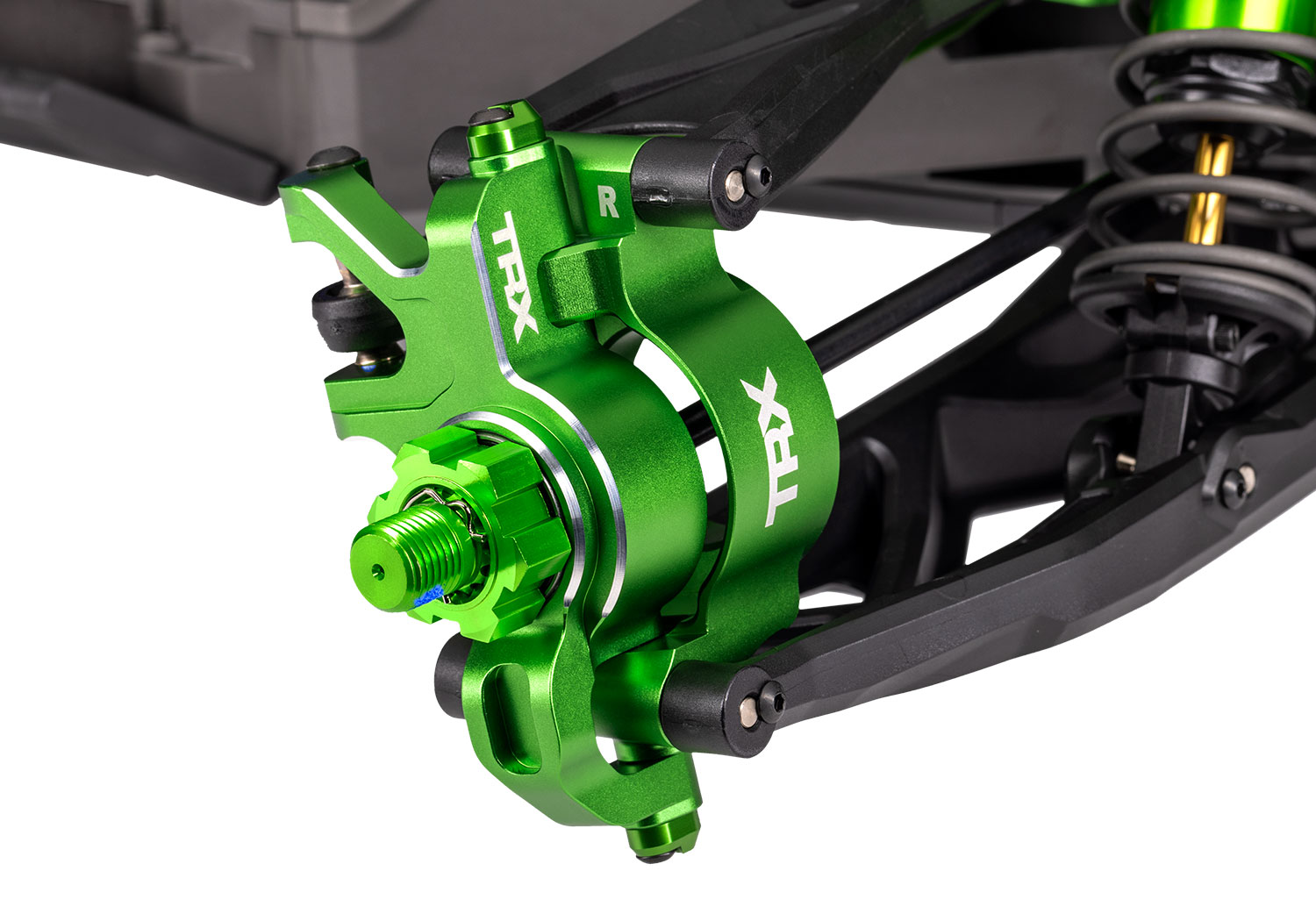

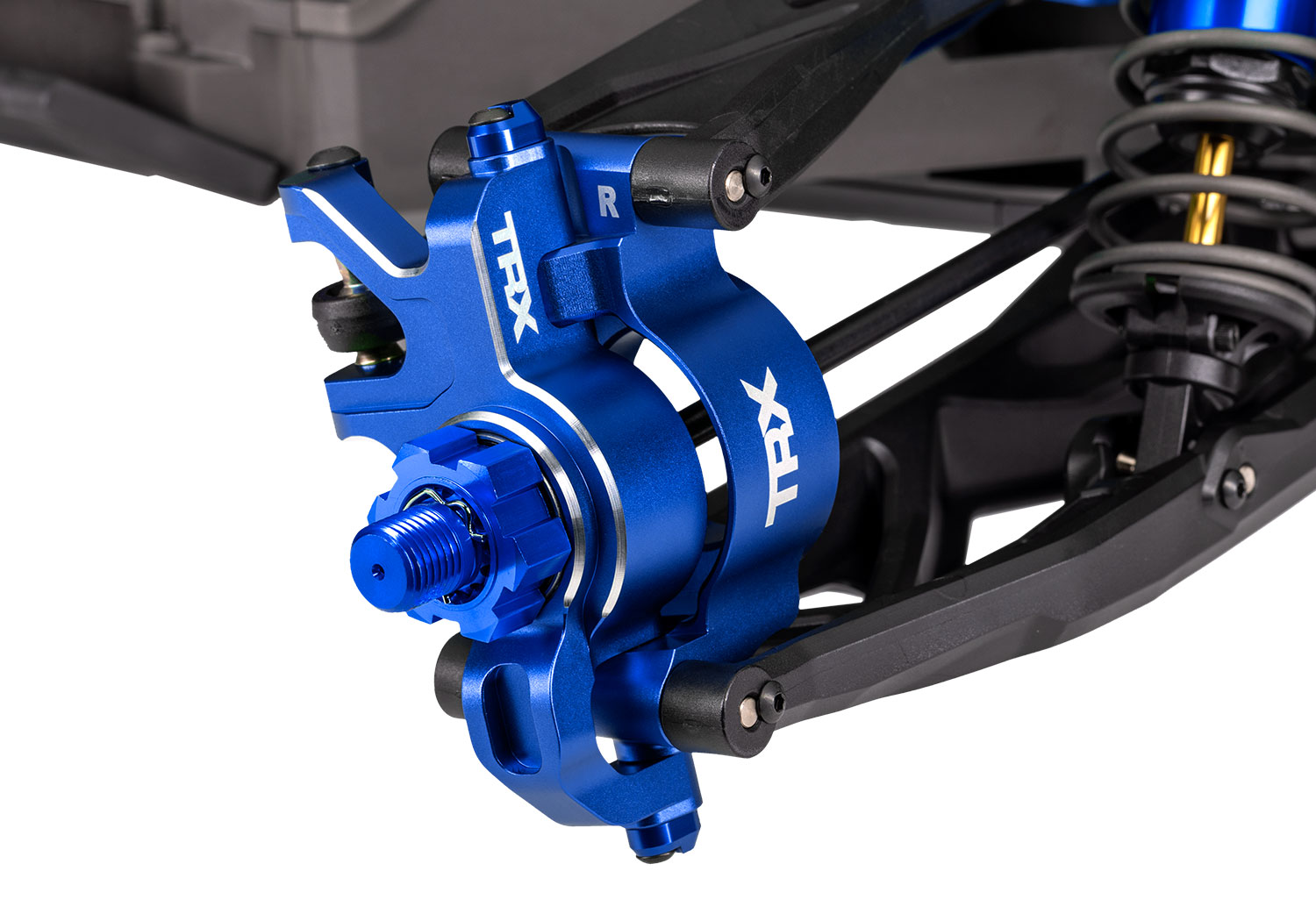

Aluminum Caster and Steering Blocks
XRT Ultimate’s caster and steering blocks combine the brute strength of 6061-T6 aluminum with carefully engineered steering and suspension geometry. The brilliant anodized finish adds high-tech style with laser-etched logos to show off your genuine Traxxas performance parts.

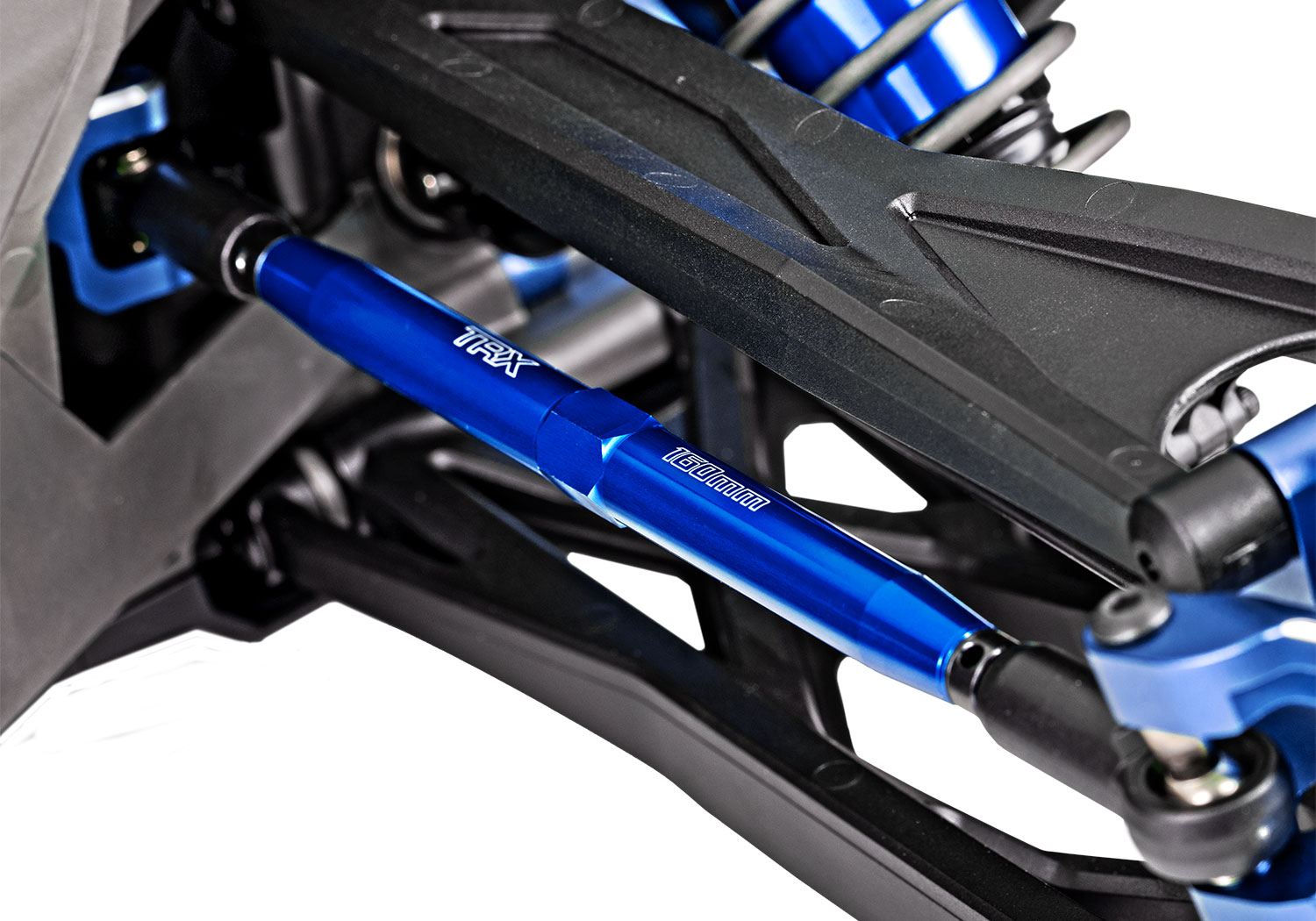

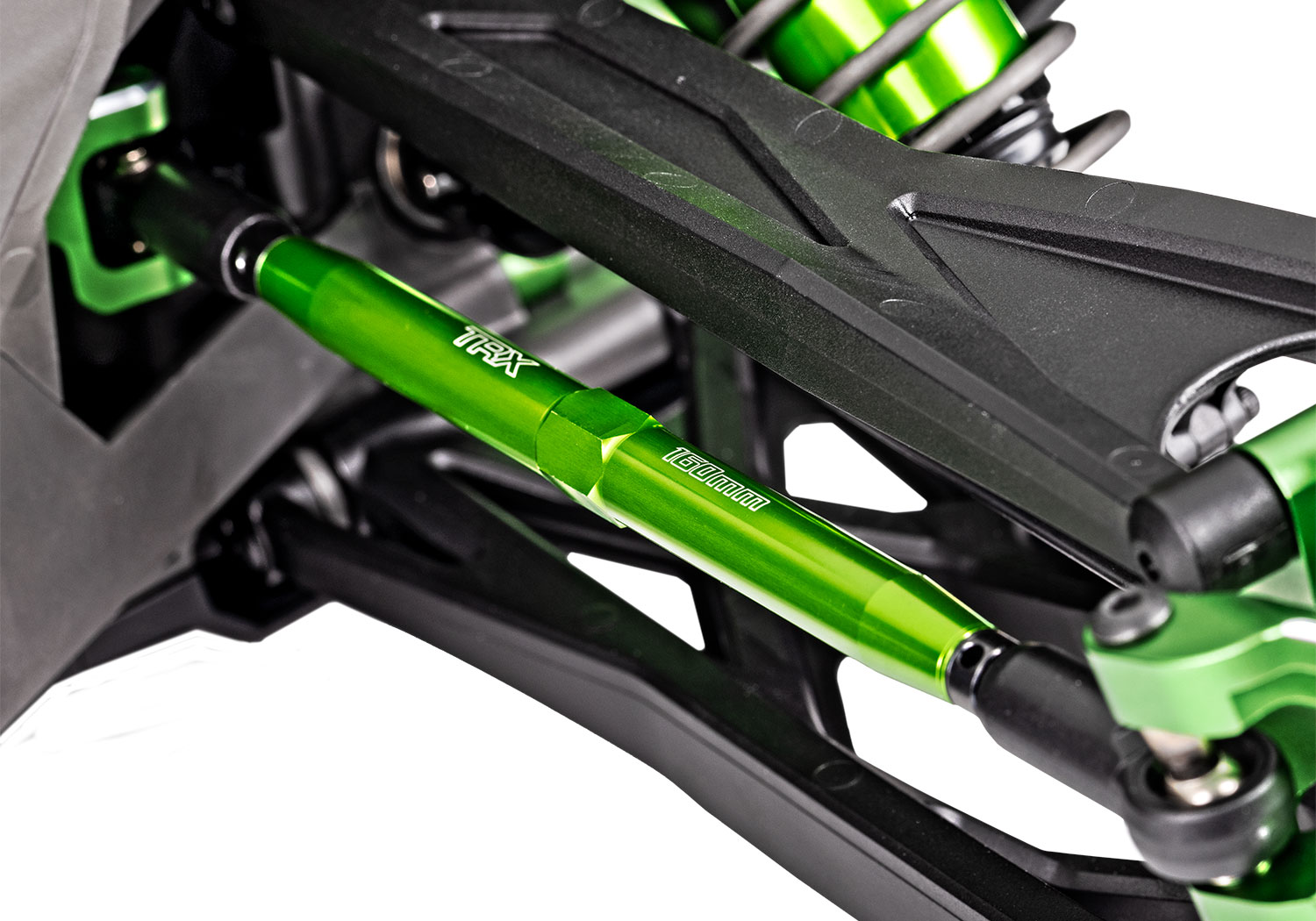

TUBES Toe Links
Adjustable TUBES toe links make it easy to dial-in the perfect settings for greater precision and control. TUBES are lighter than steel and stronger than titanium with a unique hollow tube design which maximizes rigidity while reducing weight. Made from ultra-high-grade 7075-T6 aluminum, TUBES feature a brilliant, anodized finish for extra style.

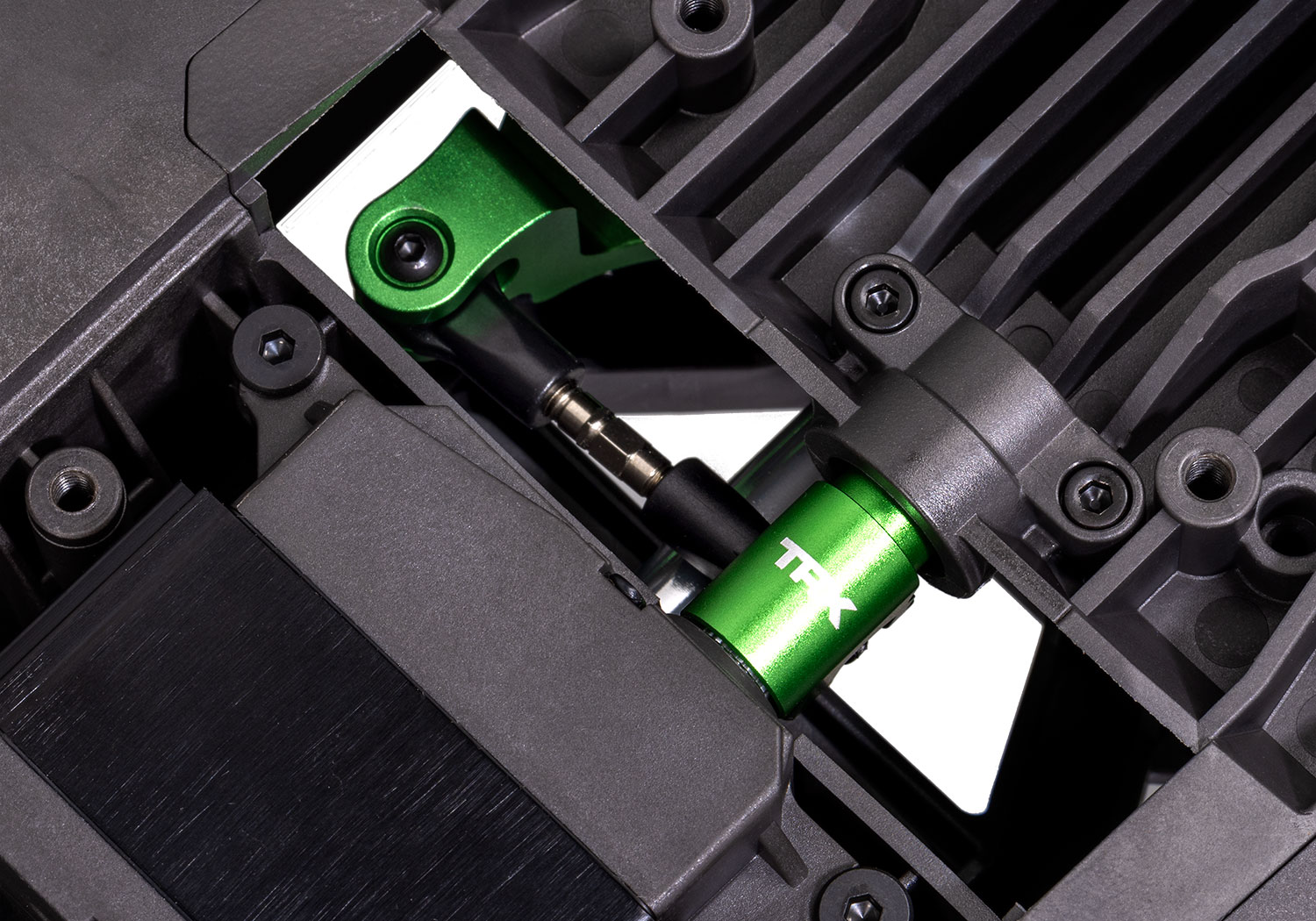

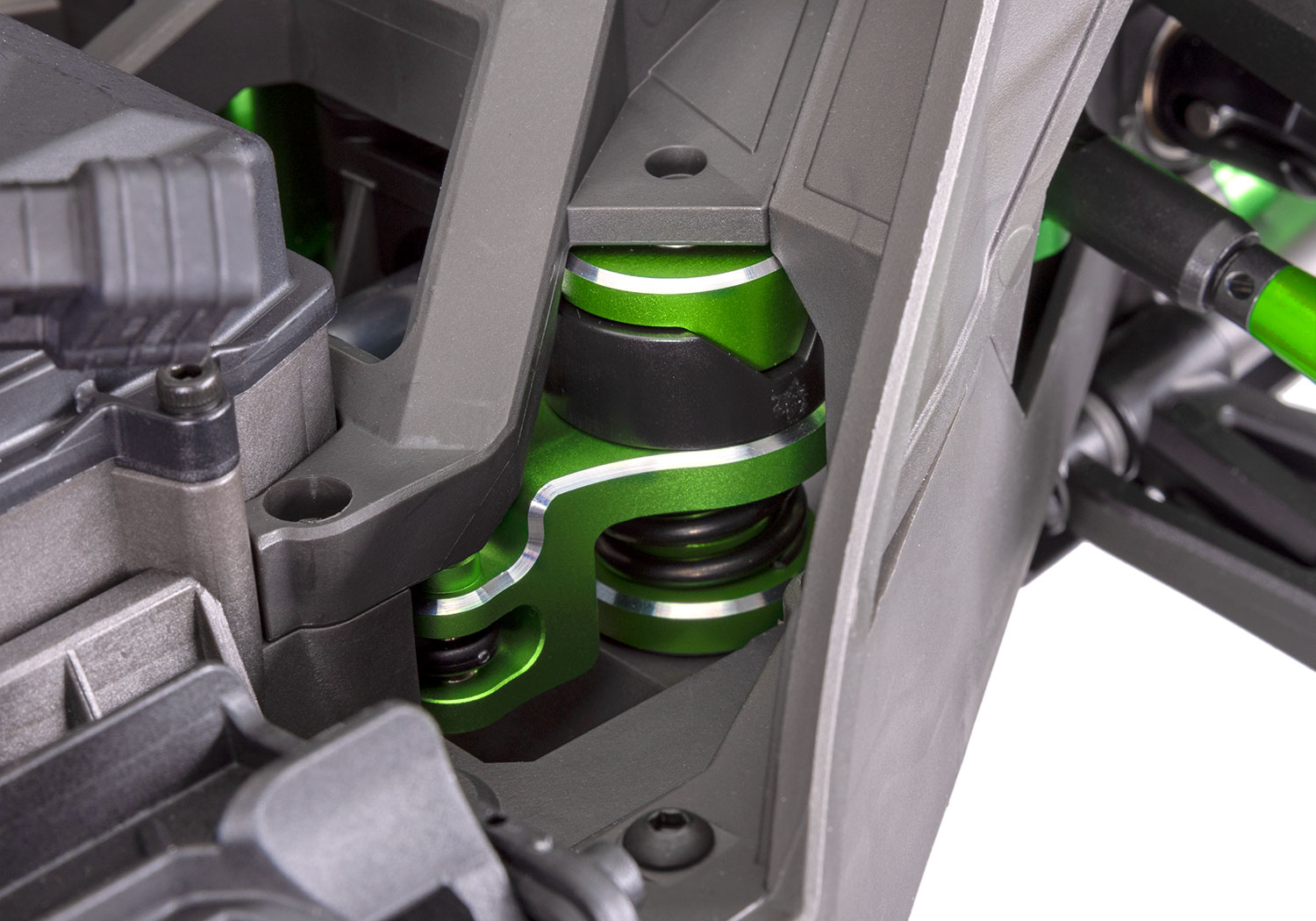

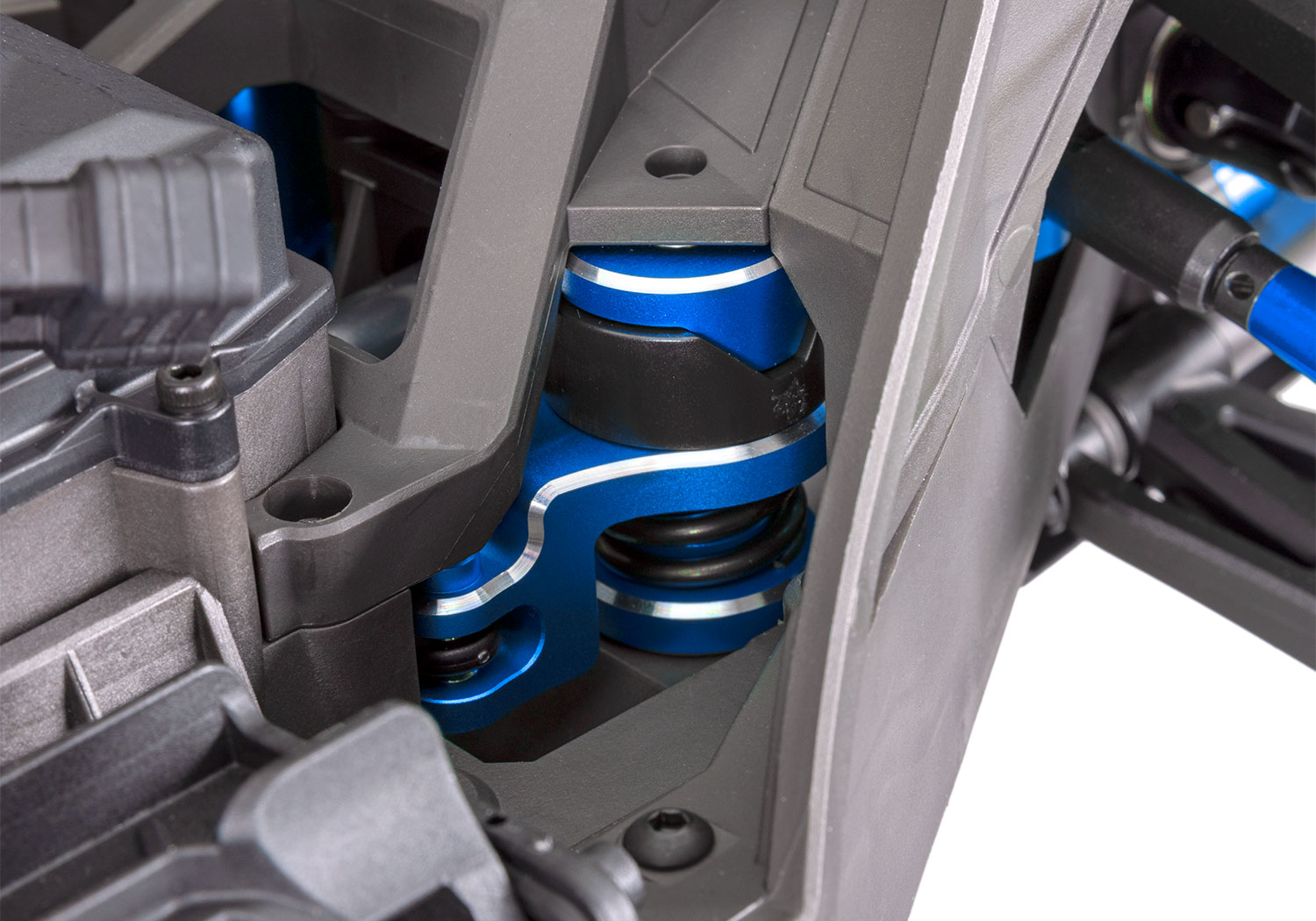

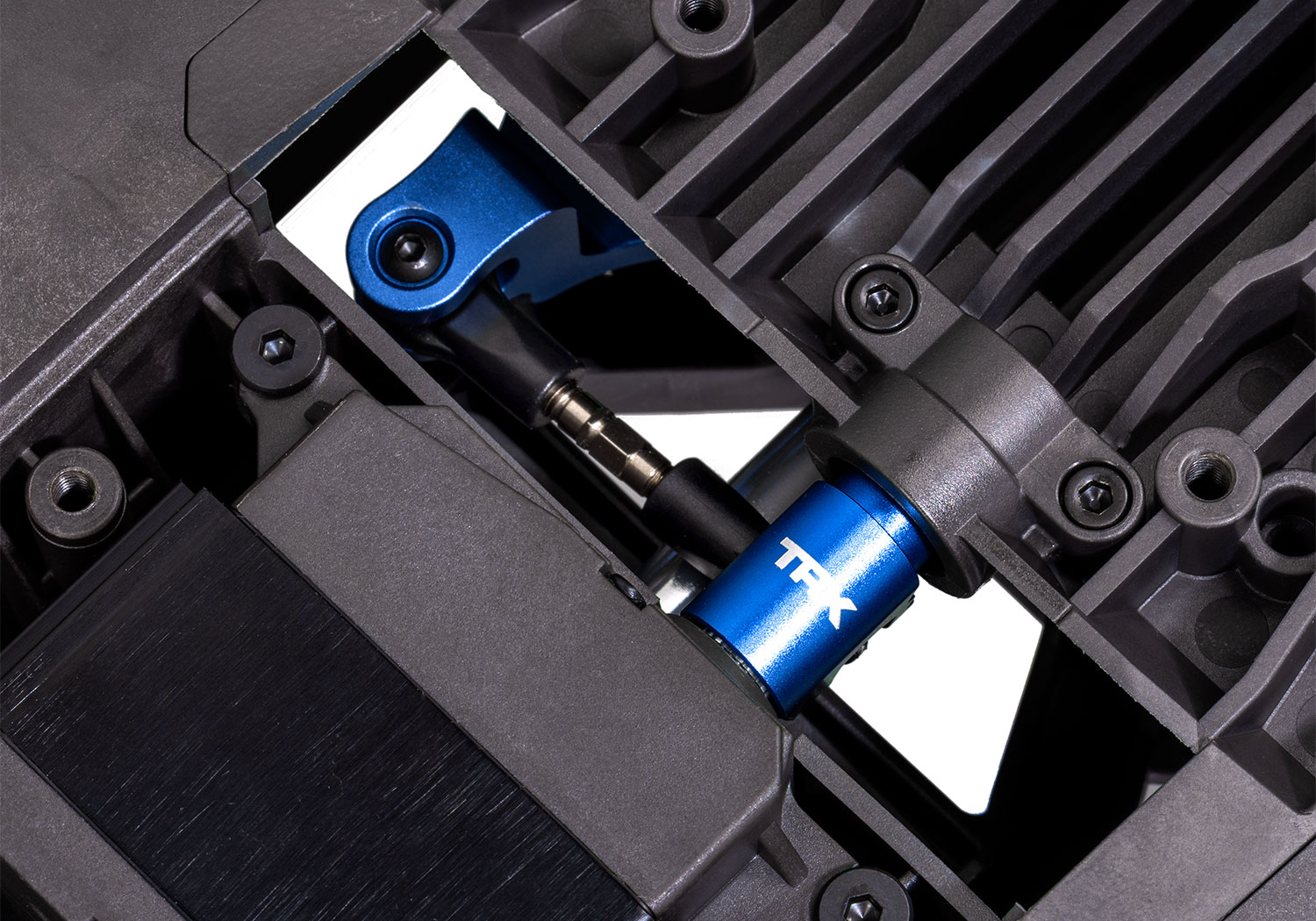

Precision Steering
Machined from tough 6061-T6 aluminum, XRT Ultimate’s ultra-rigid bellcrank assembly drastically enhances steering precision and strength. Tight tolerances and a special servo saver bushing allow the bellcranks to pivot smoothly on sealed ball bearings with a heavy-duty servo saver spring for added protection.

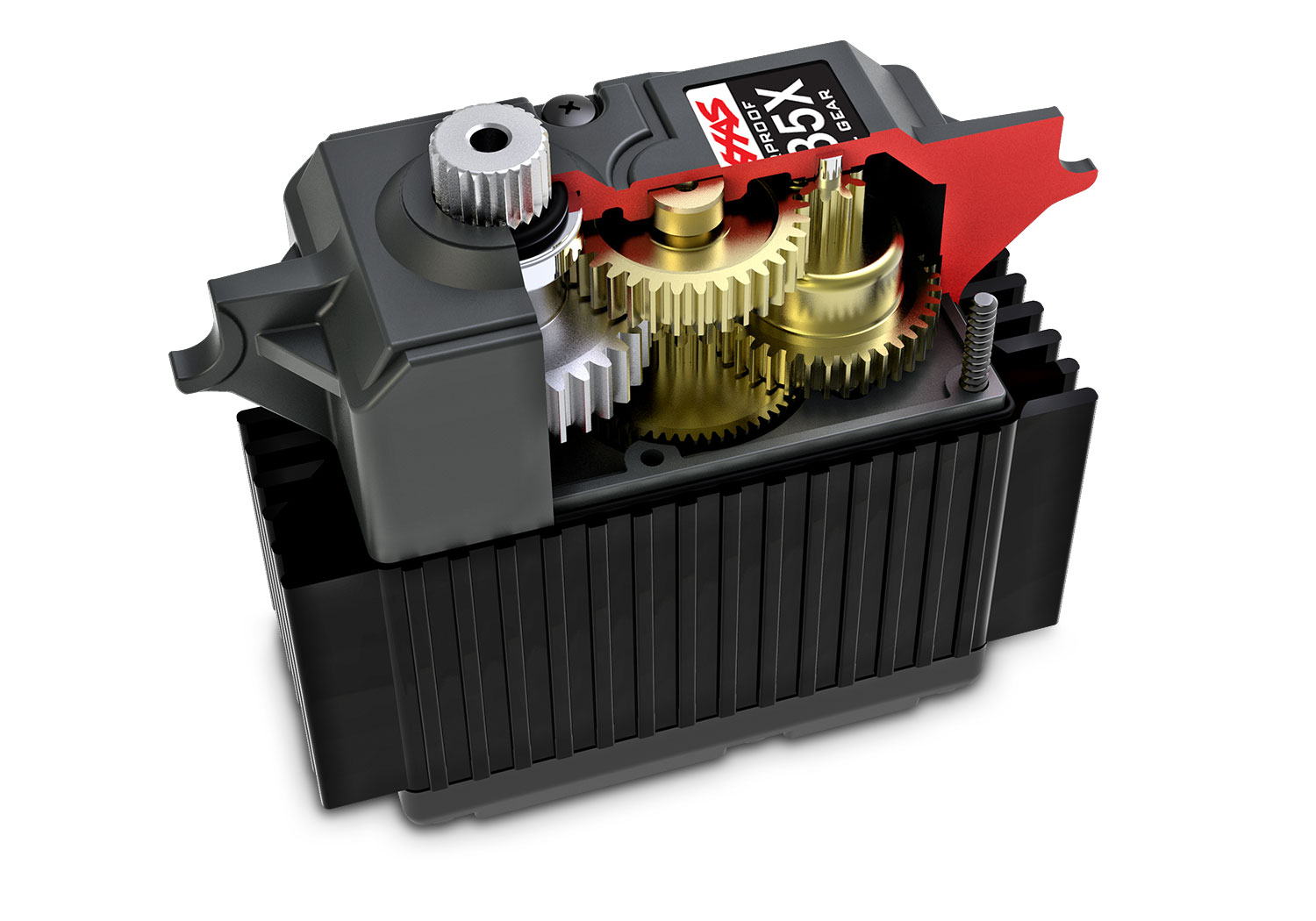

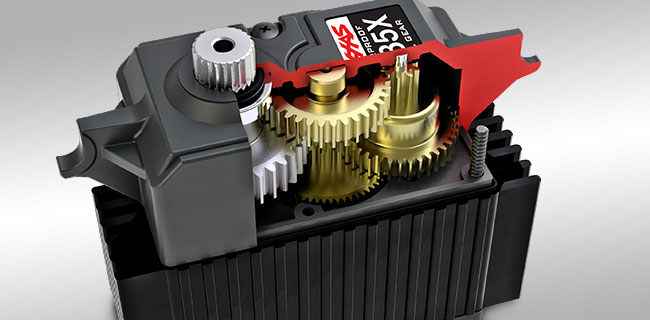

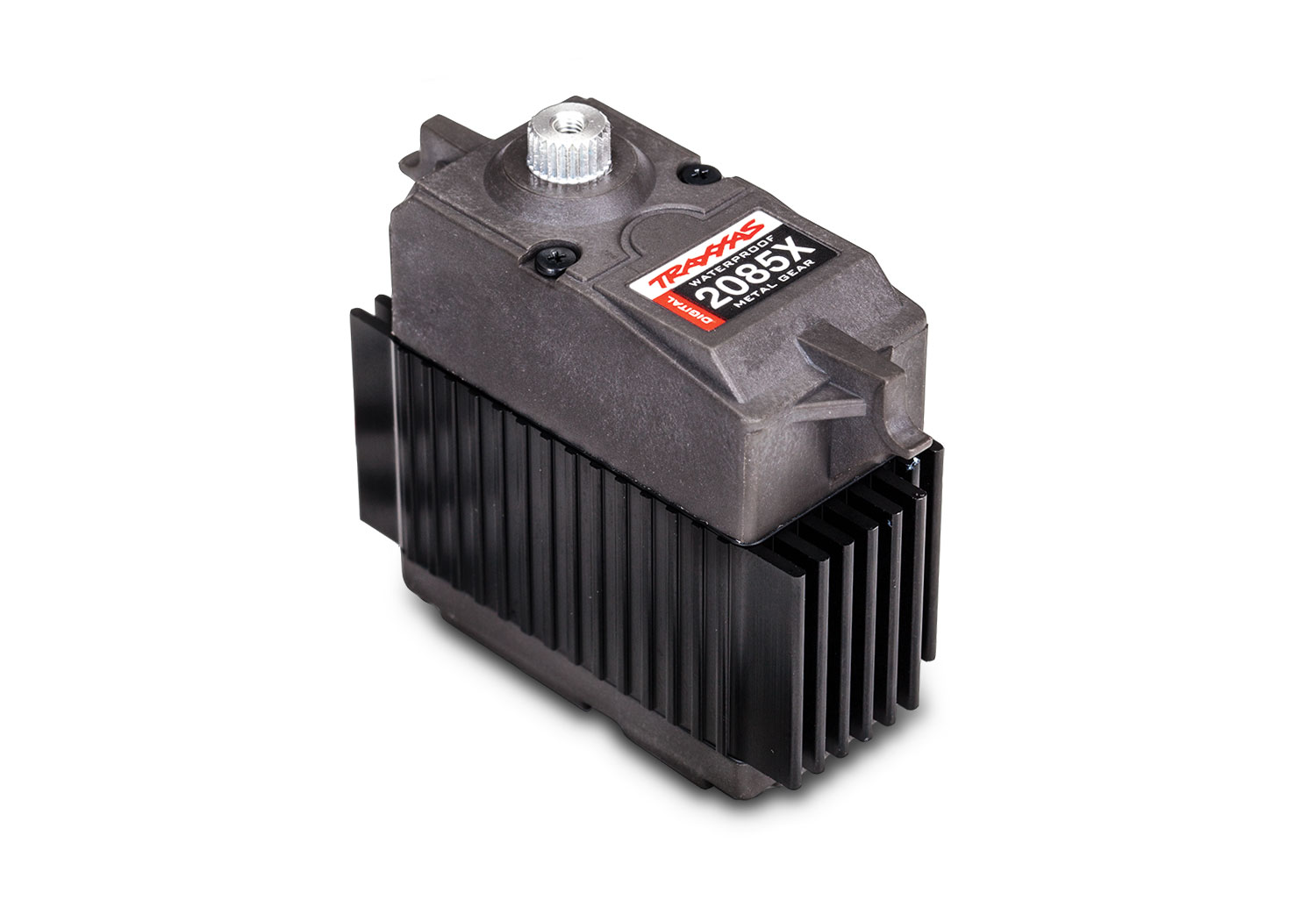

High-Torque Metal Gear Servo
Turning XRT Ultimate’s wide Gravix tires is the powerful 2085X metal-gear servo. With 450 oz-in of torque, XRT Ultimate has extra power on tap for extreme driving on any surface. An aluminum double-shear servo horn eliminates flex for fast, responsive steering at high speeds.

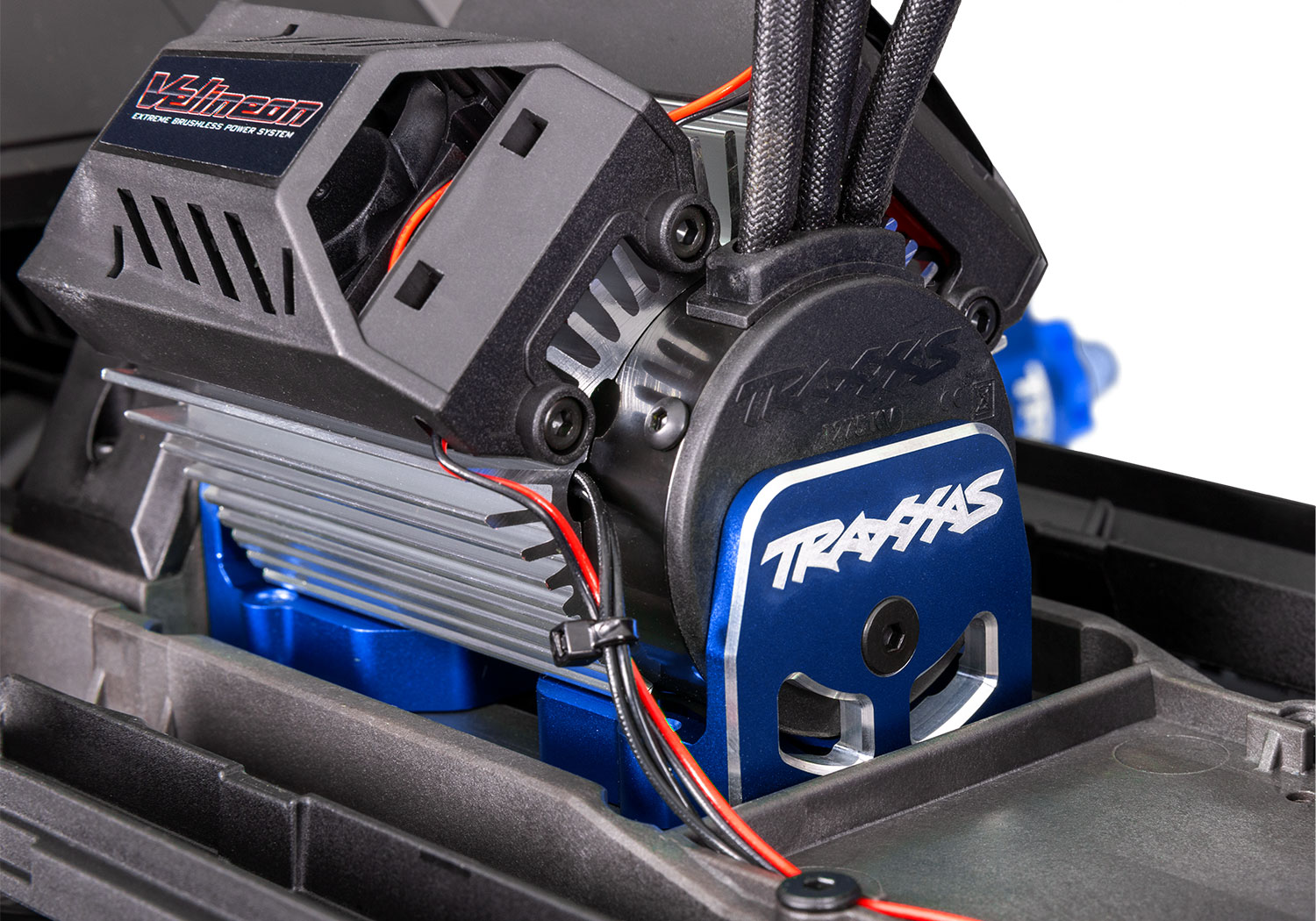

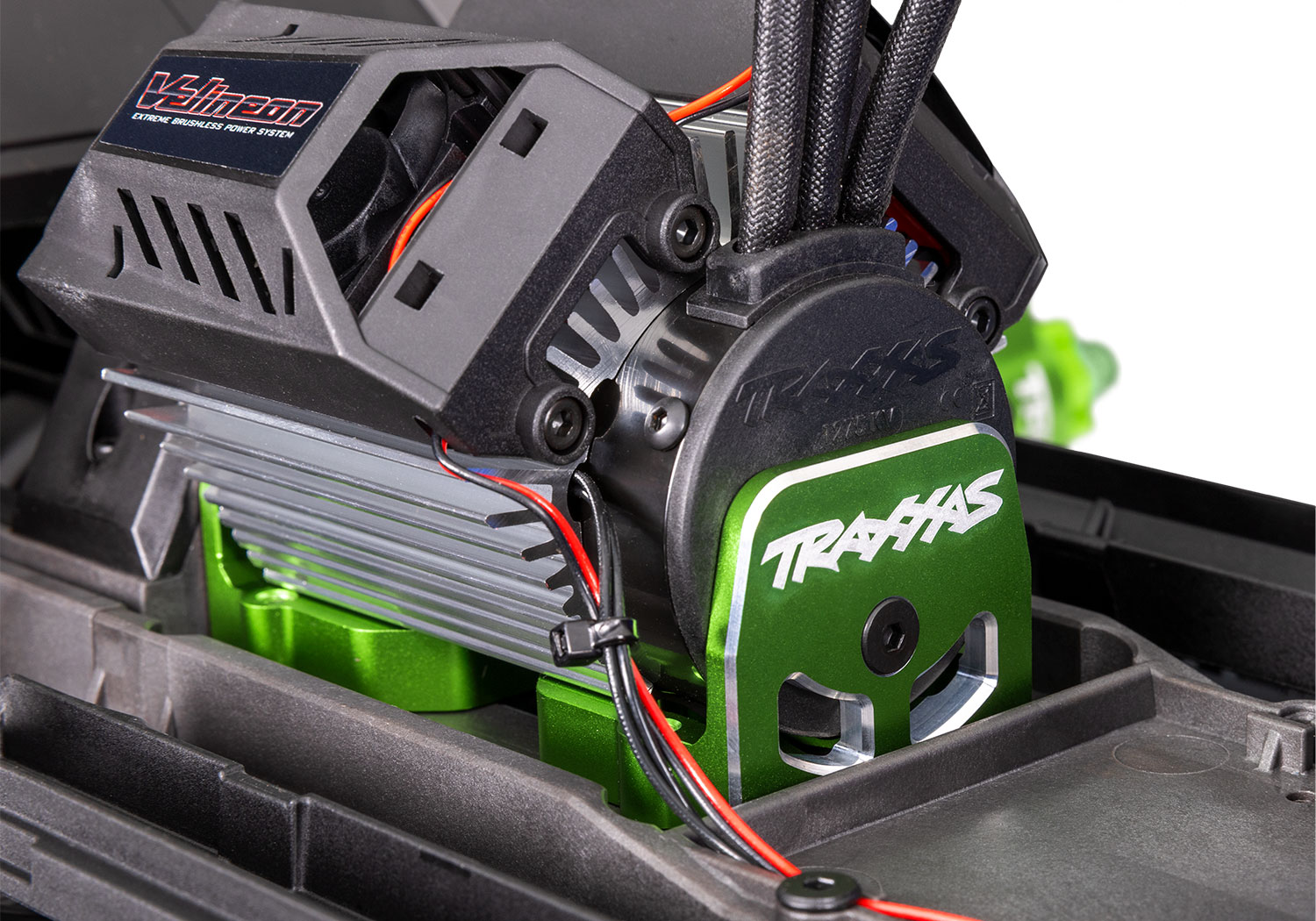

Aluminum Motor Mounts
High-strength aluminum motor mounts and washers lock the massive 1200XL Big Block firmly into place to keep the gears perfectly aligned even on the biggest jumps. The mounts utilize the standard truck’s keyed gear mesh system for easy and precise adjustments.

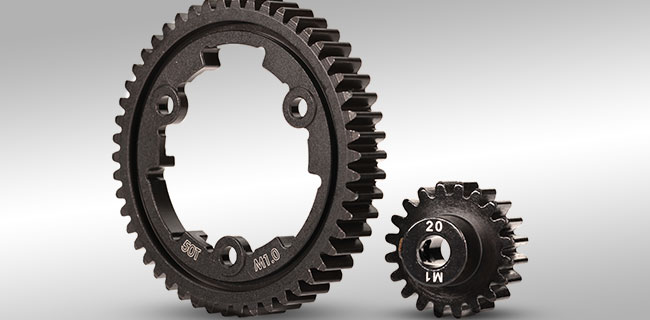

Machined Pinion and Spur Gears
XRT Ultimate features pinion and spur gears machined from hardened steel for maximum power handling and durability.

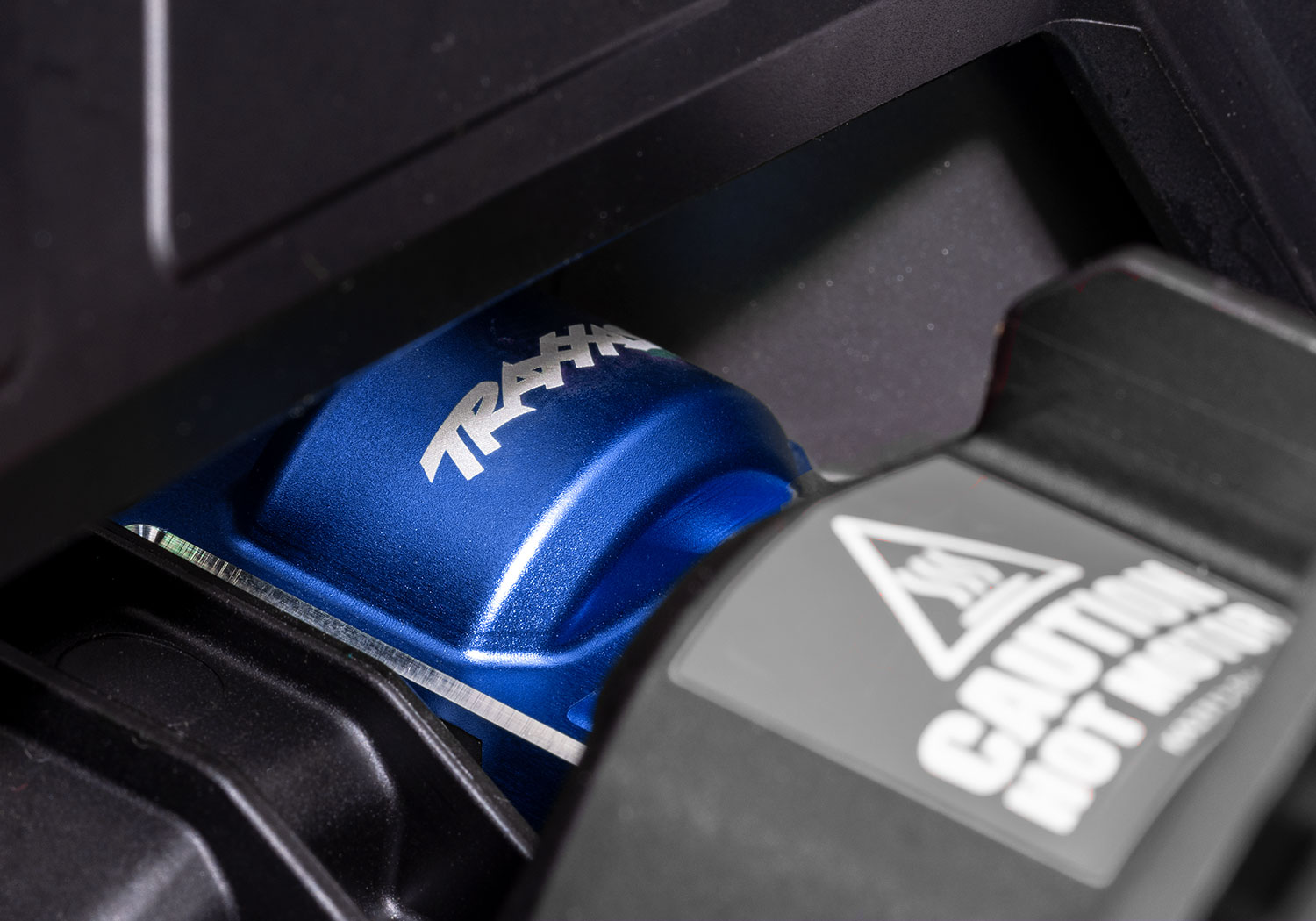

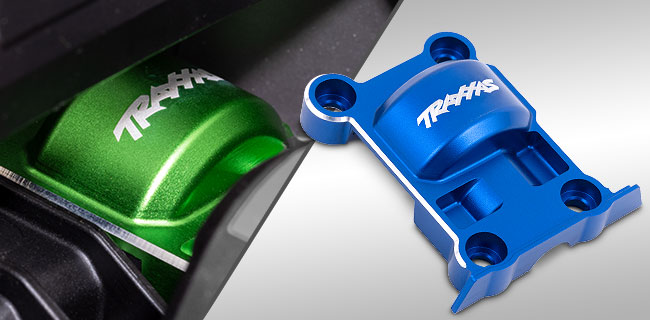

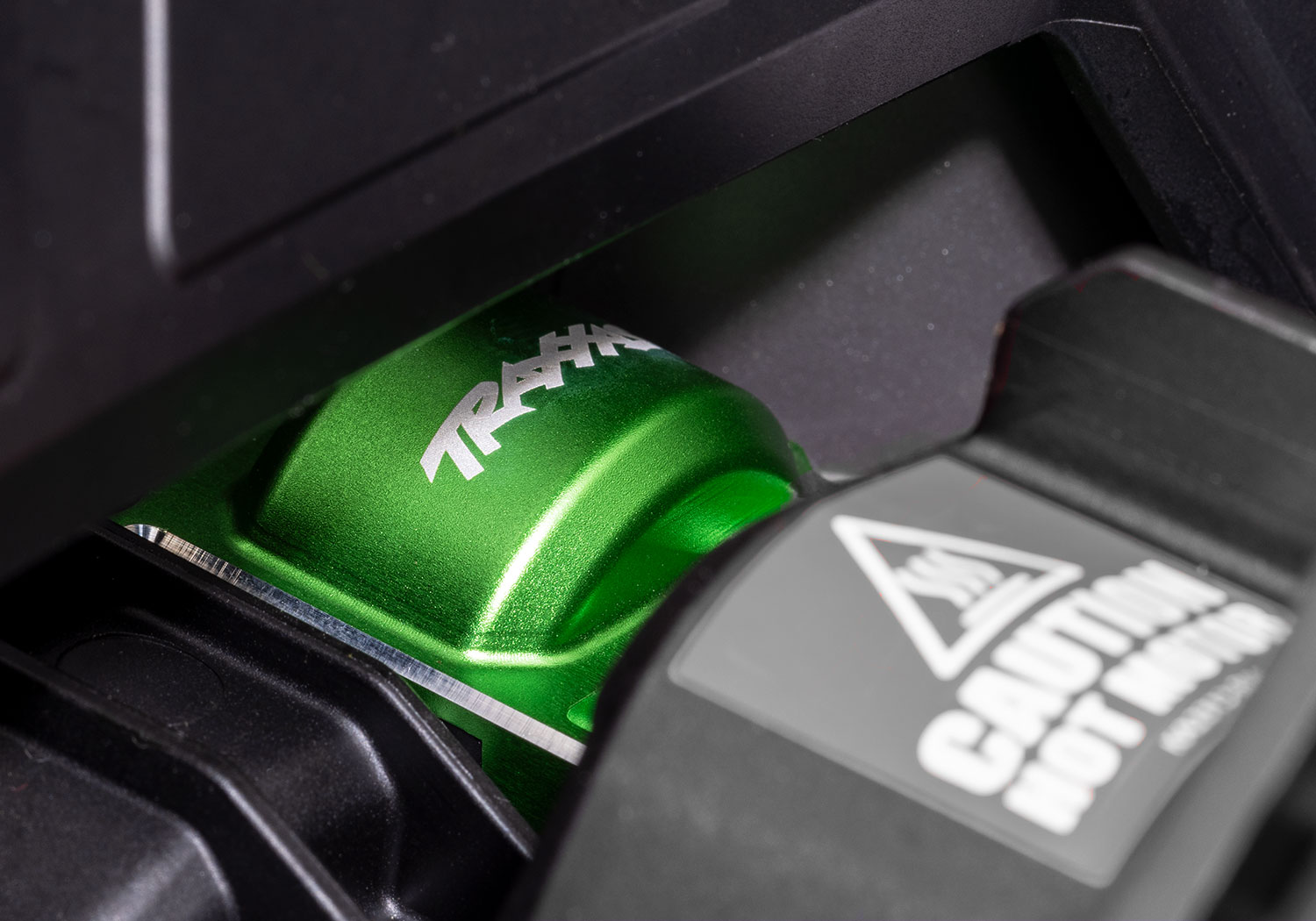

Aluminum Transmission Cover
The aluminum transmission cover is color-matched to the truck with a laser-etched logo for extra style. Carefully milled from 6061-T6 aluminum, the cover locks into the chassis tightly to keep the transmission gears in perfect alignment. It also works perfectly with the 7866 high-speed overdrive gear set for extreme speed runs.

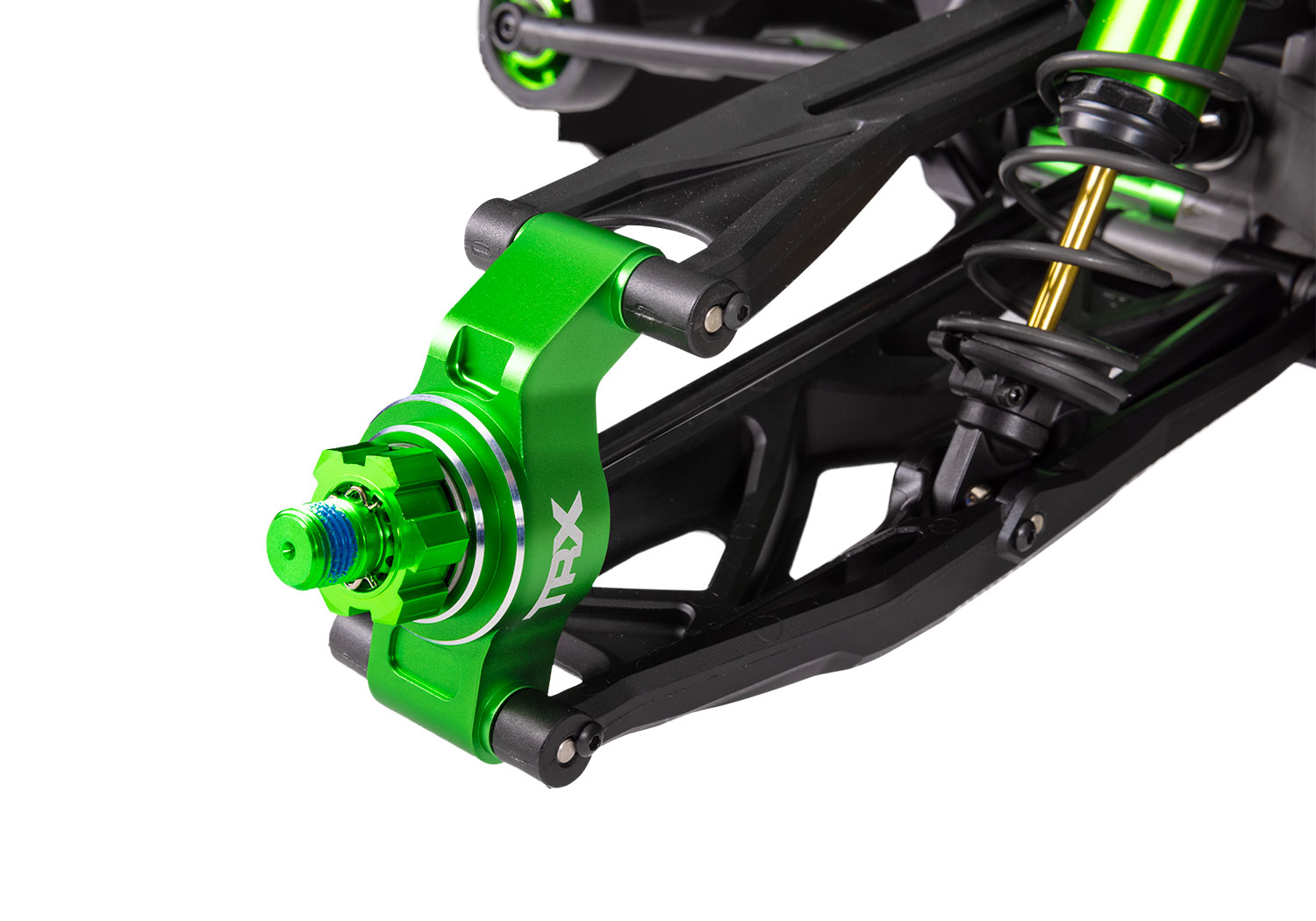

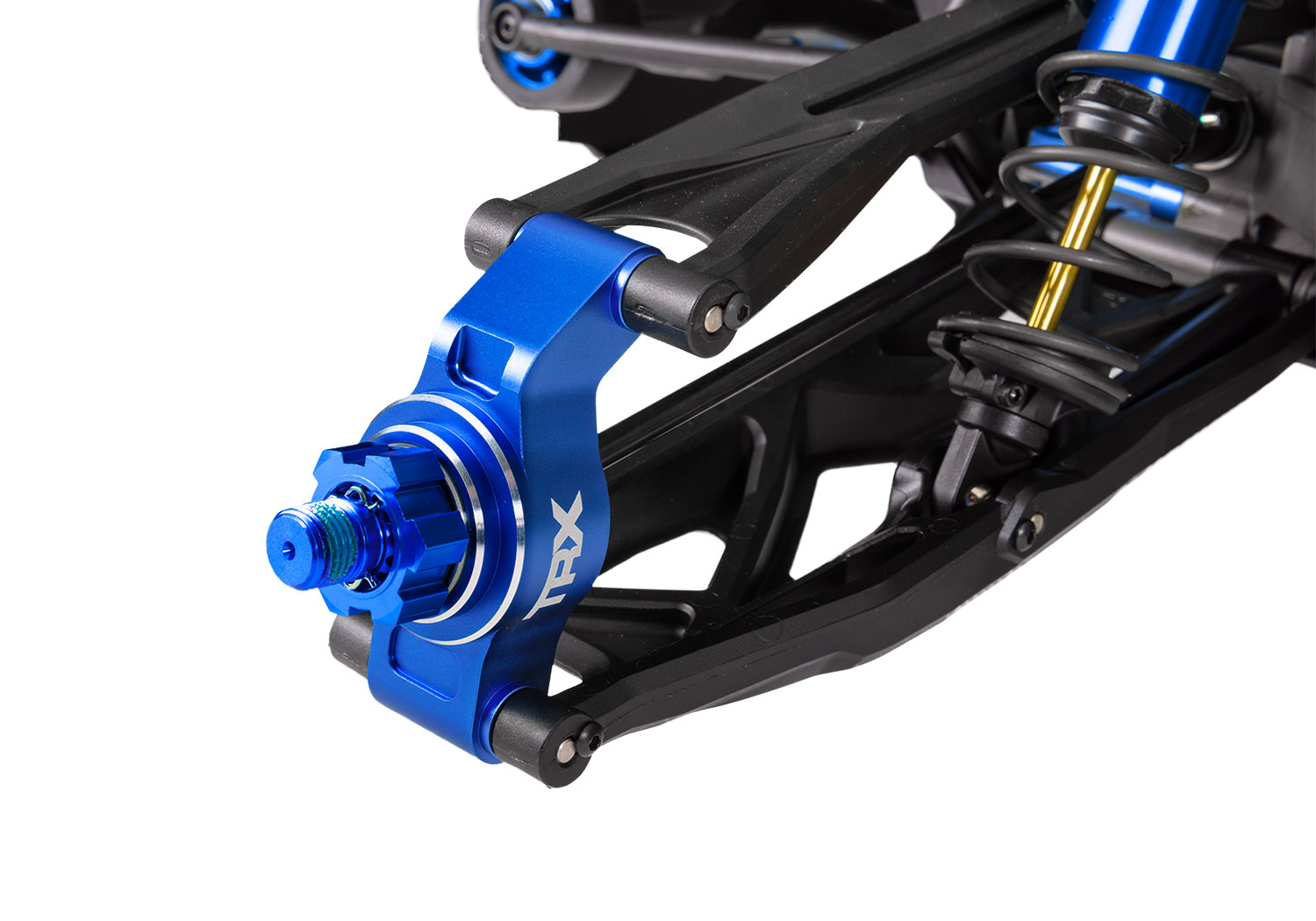

Aluminum Hub Carriers
6061-T6 aluminum stub axle carriers add both strength and beauty to XRT Ultimate without compromising its carefully tuned suspension geometry.

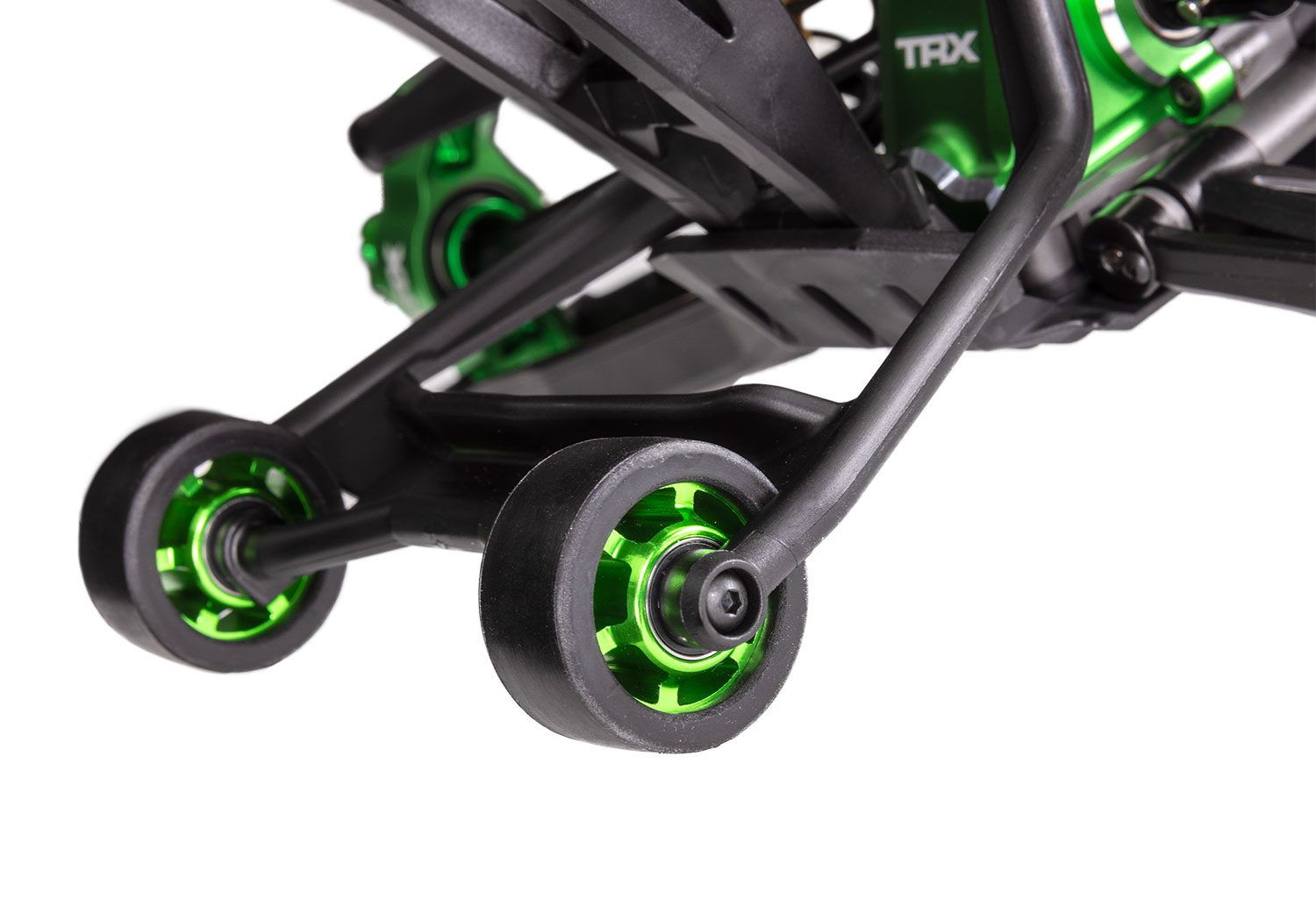

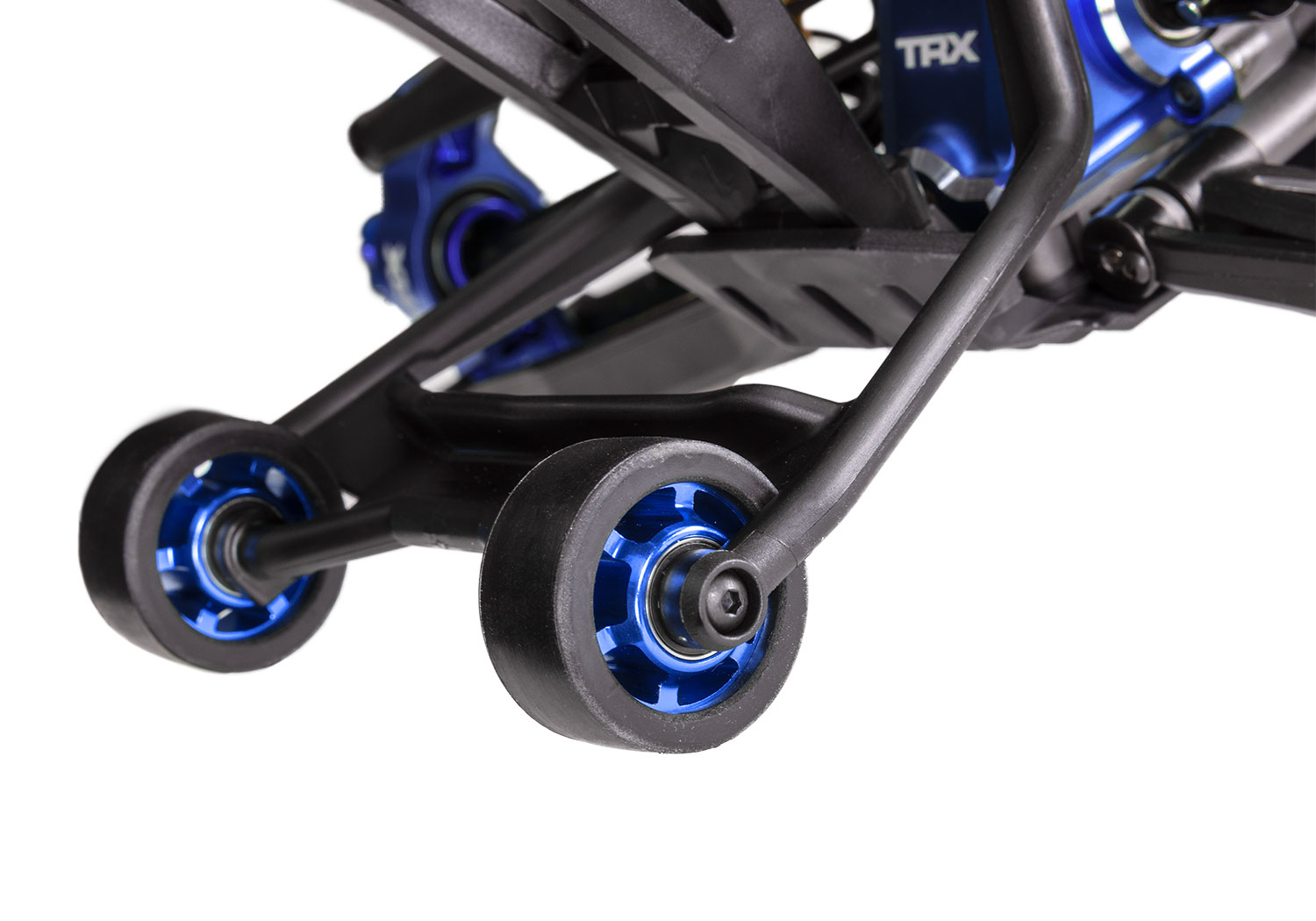

Aluminum Wheelie Bar Wheels
Aluminum wheelie bar wheels add brilliant eye-catching style to the already outrageous XRT Ultimate. Outfitted with aluminum axles and sealed ball-bearings, the wheels feature durable soft-compound tires to help harness XRT’s brutal horsepower.
Traxxas Link
Wirelessly adjust your transmitter settings and receive real-time telemetry from your model with Traxxas Link.
Unlock the full potential of your Traxxas TQi™ radio system
- SEE REAL-TIME TELEMETRYView and record speed, temperature, and voltage data while you drive
- CONTROL YOUR TRANSMITTER SETTINGSMake tuning adjustments on the fly and save your favorite settings
- MANAGE YOUR MODELS AND PROFILESSave individual setting and tuning data for up to 30 different vehicles
Photo Gallery
Make sure you don’t miss any of the latest XRT Ultimate news, accessories, and updates.
XRT® Ultimate Data
| Length (including wing): | 31.41 inches (798 mm) |
|---|---|
| Front Track: | 23.43 inches (595 mm) |
| Rear Track: | 23.43 inches (595 mm) |
| Ground Clearance: | 1.93 inches (49 mm) |
| Weight: | 21.55 pounds (9.79 kg) - with body 24.39 pounds (11.09 kg) - with body & two 4s 6700 mAh LiPos |
| Height: | 10.15 inches (258 mm) - ride height 12.12 inches (308 mm) - full droop |
| Wheelbase: | 18.9 inches (480 mm) |
| Shock Length (front): | 6.79 inches (173 mm) |
| Shock Length (rear): | 6.79 inches (173 mm) |
| Tires (Pre-Glued): | Gravix® Belted 7.4″ x 4.0″ (188 mm x 102 mm) |
| Wheels: | 4.3″ x 5.7″ (110 mm x 147 mm) |
| Speed Control: | Velineon® VXL-8s™ |
| Motor (electric): | Velineon 1200XL Brushless with heat sink and dual fan shrouds |
| Overall Drive Ratio: | 20.6:1 (20/50 motor pinion and spur gear) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch (Spur and Pinion): | Module 1.0 |
| Chassis Structure/Material: | Composite nylon tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Aluminum bellcrank |
| Radio System: | TQi™ 2.4 GHz 2-channel transmitter with factory-installed wireless module |
| Servo: | Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts) |
| Top Speed: | 60+ mph with two 4s LiPo batteries and optional overdrive gearing (sold separately) |
| Skill Level: | 5 |
| Battery Tray: | 186 mm x 51 mm x 44 mm |
| Required Batteries: | 4 “AA” (transmitter) and 4-cell LiPo battery (x2) |
| Type: | 1275 kV sensorless brushless |
|---|---|
| Weight: | 23.44 ounces (665 g) |
| Length: | 4.32 inches (110 mm) |
| Diameter: | 1.88 inches (48 mm) |
| Connector Type: | Traxxas 6.5 mm bullet connectors |
| Input Voltage: | 8s LiPo (max 33.6 volts) |
|---|---|
| Case Size: | 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm) |
| Weight: | 7.60 ounces (215.5 g) |
| BEC Voltage: | 6.0 volts |
| BEC Current Continuous: | 10 amps |
| BEC Current Peak: | 20 amps |
| Motor Connectors: | Traxxas 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Power Wire: | 10-gauge Maxx Cable |
| Ports: | RX input, auxiliary fan, accessory port |
- High-Performance Aluminum Upgrades
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
- 6061-T6 aluminum differential housings
- 6061-T6 aluminum motor mounts
- 6061-T6 aluminum wheelie bar wheels
- Aluminum motor washers
- VXL-8s™ Waterproof Electronic Speed Control
- Aggressive tuning for more power at any RPM
- Built-in cooling fan
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Velineon® 1200XL Brushless Motor
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5 mm output shaft
- Oversize aluminum heatsink for improved cooling
- Dual cooling fans
- Up to 60+ mph with Two 4s LiPo Batteries and Optional Overdrive Gears (sold separately)
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz 2-Channel Radio System with Factory-Installed Wireless Module
- Factory-installed telemetry sensors
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
- X-Maxx-Spec® 8s Drivetrain
- Full-time shaft-driven 4-wheel drive
- Machined, hardened steel pinion and spur gear
- Heavy-duty steel CV driveshafts & axles
- Splined aluminum center driveshaft
- Fully machined aluminum stub axles
- Transmission
- Mod-1 steel pinion and spur gears
- Torque-Biasing Center Drive
- Maxx-Spec 8s Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Splined outdrives attached with external thru-bolt method
- Reinforced bulkhead and covers increase bearing support
- Rock-Solid Motor Mounting System
- Rigid aluminum motor mounts
- Precise preset gear mesh adjustments
- 4 keyed pins lock the motor in place
- Motor retention separate from gear mesh
- GTX Aluminum Race Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Ultra-smooth TiN-coated 5.2 mm damper shafts
- Lower seal cartridge includes integrated wiper seal combination
- Aluminum upper spring retainers
- Aluminum shock caps with pivot balls
- Lower spring perches bolted on
- WideMaxx® Suspension
- Extra-wide suspension arms
- Made from heavy-duty cold-weather composite
- Double-shear connections
- High-strength steel suspension pins with aluminum retainers
- 4 mm machined pivot balls
- TUBES 7075-T6 Aluminum front toe links
- Oversized wheel bearings
- Extra-wide suspension arms
- Low-CG Chassis Design
- Modular chassis with interlocking bulkheads
- Low center of gravity for improved handling
- Flat bottom design
- Heavy-duty interlocking skid plates
- High strength buttressing on shock towers
- Dual snap-lock battery compartments
- Protects batteries from side impacts
- Allows secondary battery clip security
- Interlocking components for tight tolerances
- ProGraphix® Clipless Body
- Snaps in place in just seconds
- Secure body latches are easy to use
- Rigid internal frame
- Dual cold-air intakes
- Molded body reinforcements for tear-through protection
- Protective top skids
- Rugged high-downforce rear wing
- Heavy-Duty Bumpers
- Reinforced front bumper and rear wing support
- Absorbs impact forces while retaining shape
- Nerf bars for side impact resistance
- Heavy-duty wheelie bar with carry handle
- Wheels and Tires
- 7.4″ Gravix® belted race tires
- Belted carcass virtually eliminates ballooning at high speed
- Low sidewall for sharp turn-in response
- Runs quieter than traditional off-road tires
- 4.0″ matte black XRT race wheels
- High-strength glue and bead design
- Huge 24 mm splined wheel hubs
- Steering
- 6061-T6 aluminum steering bellcranks
- Powerful 450 oz-in metal-gear steering servo
- Double-shear aluminum servo horn
- Heavy-duty servo saver spring
- Dirt evacuation channels
What’s In The Box:
- XRT Ultimate, Ready-To-Race® model with Traxxas Big Block™ brushless motor
- VXL-8s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (part 2997).
- LiPo Balance Charger with iD®
Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
