Short Course Supremacy
Traxxas rocked the world years ago with the release of the Slash, launching a short course revolution and a generation of enthusiasts that have propelled Slash to become the best-selling truck in RC. Now, Slash is going even bigger. We MAXXed the Power, Size, Durability, and Excitement!
Available Now In-Store & Online!
MODEL #102076-4$699.95
6s Power
Maxx Slash punches harder and faster with brutal 6s power and 70+mph speed. Low center of gravity and new belted tires keep it all in control.

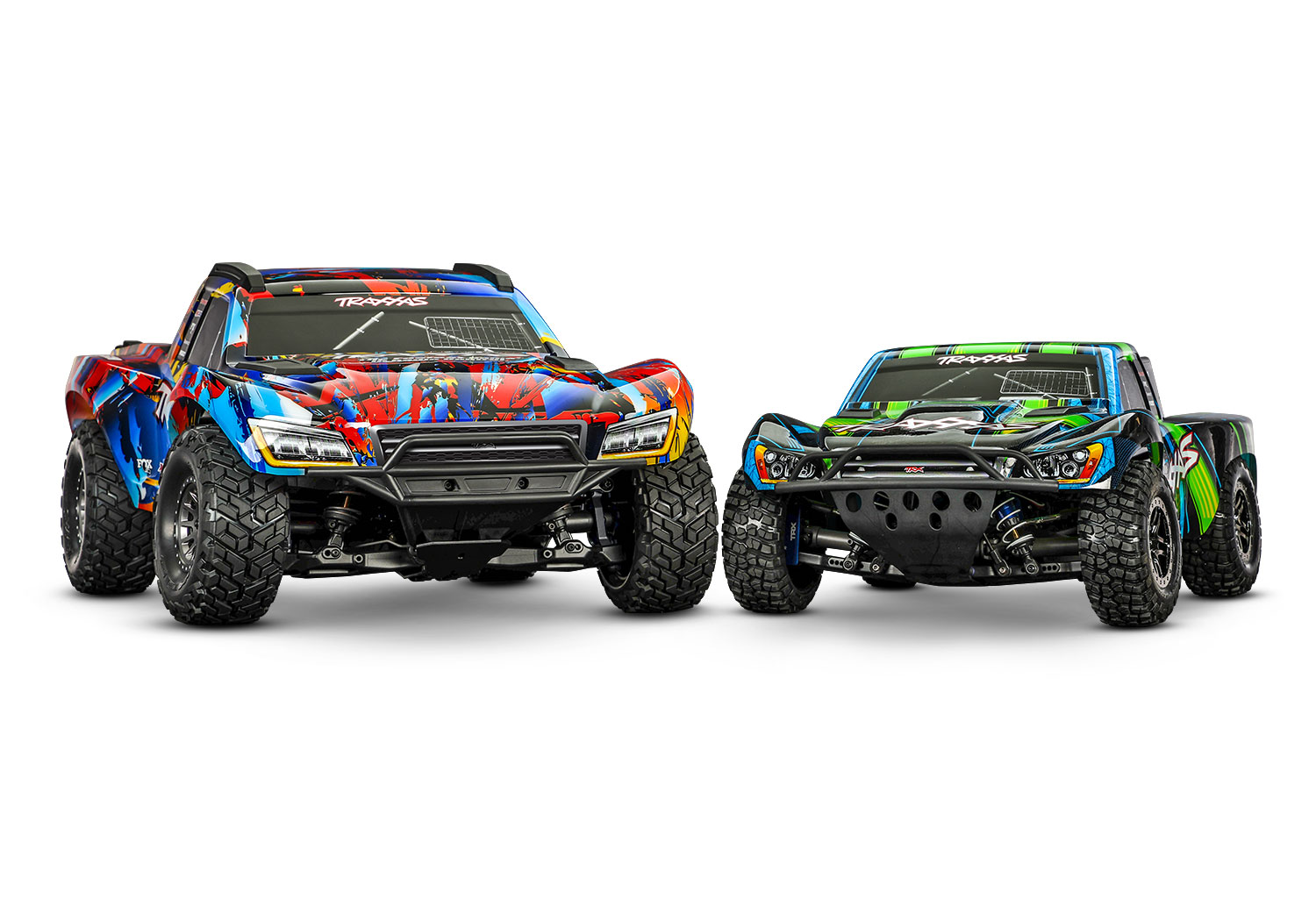

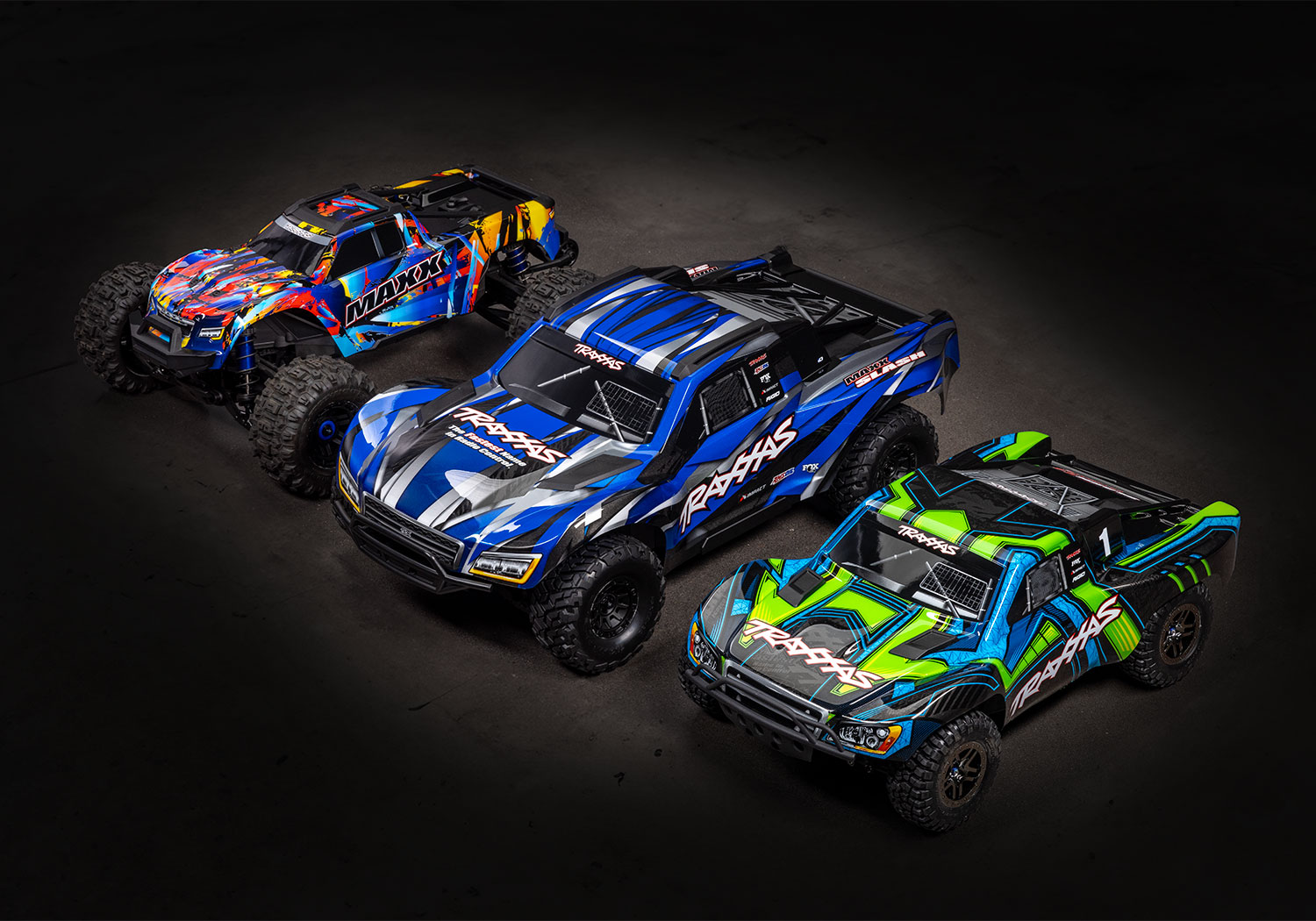

Maxx-Sized Slash
Being big is good. Being the perfect size for maximum performance is best. Maxx Slash is the perfect size to power aggressively over the roughest terrain imaginable, yet it is still feels light, responsive, and agile.
Maxx Strength
The Maxx platform has already proven it’s synonymous with durability. The engineering on Maxx Slash continues to innovate, adding even more strength for critical 6s power handling and faster, harder-hitting action.

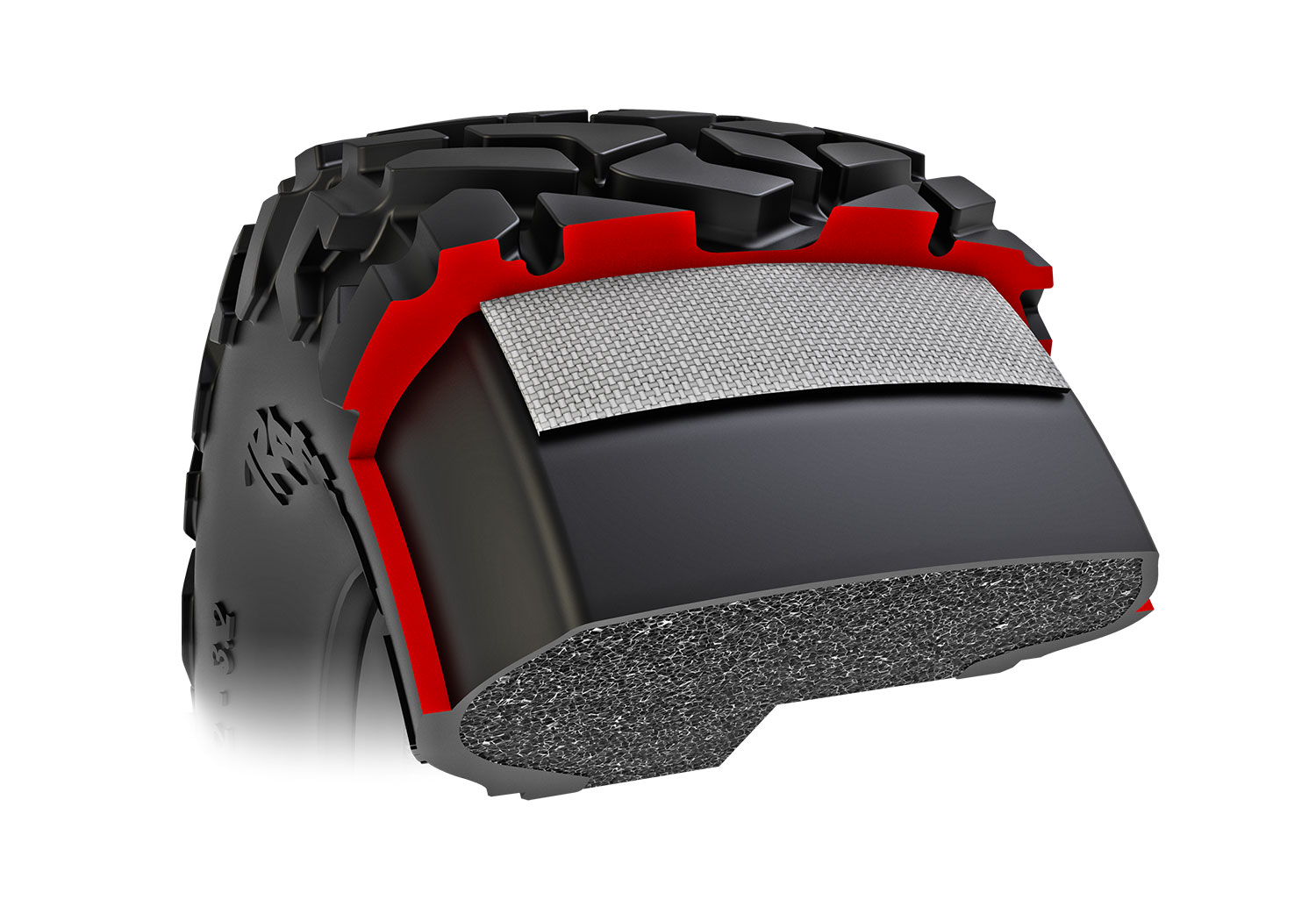

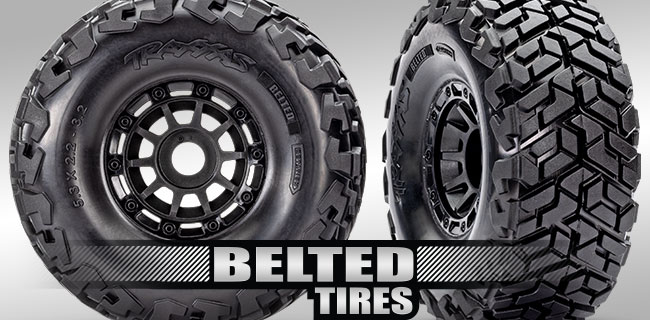

Belted Tires
Maxx SC belted tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing precision and control. Tire uniformity is critical for stability, especially at the top of its 70+mph speed range.
Video
The Traxxas Experience
The all-new Maxx Slash delivers class-leading power, ultimate quality, and durability that is engineered to be second to none.
Details

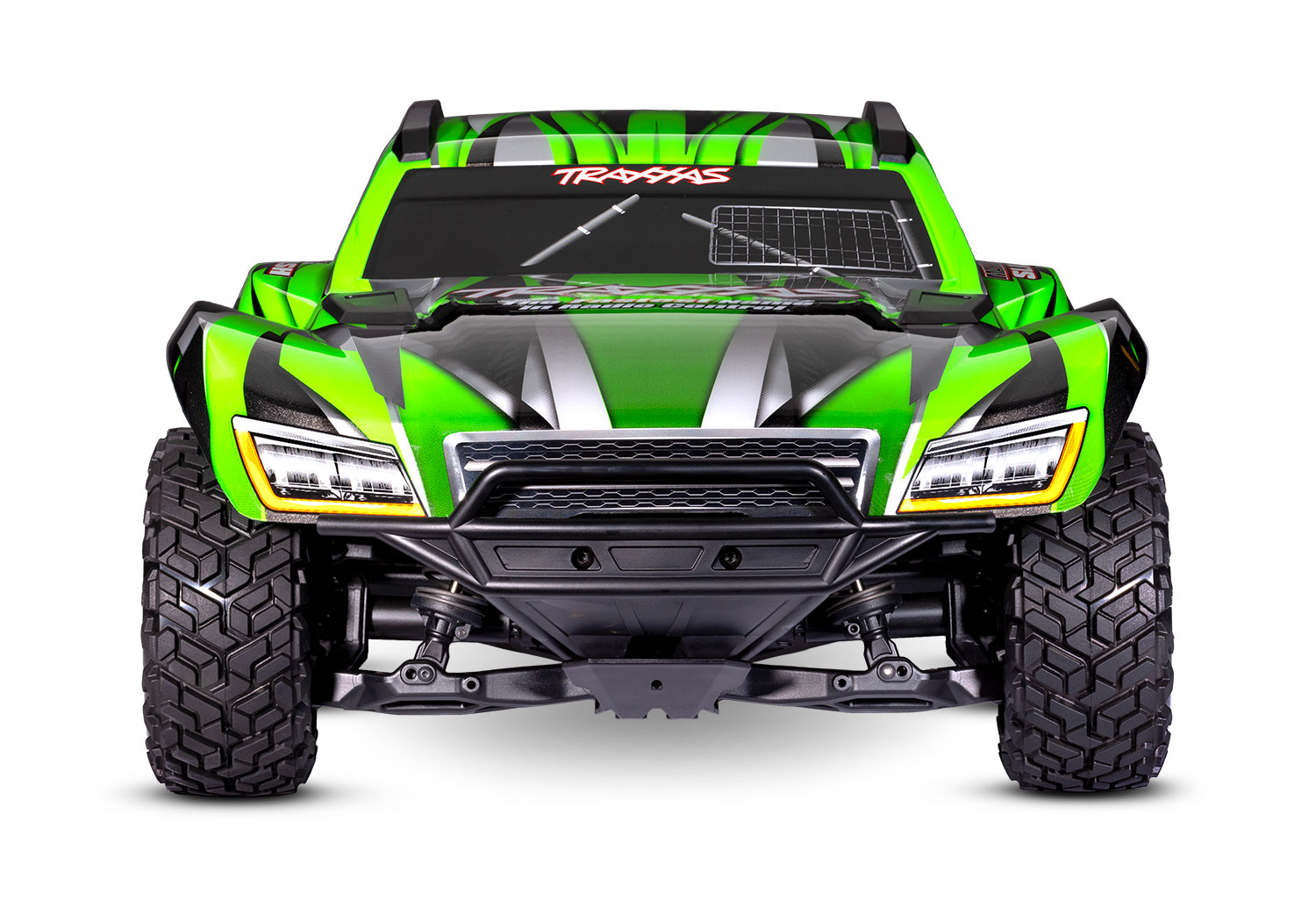

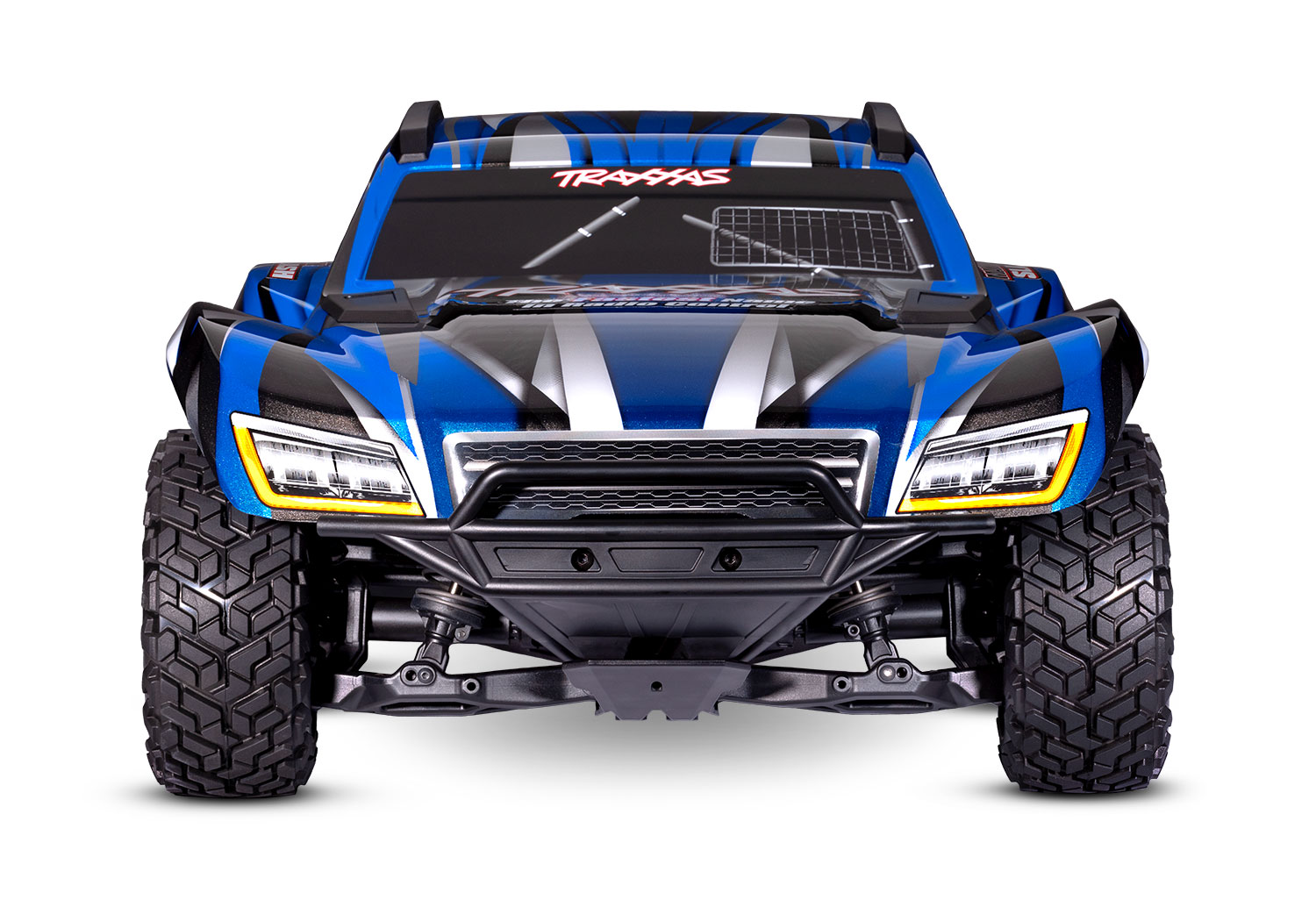

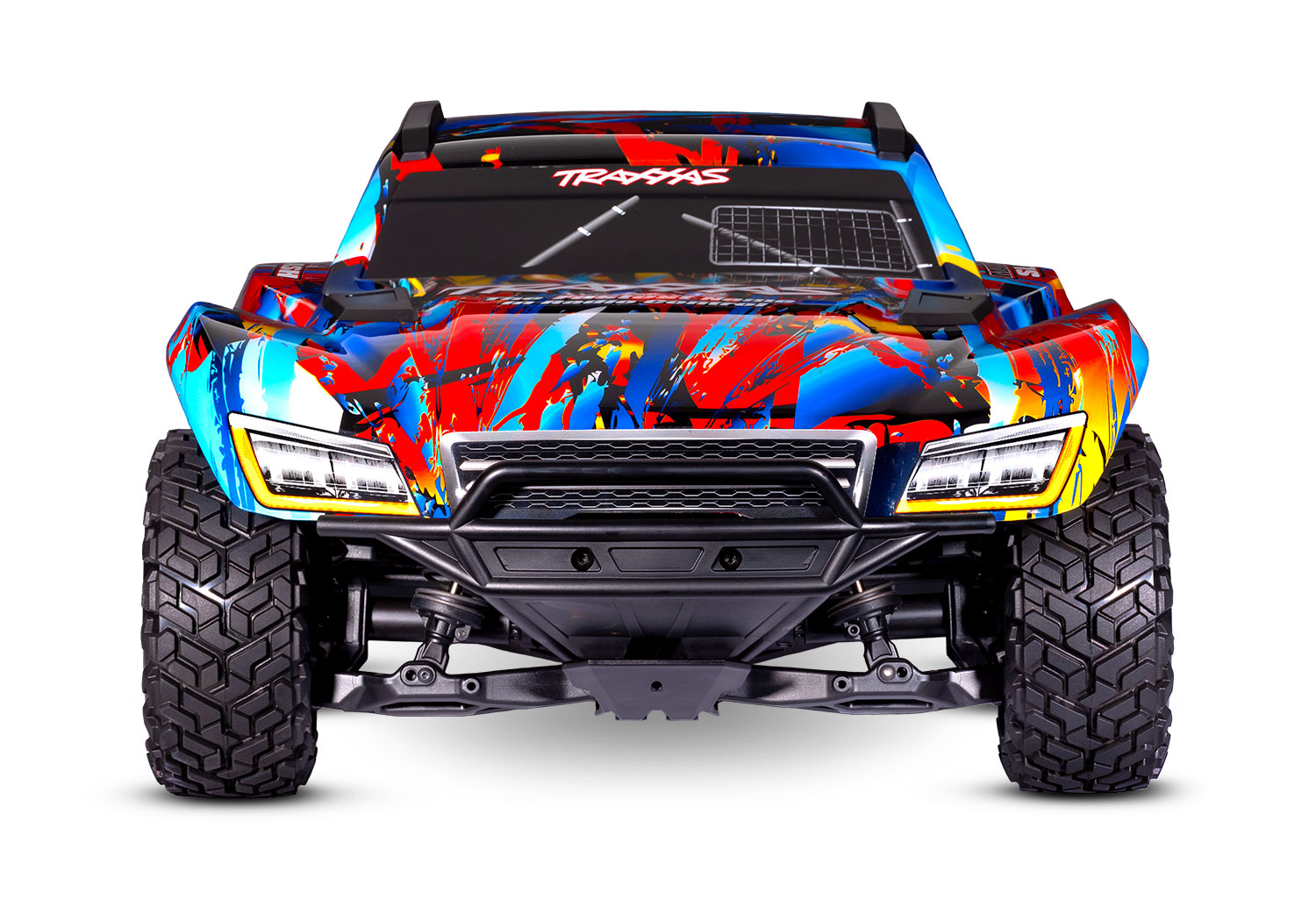

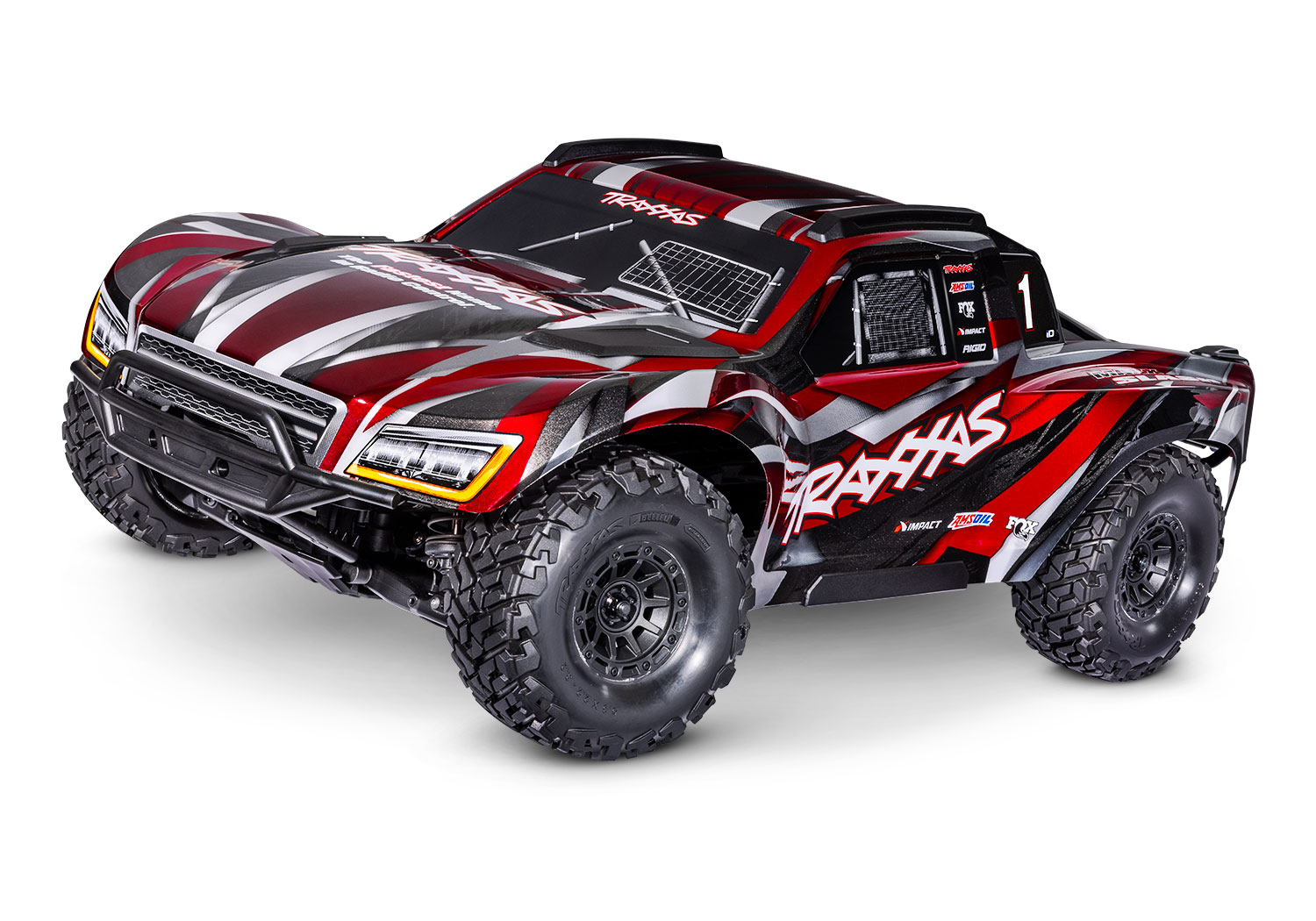

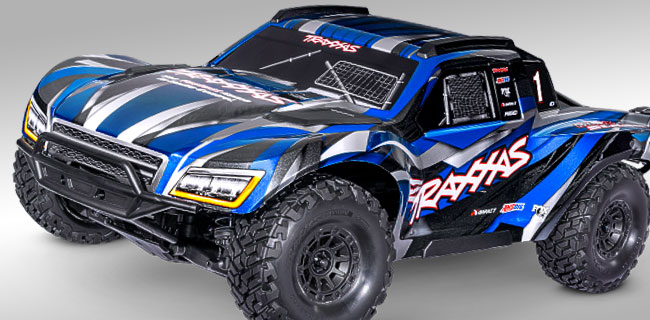

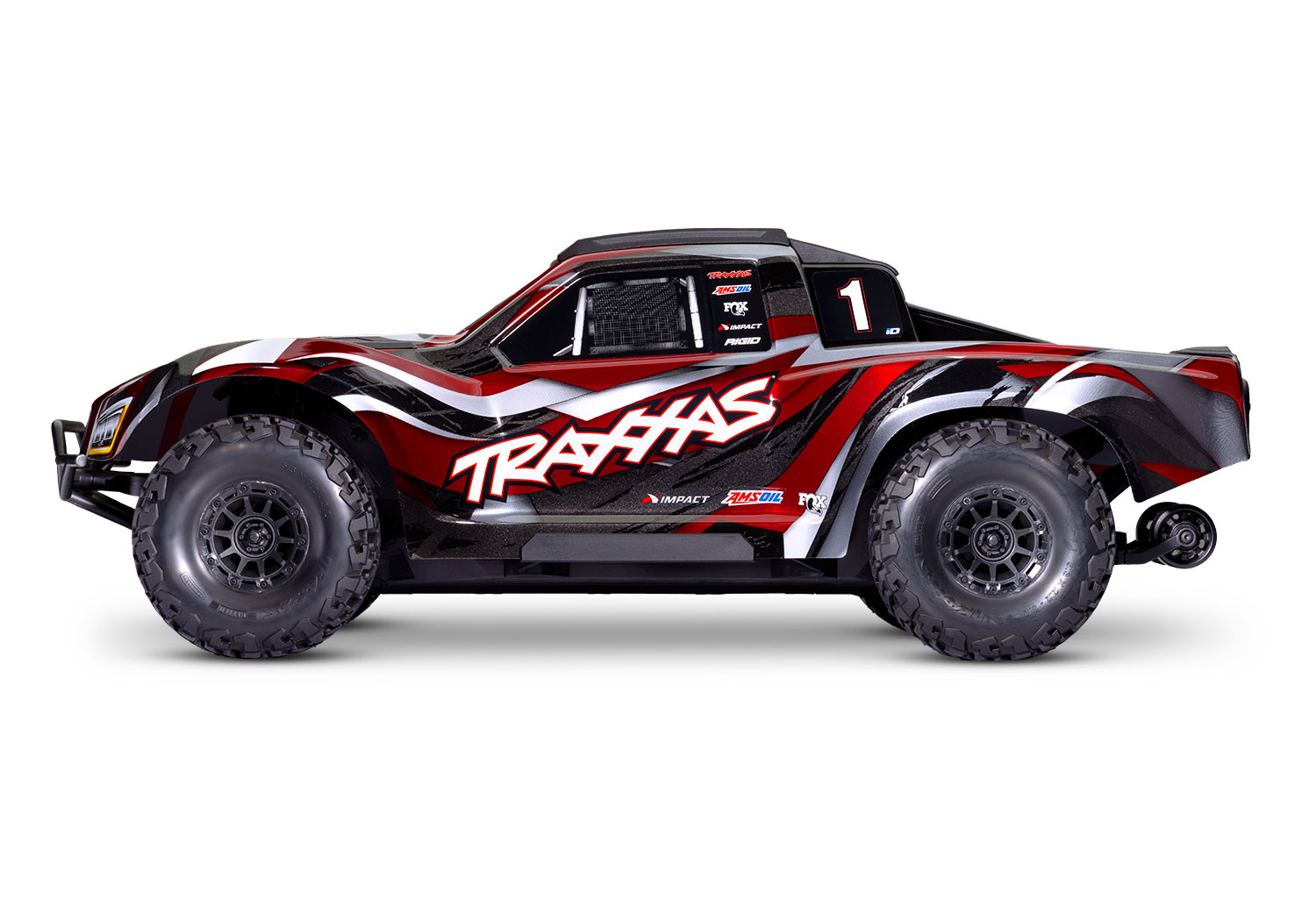

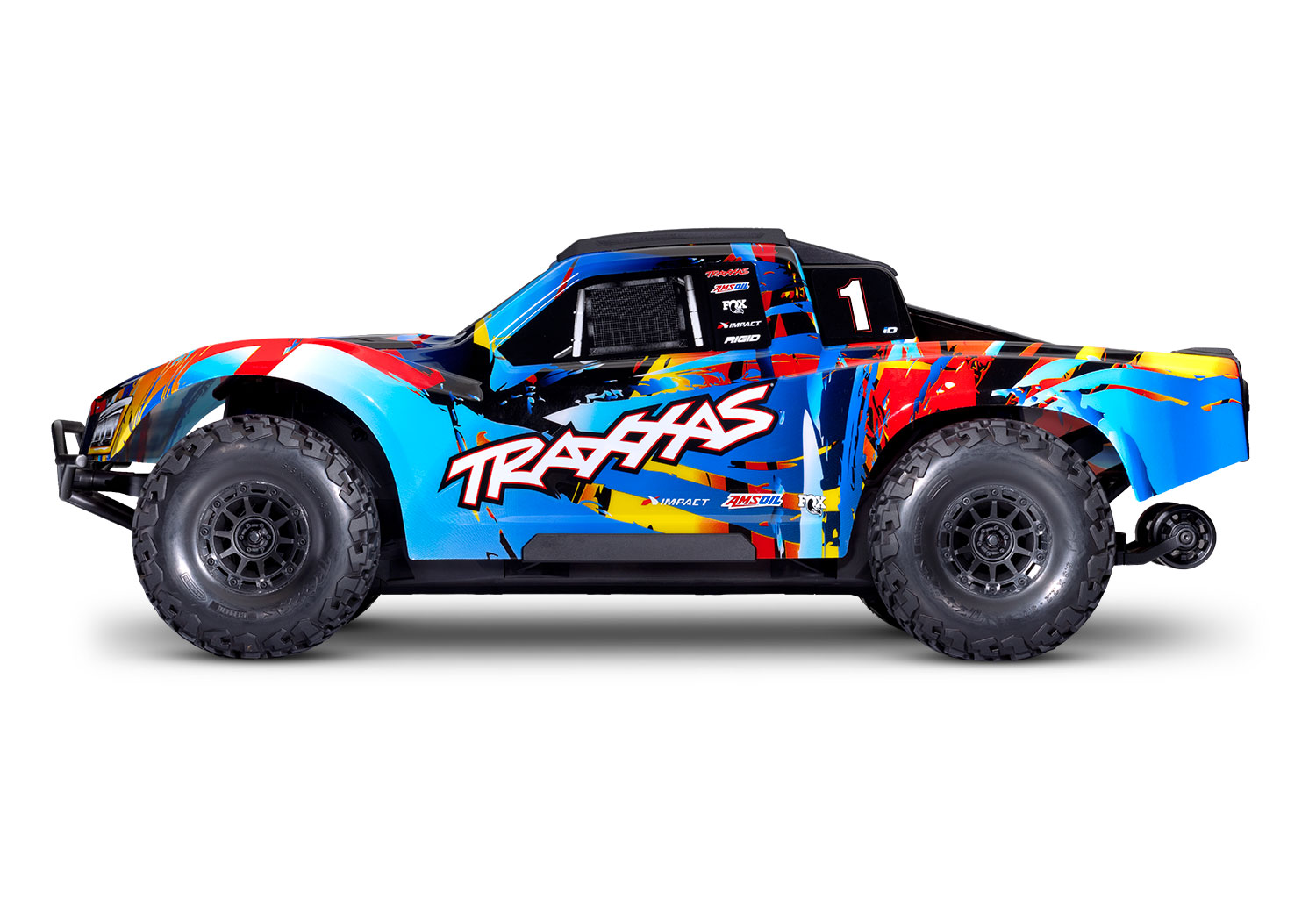

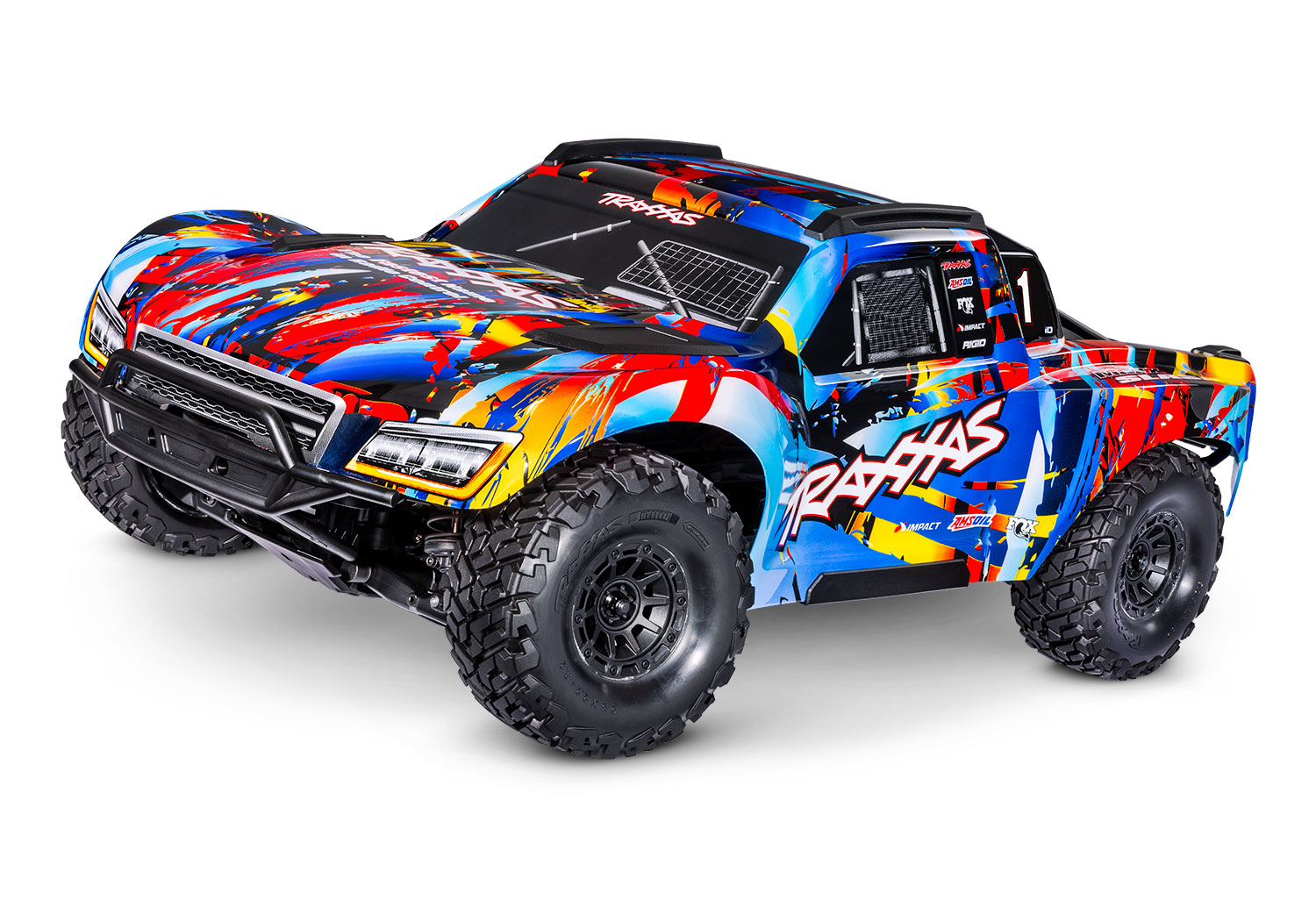

Aggressive Short Course Body
Maxx Slash retains the unmistakable short course body style of its Slash lineage but injects it with a healthy dose of high-horsepower adrenaline. Wide fenders and sculpted lines give Maxx Slash a more aggressive look while rugged body reinforcements keep it looking fresh after a rough day at the track.

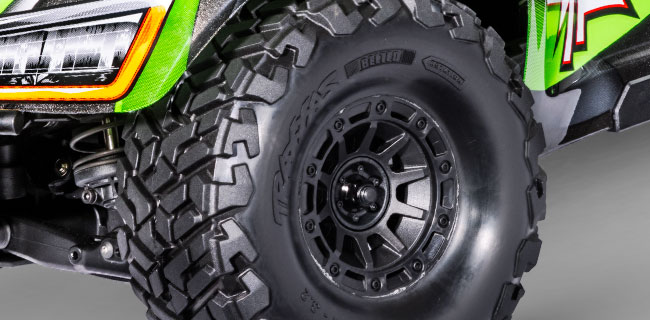

Short Course Wheels
Maxx Slash rides on dual-diameter short course wheels with a large glue surface for secure bead mounting. The wheels are fully sealed to keep out dirt and water that can upset tire balance and degrade the foam inserts. An internal 17mm splined hub provides maximum power transfer with a flanged outer locknut for a more realistic appearance.

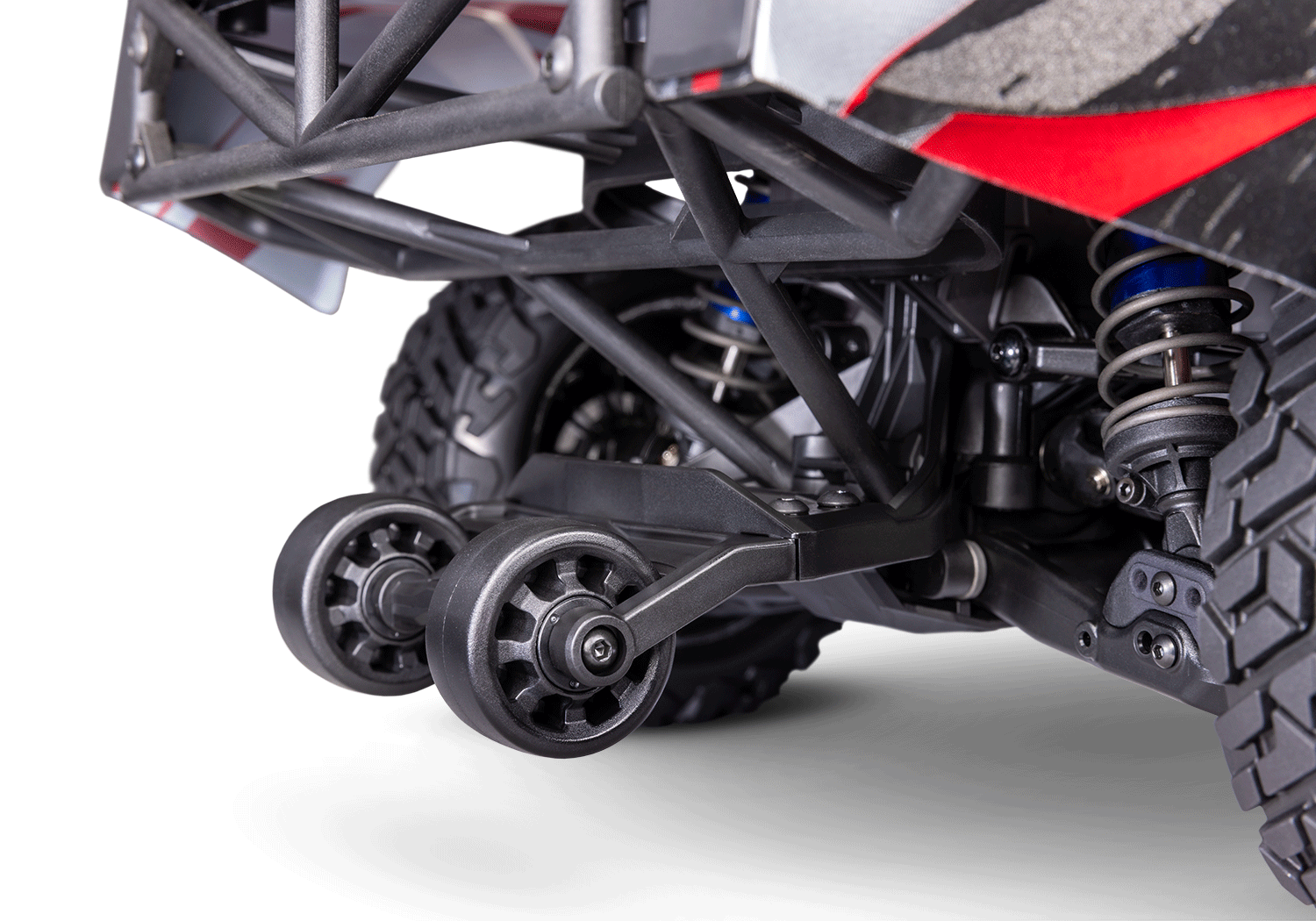

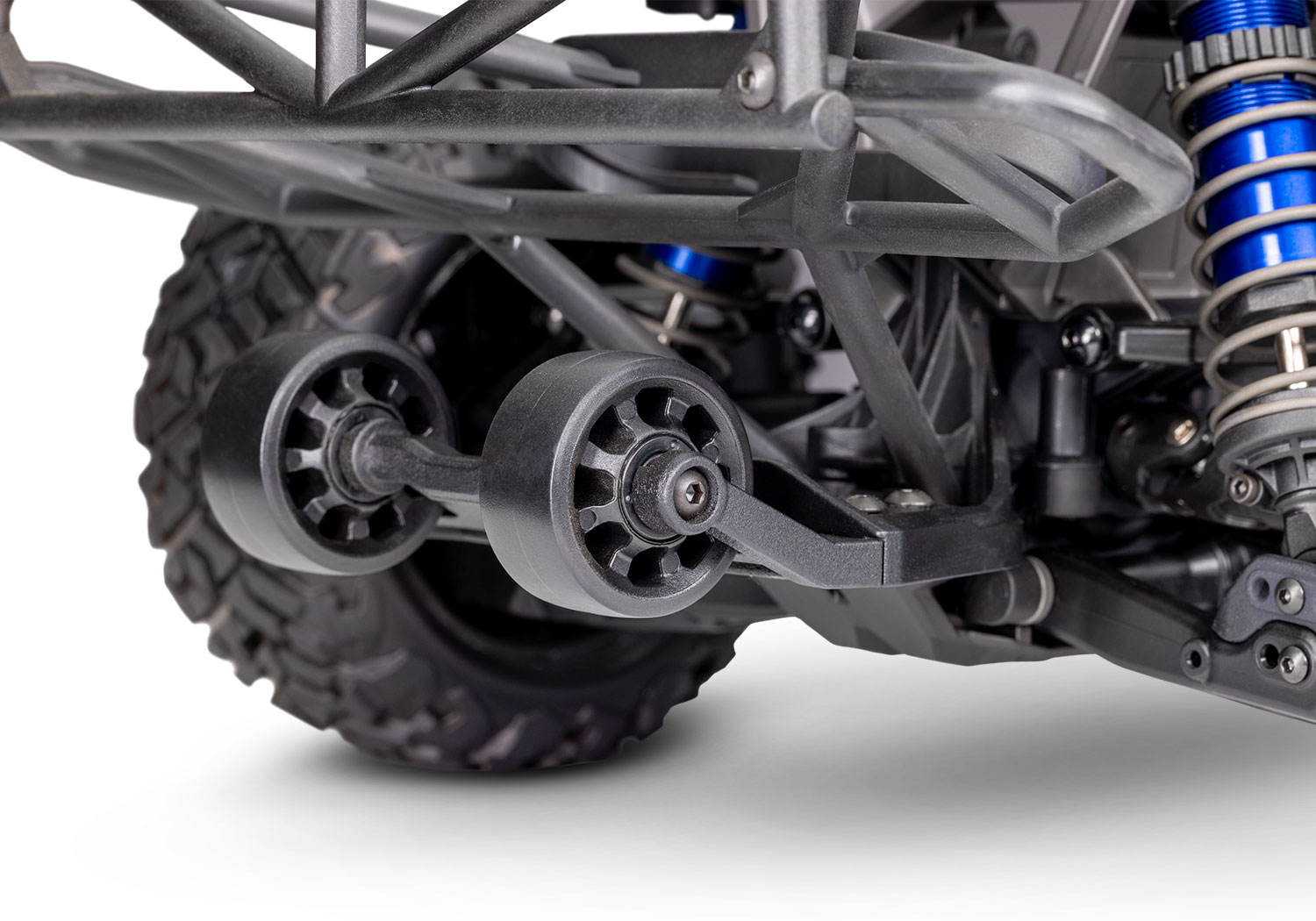

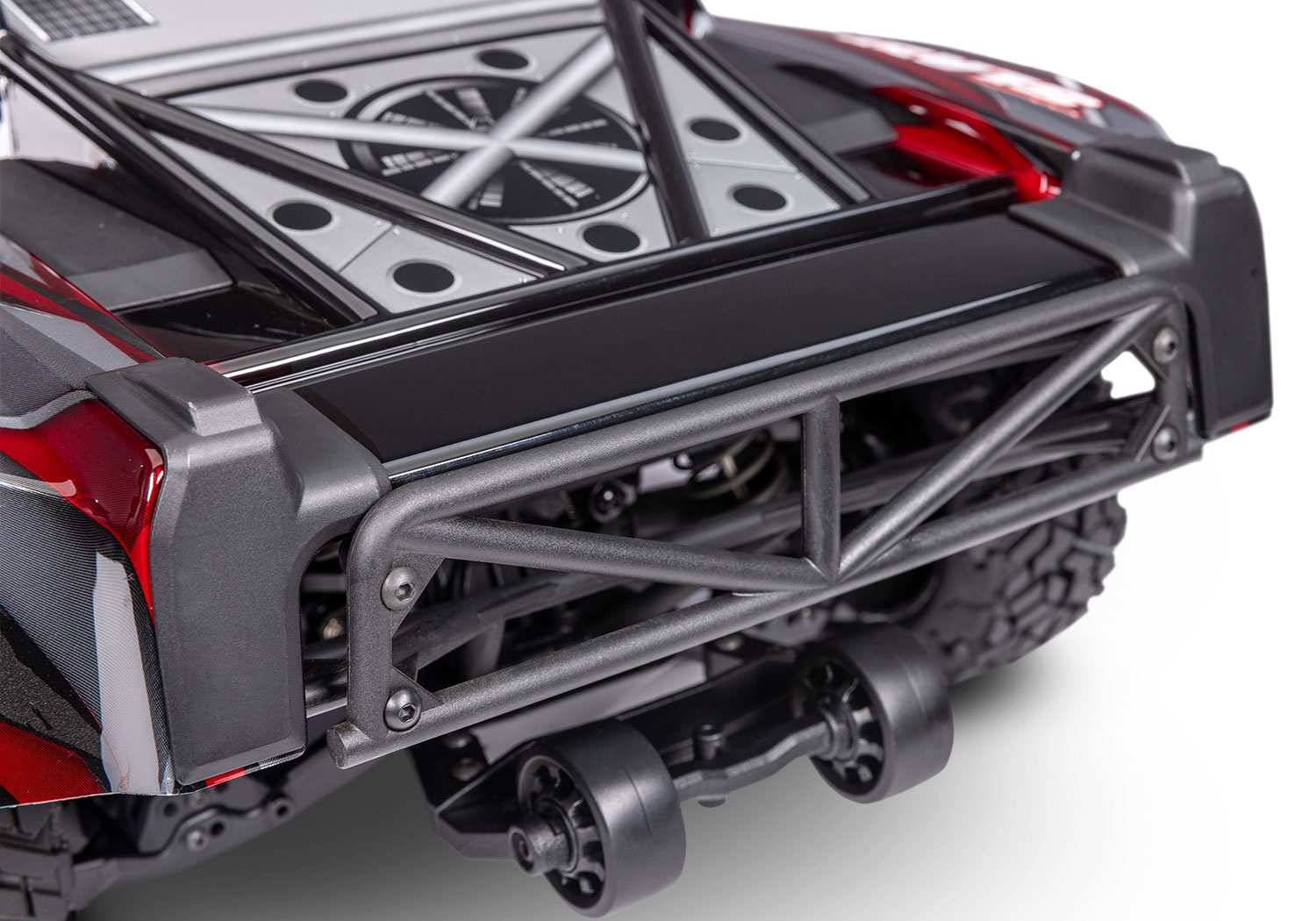

Adjustable Wheelie Bar
With the hard-hitting punch of 6s power on hand, an adjustable wheelie bar is required. Maxx Slash’s adjustable wheelie bar maximizes traction and control during full throttle acceleration. Set it low to prevent lift during full throttle acceleration on hard surfaces, or set it higher to serve as a transparent backstop during high-speed, high-flying off-road action.

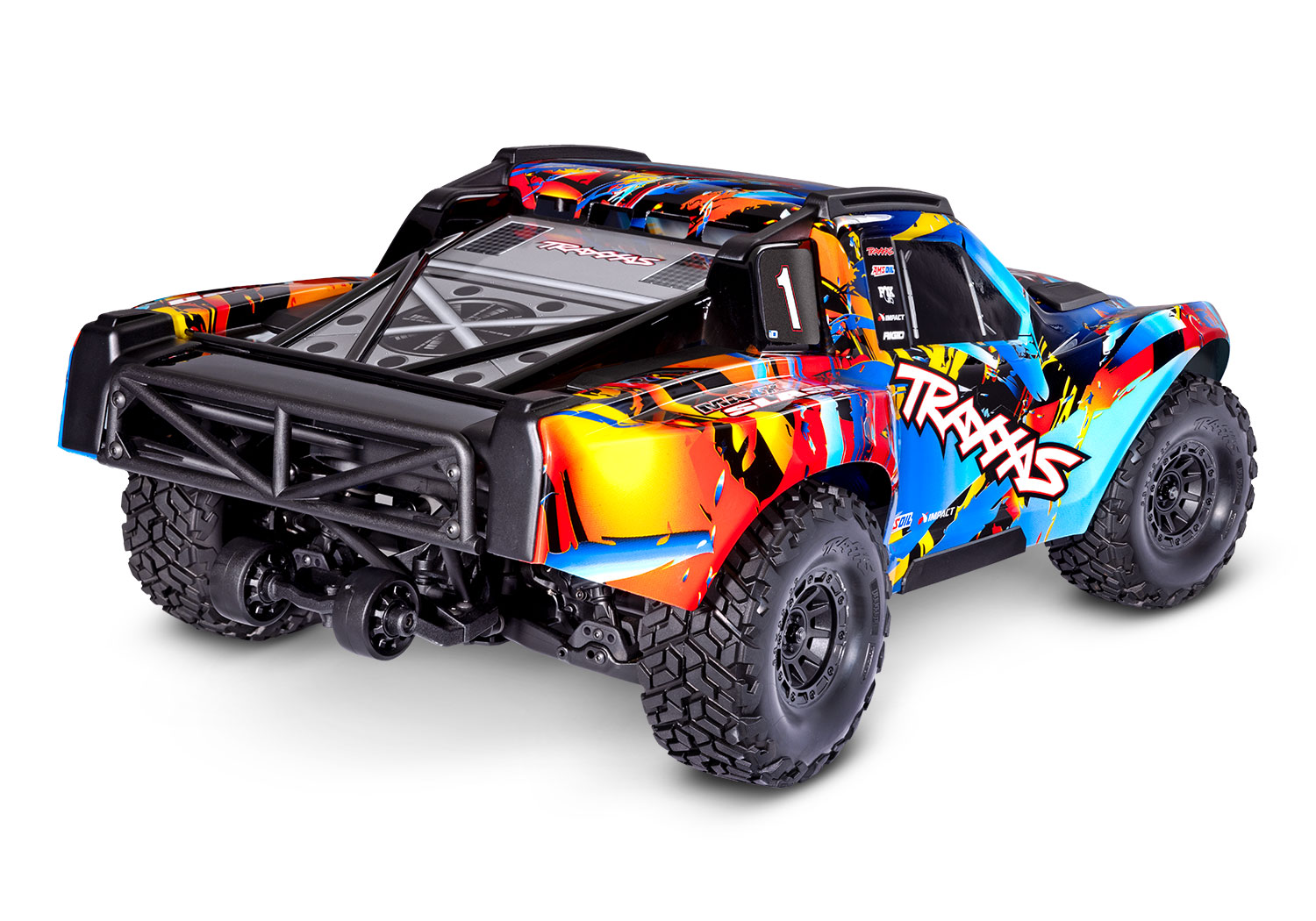

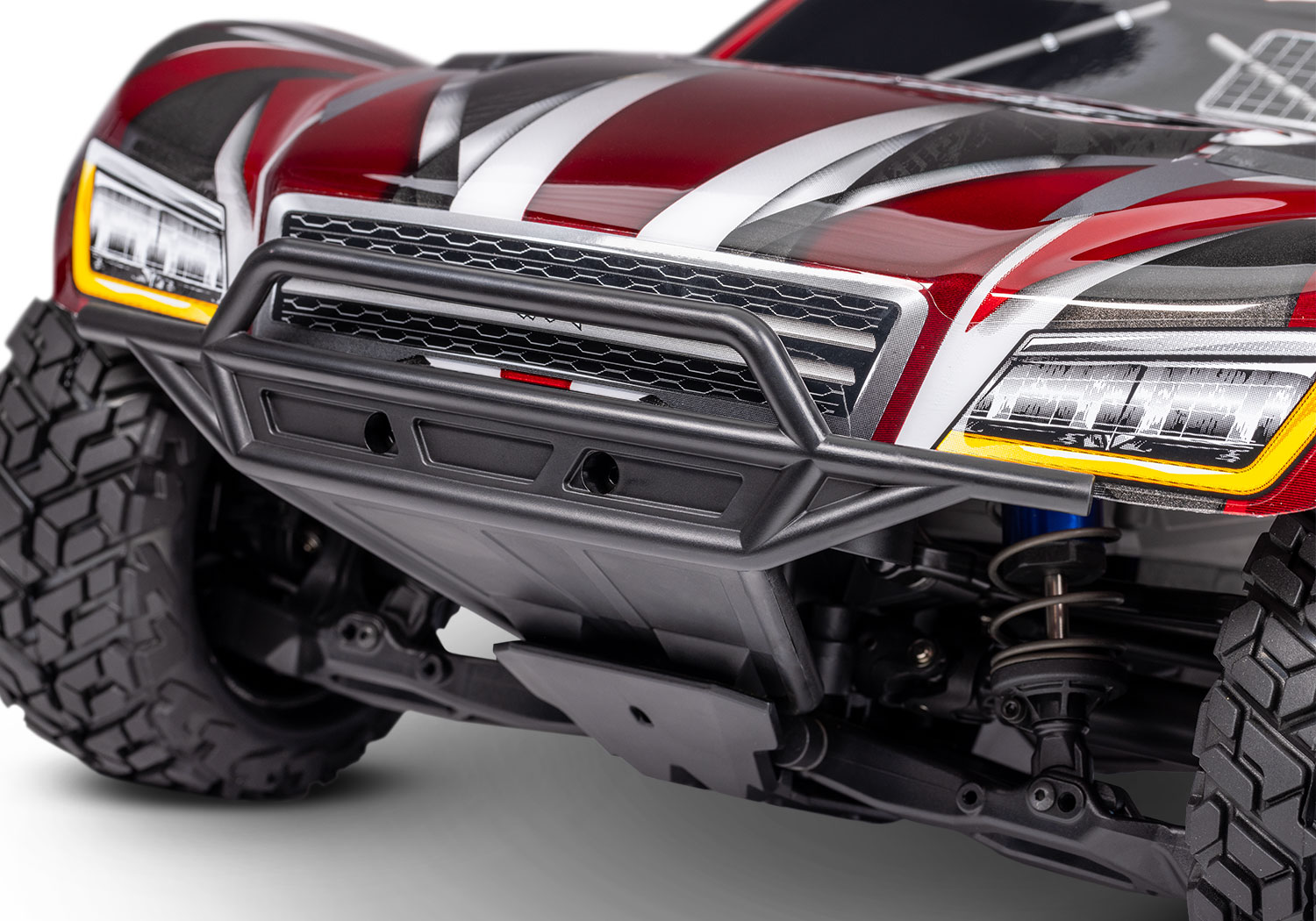

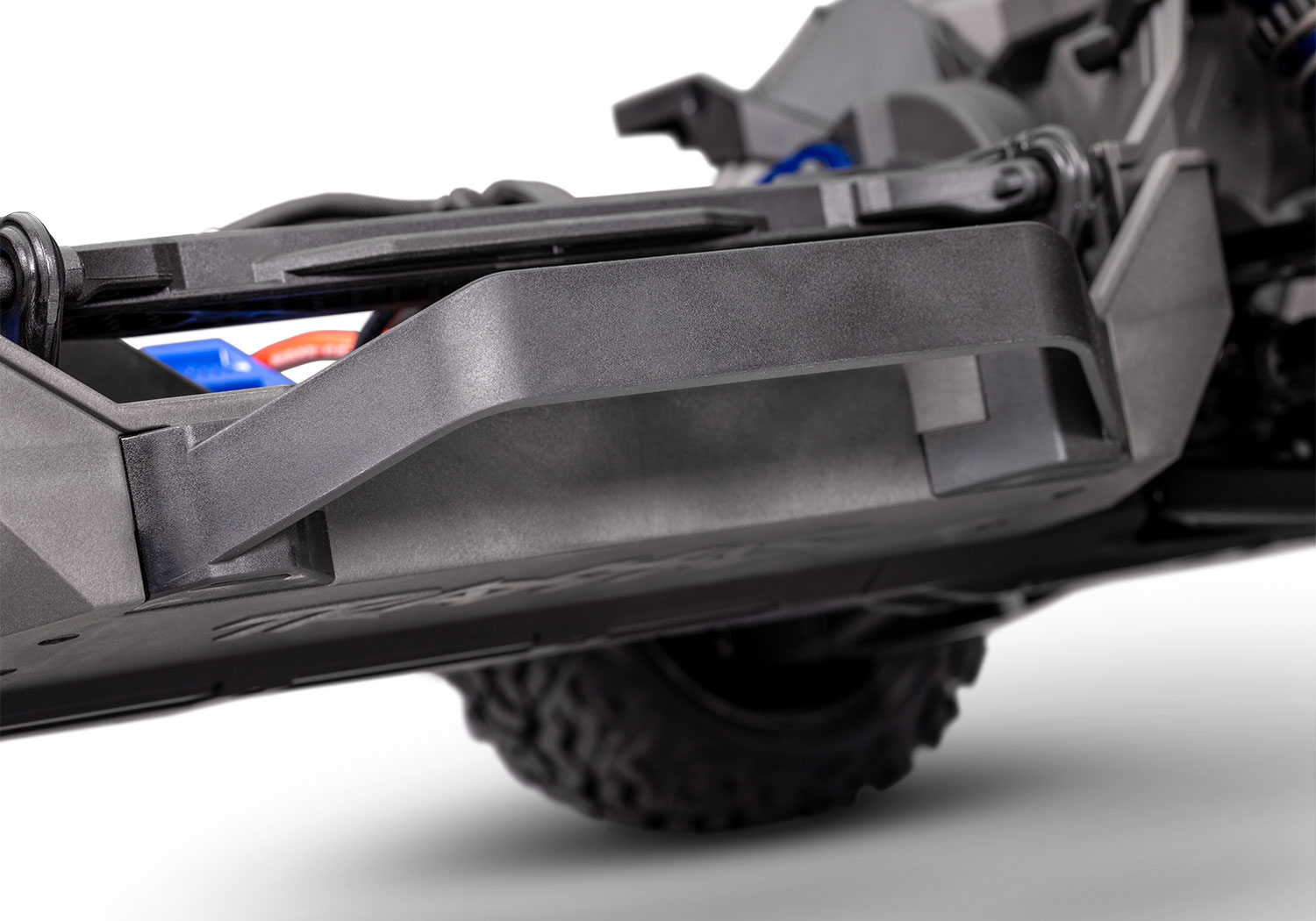

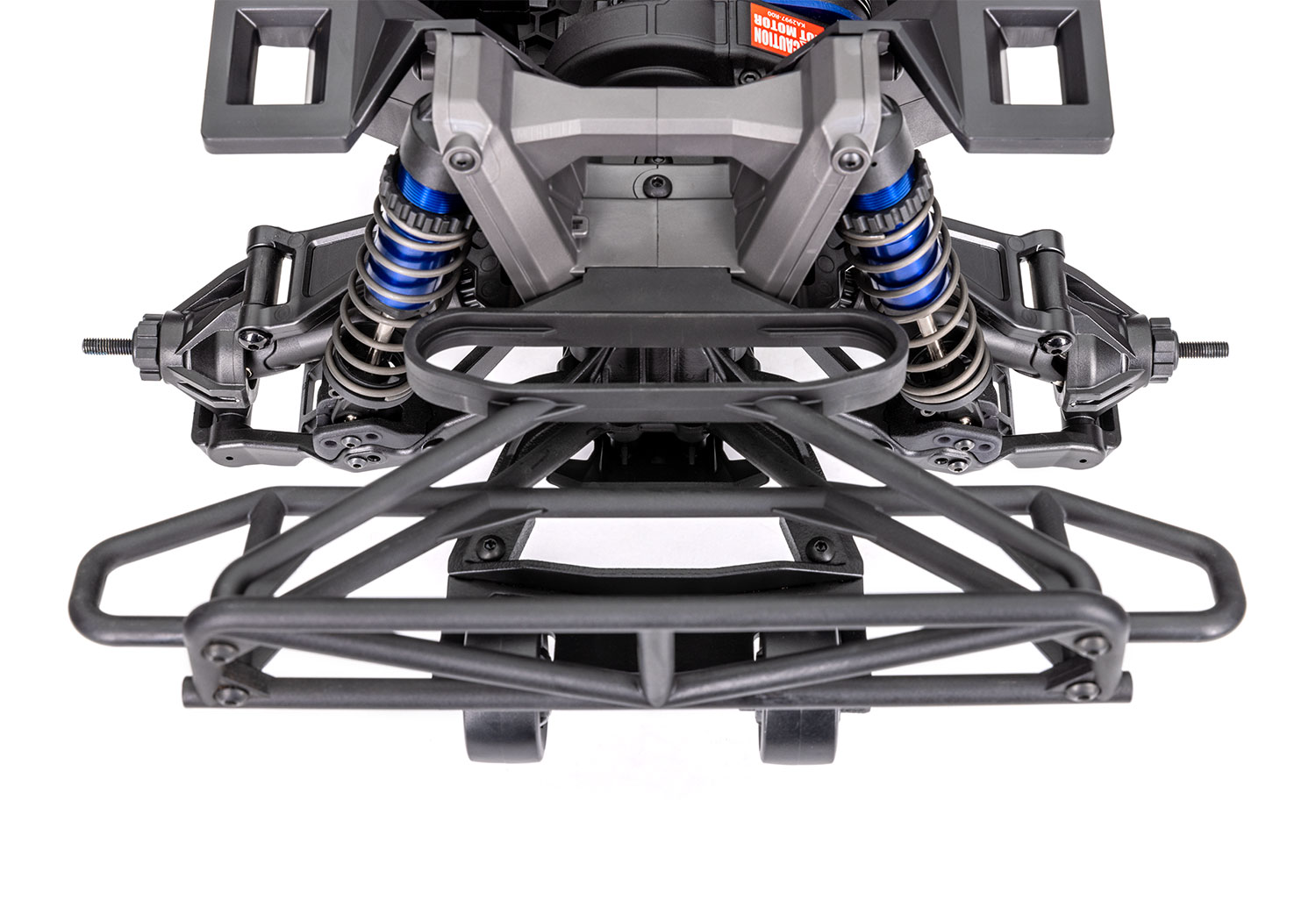

Heavy Duty Bumpers
Heavy-duty front and rear Slash-style bumpers help protect critical components from impacts. The bumpers, combined with a short course body that covers the tires, allow for fender-to-fender contact for competitive and authentic racing action.

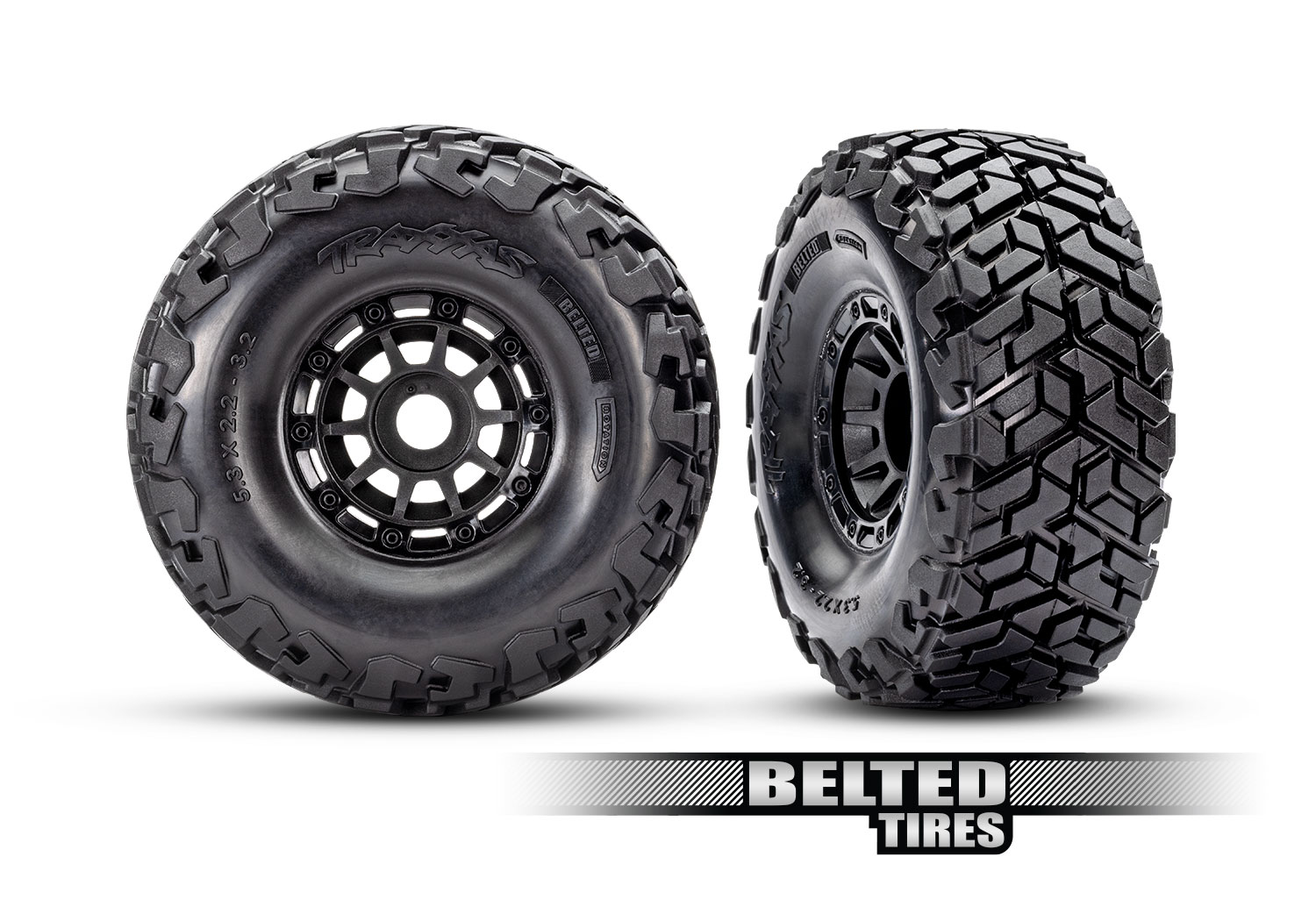

Belted Maxx SC Tires
Large-diameter Maxx SC tires feature wide tread blocks for sure-footed traction on just about any surface. The innovative belted design combines with a long-wearing rubber compound for total control across a variety of terrain. Belted Maxx SC tires work just as well on pavement and provide realistic performance as you powerslide Maxx Slash around corners.

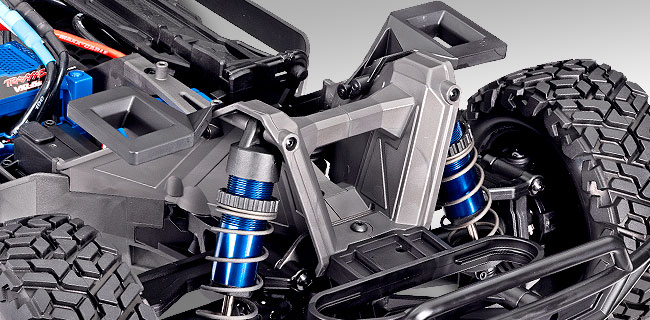

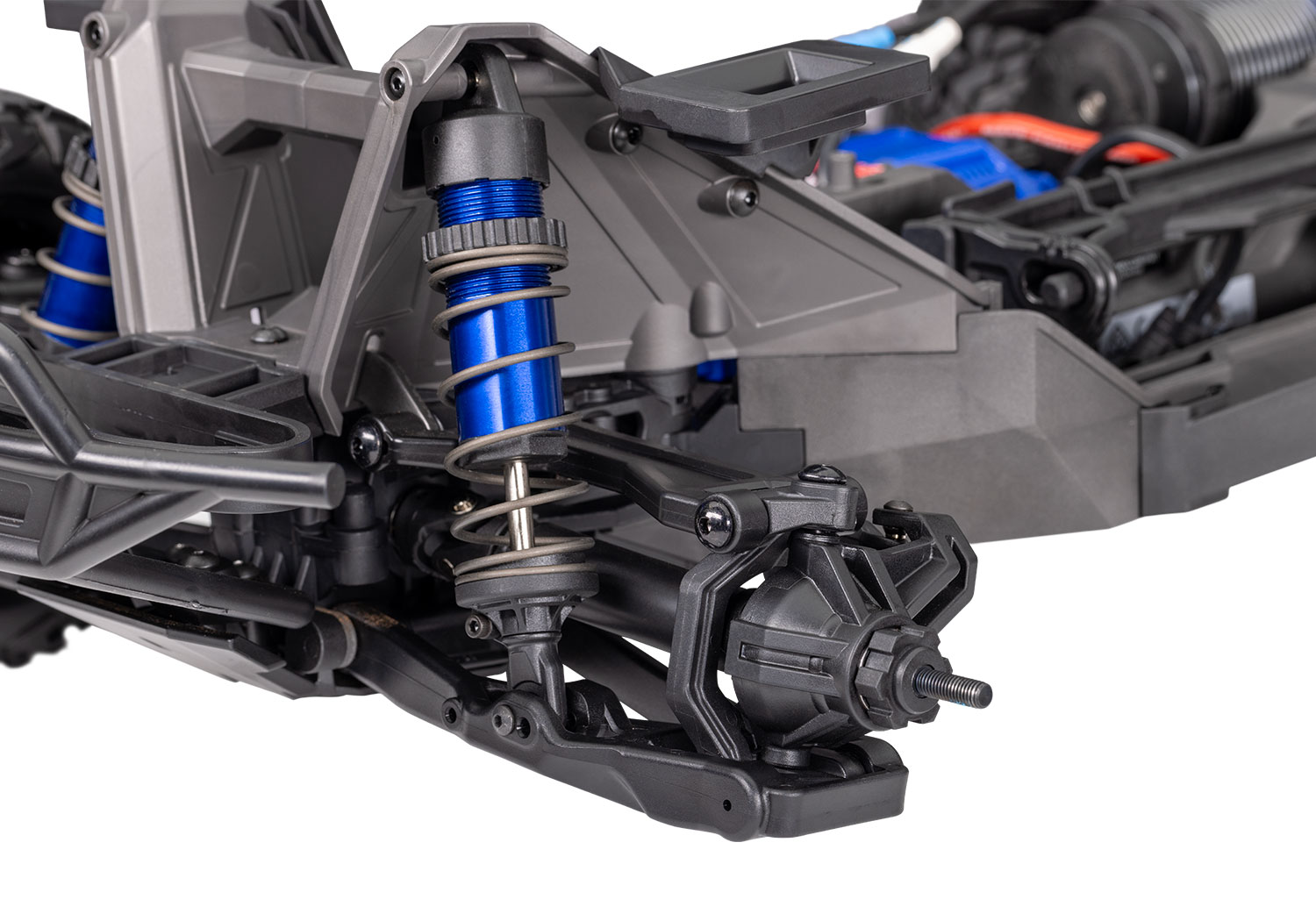

Shock Tower Design
Maxx Slash’s integrated shock towers are part of the chassis and produce a rigid, triangulated structure to mount and protect the shock caps. Heavy-duty body mounts secure directly to the reinforced shock towers for maximum strength and impact resistance.

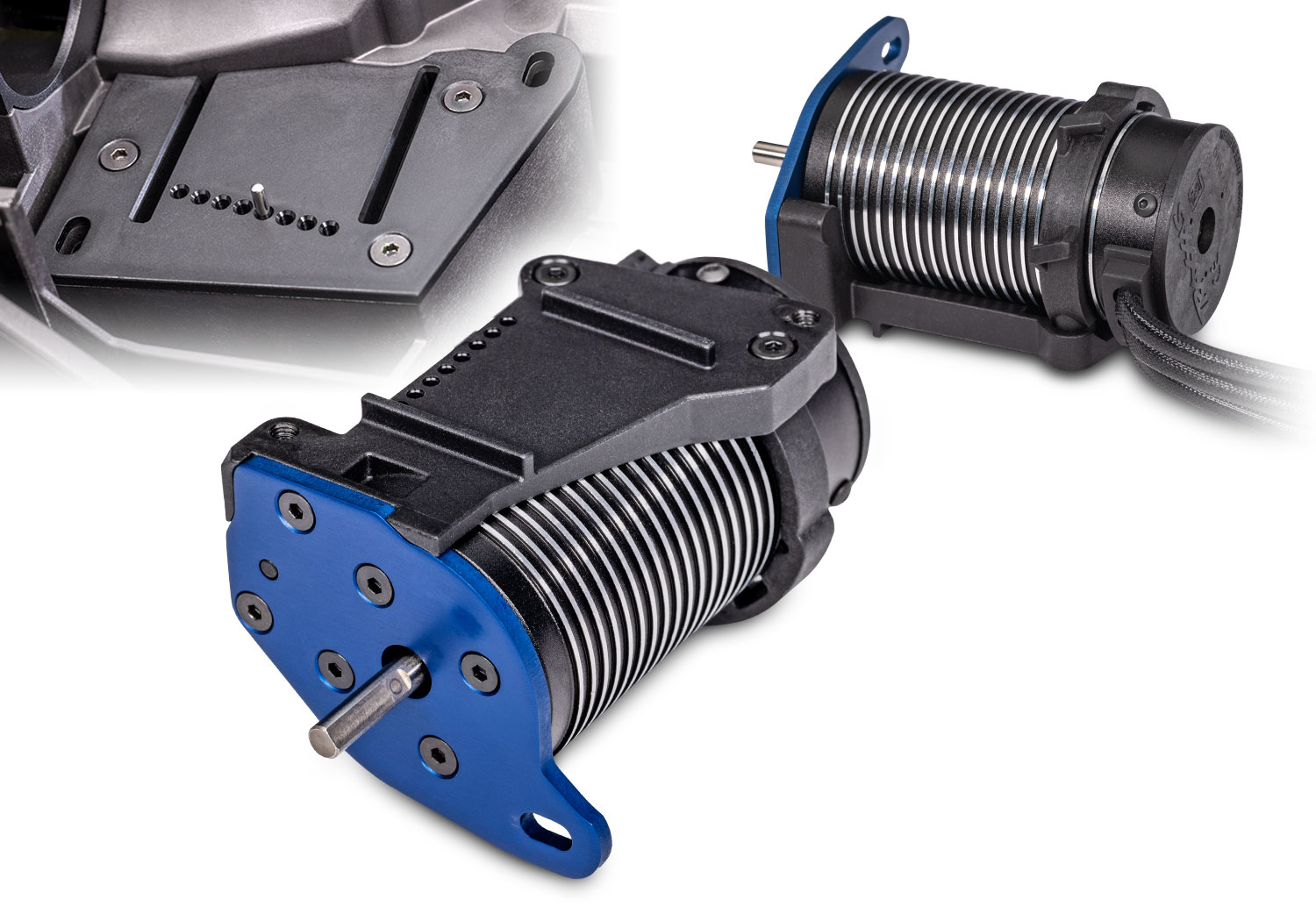

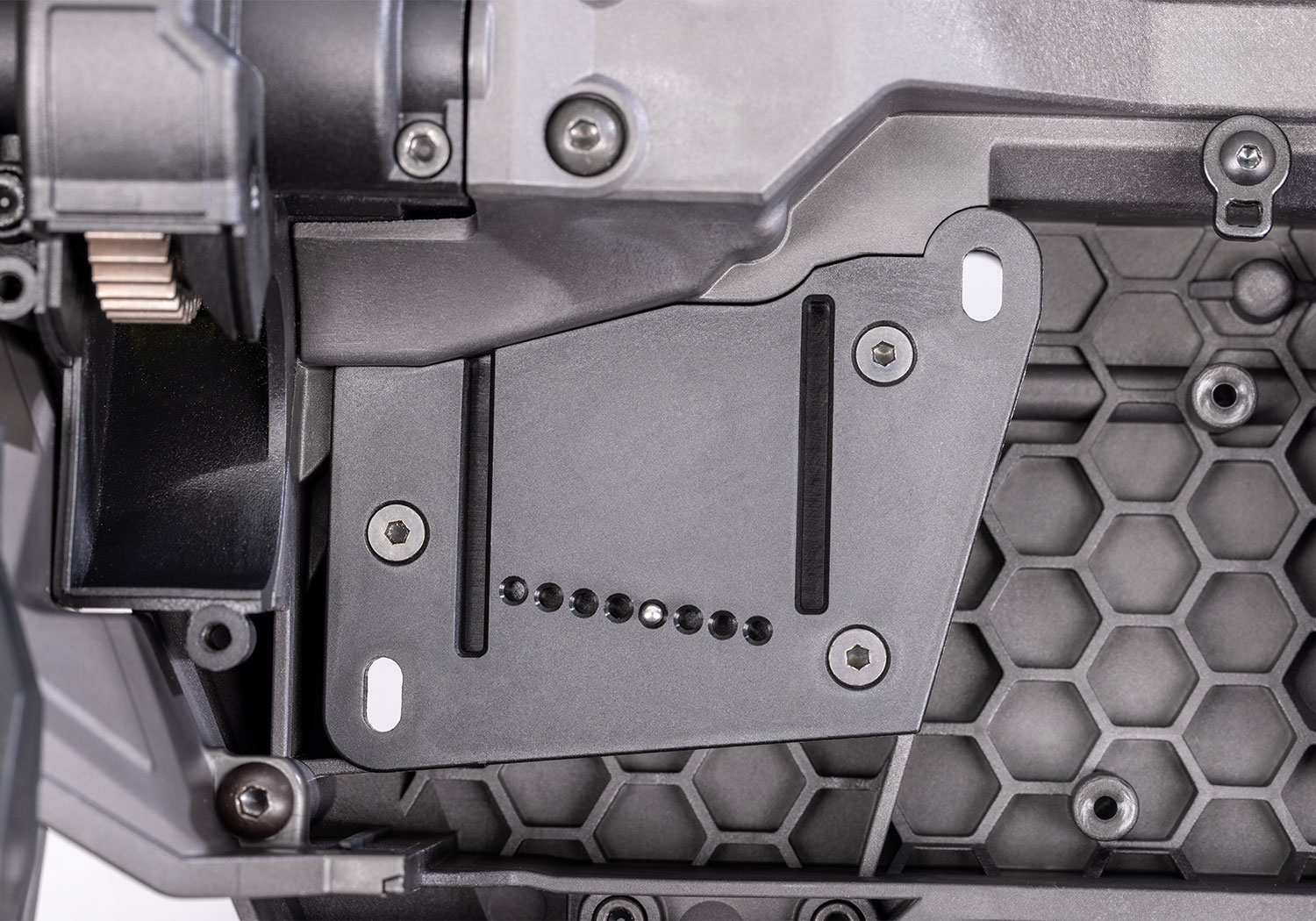

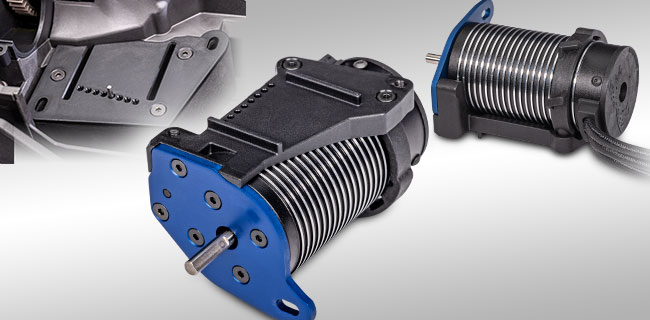

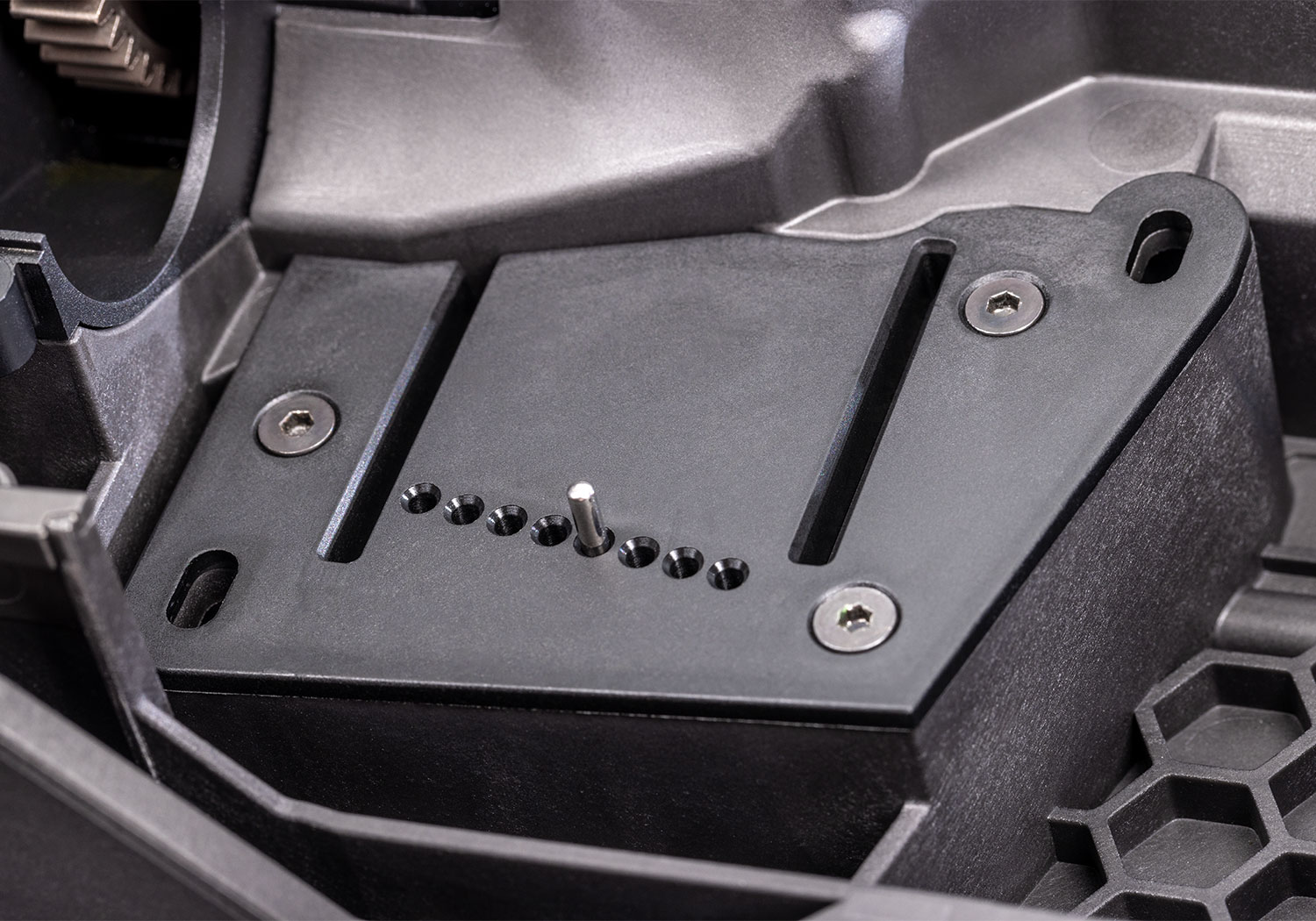

Fixed Mesh Motor Cradle
The motor and cradle join together to form a fixed gear mesh. A heavily reinforced mounting plate in the chassis keeps the motor and spur gear in perfect alignment. This innovative solution eliminates flex and greatly extends gear life.

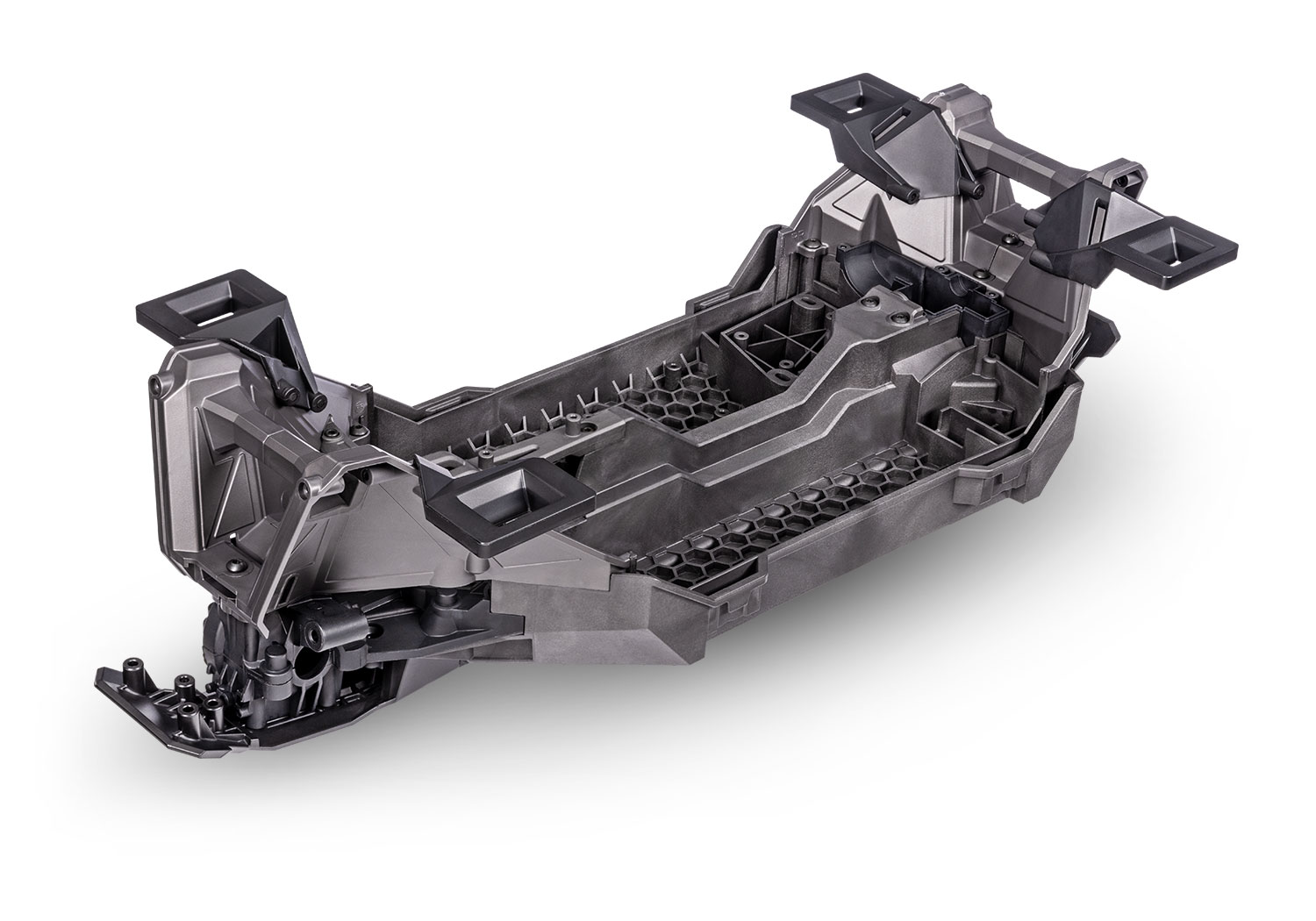

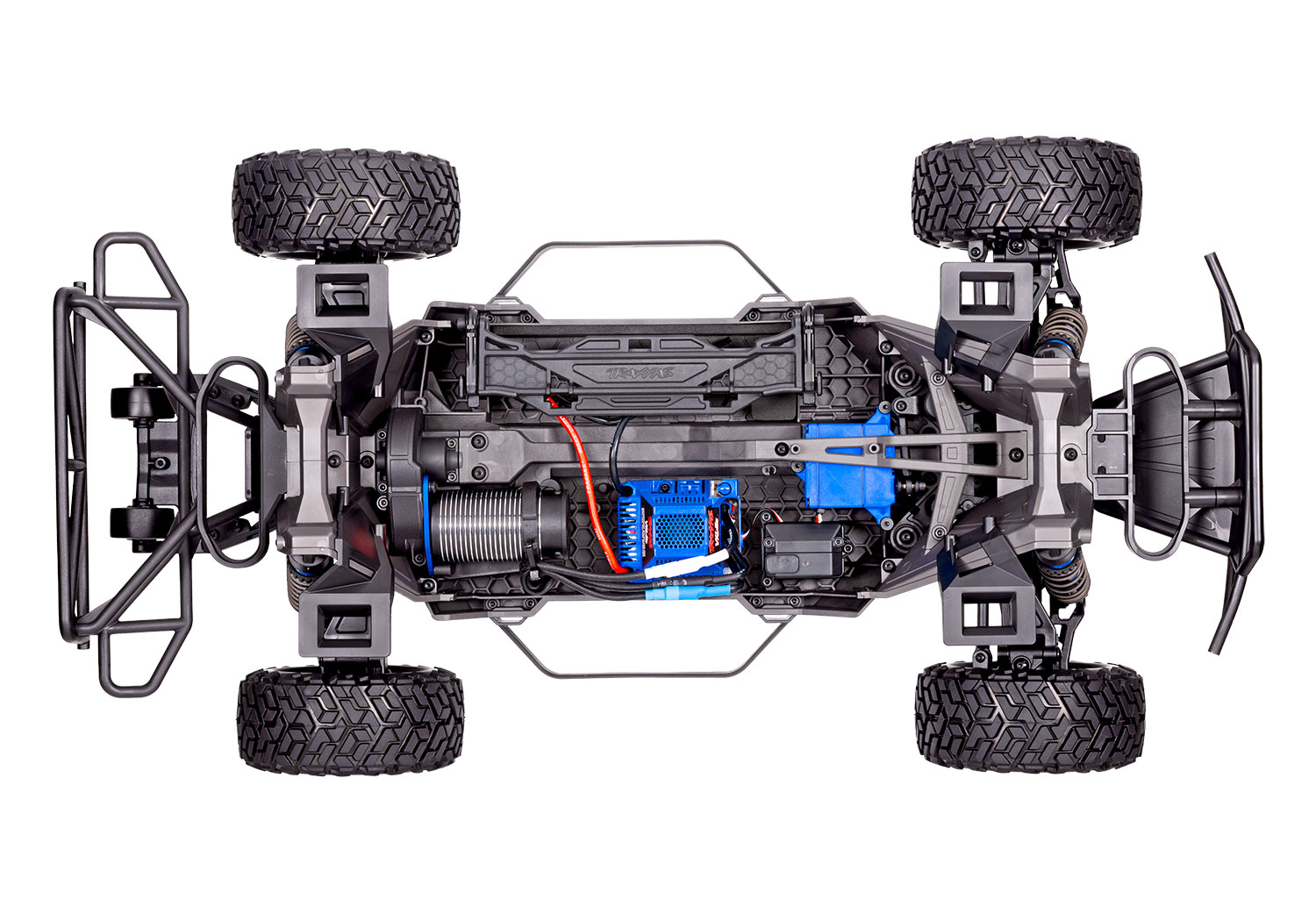

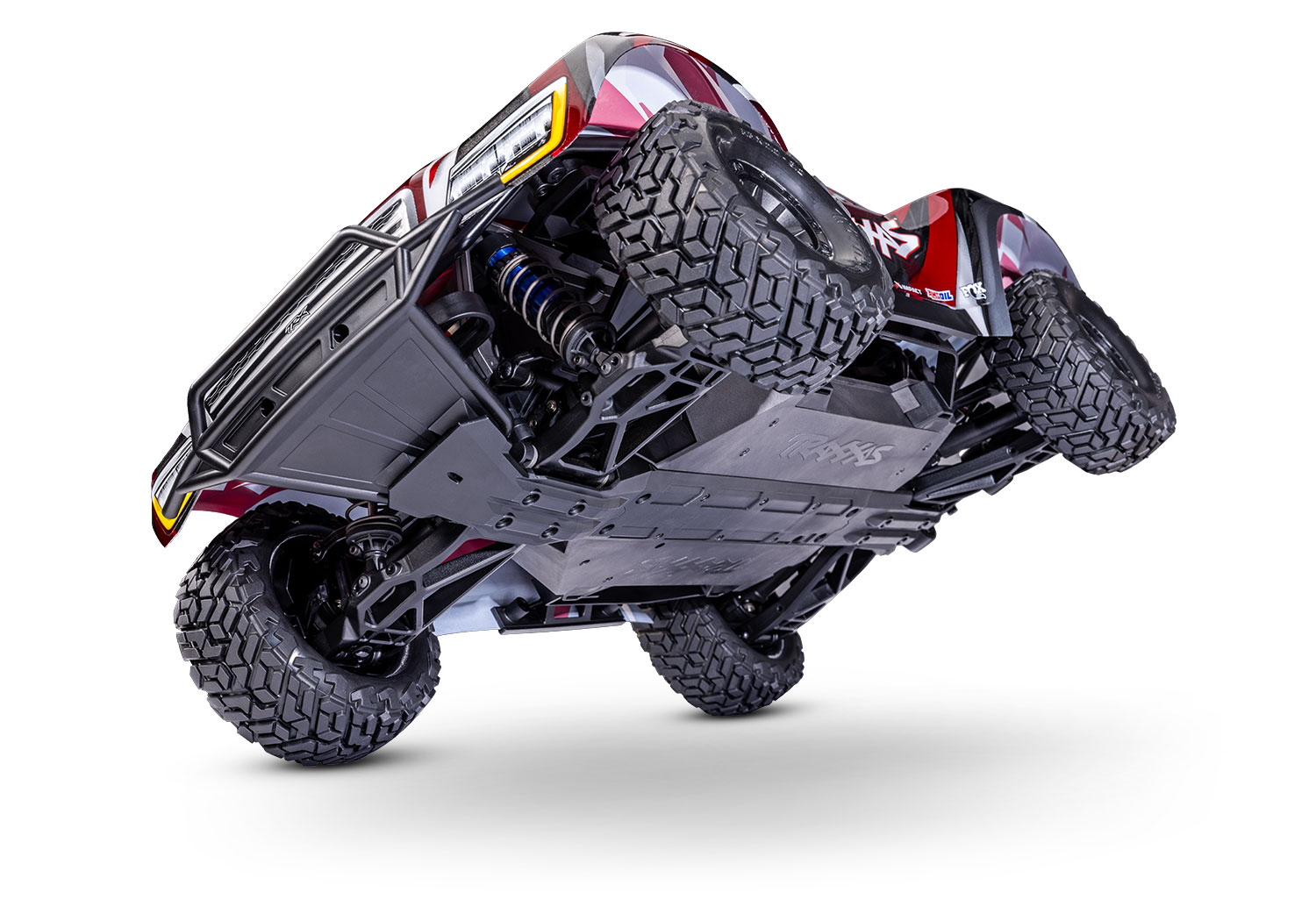

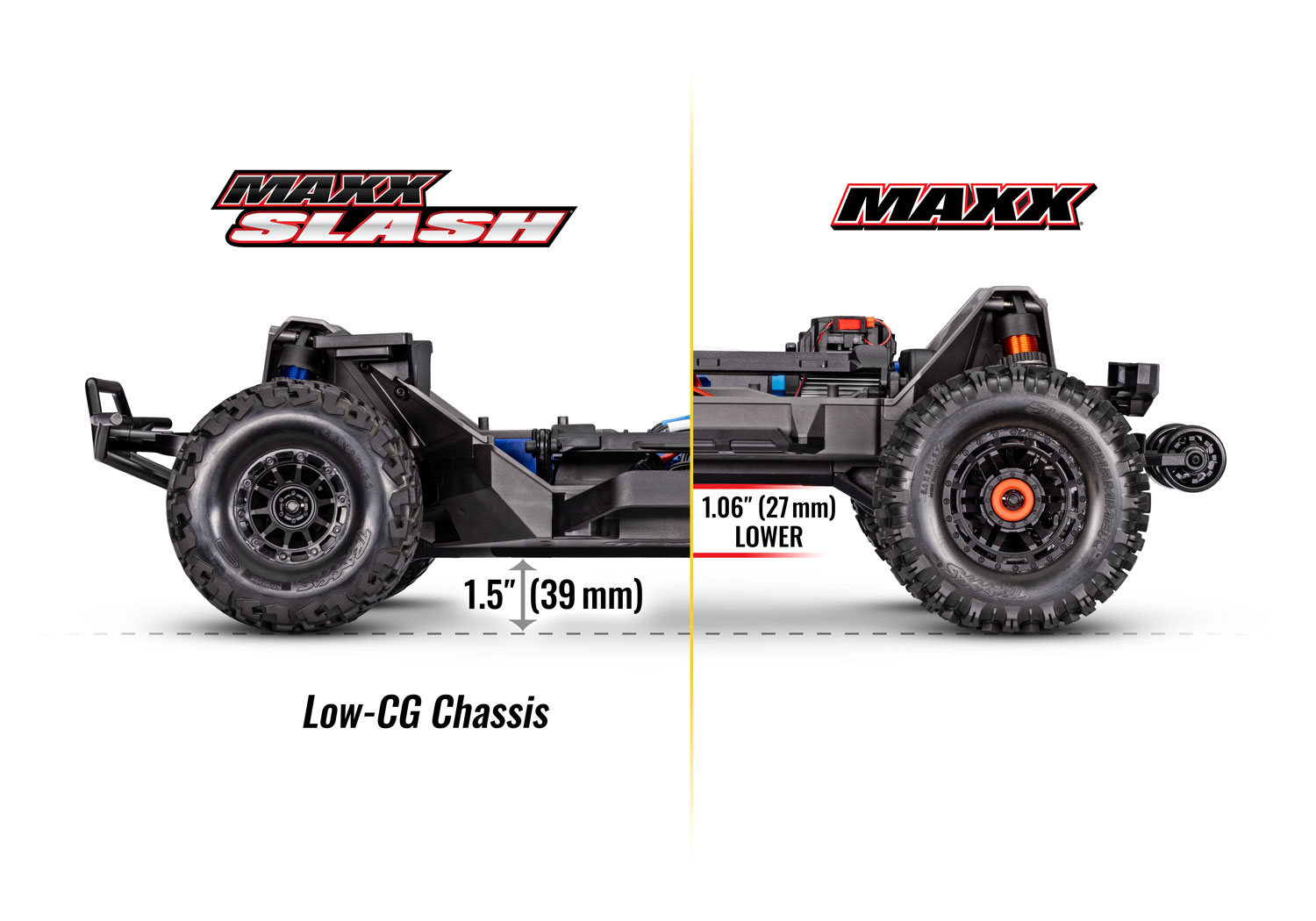

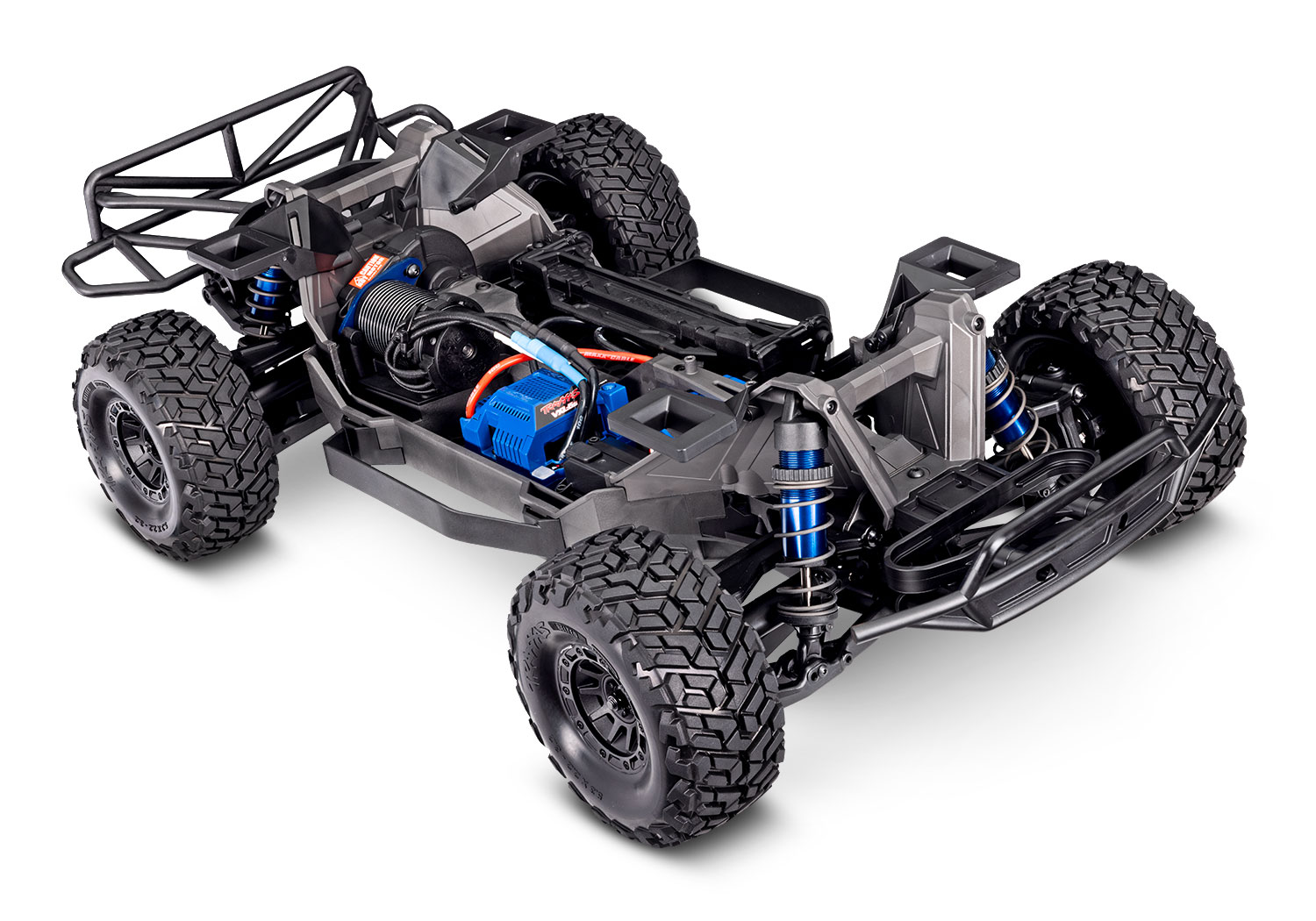

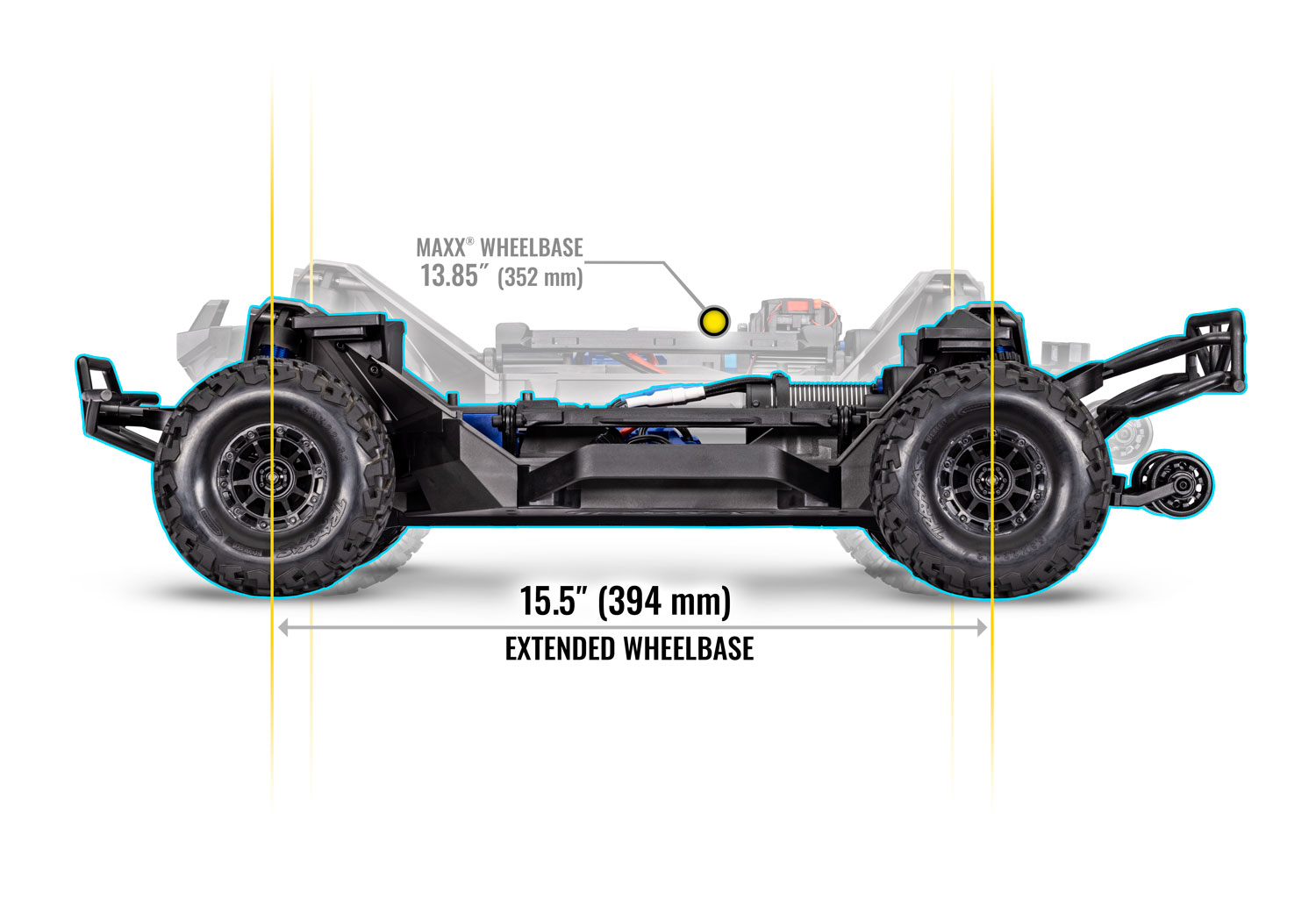

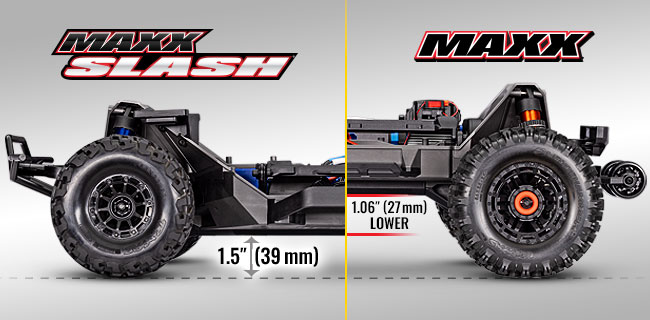

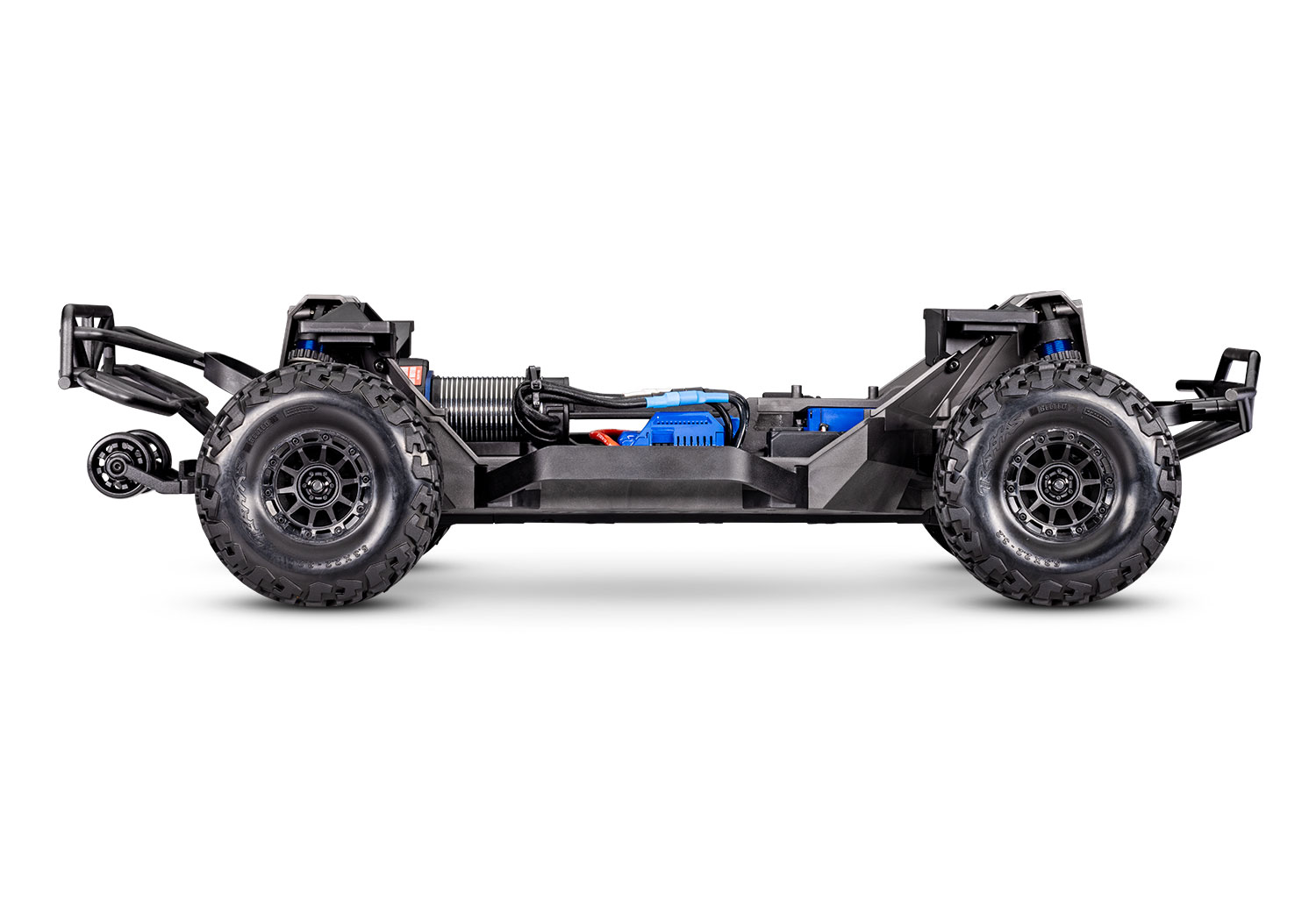

Low-CG Chassis
The new chassis lowers the center of gravity and extends the wheelbase for responsive handling. A fighter jet aesthetic wraps around an engineered truss design that builds in strength and rigidity where it’s needed most. Proven-tough Maxx bulkheads are tightly integrated front and rear.

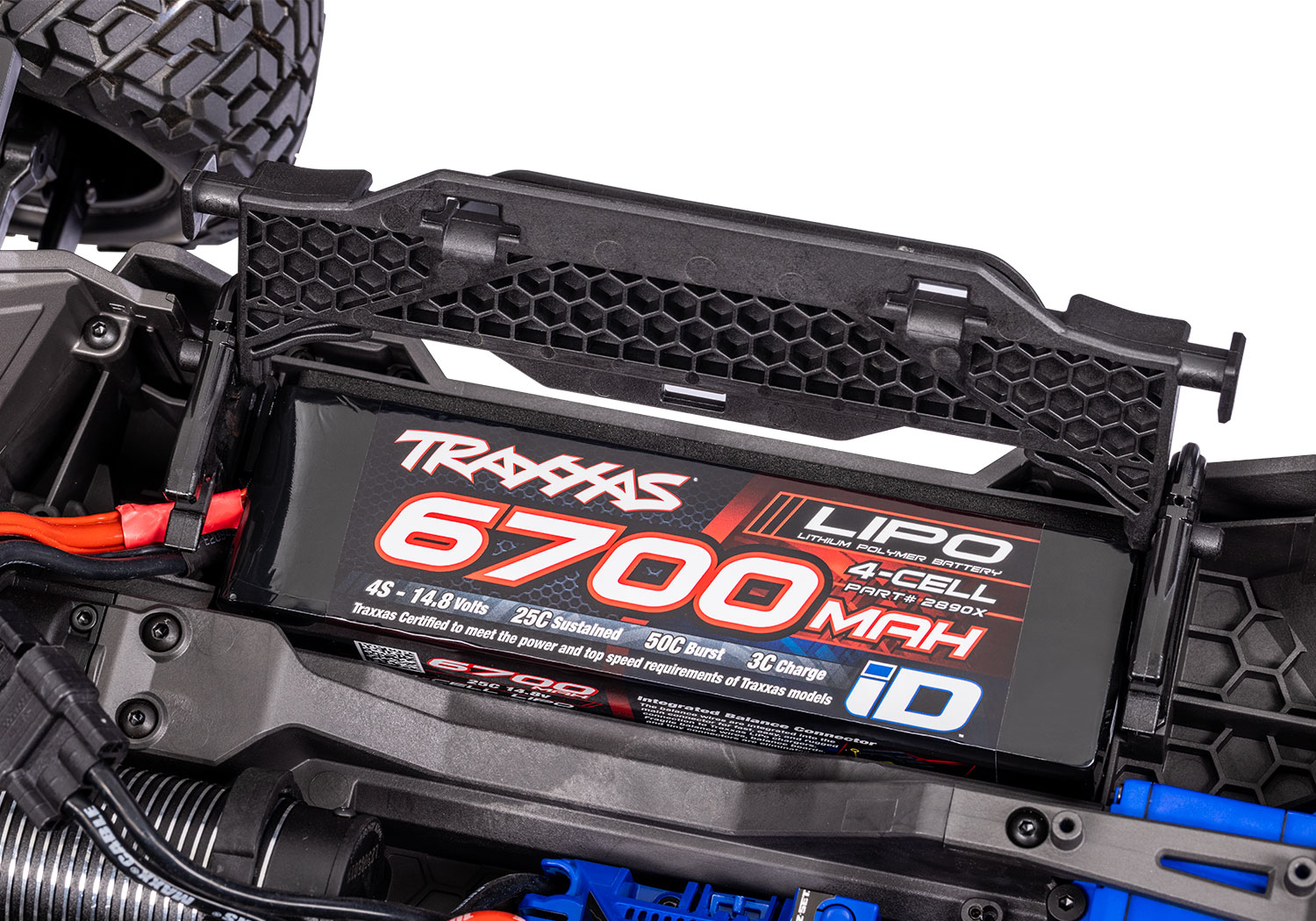

Battery Compartment
Maxx Slash utilizes Sledge’s battery compartment and retention design to provide versatility and superior protection for your battery investment. The precise snap-lock hold down makes it easy to install and secure Traxxas iD batteries, including a single large capacity 4s 6700, two 2s 7600, or two 3s 5000 battery packs for 6s running.

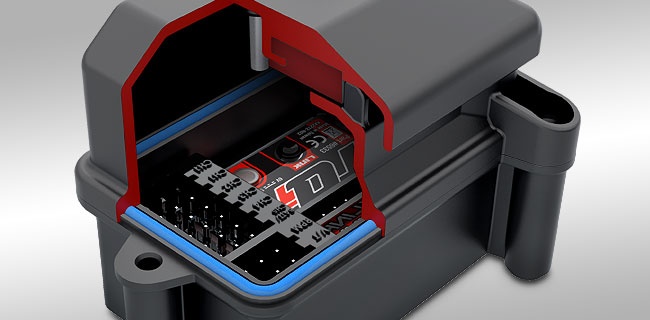

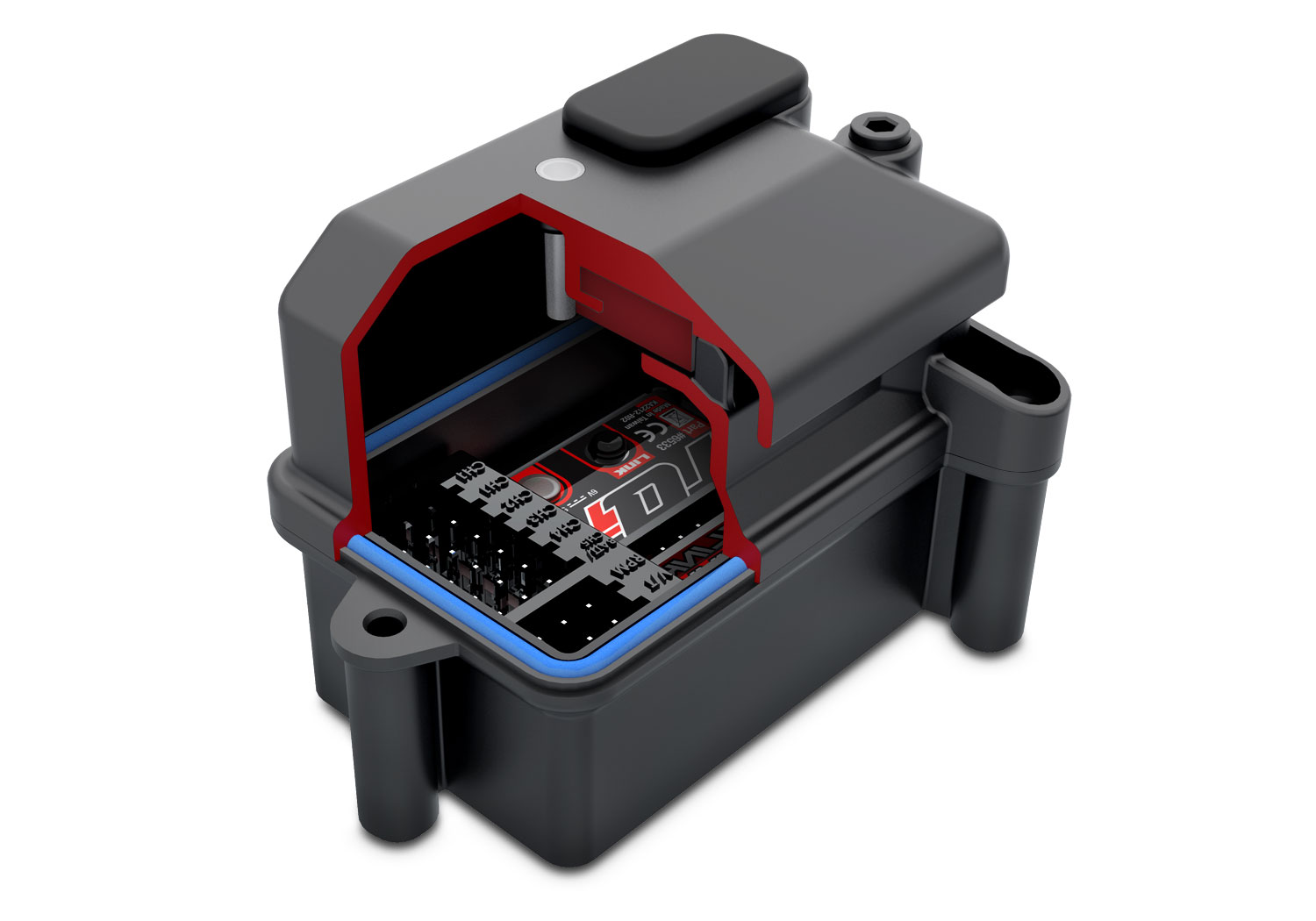

Waterproof Electronics
Maxx Slash is not limited by mud, snow, or water and neither is your fun. A sealed box protects the TQi receiver from water for all-weather driving. An easy-access port on top allows instant access to the receiver while retaining the box’s waterproof integrity.

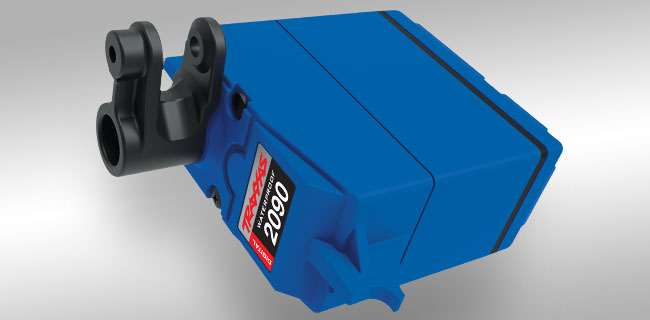

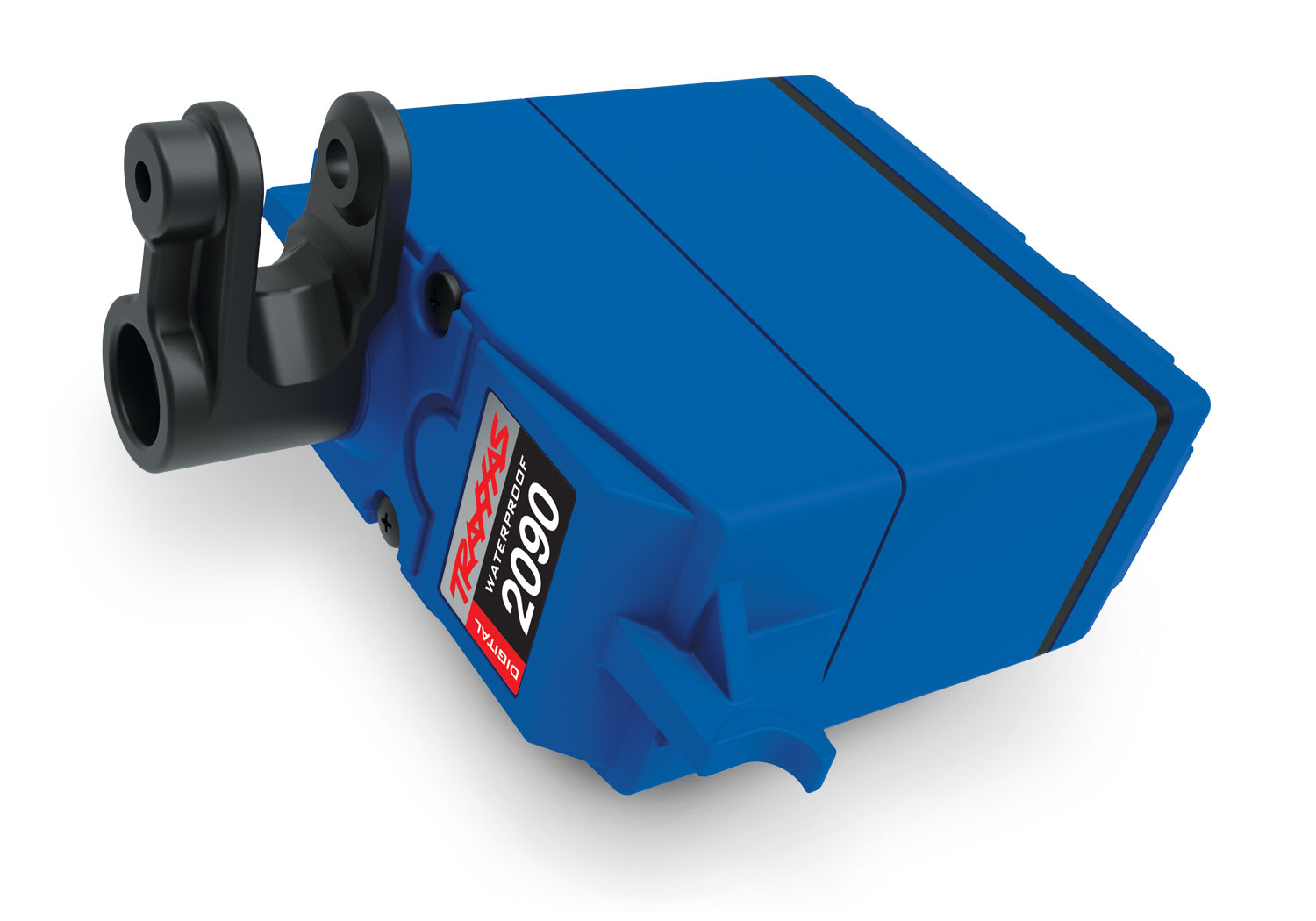

Maxx® Steering Servo
The powerful steering servo mounts solidly to the Maxx Slash chassis for enhanced support and impact resistance. With its proven durability in MAXX monster trucks, the digital, ball bearing design delivers 285 oz-in of torque for responsive and precise steering control.

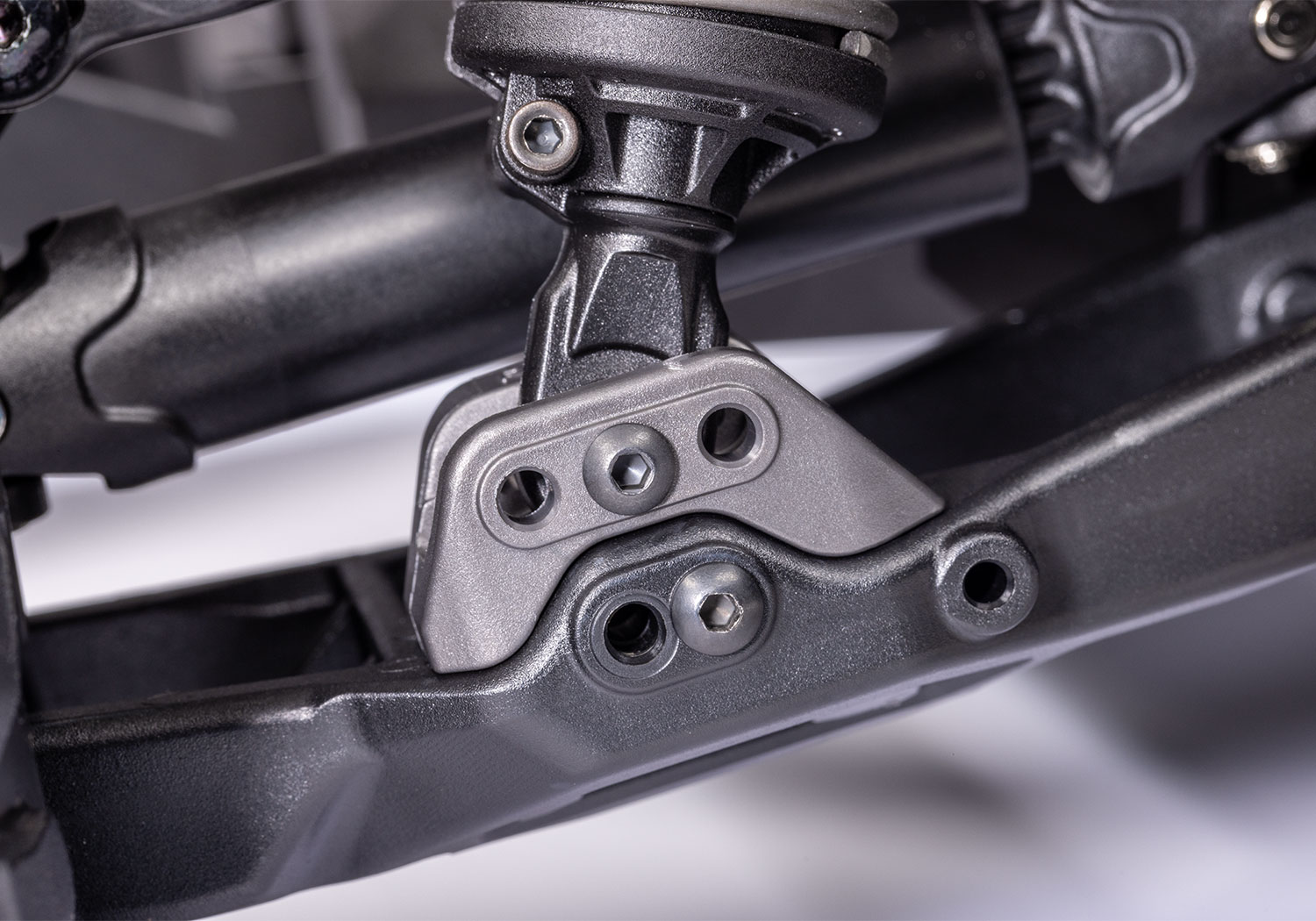

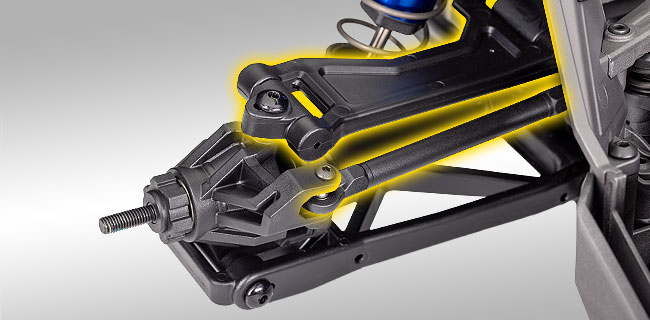

Fixed Camber and Toe Links
Fixed, non-adjustable camber and toe links provide ultimate durability by ensuring that the action doesn’t get sidelined by broken turnbuckle. Double shear connections wherever the links attach eliminate annoying pop offs and tear outs.

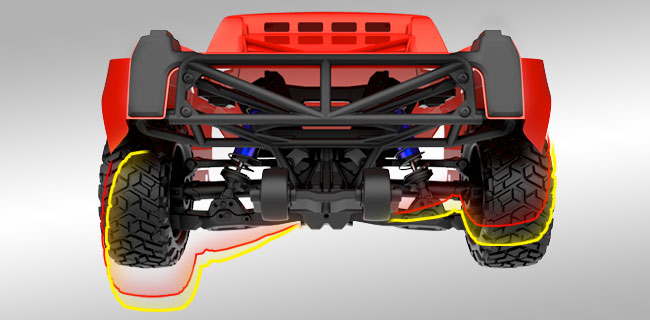

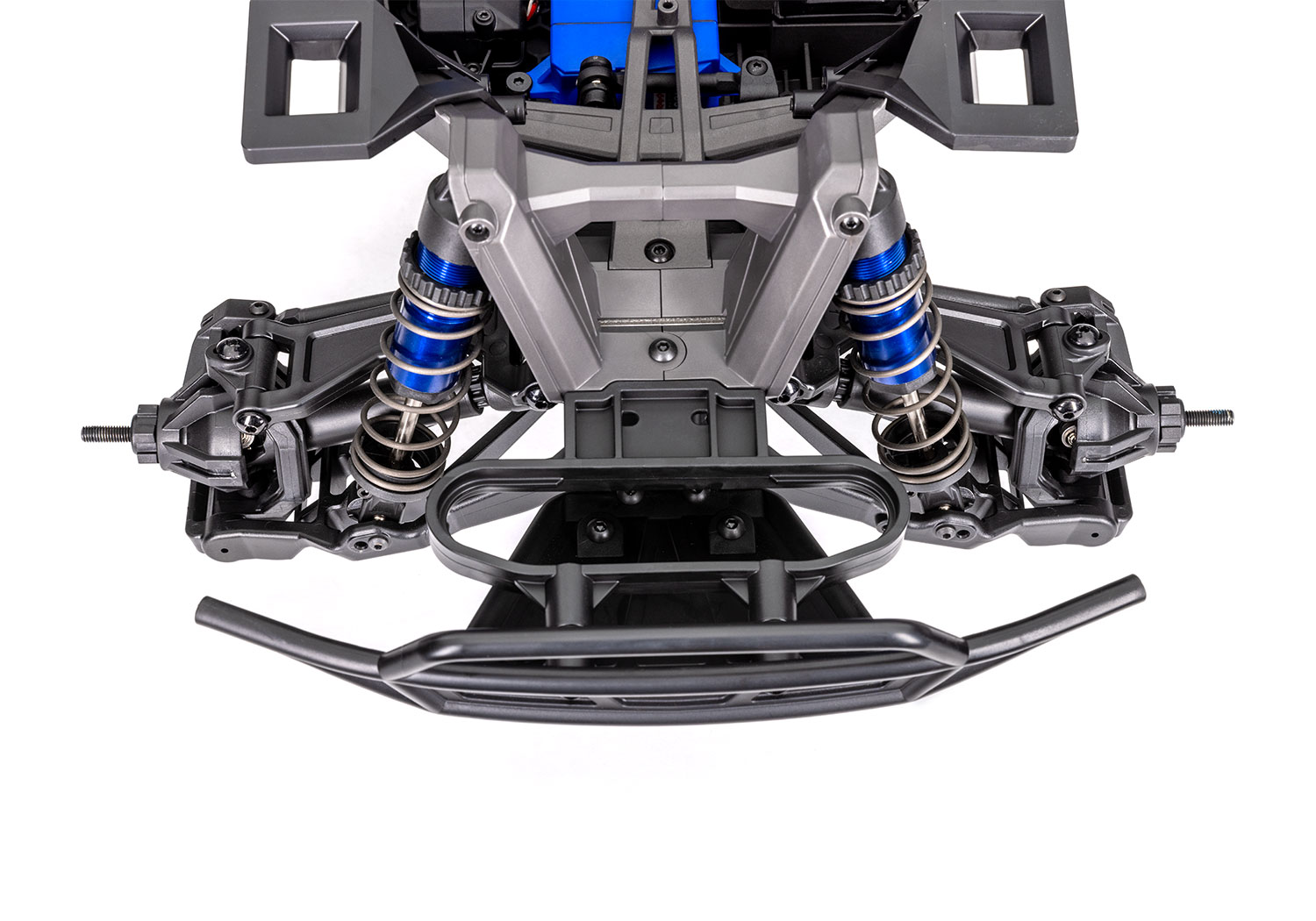

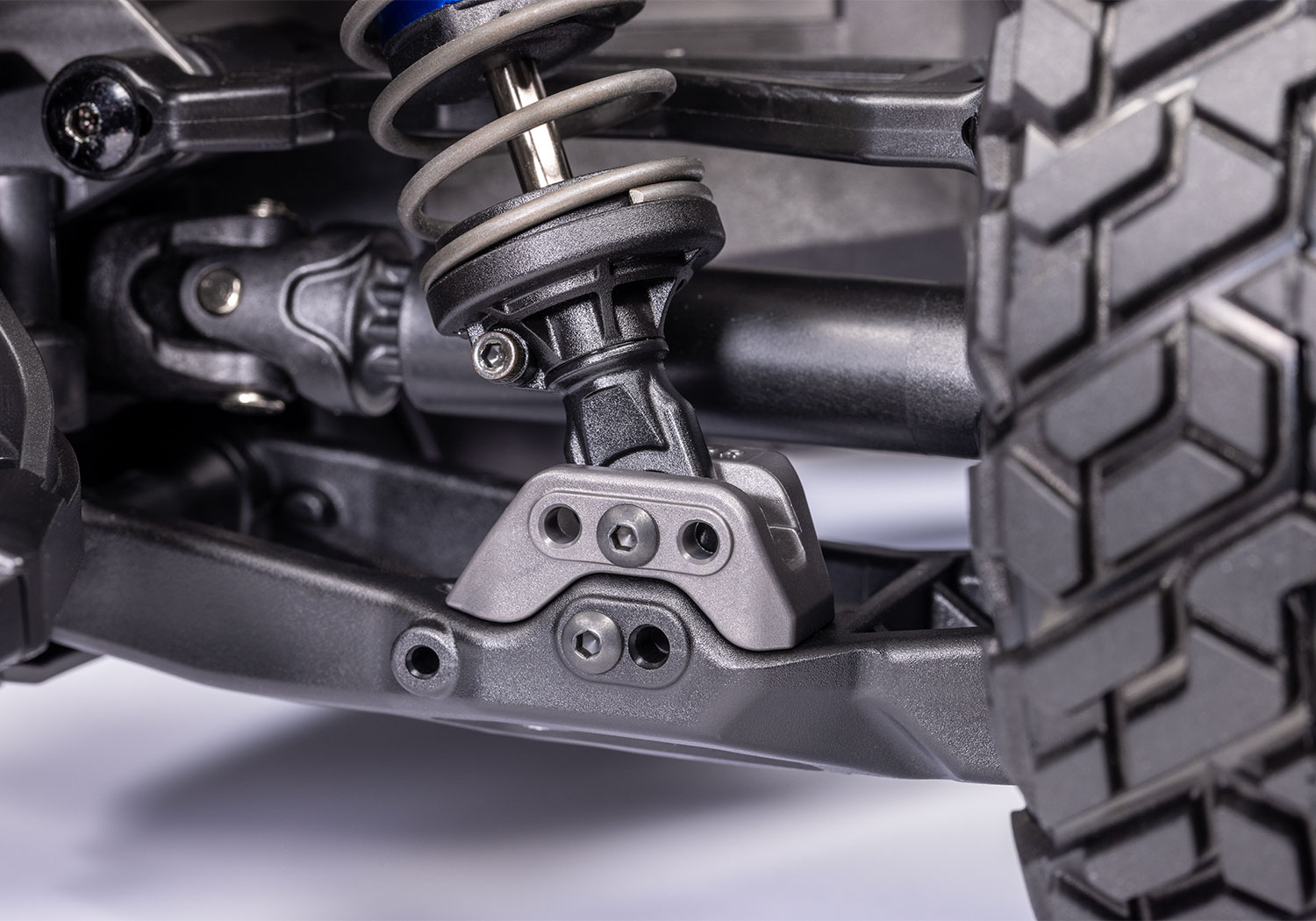

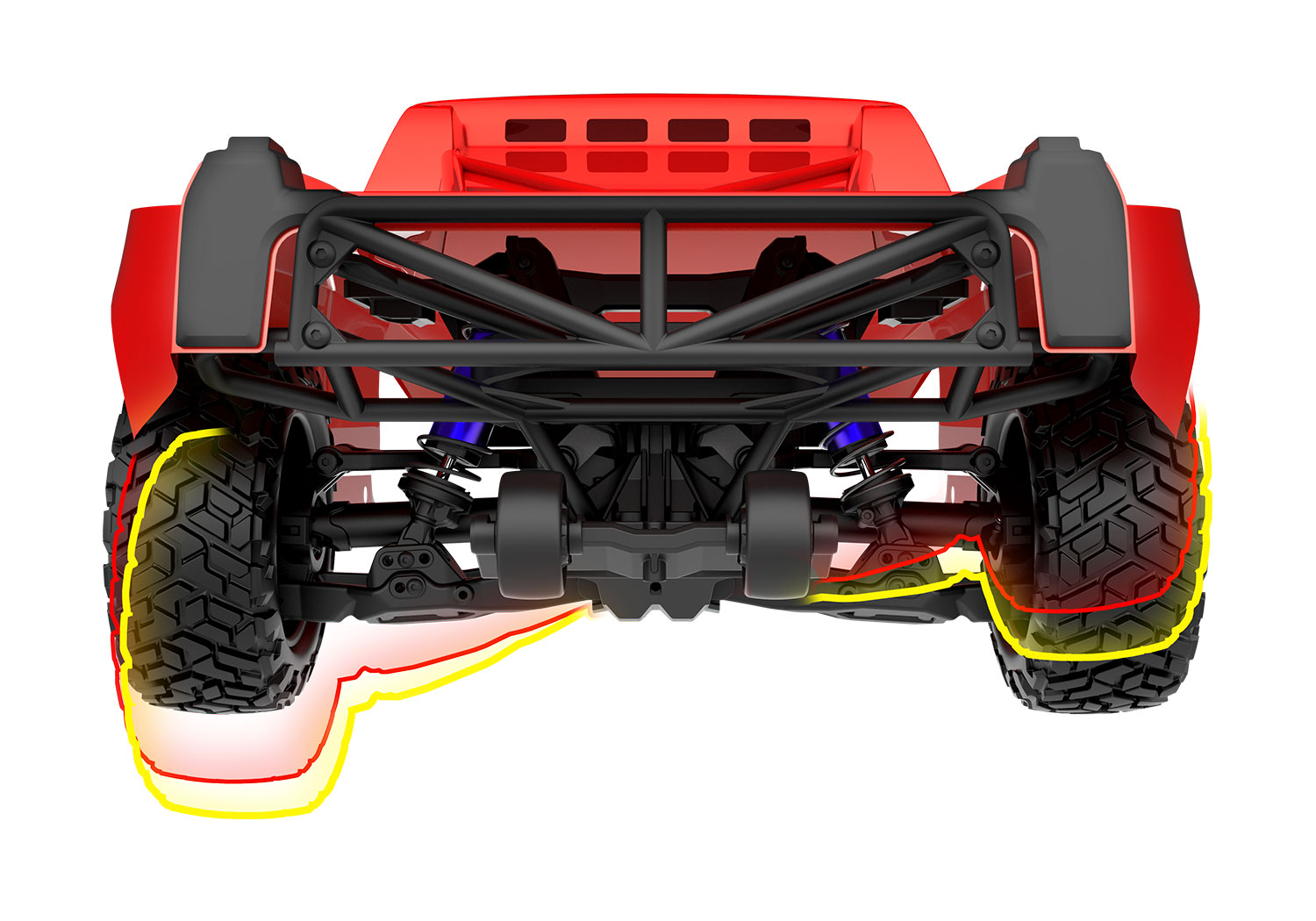

Long-Travel Suspension
Maxx Slash flies across washboard and soaks up bumps like a Baja truck thanks to its long-travel suspension. Adjustable suspension droop allows you to customize Maxx Slash to dominate any surface. Use full travel for maximum capability over rough off-road terrain or tighten the suspension travel for responsive handling and grip on the track.

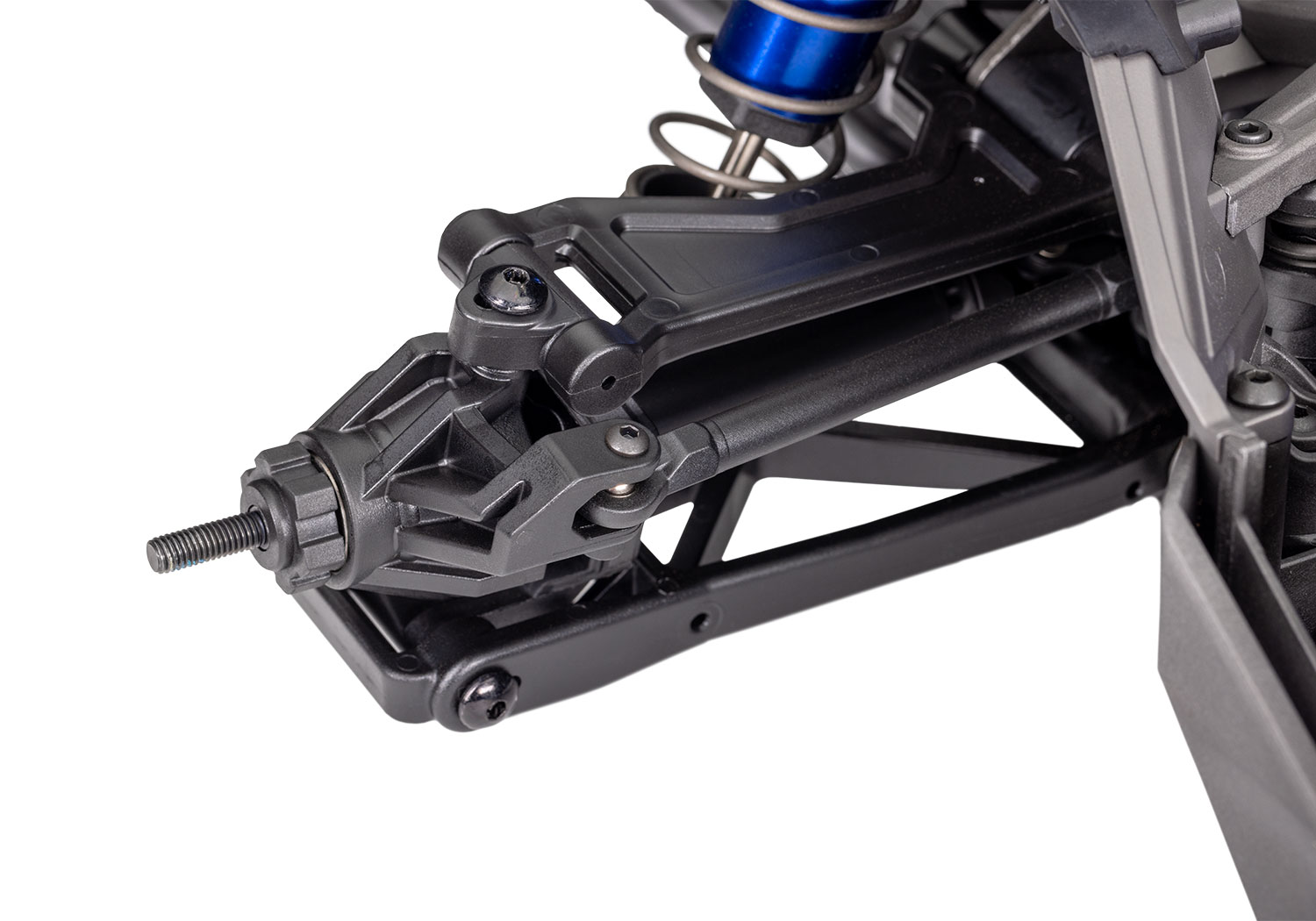

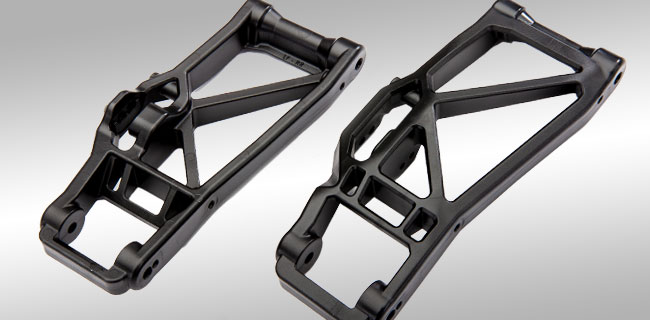

Heavy Duty Suspension Arms
Maxx Slash’s oversized double wishbone suspension arms maintain proper suspension geometry throughout the entire range of travel. Double-shear connections provide incredible strength and impact resistance. Tough composites further resist impact damage, even in cold weather.

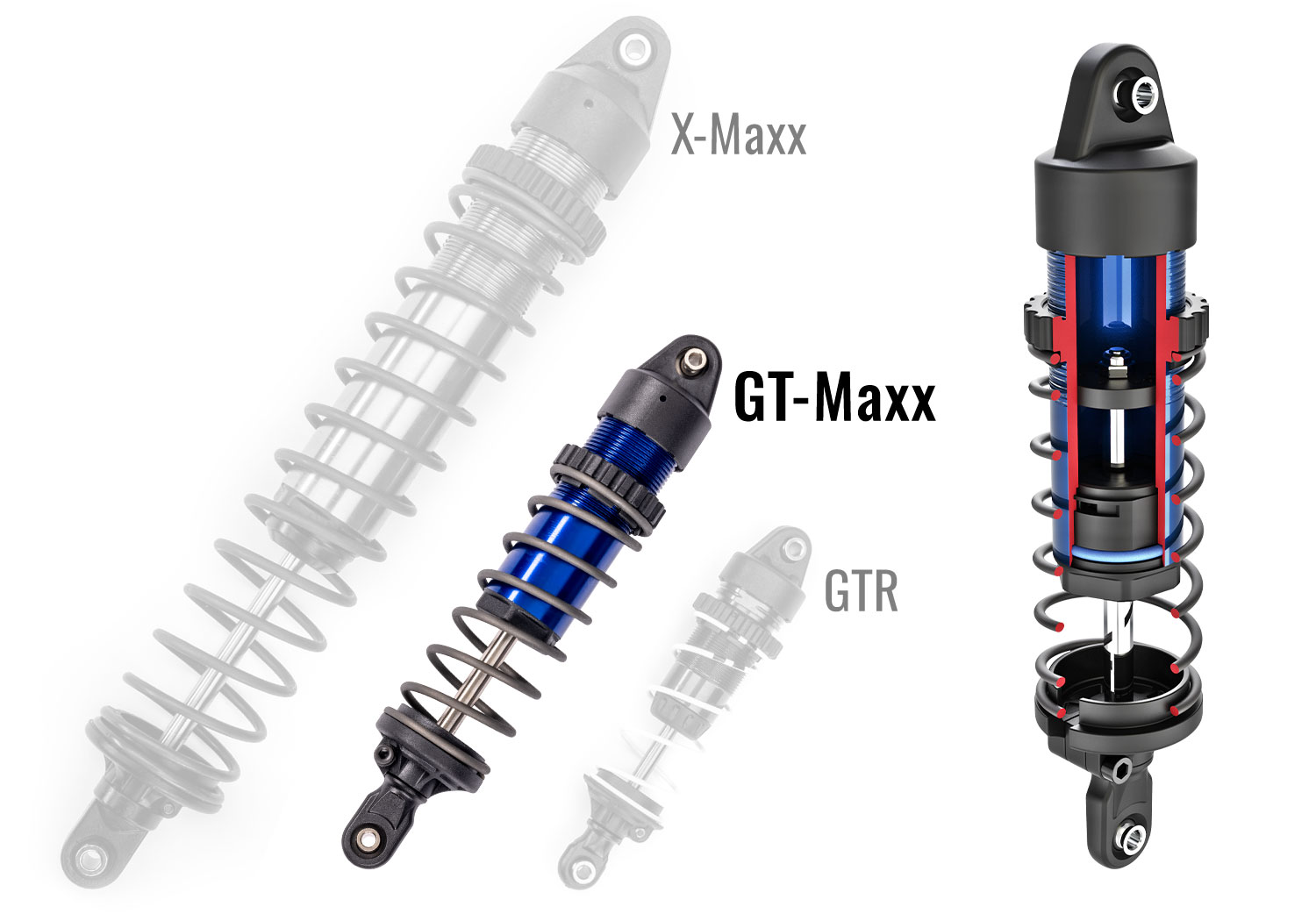

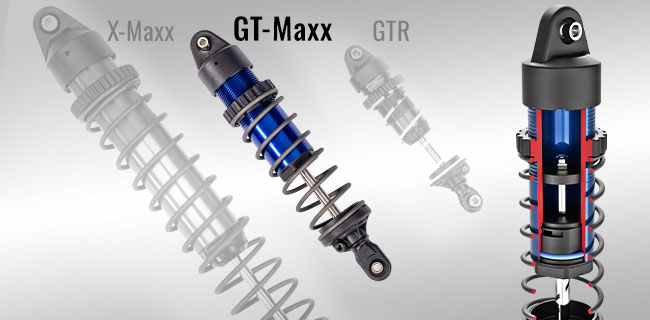

GT-Maxx Aluminum Shocks
GT-Maxx aluminum shocks feature an extra-large bore and more oil capacity for consistent ultra-plush damping. Extra-large diameter shock shafts move through double X-ring seals for smooth, stiction-free performance. The brilliantly anodized machined aluminum bodies are color matched to the body graphics.

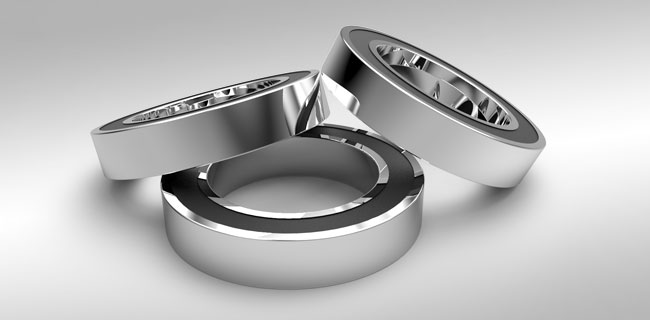

Full Contact Sealed Bearings
Maxx Slash utilizes full contact sealed bearings throughout the driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time and more fun.

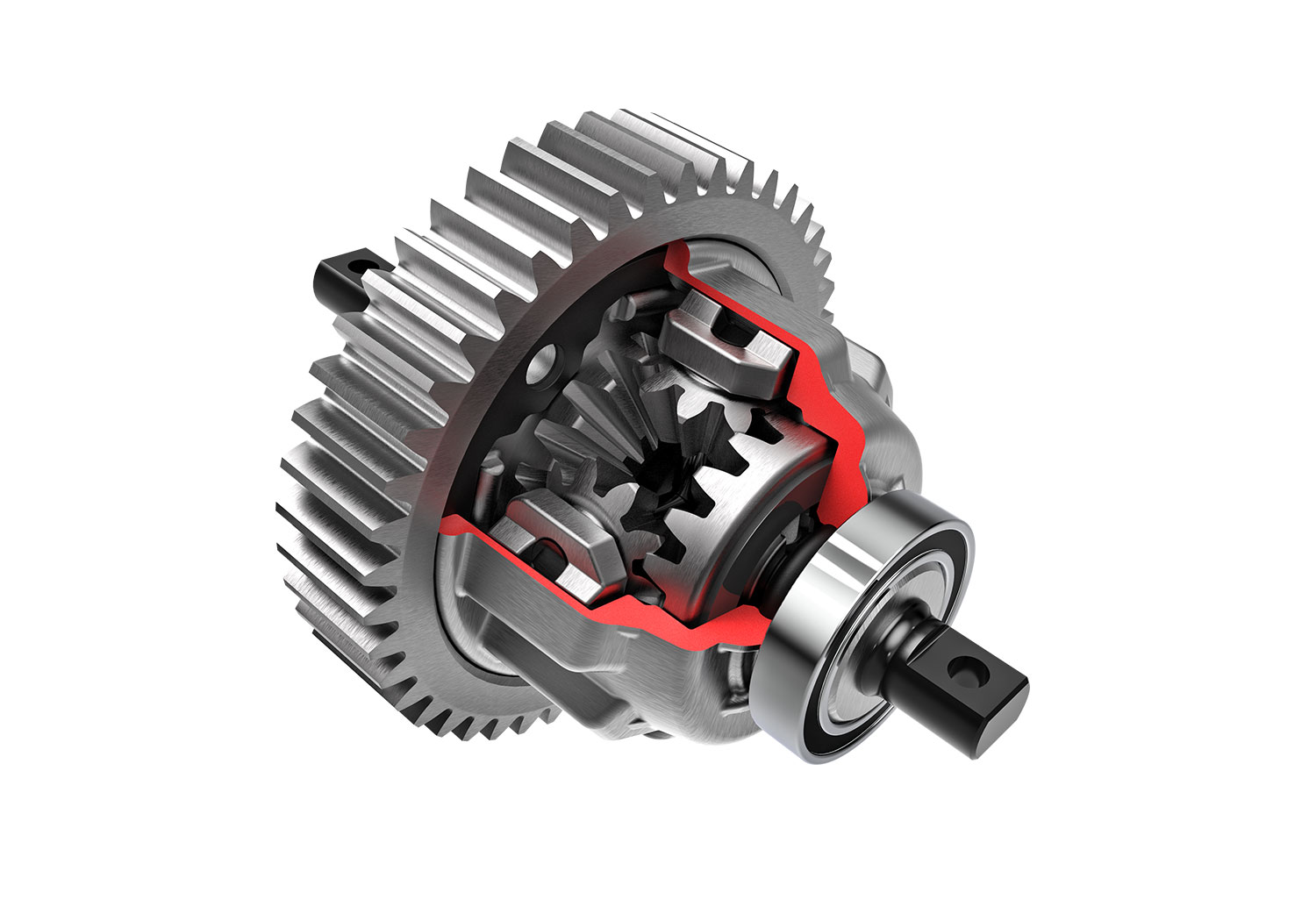

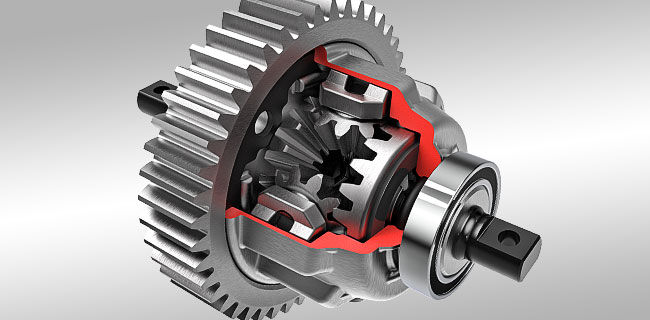

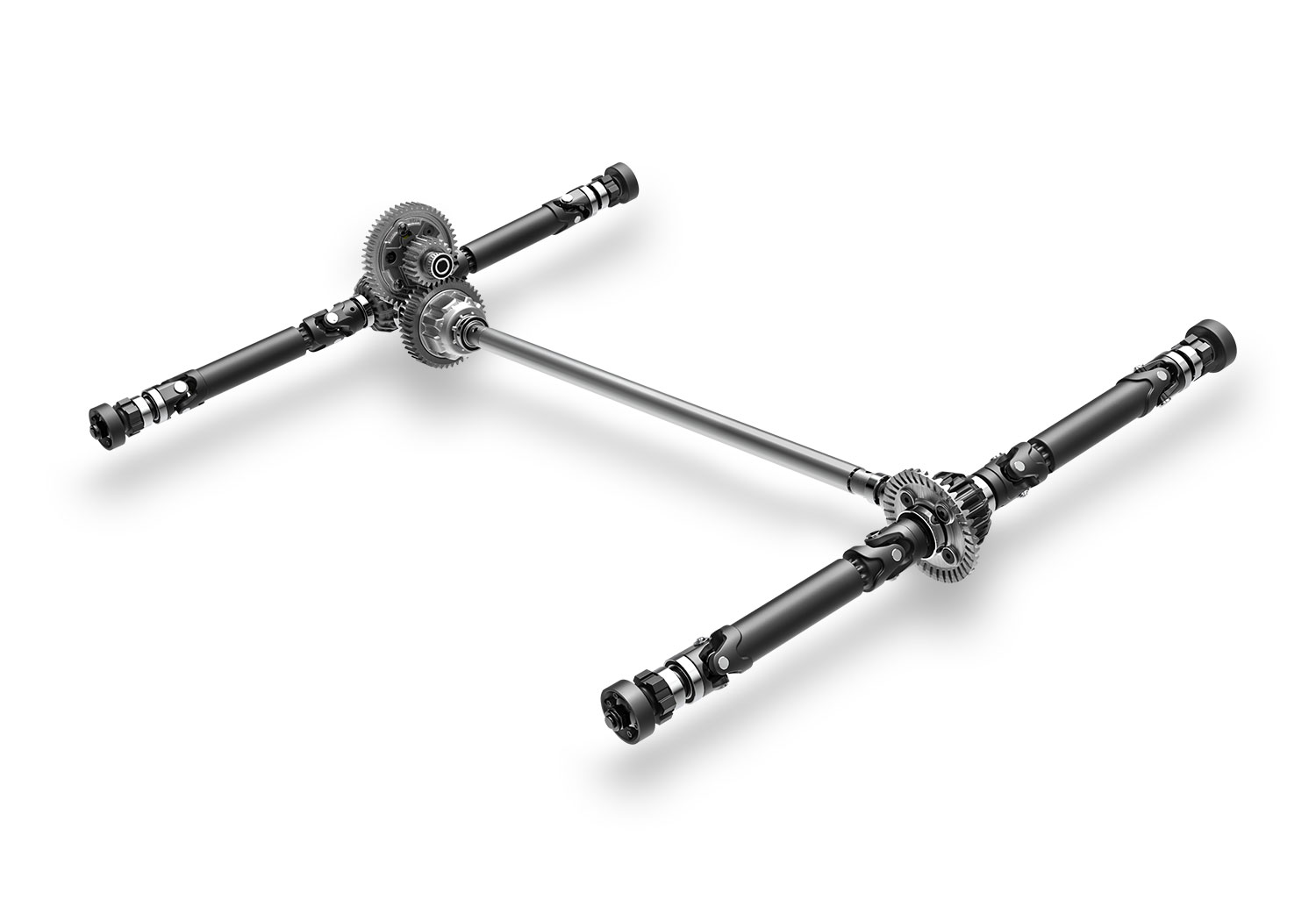

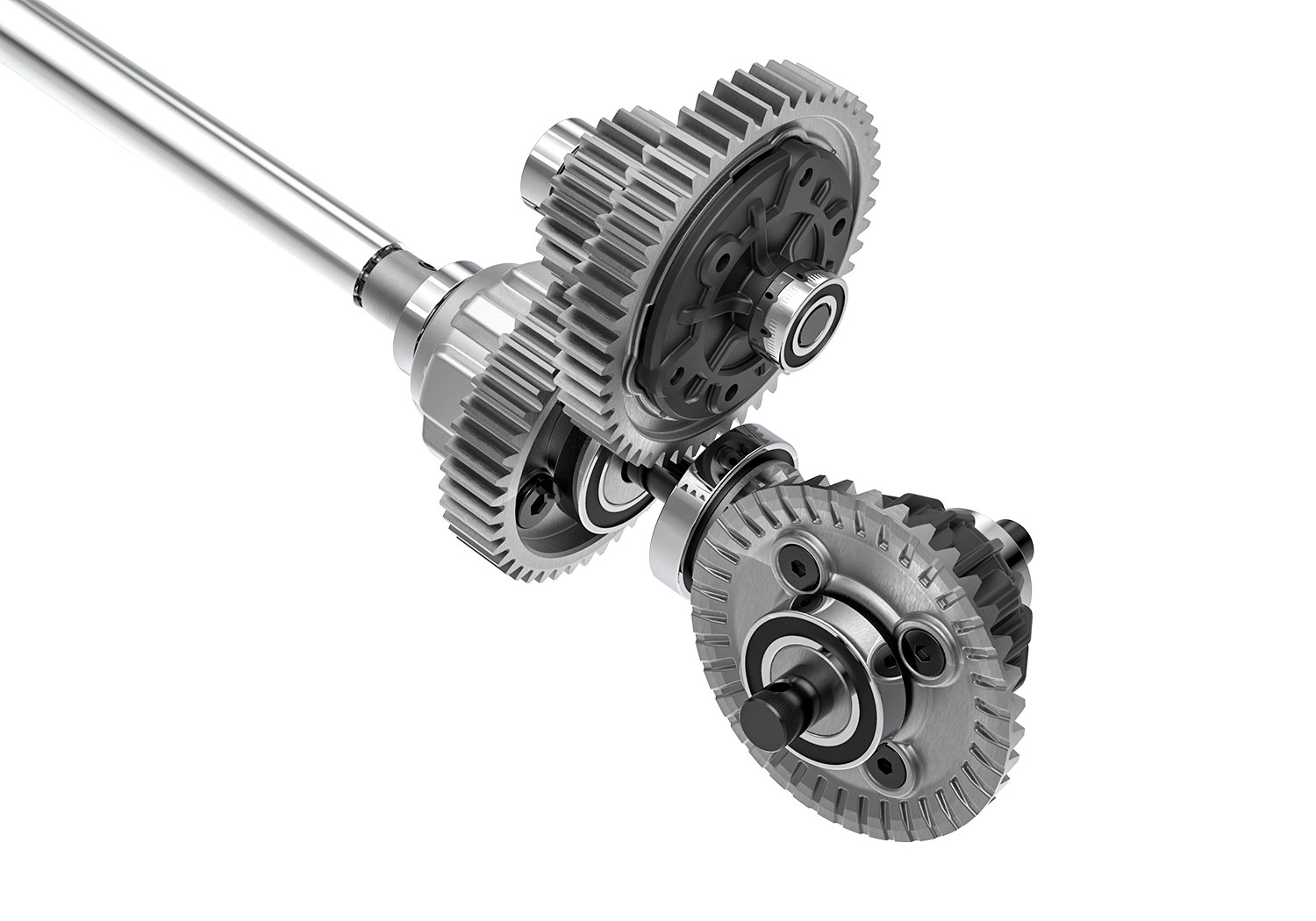

Torque-Biasing Center Drive
Maxx Slash’s Torque-Biasing Center Drive is tuned for maximum punch off the line with heavyweight oil for even front/rear power distribution. A heavy-duty aluminum housing helps dissipate heat for consistent performance as Maxx Slash delivers unmatched throttle punch and unbelievably quick acceleration!

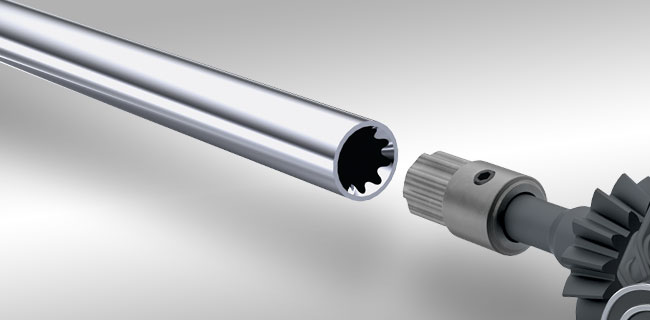

Aluminum Splined Driveshaft
A thick-wall, heavy-duty, splined aluminum center driveshaft carries the power to the front and rear differentials. This heavy-duty driveshaft yields precise engagement, incredible strength, and smooth running.

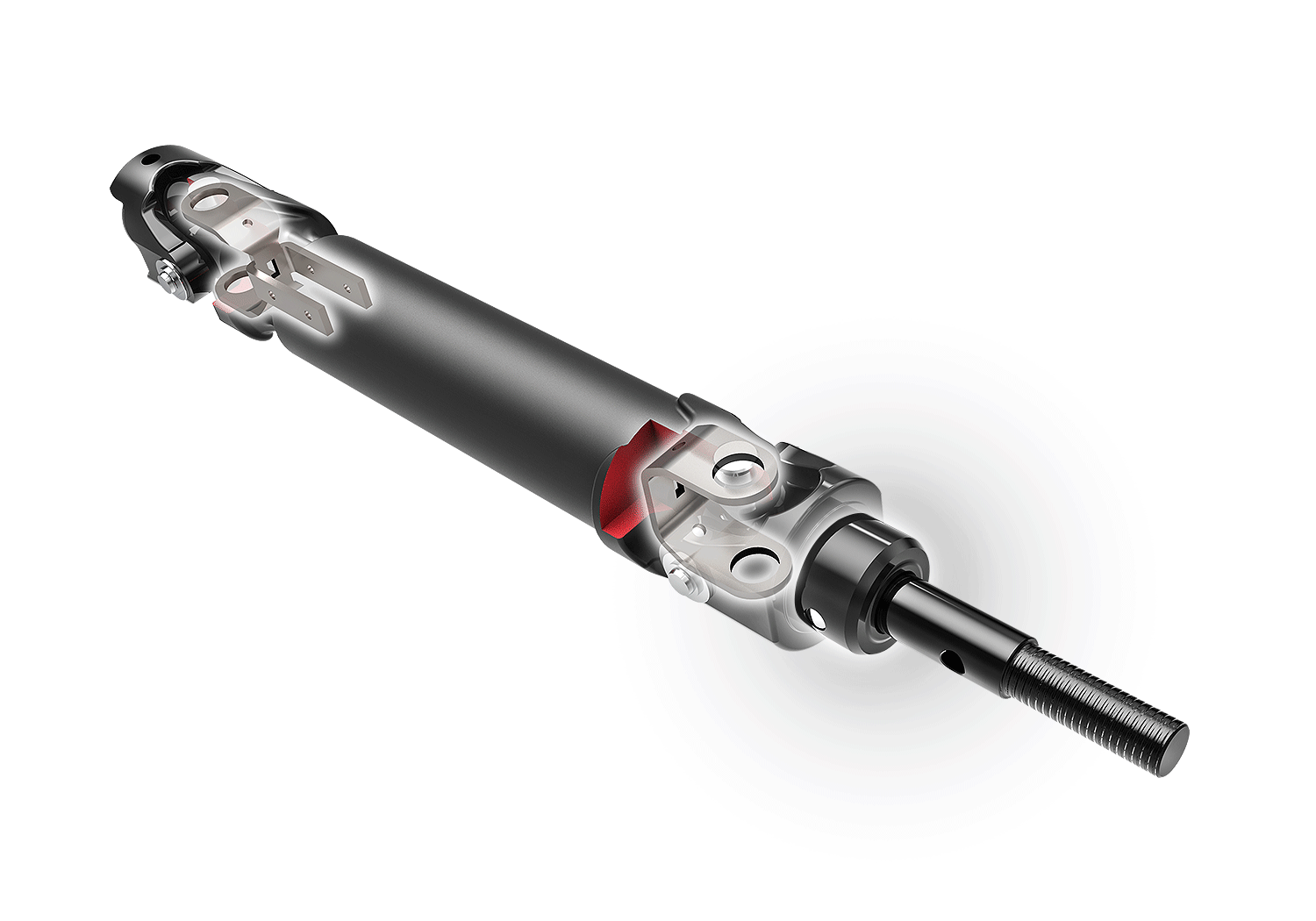

Steel-Core Hybrid Driveshafts
Maxx Slash is overbuilt to take the most brutal 6s punishment in stride. New hybrid driveshafts feature steel cores wrapped in durable nylon composite materials where strength is critical. Large-diameter splined half shafts provide smooth-running telescopic action and nearly endless suspension travel.

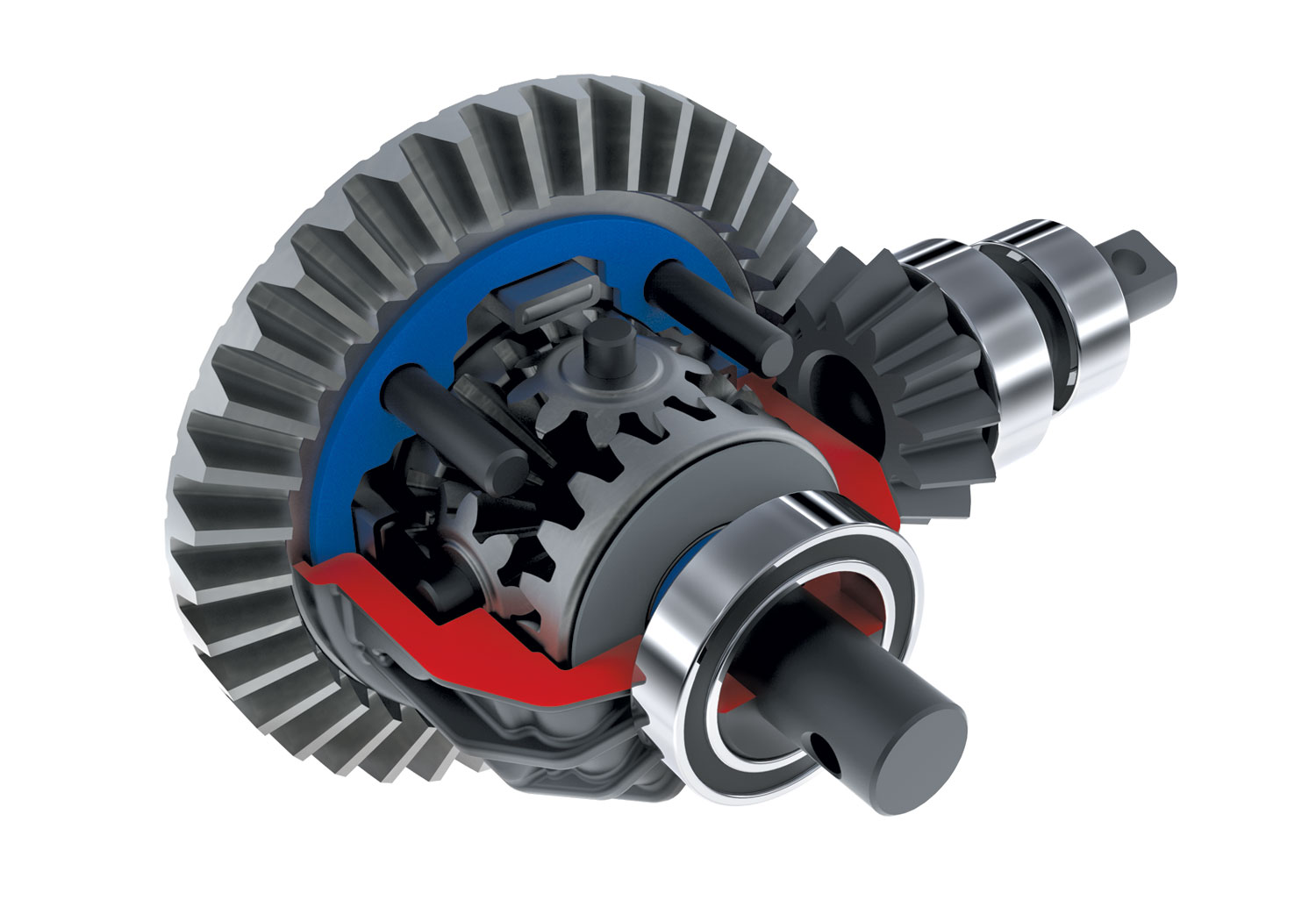

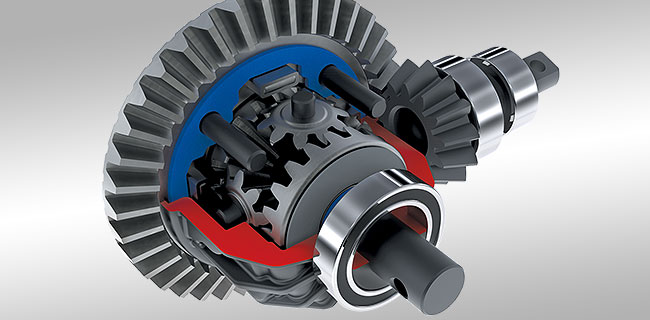

Steel Gear Differentials
Maxx Slash’s 4-gear differentials are sealed and filled with heavyweight oil, which provides a limited-slip effect for maximum traction on loose surfaces. Oversize 1.25 module steel gears are fully rated to withstand 6s power and speed.

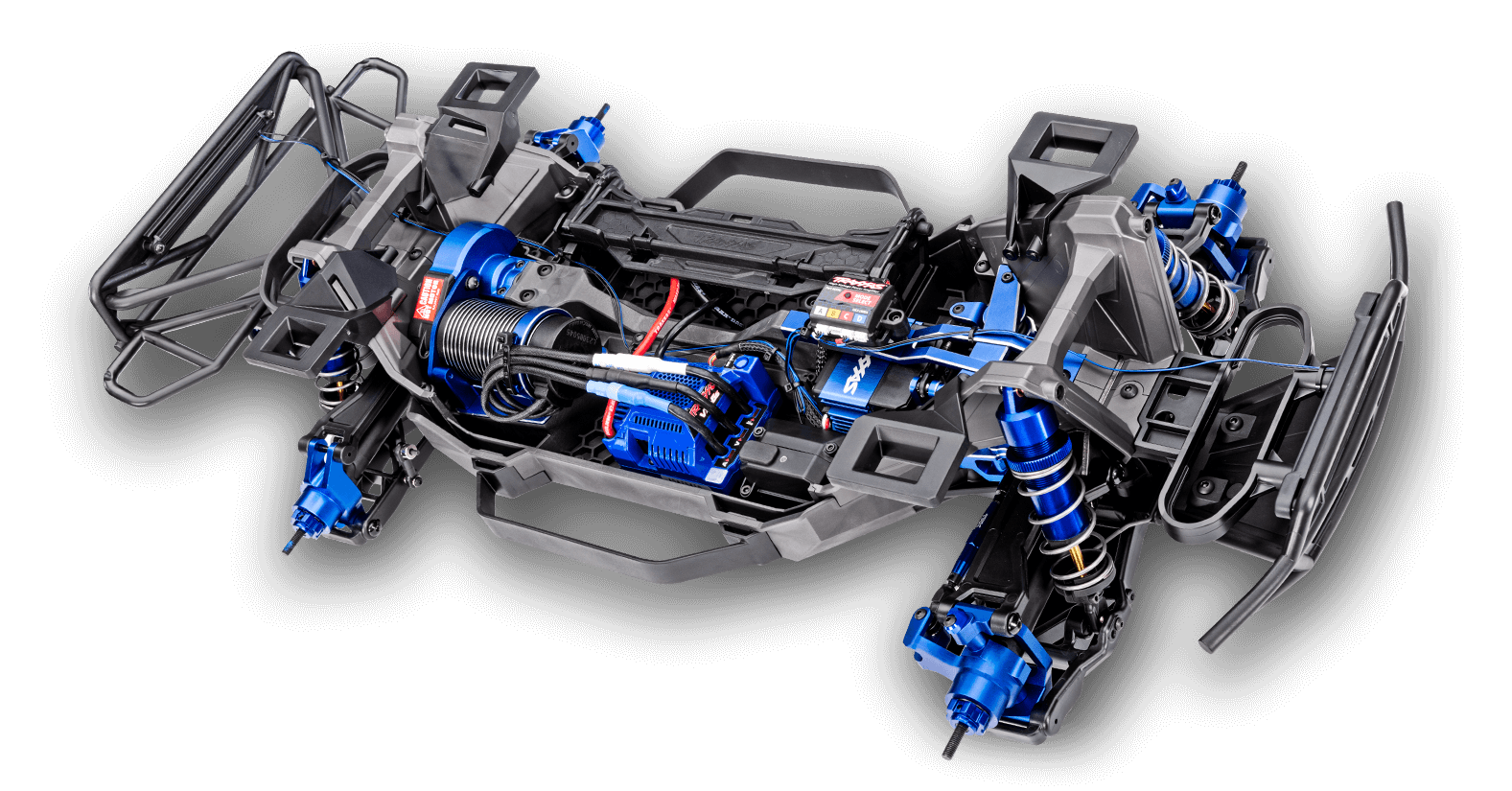

Accessories
Traxxas offers a wide range of performance accessories to transform your Maxx Slash into the ultimate 6s short course truck. Accessories sold separately.

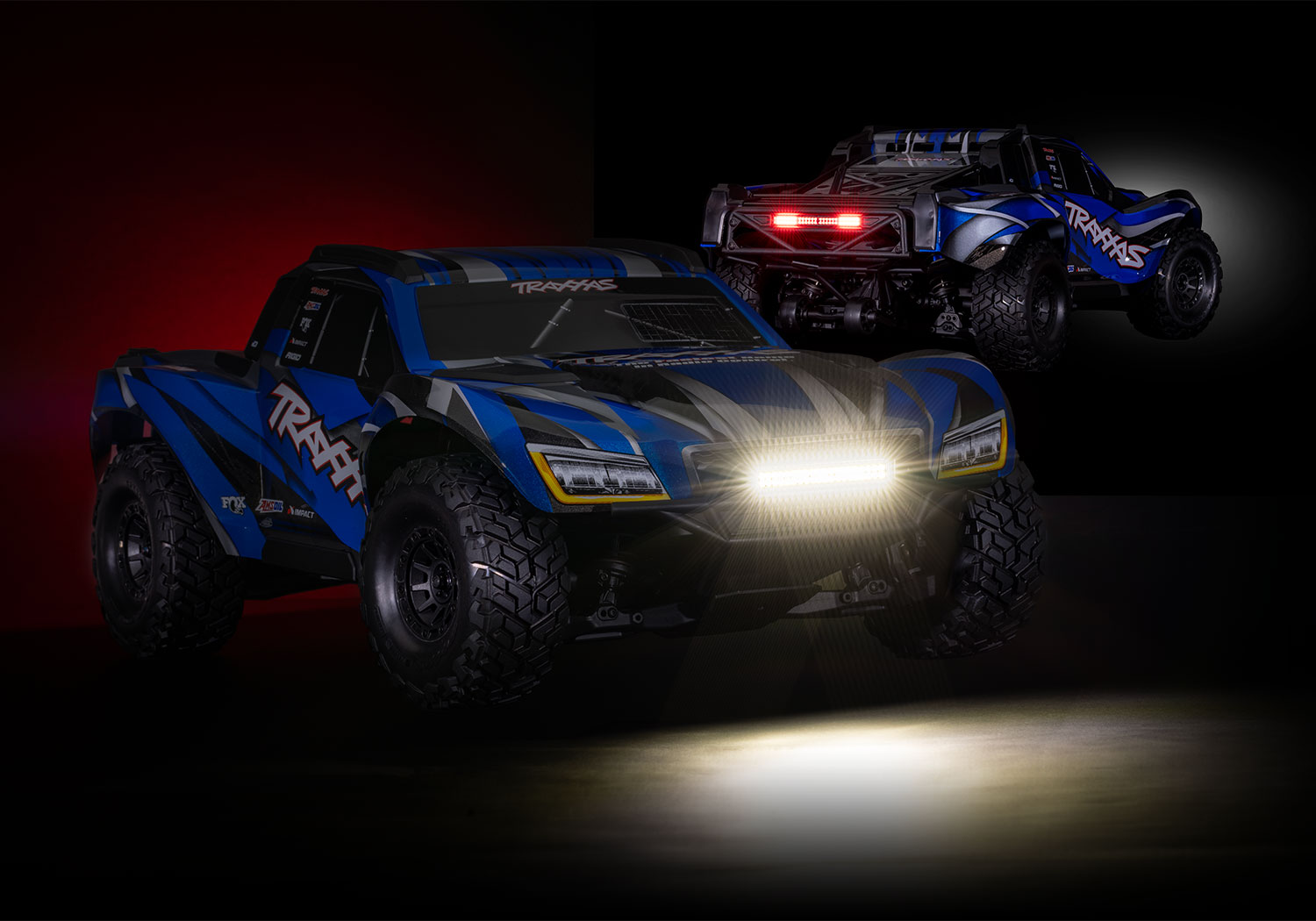

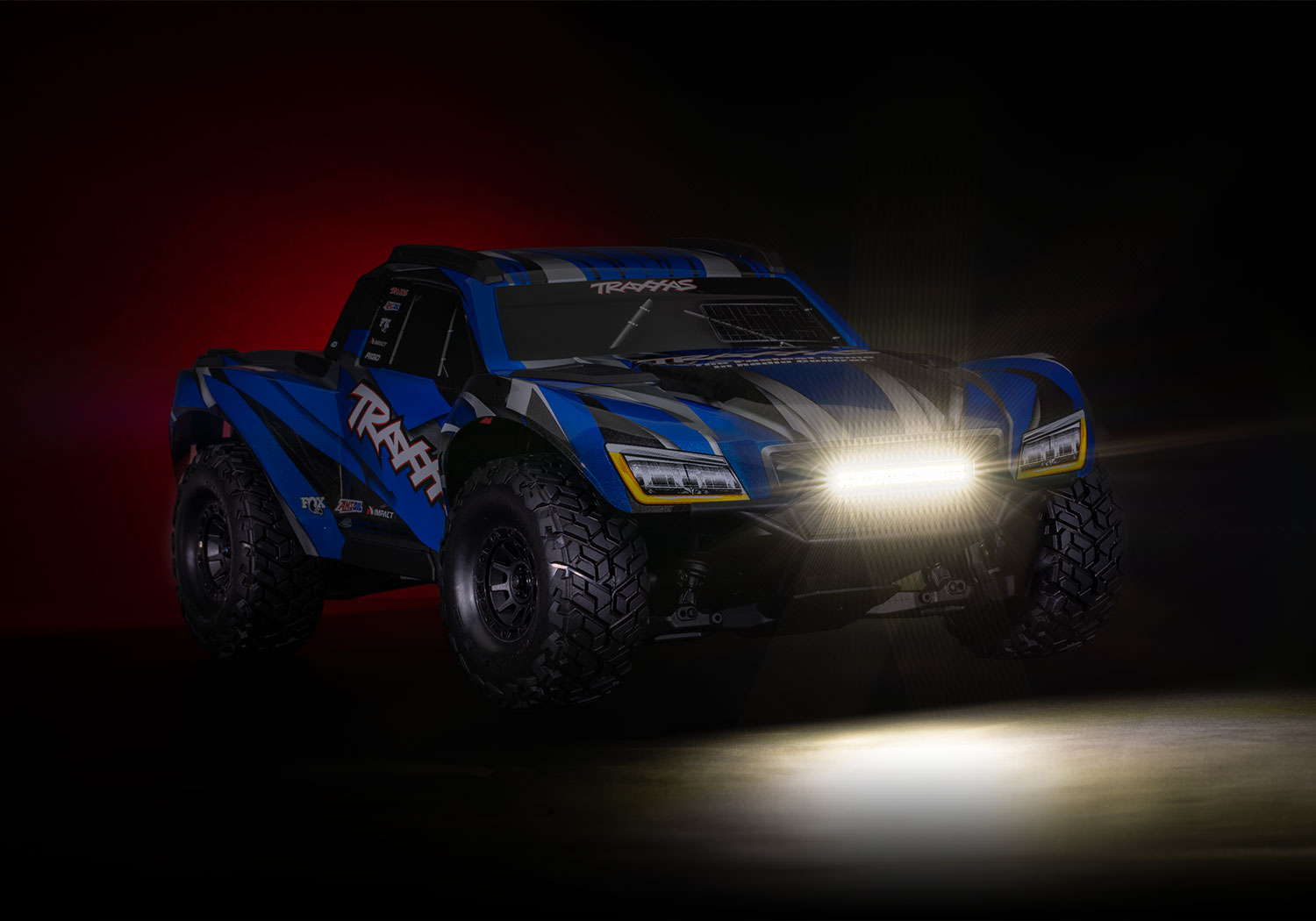

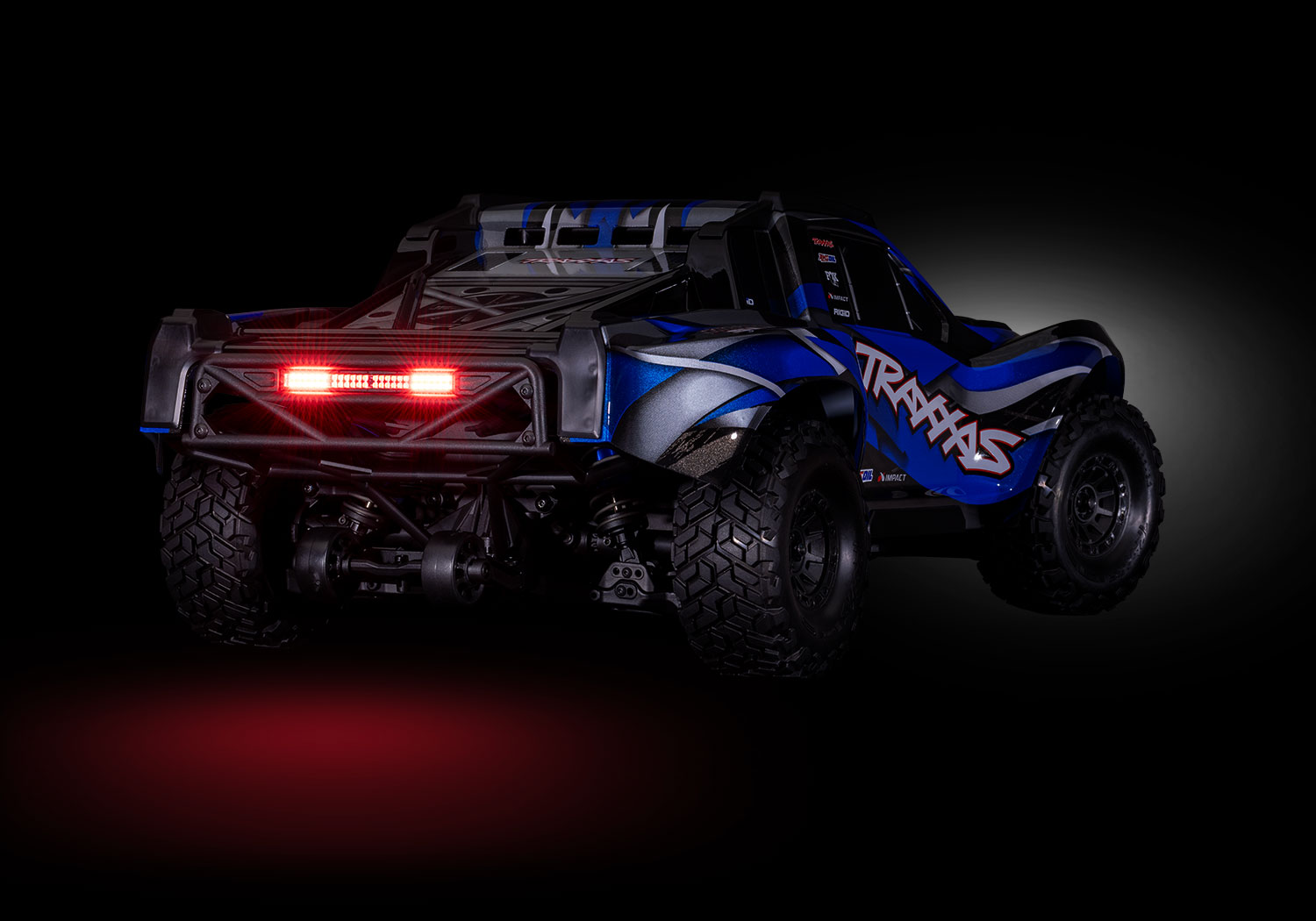

- High-Intensity LED Light Kit

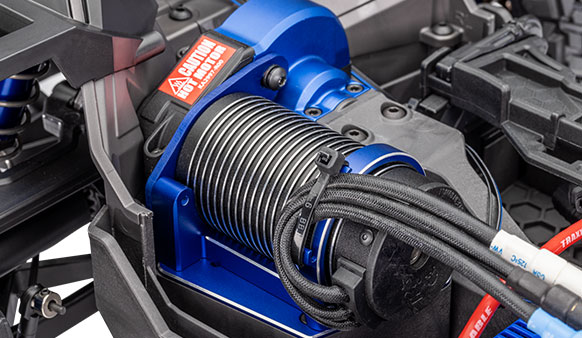

- Aluminum Motor Mount
- Aluminum Steering Blocks, Caster Blocks, and Rear Axle Carriers
- Aluminum Shock Caps and Spring Adjusters
- TiN Shock Shafts
- Aluminum Steering Bellcranks
- High-Torque, Metal Gear Steering Servo
- Aluminum Servo Horn

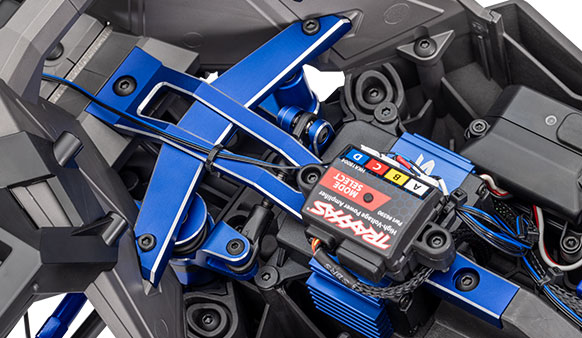

- Aluminum Front Chassis Brace
- Aluminum Gear Cover
- TUBES Adjustable Toe Links
- Front and Rear Sway Bars
- Clear Body
Photo Gallery
Make sure you don’t miss any of the latest Maxx Slash news, accessories, and updates.
Maxx Slash Data
| Length: | 26.52 inches (674 mm) |
|---|---|
| Front Track: | 14.30 inches (363 mm) |
| Rear Track: | 14.30 inches (363 mm) |
| Ground Clearance: | 1.54 inches (39 mm) |
| Weight (no battery): | 11.78 pounds (5.34 kg) |
| Height (overall): | 9.64 inches (245 mm) |
| Wheelbase: | 15.49 inches (394 mm) |
| Shock Length (front): | 4.90 inches (124 mm) |
| Shock Length (rear): | 4.90 inches (124 mm) |
| Tire Diameter: | 5.27 inches (134 mm) |
| Wheel Diameter: | 2.2 x 3.2 inches (56 x 81 mm) |
| Speed Control: | Velineon® VXL-6s |
| Motor (electric): | Velineon® 2000 kV Brushless |
| Overall Drive Ratio: | 11.38:1 (25/50 motor pinion and spur gear) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | Module 1.0 |
| Chassis Structure/Material: | Hex-reinforced nylon composite |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Wheels & Tires: | Dual-profile SCT wheels with Maxx SC belted tires & foam inserts |
| Radio System: | 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver |
| Servo: | 2090 Waterproof (285 oz-in torque) |
| Top Speed: | 70+mph with two 3s LiPo batteries and optional gearing (sold separately) |
| Skill Level: | 4 |
| Battery Tray: | (L/W/H): 181 x 56 x 45 mm |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |
| Type: | 2000 kV sensorless brushless |
|---|---|
| Weight: | 14.32 ounces (406 g) |
| Length: | 2.97 inches (76 mm) |
| Diameter: | 1.65 inches (42 mm) |
| Connector Type: | Traxxas 6.5 mm bullet connectors |
| Input Voltage (cells): | 4s–6s LiPo (max: 25.2 volts) |
|---|---|
| Case Size: | 2.28 inches (58 mm) x 2.83 inches (72 mm) x 1.81 inches (46 mm) |
| Weight: | 7.30 ounces (207 g) |
| BEC Voltage: | 6.0 volts |
| BEC Current Continuous: | 10 amps |
| BEC Current Peak: | 20 amps |
| Reverse Delay: | Yes, with lockout |
| Ports: | RX input, auxiliary fan, Traxxas accessory port |
- VXL-6s Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Patented Traxxas High-Current Connectors
- Velineon® 2000 kV Brushless Motor
- 4-pole 2000 kV brushless motor
- 5 mm output shaft
- Finned can for better heat dissipation
- Integrated motor cradle mount
- Supports entire motor
- Reduces flex for longer gear life
- TQi™ 2.4GHz High Output Radio System
- TQi™ 2.4 GHz transmitter
- TQi™ 2.4 GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points

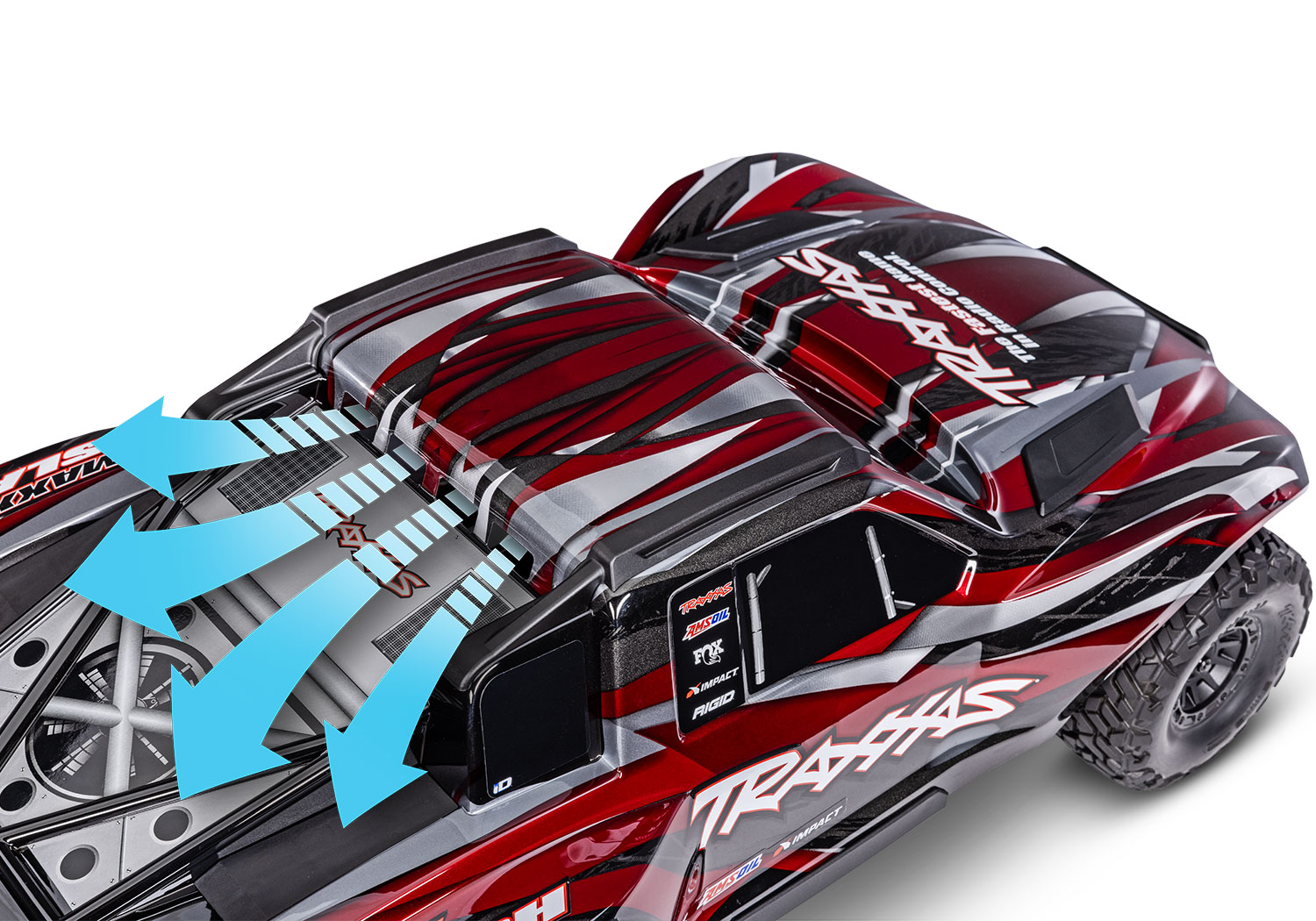

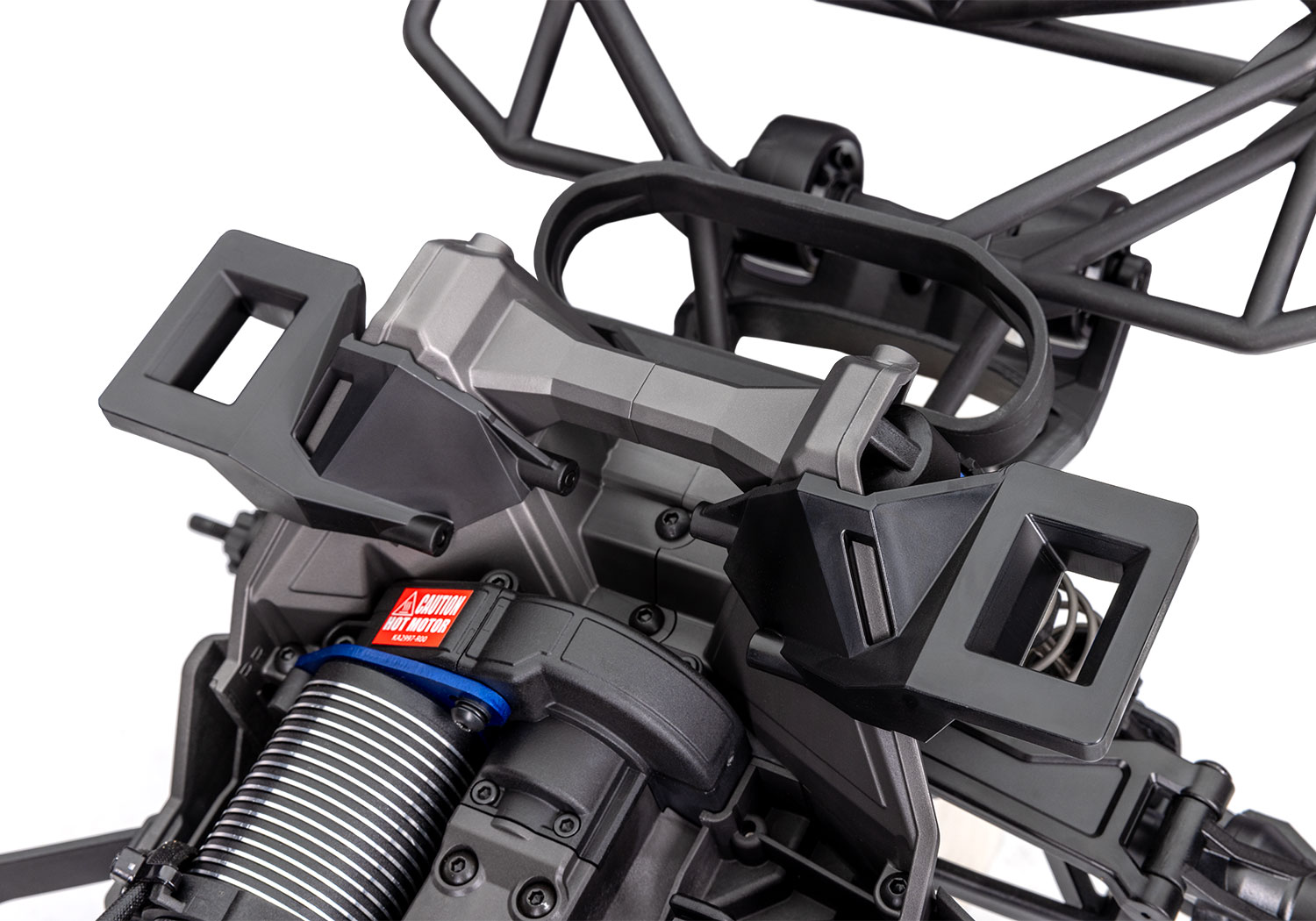

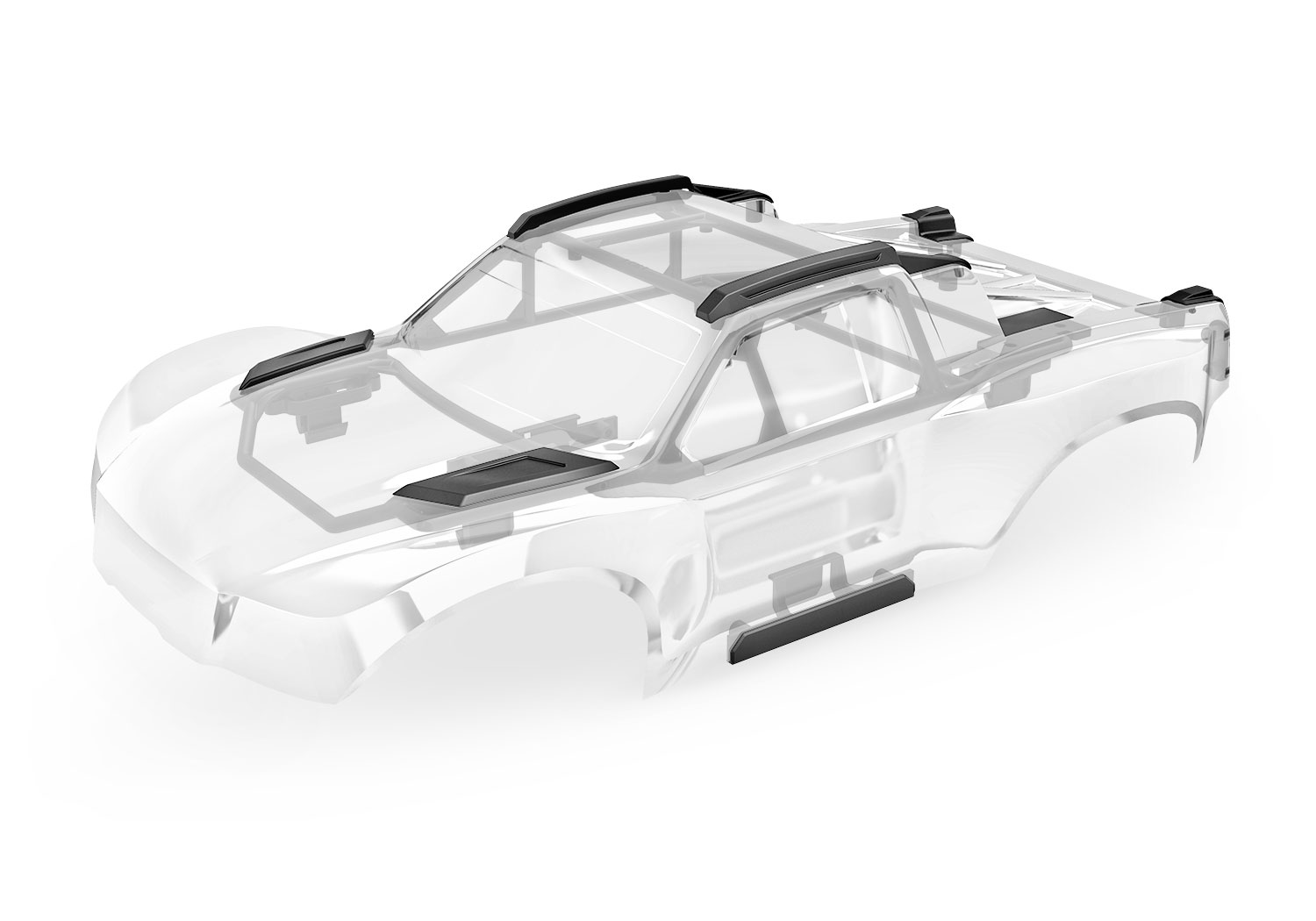

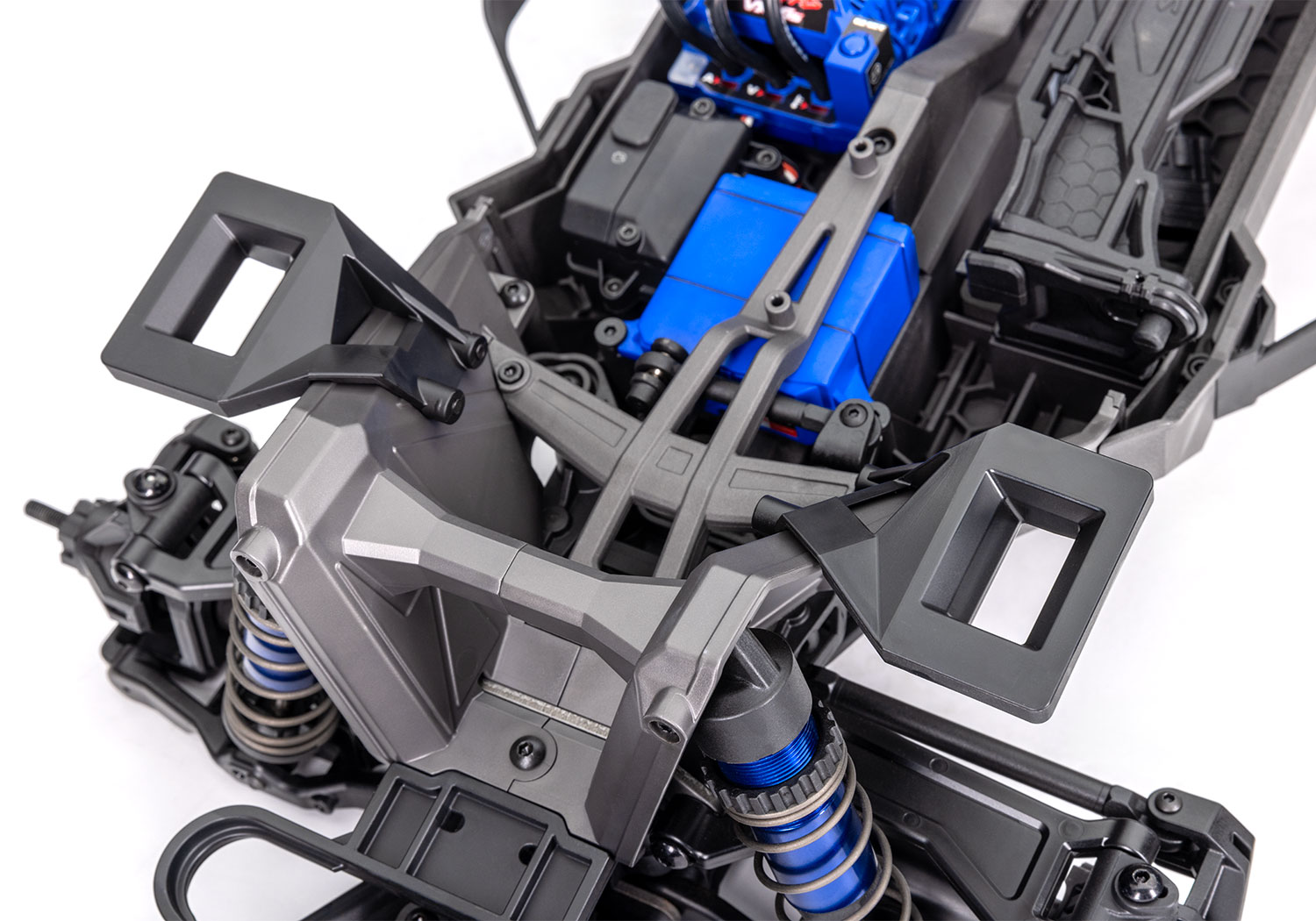

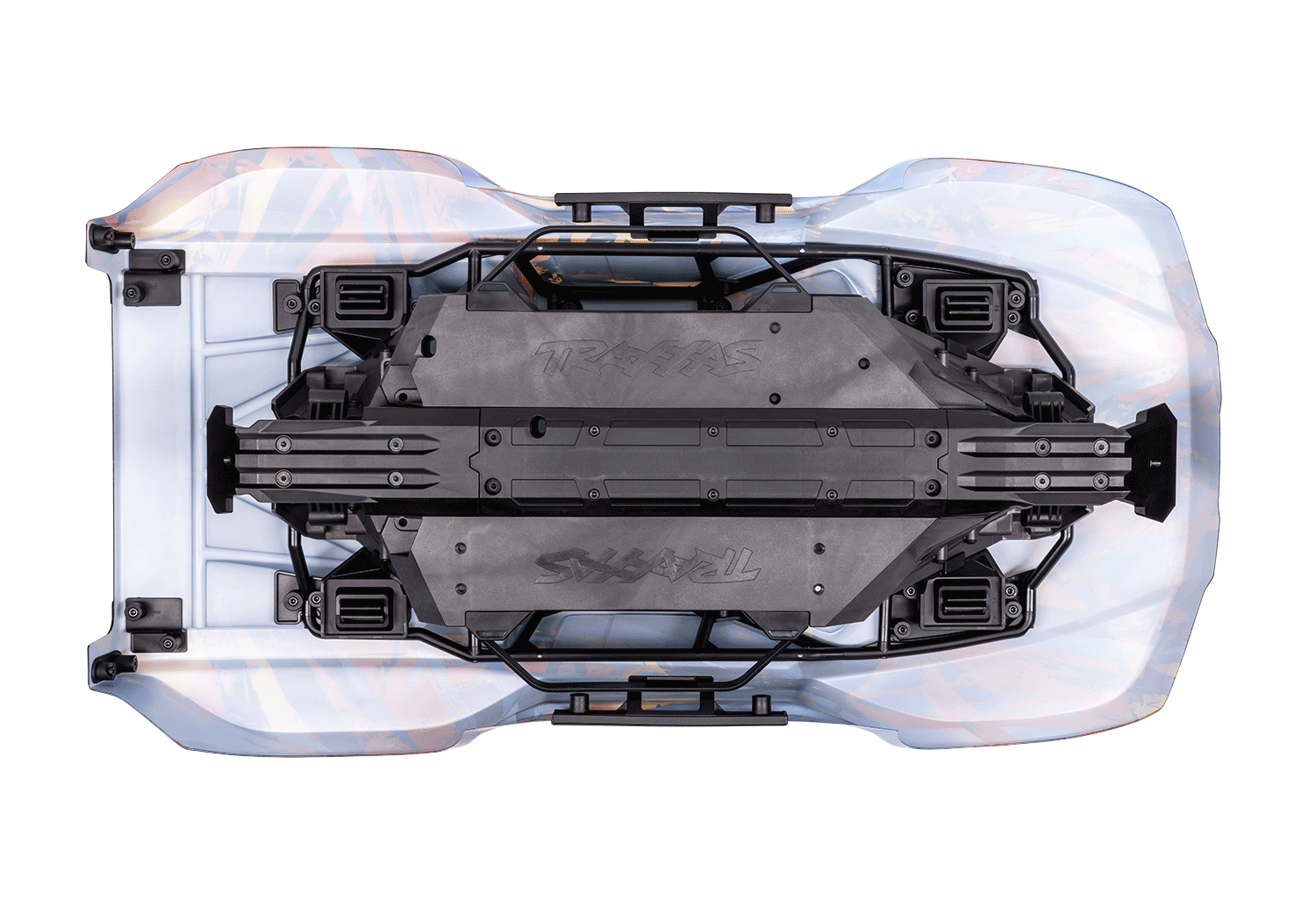

- Clipless Body
- Quick and secure installation and removal
- Managed airflow for improved high-speed stability
- Rigid internal frame
- Additional nerf bar side support
- Eliminates body posts and clips
- Molded body reinforcements for tear-through protection
- Drivetrain
- Torque-Biasing Center Drive
- Absorbs shocks and distributes power
- Aluminum housing
- Full-time shaft-driven 4-wheel drive
- 17 mm keyed wheel hex with 5 mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Steel pinion and spur gear

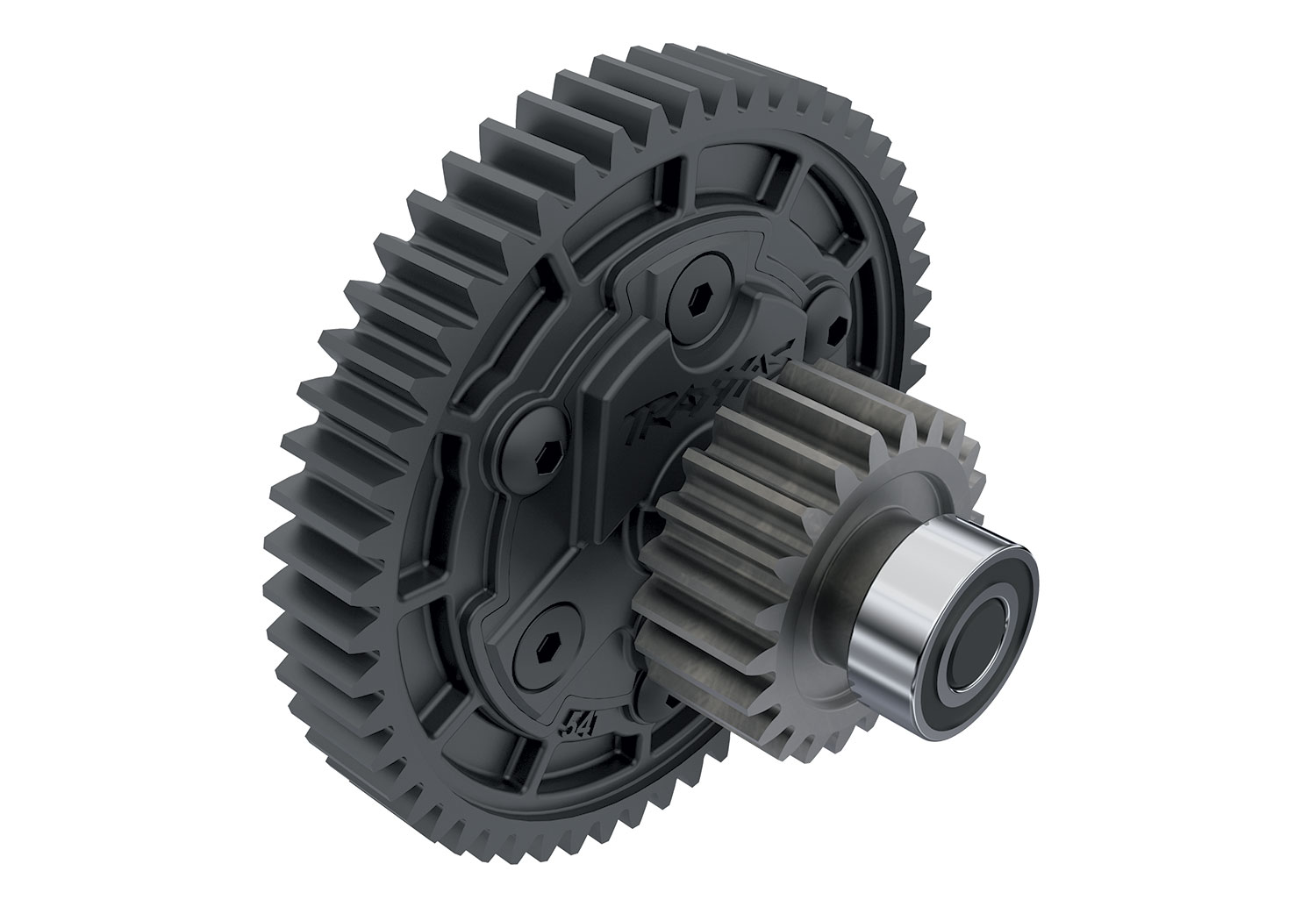

- Heavy-duty Cush Drive™
- Steel-Core hybrid telescoping driveshafts
- Splined aluminum center driveshaft
- Torque-Biasing Center Drive
- Easy Battery Access
- Large battery compartment with secure snap-lock battery door

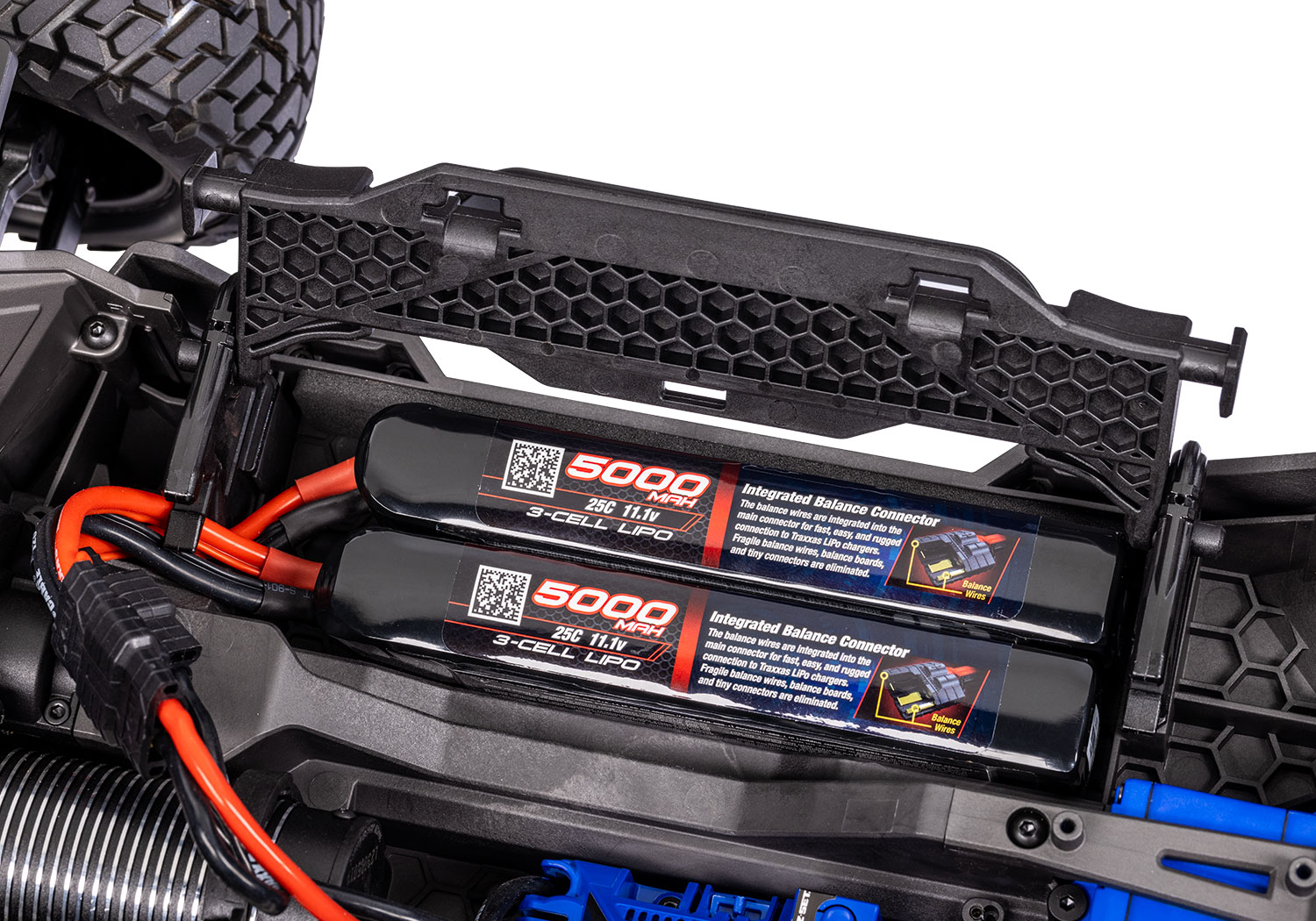

- Accepts single 6700 mAh 4-cell LiPo battery or dual 5000 mAh 3s LiPo batteries
- Batteries are protected deep in the chassis
- More secure than conventional retention systems
- Heavy-Duty Steering Bellcranks and Servo
- Large-scale high-output steering servo
- 285 oz-in of torque
- 0.18 sec transit speed
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Large-scale high-output steering servo
- Suspension
- Heavy duty double-shear suspension arms
- Tough composite formula resists impact damage, even in cold weather
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Heavy duty double-shear suspension arms
- 70+mph with optional gearing and dual 3s LiPo batteries (sold separately)
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter

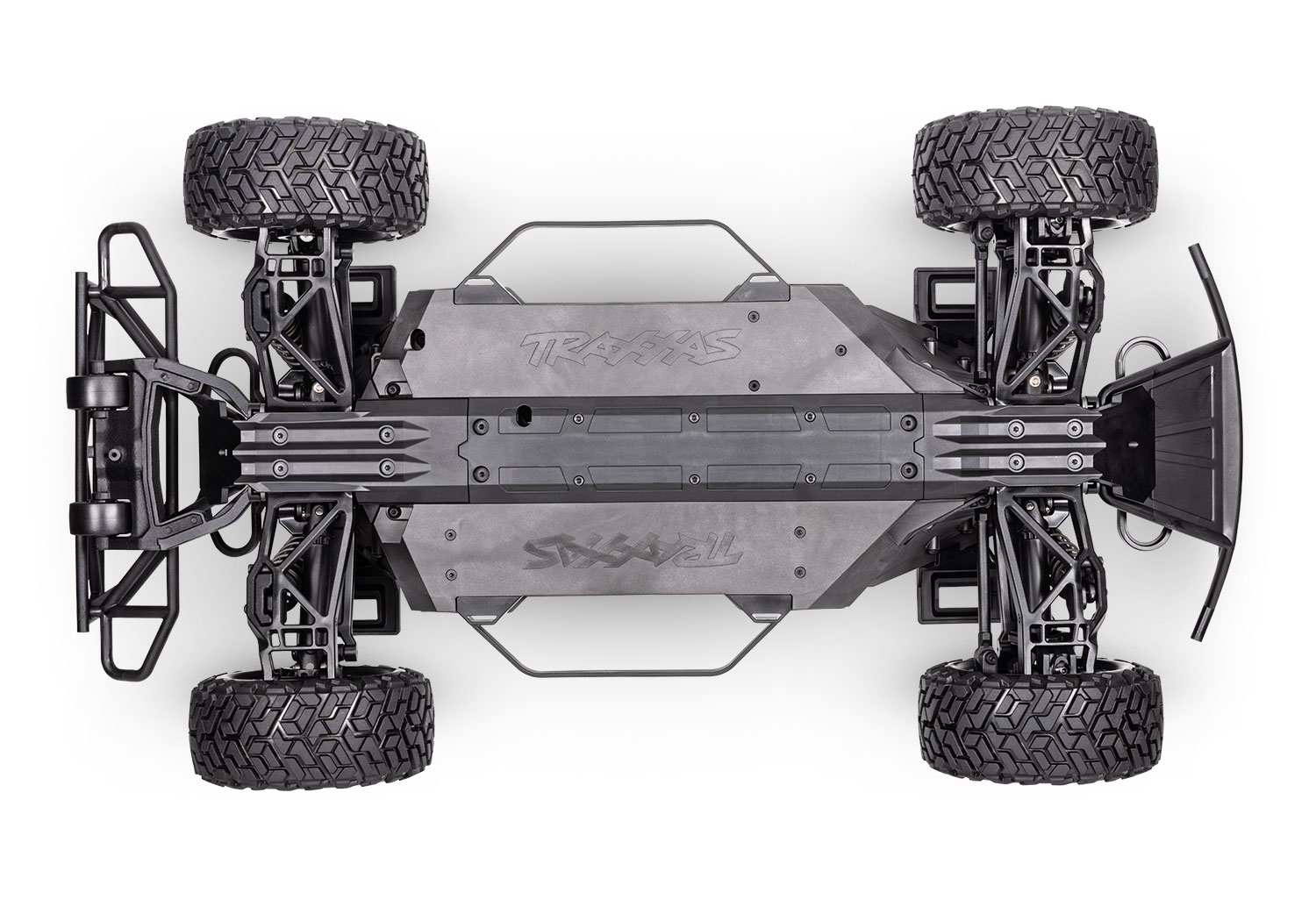

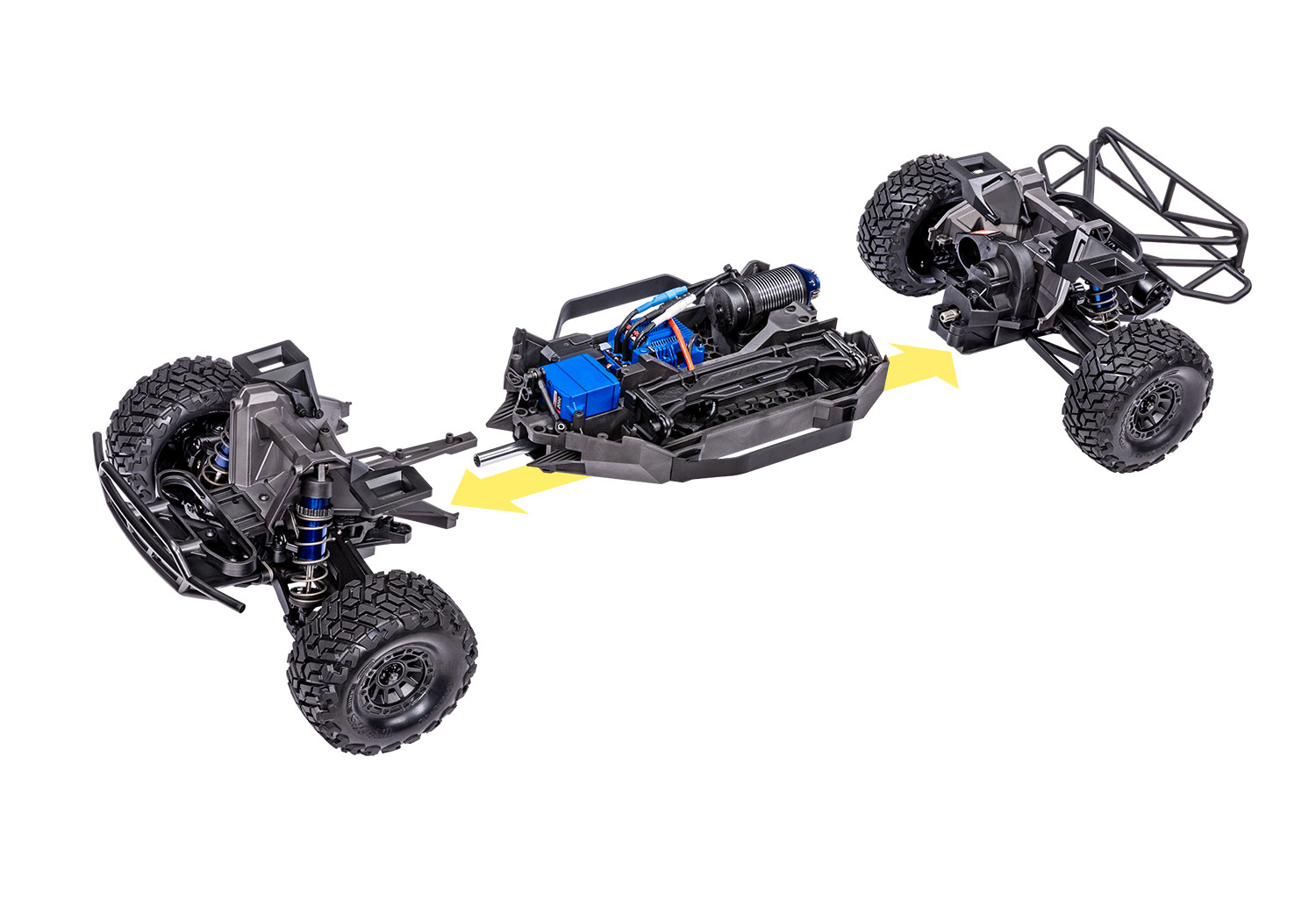

- Modular Low-CG Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Molded-in hex reinforcements on flat surfaces
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Bumpers
- Heavy duty energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Adjustable wheelie bar with integrated carry handle
- Wheels and Tires
- Tough dual-profile wheels with keyed 17 mm hex receptor
- Large 5.3″ Maxx SC belted tires
- Limits tire expansion for game-changing performance
- 1-piece foam inserts
- Pre-glued and ready for action
What’s In The Box:
- Maxx Slash, Ready-To-Race short course truck with Traxxas 2000 kV brushless motor
- VXL-6s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Jumper plug (for 4s battery use)
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD™
Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model 2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
