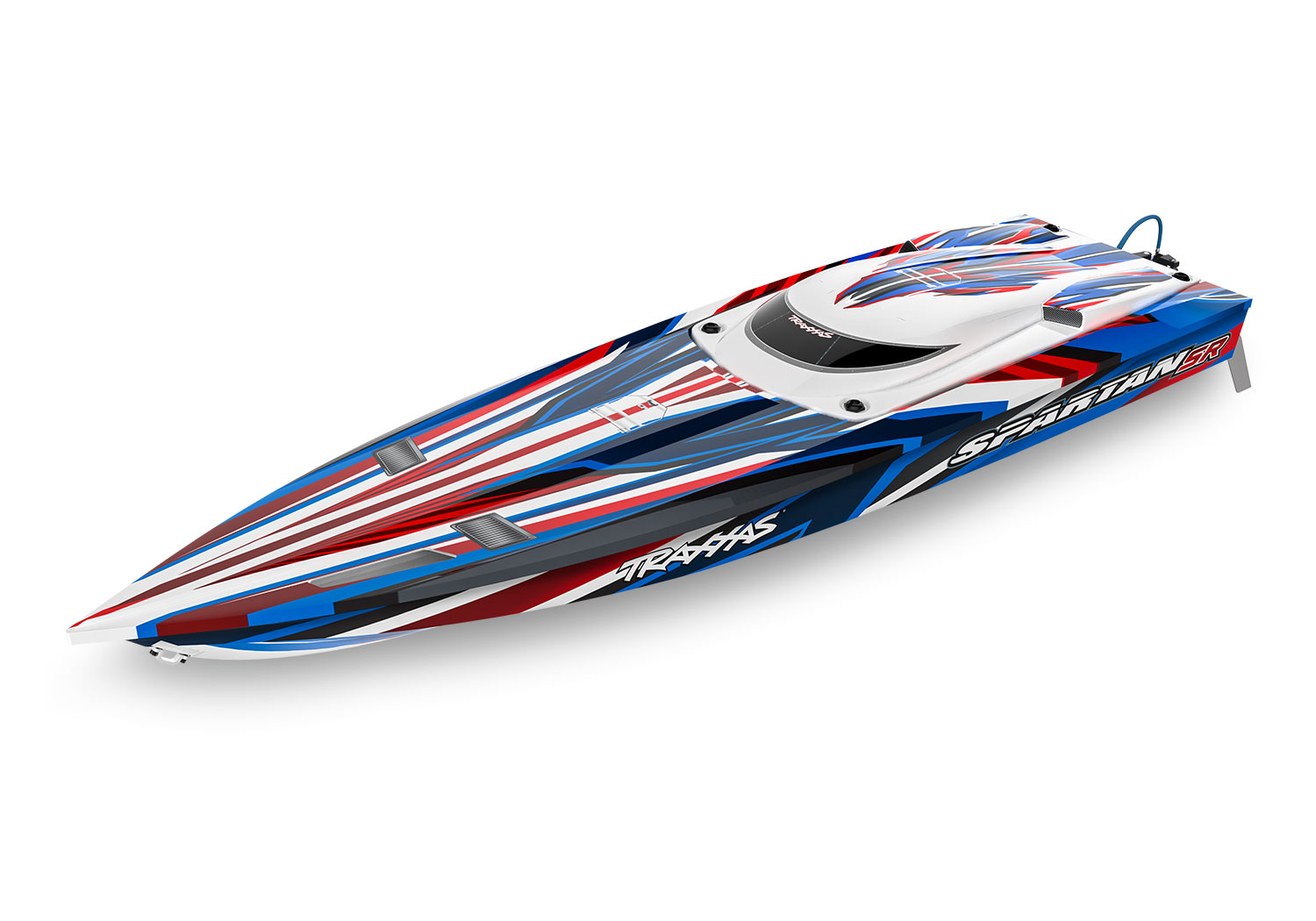

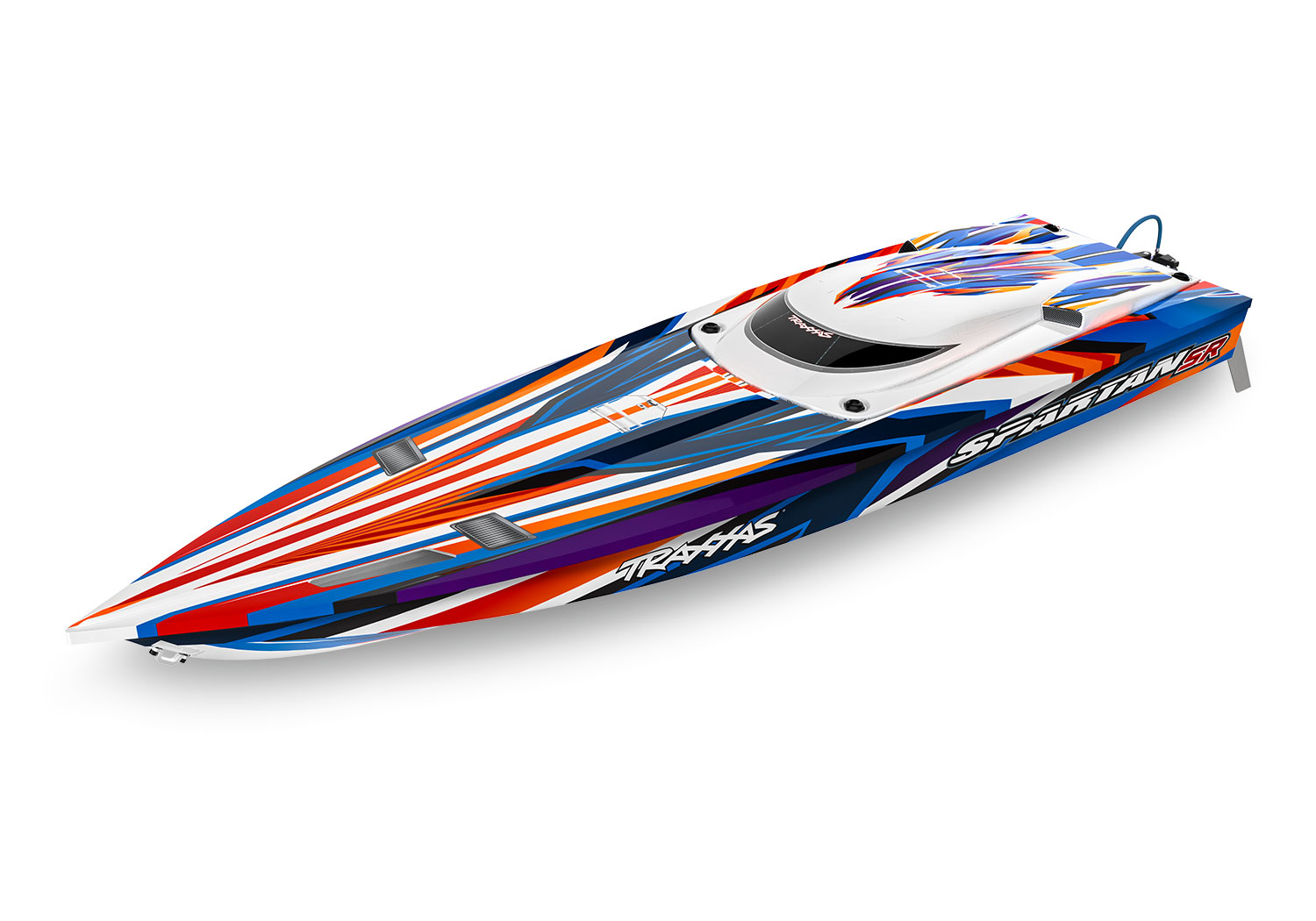

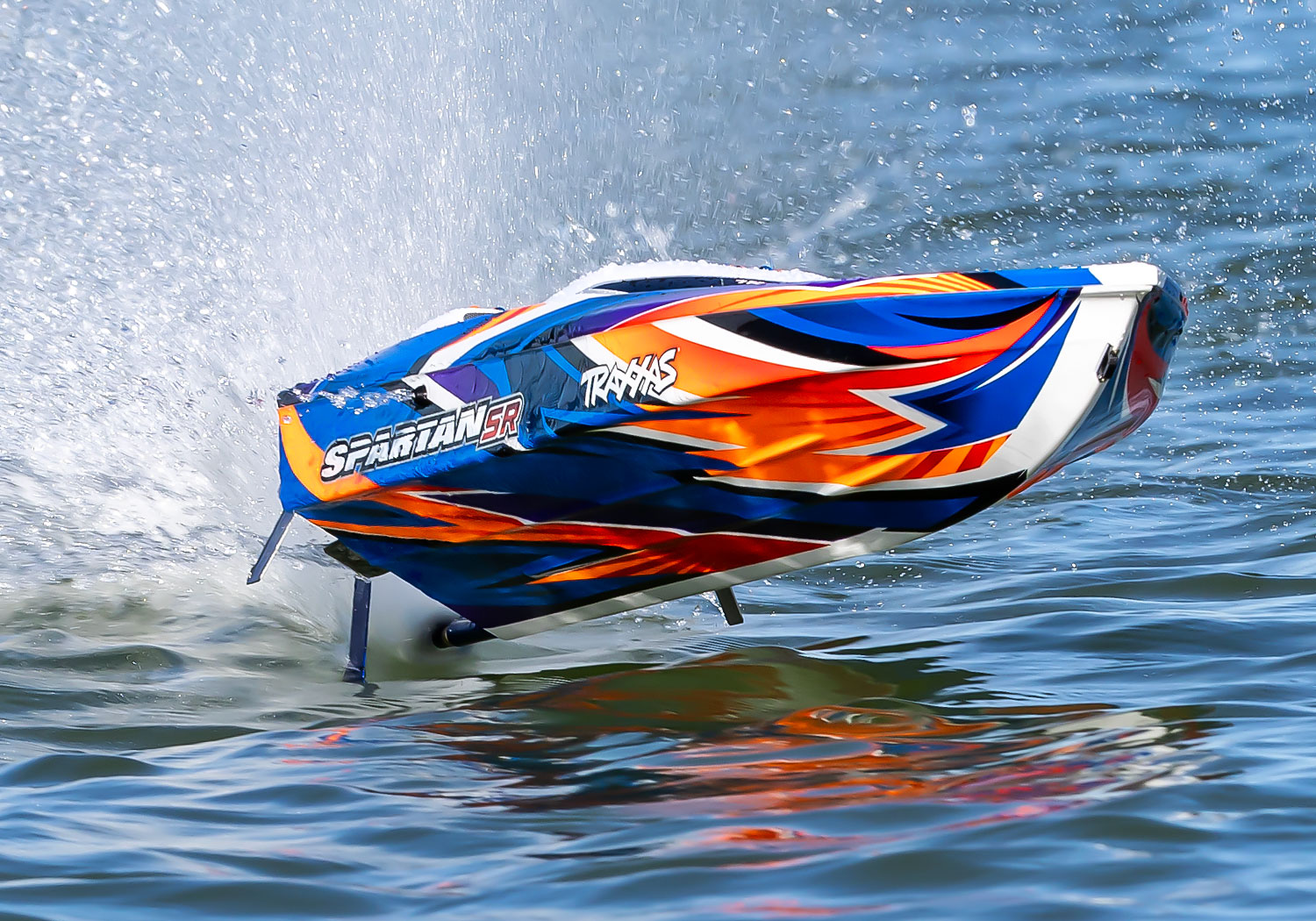

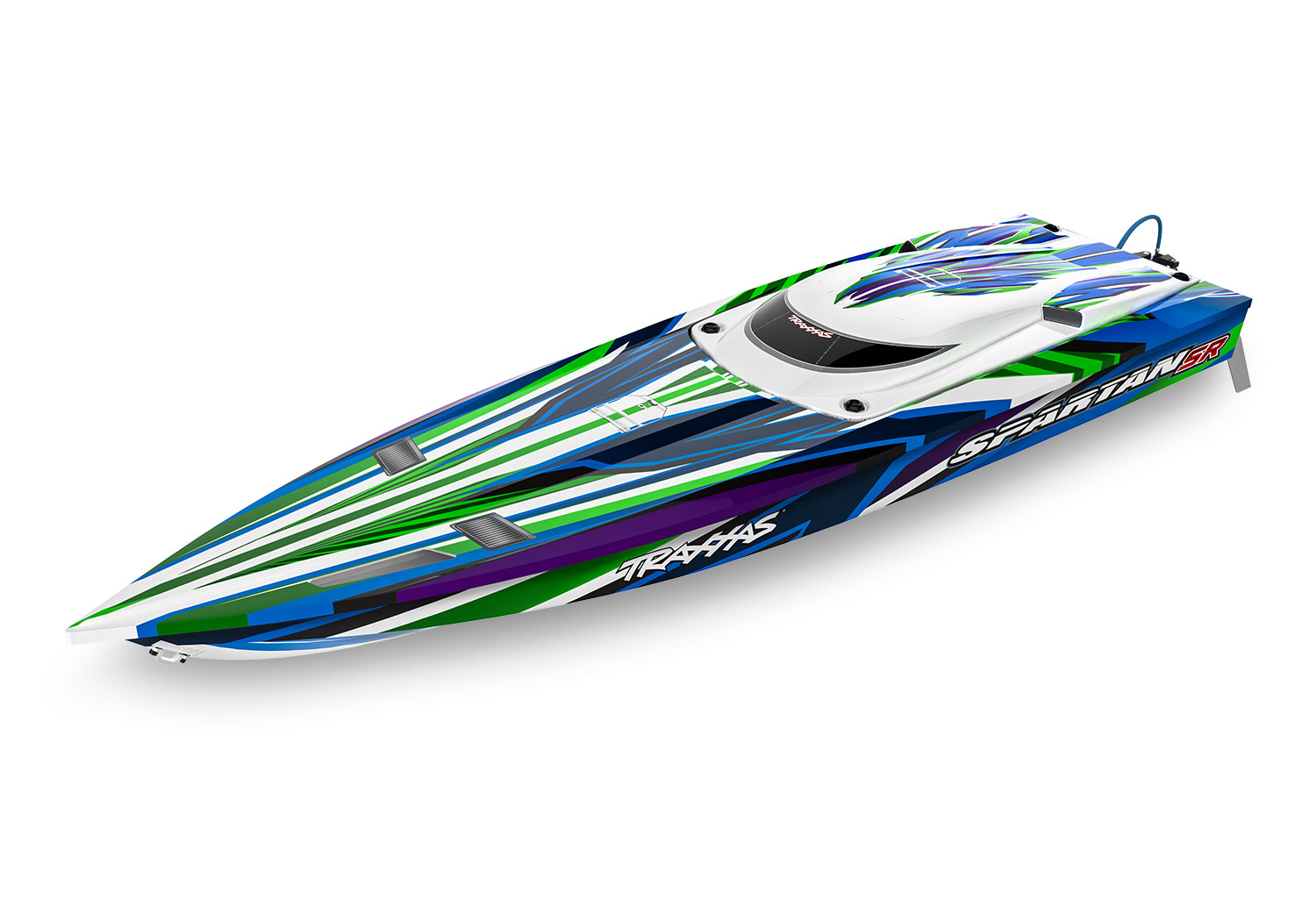

Extreme Full-Throttle Fun with Self-Righting Security
Spartan SR is built for speed and performance. Pull the trigger and Spartan SR immediately jumps on plane and rips across the water to its heart-pounding 50+ mph top speed! There’s nothing else like it and nothing holding you back. If a wave pitches the wrong direction, self righting is on board and within seconds, Spartan SR is back to extreme, full-throttle fun.
Available Now In-Store and Online!
Model 103076-4$449.95
Self-Righting Security
Self righting is more than a convenience feature, it’s an all-access pass to exploit Spartan’s full 50+ mph fury. Boaters of all skill levels will enjoy the confidence-inspiring security of self righting. There’s no need to back off the throttle or tone down the action. Just pin the throttle and Spartan SR takes care of the rest.
Razor-Sharp Handling

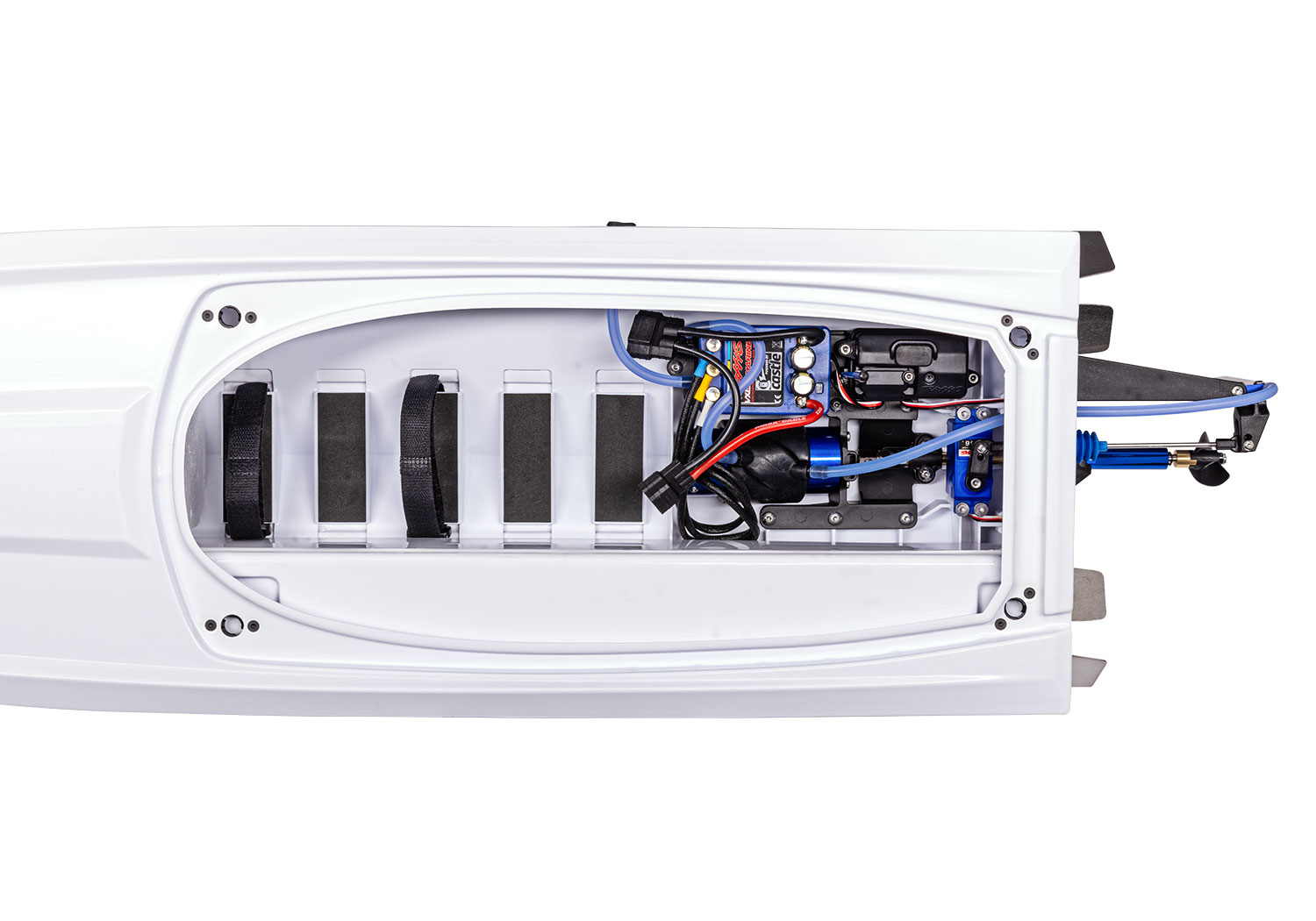

Spartan SR’s deep-V ABS hull carefully balances speed with agility for a truly thrilling driving experience. A new electronics layout and battery tray drastically improve handling precision by concentrating the weight inboard along the centerline. The result is razor-sharp handling, no-lift turns, and superior high-speed stability.

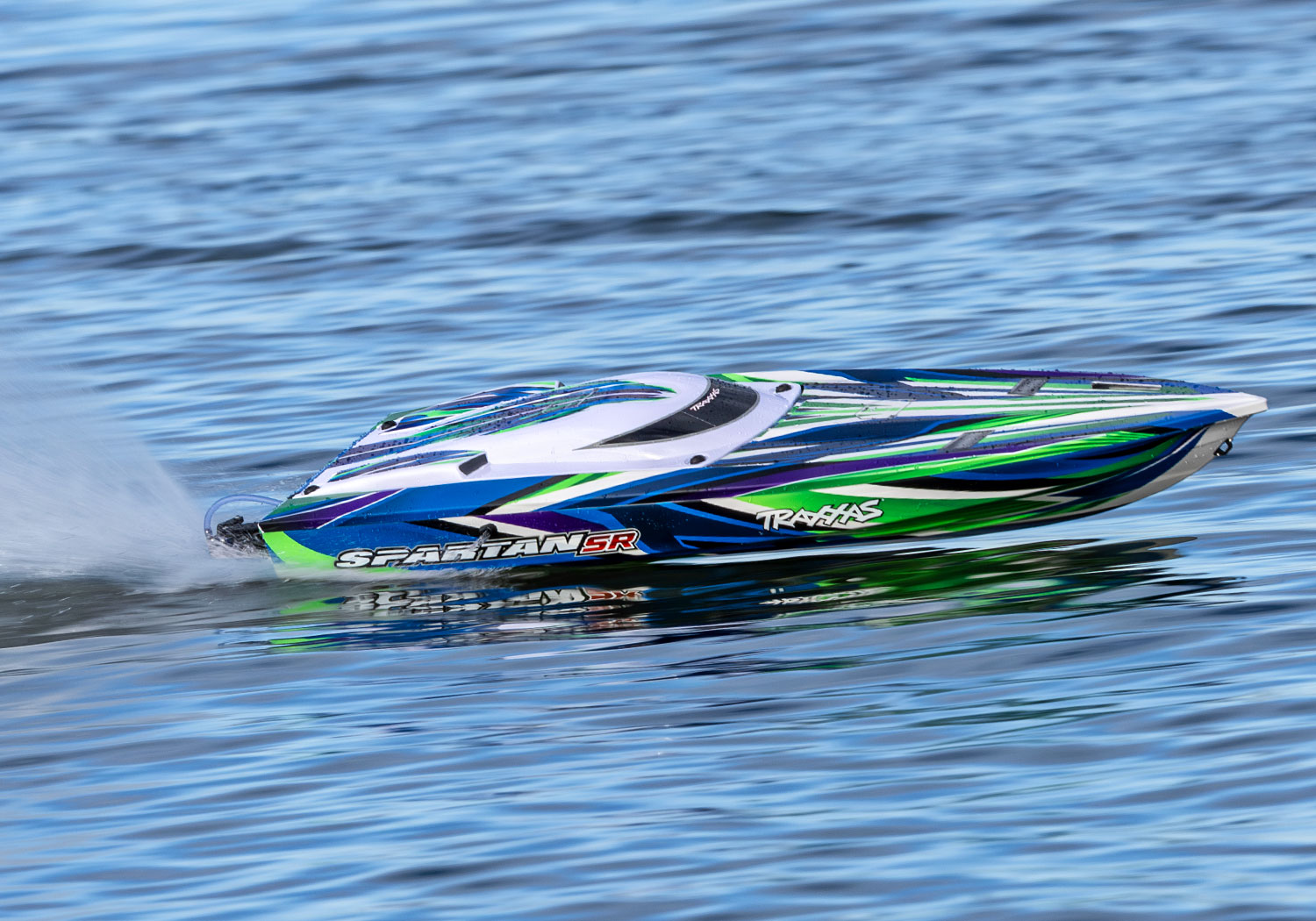

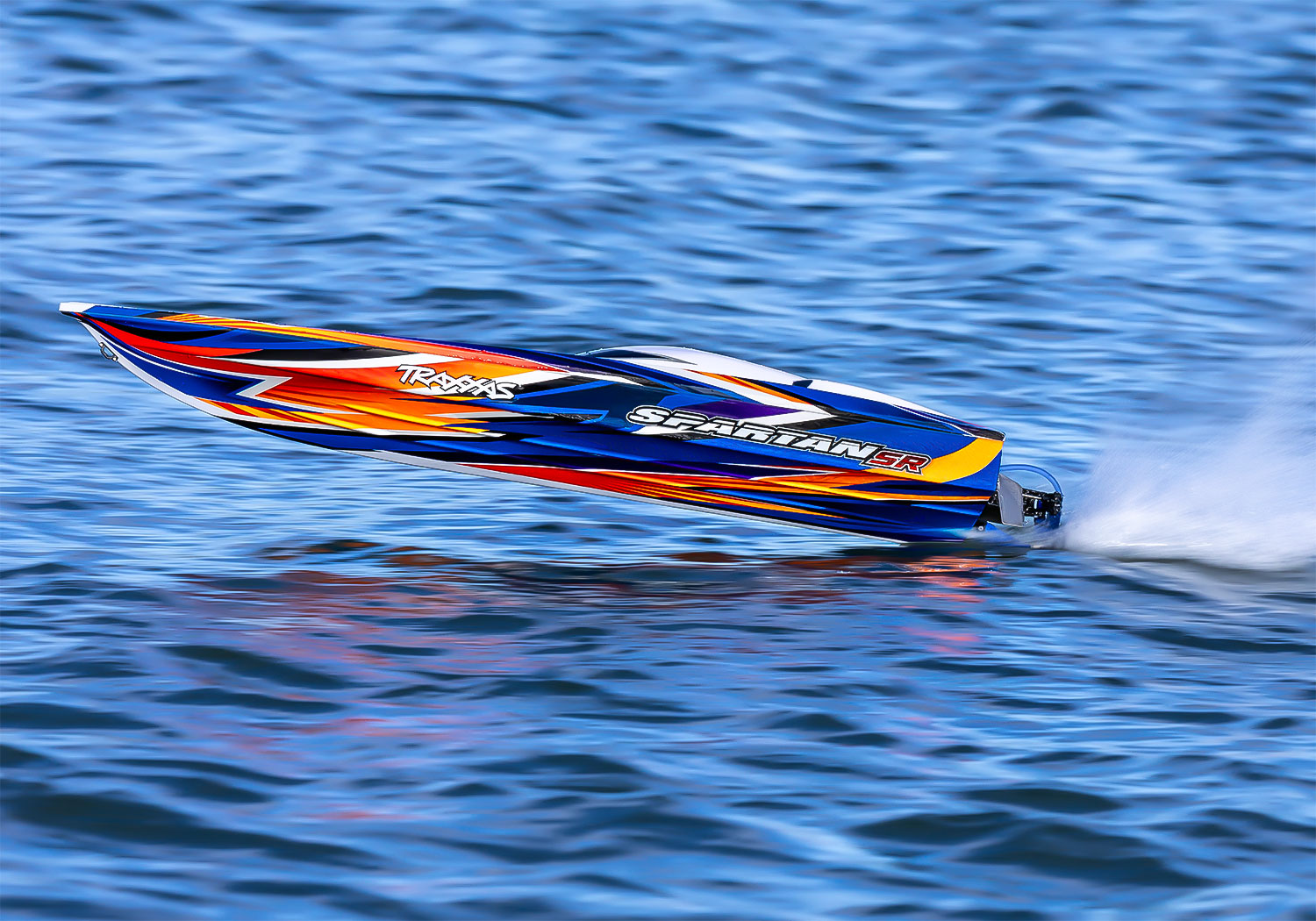

50+ MPH Speed
Grab a fistful of throttle and Spartan SR’s VXL-6s™ Marine power system transforms 22+ volts of LiPo power into furious acceleration. The high-performance prop digs in, getting the boat on plane quickly and efficiently as it slices through the water at speeds of 50 mph and beyond.
Video
Innovation
Details

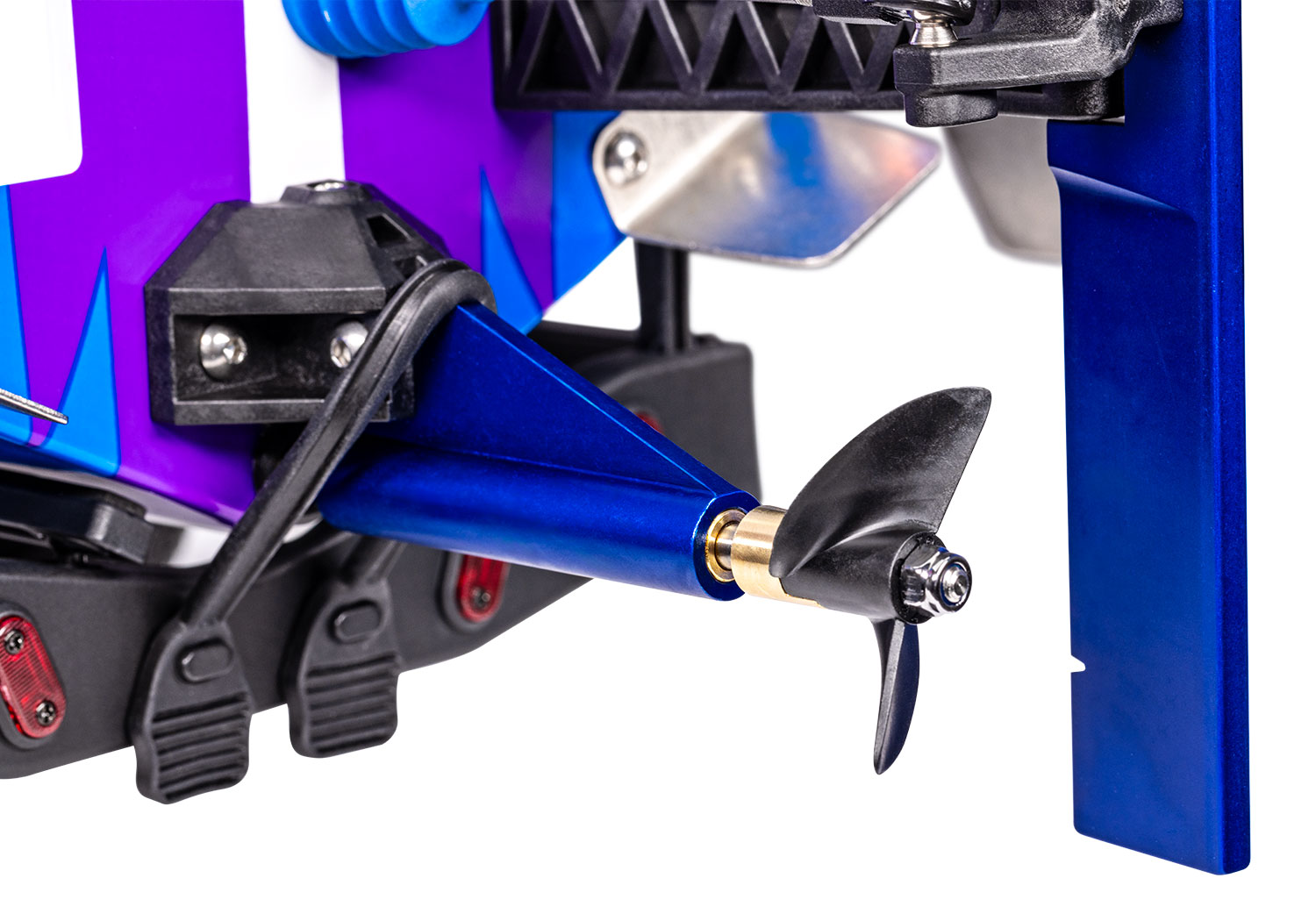

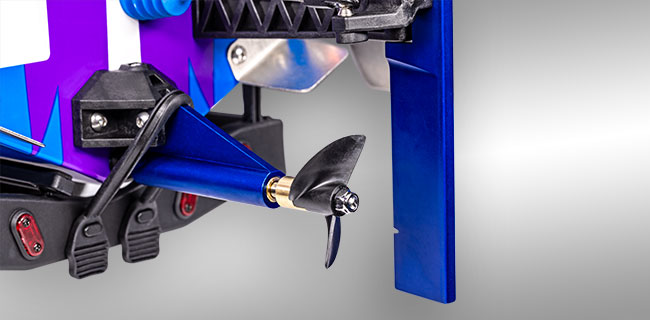

High Performance Prop
Spartan's prop gets the hull on plane quickly to reach maximum speed with the least current draw. Traxxas engineers tested countless prop configurations to find the perfect balance of performance, efficiency, and durability. Molded composite construction makes the prop light and tough, with no balancing or sharpening required.

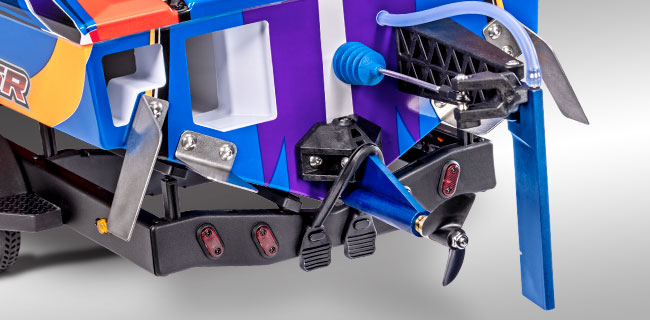

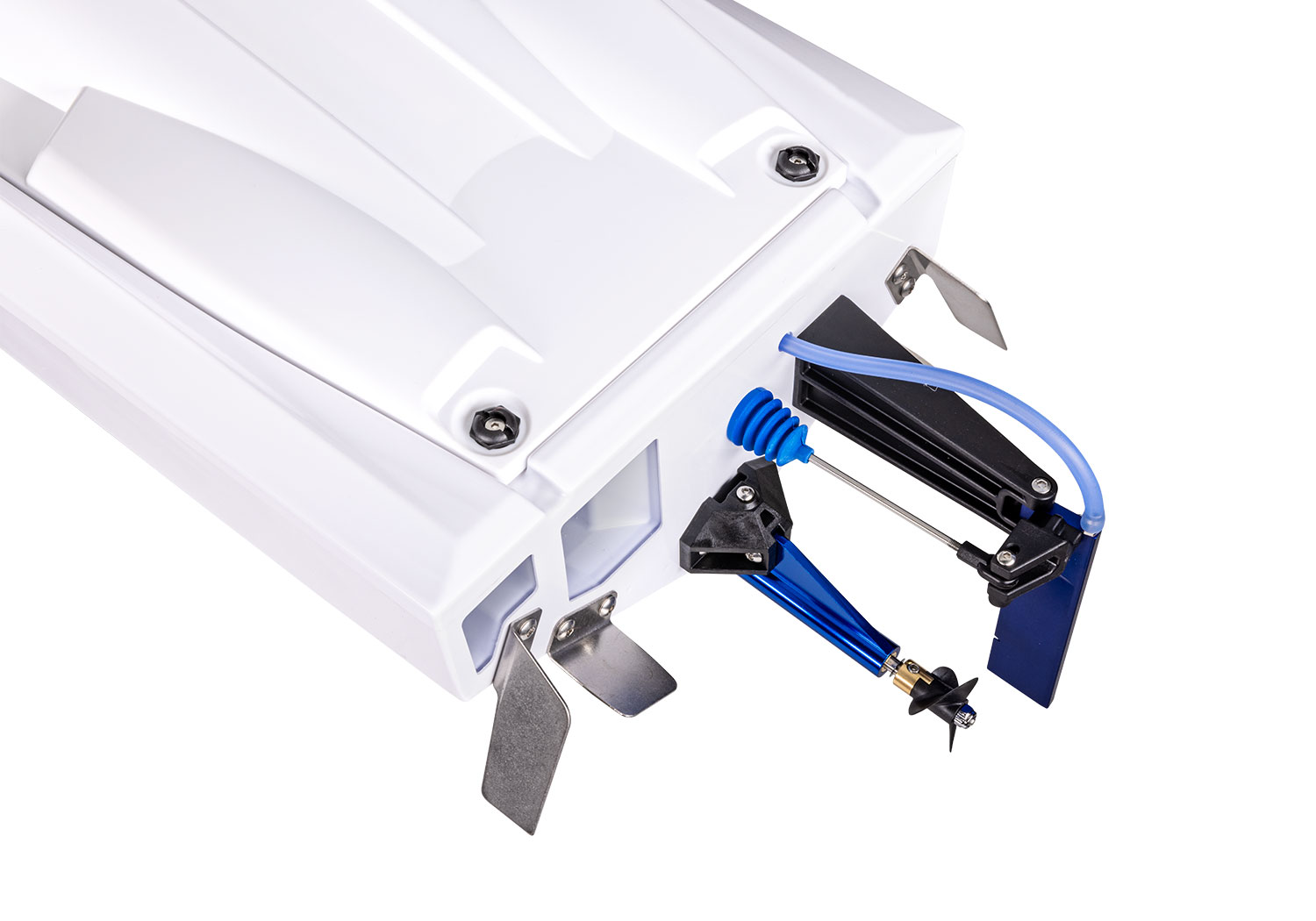

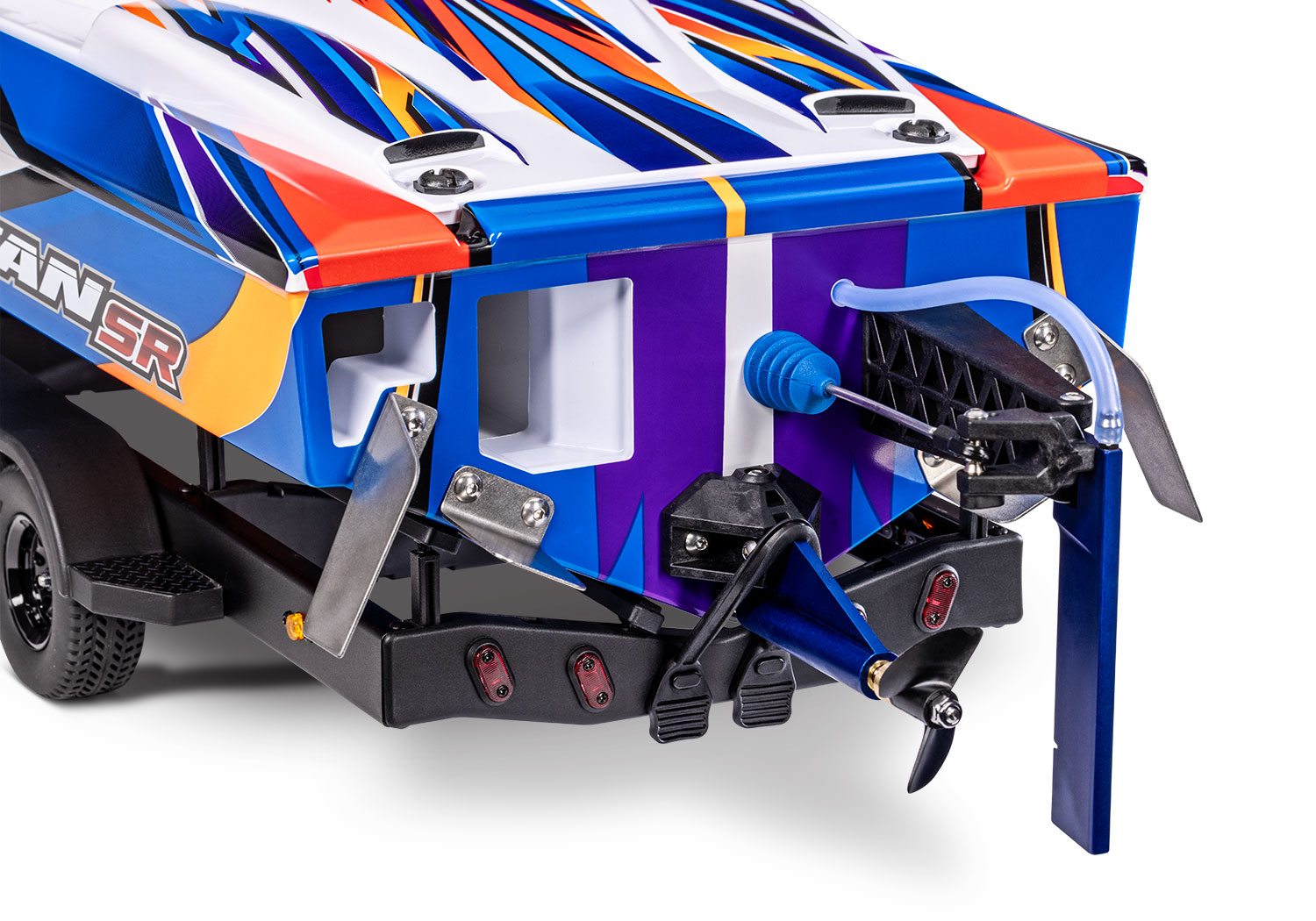

High Strength Aluminum Hardware
Spartan’s rudder and drive strut are machined from tough 6000-series aluminum for maximum strength and then anodized vivid blue for that unmistakable Traxxas look. The drive strut uses special bushings for corrosion-free performance and features an oiling hole for easy maintenance.

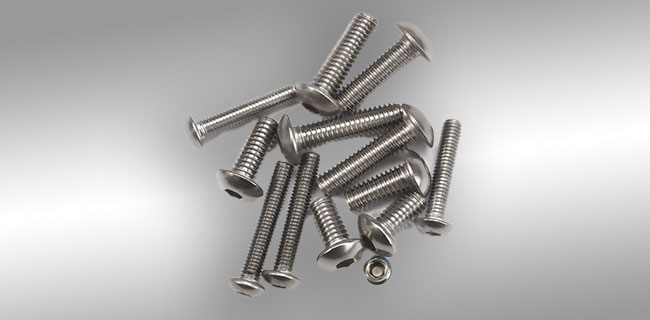

Stainless Steel Hex Hardware
Spartan uses corrosion-resistant stainless-steel and nickel-plated hardware throughout for good looks, easy maintenance, and long-lasting performance.

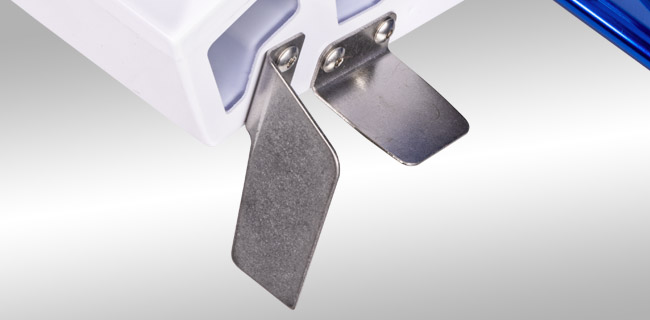

Stainless Steel Trim Tabs & Turn Fins
Spartan's dual trim tabs and turn fins are critical to its high-speed performance. The parts are precision die-cut and bent from stainless steel to resist corrosion as they provide aggressive cornering 'bite' and the proper hull attitude for water-boiling speed.

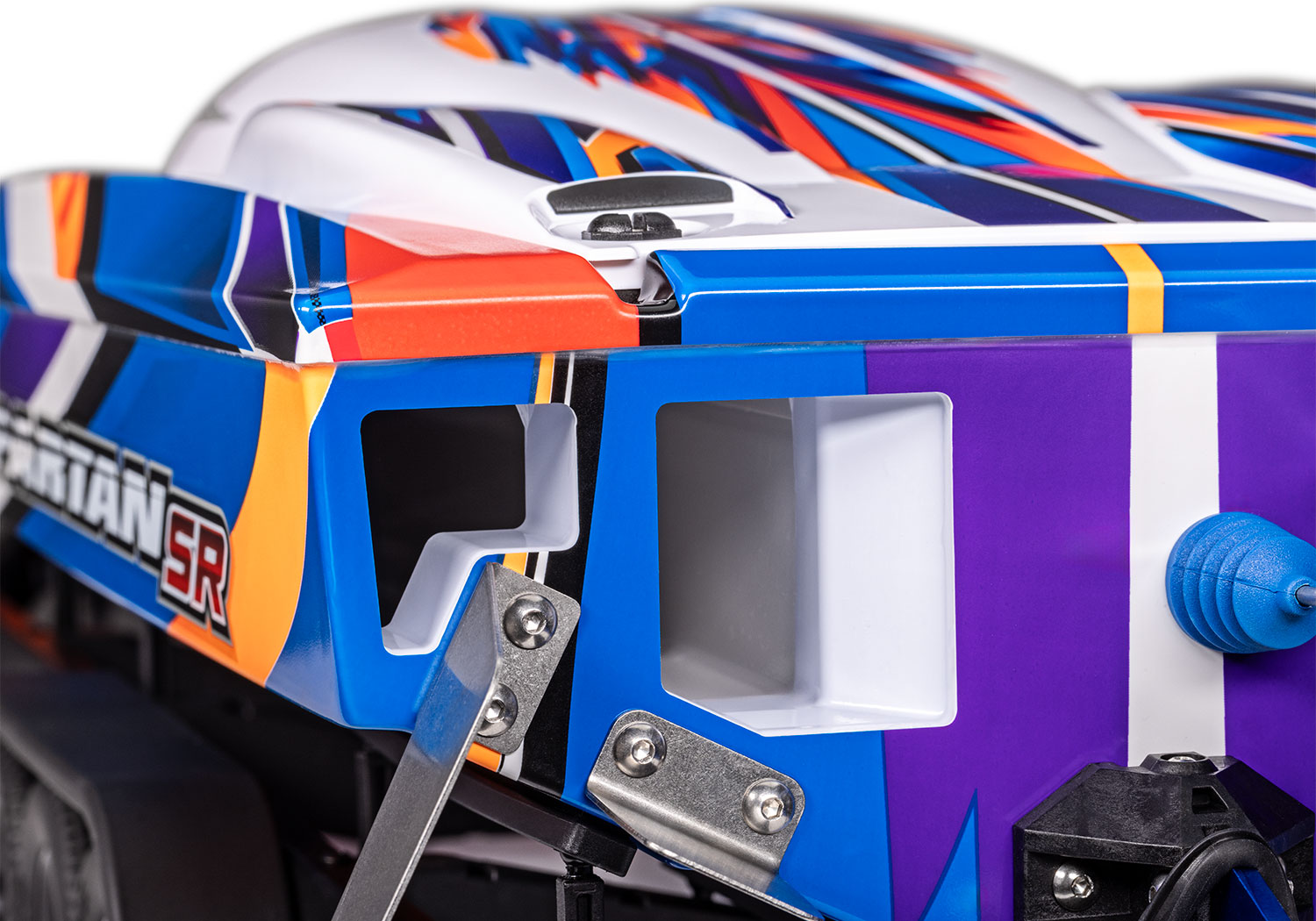

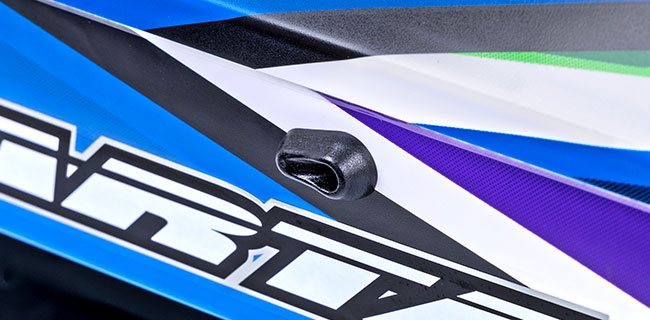

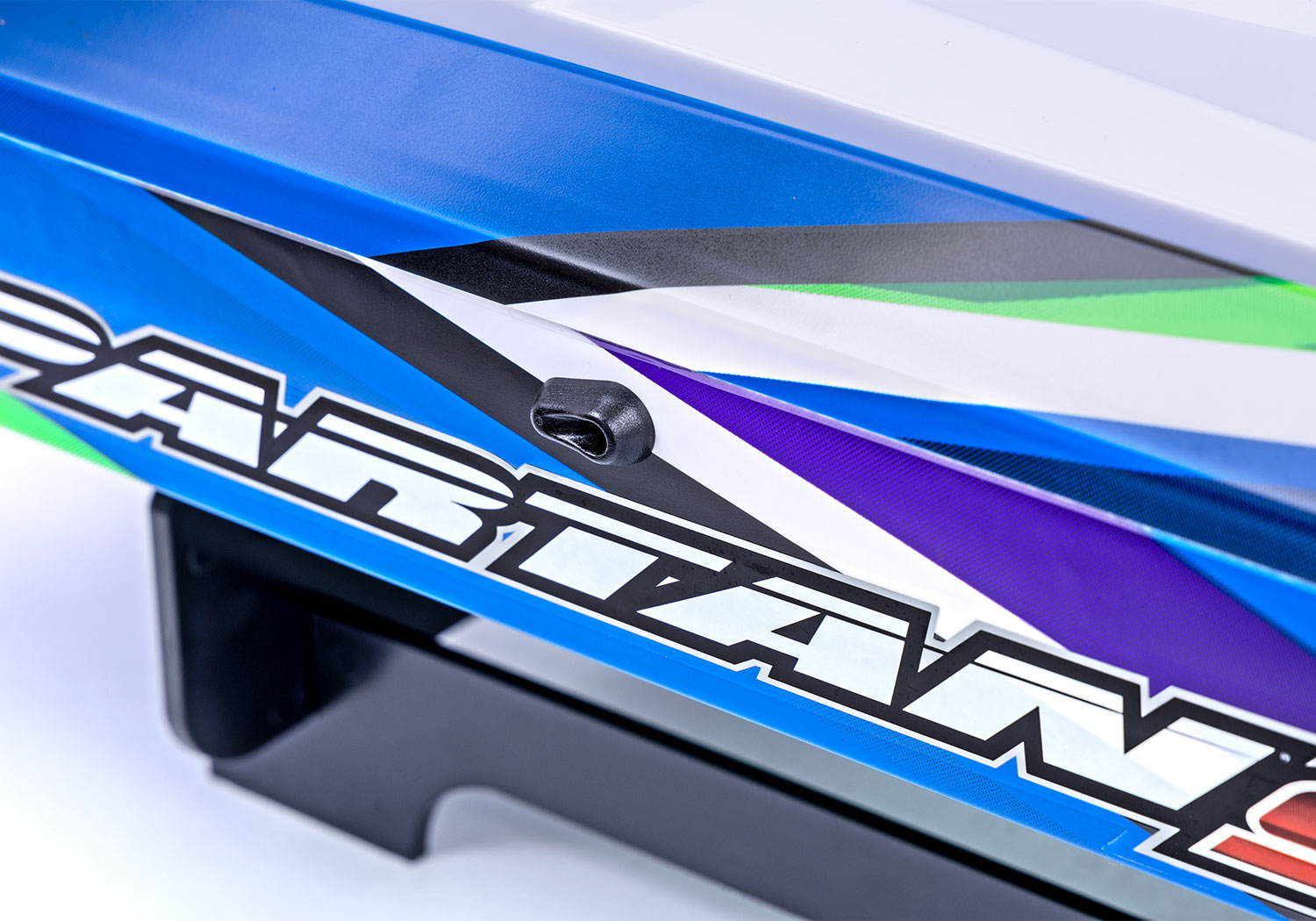

Streamlined Water Outlet
Spartan's water outlet is streamlined and integrated into the hull to maintain its sleek look. Even the smallest details are important when creating a 50+ mph speed machine.

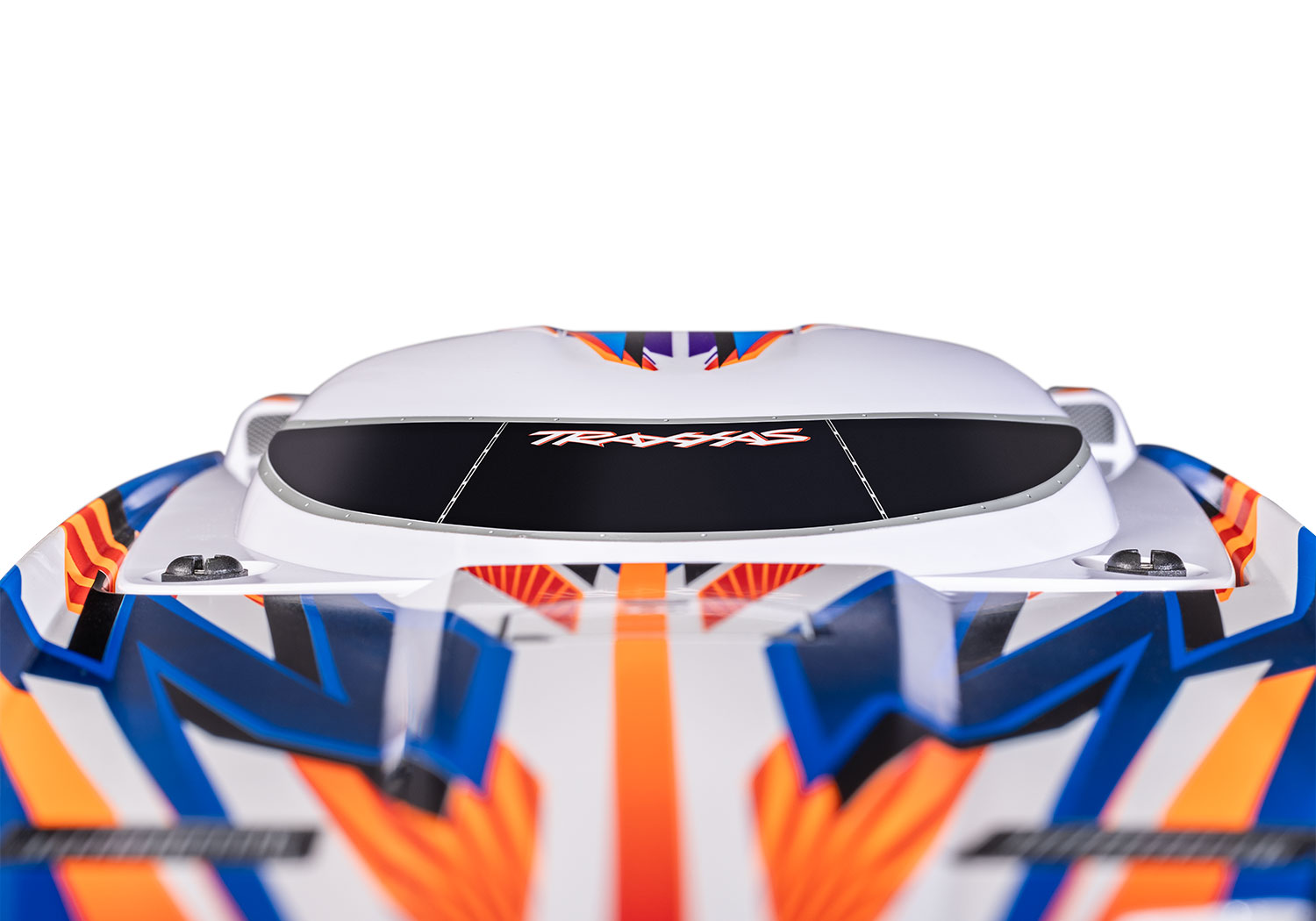

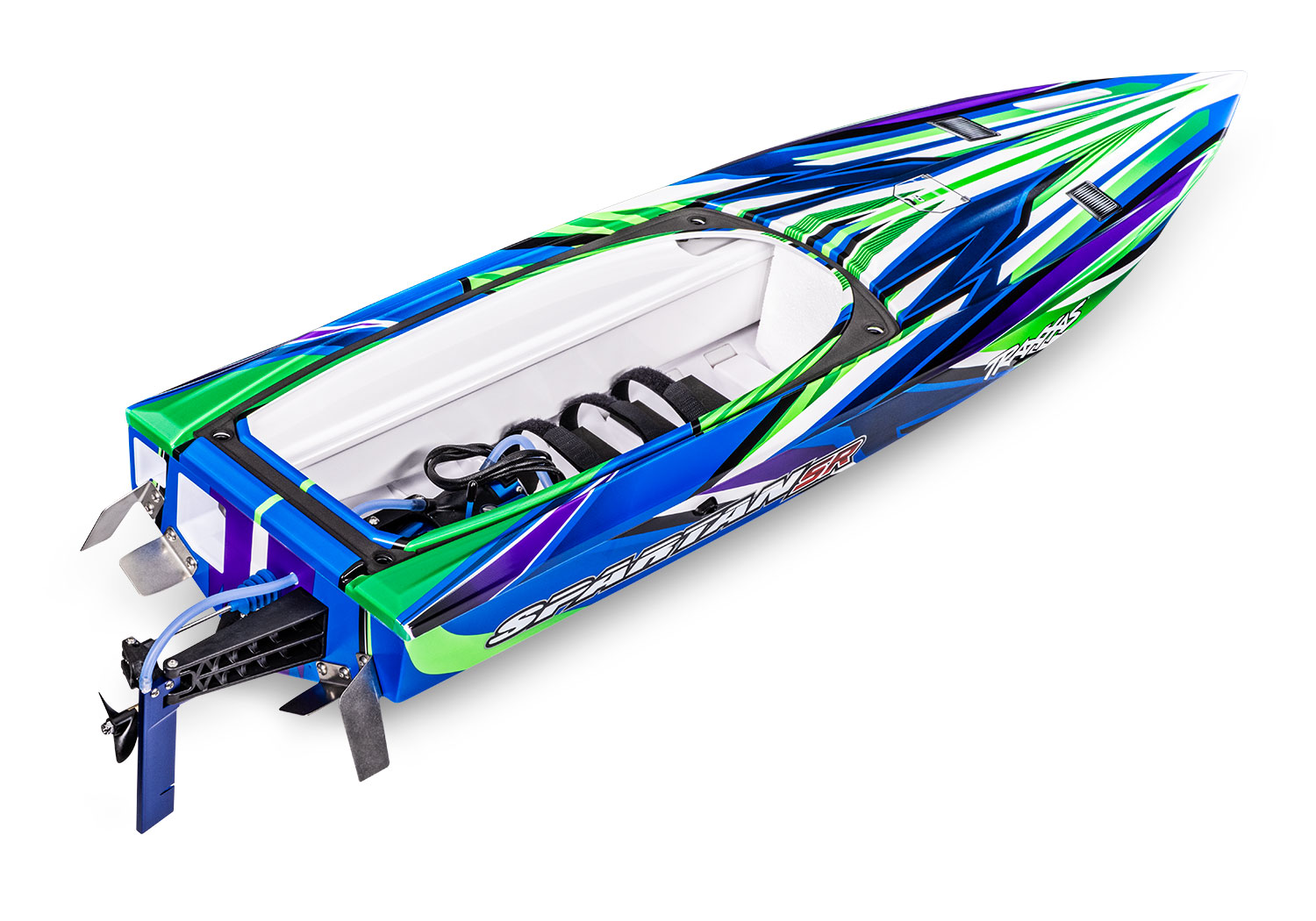

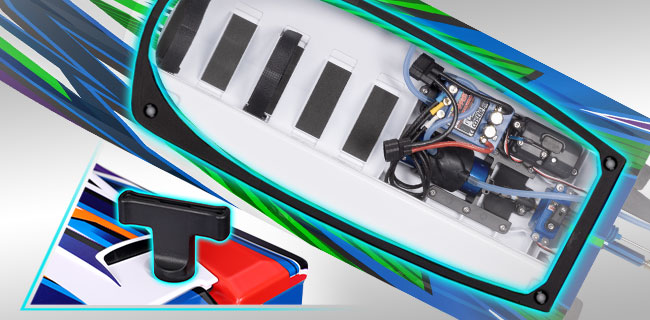

Clipless Latching System

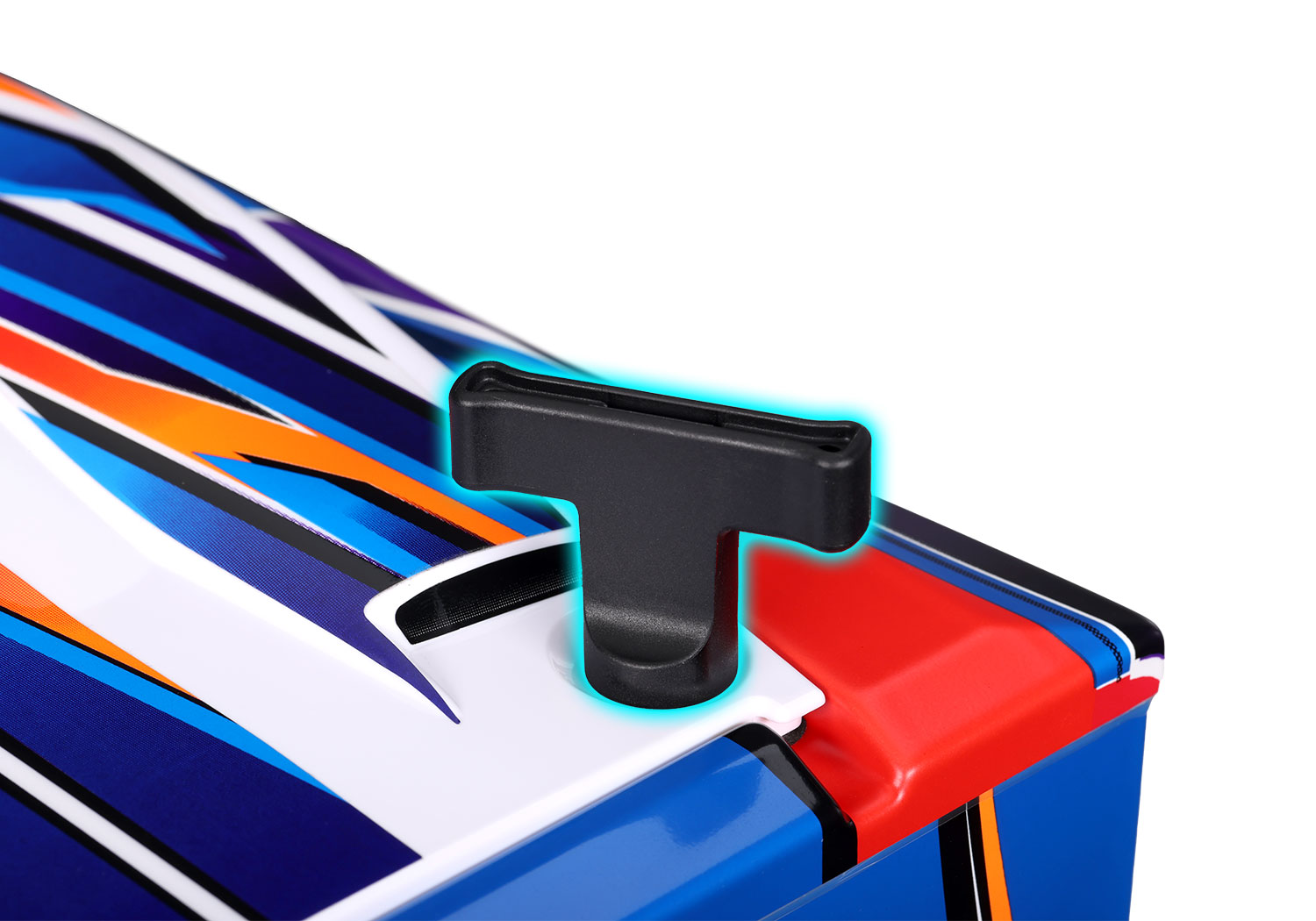

Spartan comes outfitted from the factory with heavy duty, low-profile hatch nuts to keep the rigid ABS hatch securely fastened. Just a quick turn with the included hatch nut tool gives you full access to the hull. Spartan also includes a set of optional wingnuts for quick toolless installation and removal.

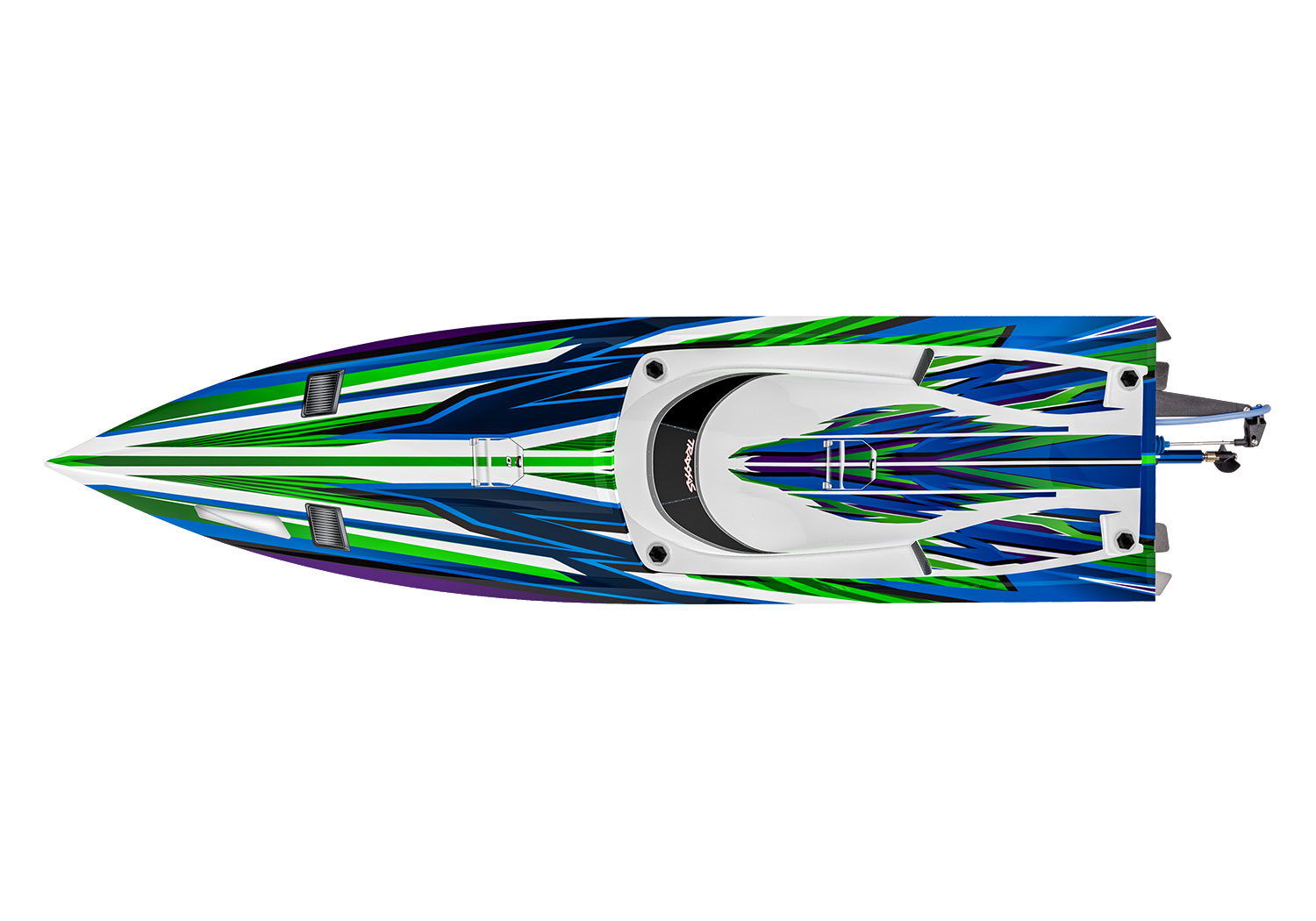

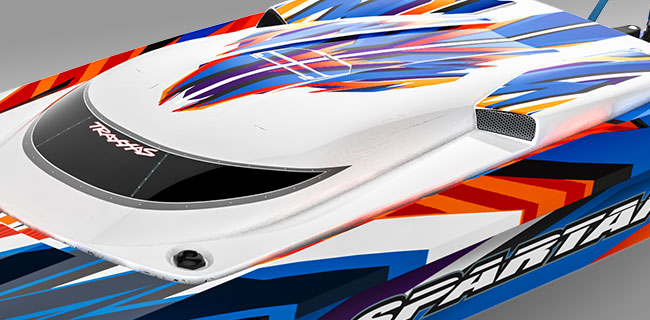

Factory-Applied Graphics
Spartan's bold graphics make a statement on the lake, with a custom look even pro painters can't match. No painting or decals are required; all the graphics are pre-applied to get Spartan out of the box and into the water with speed and style.

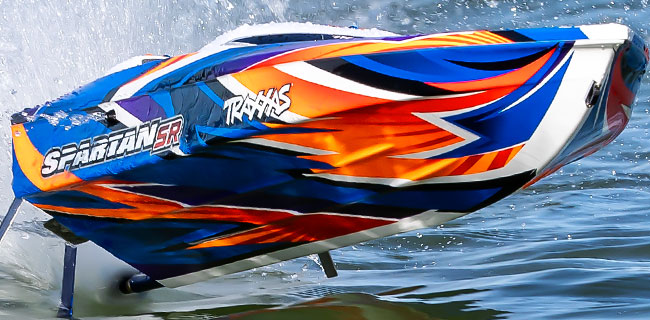

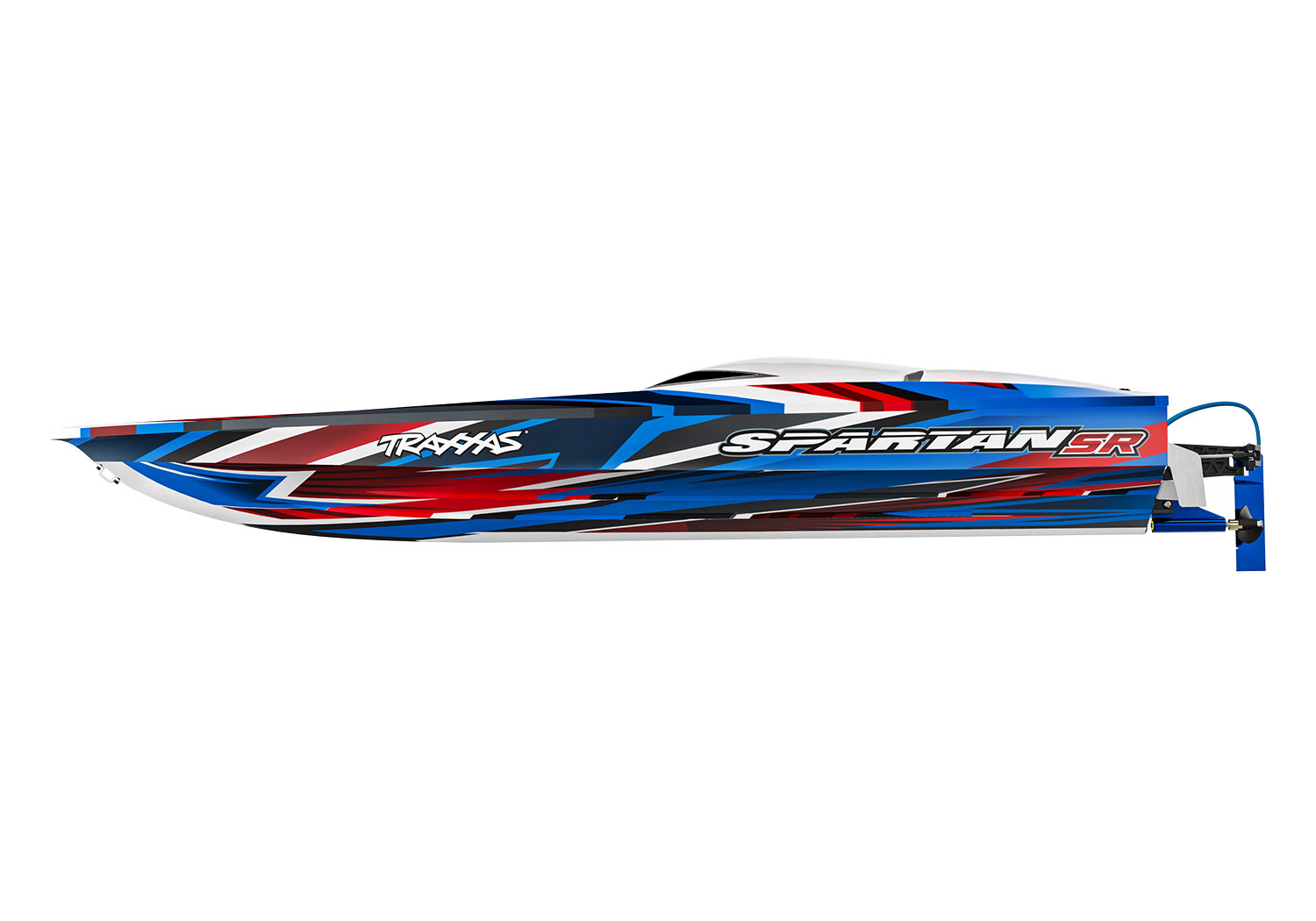

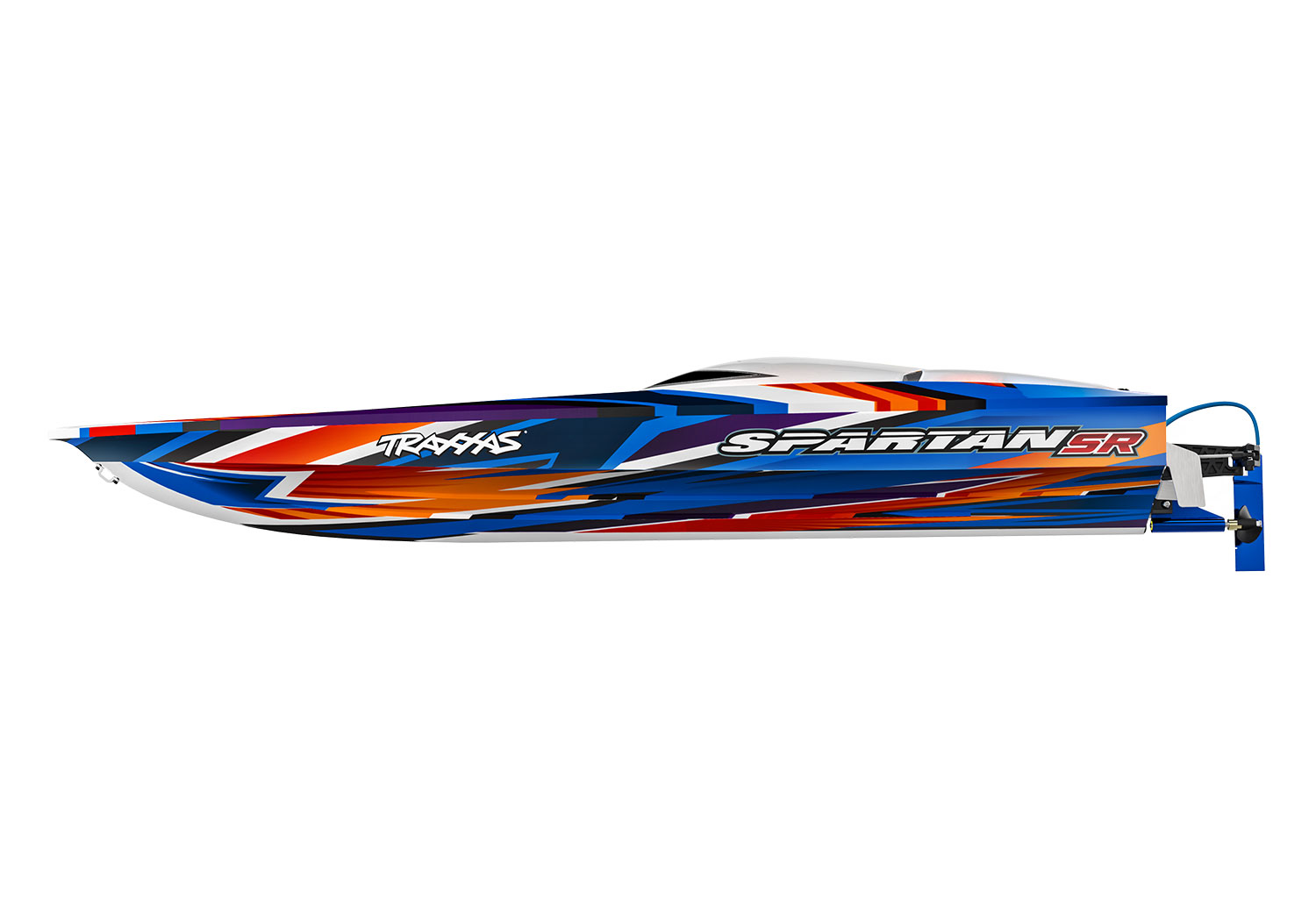

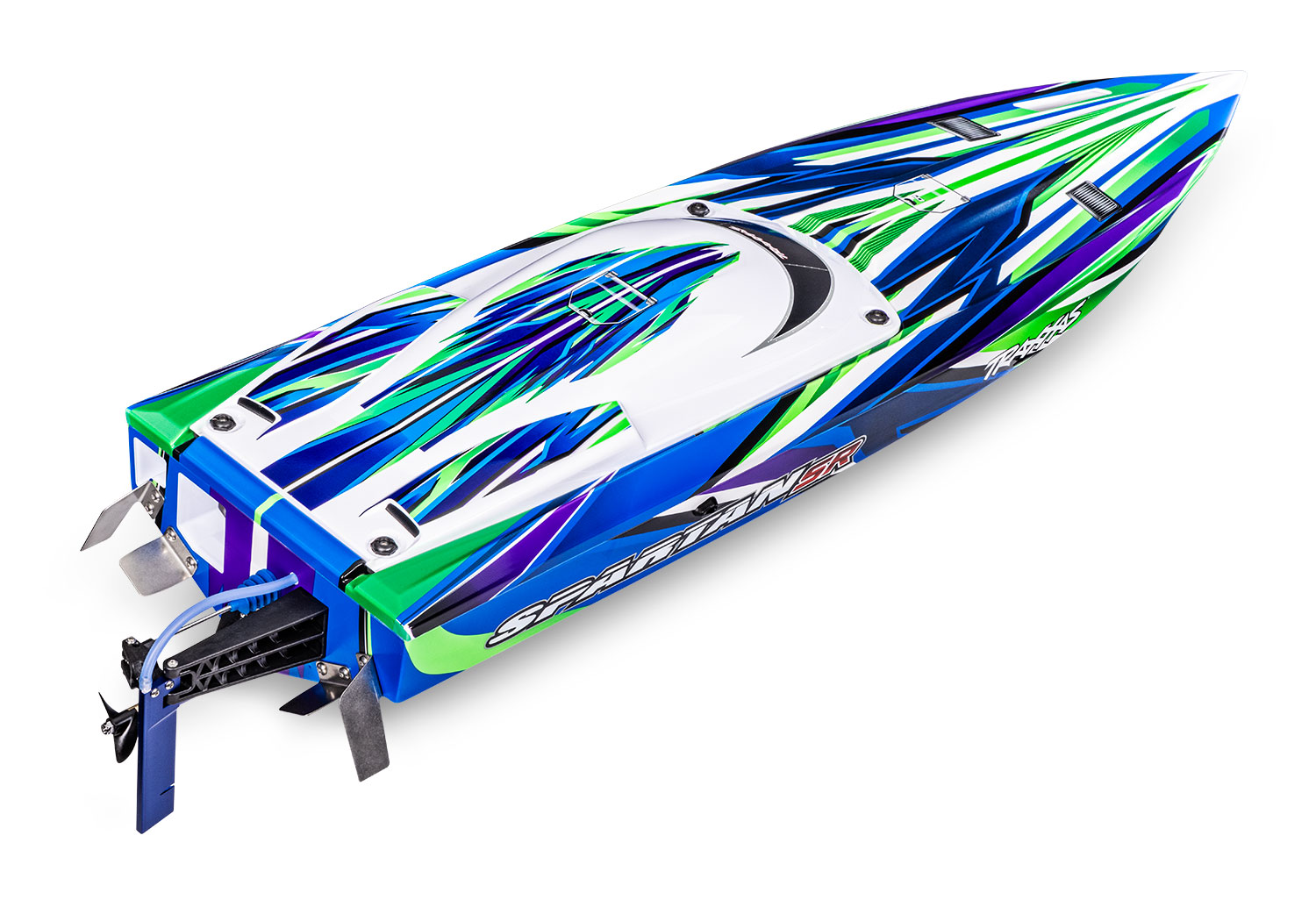

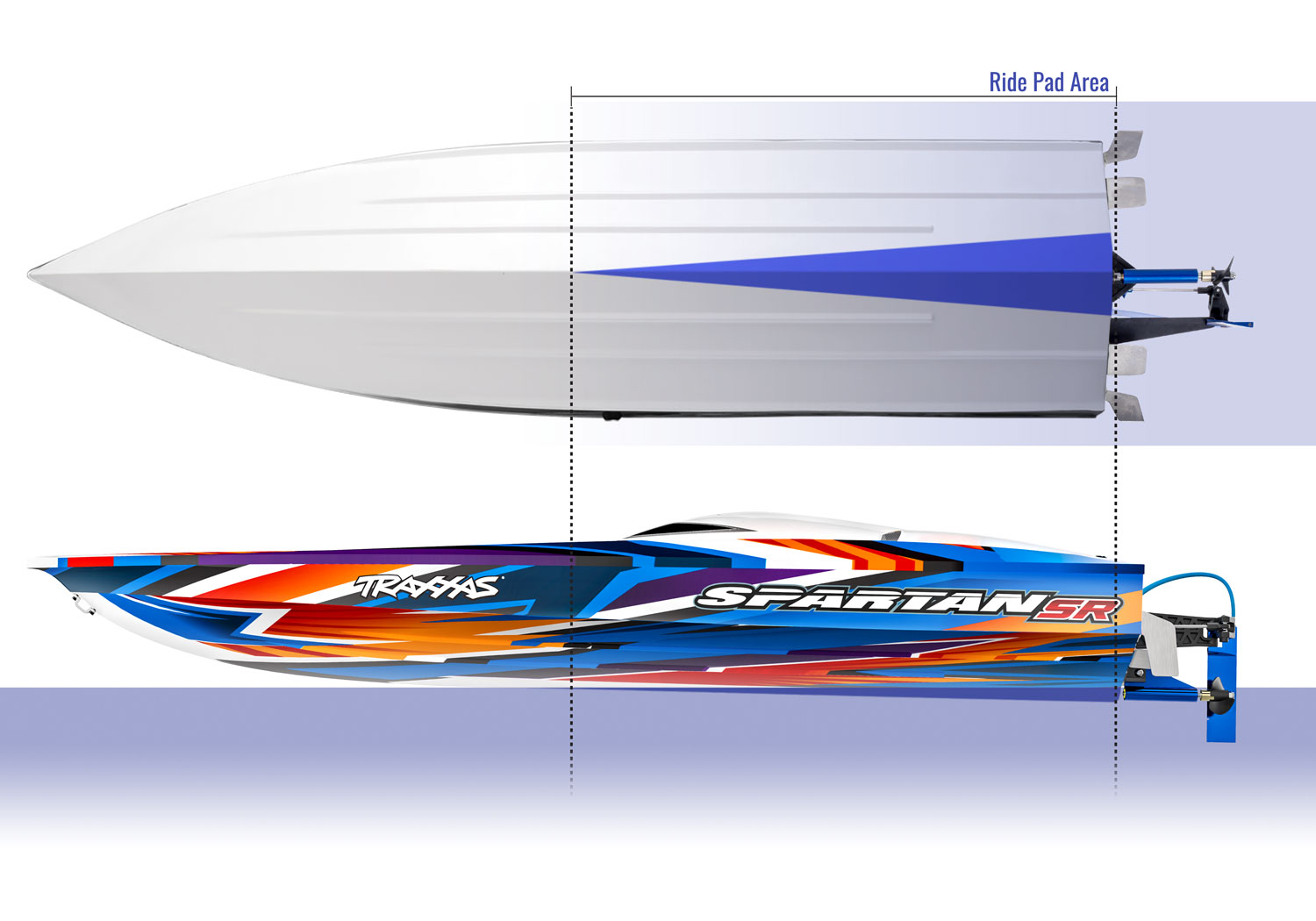

36″ Deep-V Hull
Spartan SR’s deep-V hull gets on plane quickly and efficiently for maximum acceleration and speed. The large 36″ hull provides a commanding presence on the water and delivers excellent stability and responsiveness whether cutting through chop or skimming across glassy water.

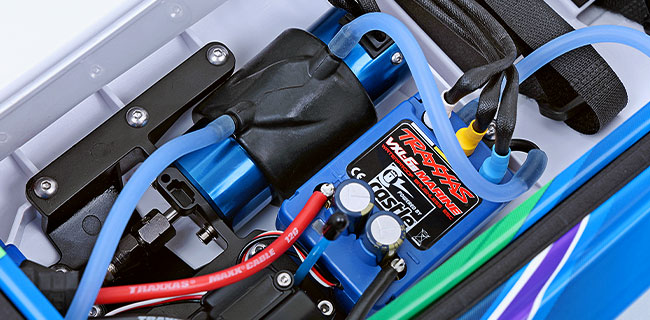

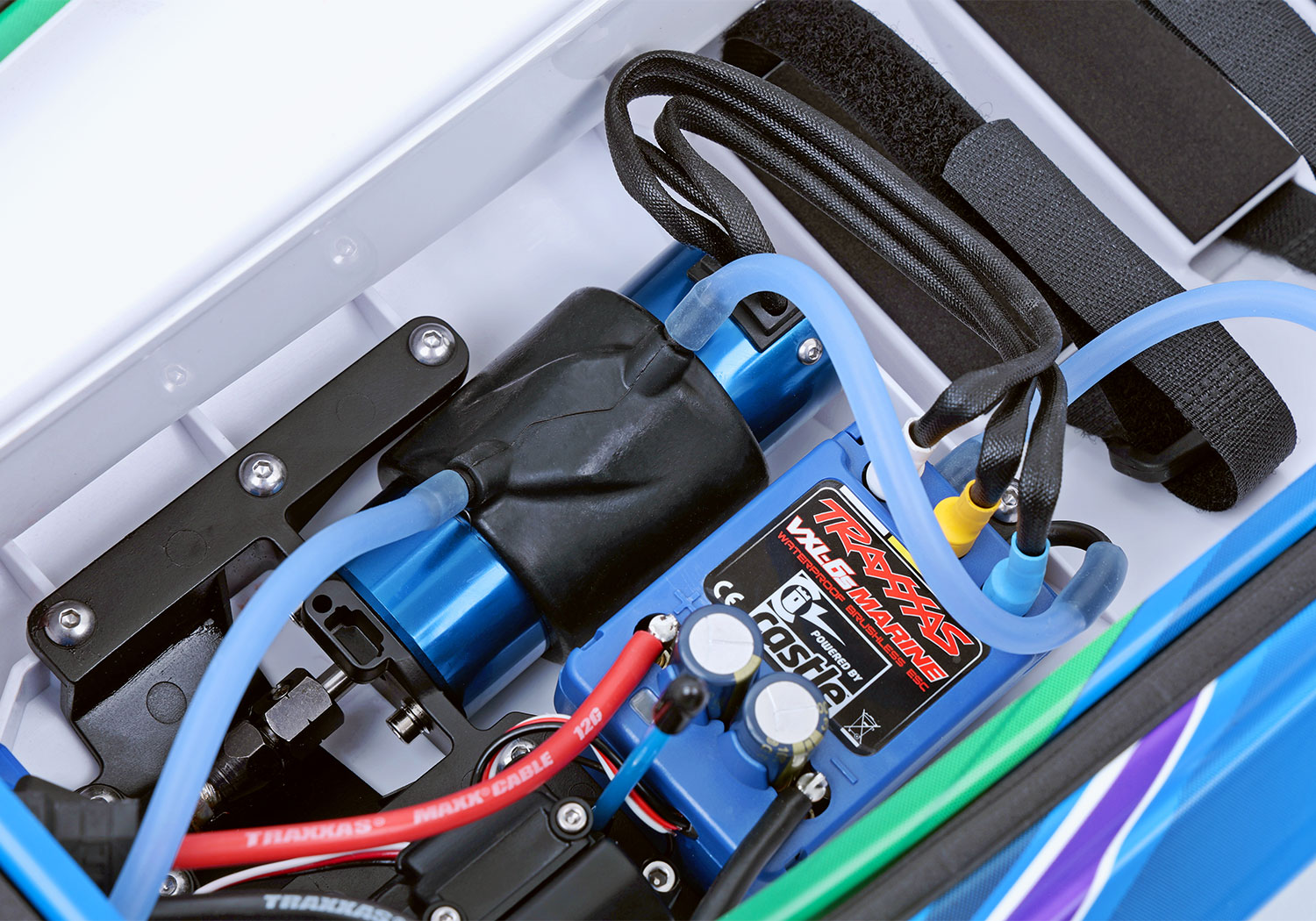

Water Cooling System
A pickup in the aluminum rudder sends cooling water to the motor and ESC. A sealed motor jacket flows water directly around the aluminum can for maximum heat transfer. This efficient design helps Spartan keep its cool, run after run, for trouble-free all-day fun.

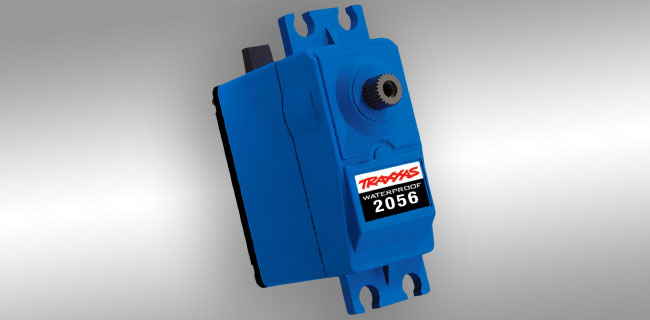

High Torque Waterproof Servo
Spartan requires a powerful steering servo for responsive performance, and Traxxas delivers with the 2056 high-torque servo. O-ring seals make the servo completely waterproof, and there's plenty of steering muscle with 80 oz-in of torque at your command.

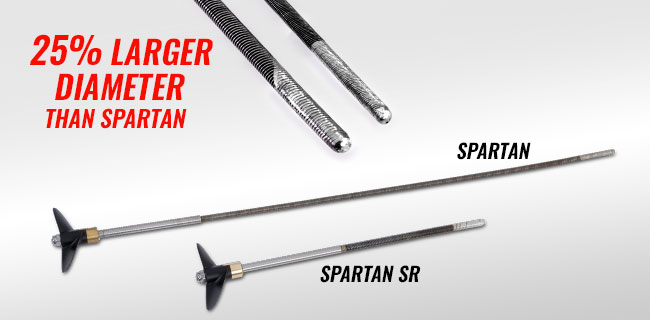

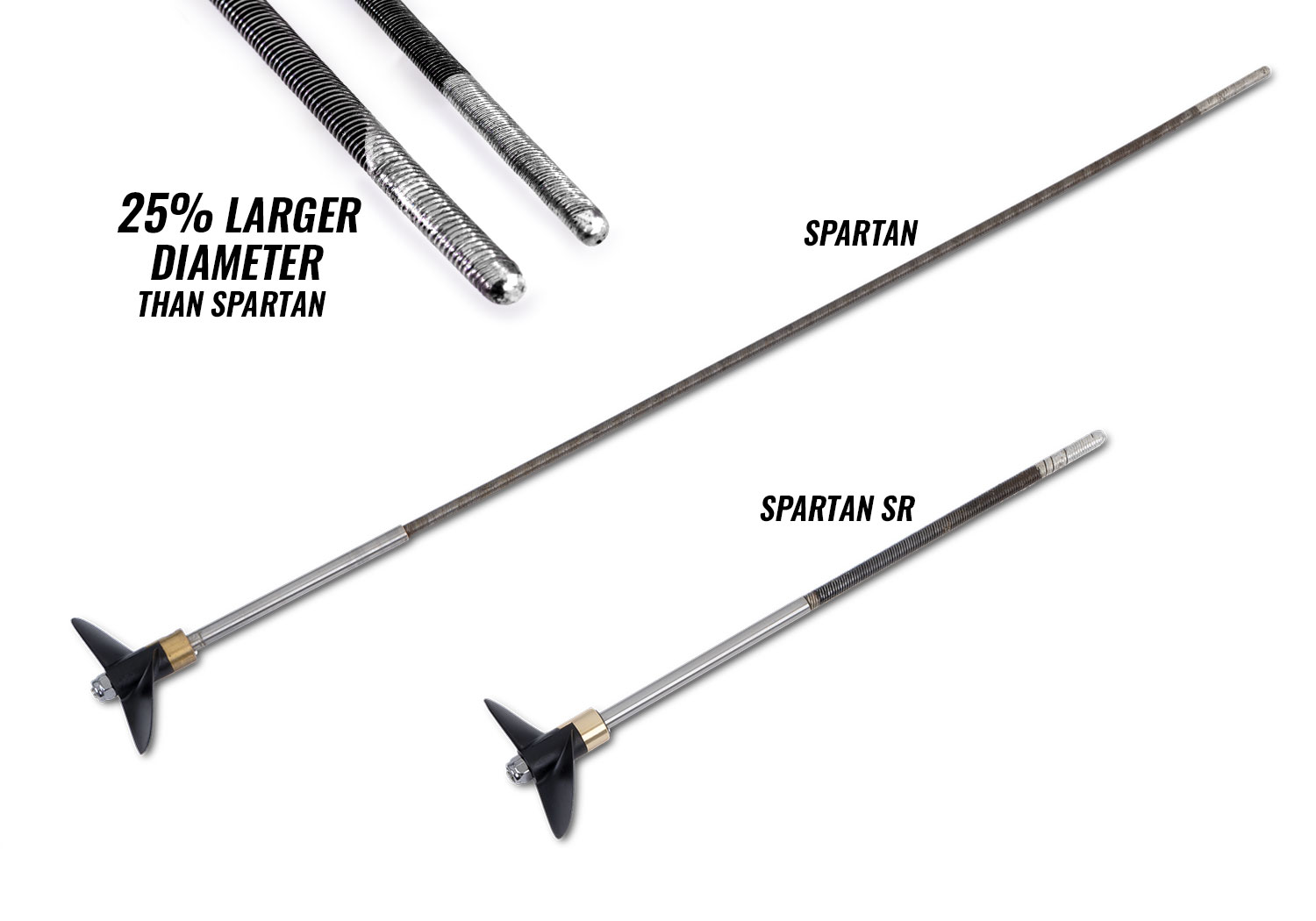

Heavy Duty Flex Shaft

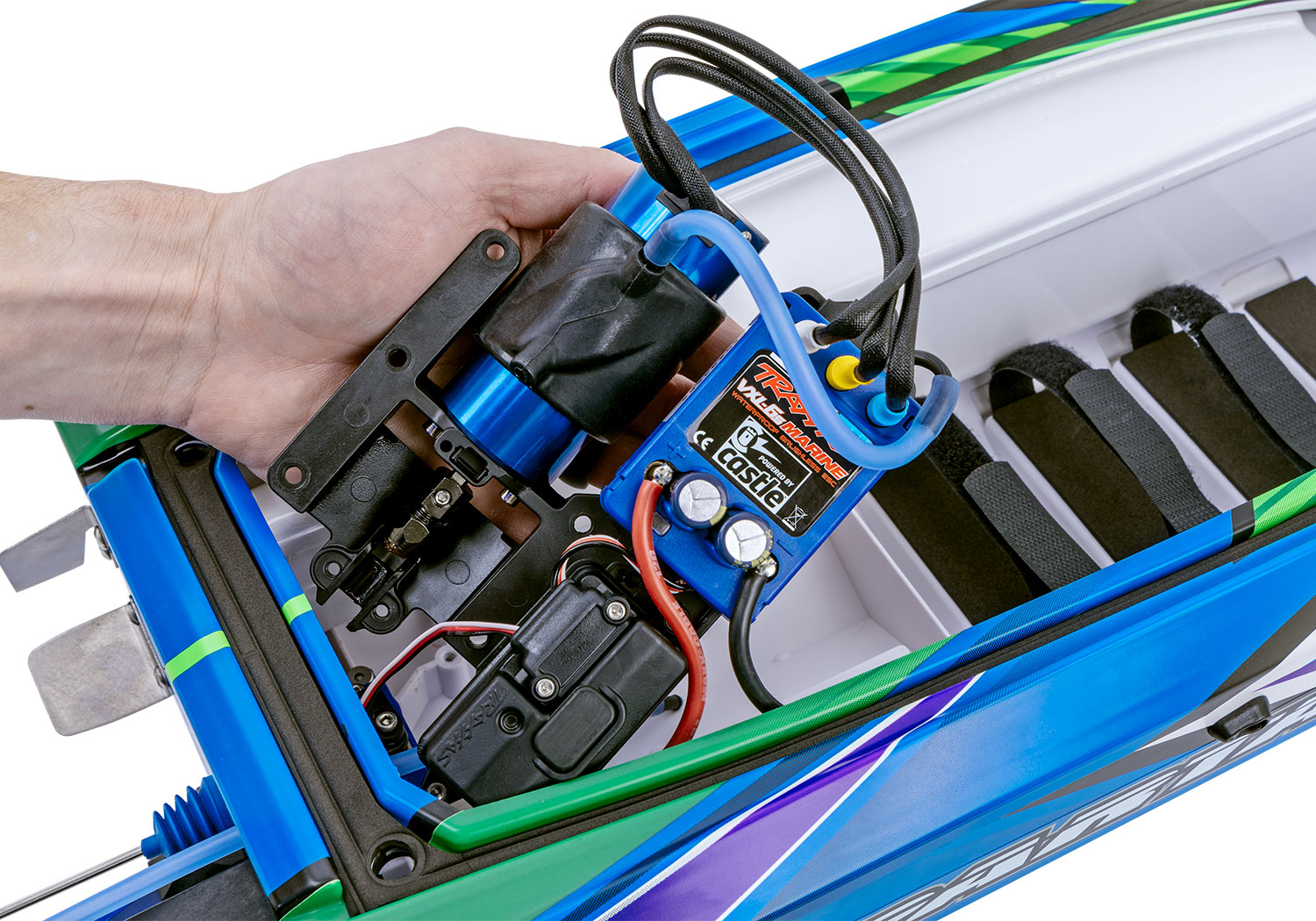

Spartan’s new heavy duty 4.7 mm flex shaft is 25% larger in diameter for the ultimate in power handling and reliability. Additionally, Spartan’s new electronics tray maximizes efficiency by moving the motor further back for a shorter and more direct path to the prop.

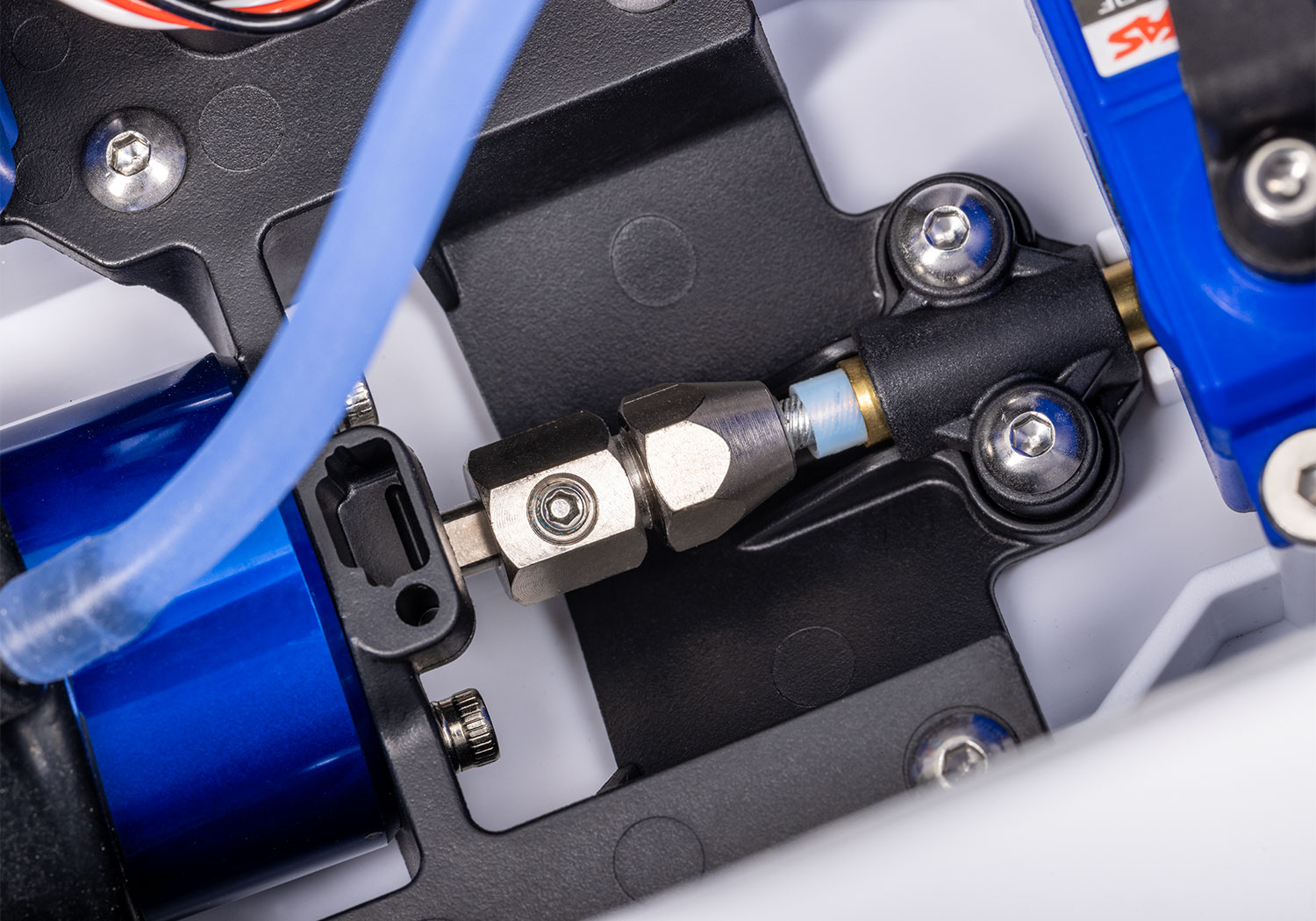

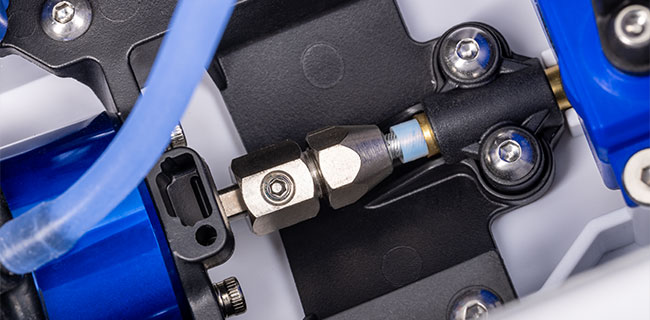

Quick-Release Flex Cable
Spartan SR’s clamping collet holds the flex cable tightly and centers it perfectly with the motor's output shaft for smooth, efficient operation. The collet releases quickly with a twist of the included wrench for easy maintenance. Once loosened, the prop and flex cable simply slide out, making it easy to keep your Spartan SR running in peak form.

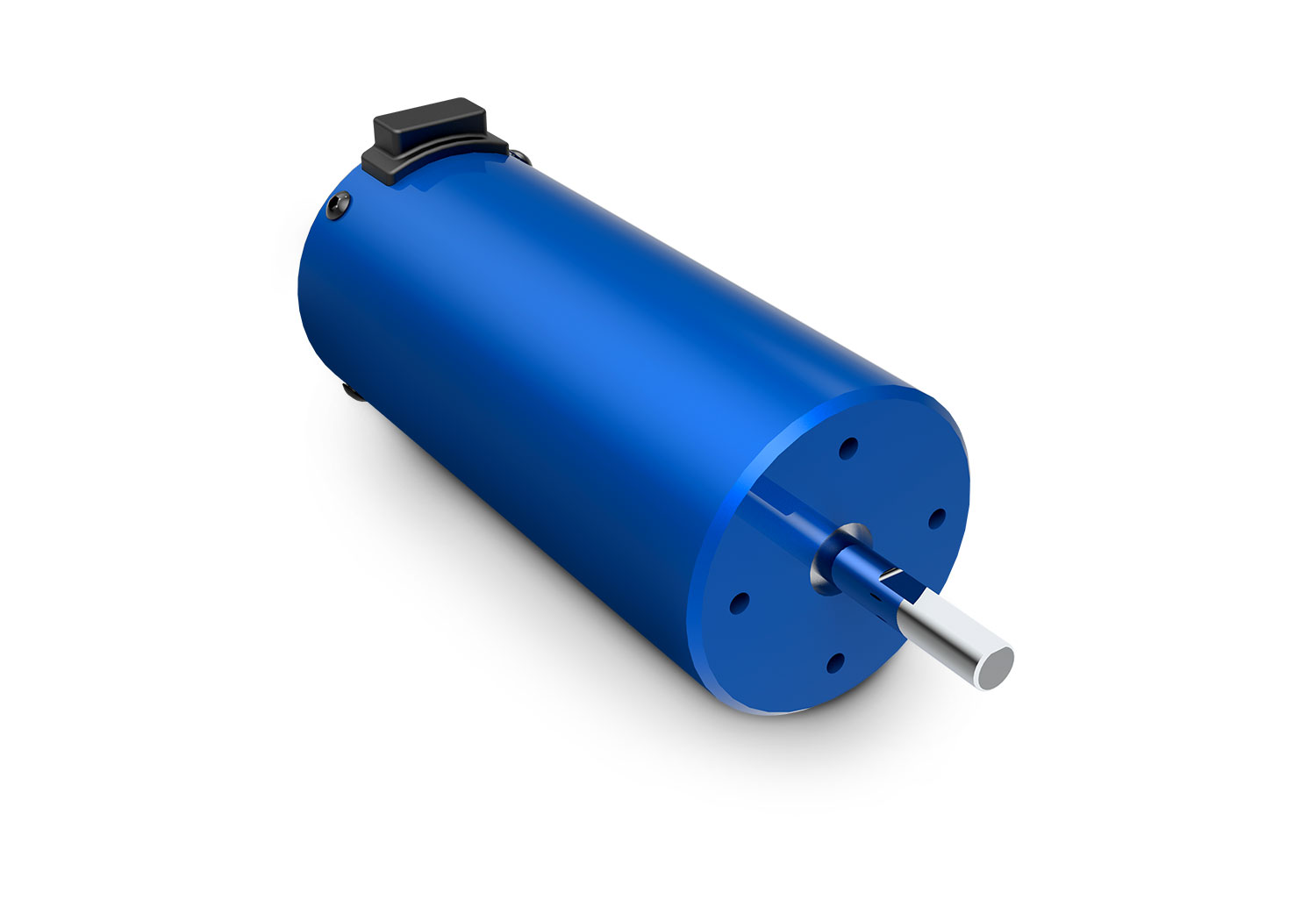

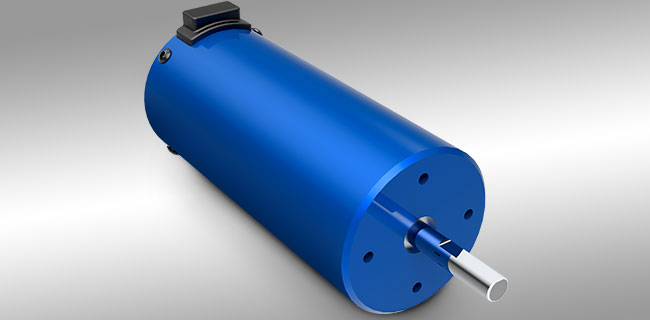

Velineon 540XL Motor
The 1800 kV Velineon 540XL motor is optimized for maximum power and efficiency in marine applications with ultra high-temperature sintered neodymium magnets, a precision-balanced rotor, and high-speed ball bearings.

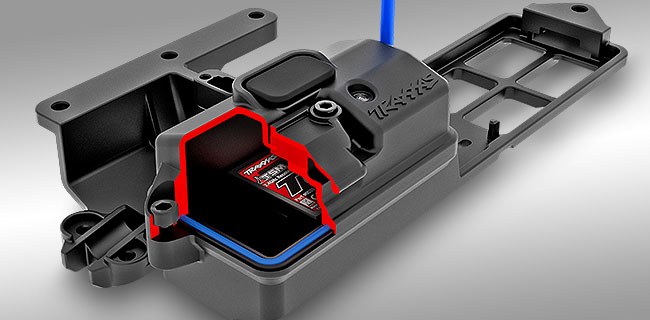

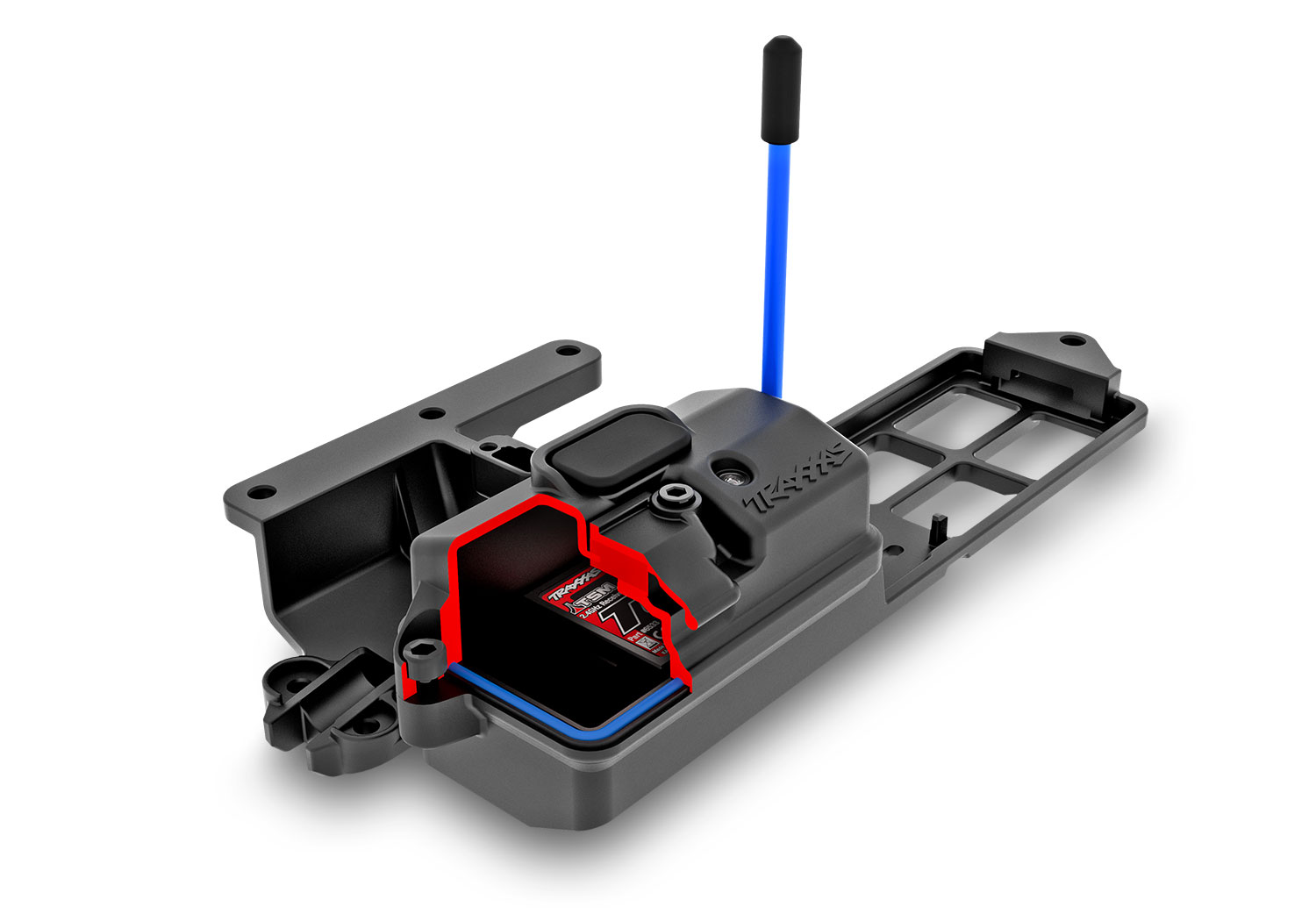

Sealed Receiver Box
Traxxas' patented waterproof receiver box routes wires neatly through a special watertight seal. A blue O-ring allows easy access to the receiver box without losing its sealing properties.

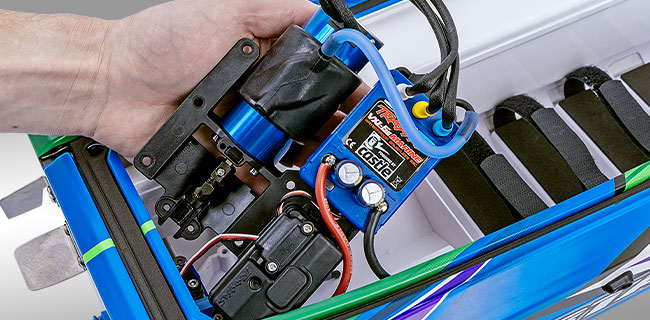

Waterproof Electronics
Waterproof electronics are a must in a marine environment. Traxxas electronics are fully waterproof (not just water resistant). The speed control, servo, and receiver all feature rugged waterproofing protection for dependable operation you can count on.

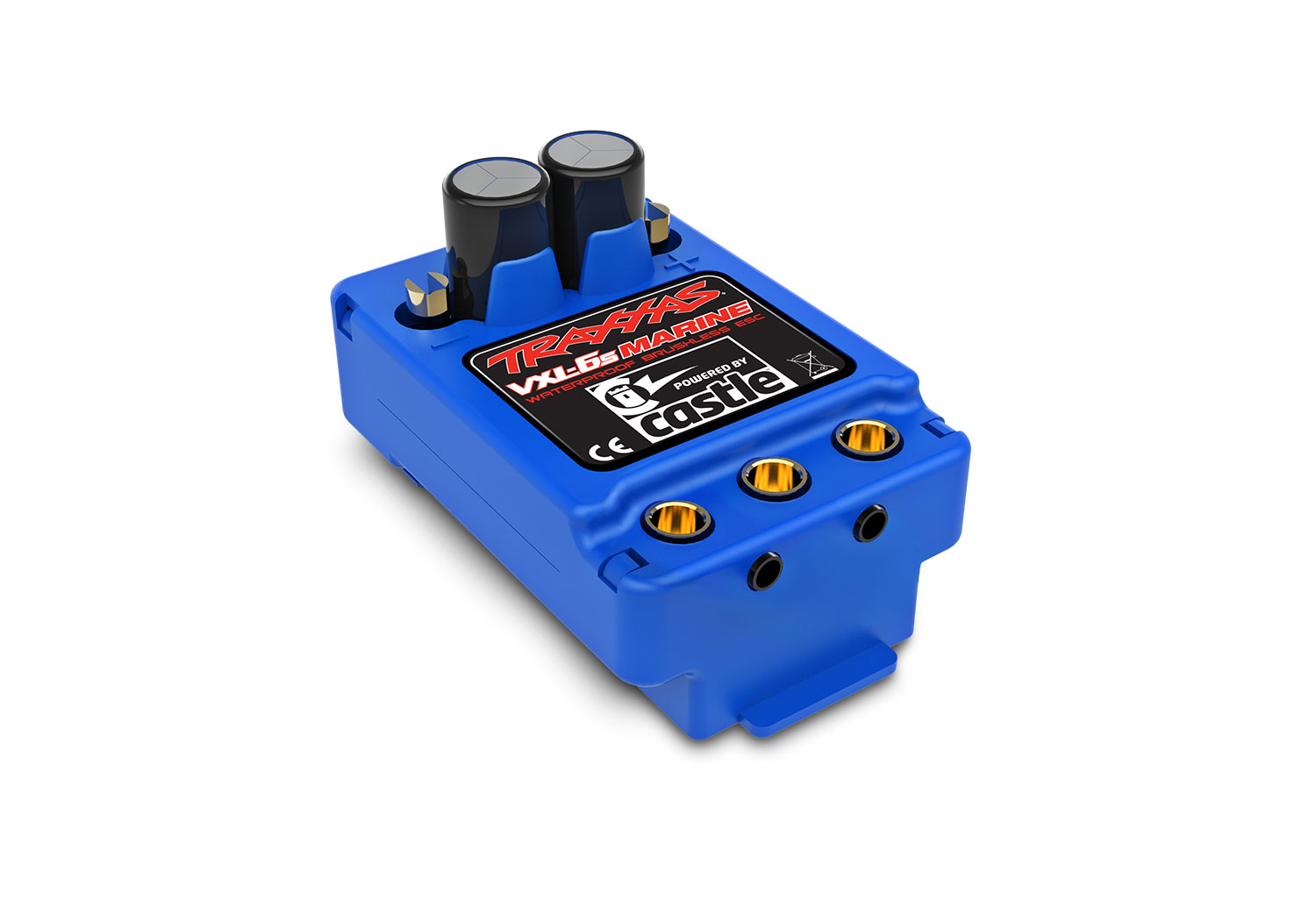

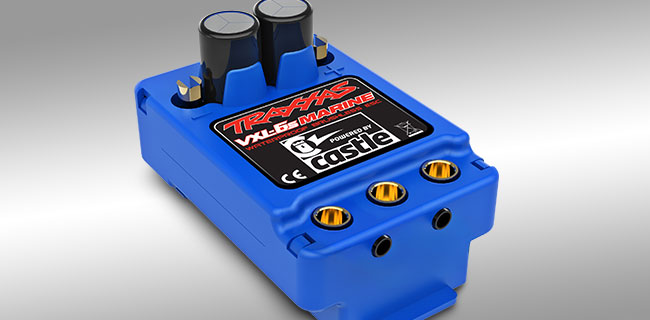

VXL-6s Marine Electronic Speed Control
Designed for 6s LiPo power, the VXL-6s Marine transforms 22+ volts into 50+ mph speed on the water. The VXL-6s Marine is fully waterproof with integrated water cooling in the case and thermal overload protection for reliable all-day performance.

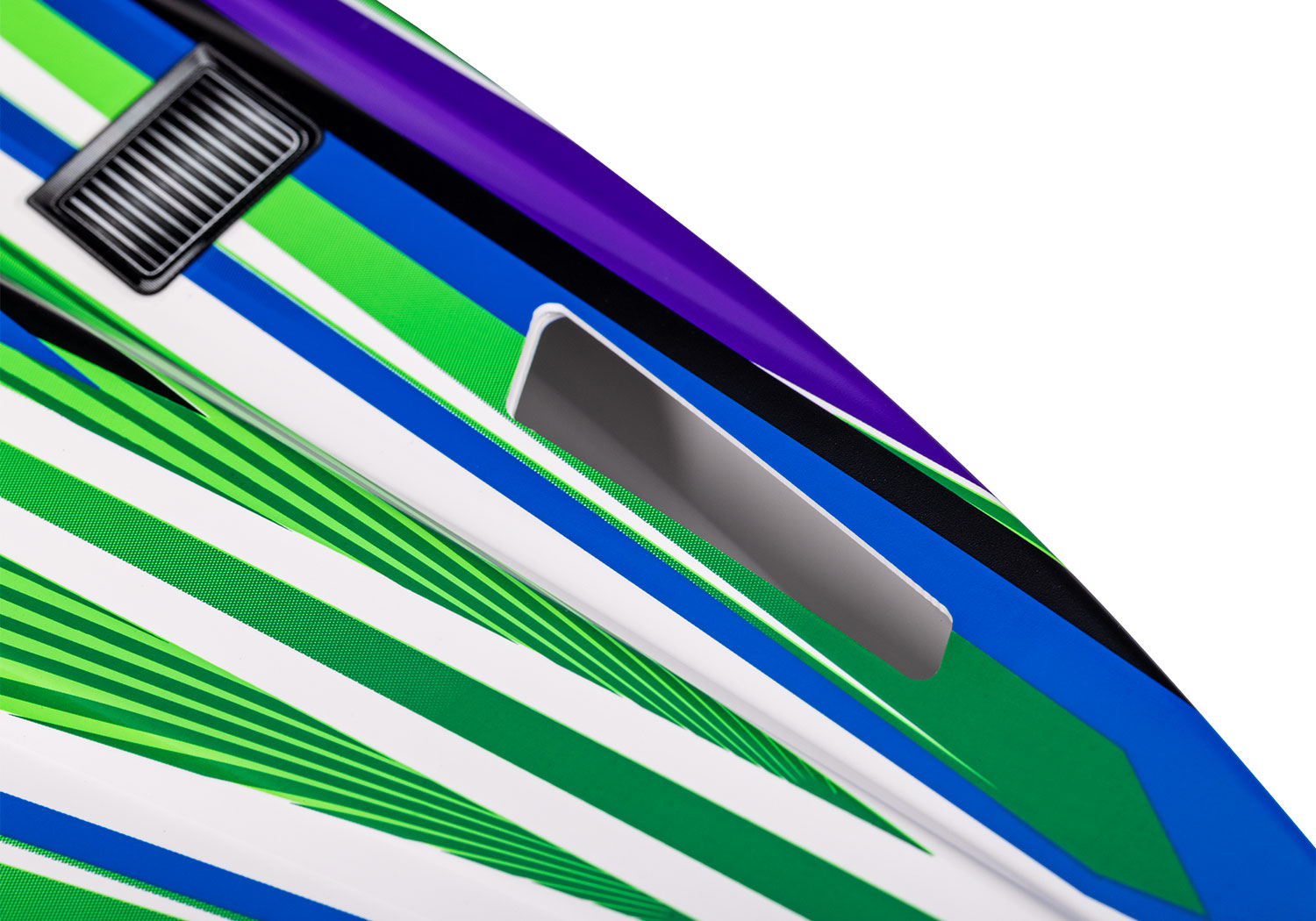

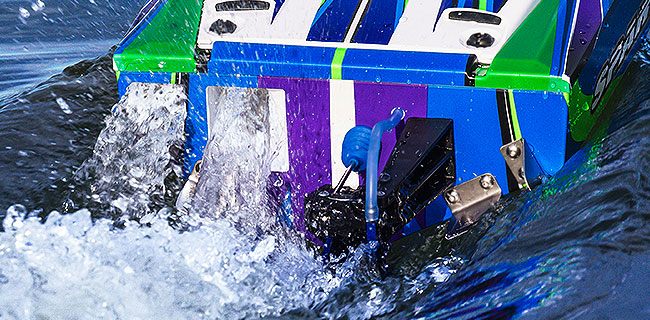

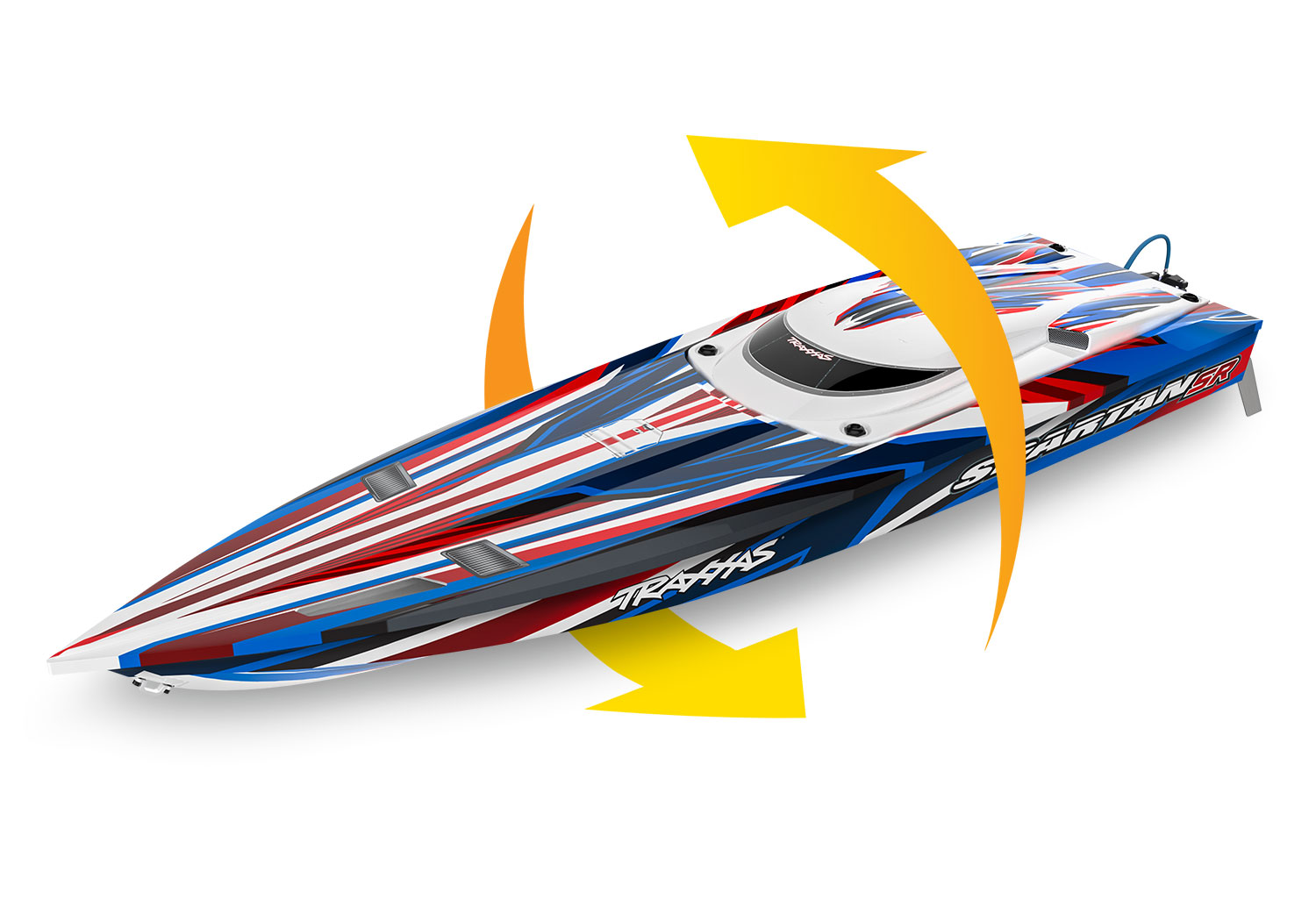

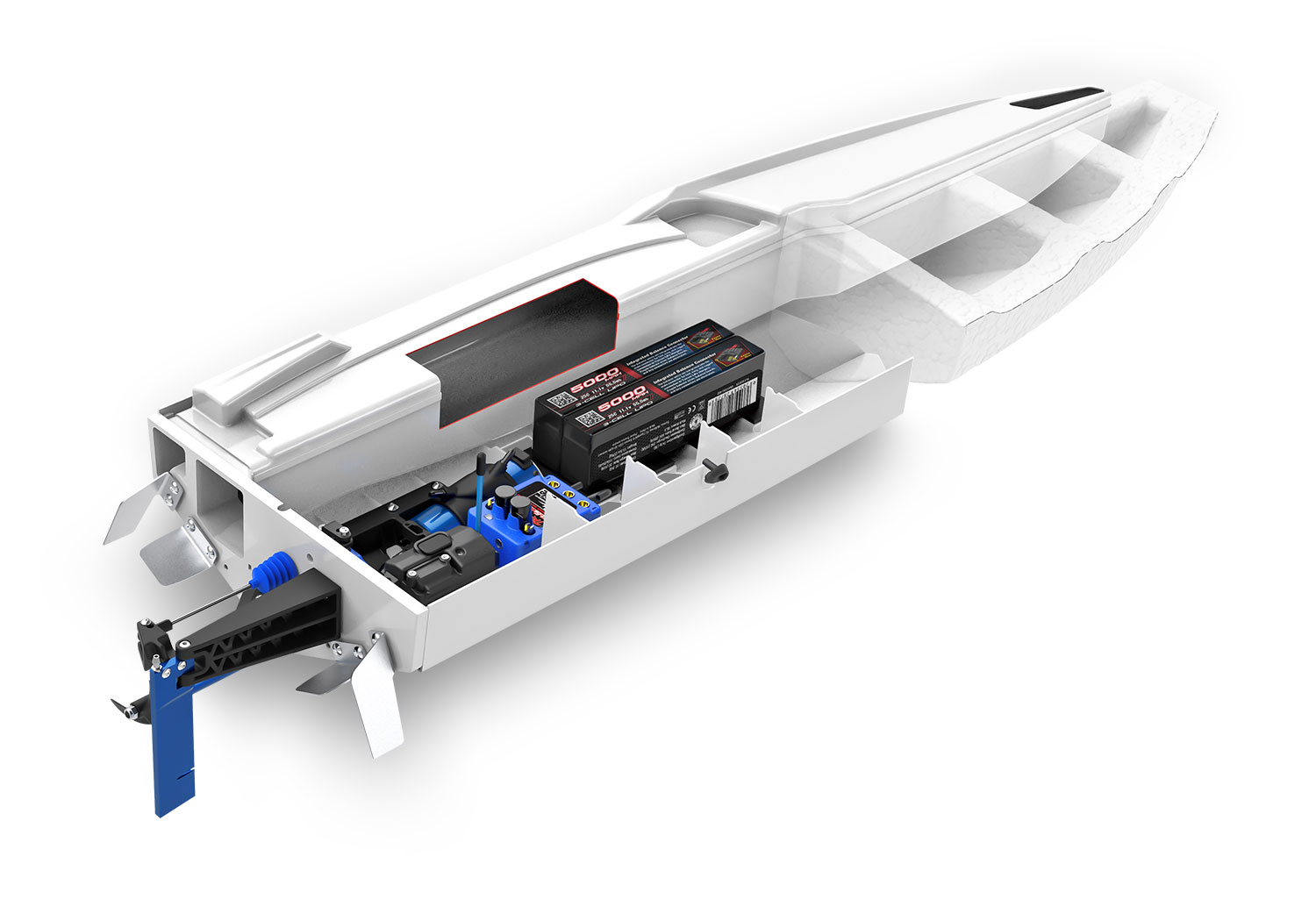

Self Righting Flood Chamber

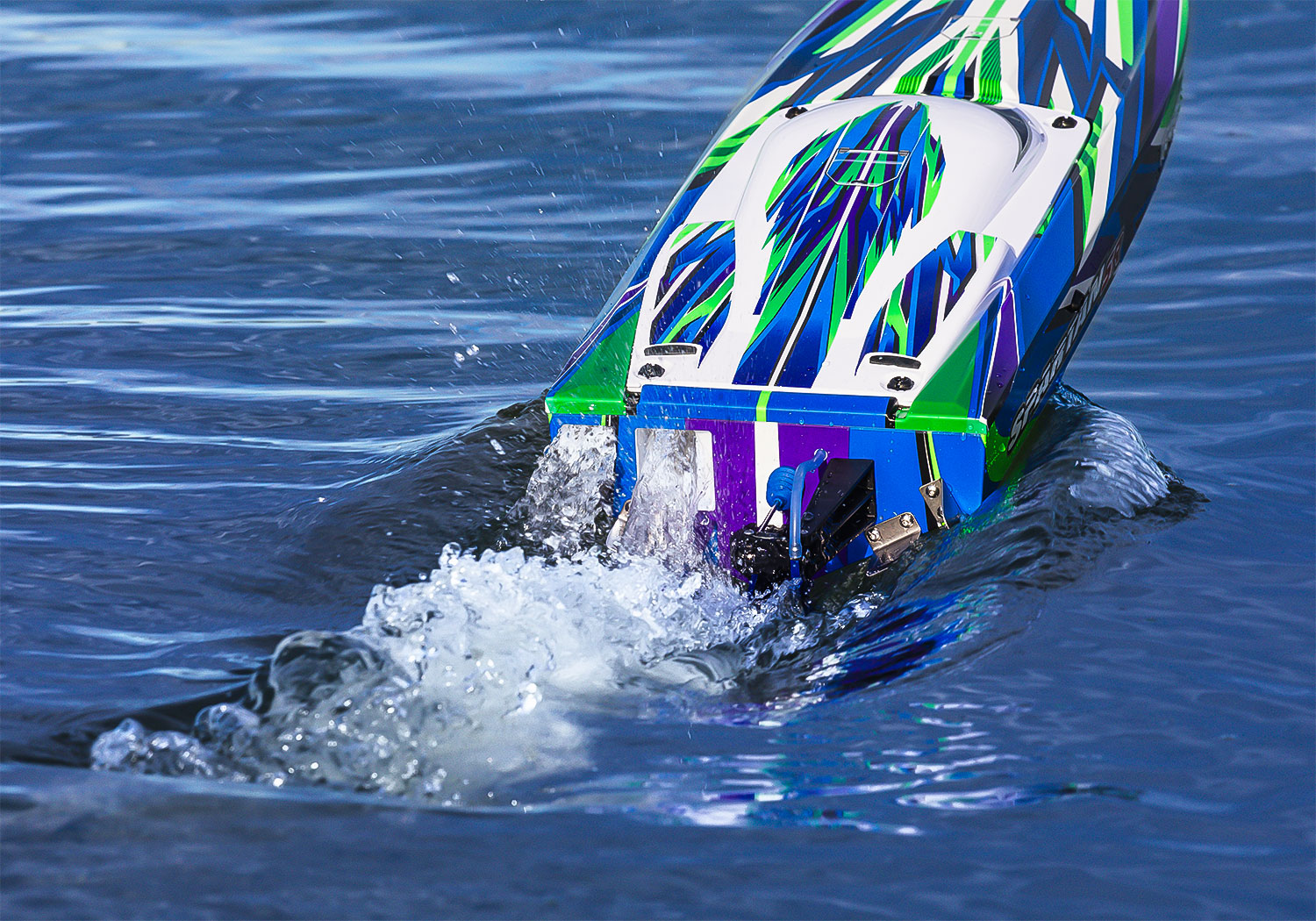

If Spartan SR should land keel-up in the water, an inlet at the top of the hull begins filling the flood chamber with water. The weight of the water pulls the boat to one side until it rights itself. Apply throttle to evacuate the flood chamber and you’re back in the action. The whole process takes only seconds and requires no special technique or skill.

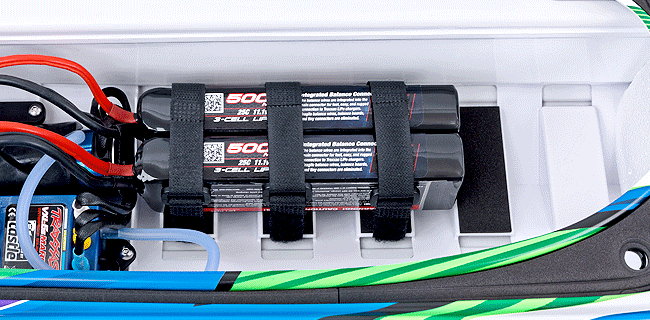

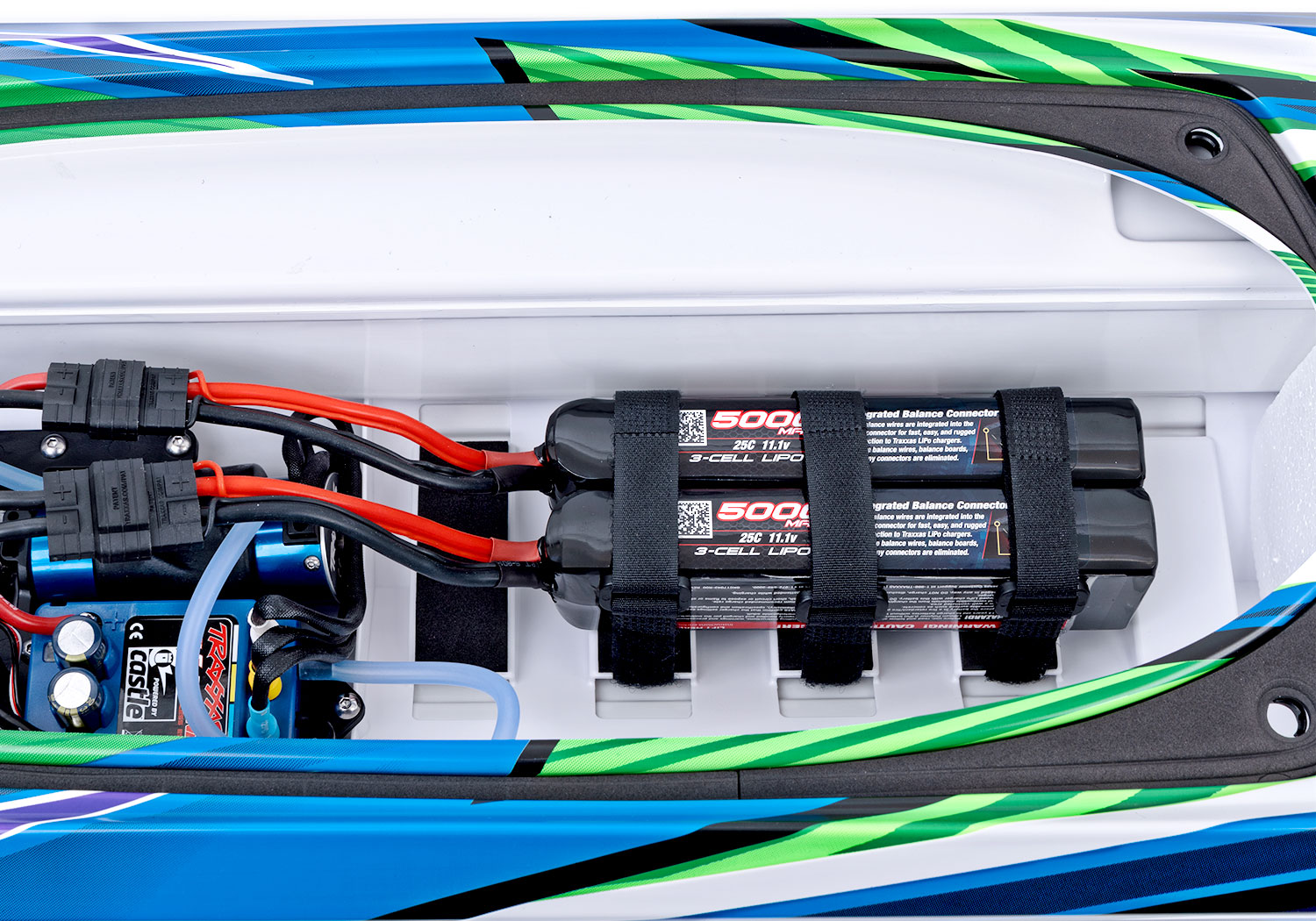

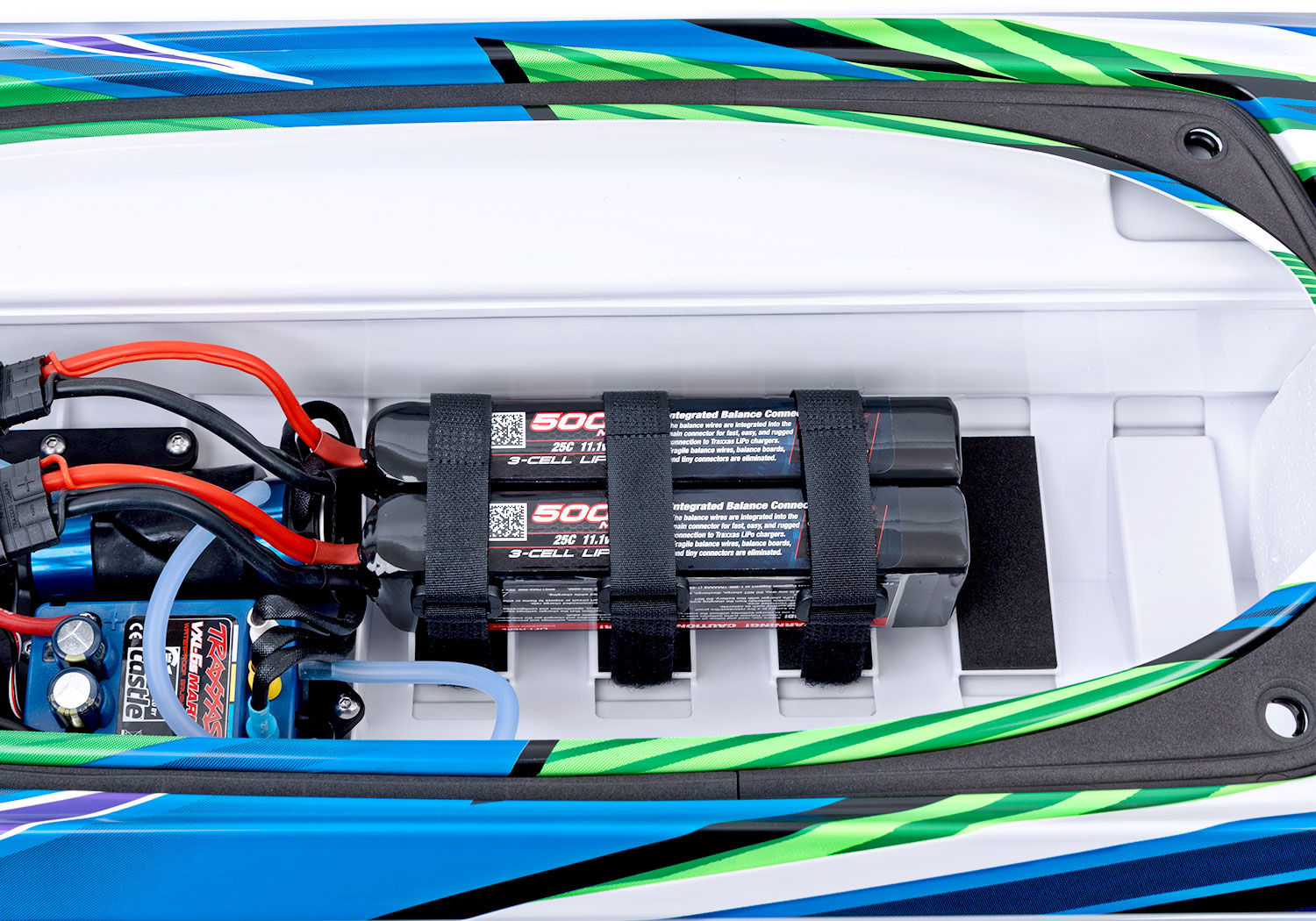

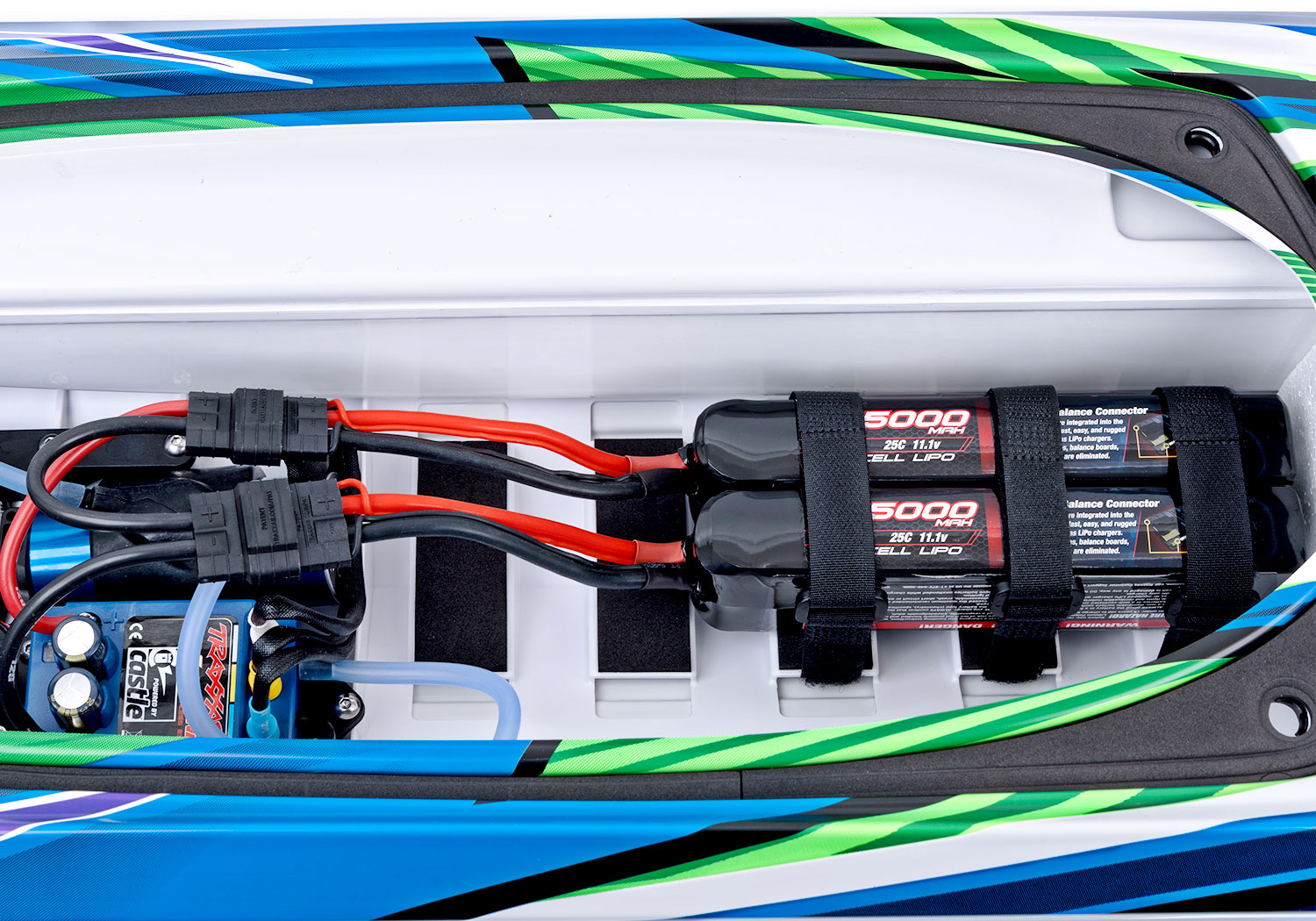

Adjustable Battery Tray
Spartan’s adjustable center battery tray holds a variety of different LiPo batteries. Convenient hook-and-loop straps and foam pads secure the batteries tightly to prevent load shift, even under the roughest conditions.

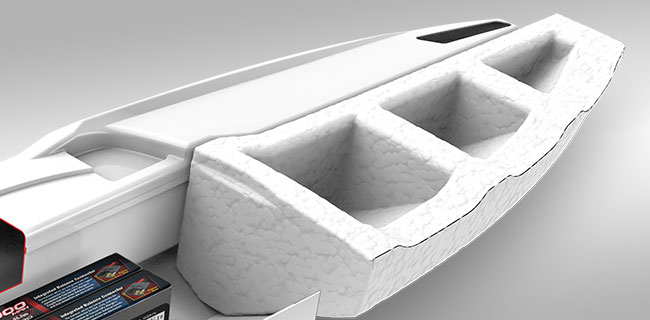

Built-In Foam Flotation
Spartan SR’s built-in foam flotation ensures the boat maintains proper buoyancy while self righting. In addition to making Spartan SR virtually unsinkable, the fitted foam insert adds extra rigidity to the bow.

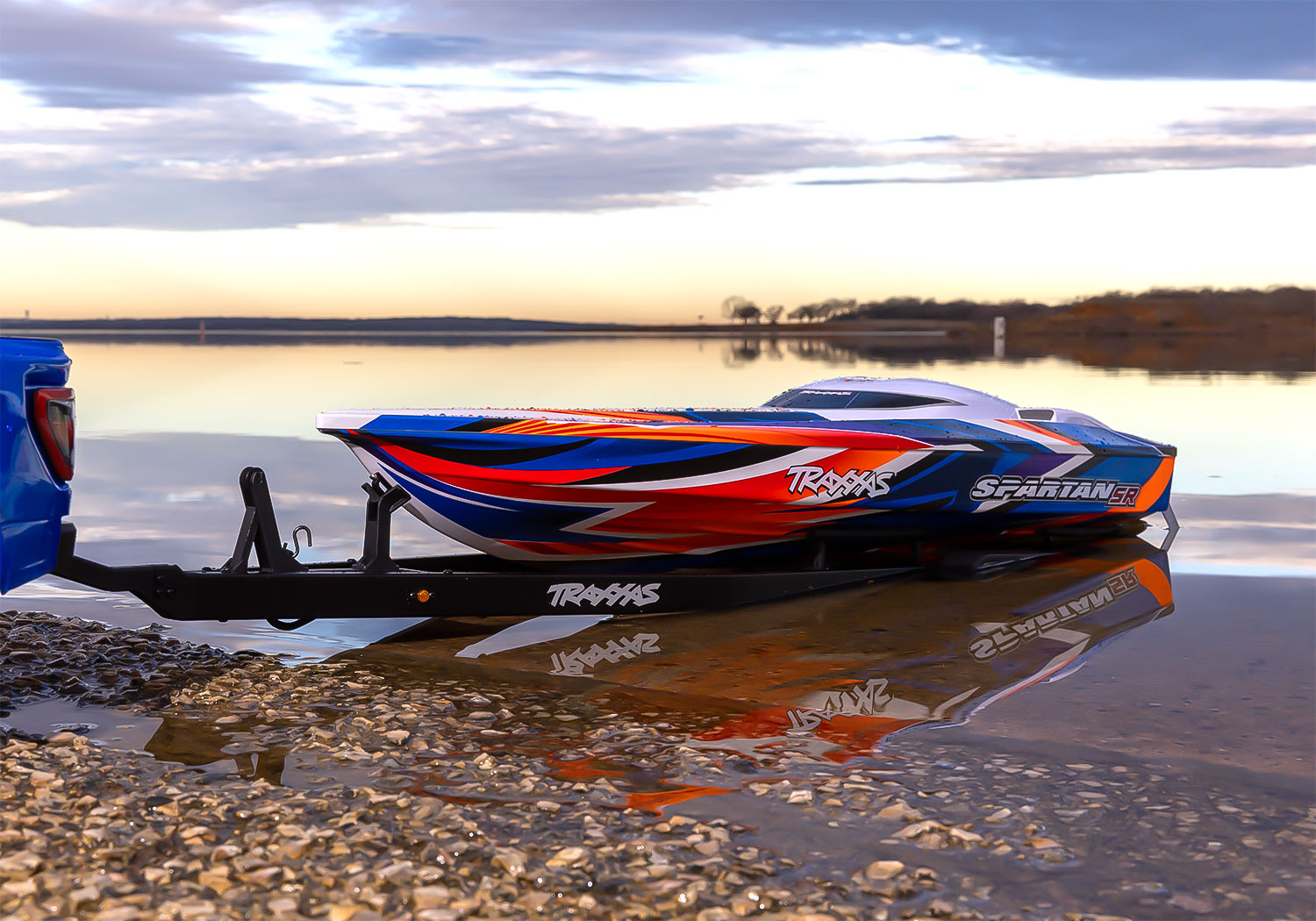

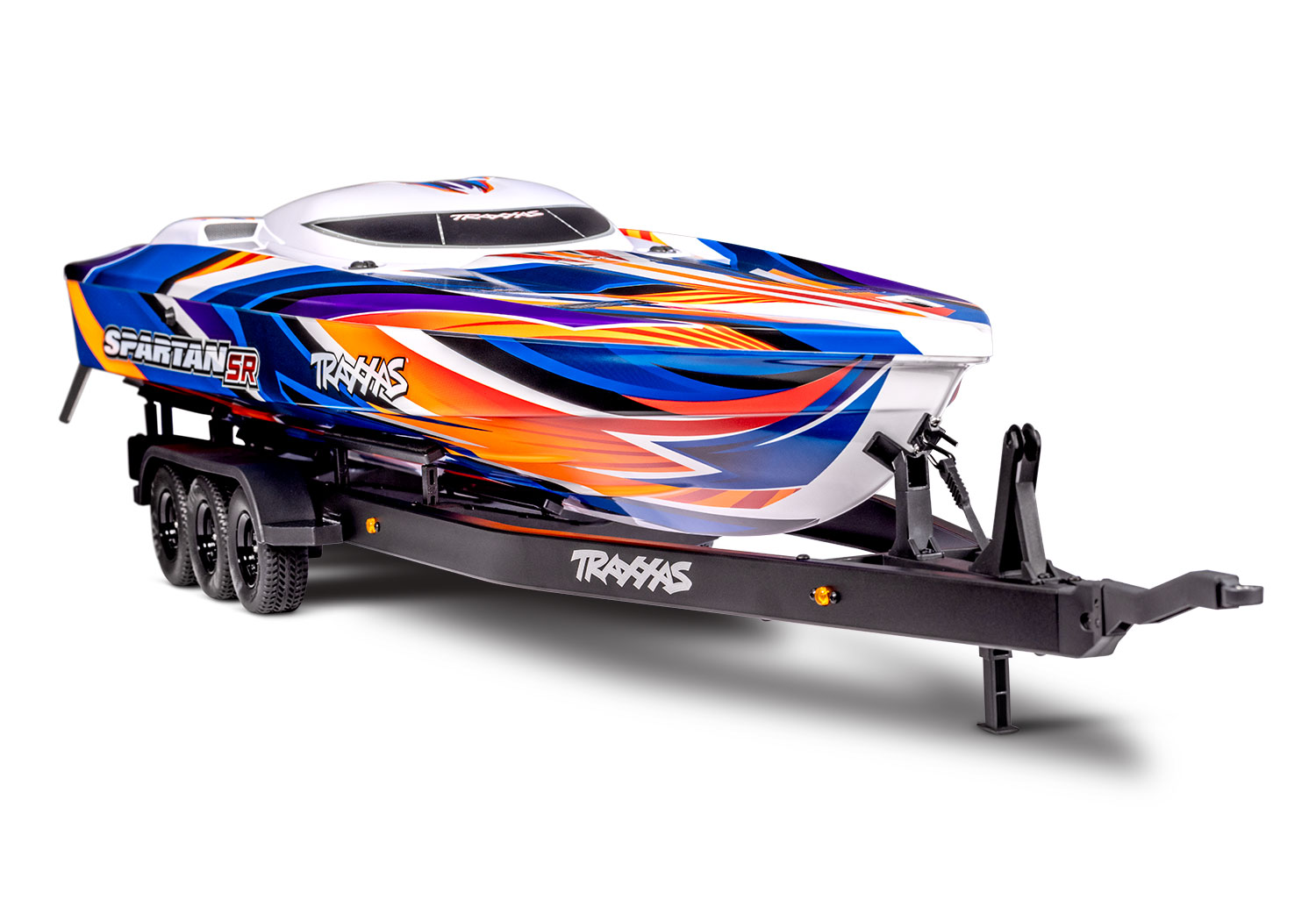

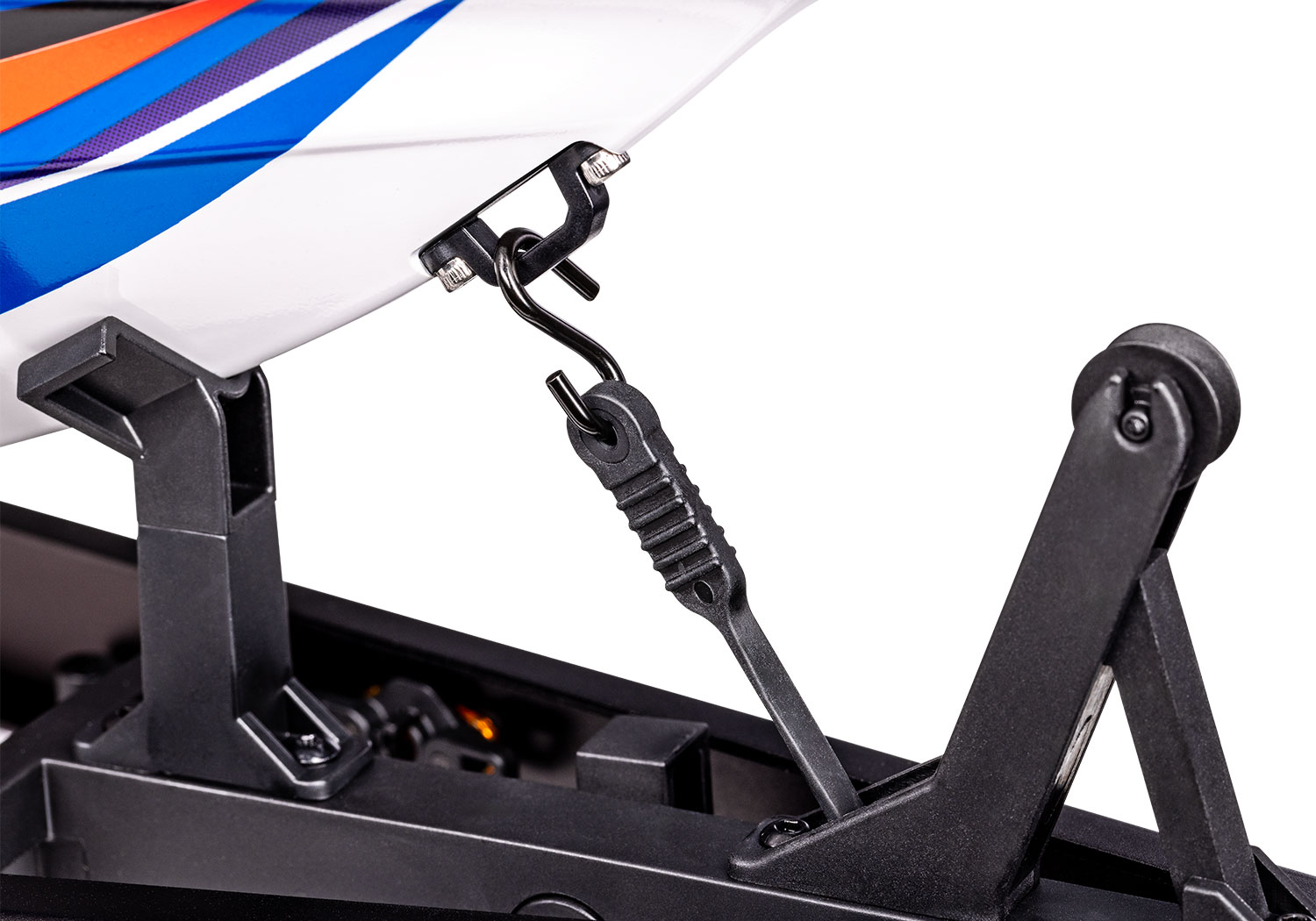

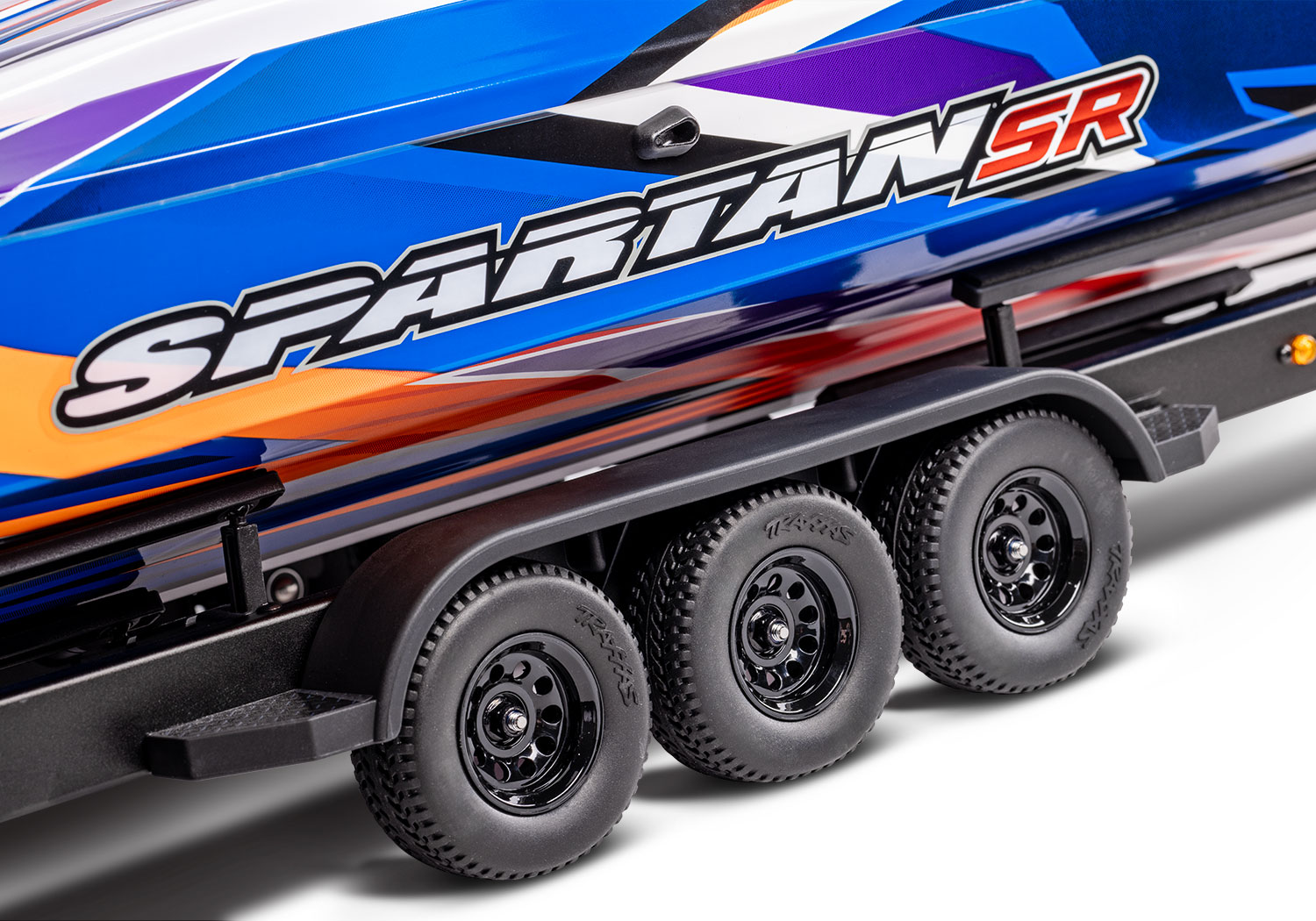

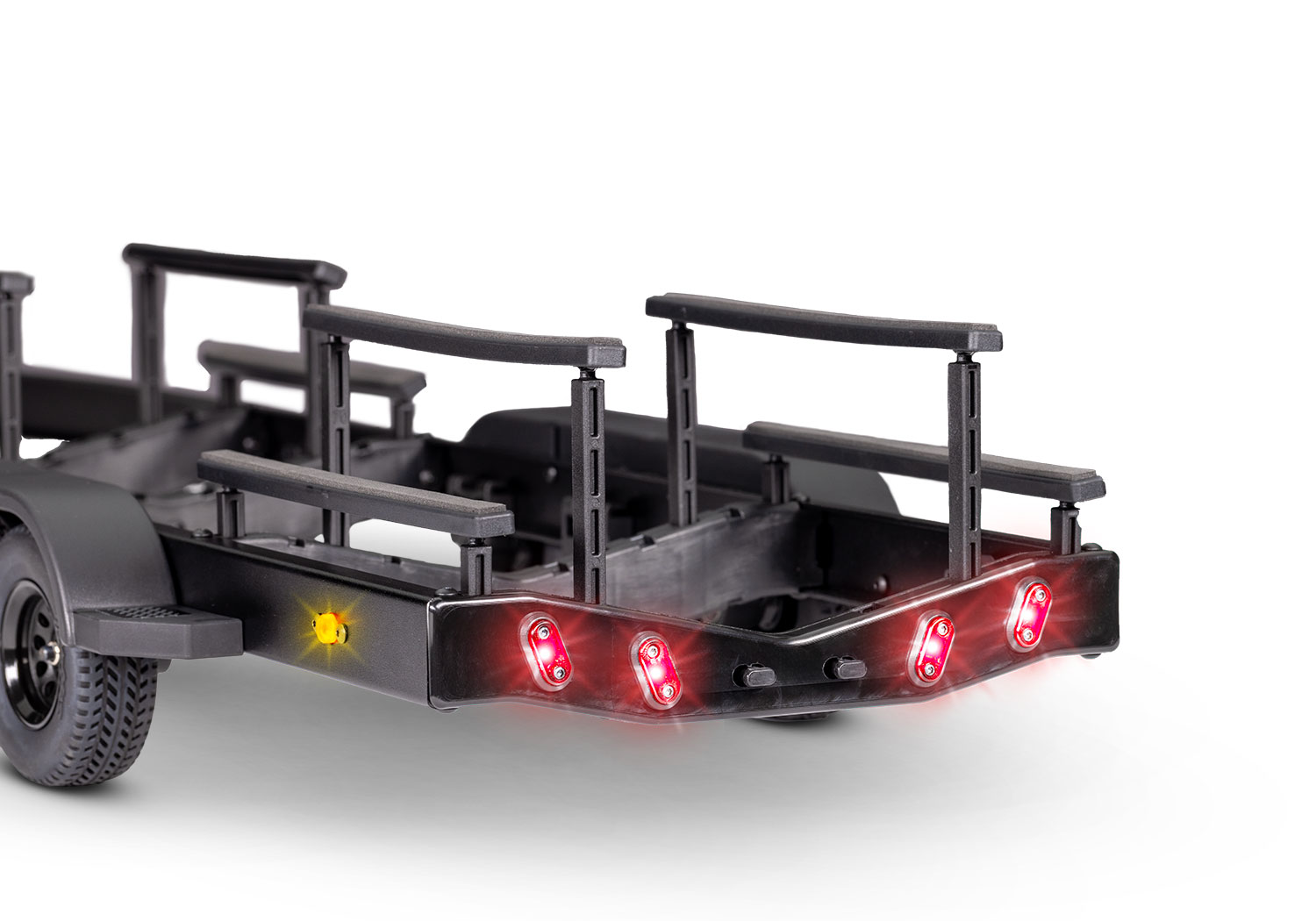

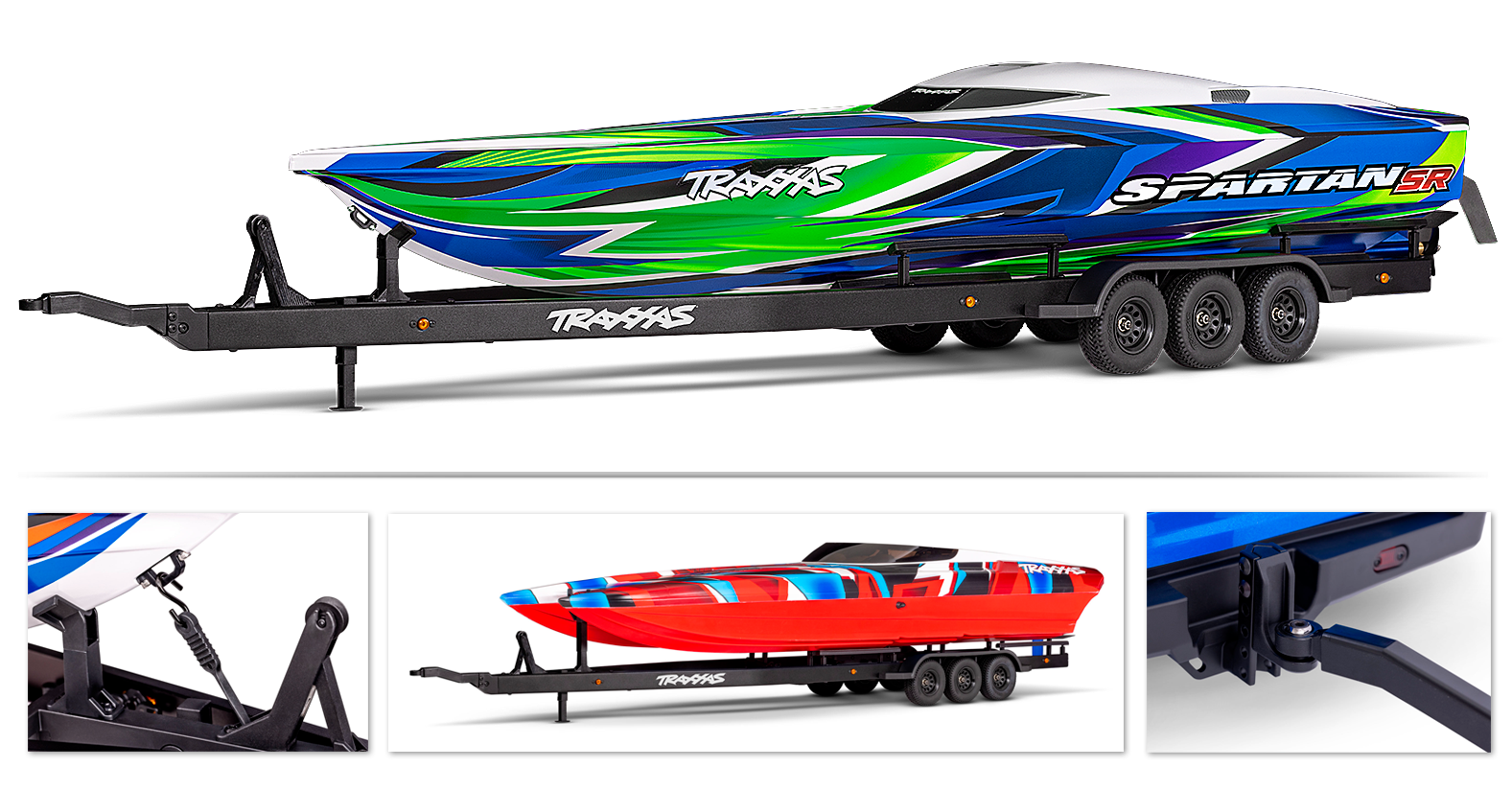

TRAXXAS BOAT TRAILER
Transport your Traxxas boat to the lake in style with this fully detailed scale replica triple-axle trailer. Adjustable bunk brackets accommodate either the Spartan’s deep-V hull or the DCB-M41’s catamaran hull.
- Adjustable bunk brackets
- Elastic tie downs hold the boat securely
- Variable height hitch
- Fold-down trailer jack stand
- Lightweight aluminum frame
- Compatible accessories:
- LED-Ready light lenses

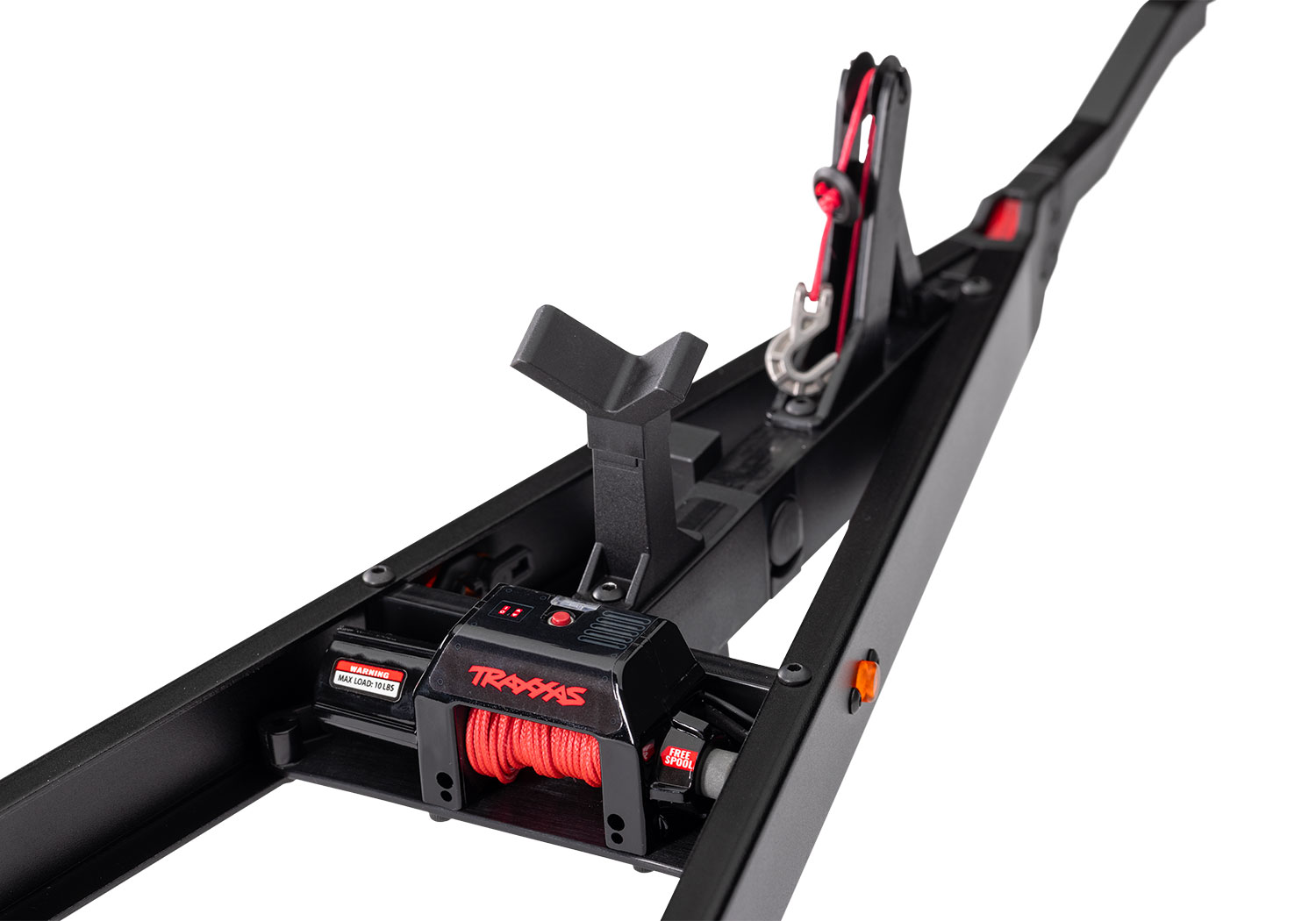

(#10349, sold separately) - Pro Scale® Winch
(#8855, sold separately)
Photo Gallery
Don’t miss any of the latest Spartan SR news, accessories, and updates.
Spartan SR Data
| Hull Type: | Deep-V |
|---|---|
| Hull Length: | 36.5 inches (927 mm) |
| Overall Length: | 40.8 inches (1037 mm) |
| Beam: | 9.5 inches (243 mm) |
| Height: | 7.2 inches (183 mm) |
| Deadrise: | 26 degrees |
| Weight (no battery): | 5.29 pounds (2.40 kg) |
| Speed Control: | VXL-6s™ Marine electronic speed control |
| Motor (electric): | Velineon® 540XL Marine brushless |
| Cooling: | Water-cooled jacket |
| Hull Material: | Vacuum-formed ABS |
| Drive System: | Direct drive 4.7 mm flex cable |
| Prop: | 42 mm 2-blade composite (59 mm pitch) |
| Outdrive: | Adjustable aluminum |
| Steering Servo: | 2056 waterproof |
| Radio System: | TQi™ 2.4 GHz (2-channel) |
| Receiver: | 6533 2.4 GHz TSM® 5-channel |
| Skill Level: | 2 |
| Battery Compartment (L/W/H): | 218 mm long x 70 mm wide |
| Required Batteries: | 4 “AA” (transmitter), Boat (see battery finder) |
| Type: | Velineon 540XL Marine 1850 kV sensorless brushless motor |
|---|---|
| Weight: | 13.6 ounces (386 g) |
| Length: | 2.95 inches (75 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Motor Shaft: | 5 mm |
| Motor Connectors: | 5.5 mm bullet |
| Input Voltage (cells): | 14 Cells NiMH / 4s-6s LiPo |
|---|---|
| Case Size: | 2.66″ (68 mm) x 1.82″ (46 mm) x 1.5″ (38 mm) |
| BEC Voltage: | 6.0 volts |
| Thermal Protection: | Two-stage thermal shutdown |
| Battery Connector: | Traxxas High Current Connector |
- 36″ Deep-V Hull
- Made from lightweight vacuum-formed ABS
- Self-righting flood chamber
- Pre-applied graphics

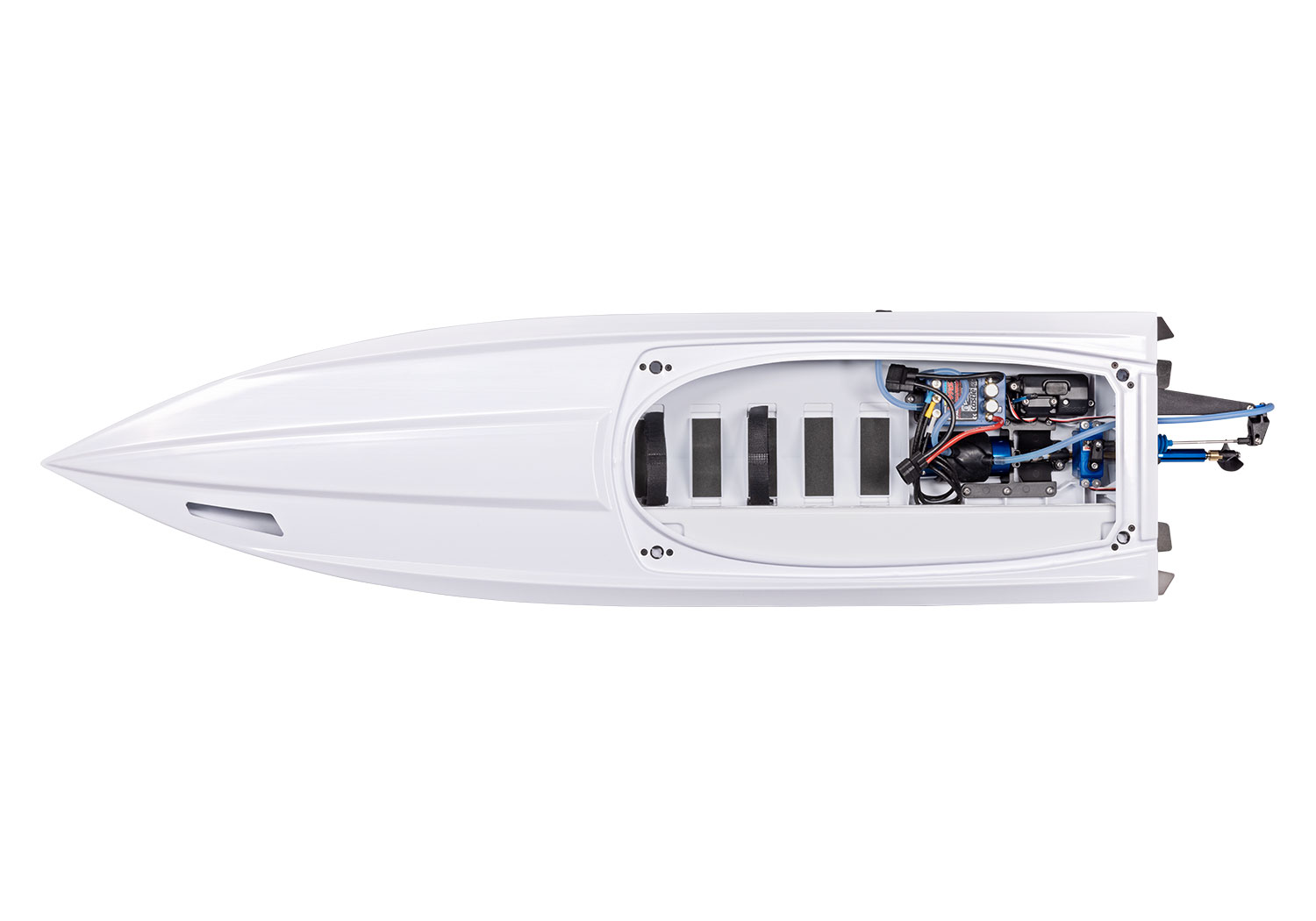

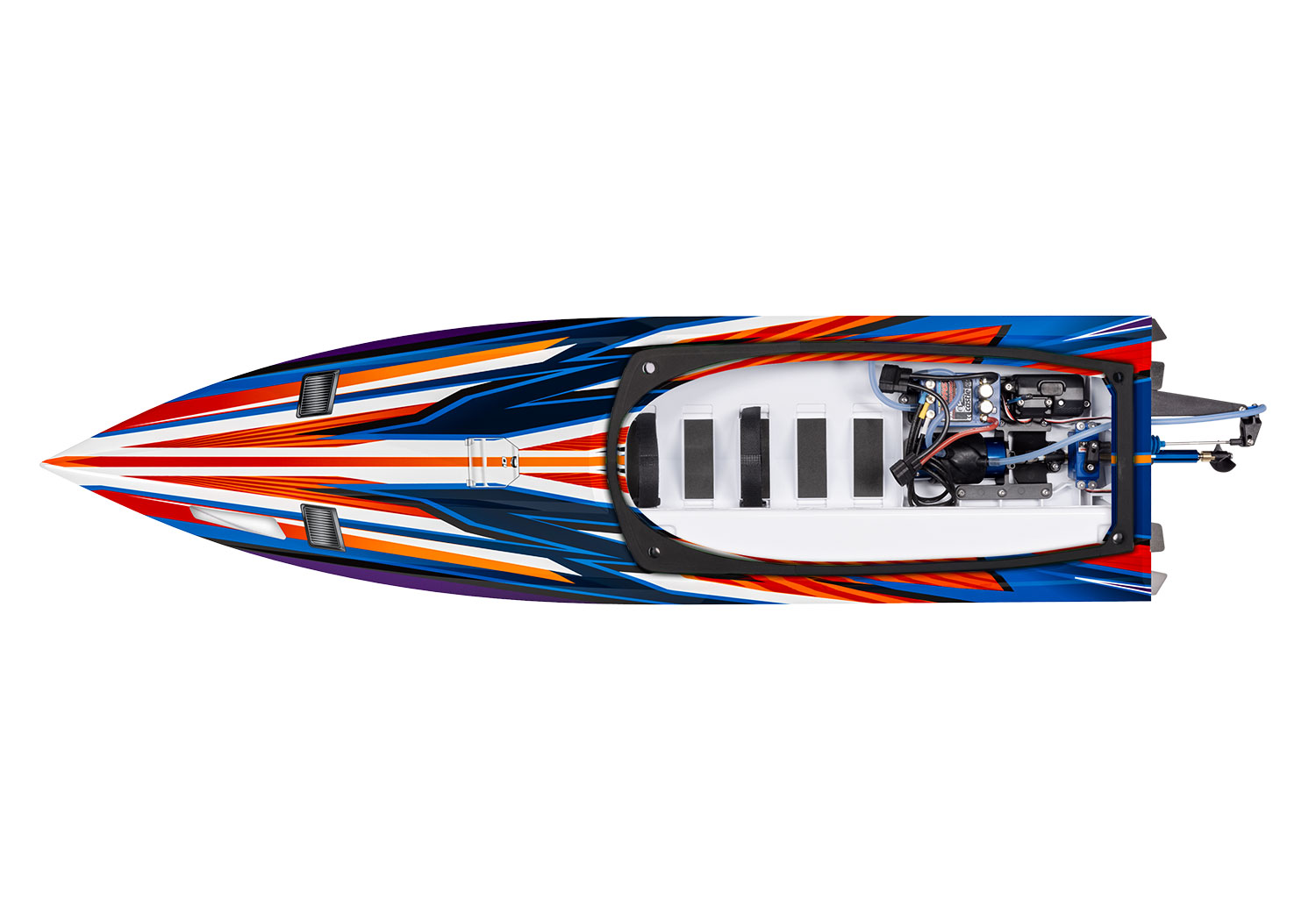

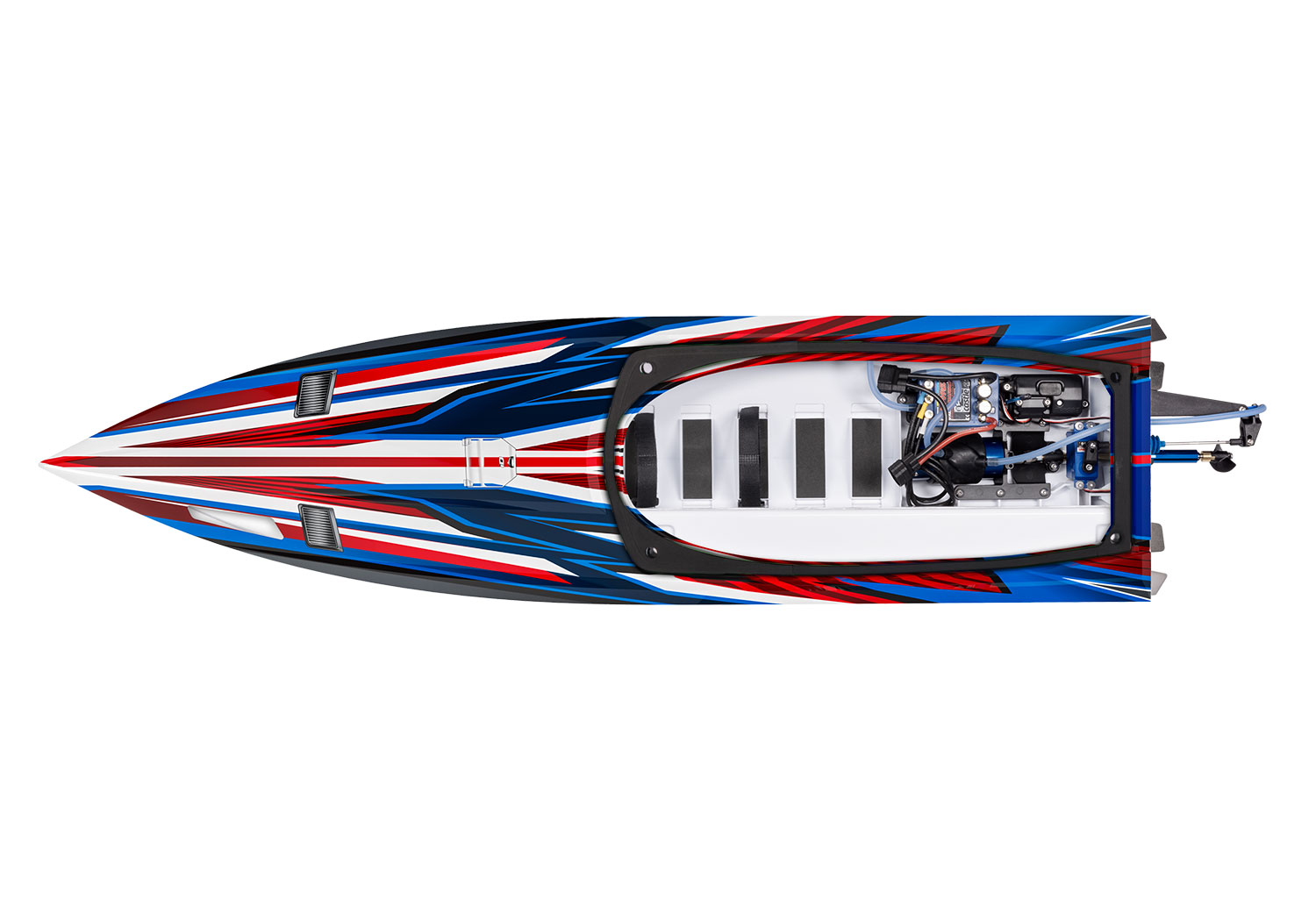

- Modular electronics tray
- Large foam bow insert maintains buoyancy
- Rigid Injection-Molded Clipless Hatch
- Four quick-release hatch nuts with tool
- Foam seal keeps water out
- Includes optional wingnuts
- Up to 50 MPH with Dual 3s LiPo Batteries
- TQi™ 2.4 GHz Transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable Multi-Function knob
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box
- Traxxas Stability Management (TSM)®
- Improves straight line acceleration and high-speed stability
- Never dulls throttle
- Adjusts from off to 100% assistance from the transmitter
- VXL-6s Marine Speed Control
- Water-cooled case
- Three Programmable Drive Profiles
- Sport Mode - 100% Forward / 15% Reverse
- Race Mode - 100% Forward / No Reverse
- Training Mode™ - 50% Forward / 15% Reverse (patented)
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 14 cells (16.8 volts)
- LiPo battery packs: 4-6 cells (14.8 to 22.2 volts)
- Velineon 540XL Marine Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Efficient, high-speed ball bearings
- Optimized for power in marine applications
- 1850 kV
- 5 mm output shaft
- Water-cooled jacket
- Extra-Long 218 mm Battery Tray
- Centralizes battery weight
- Allows fore and aft battery positioning
- Accommodates multiple battery configurations
- Secure hook-and-loop straps
- Drivetrain
- Heavy duty 4.7 mm diameter flex shaft
- Quick-release motor collet
- Blue-anodized aluminum drive strut
- Low-maintenance bushings
- Steering
- High-torque waterproof 2056 servo
- Blue-anodized aluminum rudder with water pickup
- Precision-Cut Stainless Steel Trim Tabs and Turn Fins
- Stainless Steel Hex Hardware Used Throughout
What’s In The Box:
- Spartan SR with VXL-6s Marine ESC and 1850 kV motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- Boat stand
- Hatch nut tool
- Optional wingnuts
What You’ll Need:
- Batteries
Spartan SR requires dual 7-cell NiMH or dual 2s or 3s LiPo batteries. See full list of batteries.
- Charger
Traxxas EZ-Peak® Dual 3s (2972) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
