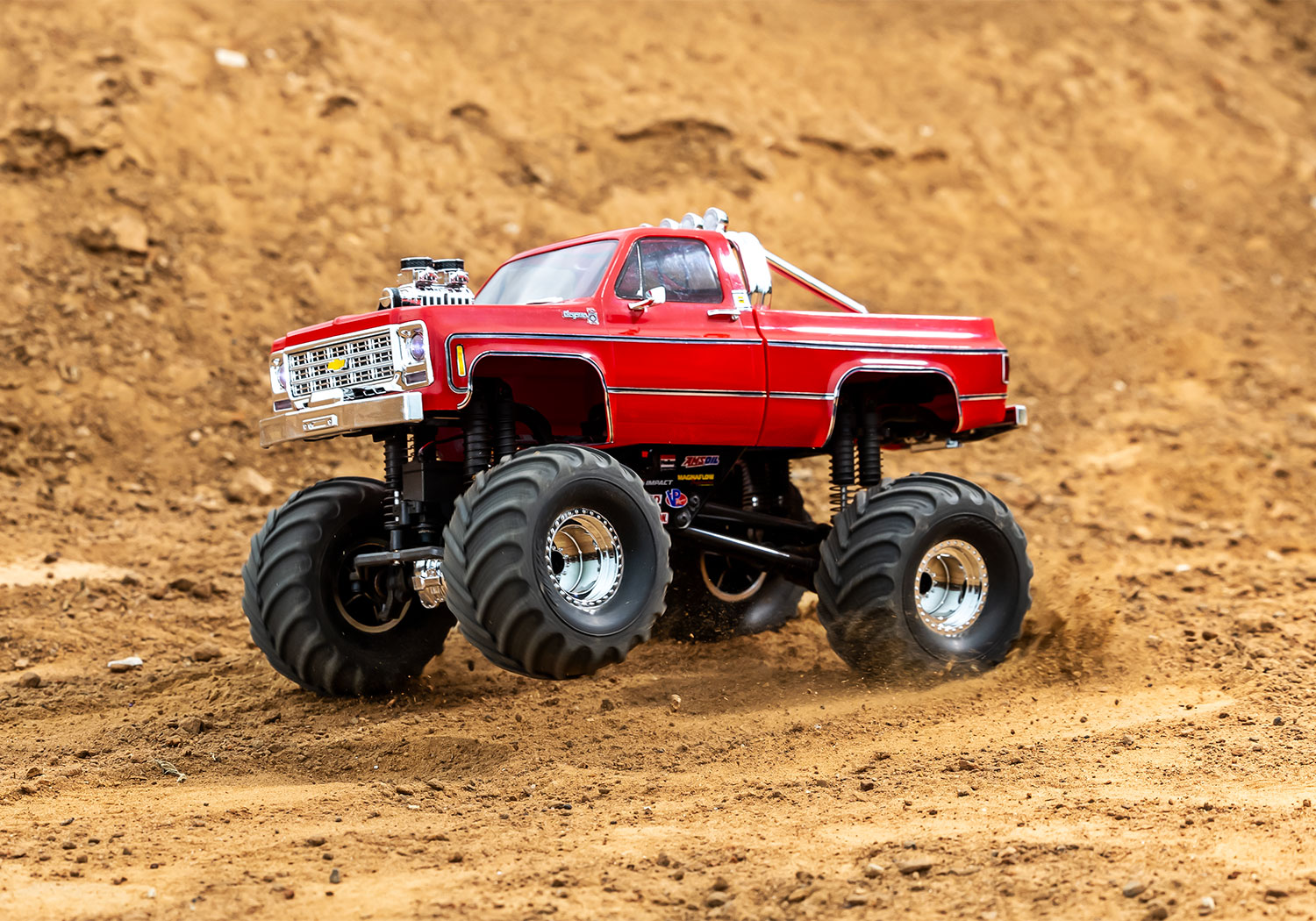

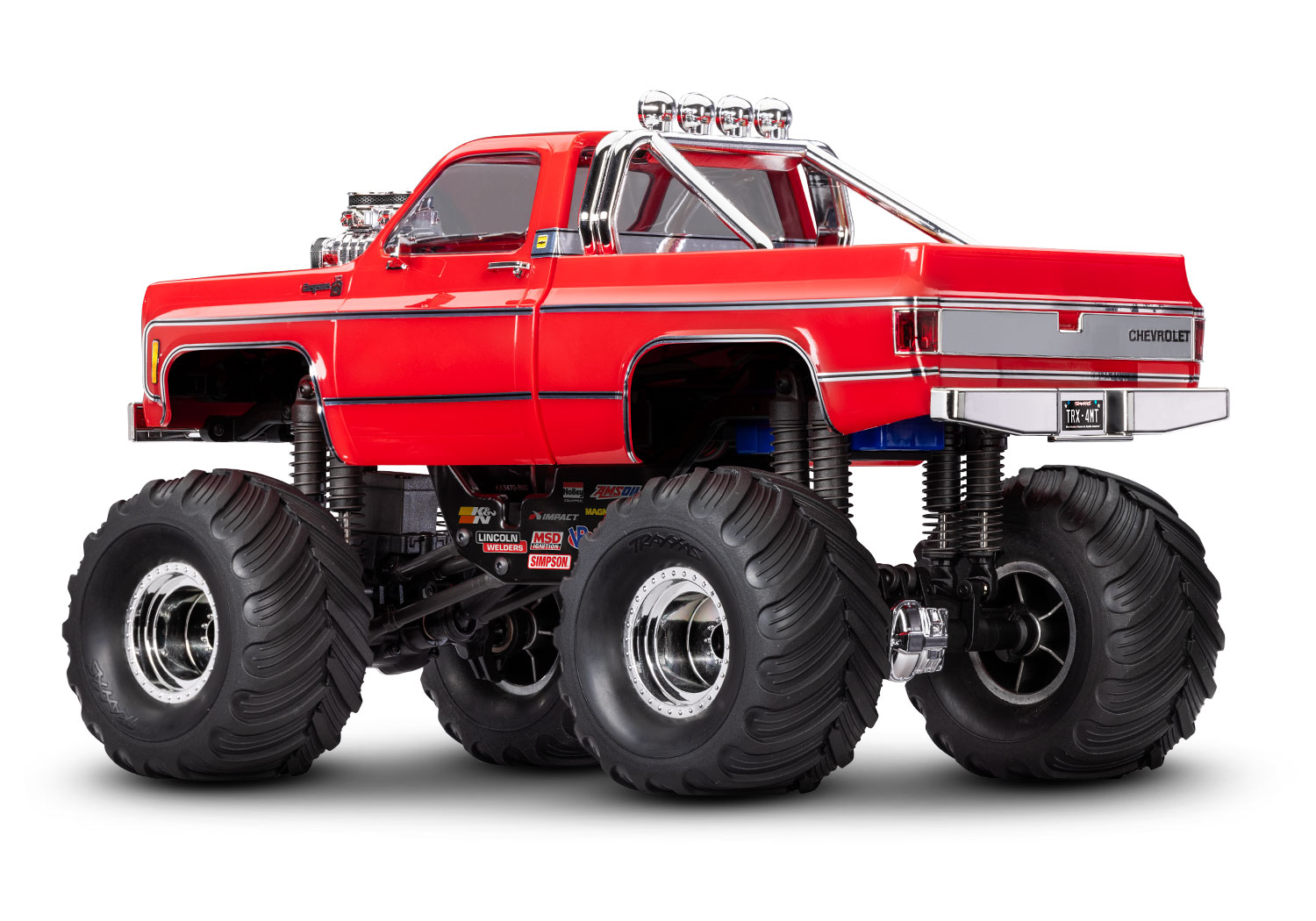

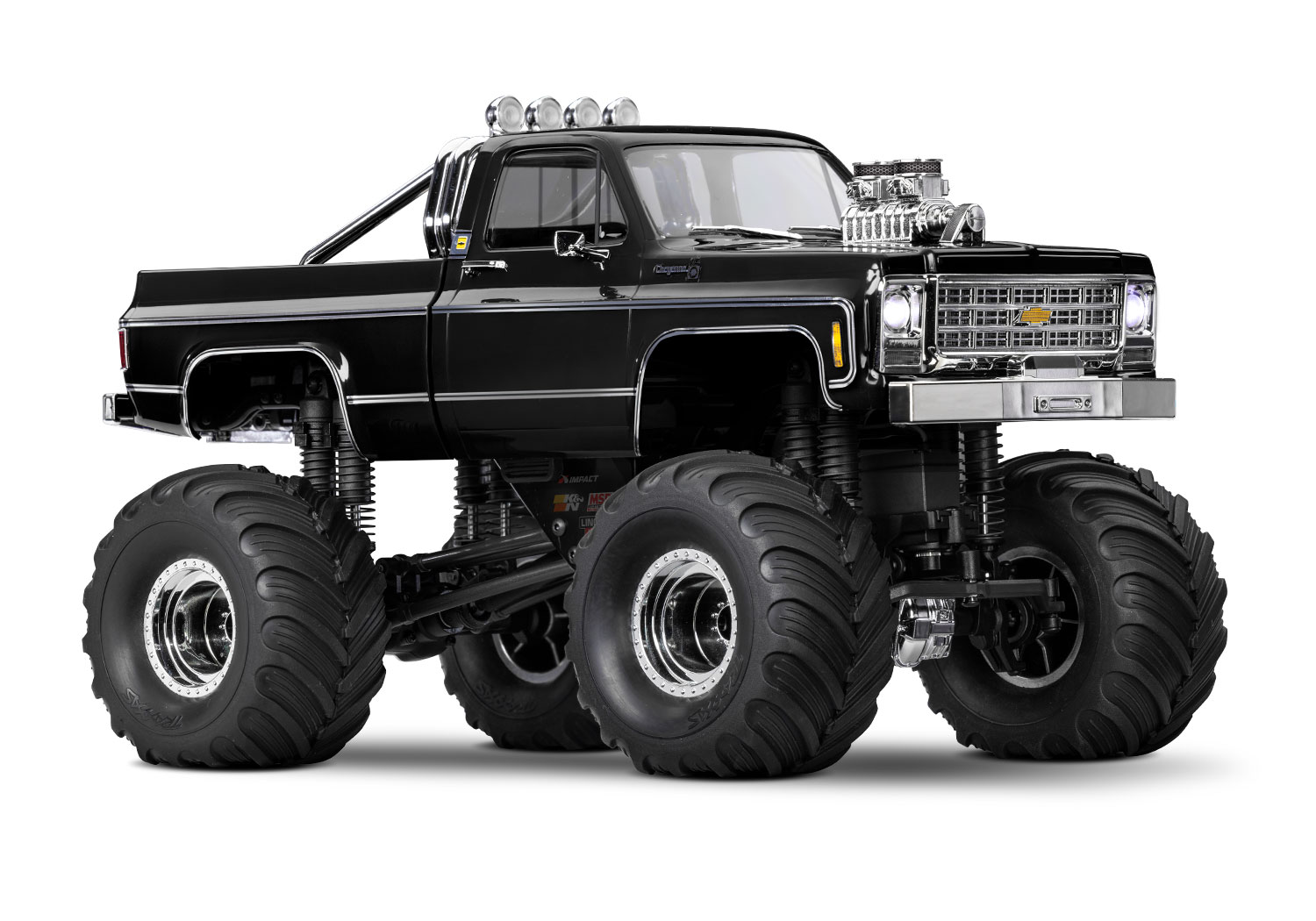

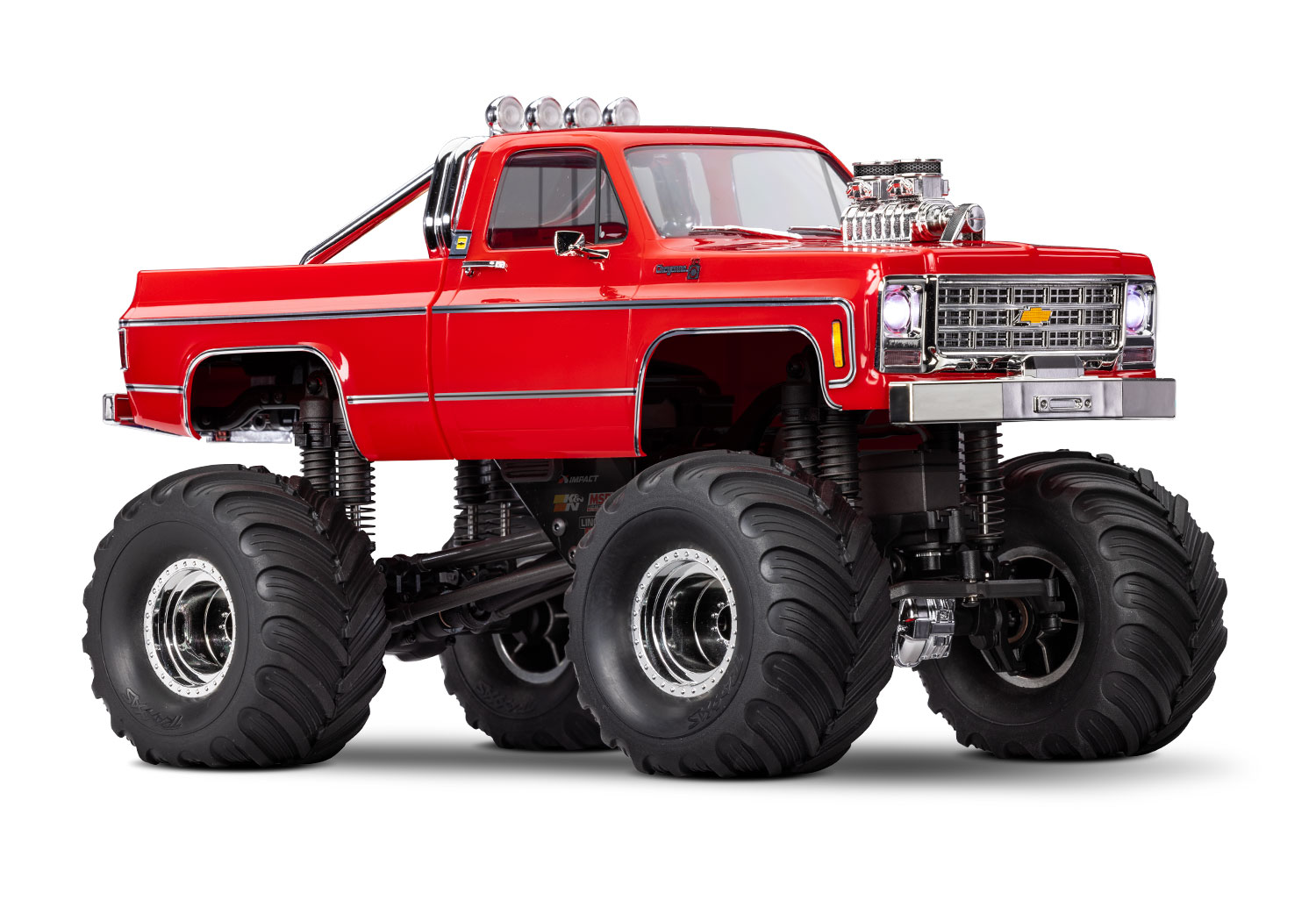

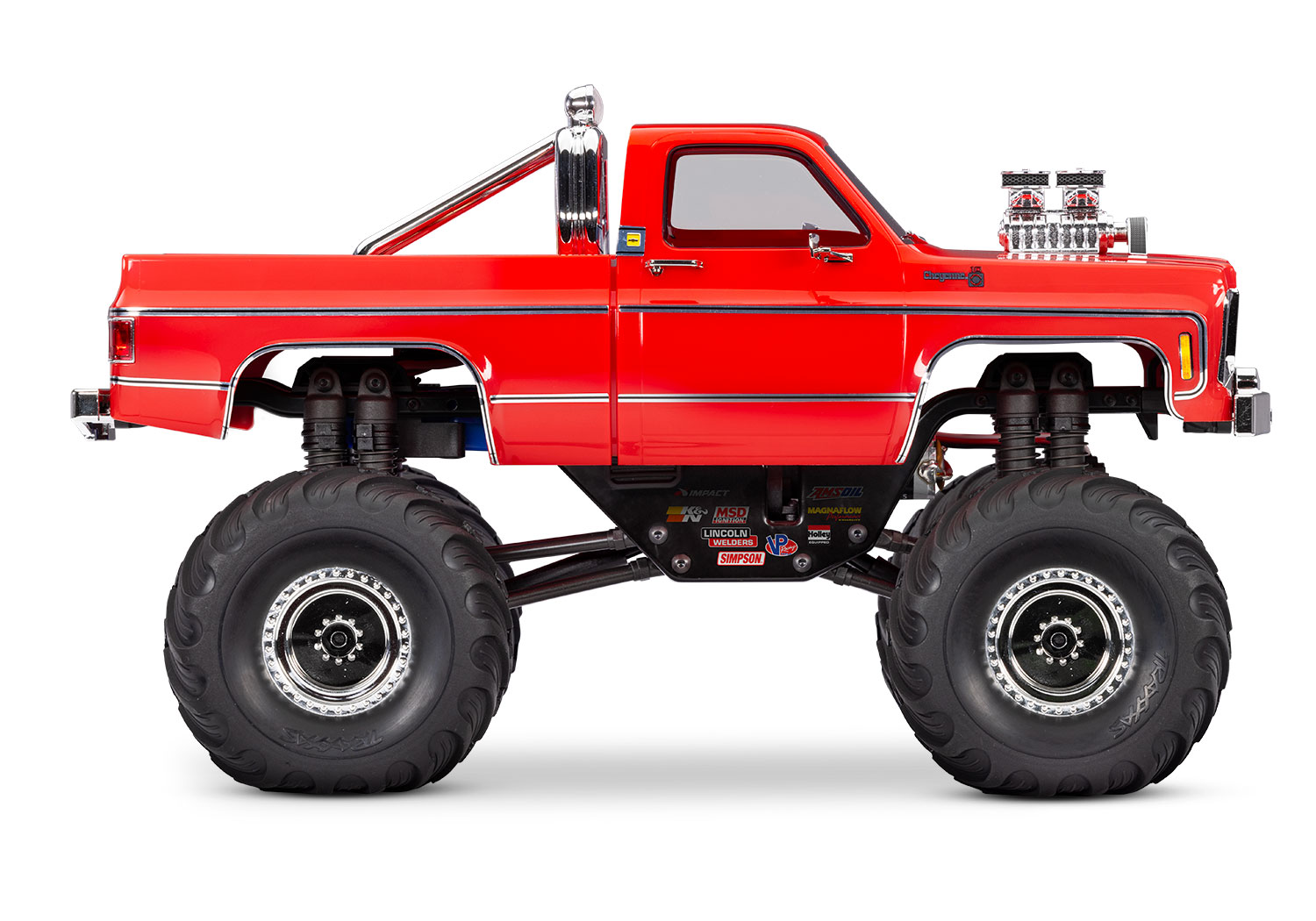

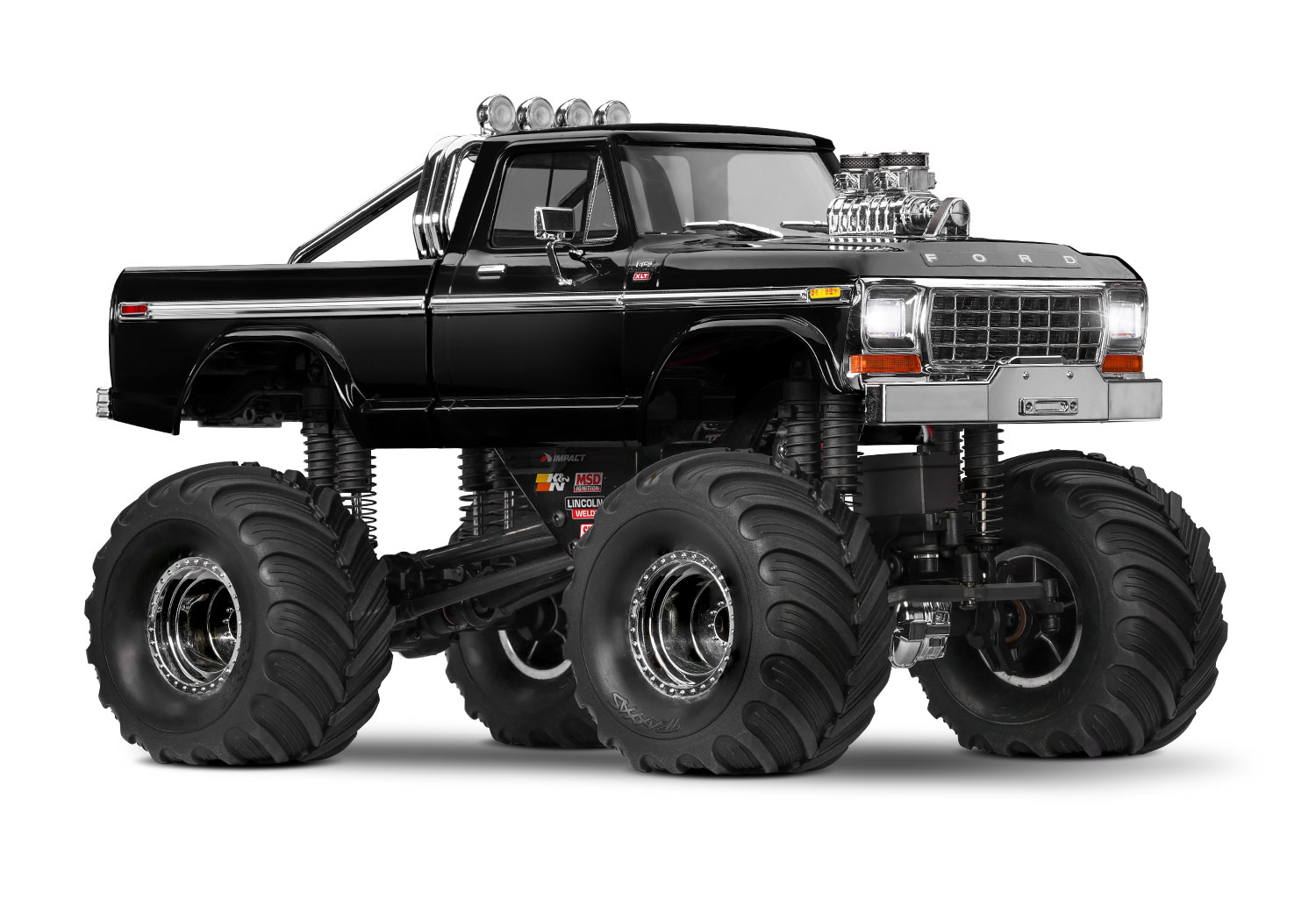

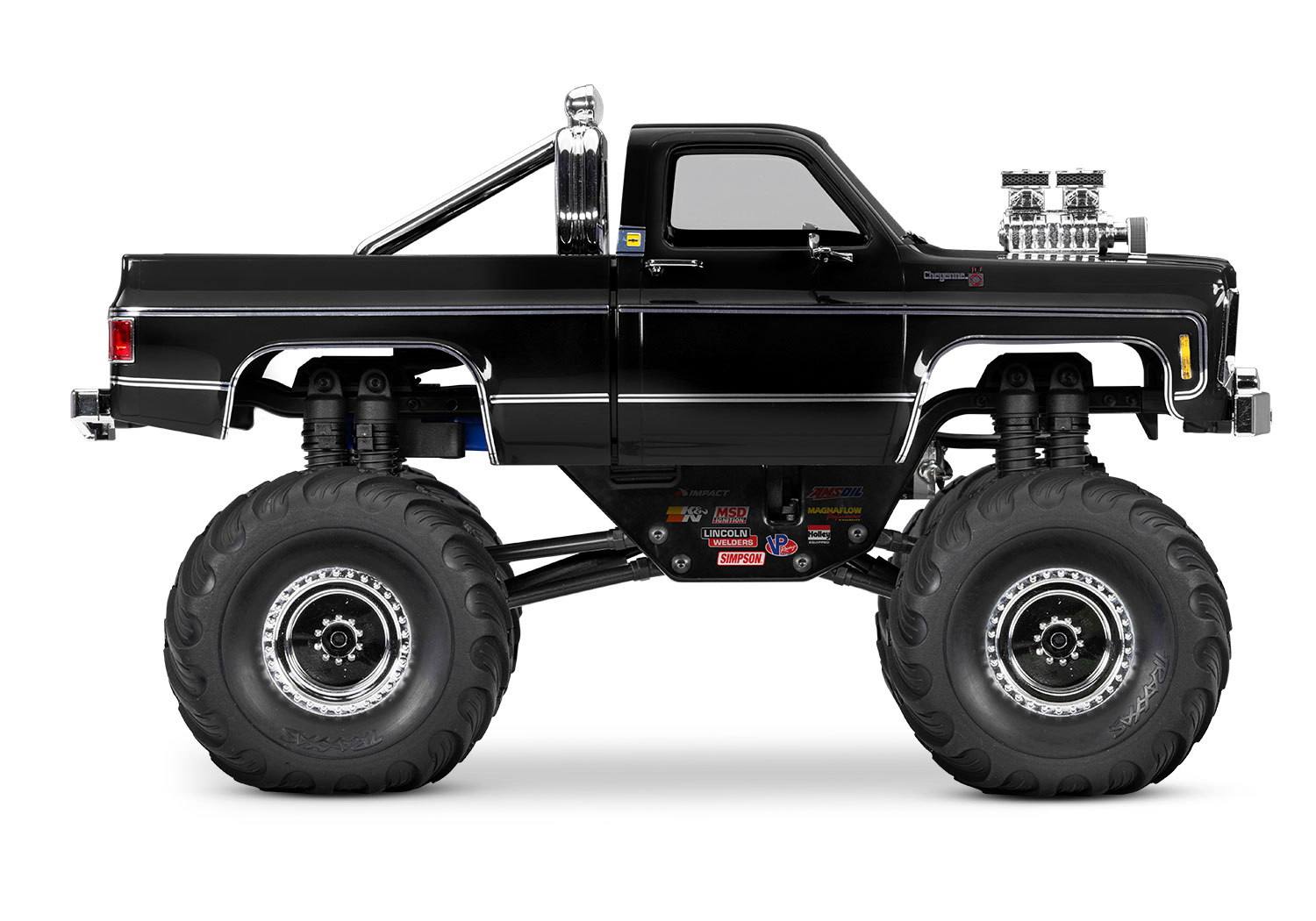

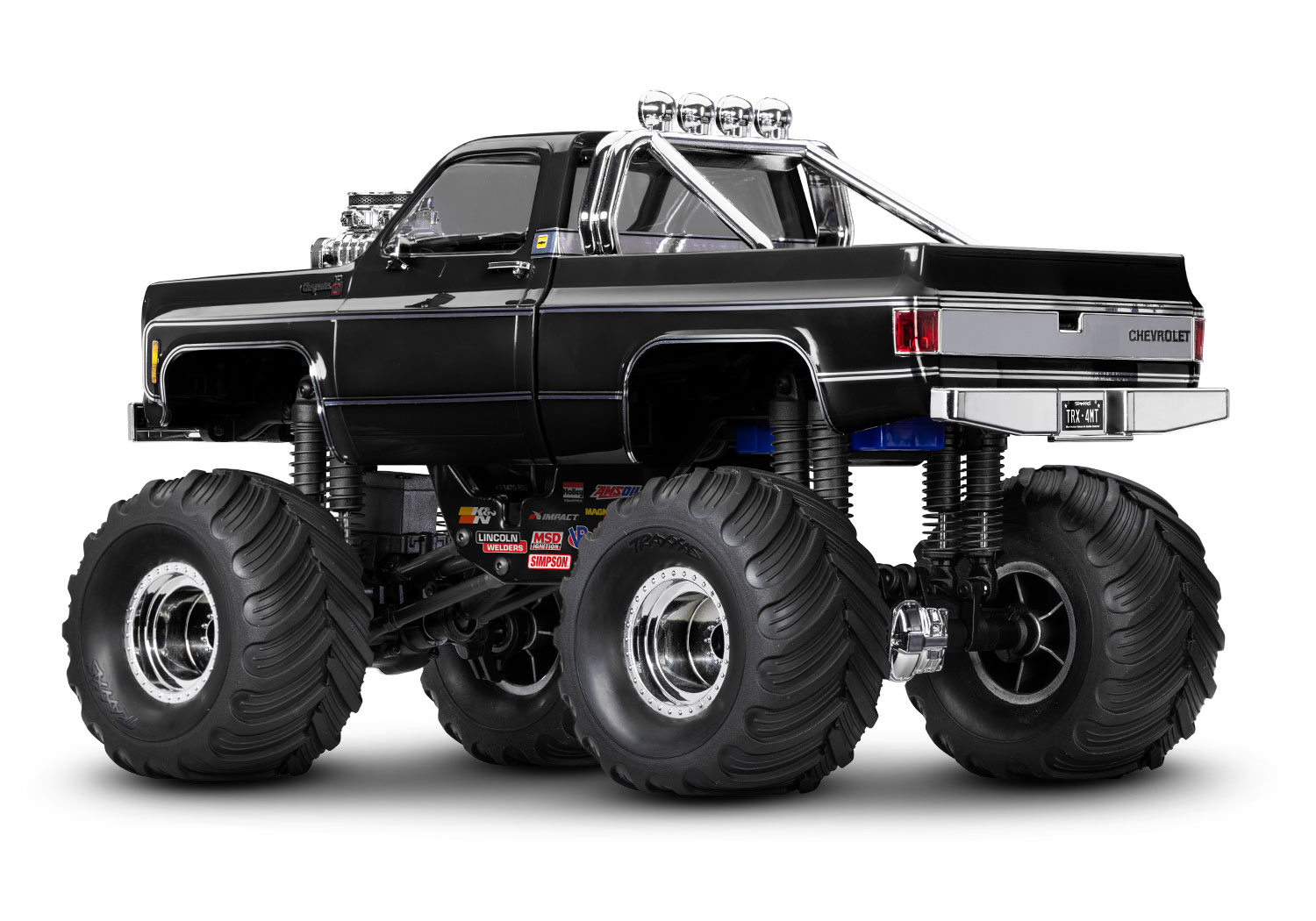

Traxxas delivers solid-axle monster truck performance and durability to 1/18 scale fans with the new TRX-4MT™. A factory-installed Long Arm Lift Kit with eight shocks and large Terra Groove tires give TRX-4MT unrivaled capabilities and towering ground clearance. Available with highly detailed Ford® F-150® or Chevrolet® K10 bodies, TRX-4MT sets the standard for authentic monster truck performance in a convenient, take-anywhere size.

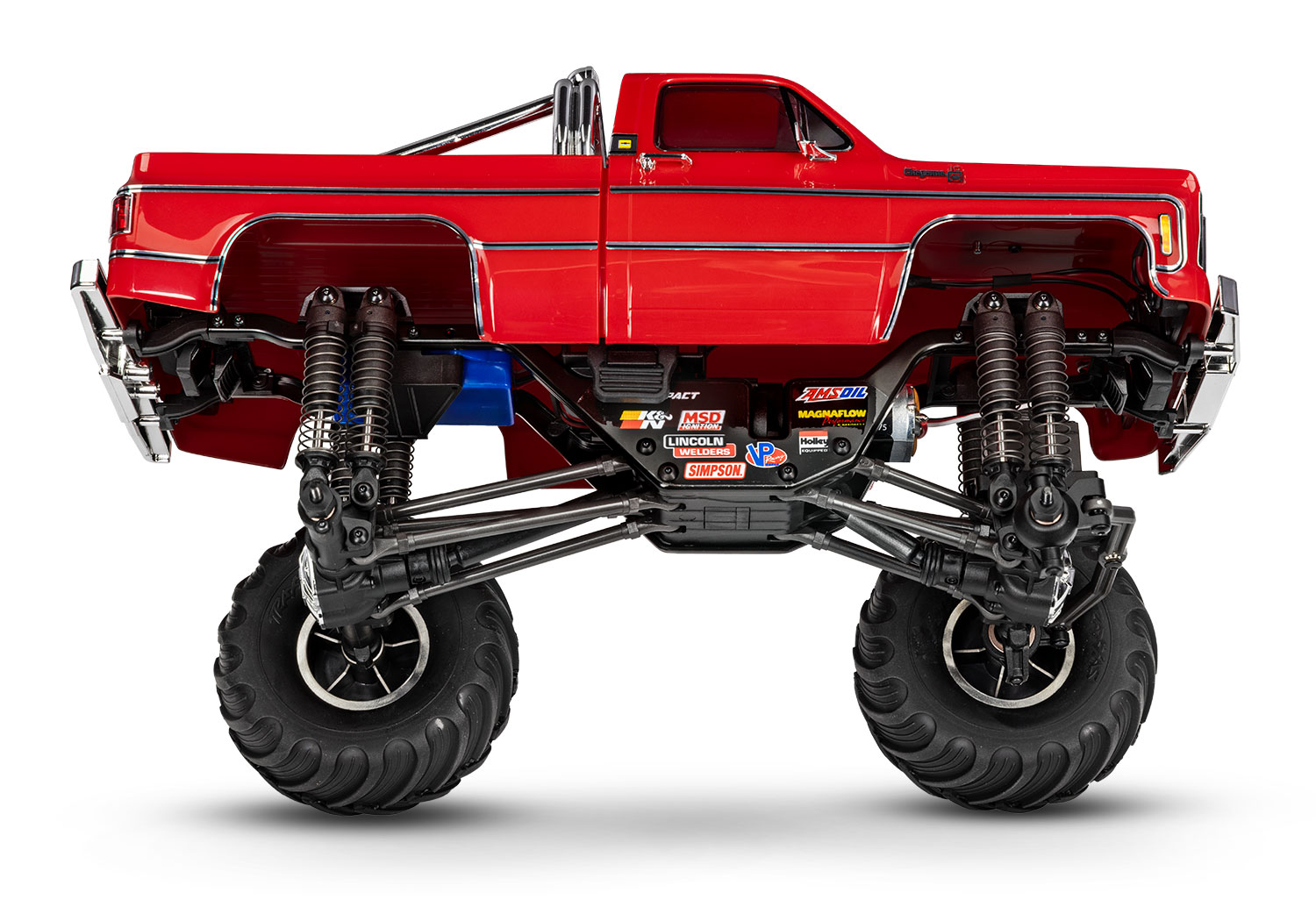

Lifted Performance
TRX-4MT’s factory Installed Long Arm Lift Kit and large Terra Groove tires raise the center ground clearance 88% for an authentic monster truck stance. Eight individual shocks on revised shock mounts with extended links ensure the truck maintains its carefully tuned suspension geometry for peak performance.
Terra Groove Tires
Huge Terra Groove tires give TRX-4MT the authentic “hand carved” look of full-size monster trucks. Mounted on chrome deep-dish wheels with beadlock trim, Terra Groove tires provide excellent traction with an aggressive tread pattern that bites into loose surfaces. The sticky rubber compound is also great on carpet, grass, and pavement.

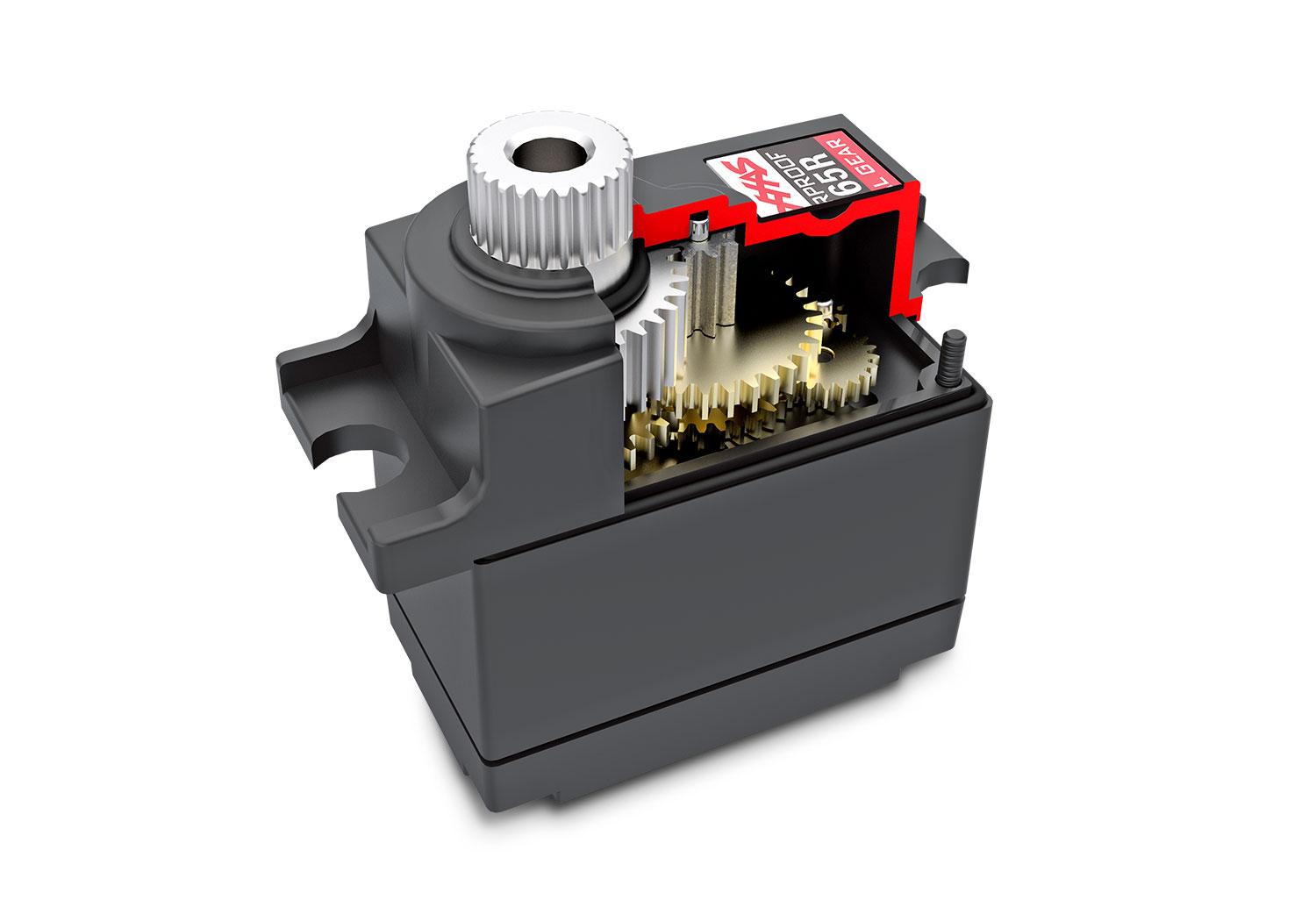

Metal Gear Servo
TRX-4MT comes factory-equipped with the upgraded 2065R servo to turn its oversize Terra Groove monster truck tires with authority. This fully waterproof servo features an all-metal-gear drivetrain for maximum durability under the toughest conditions.
Detailed Clipless Body
The rugged ABS clipless body holds tight over jumps but releases in just seconds with a hidden latching system to preserve its clean lines. Working headlights and beautifully detailed chrome accessories complement TRX-4MT’s high gloss paint for authentic show-stopping looks.
Video
Innovation
Details

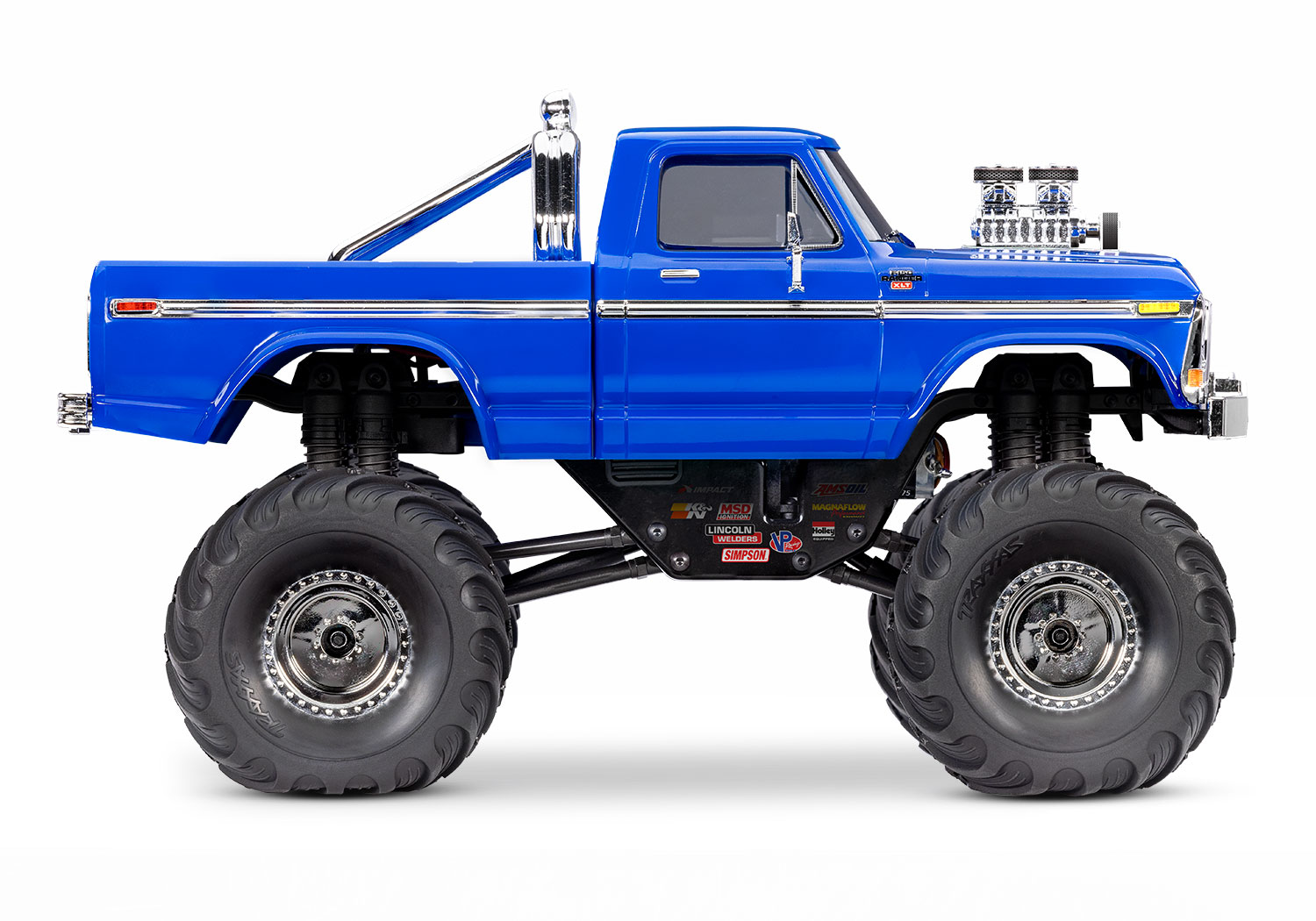

Realistic Body Elements
Traxxas took great care to replicate classic Ford and Chevrolet monster trucks in 1/18 scale. Unique chrome bumpers and engine details, roll bars with replica lights, side mirrors, door handles, and even wipers are molded in exacting detail for exceptional scale realism.

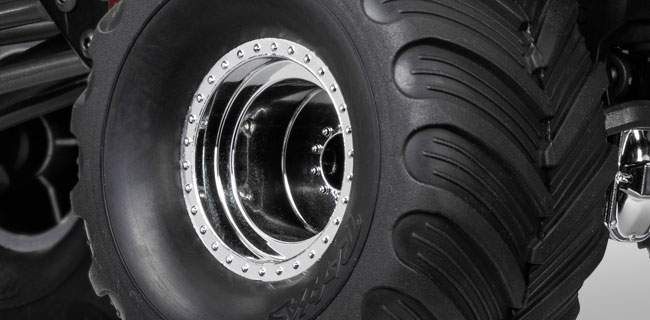

Deep Dish Chrome Wheels

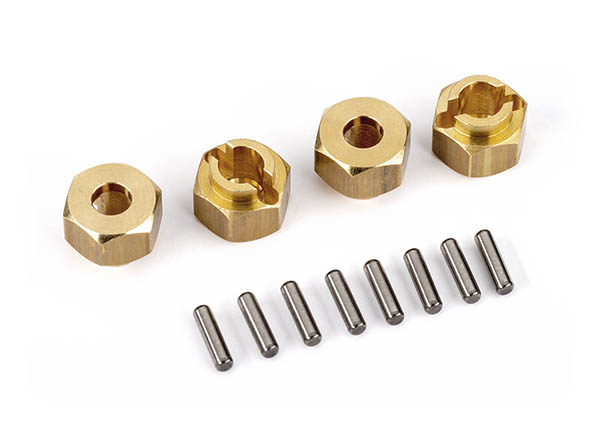

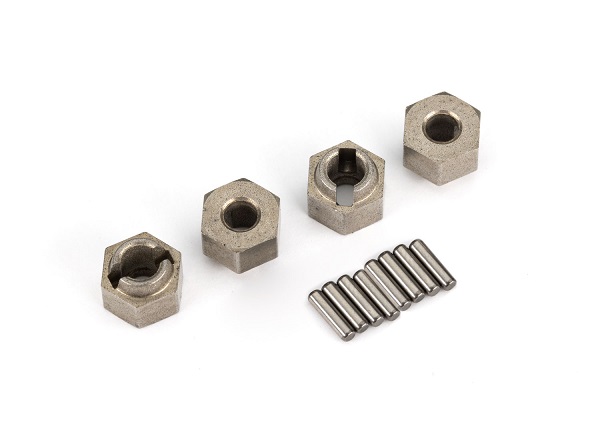

TRX-4MT's deep-dish chrome wheels feature beadlock-style trim to replicate full-size monster trucks in exacting detail. The wheels utilize a standard 7 mm hex, making wheel swaps quick and easy.

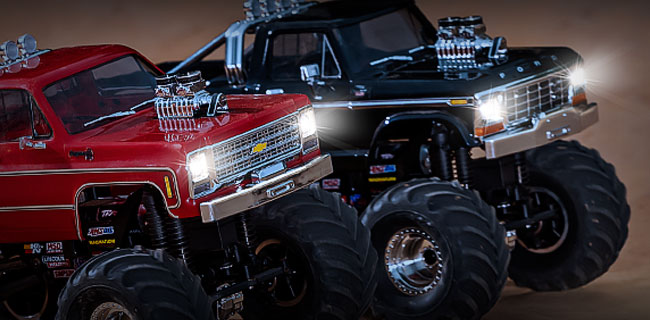

LED Lighting
TRX-4MT features standard LED headlights in the front grille and LED-ready light buckets on the roll bar. Add optional Pro Scale® LED lights and the trucks come to life with functional brake lights, reverse lights, and even emergency flashers (Pro Scale lights sold separately).

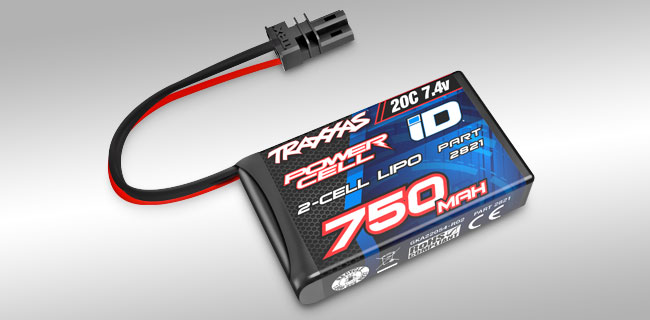

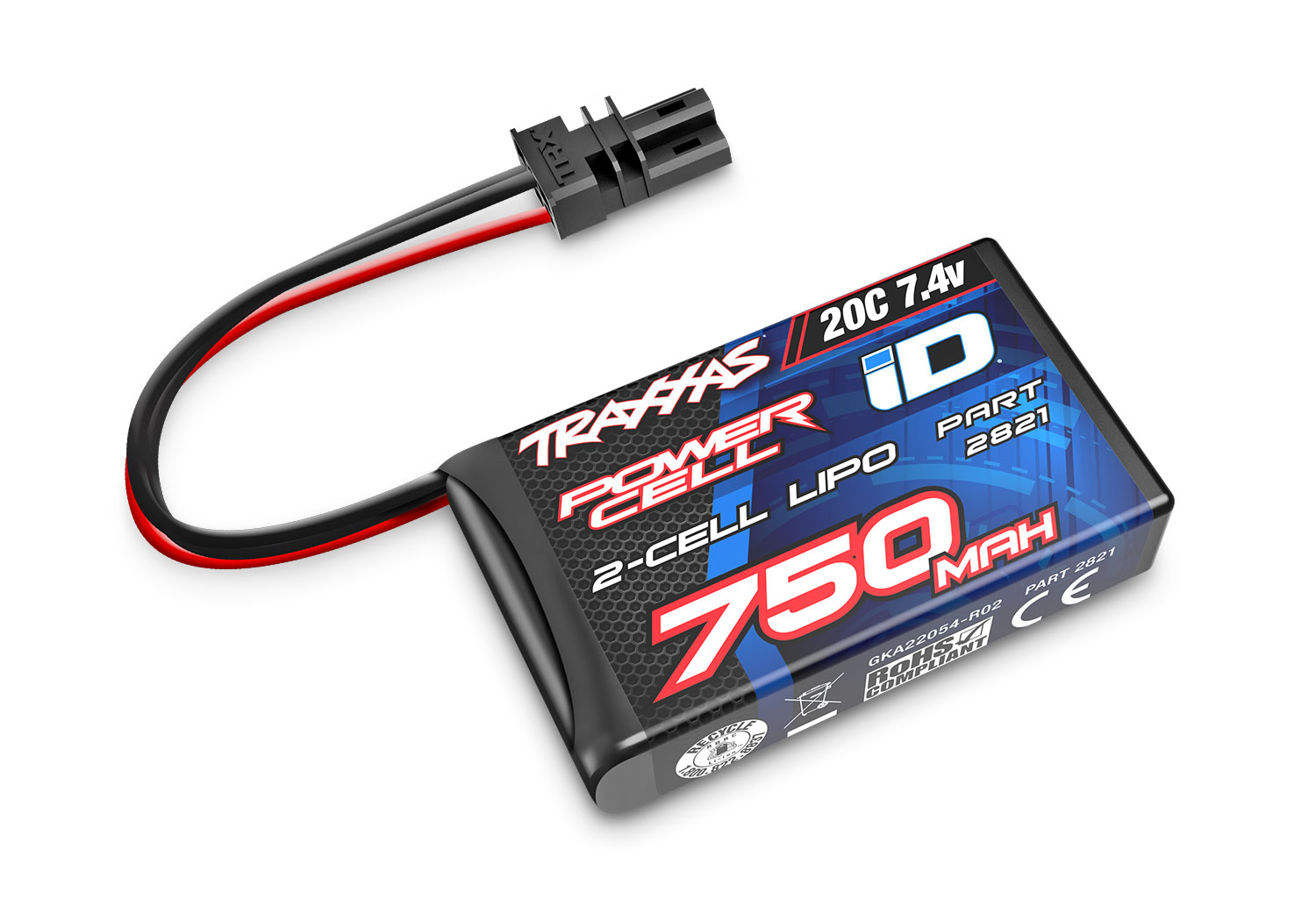

Included 2s LiPo Battery with iD®
The included 2-cell LiPo battery provides 7.4 volts of high-performance power and up to an hour of runtime or more with Traxxas iD® safety and simplicity. The specially-designed iD connector plugs directly into the ECM-2.5.

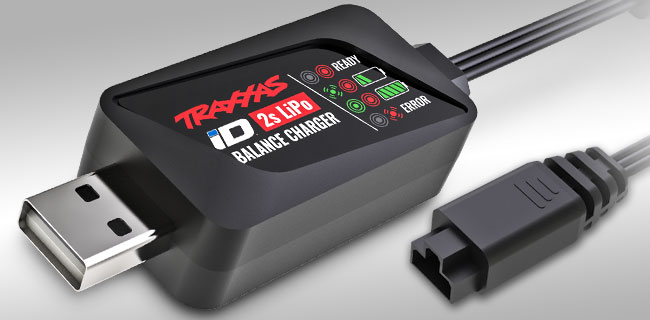

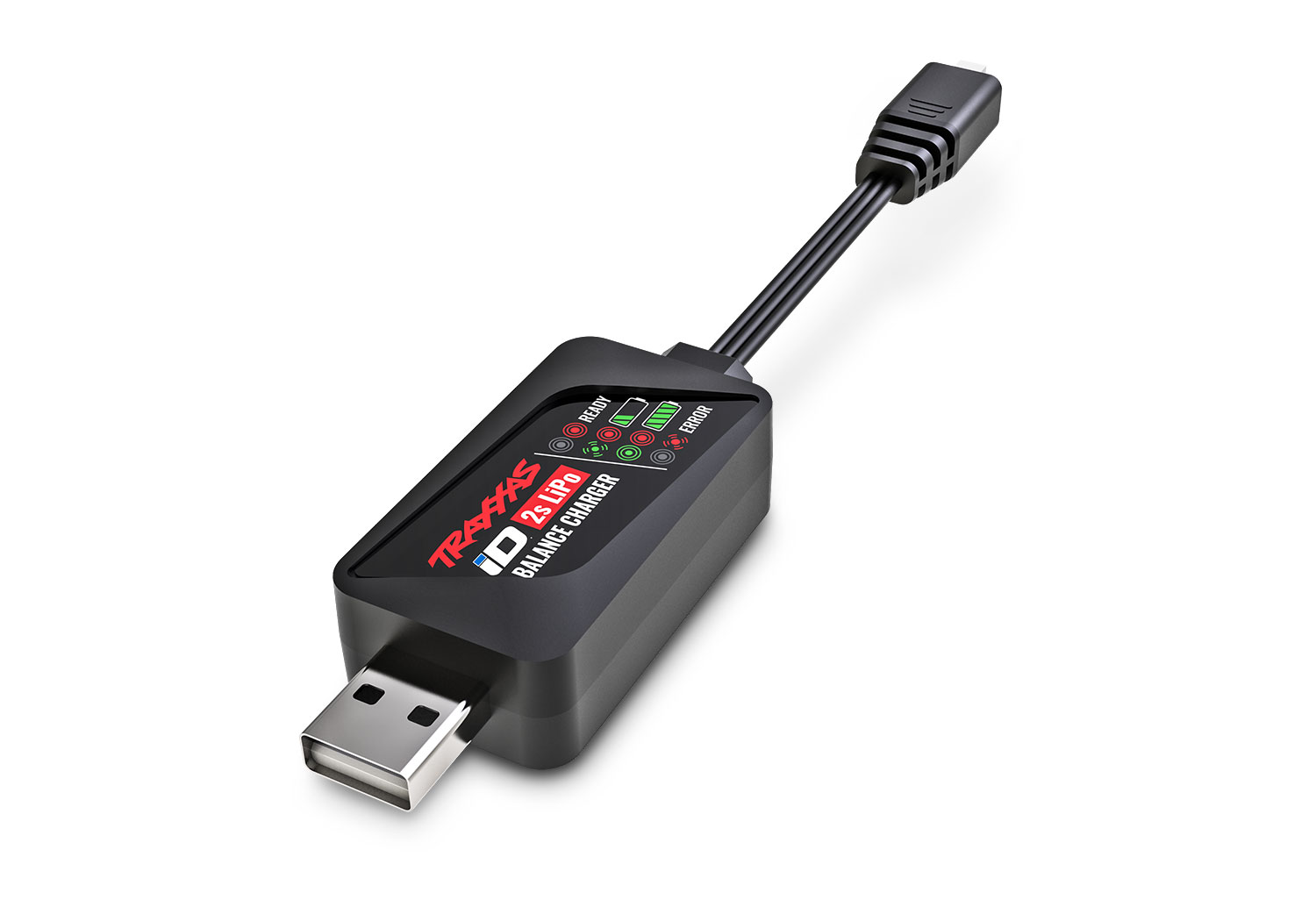

2-Amp USB Fast Charger with iD®
The included 2-amp USB-A charger provides fast and convenient charging almost anywhere. Traxxas iD technology is the easier and safer way to charge LiPo batteries. Just plug the iD battery in and the charger does the rest. When the light turns solid green, the battery is charged.

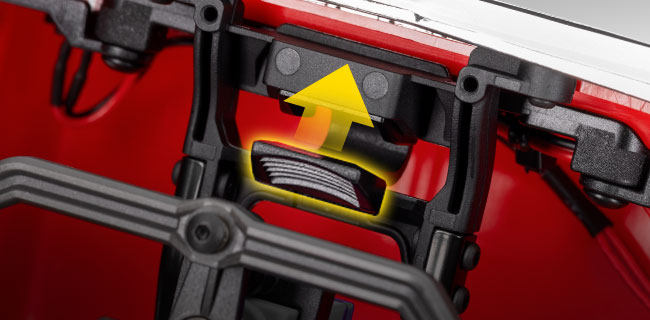

Clipless Body Mounting System
Traxxas’ innovative clipless body mounting holds the replica bodies firmly in place no matter how rough the action gets. A quick pull on the hidden clips releases the body in seconds, with no body clips to lose or hook and loop tape.

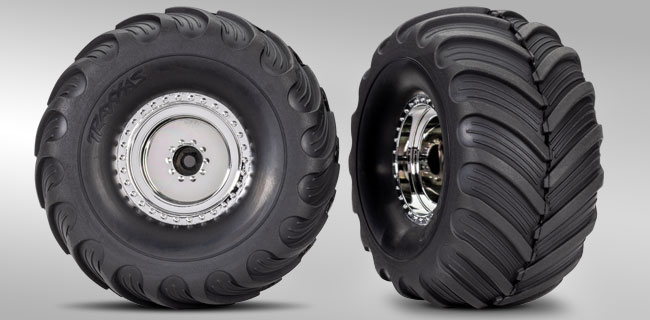

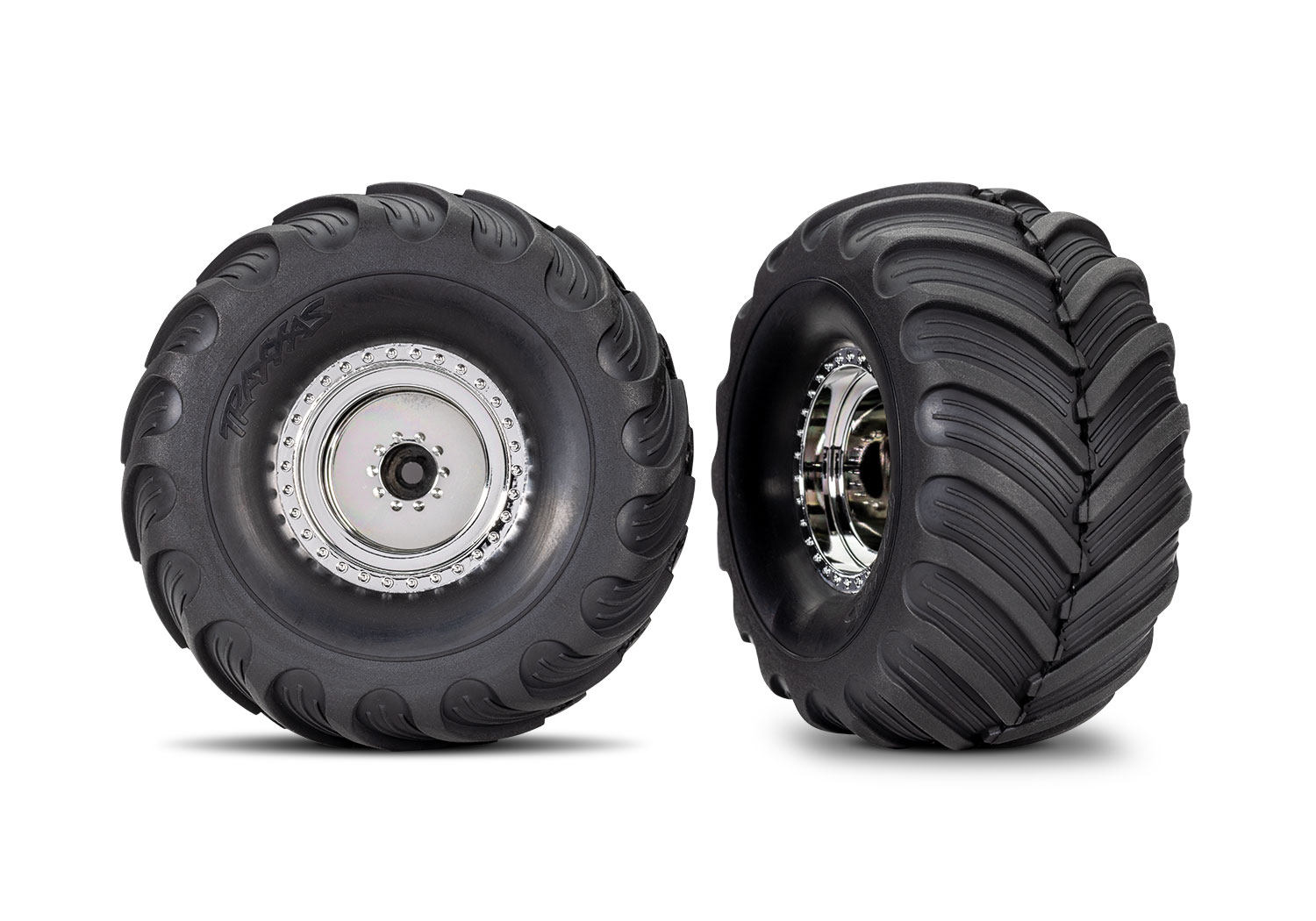

Terra Groove Tires
Huge 3.1″ Terra Groove monster truck tires replicate the hand-carved look of full-size monster truck tires and give TRX-4MT a towering stance. The oversize tires raise the center ground clearance and improve traction on loose surfaces with their aggressive tread pattern. Deep-dish chrome wheels round out the package for a stunning scale appearance.

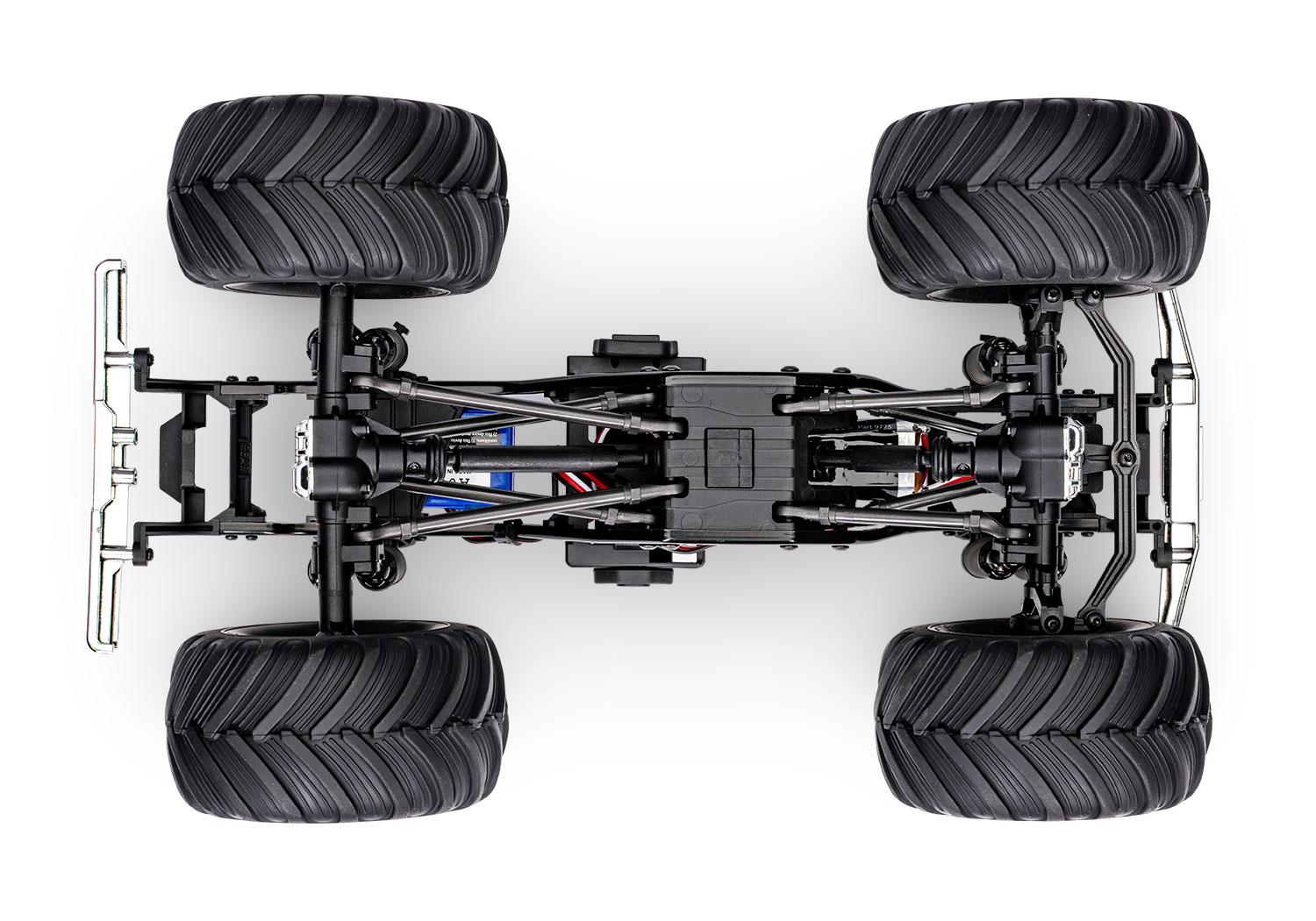

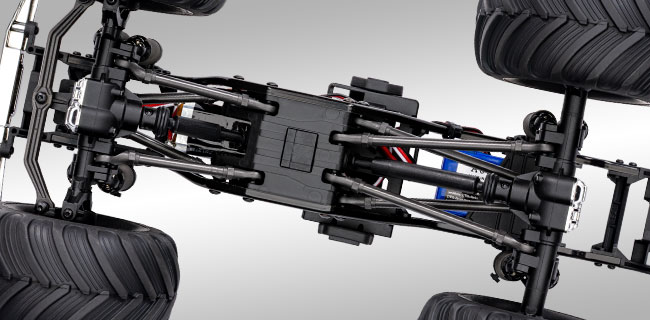

Triangulated Four-Link Suspension
TRX-4MT rides on a lifted four-link suspension with heavy duty triangulated rods. Solid front and rear axles provide excellent articulation to climb over the toughest obstacles.

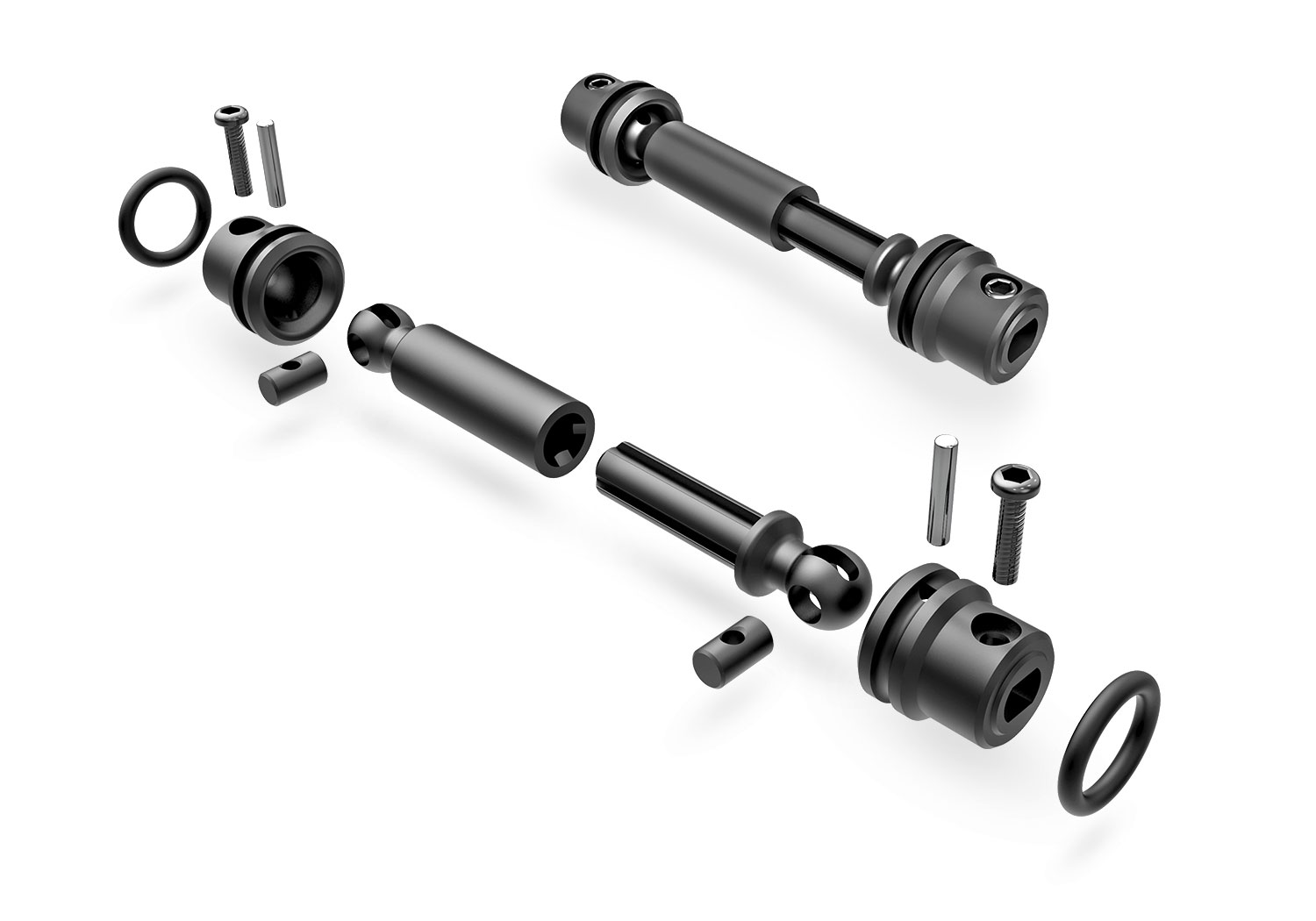

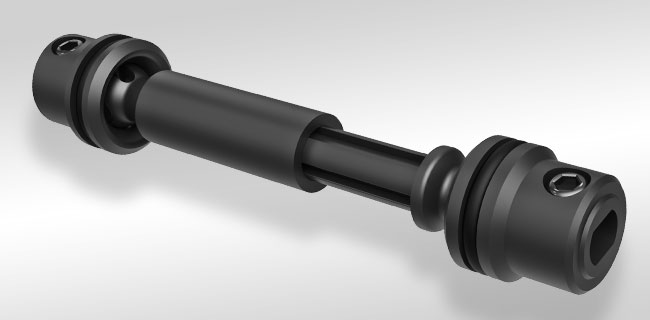

Heavy Duty Center Driveshafts
TRX-4MT’s heavy duty center driveshafts telescope freely to allow maximum suspension travel. Smooth-running CV joints are engineered for long-lasting, trouble-free performance.

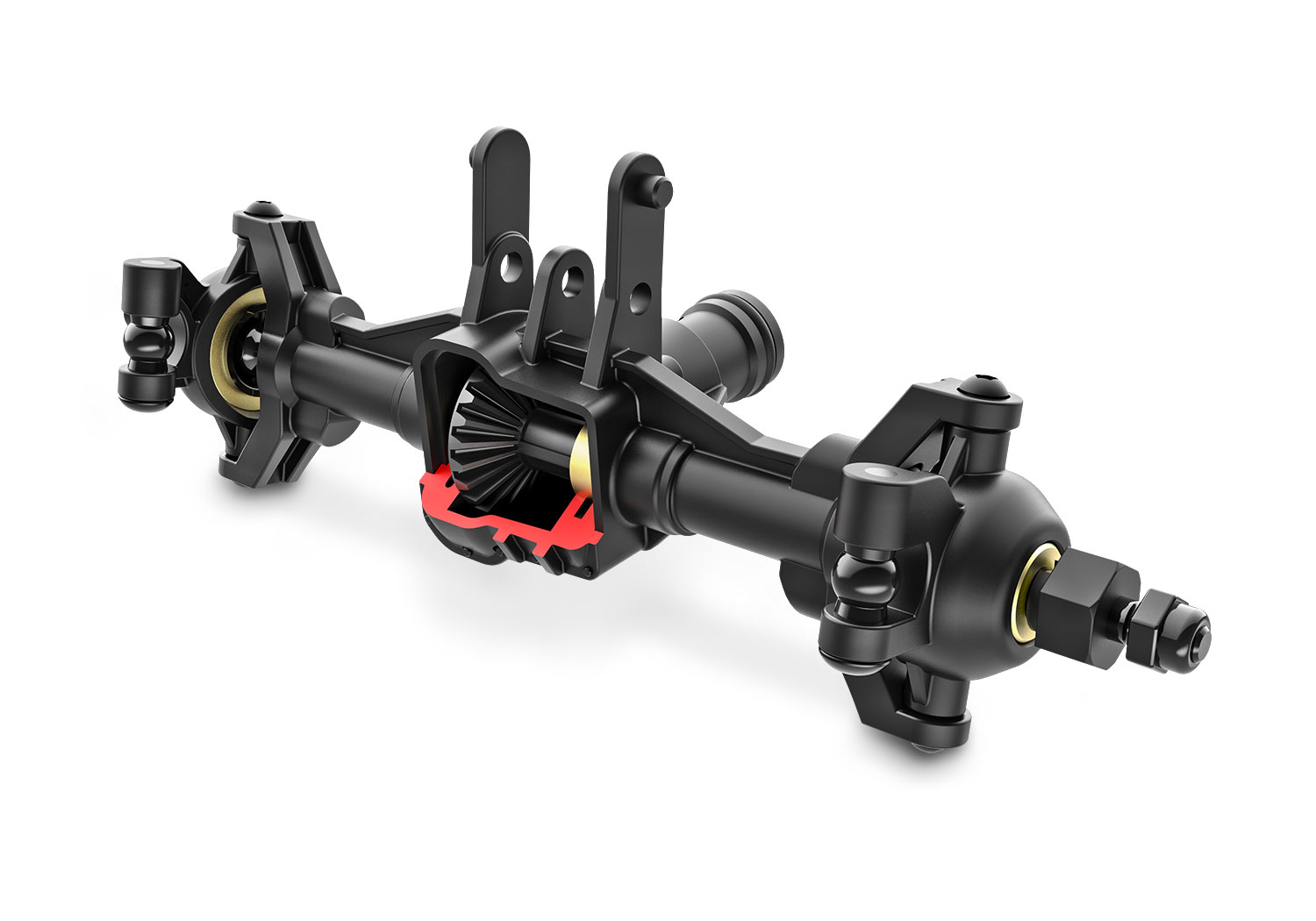

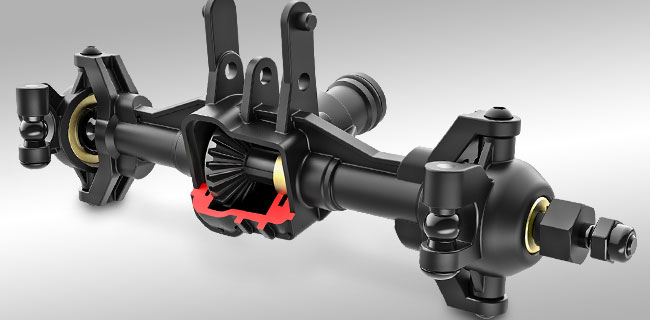

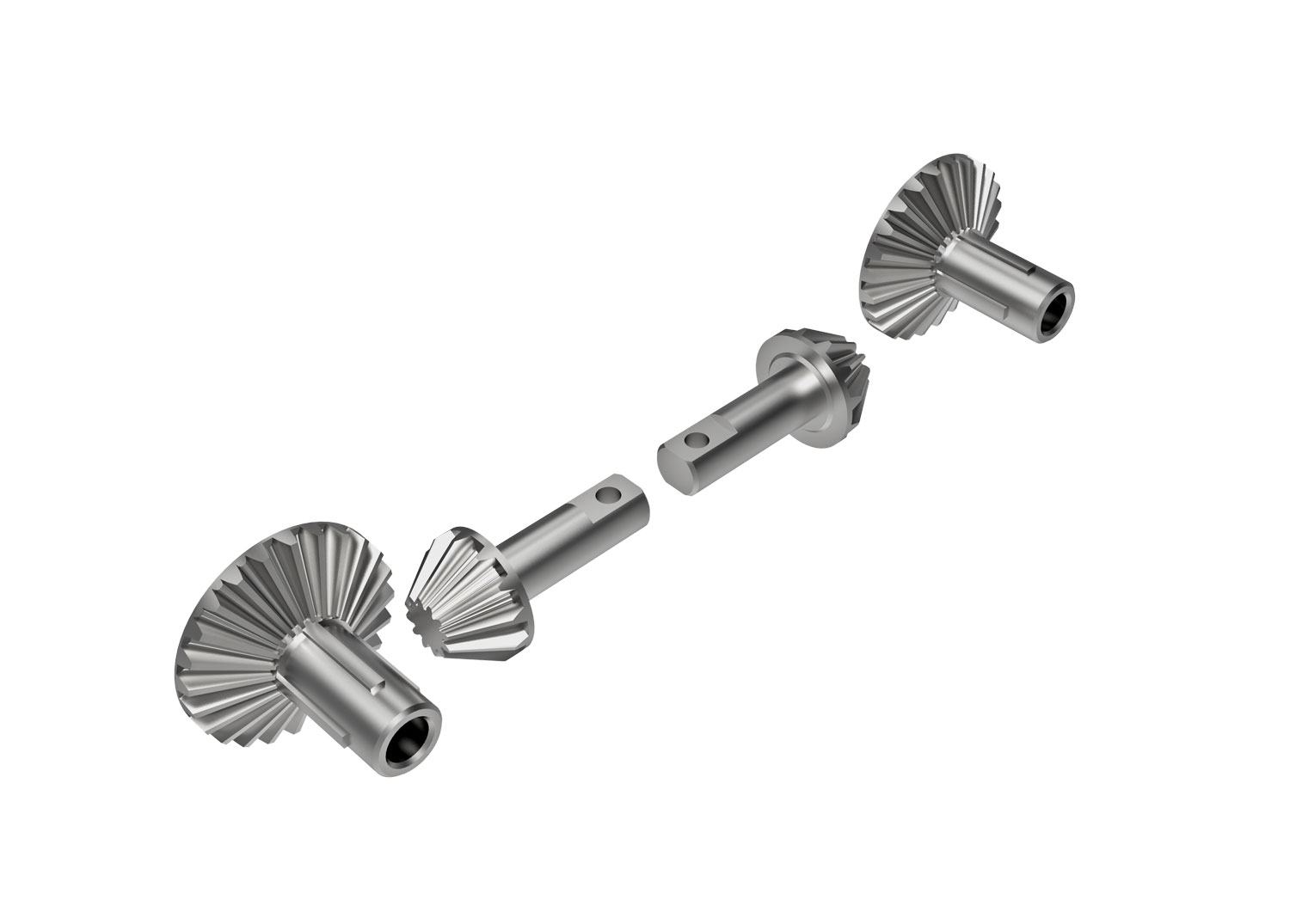

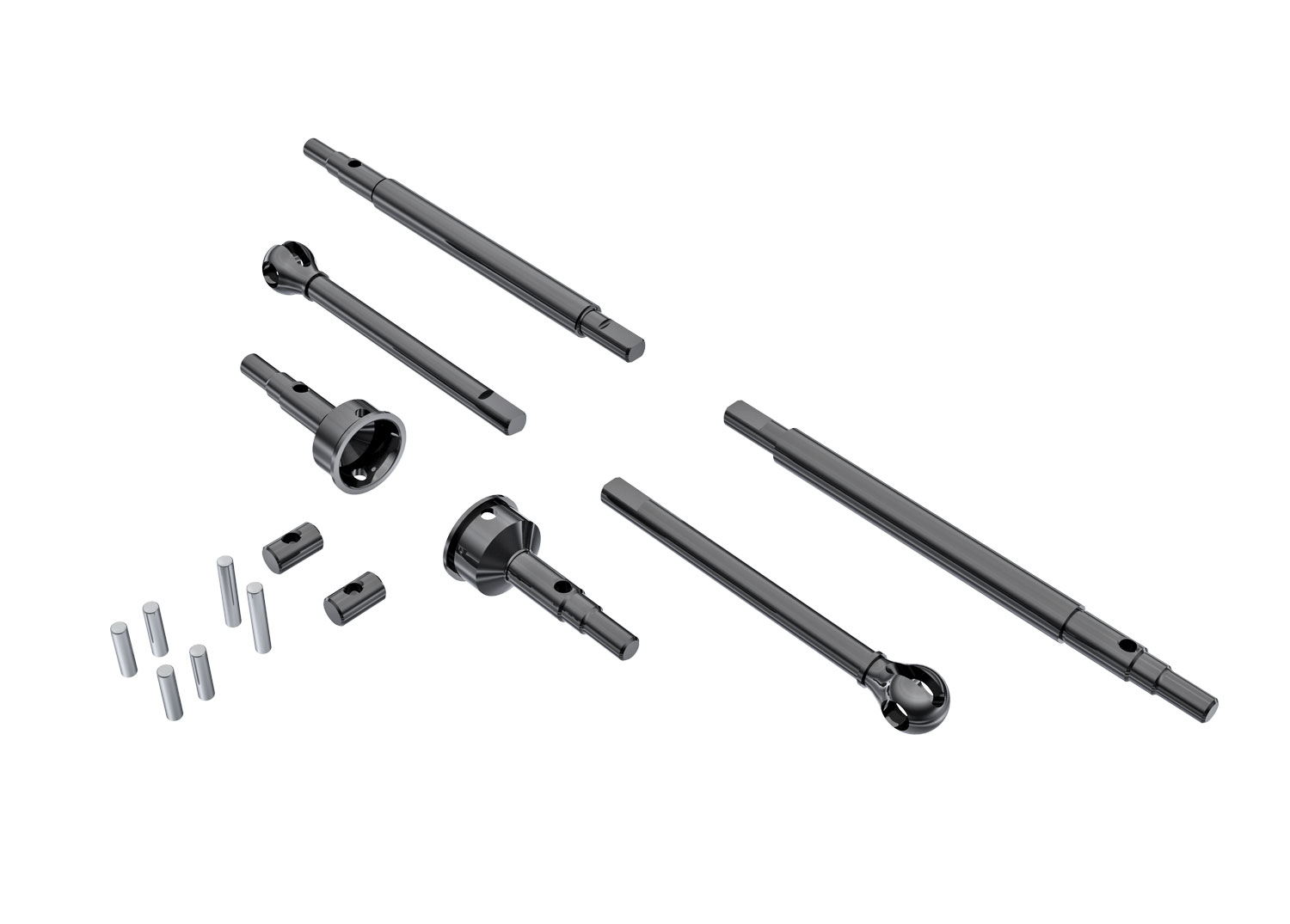

Spool-Equipped Front & Rear Axles
TRX-4MT’s front and rear axles are locked with spools to supply non-stop climbing power to all four wheels. Tough, steel constant-velocity (CV) joints allow increased steering angle at the front wheels for tight turns.

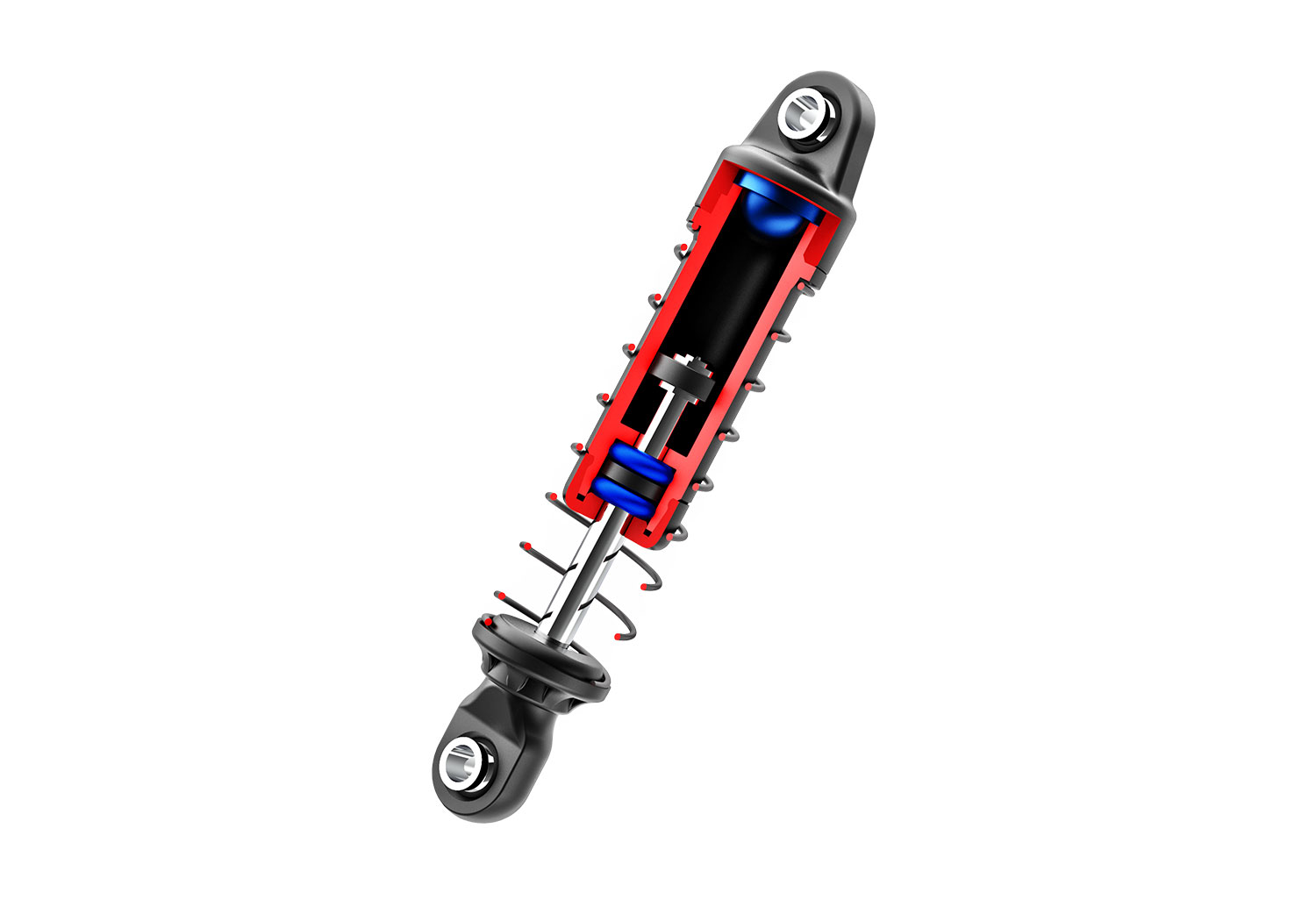

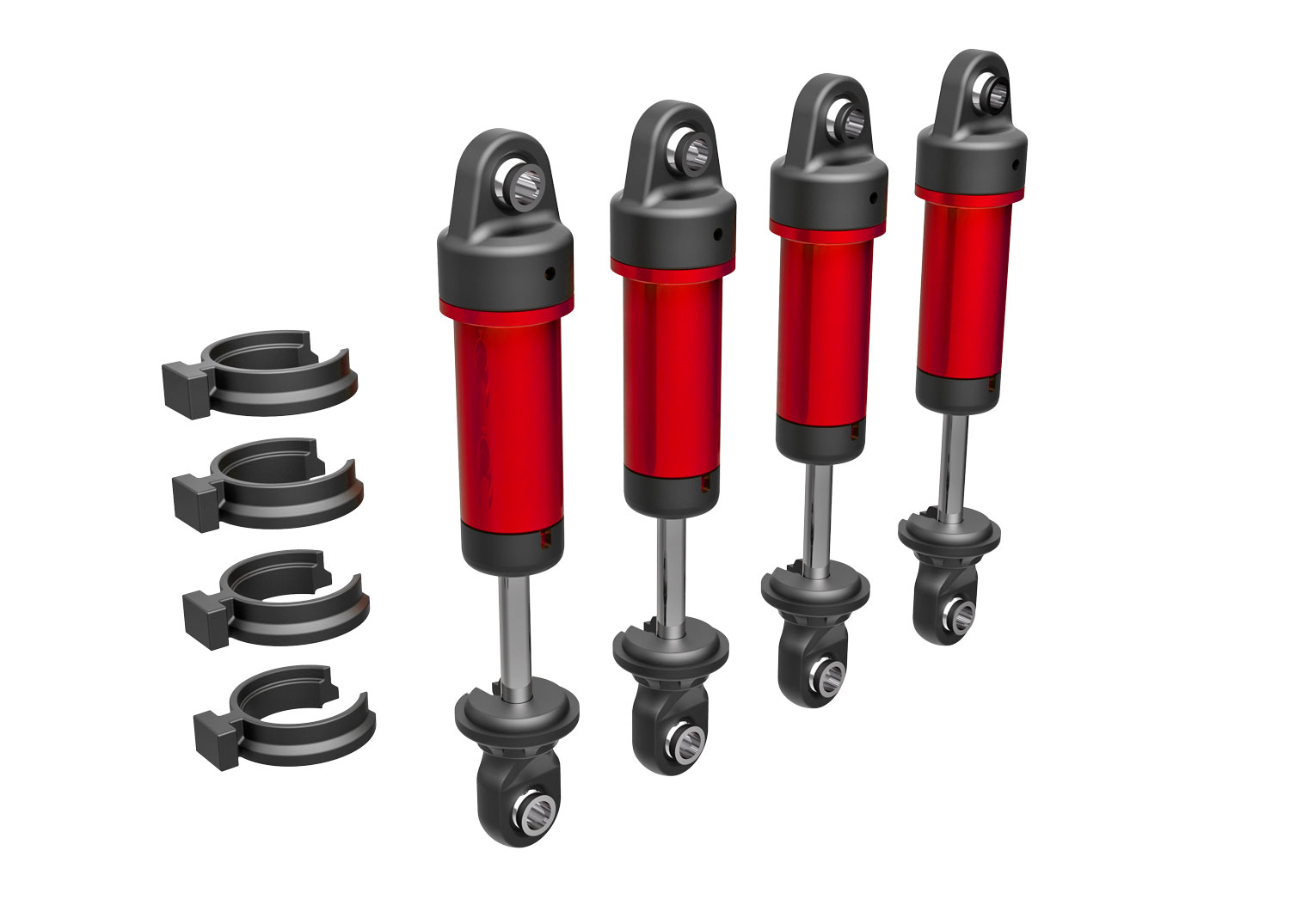

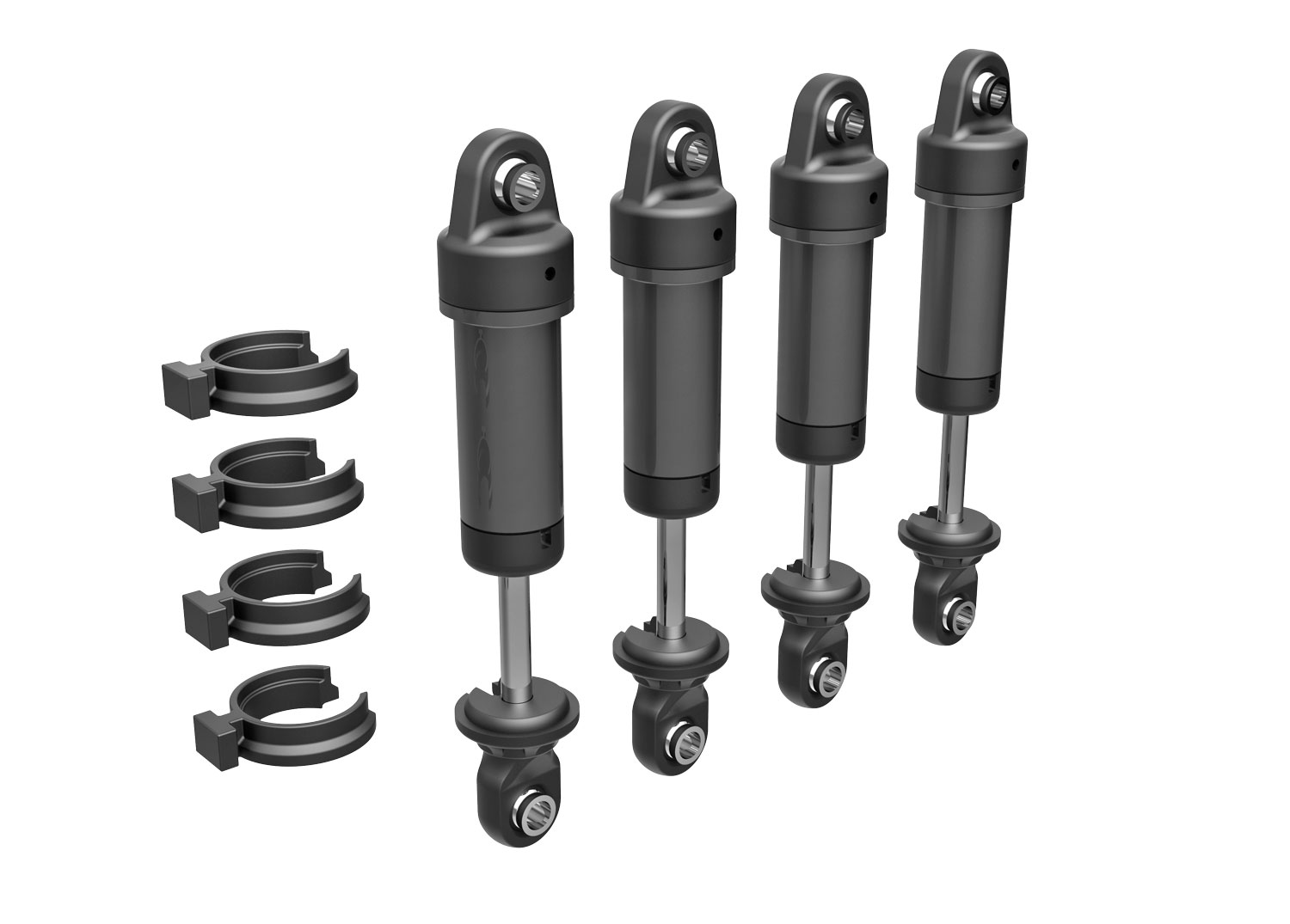

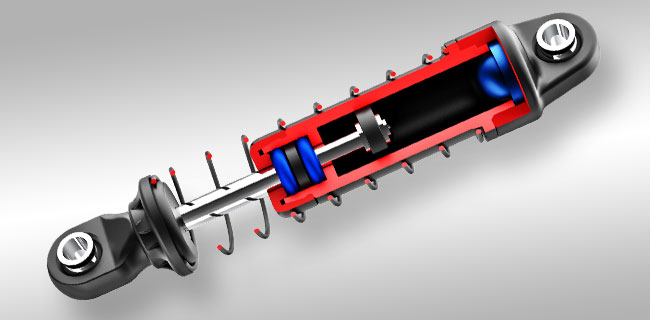

Oil-Filled GTM Shocks
TRX-4MT utilizes four oil-filled GTM™ shocks with dual O-ring seals for a perfect seal and smooth performance. Four additional cosmetic shocks complete the classic monster truck look with specially tuned springs for a realistic and controlled ride.

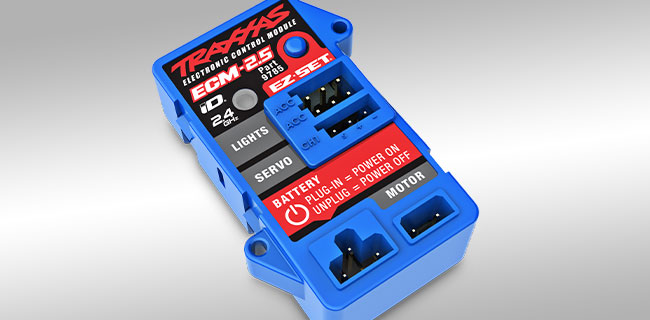

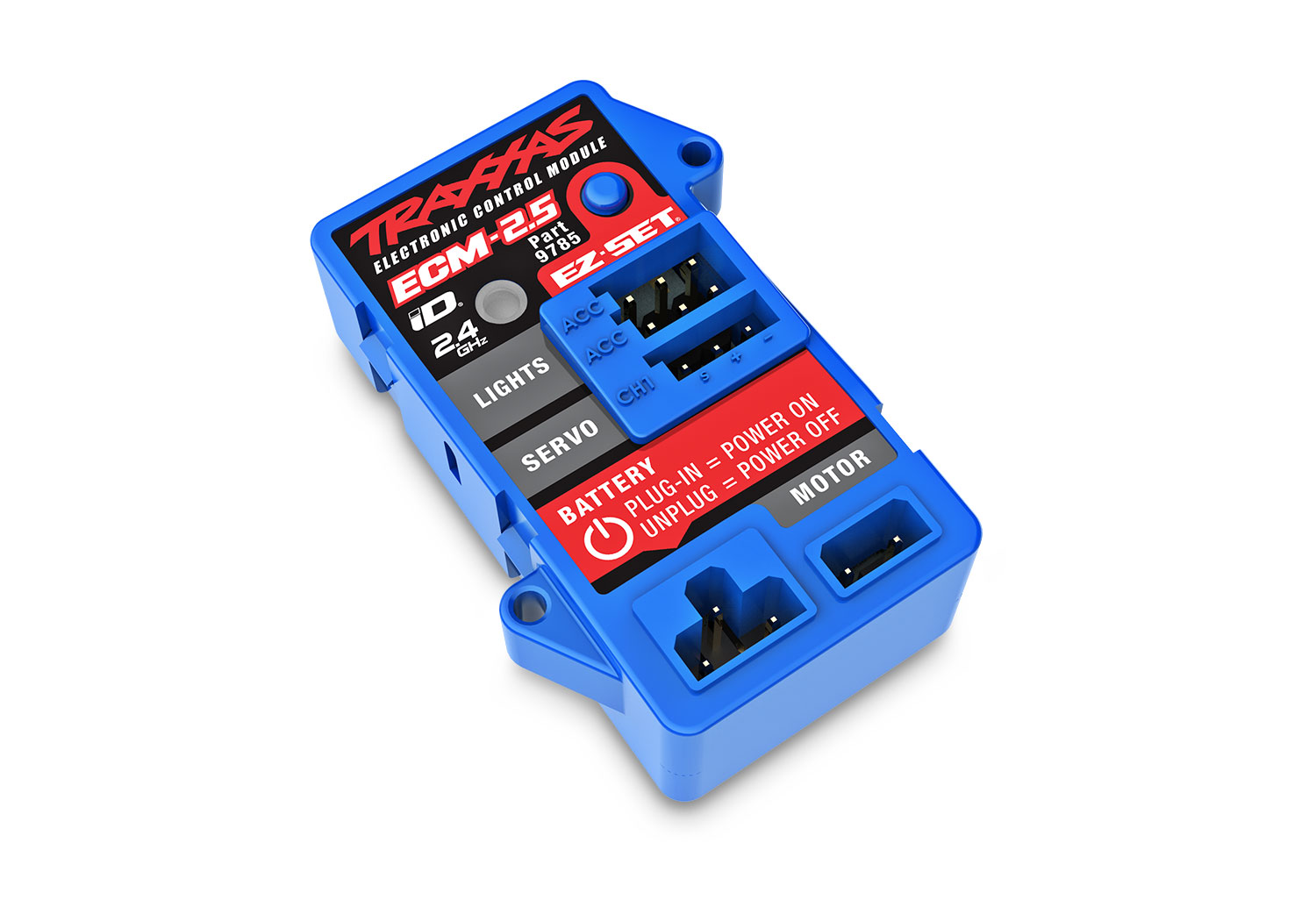

ECM-2.5 Electronic Control Module
The ECM-2.5 features low voltage detection for 2s LiPo batteries and EZ-Set® one-button programming to select driving modes. Choose Sport Mode for all-around driving, or Trail Mode for smooth drag braking on steep descents. For a smooth scale look while creeping over technical terrain, Crawl Mode applies full brakes the instant the throttle is released and allows drivers to continue through to reverse without a second push on the trigger.

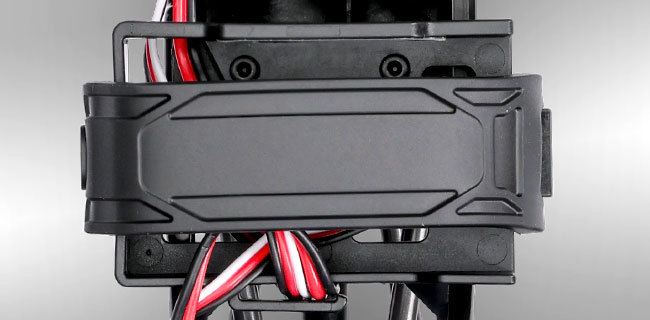

Secure Battery Strap
A wide rubber strap keeps the battery safely locked in place and prevents the weight from shifting.

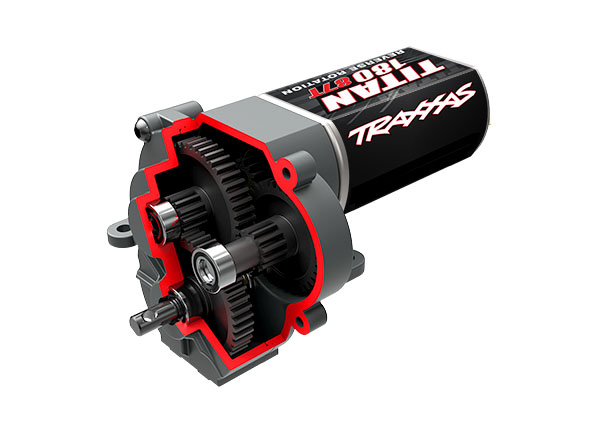

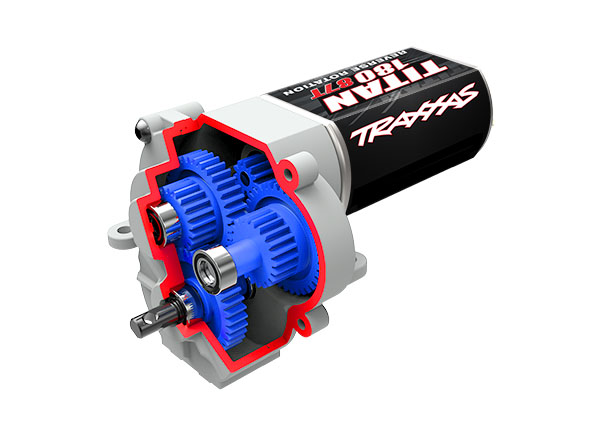

Optional Transmission Ratios
TRX-4MT’s modular assembly allows you to swap out different transmissions to change the performance characteristics of the truck. Install the low-range transmission for smooth low-speed torque or boost your top end with the speed gearing option (optional ratios sold separately).

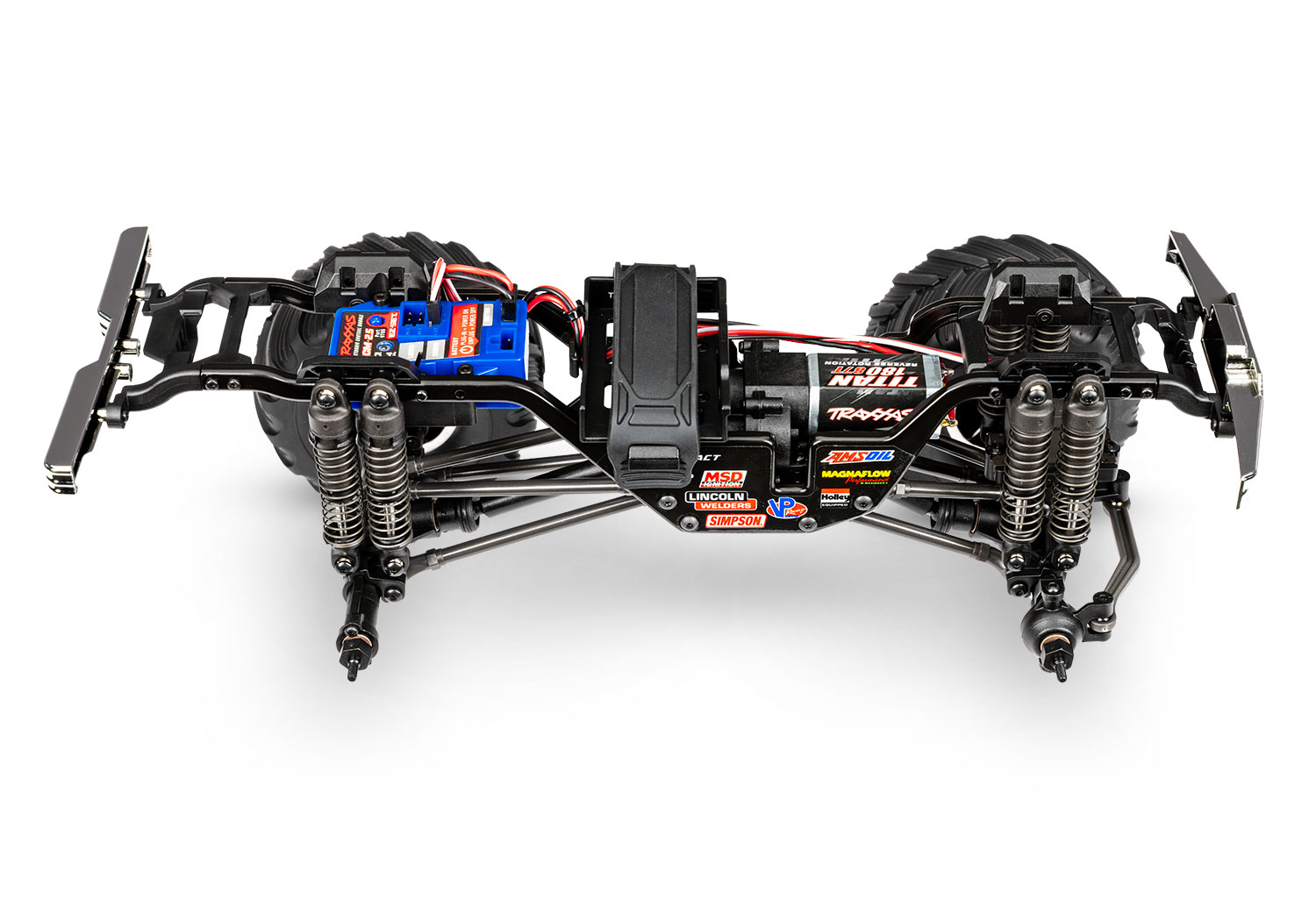

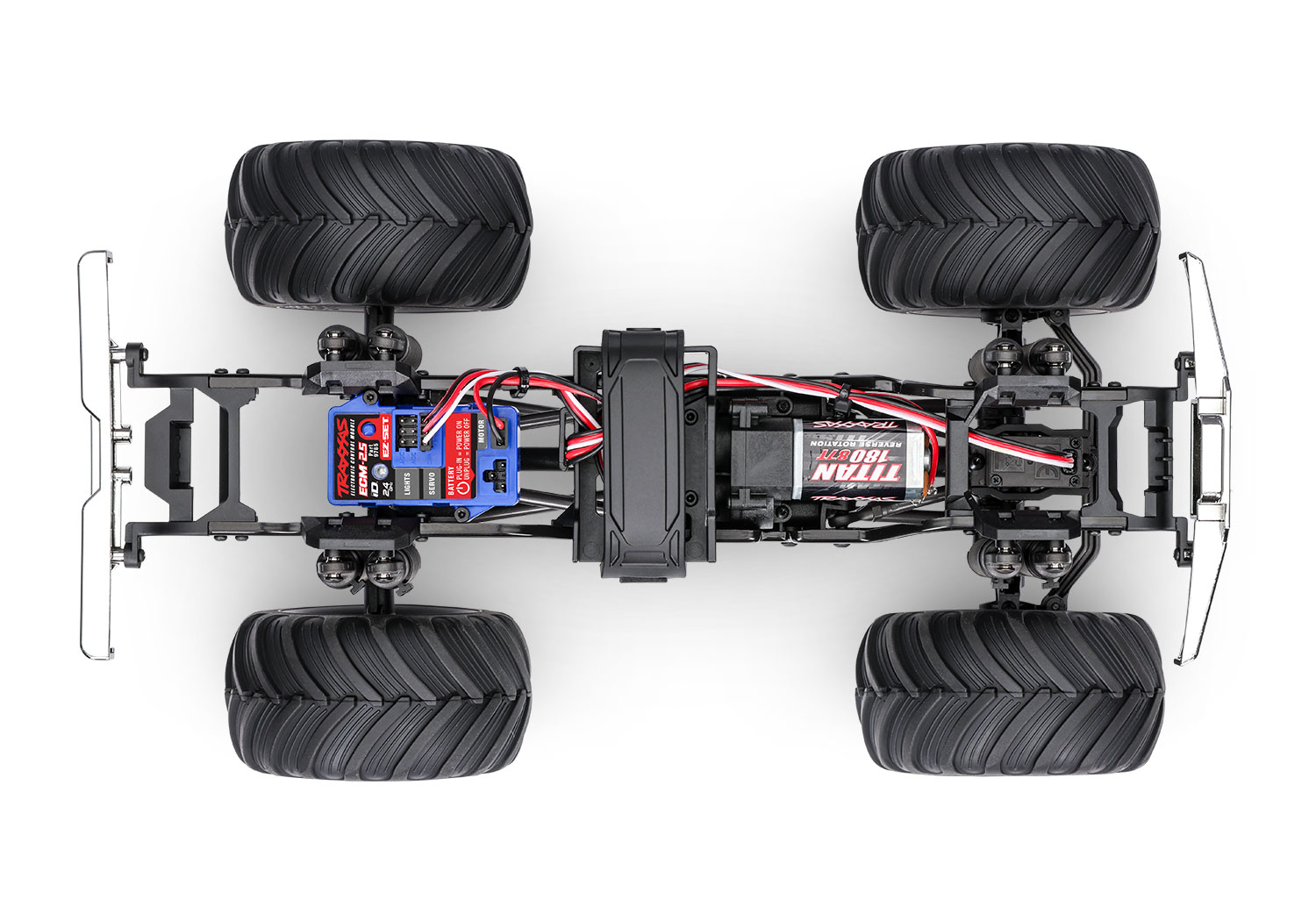

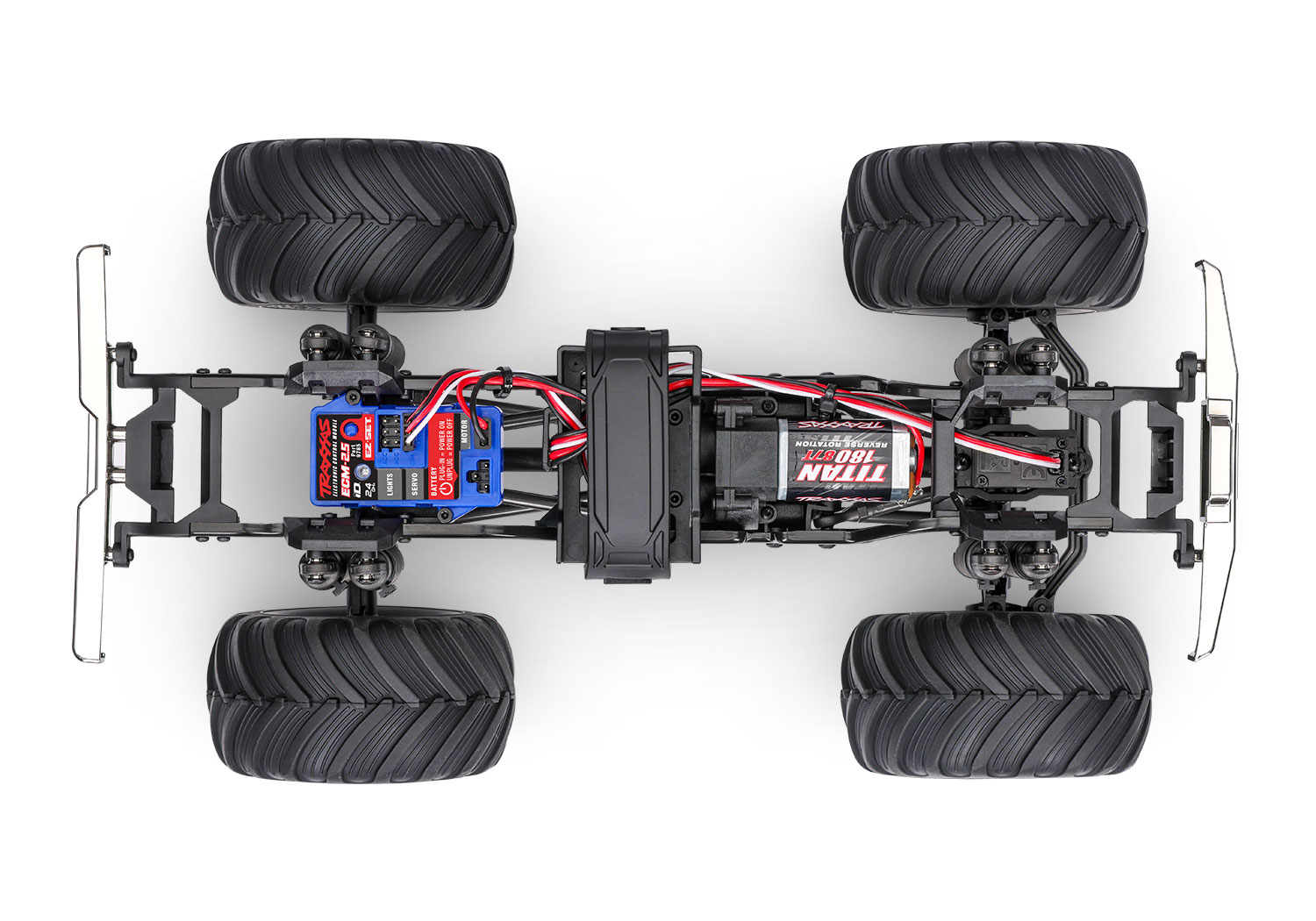

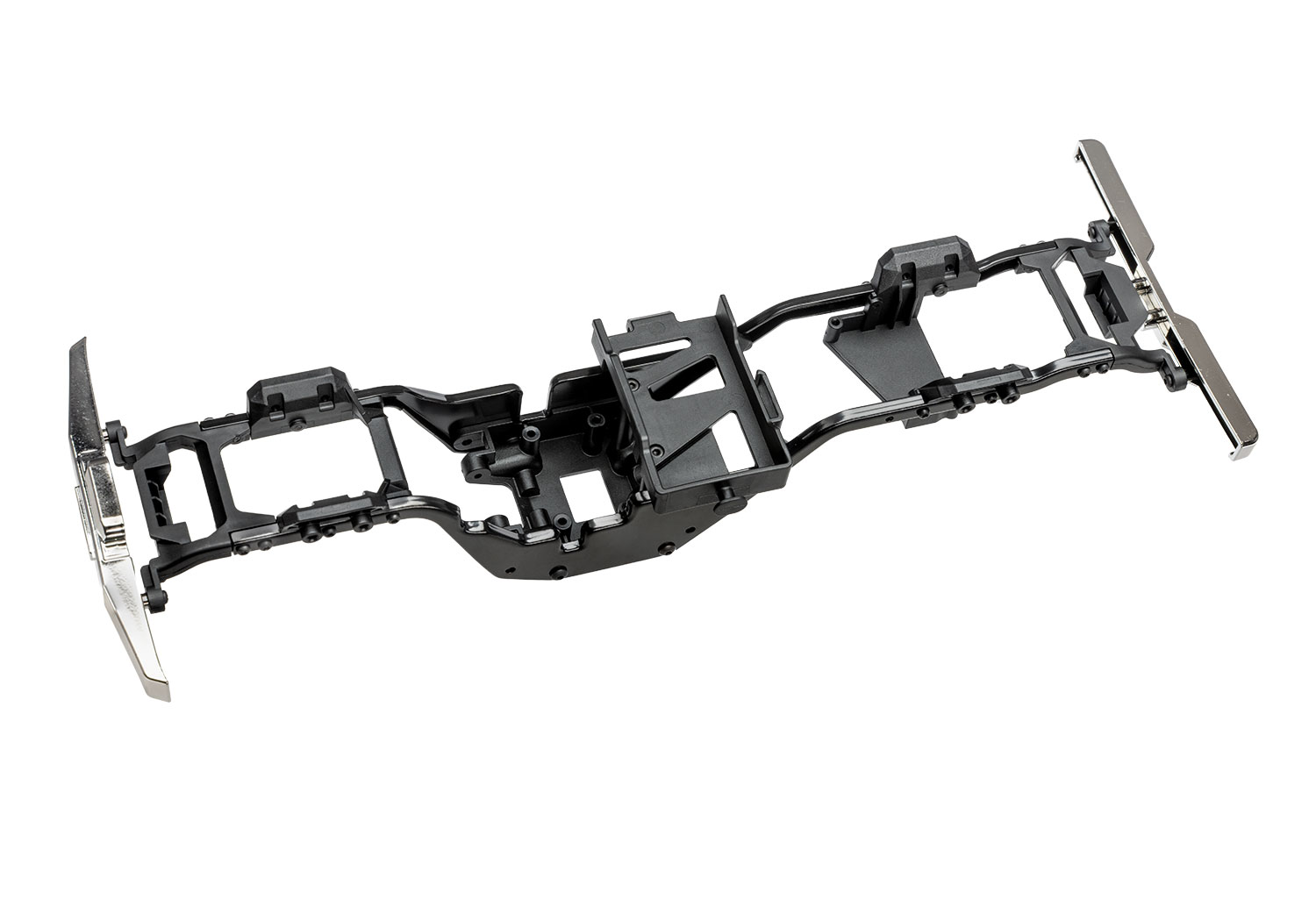

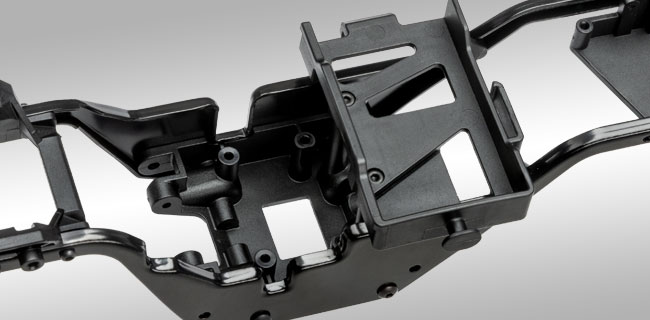

Steel Monster Truck Frame Rails
TRX-4MT’s extended heavy duty steel frame rails are formed with a deep C-channel for maximum rigidity. Extended side panels in the center section replicate the monster truck look and increase strength where it’s needed most.

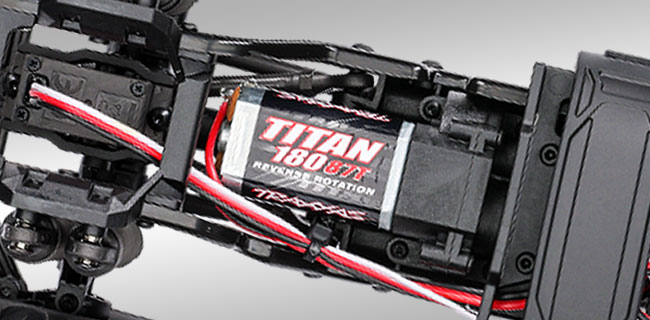

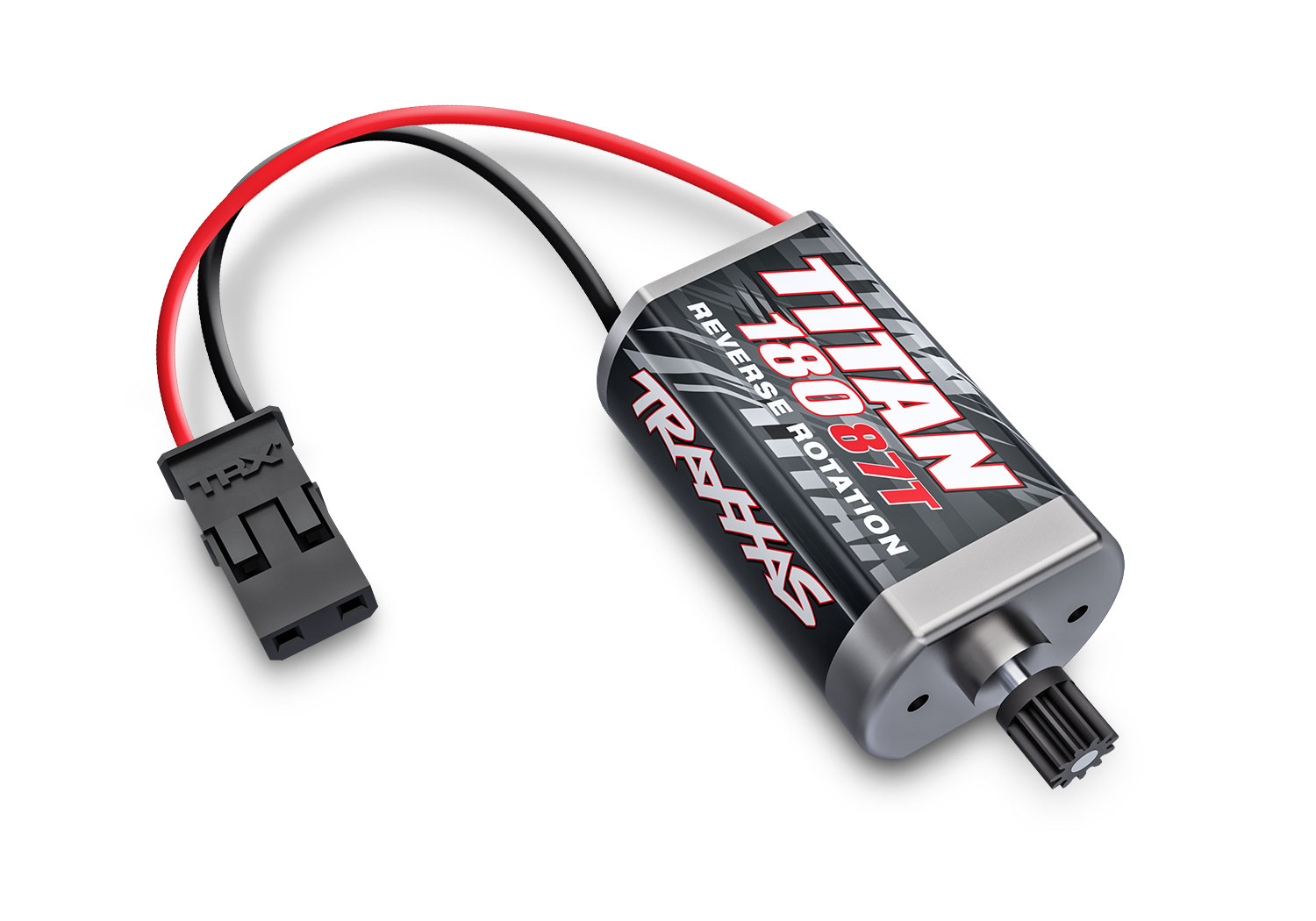

Forward-Mounted Motor
The Titan® motor mounts securely to the transmission module with a fixed gear mesh that never needs adjustment. The motor’s mounting position shifts the weight bias forward for improved crawling dynamics over obstacles.

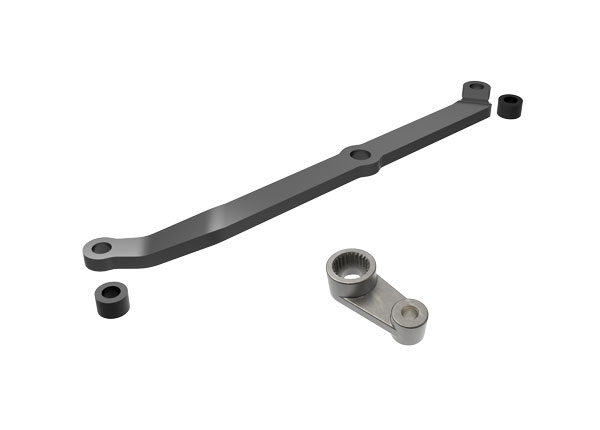

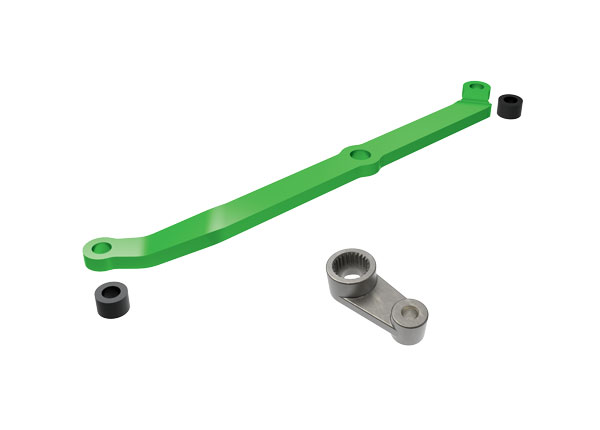

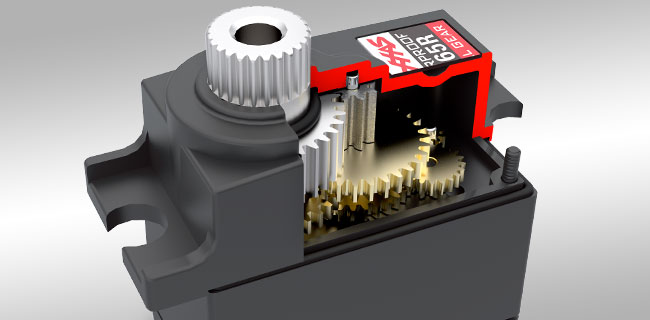

Heavy Duty Steering Servo

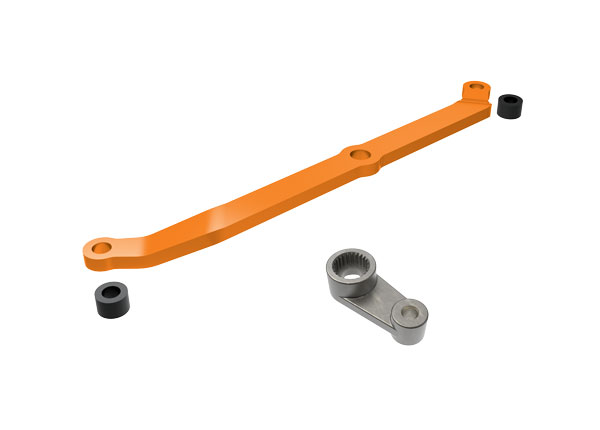

TRX-4MT’s 2065R steering servo operates on full 6-volt power for maximum steering authority with a full metal gear drivetrain for exceptional durability and precise control. The rugged one-piece drag link sits high up in the axle to avoid snags and impacts.

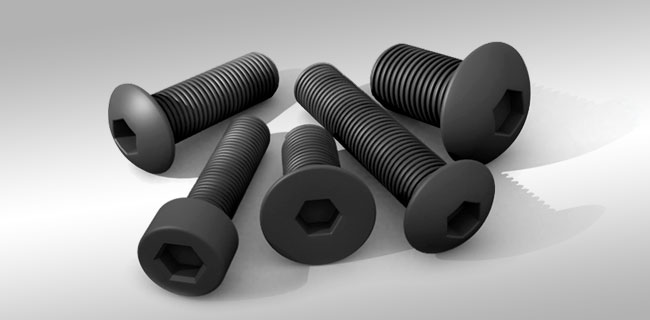

High-Quality Hardware
TRX-4MT rides on low maintenance self-lubricating bushings for long lasting performance. TRX-4MT is assembled with high-quality hex hardware for long-term durability and secure fastening.
Make sure you don’t miss any of the latest 1/18th Scale TRX-4MT news, accessories, and updates.

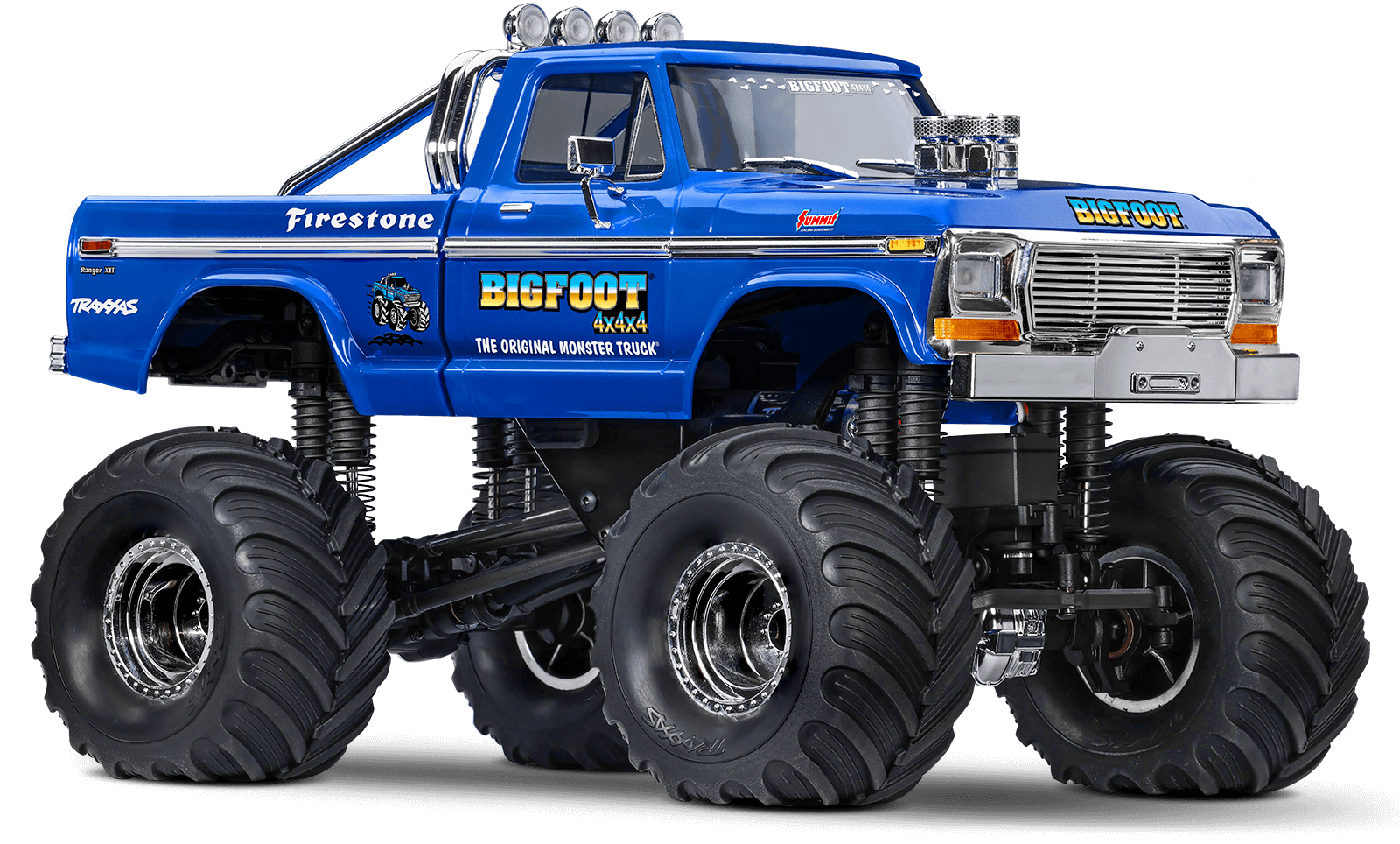

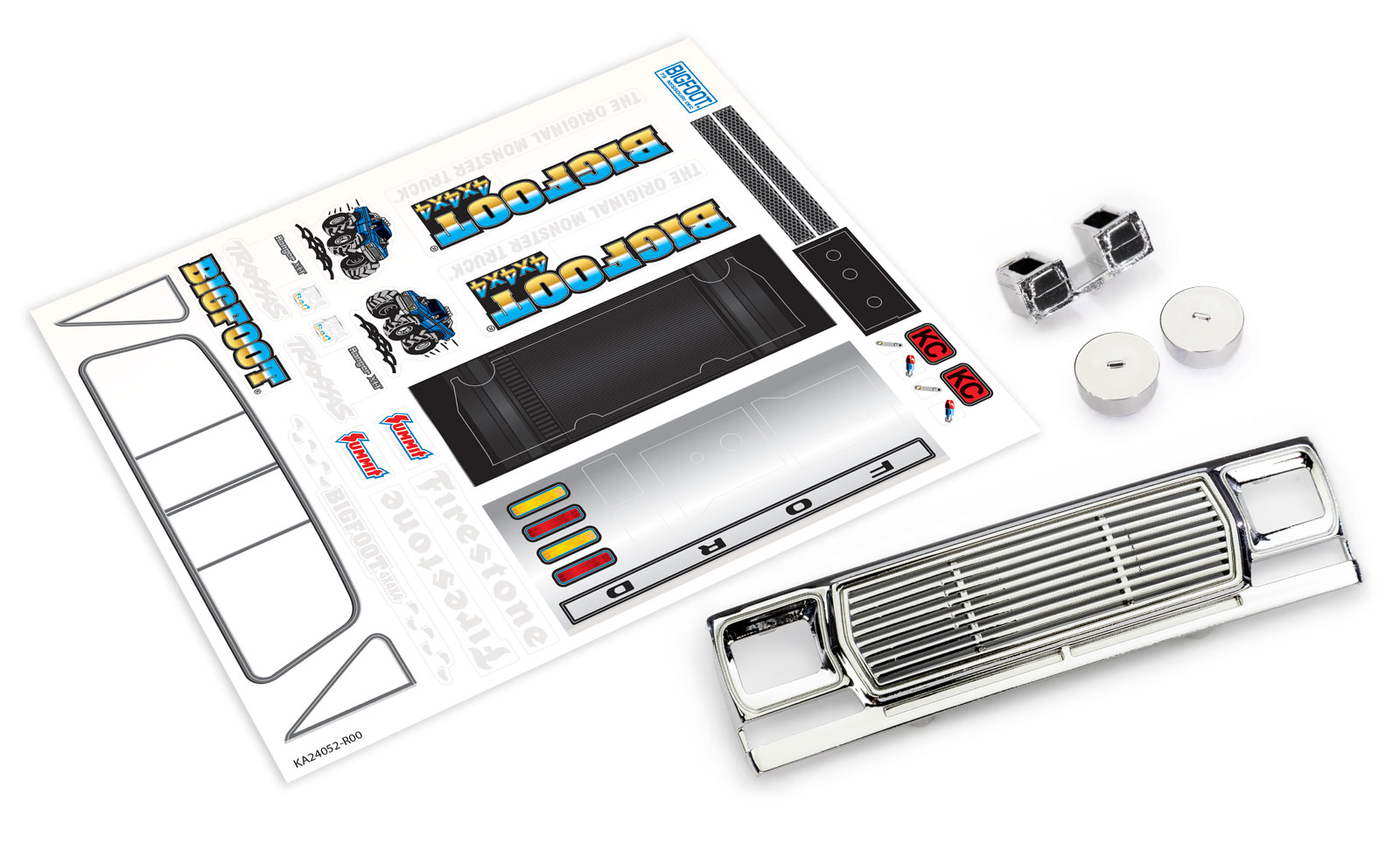

Bigfoot Accessories
BIGFOOT® is “The Original Monster Truck” and you can replicate the legend in 1/18 scale with the all-inclusive BIGFOOT parts kit (part 9844X, sold separately).
Photo Gallery
Traxxas 1/18 Scale TRX-4MT Data
| Length: | 10.6 inches (276 mm) |
|---|---|
| Front Track: | 6.5 inches (166 mm) |
| Rear Track: | 6.5 inches (166 mm) |
| Center Ground Clearance: | 2.16 inches (55 mm) |
| Weight (with battery): | 1.27 pounds (577 g) |
| Height: | 6.7 inches (170 mm) |
| Wheelbase: | 6.45 inches (164 mm) |
| Approach Angle: | 82° |
| Breakover Angle: | 38° |
| Departure Angle: | 67° |
| Shock Length (front and rear): | 2.0 inches (51 mm) |
| Hex Size: | 7 mm |
| Differential Type: | Fully locked; 2:1 axle ratio |
| Wheels (front and rear): | 1.45″ x 1.1″ inches (37 x 29 mm) |
| Tires (front and rear): | 3.14″ x 1.65″ inches (80 x 42 mm) |
| Electronic Control Module: | ECM-2.5™ (combo ESC, receiver, lighting control*) |
| Motor (electric): | Titan® 180 87T |
| Chassis Structure/Material: | Steel ladder frame with Nylon composite crossmembers |
| Brake Type: | Electronic “Hill Hold” |
| Drive System: | Shaft-driven 4WD |
| Steering: | Axle-mounted servo |
| Radio System: | TQ™ 2.4 GHz 2-channel transmitter |
| Servo: | 2065R metal-gear, heavy-duty waterproof |
| Skill Level: | 1 |
| Battery Tray: | 51 mm L X 31 mm W |
| *Requires accessory Pro Scale® LED light kit, sold separately | |
| Type: | High-torque brushed motor |
|---|---|
| Size: | 180 |
| Weight: | 1.16 ounces (33 g) |
| Dimensions: | 1.66″ (42 mm) overall length, 1.34″ (34 mm) can length, 0.81″ (21 mm diameter) |
| Turns: | 87T reverse rotation |
| Voltage: | 8.4 volts |
| Input Voltage: | 2s LiPo |
|---|---|
| Case Size: | 1.26″ W x 1.79″ D x 0.60″ H |
| Weight: | 0.92 ounces (26 g) |
| BEC Voltage: | 6.0 volts |
| BEC Current: | 1 amp |
| Low Voltage Detection (LVD): | 2-stage |
| Transistor Type: | MOSFET |
| Motor Overload Protection: | 2-stage |
| Profile Selection: | Sport Mode: 100% FWD, 100% Brakes, 100% REV Trail Mode: 100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral |
- Clipless ABS Bodies
- Ford® F-150® or Chevrolet® K10 licensed monster truck body
- Molded-in color won’t chip or flake
- Chrome engine detail, bumpers, roll bar, side mirrors, door handles, & wipers
- LED headlights
- Heavy duty latching clips
- Hold tightly on the trail
- Release in just seconds
- Ford® F-150® or Chevrolet® K10 licensed monster truck body
- Long Arm Lift Kit
- Revised shock towers
- Extended 4-link suspension
- Heavy duty rod ends
- ECM-2.5™ Electronic Control Module
- Incorporates ESC, receiver, and LED controller in one chassis
- Fully waterproof for all-weather fun
- Three drive profiles
- Sport Mode – forward / brake / reverse
- Trail Mode – forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode – forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Built-in Pro Scale® LED functionality
- Two-stage low voltage protection (LVD)
- Motor overload protection
- TQ™ 2.4GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Motor
- Powerful Titan® 87-turn brushed motor
- Fixed gear mesh doesn’t require adjustment
- Forward mounting position for improved crawling dynamics
- Extended Heavy Duty Steel Ladder Frame
- Deep C-channel design
- Extended center side plates for maximum rigidity
- Rails run from bumper to bumper
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Solid steel axles
- Spool-equipped front and rear axles
- Heavy duty CV center driveshafts
- Optional Transmission Ratios (sold separately)
- Optional Low Range or Speed Gearing transmissions
- Modular design swaps out in minutes
- Optional Low Range or Speed Gearing transmissions
- Steering
- Heavy duty 2065R steering servo
- Full metal gears
- Superior 45° steering angle
- Direct steering (no servo saver)
- Heavy duty 2065R steering servo
- Secure Battery Strap
- Wide rubber strap secures battery in place
- Eight GTM™ Shocks (4 oil-filled)
- Provides smooth controlled damping
- Realistic driving body movements
- Adjustable pre-load spacers
- Easily refreshed with available rebuild kits
- Wheels and Tires
- Chrome deep-dish monster truck wheels
- 7 mm hex
- Pre-mounted Terra Groove monster truck tires
- Authentic shaved look
- Sticky rubber compound
- Chrome deep-dish monster truck wheels
- Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 750 mAh for over an hour of run time
- 2-amp USB-powered fast charger
- iD® technology for faster, safer charging
- High-capacity 2-cell LiPo battery
- Low-Maintenance Self-Lubricating Bushings
- Durable Hex hardware
What’s In The Box:
- TRX-4MT Monster Truck
- Licensed ABS hard body
- Titan® 180 87-turn motor
- ECM-2.5 Electronic Control Module
- TQ transmitter
- 7.4 volt 750 mAh 2-cell LiPo battery
- 2-amp USB fast charger with iD®
- High quality maintenance tools
What You’ll Need:
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
