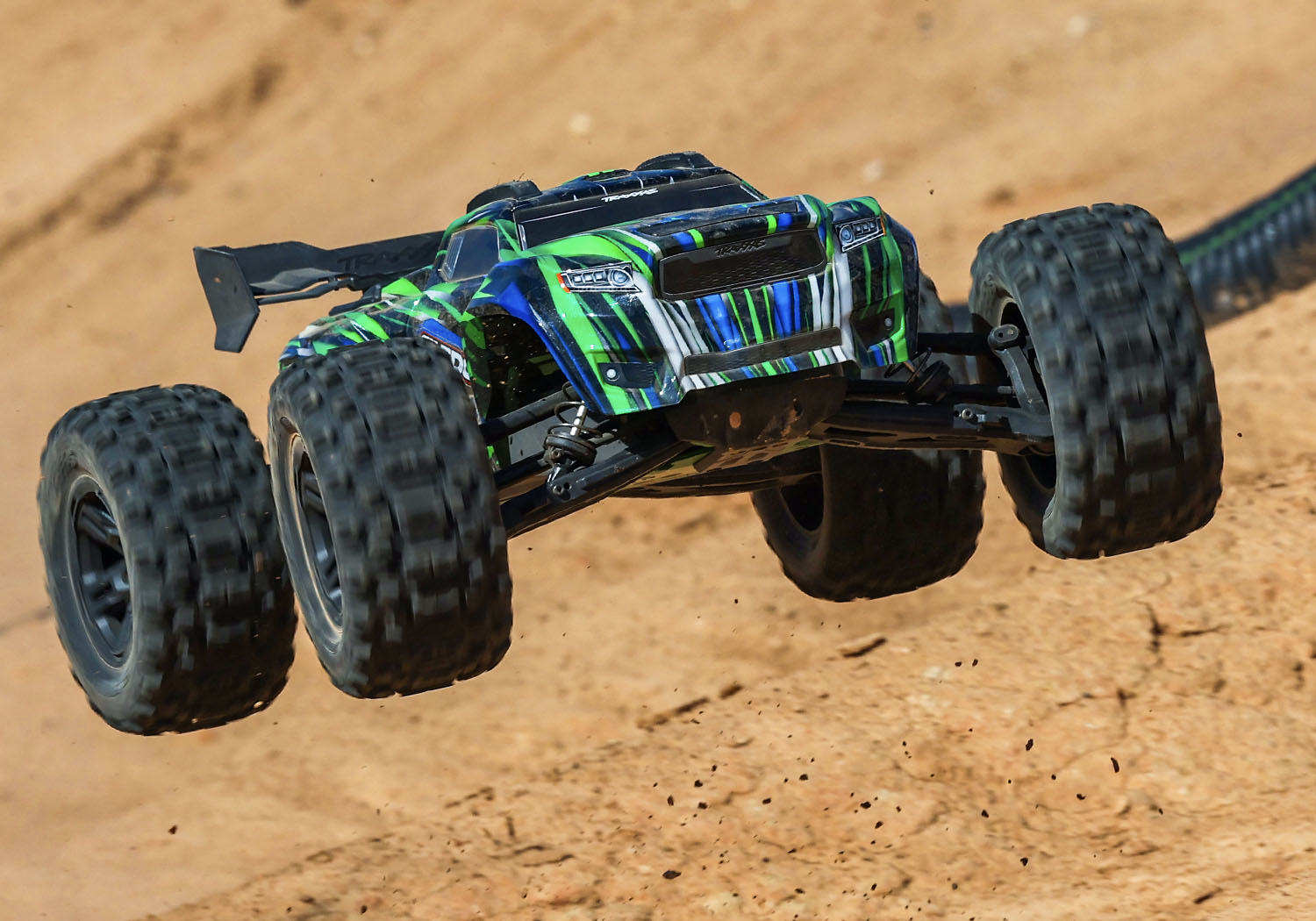

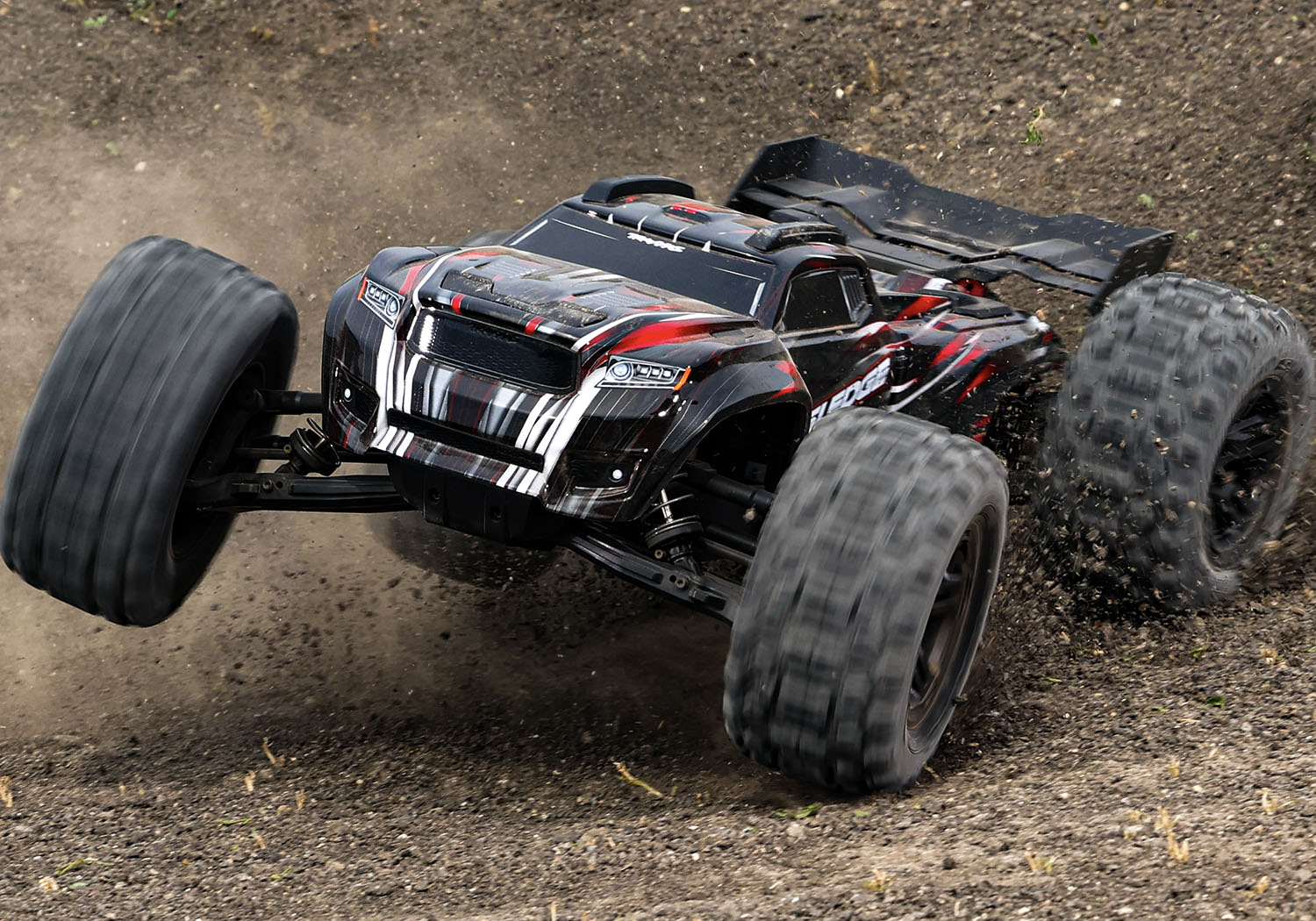

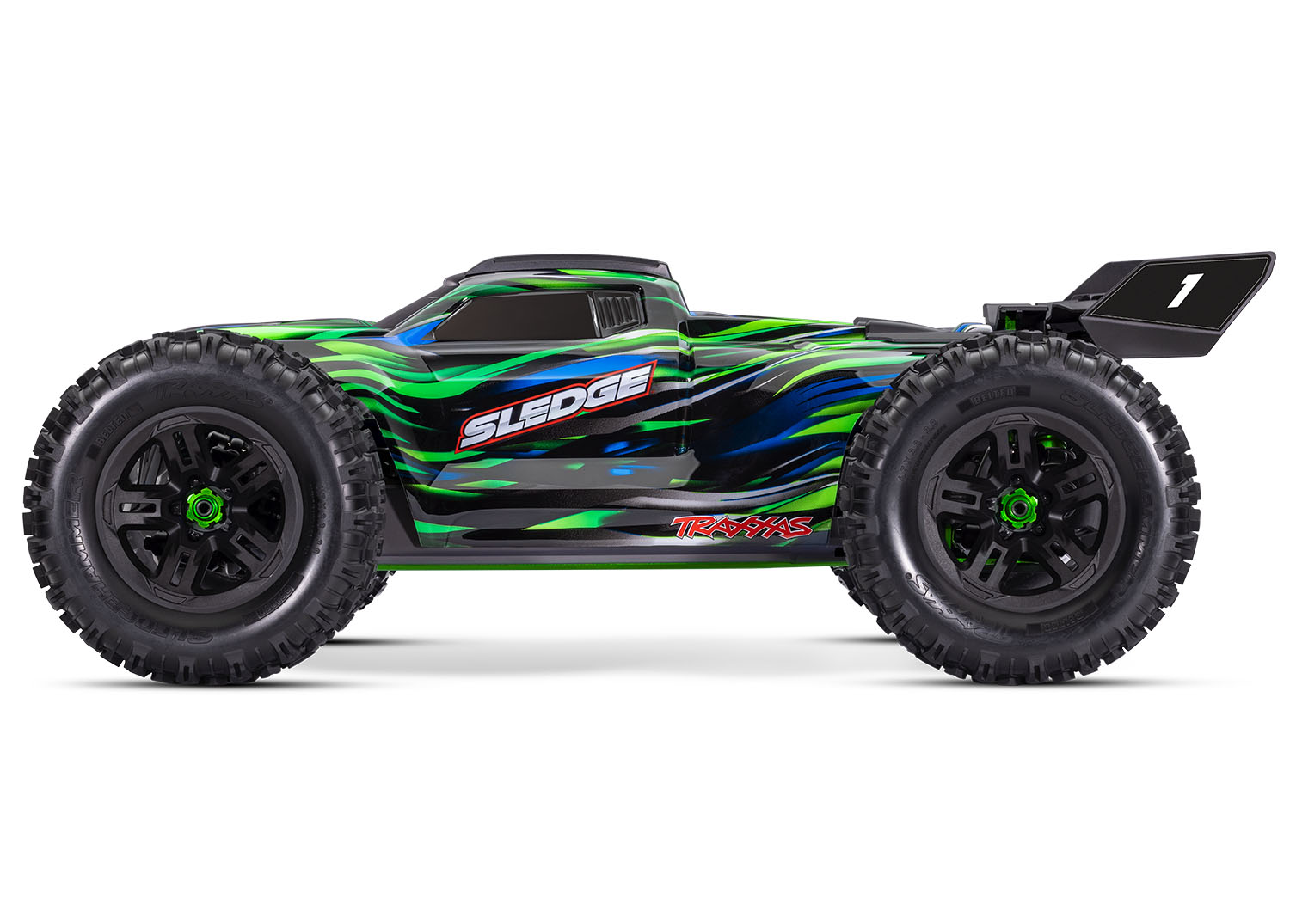

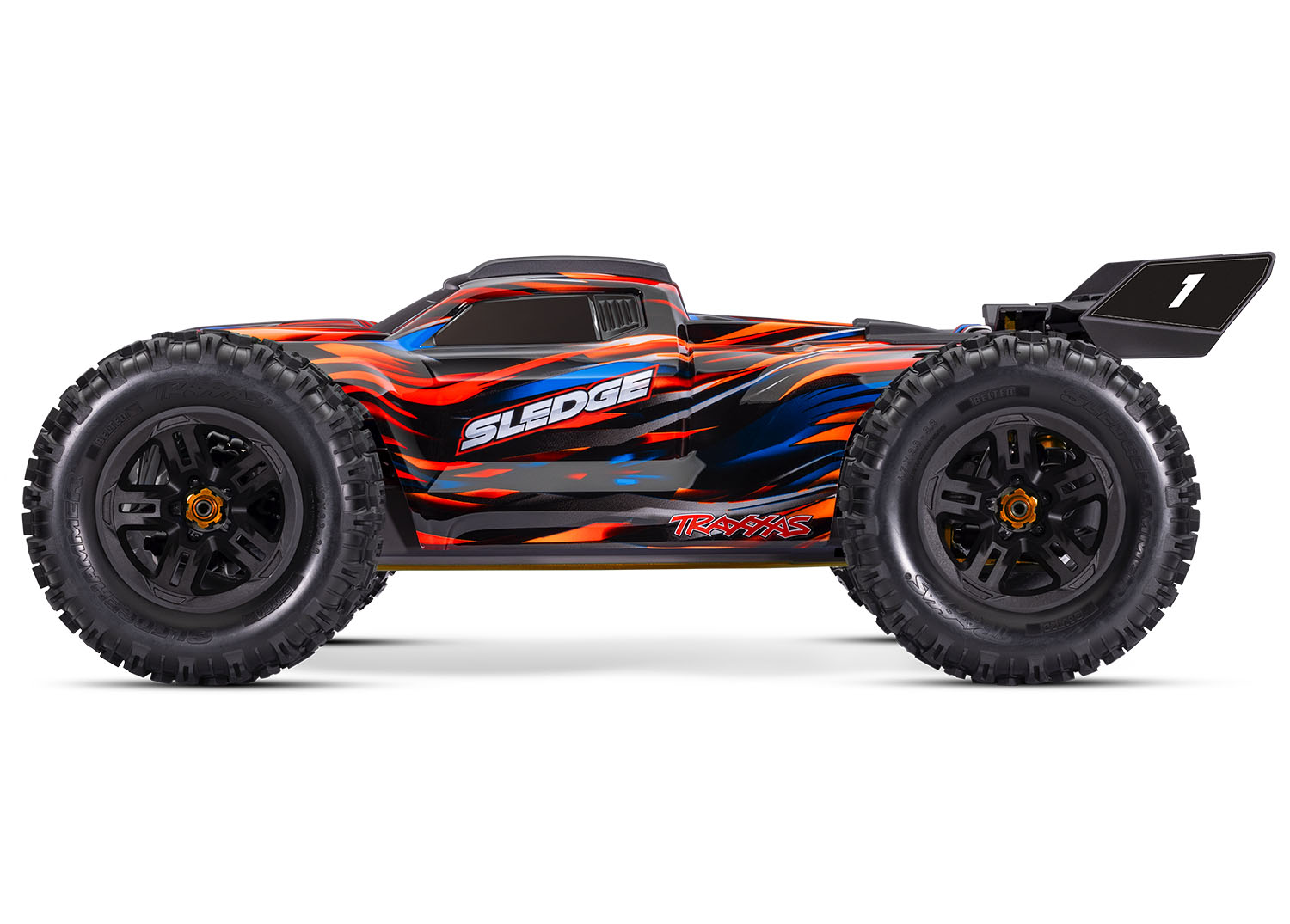

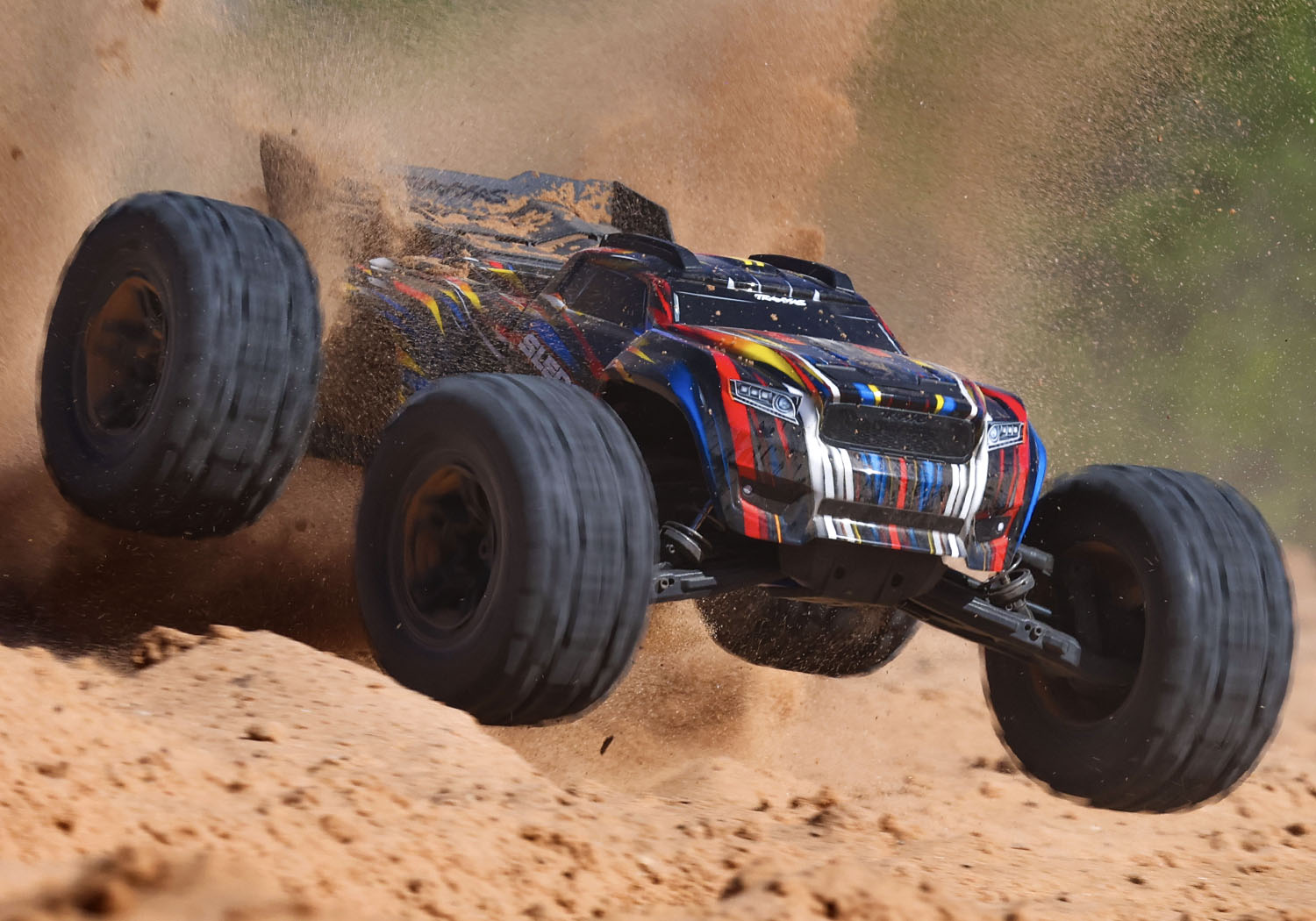

Redefining 1/8 Scale Off-Road
Engineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.
Engineered for 6s Power
Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

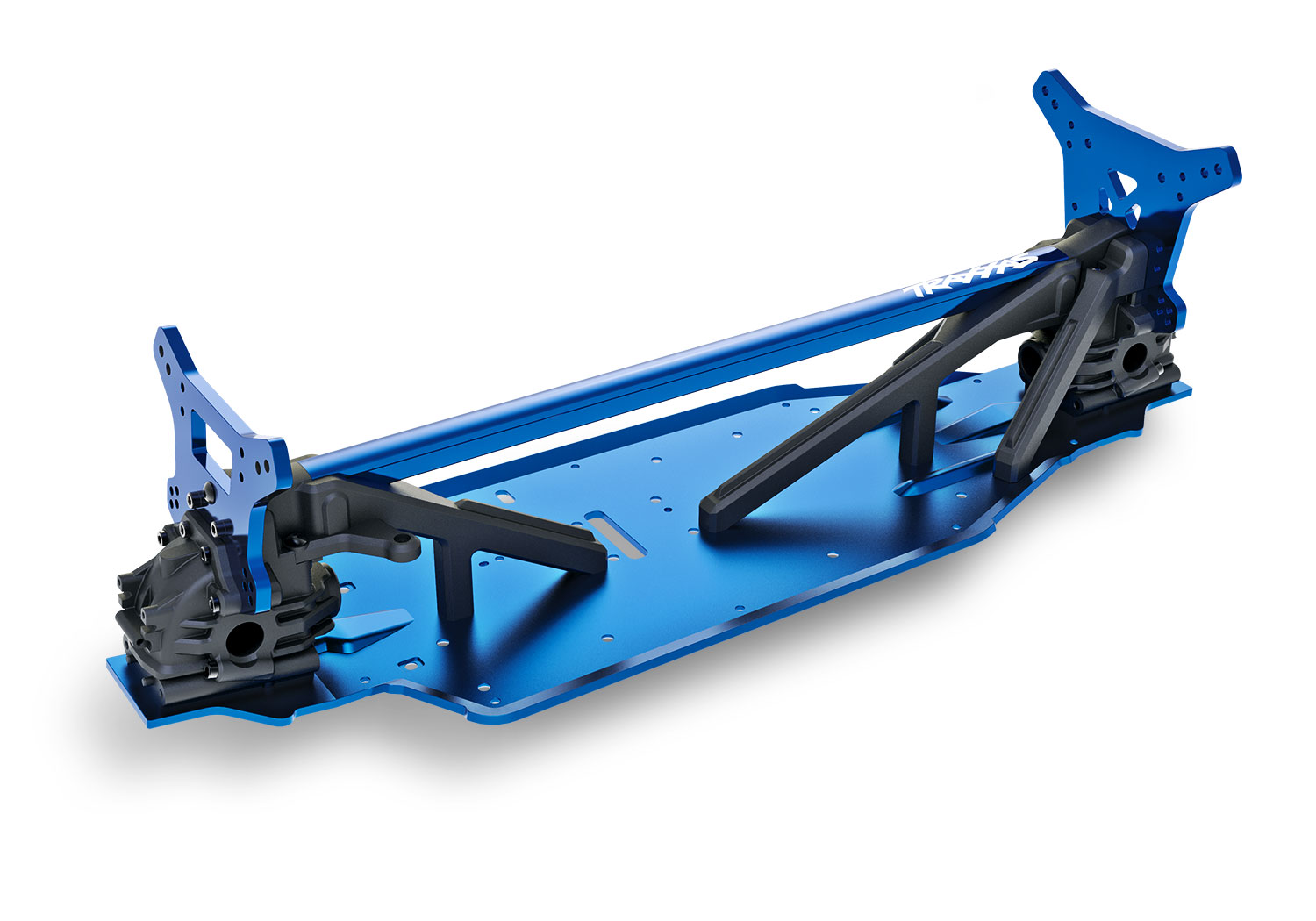

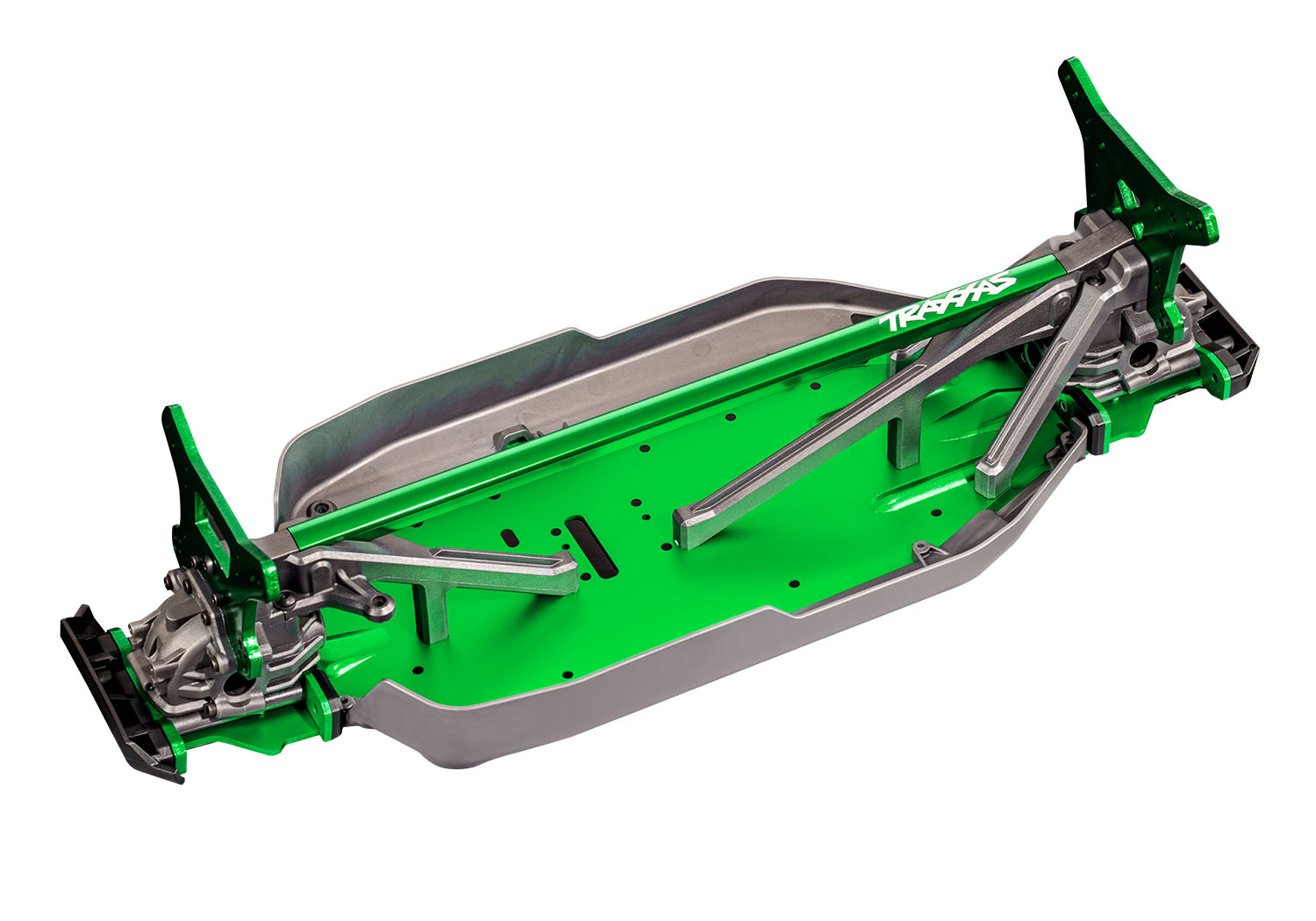

Superior Chassis Strength
Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

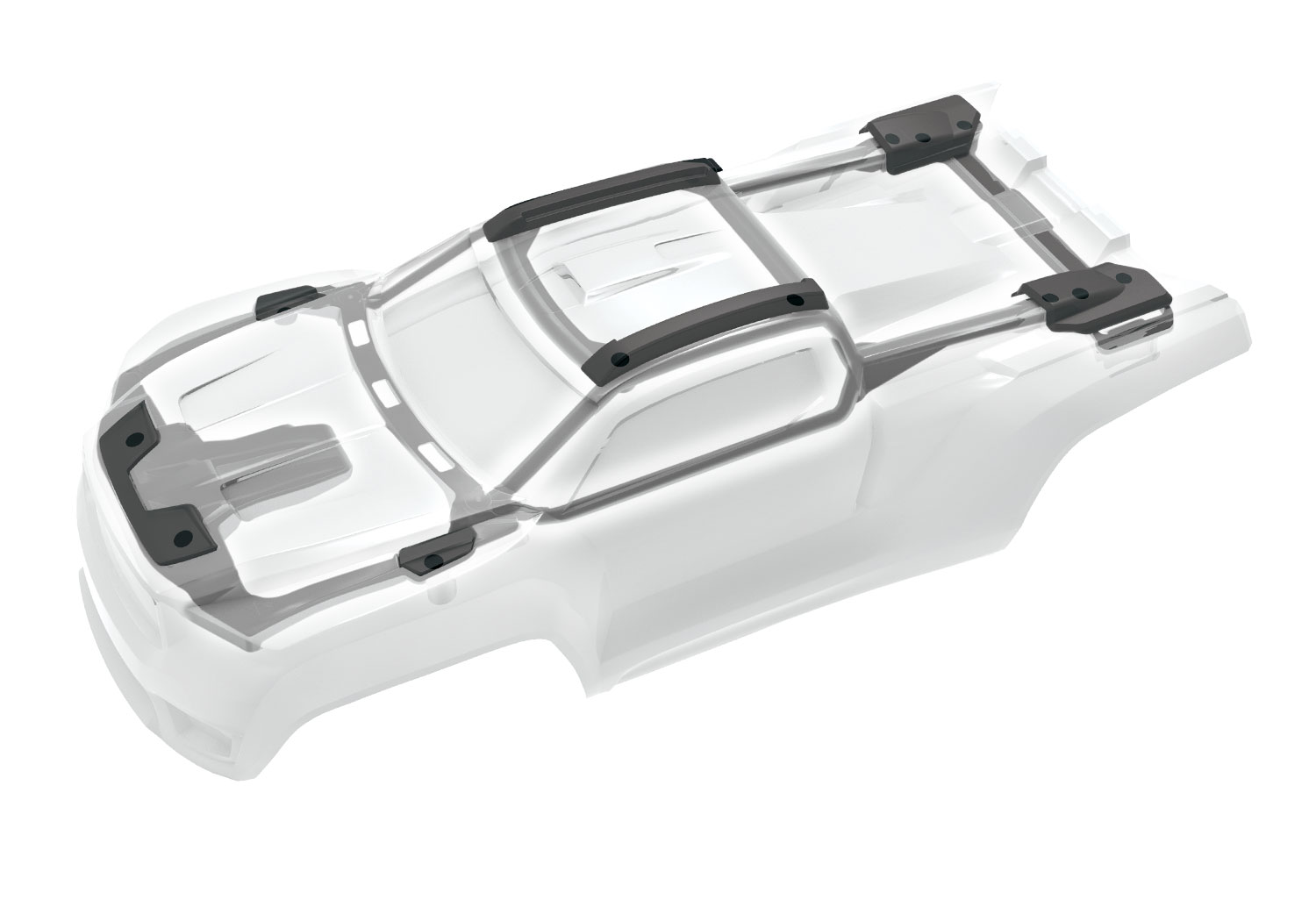

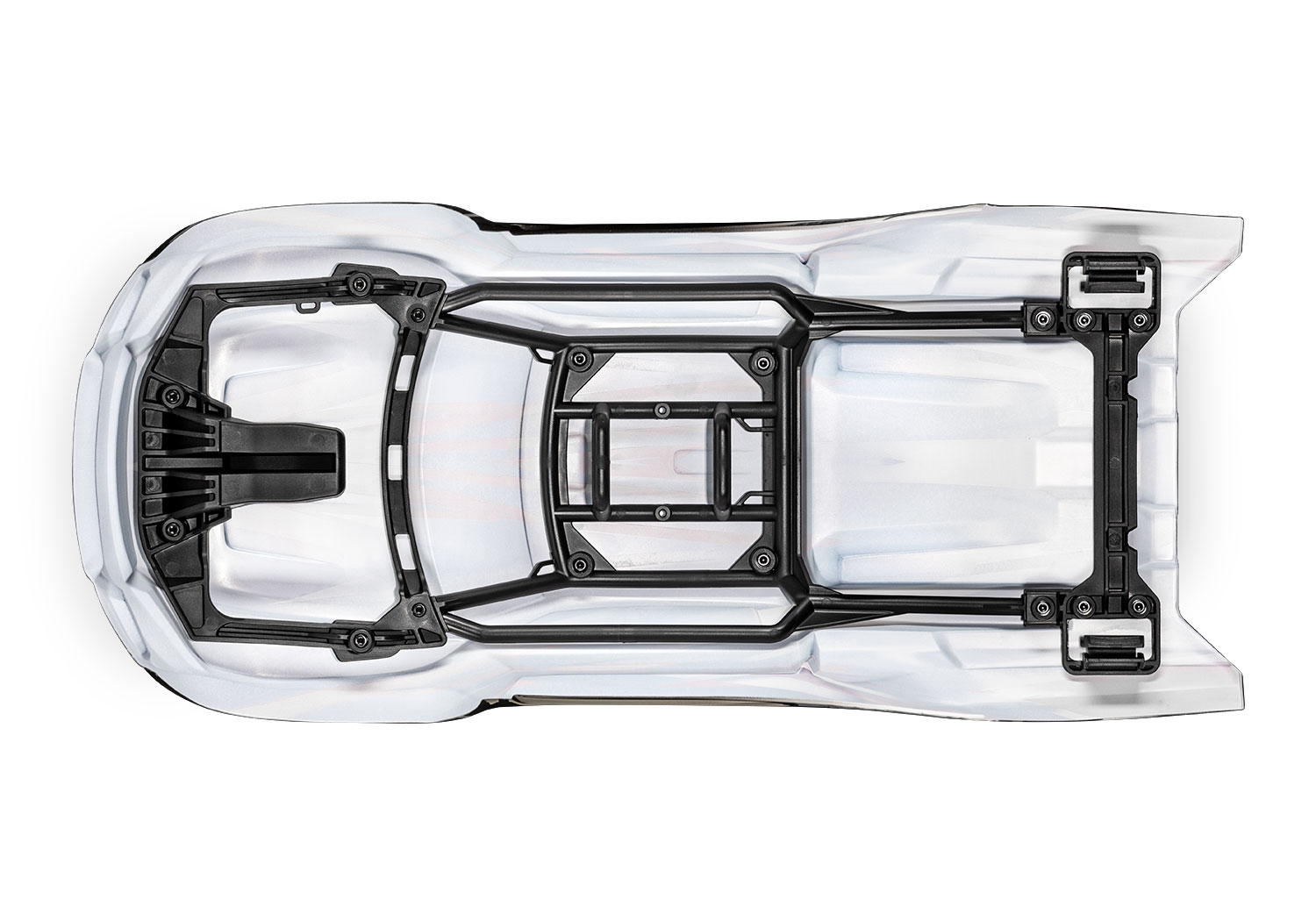

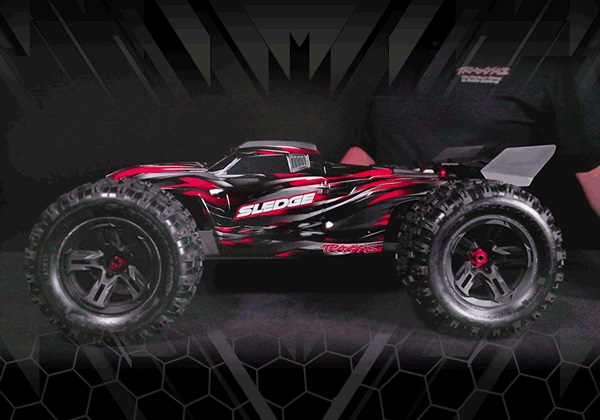

Clipless Body
Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.
Monster Servo
Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

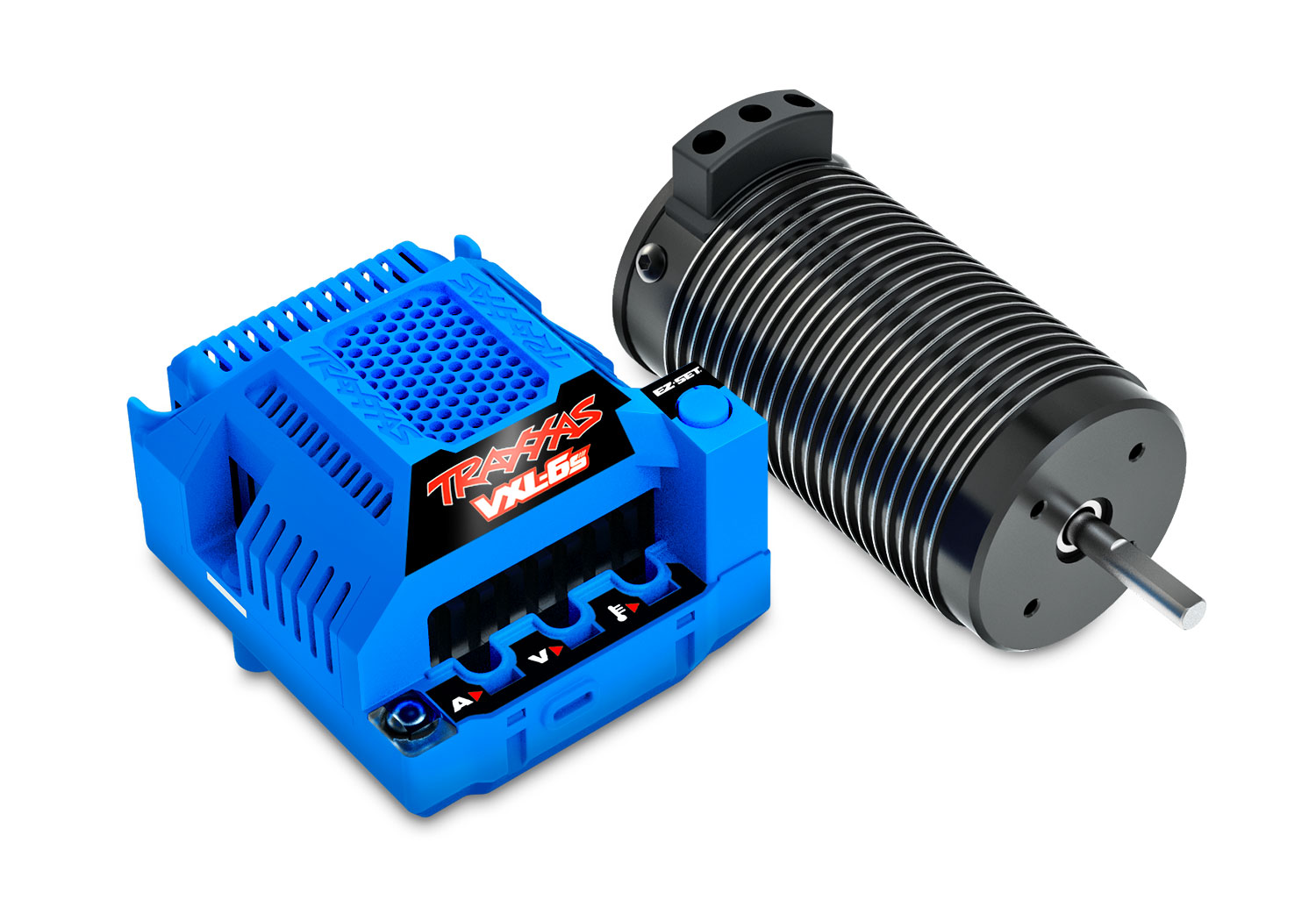

VXL-6s Power System
The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

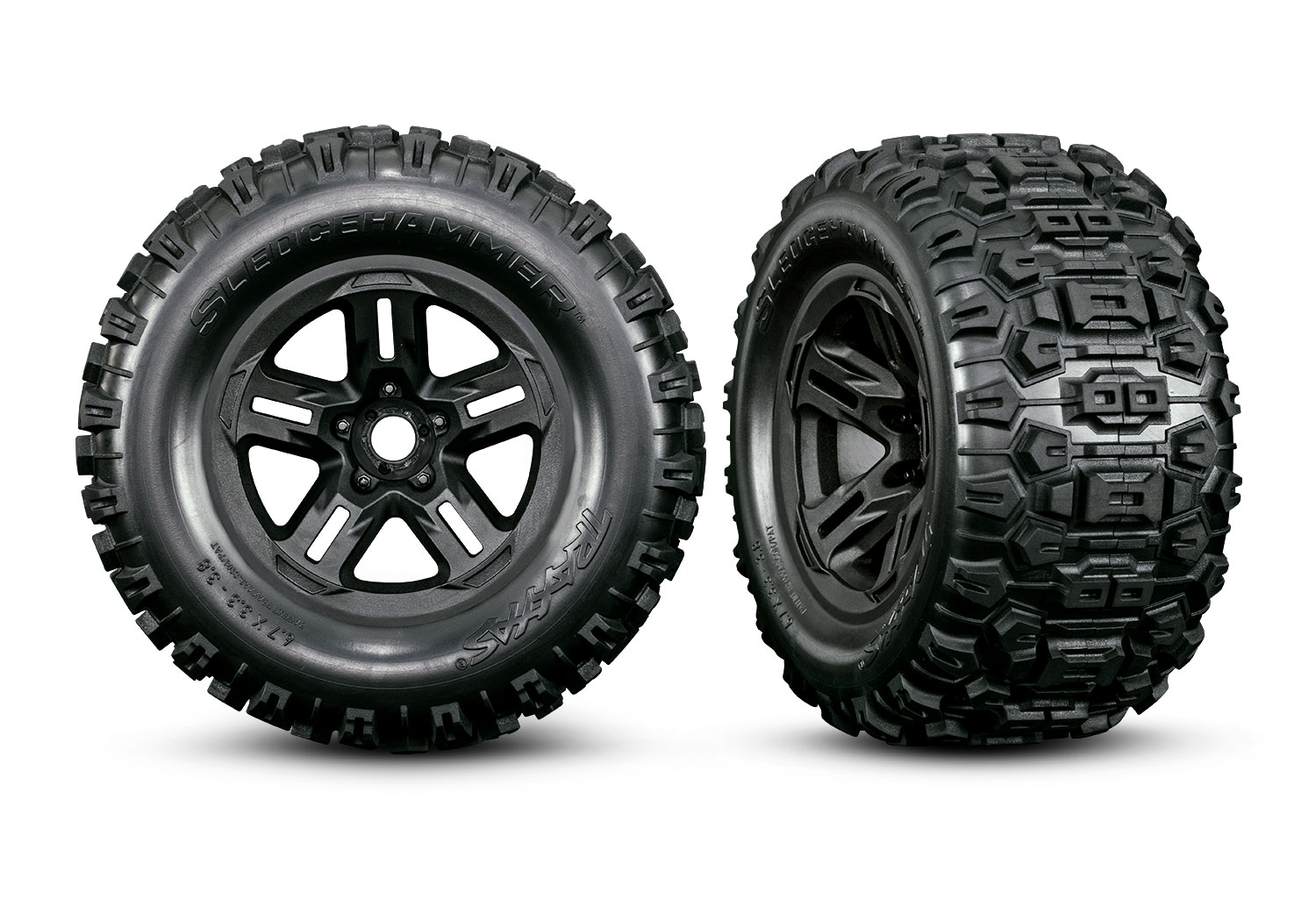

Belted Sledgehammer Tires
Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.
Available Now!
Now with Belted Sledgehammer Tires and Color-Matched Aluminum!
MODEL #95096-4$769.95
MODEL #95096-4$769.95
The Traxxas Experience
Sledge delivers a powerful and fulfilling Traxxas experience. This means class-leading power, ultimate quality, and durability that is engineered to be second to none.

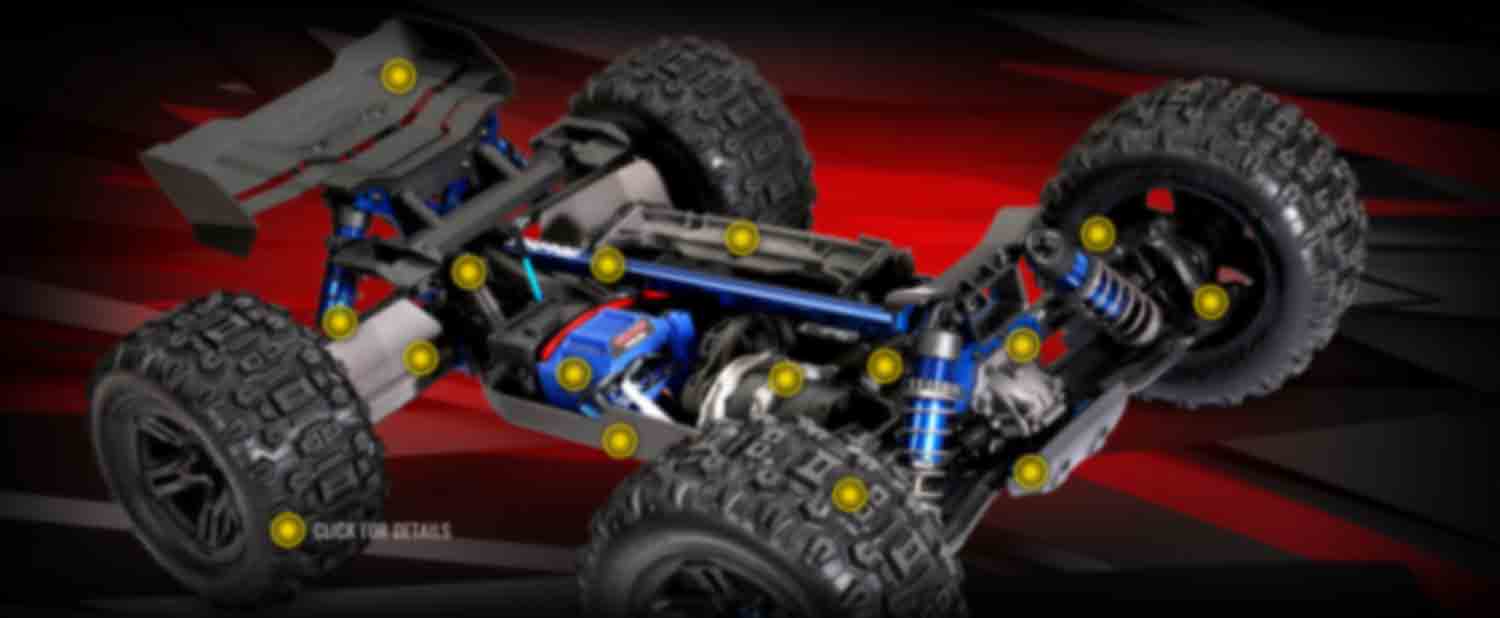

Details

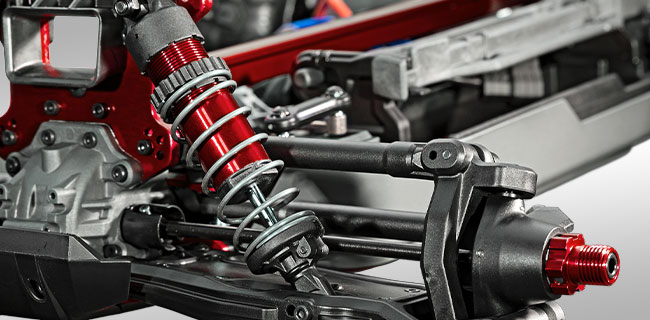

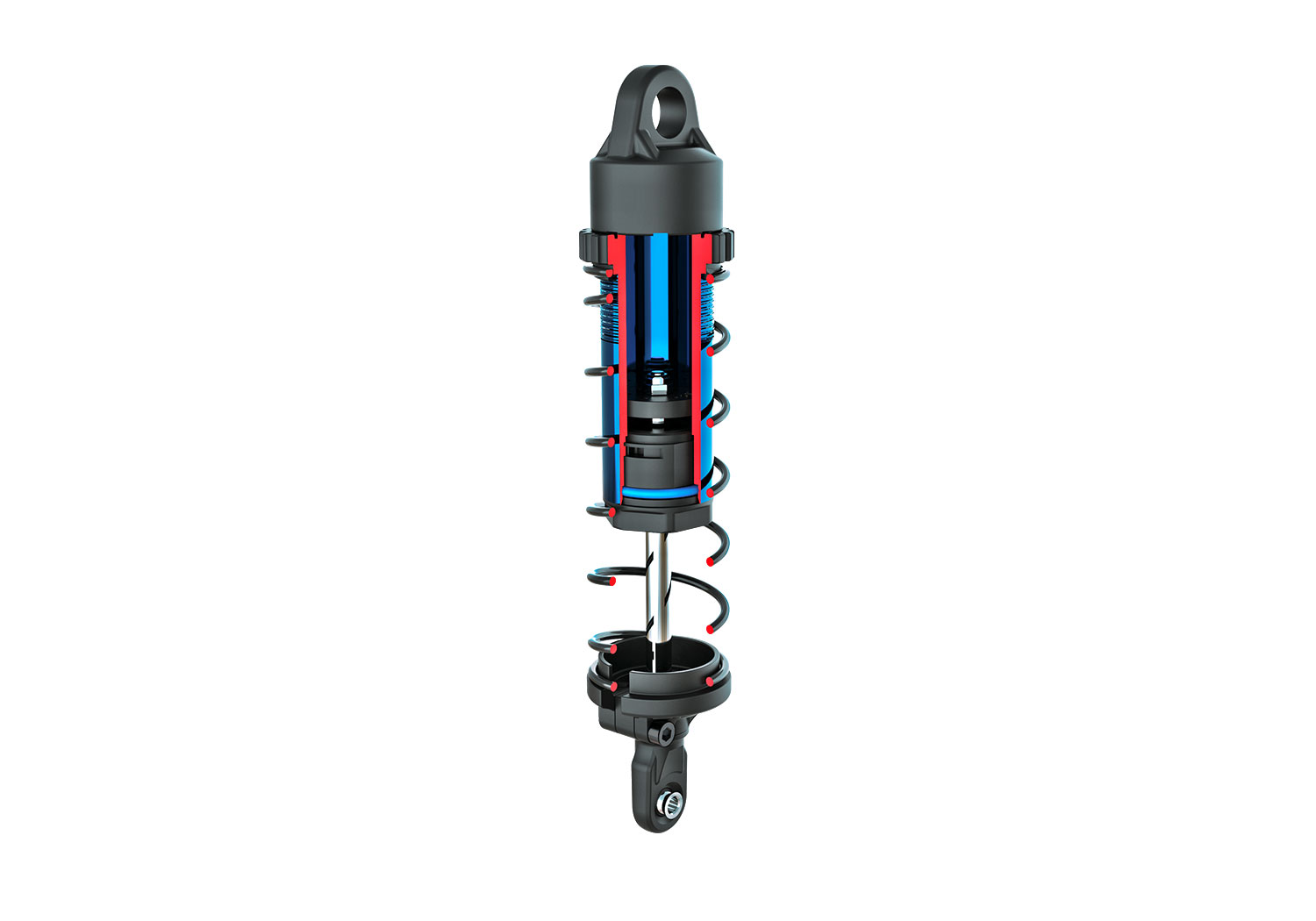

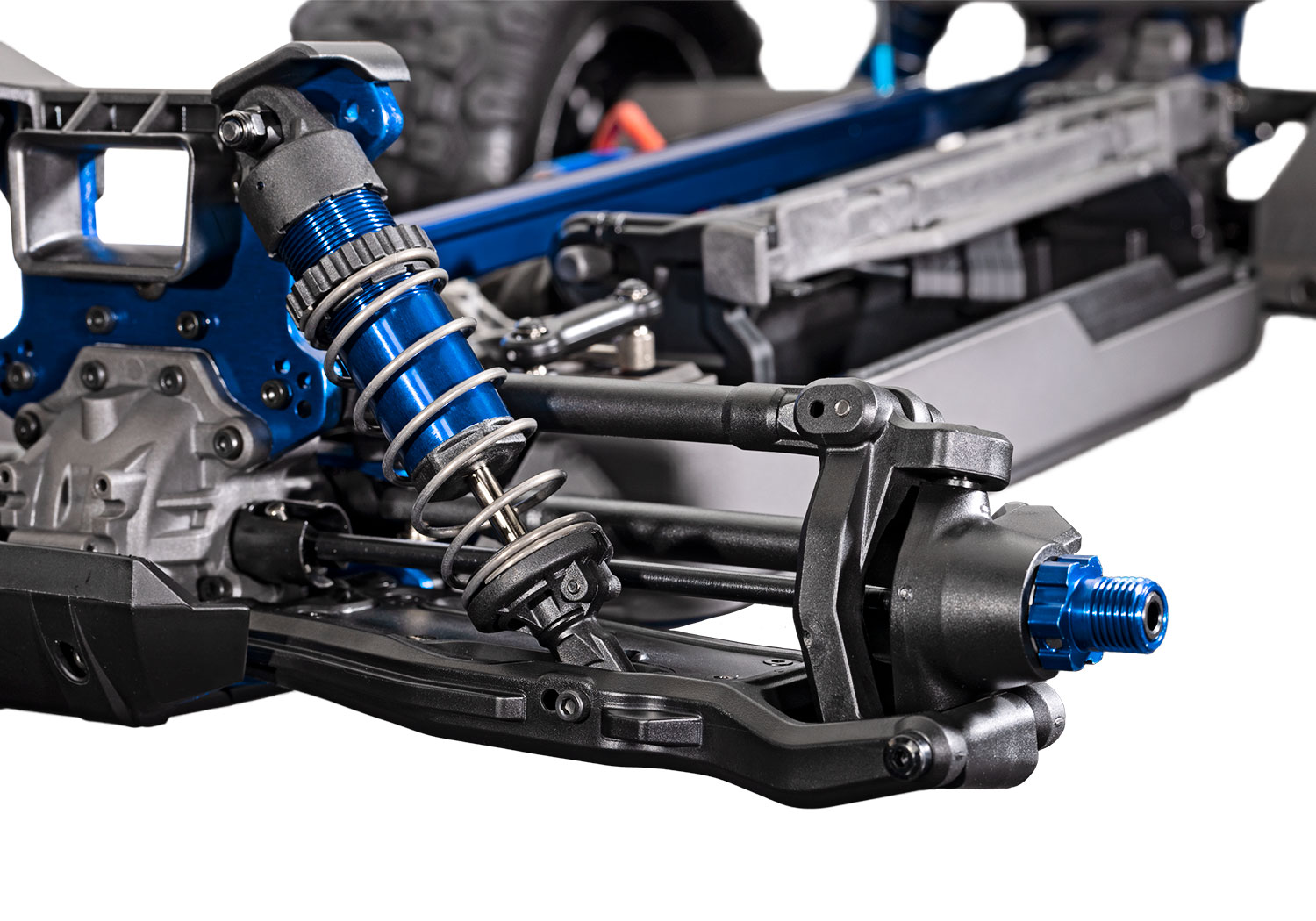

GT-Maxx Shocks
Large-bore GT-Maxx® aluminum shocks mount to the towers with 4 mm screws for superior strength. X-ring seals glide on large-diameter shafts, and the spring retainers are secured with screws to stay put.

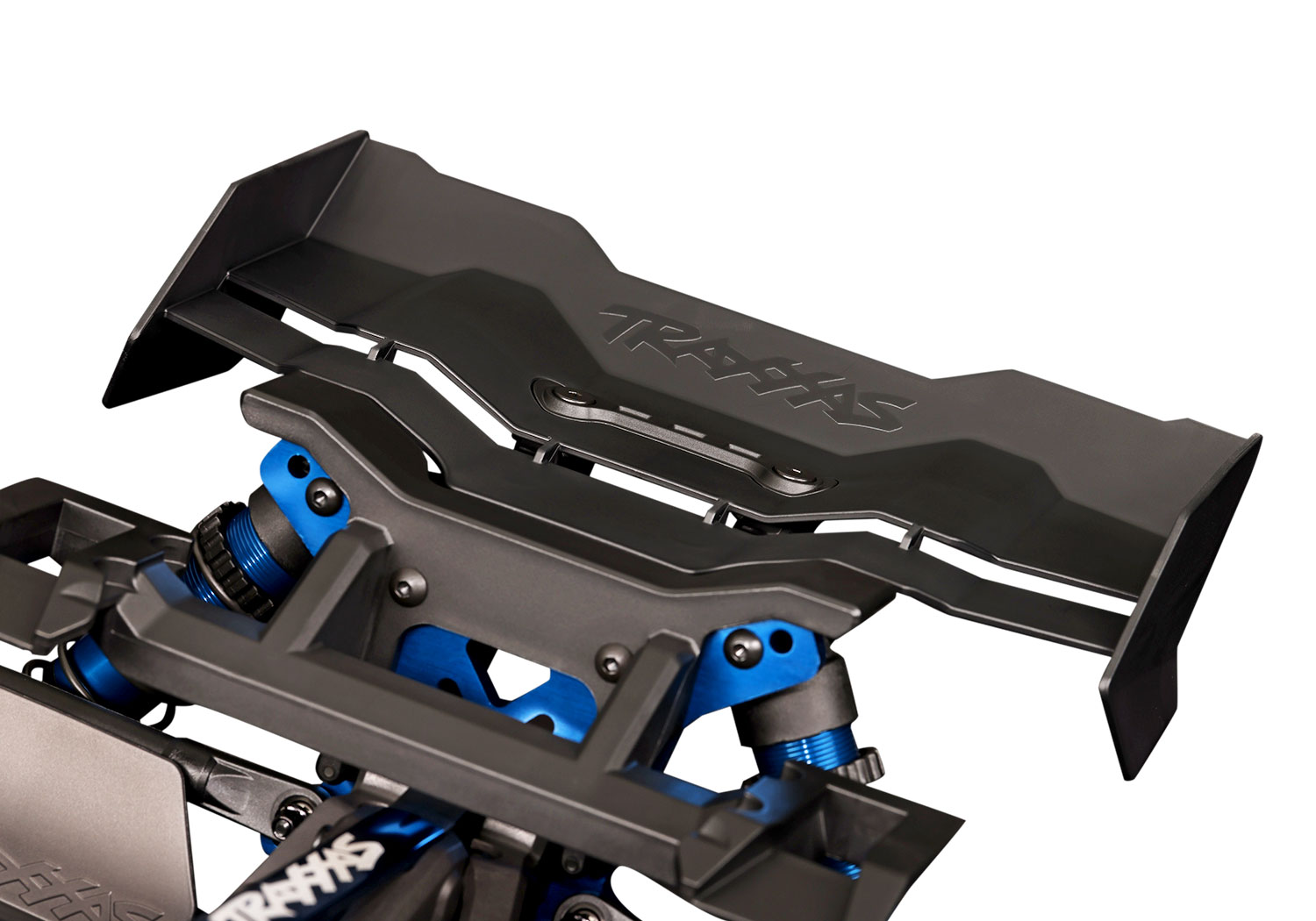

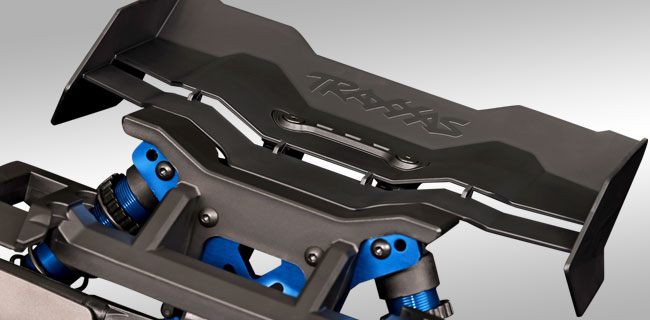

High Downforce Wing
Sledge’s high-downforce wing puts the wind to work with molded-in wear pads to protect the wing against ground-scraping wheelies.

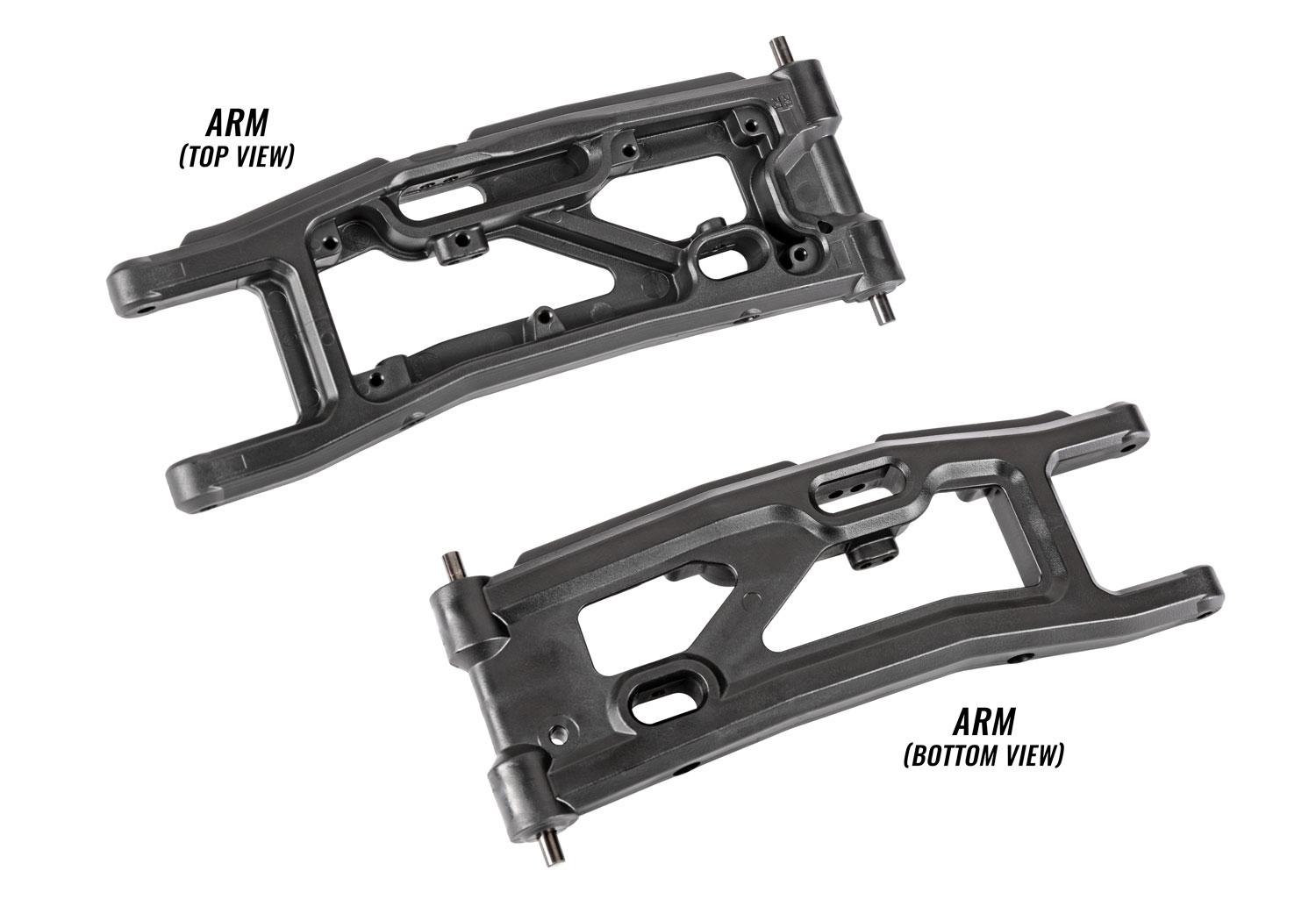

High-Tech Suspension Arms
Formed from our toughest composite material, heavy-duty suspension arms use high-grade steel pins that press into the arms for tighter tolerances.

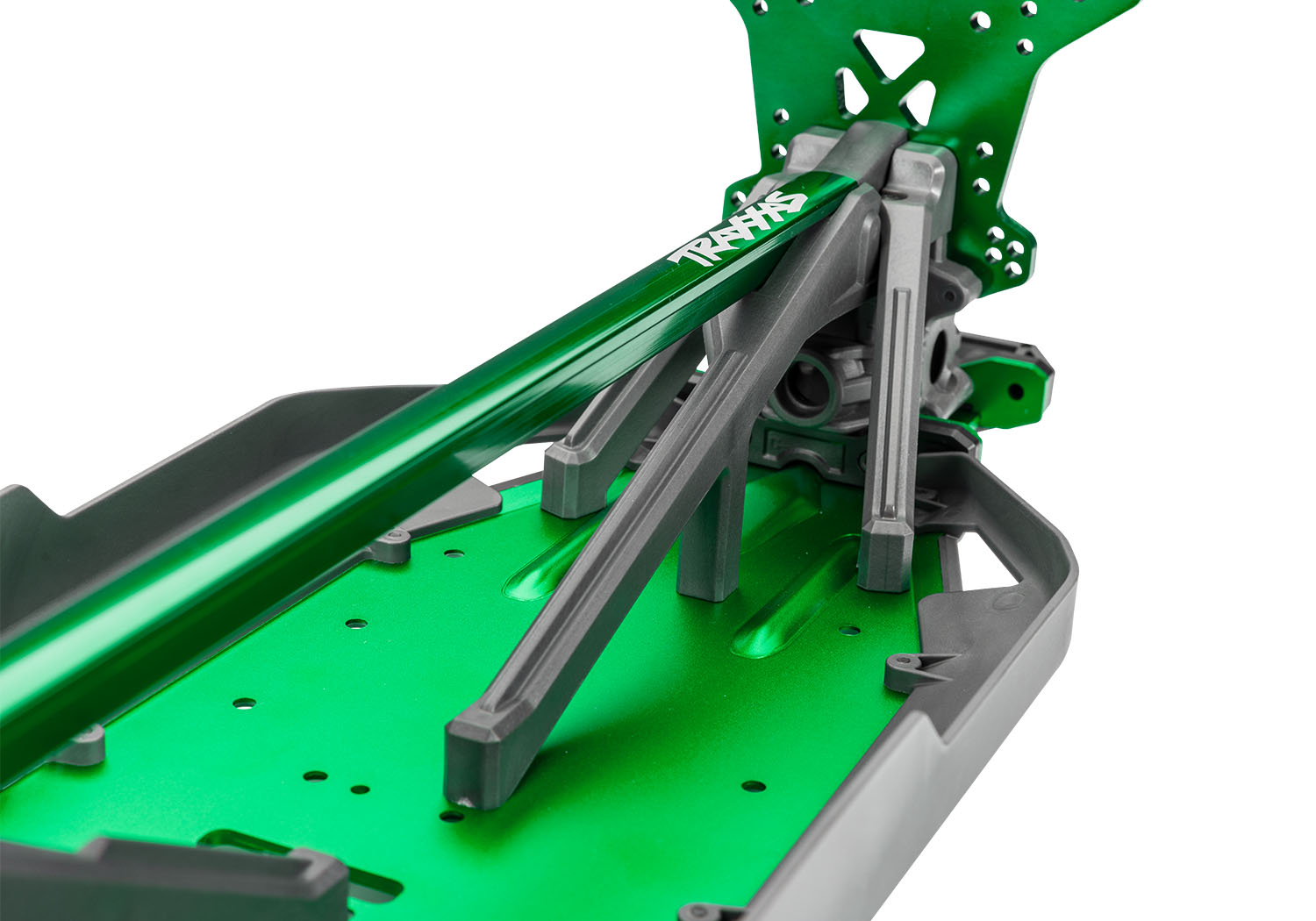

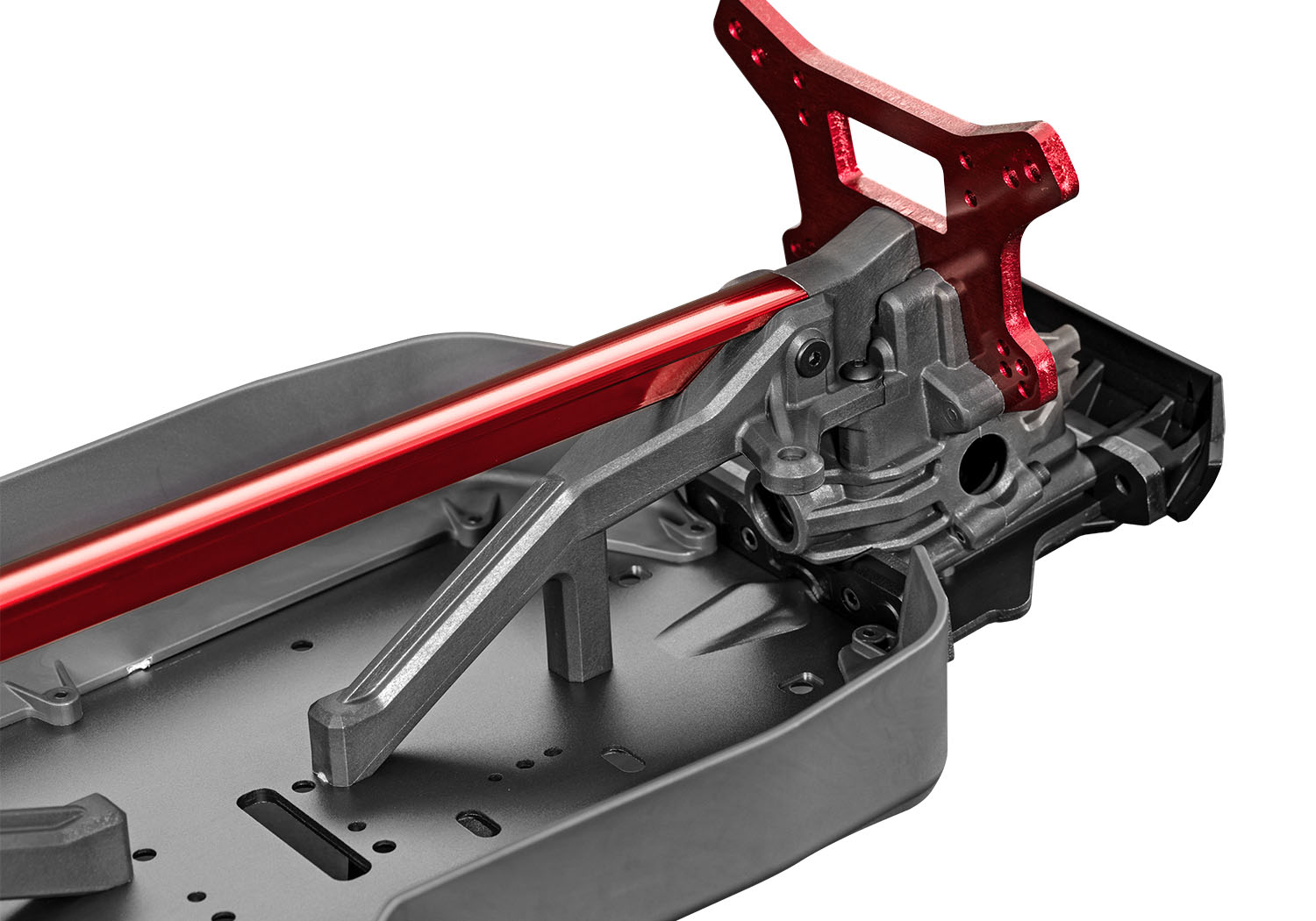

Heavy-Duty Chassis Braces
Sledge’s heavy-duty front and rear braces combine with the aluminum chassis and rigid T-Bar™ to create a radically strong triangulated structure.

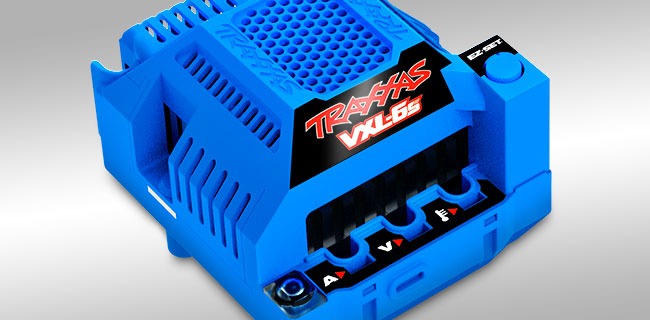

VXL-6s Speed Control
The proven Velineon® VXL-6s speed control is custom-tuned to give Sledge incredible punch throughout the RPM range. Whether you’re exploding off the line or accelerating out of a turn, Sledge responds with rocket-like thrust.

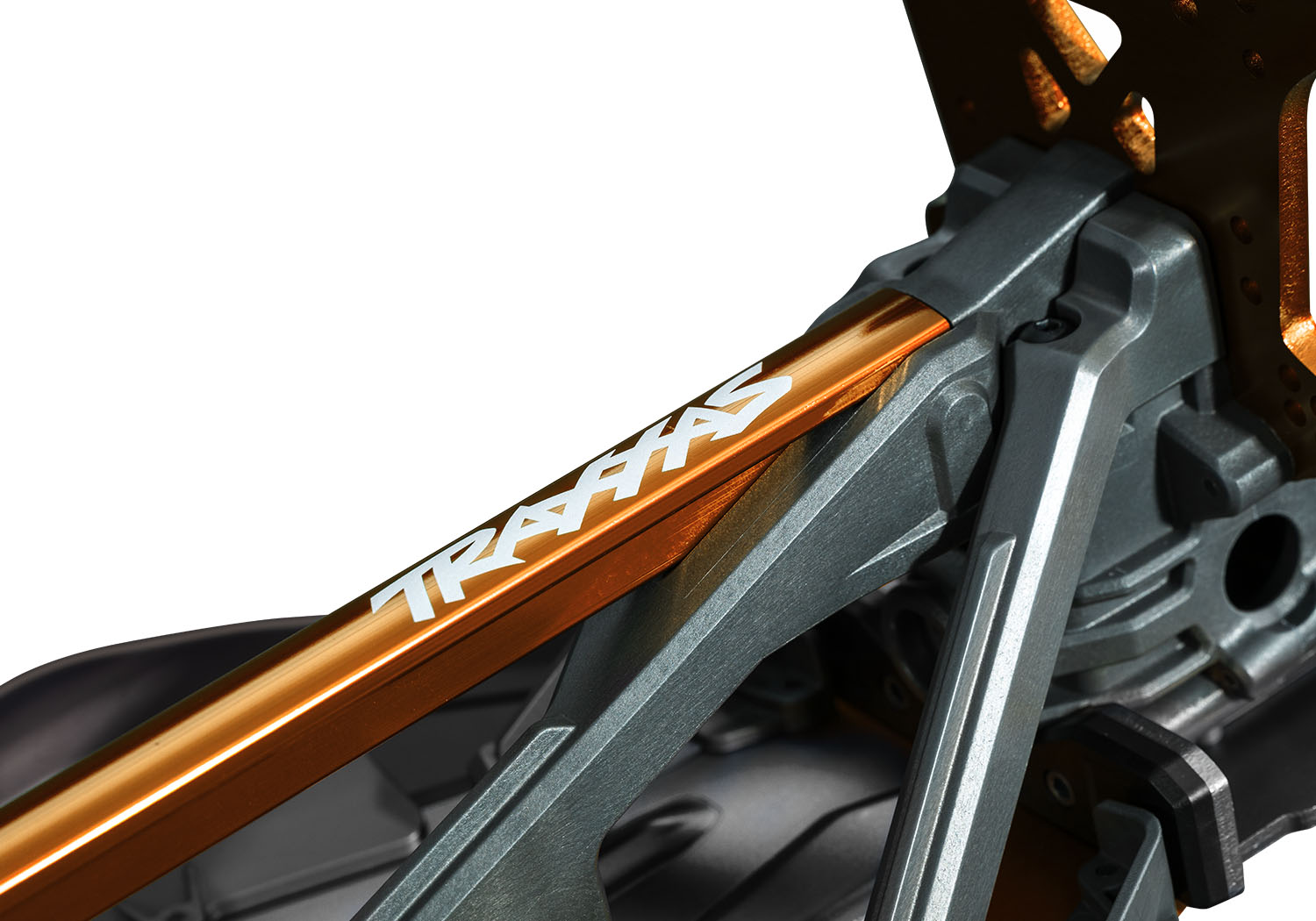

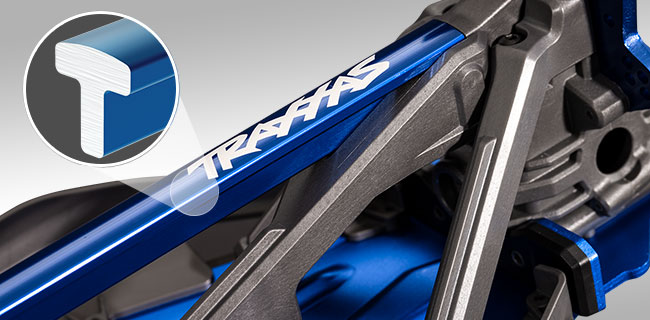

Aluminum T-Bar™
The unique shape of Sledge’s aluminum T-Bar brace delivers cross-sectional stiffness no round tube can match. The T-Bar also keys perfectly into the bulkheads so they absorb impact forces, and not the attachment screws.

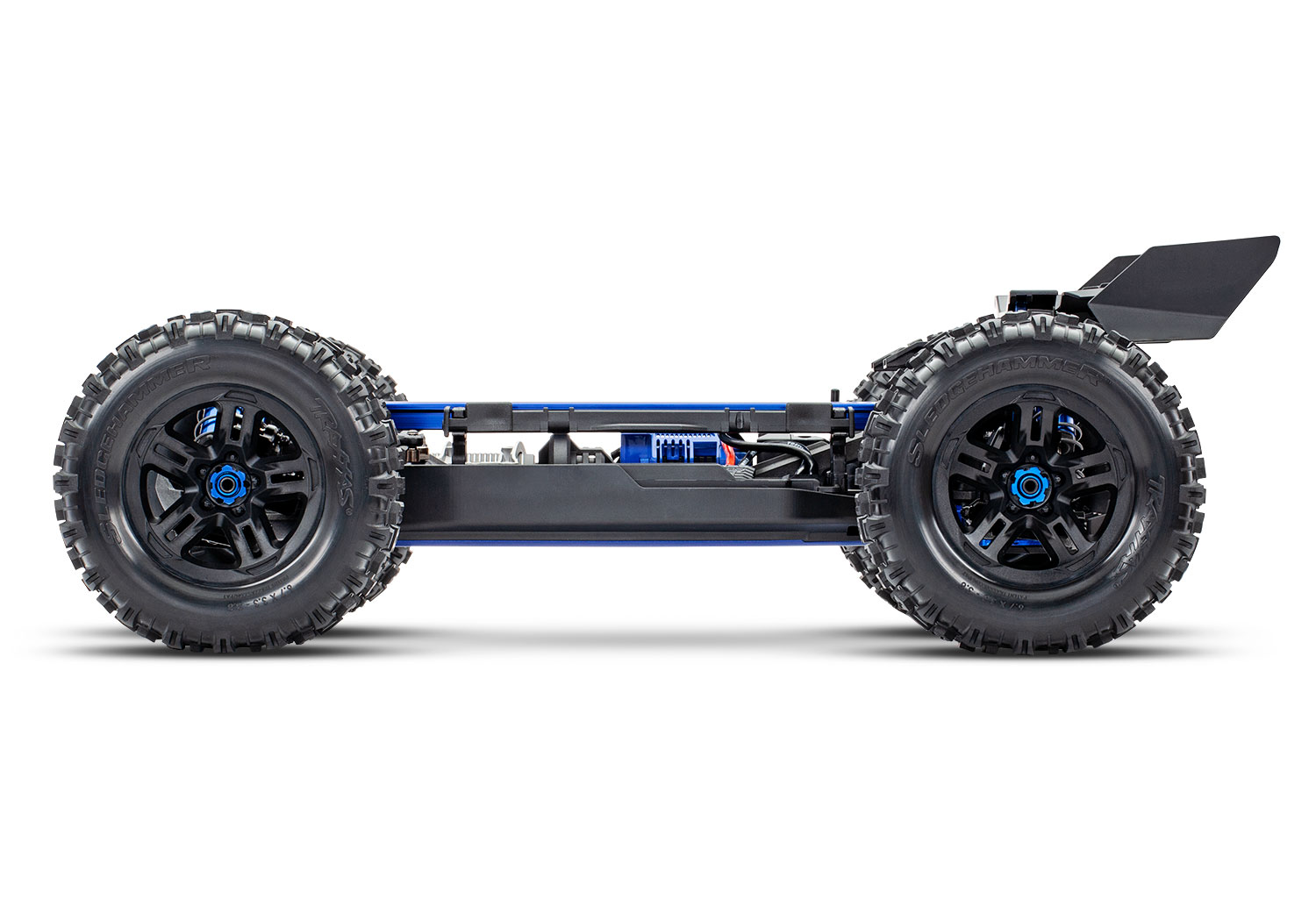

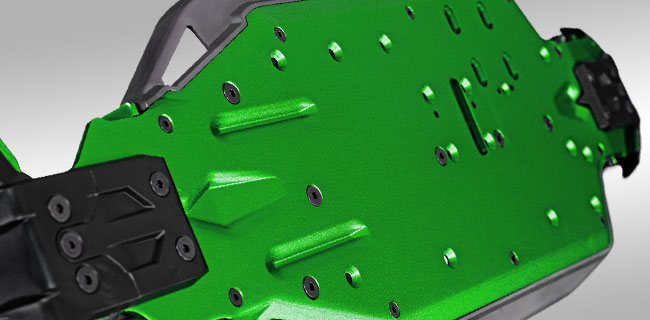

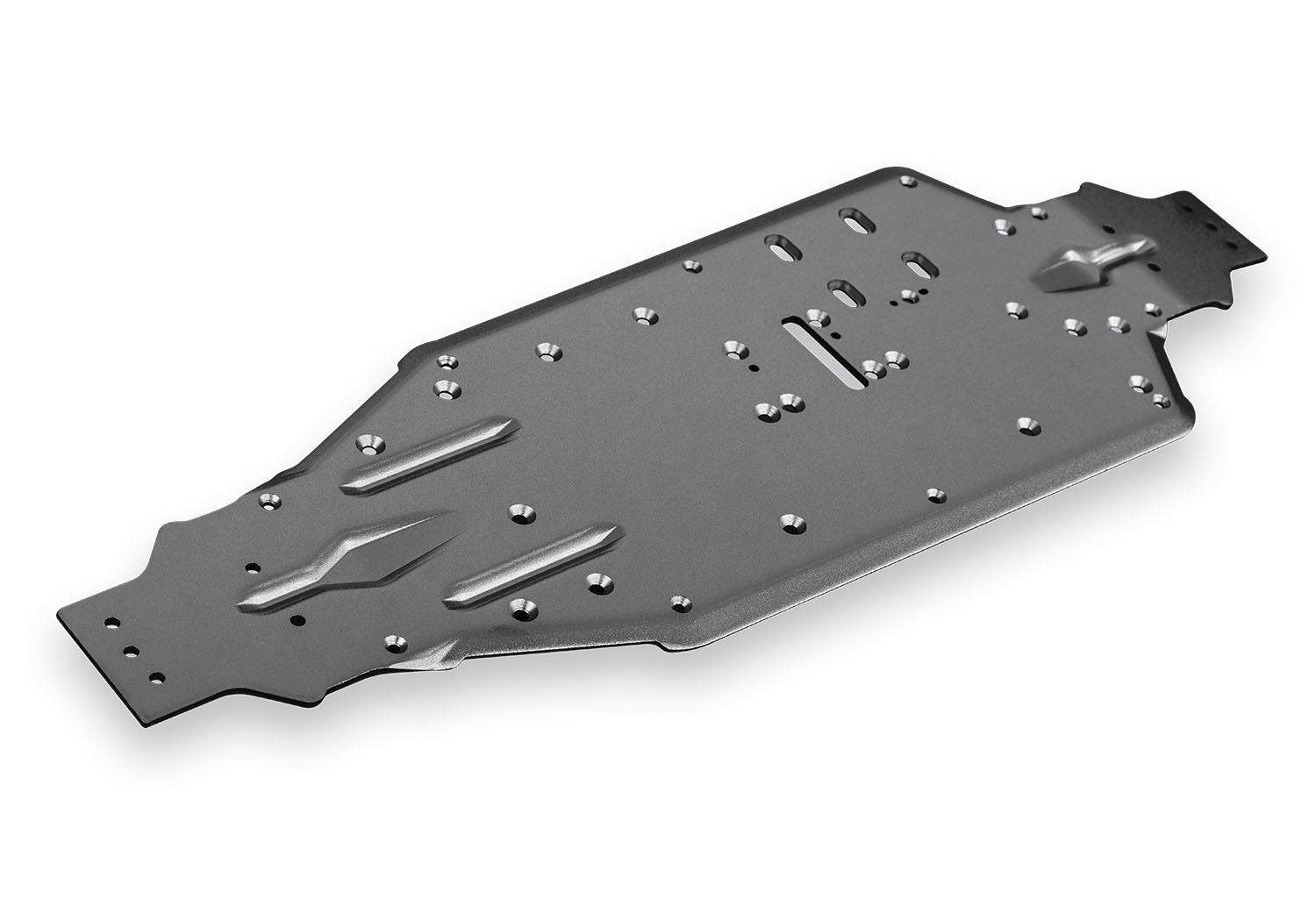

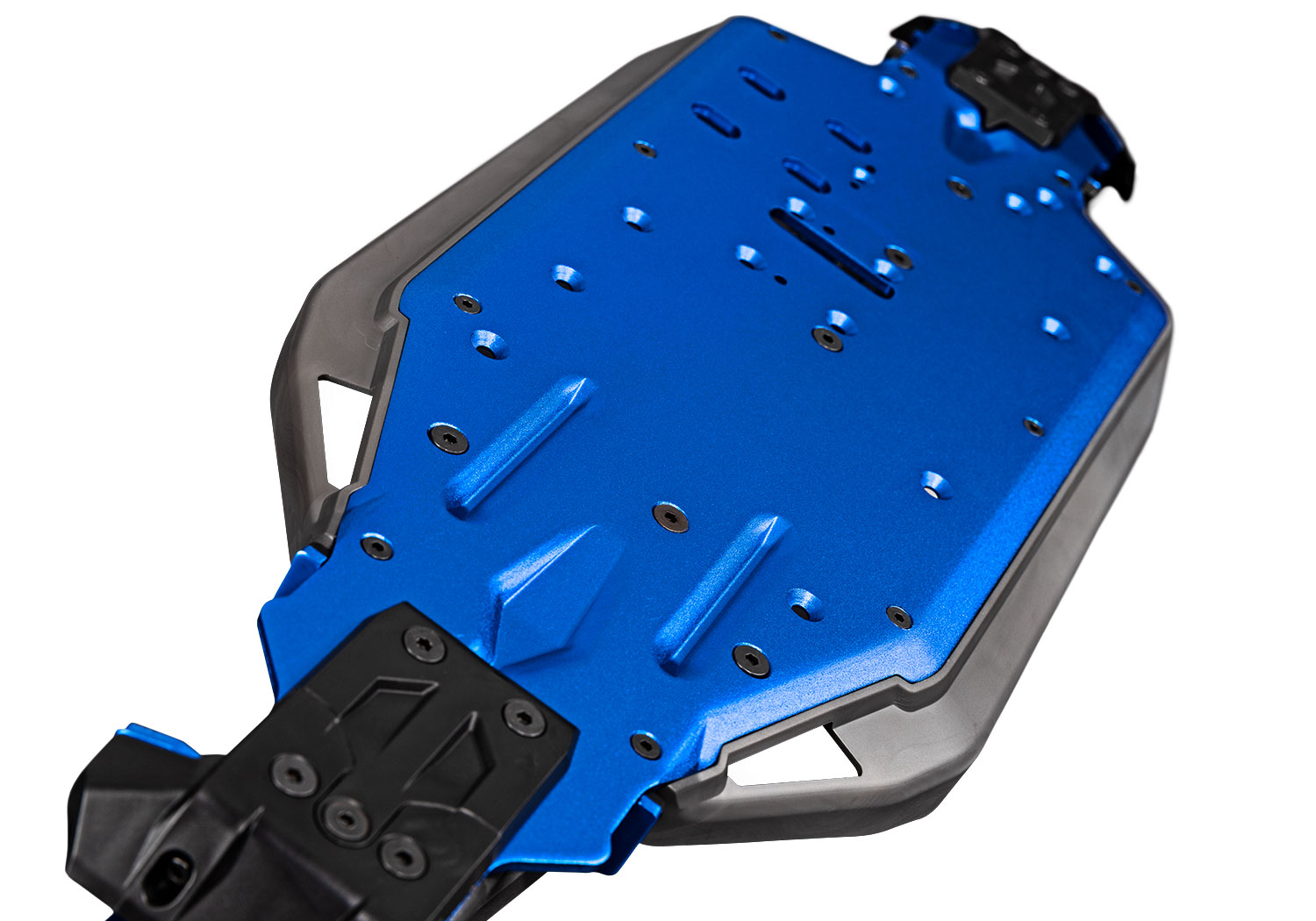

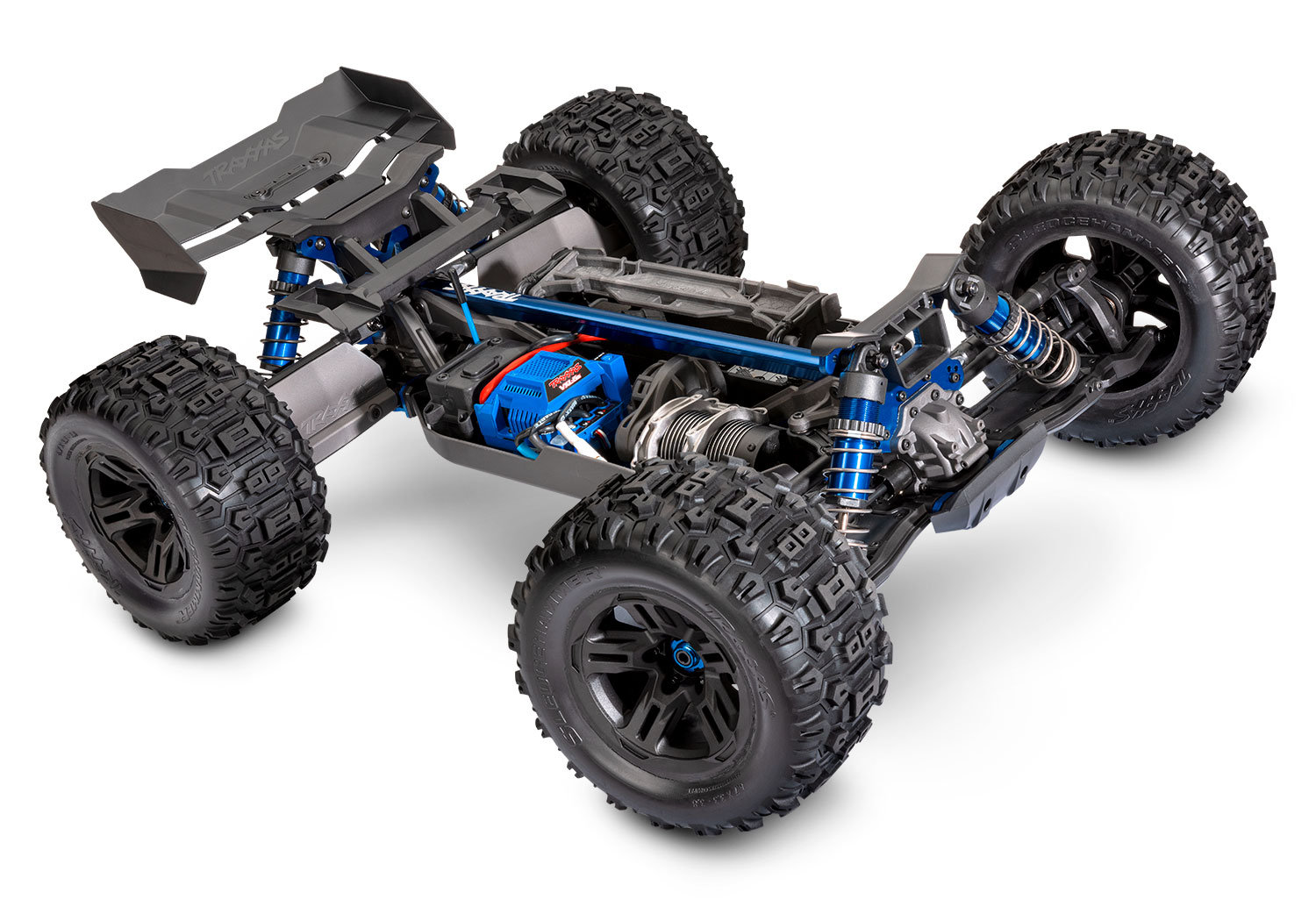

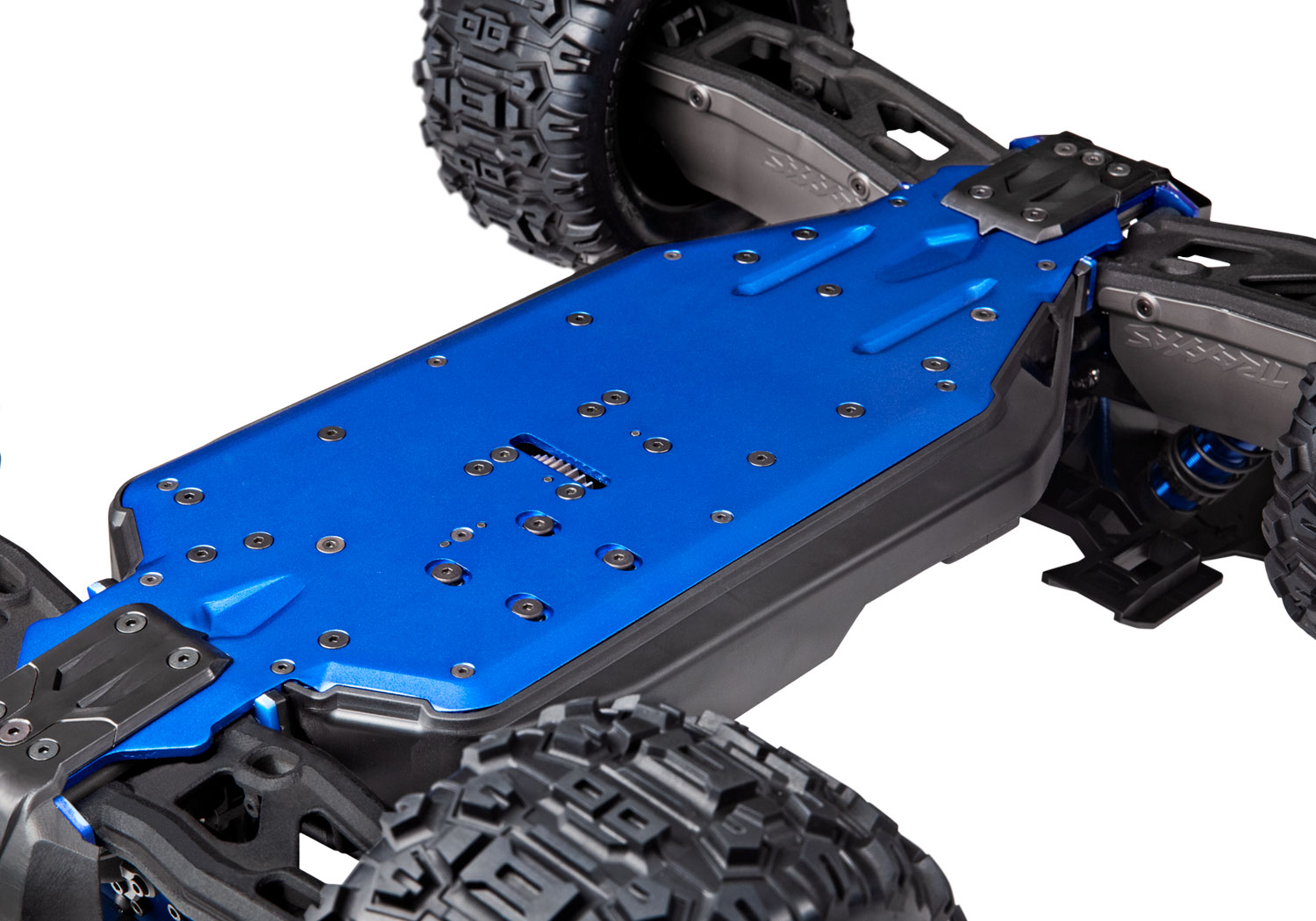

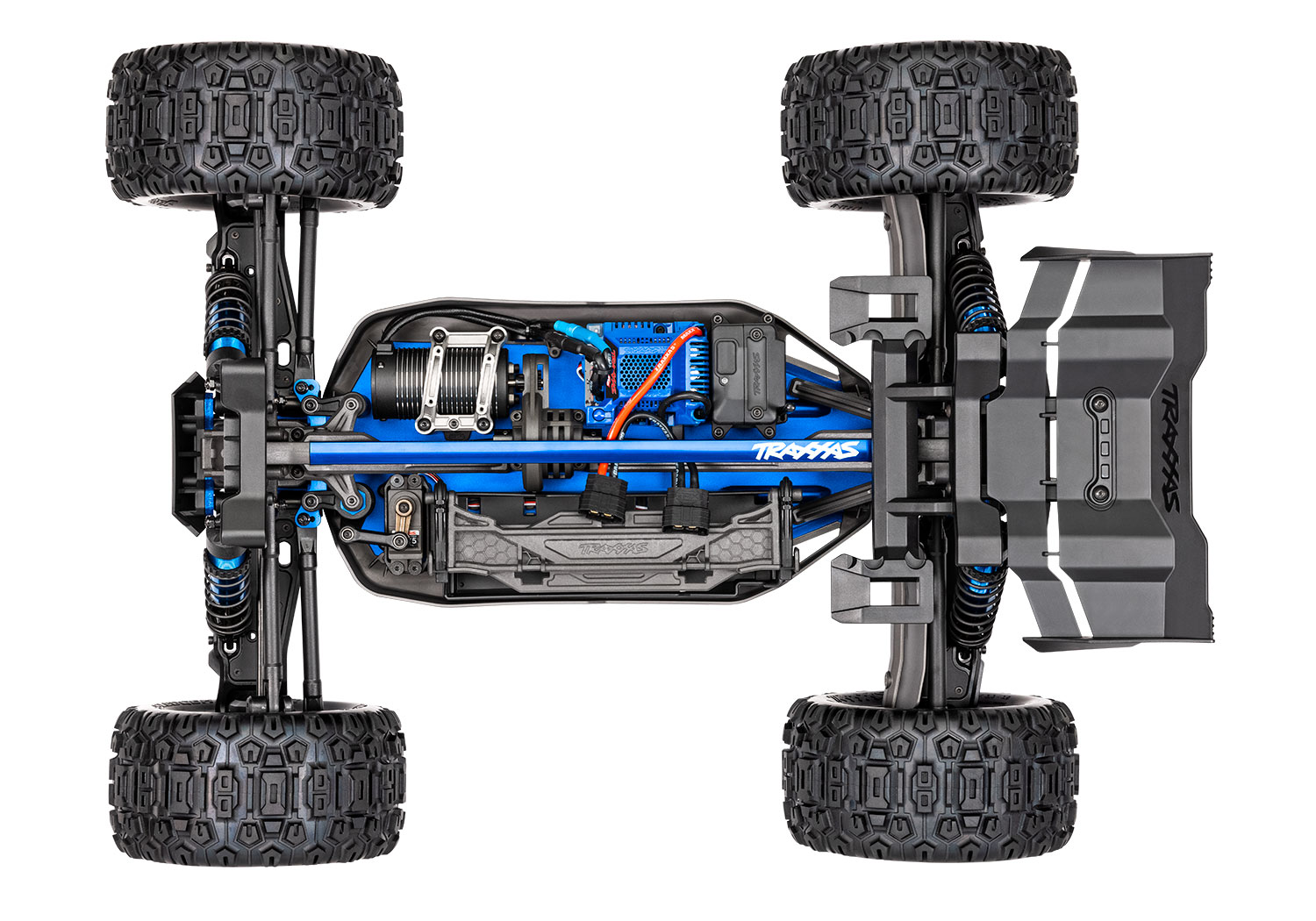

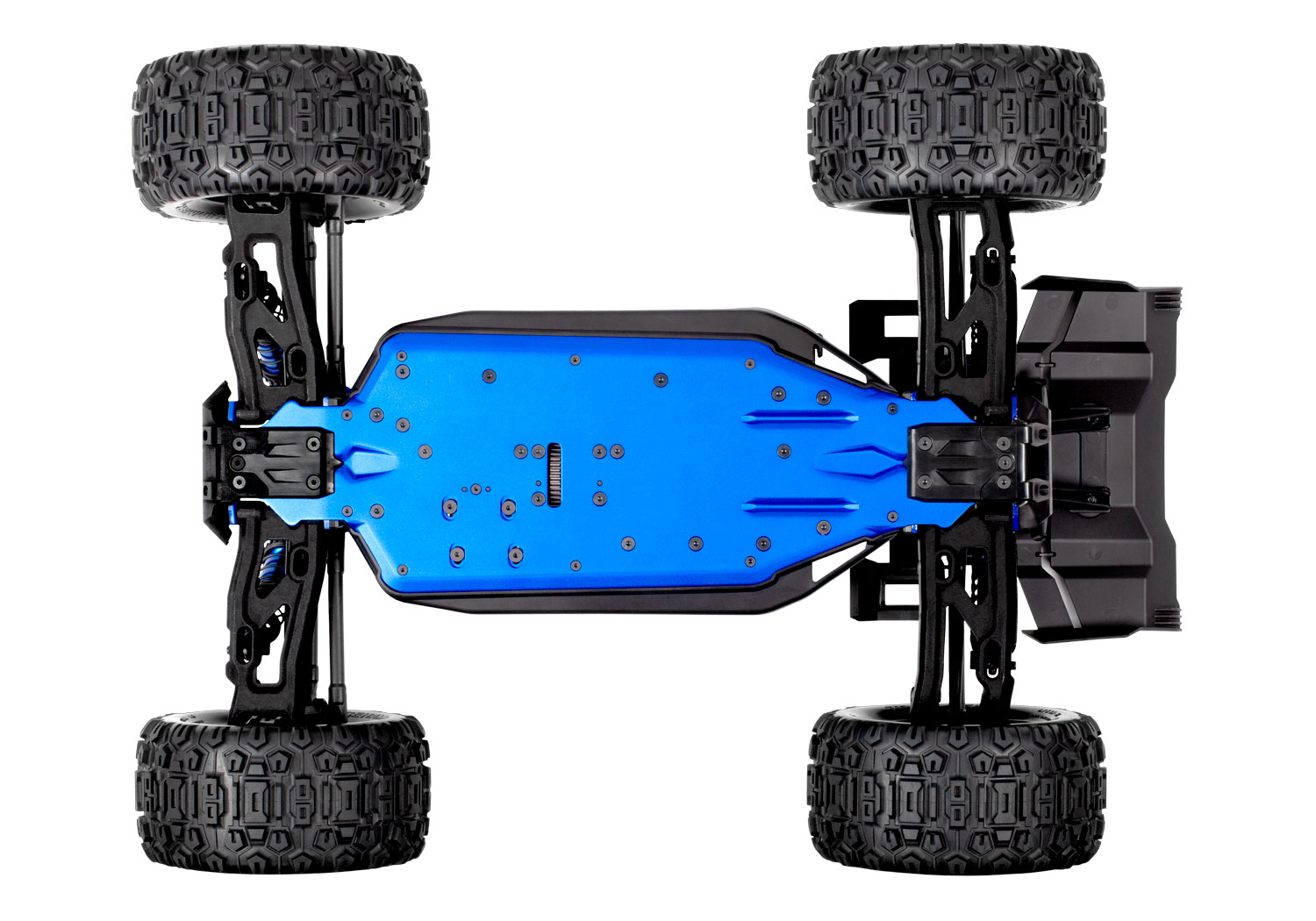

High Strength Aluminum Plate Chassis
Sledge’s chassis uses flanged edges from bulkhead to bulkhead to eliminate weak points. Additional strengthening ribs add extra rigidity in high-stress locations and the side guards fit tightly to the chassis for a seamless look.

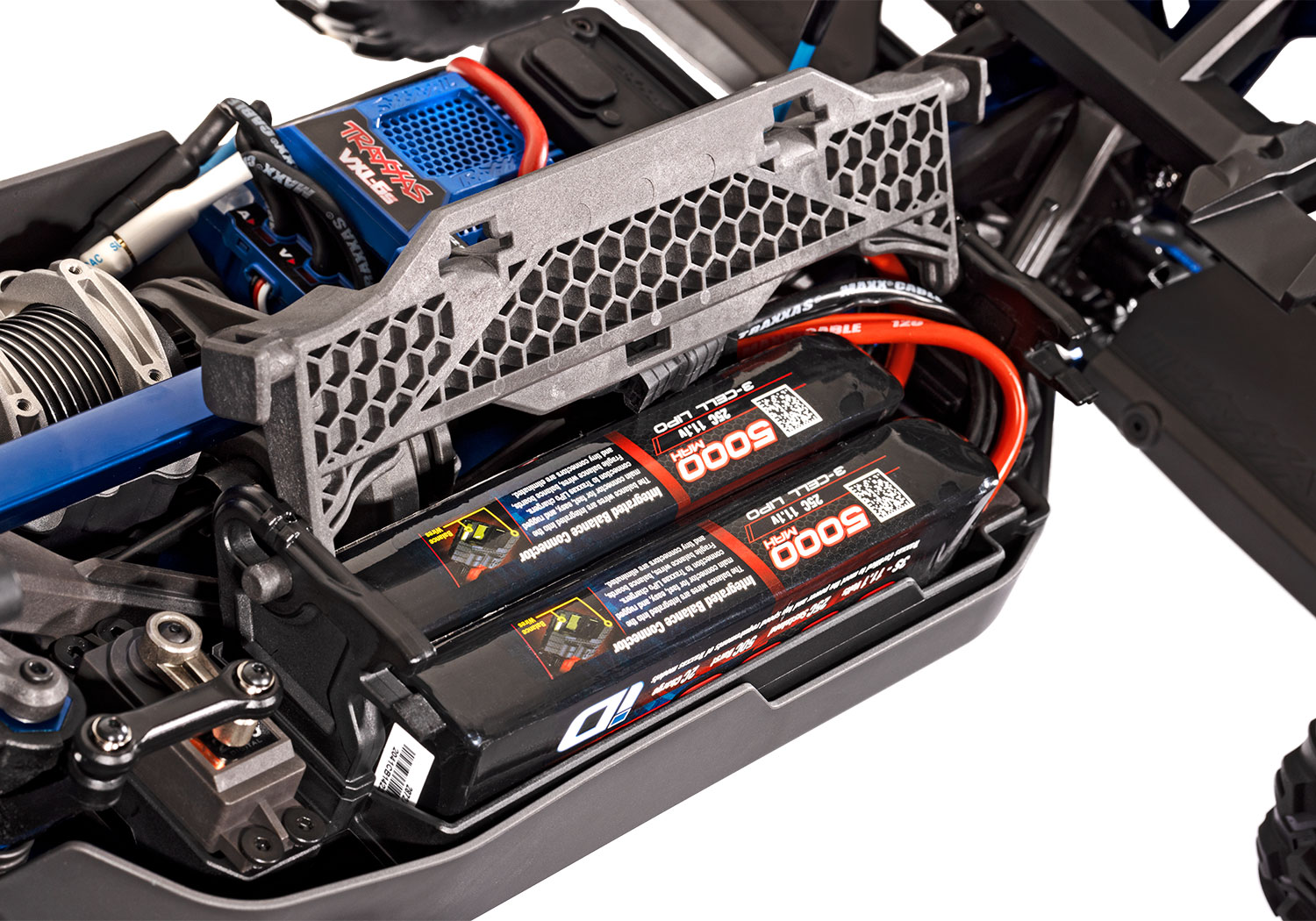

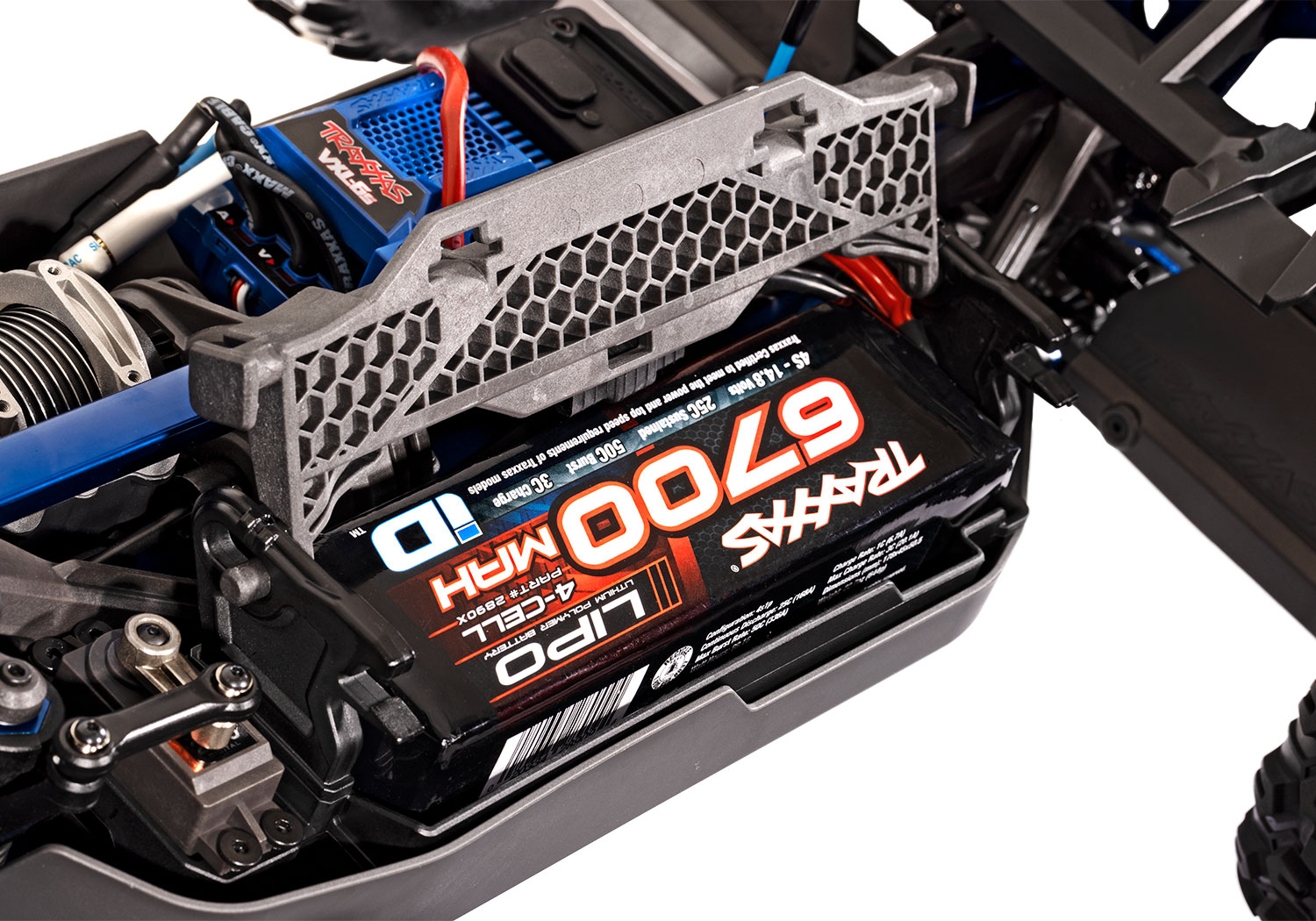

Rigid Battery Tray
Sledge’s roomy battery tray accepts a variety of 4s and 6s configurations. Battery changes take just seconds with no clips or straps required.

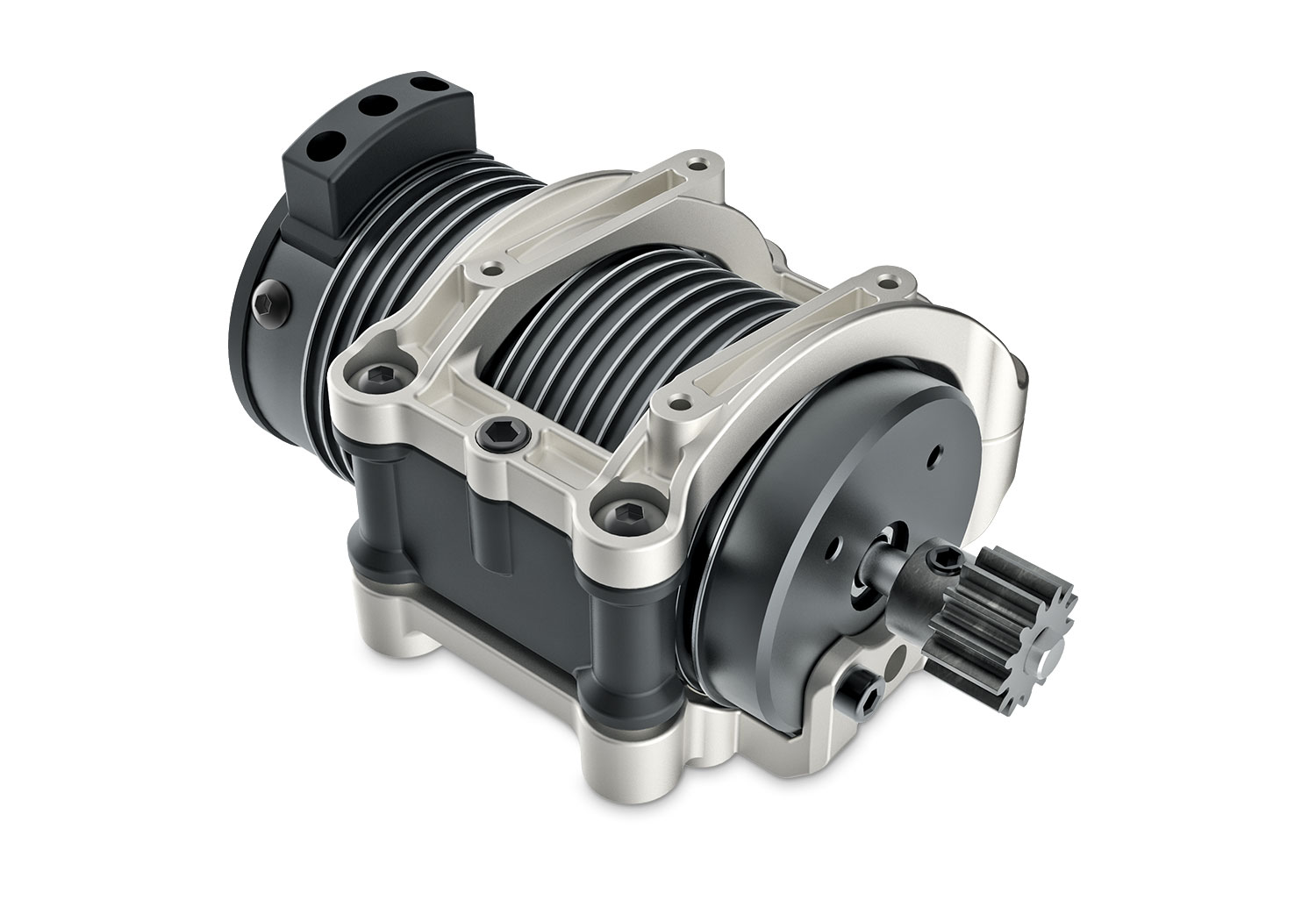

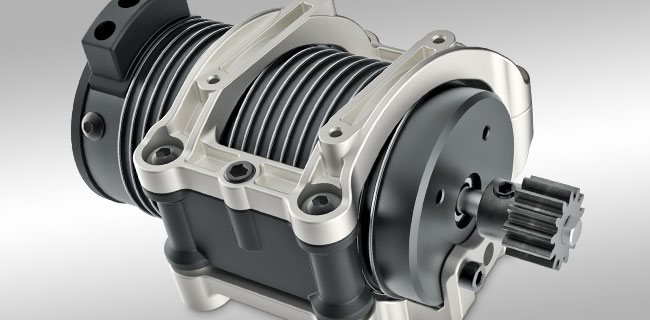

Aluminum Motor Cradle
Sledge secures its 2000 kV brushless motor in place with a wrap-around aluminum cradle to eliminate all flex points. Built-in bosses make it easy to attach the accessory cooling fan (part 3476 available separately).

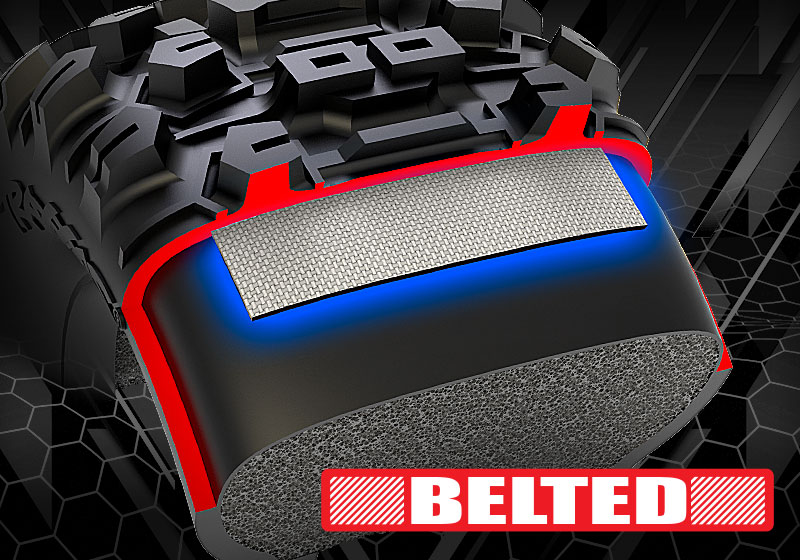

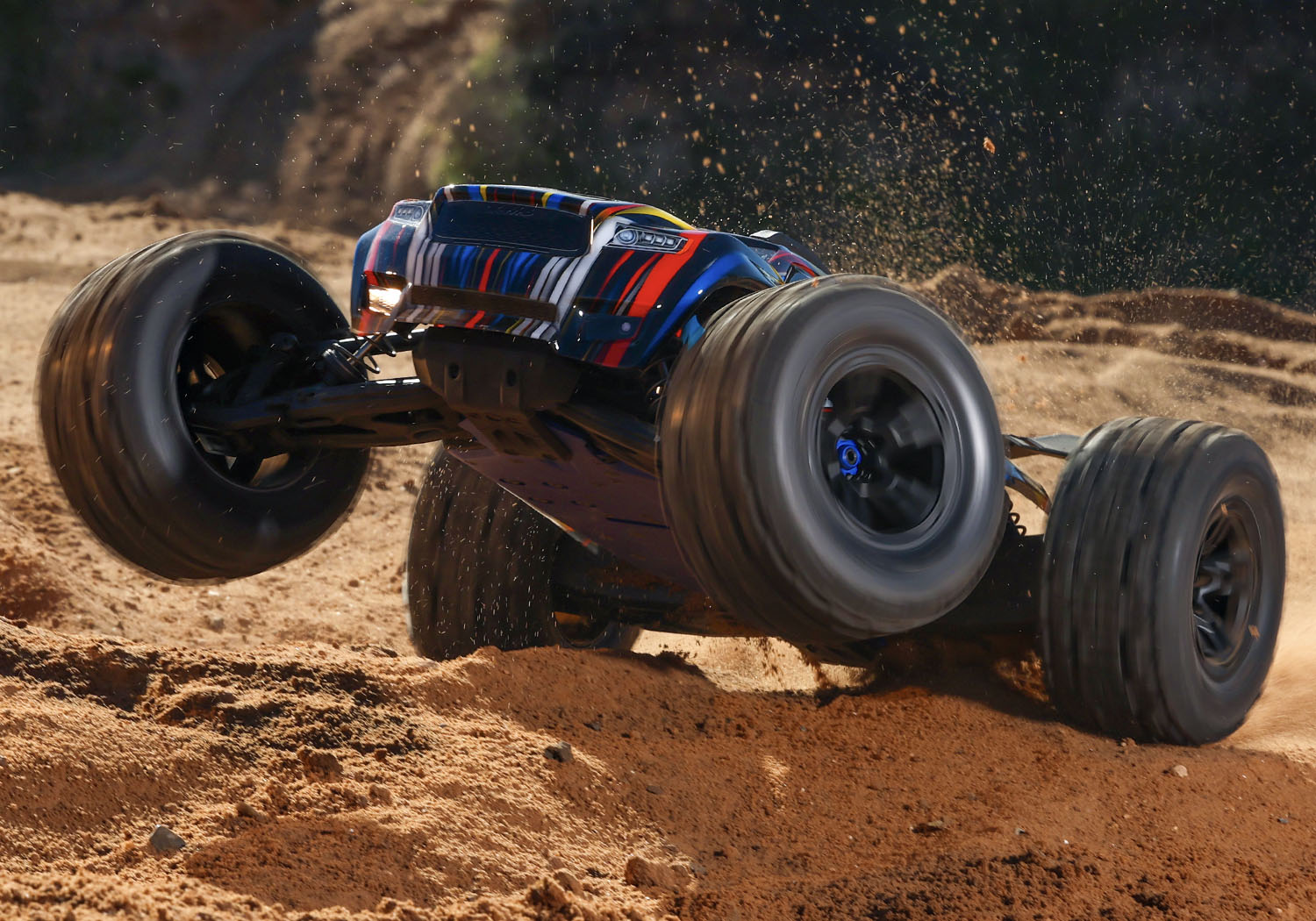

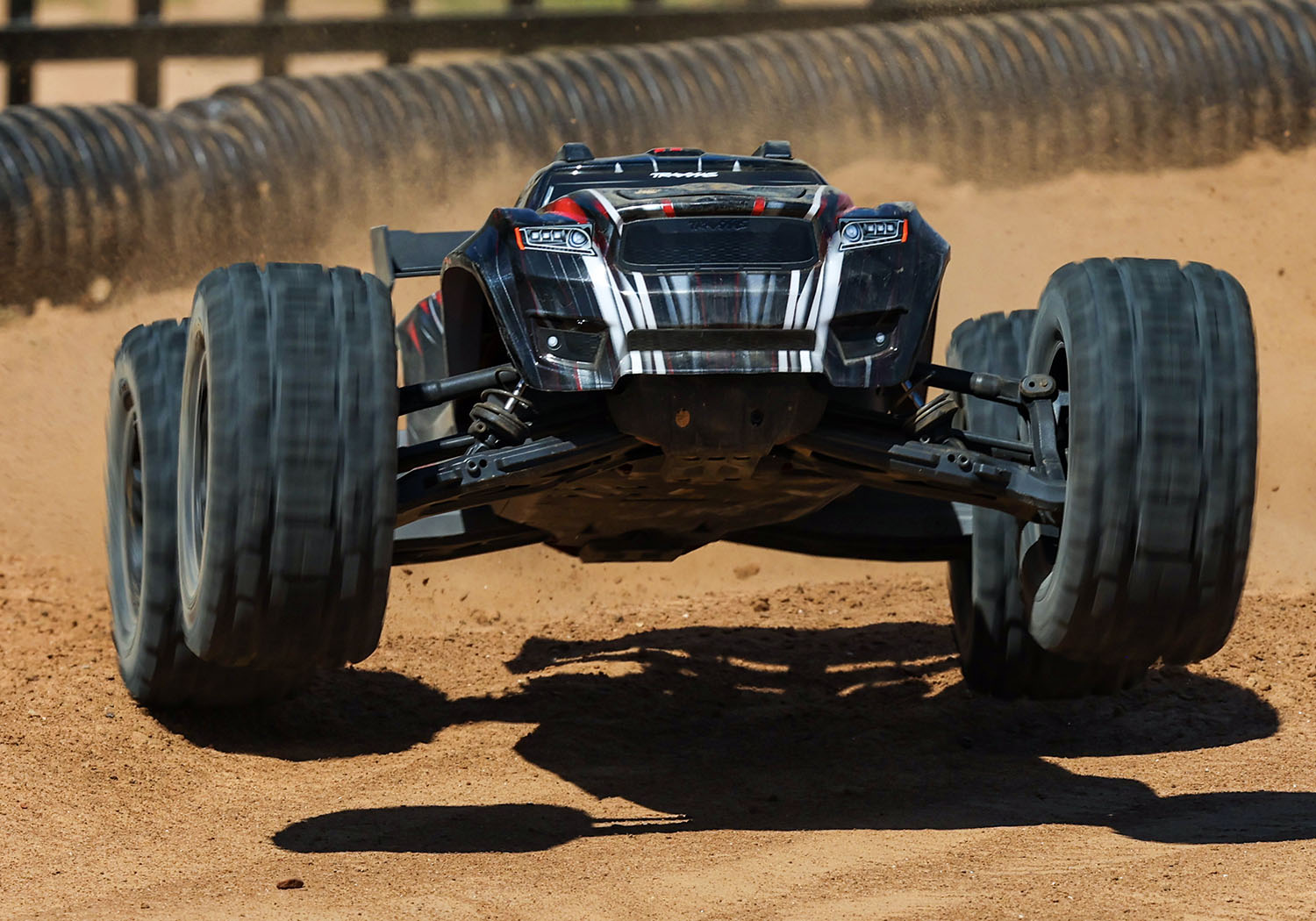

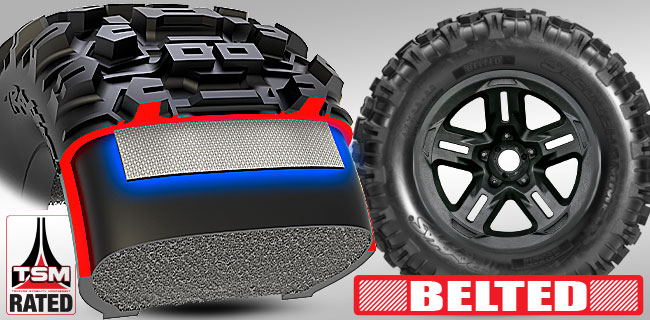

Belted Sledgehammer Tires
The Sledgehammer’s thick tread blocks bite into rough terrain for outstanding all-surface grip. Traxxas’ tire bonding innovation keeps them locked onto the 3.8″ wheels with a vise-like grip. Lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

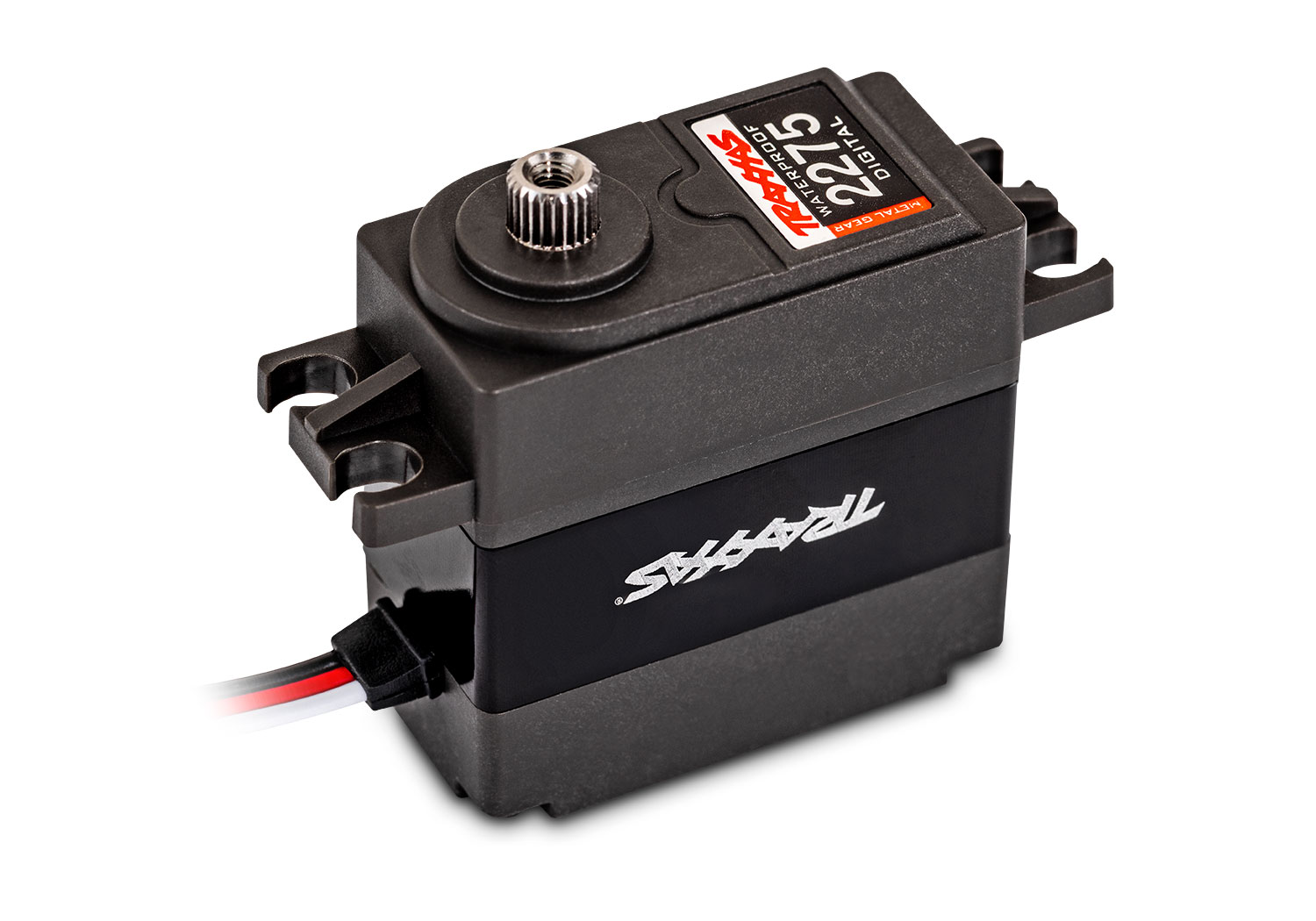

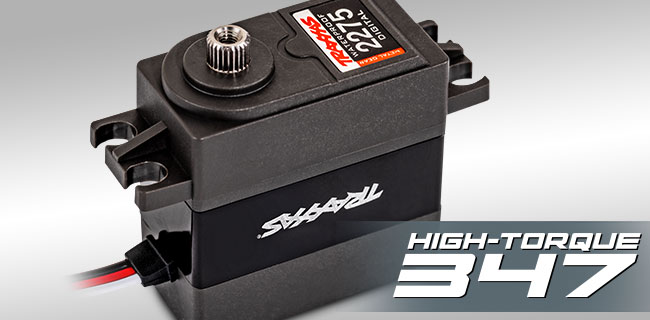

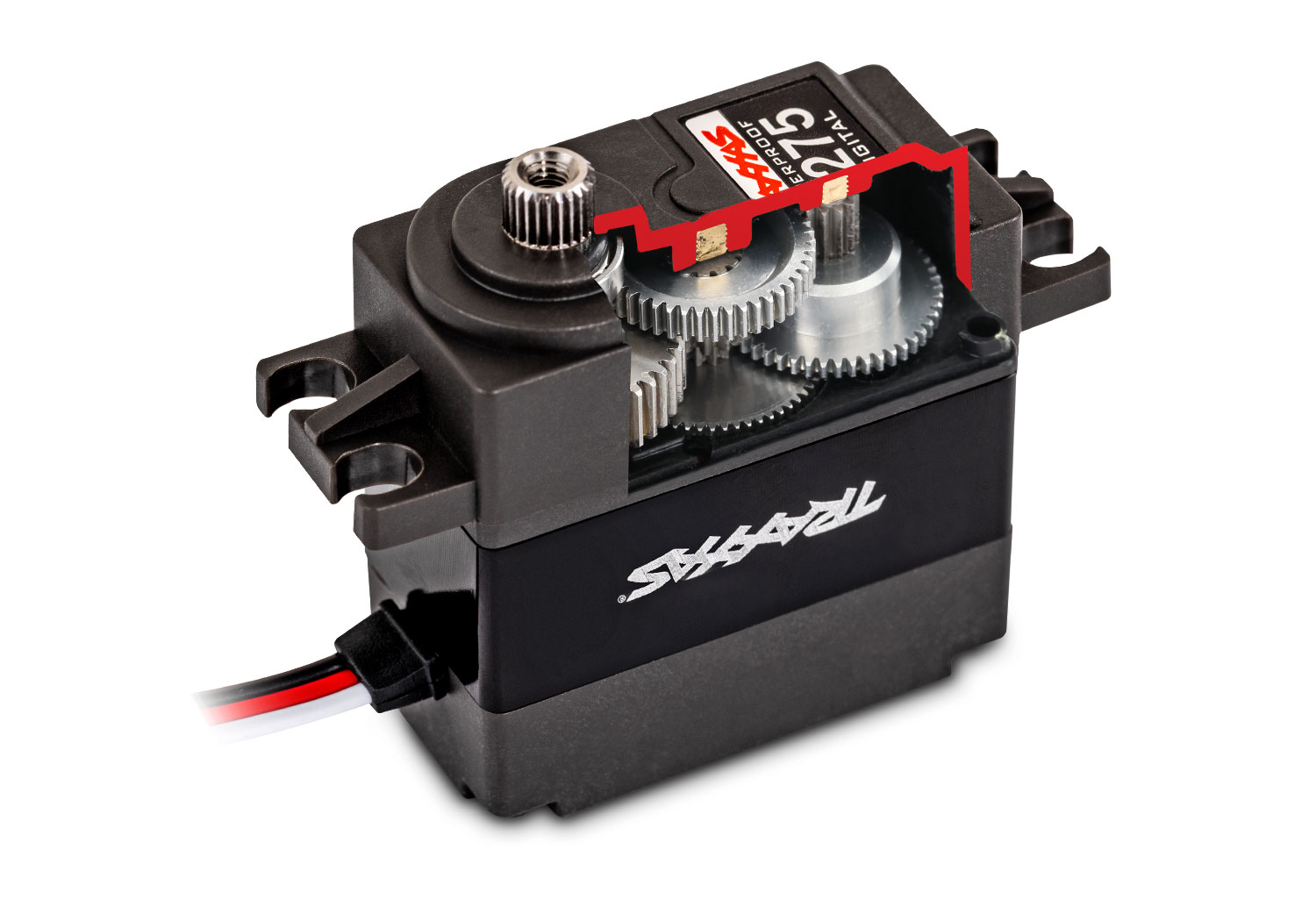

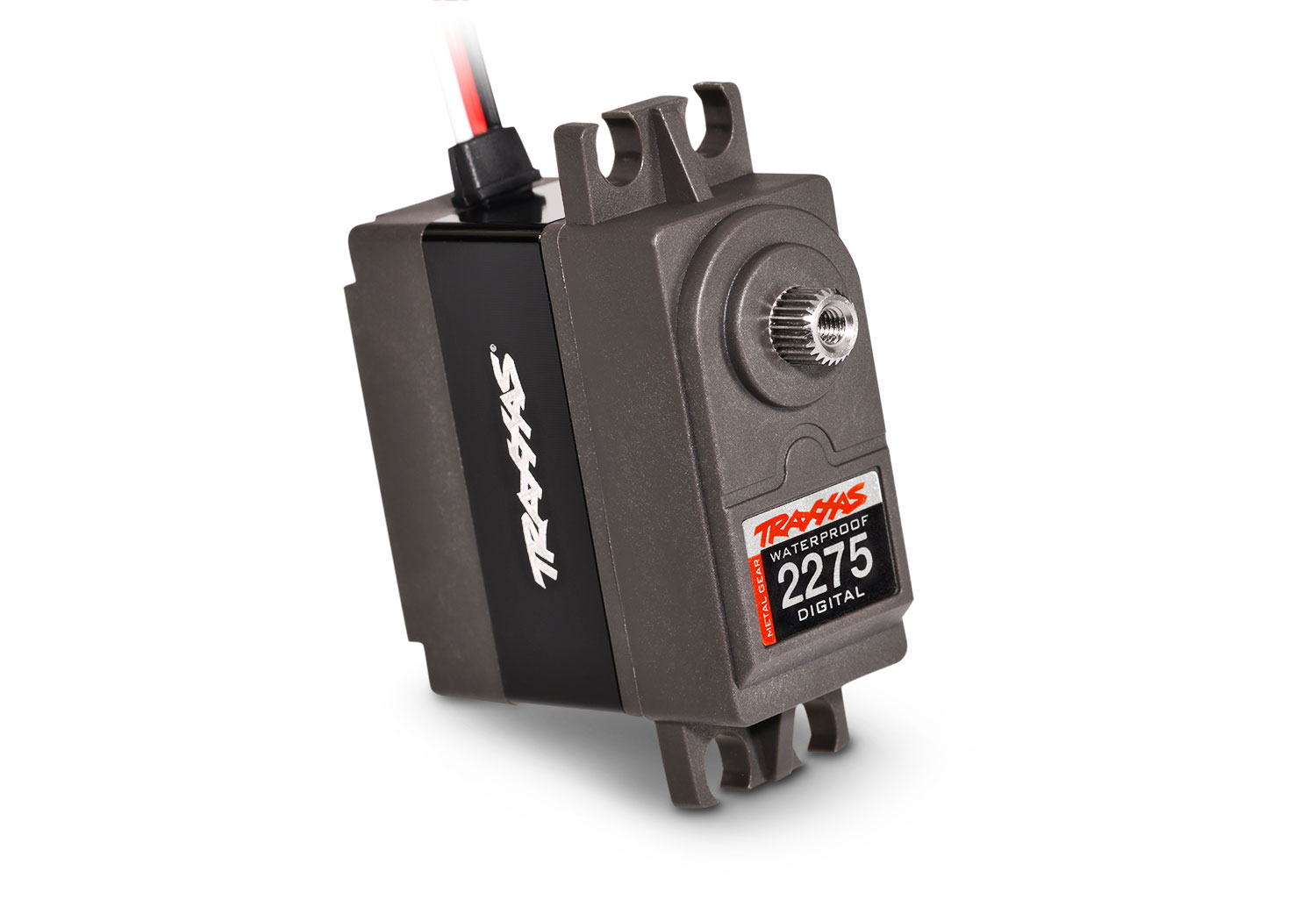

Total Steering Authority
Sledge’s waterproof 2275 metal gear servo competes with expensive aftermarket servos with over 20 pounds (347 oz-in) of torque @6.0 V—eliminating the need for servo upgrades.

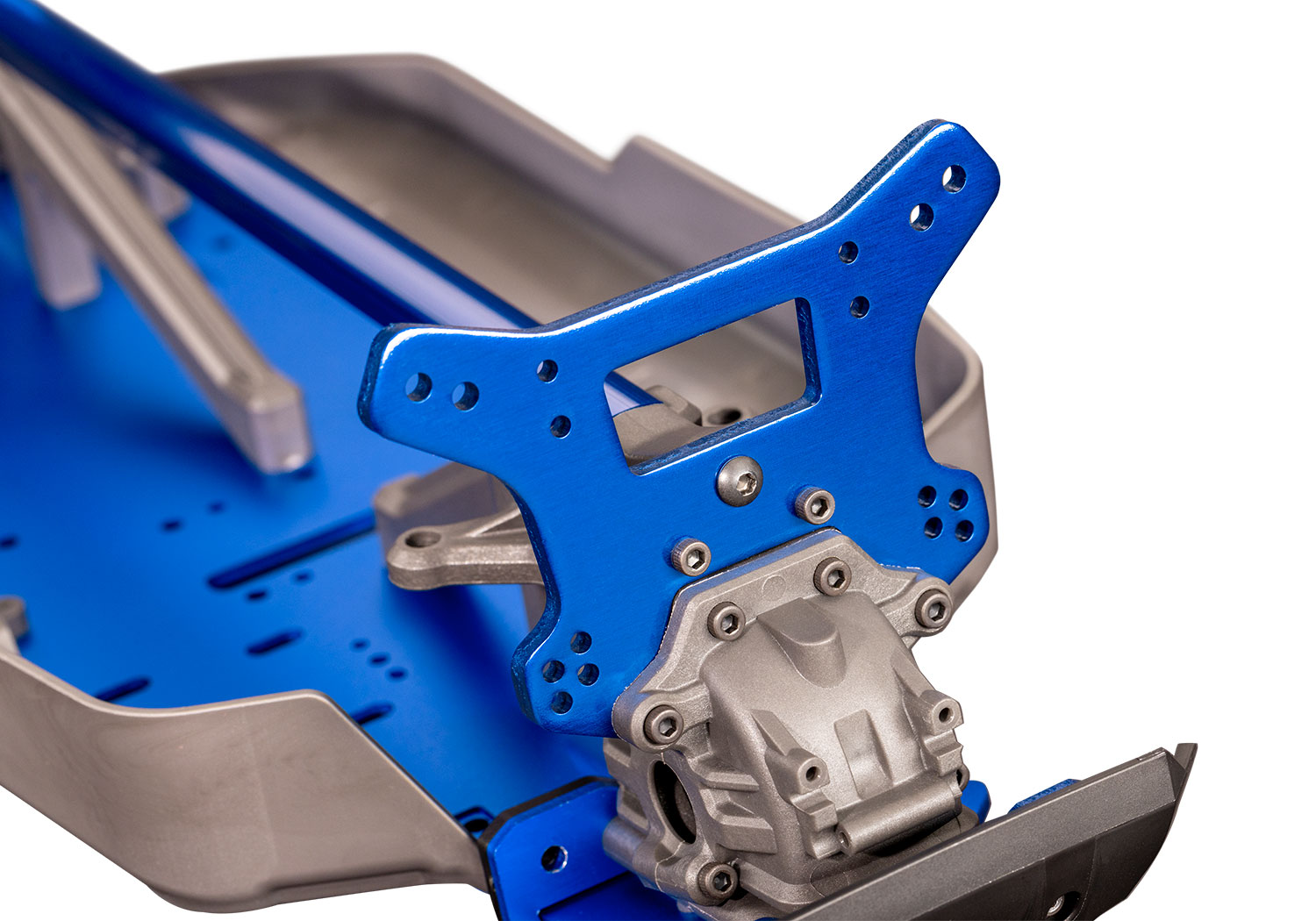

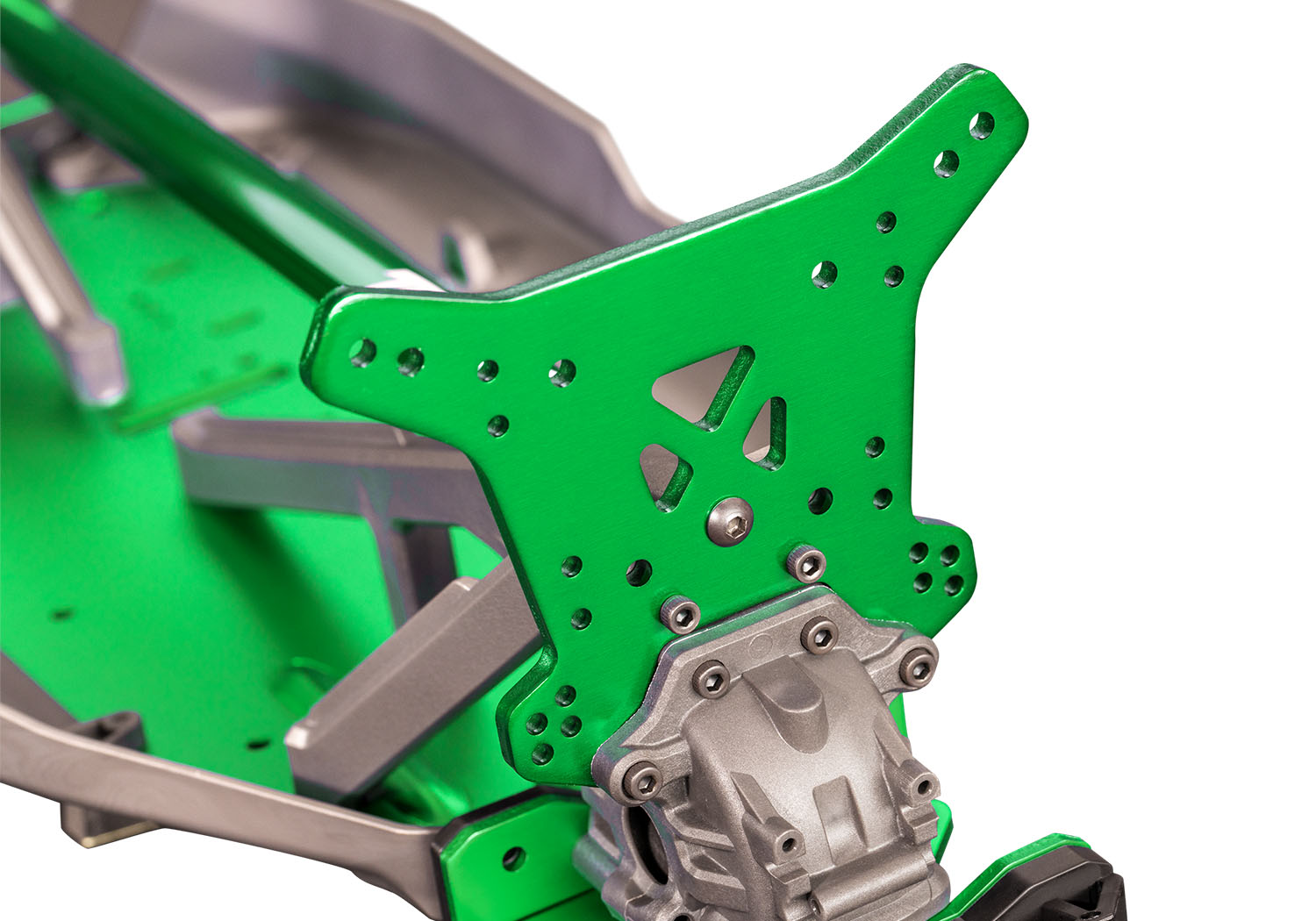

6061-T6 Aluminum Shock Towers
Sledge’s shock towers are cut from 5 mm thick 6061-T6 aluminum and tie directly into the center brace for bulletproof strength and durability.

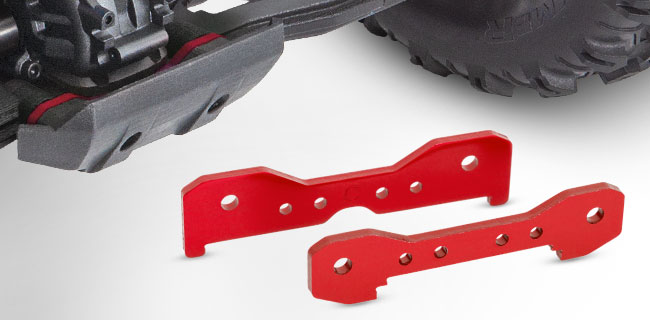

High Strength Hinge Pin Retainers
Heavy-duty 6061-T6 aluminum retainers hold the hardened steel hinge pins firmly in place. This allows for tighter tolerances than conventional sliding pins and sharper handling.

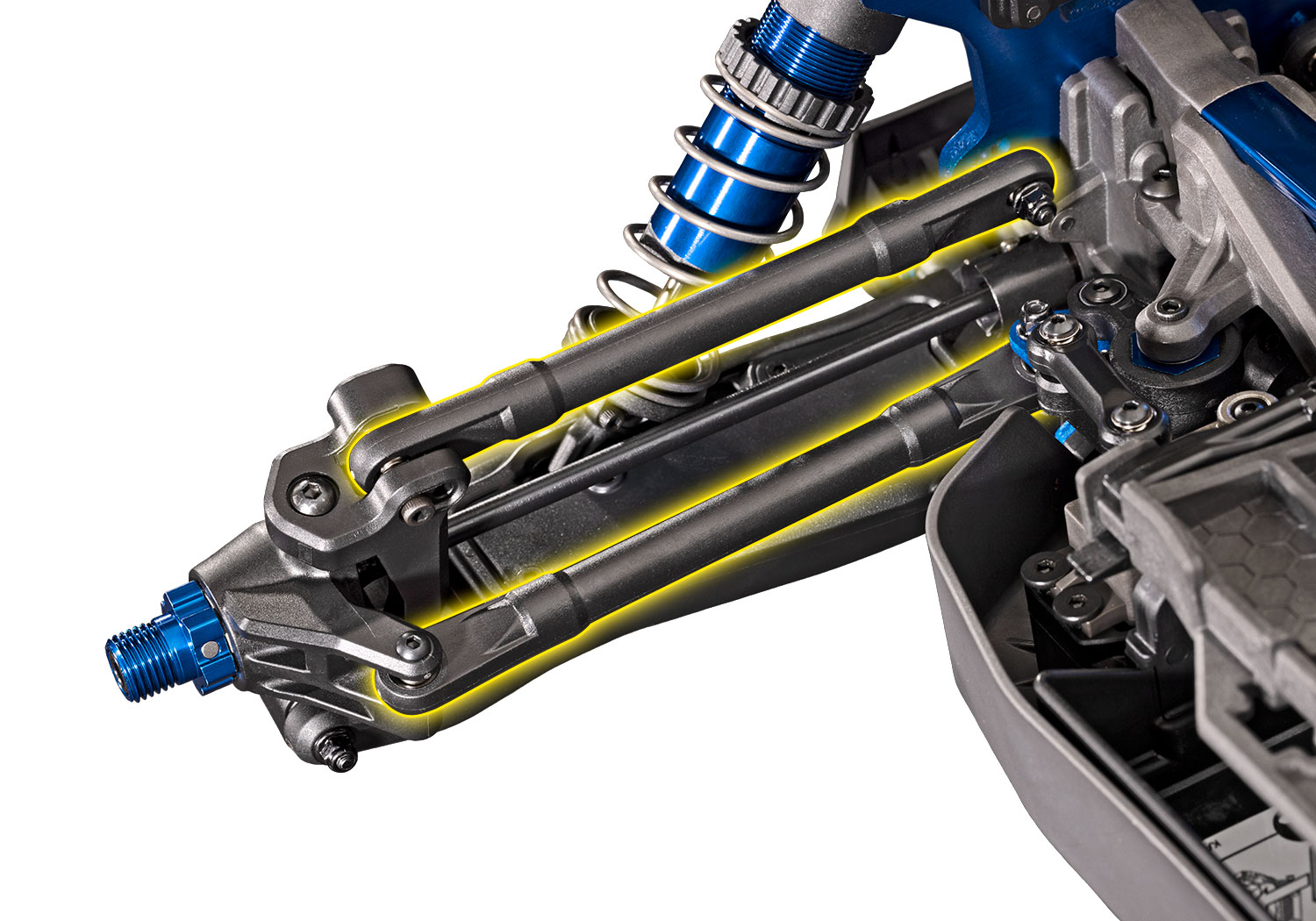

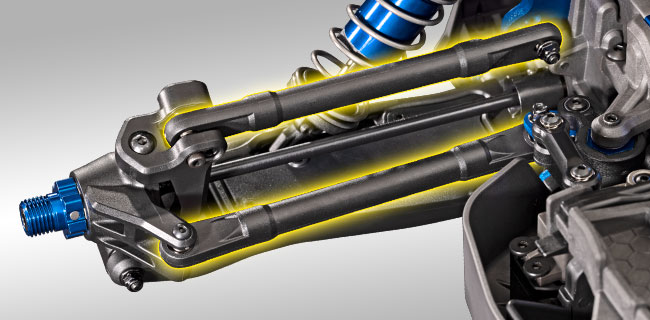

Extreme-Duty Composite Camber & Toe Links
Sledge’s energy-absorbing one-piece links return to shape if flexed and won’t pull apart or bend in a crash. They’re already pre-set for track worthy handling with optimal camber and toe settings.

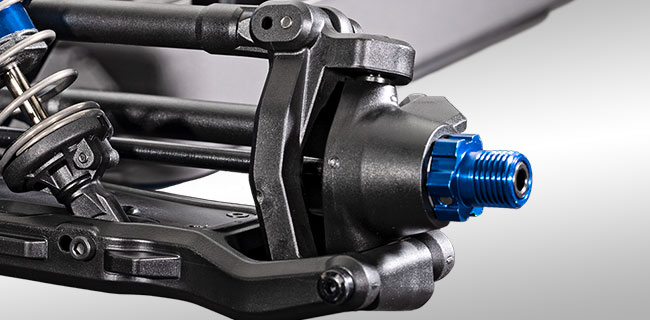

Rugged C-Hubs with Double Shear Connections
Sledge’s rugged C-hub design combines superior durability and impact resistance with precise steering alignment. Double shear connections keep the toe links securely fastened even during hard hits.

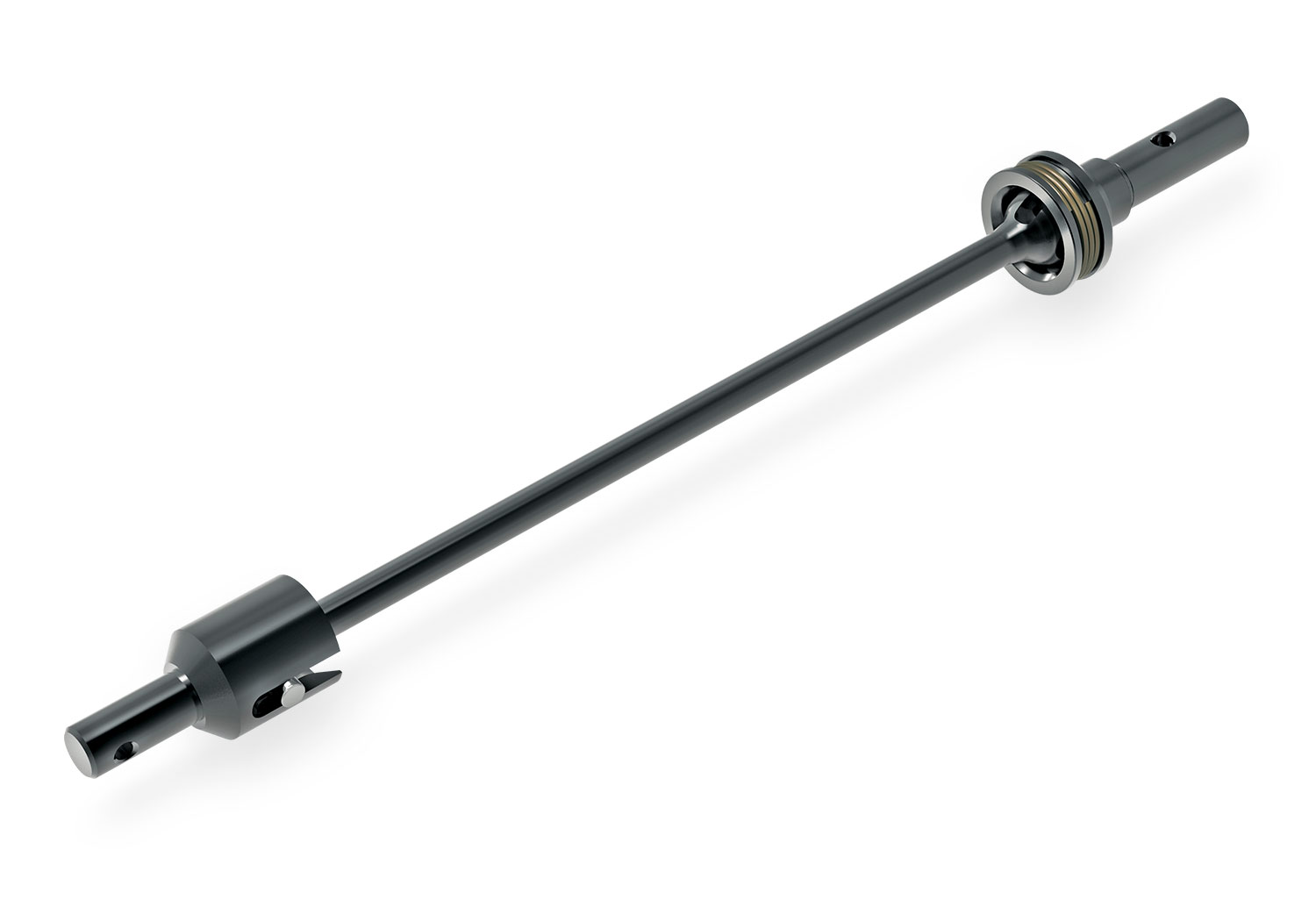

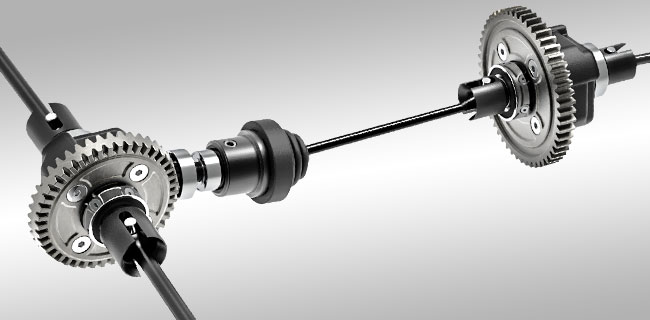

Steel Center Driveshafts
Super-duty solid steel driveshafts deliver power from the Torque-Biasing Center Drive to the differentials. Rubber boots on the joints seal grease in and keep dirt out.

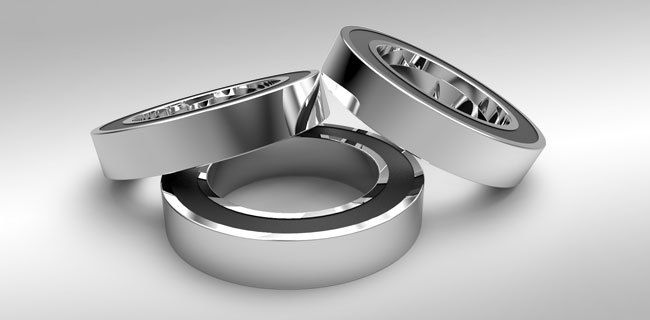

Oversized Sealed Bearings
Traxxas equips Sledge with oversize bearings throughout the drivetrain to ensure lasting precision and performance.

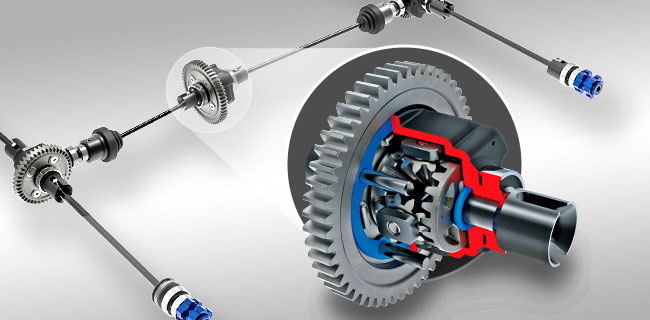

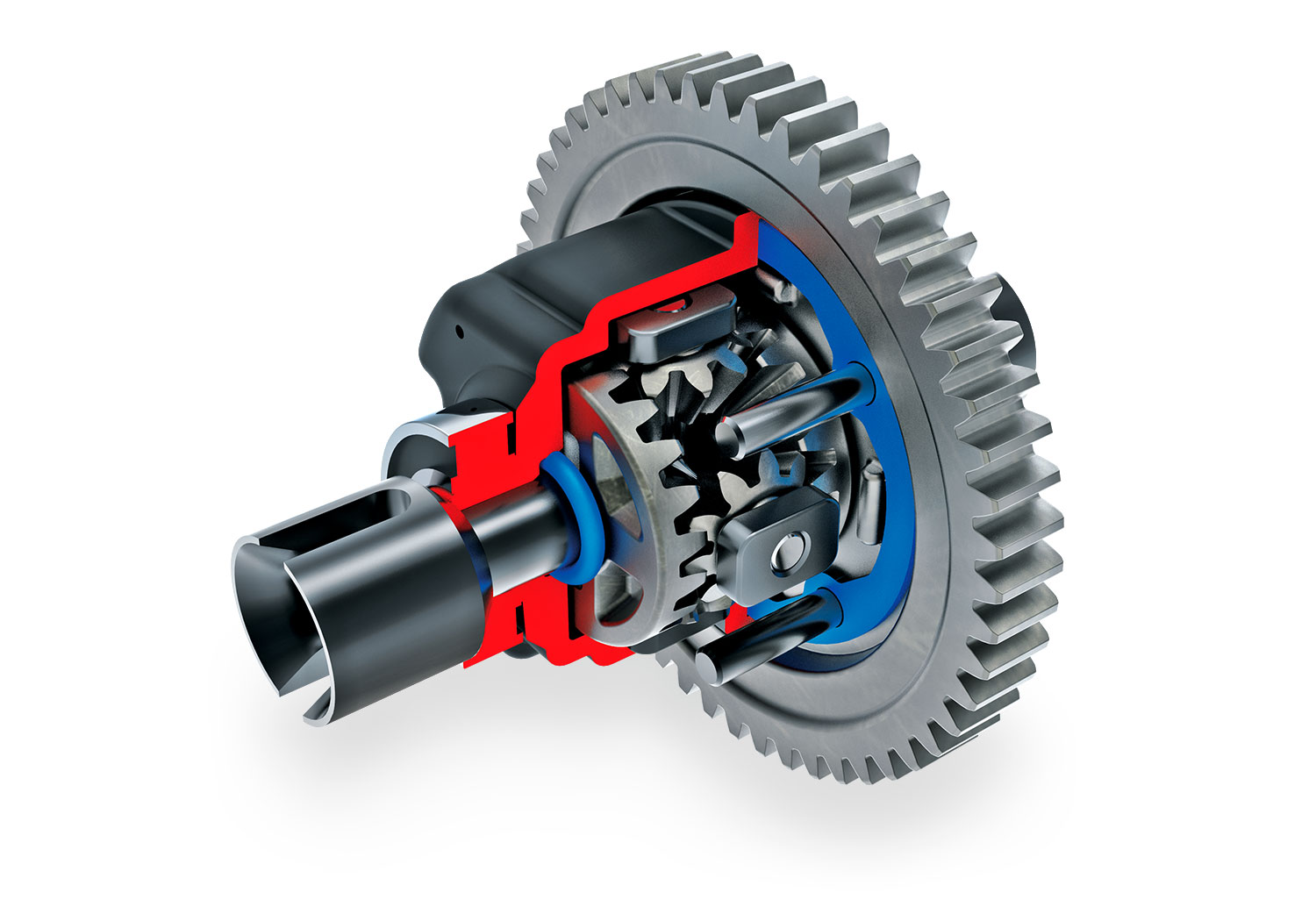

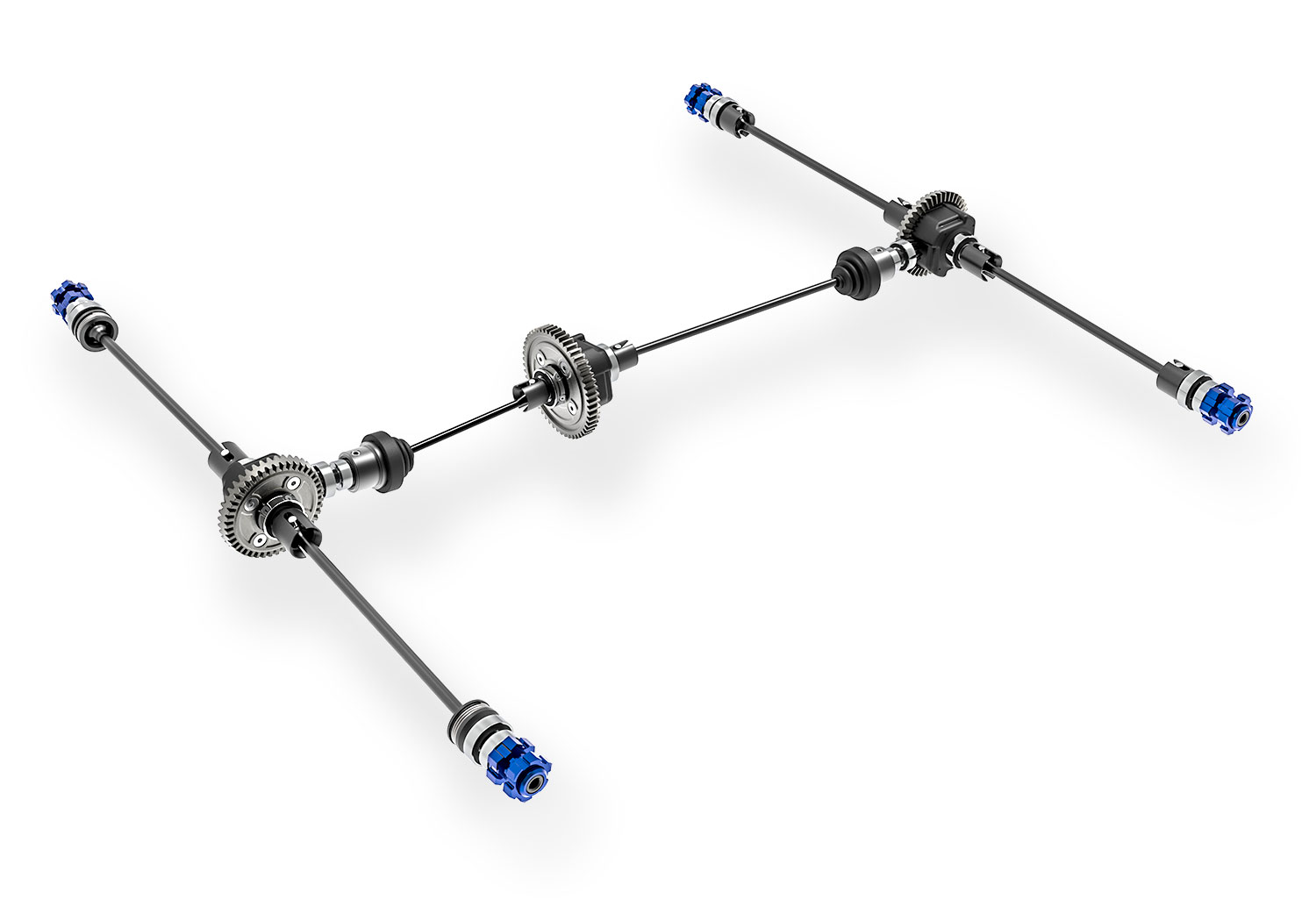

Torque-Biasing Center Drive
Traditional center diffs can’t handle 6s power. Sledge’s Torque-Biasing Center Drive is filled with thick silicone fluid to distribute power evenly for full 6s thrust with every launch and corner exit.

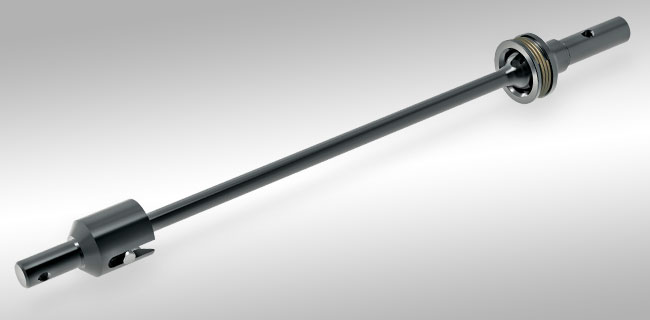

Steel Outer Driveshafts
Solid-steel driveshafts transfer Sledge’s massive 6s power from the differentials to the wheels via heavy-duty dogbones and constant-velocity joints in front so you can be as heavy on the throttle as you want.

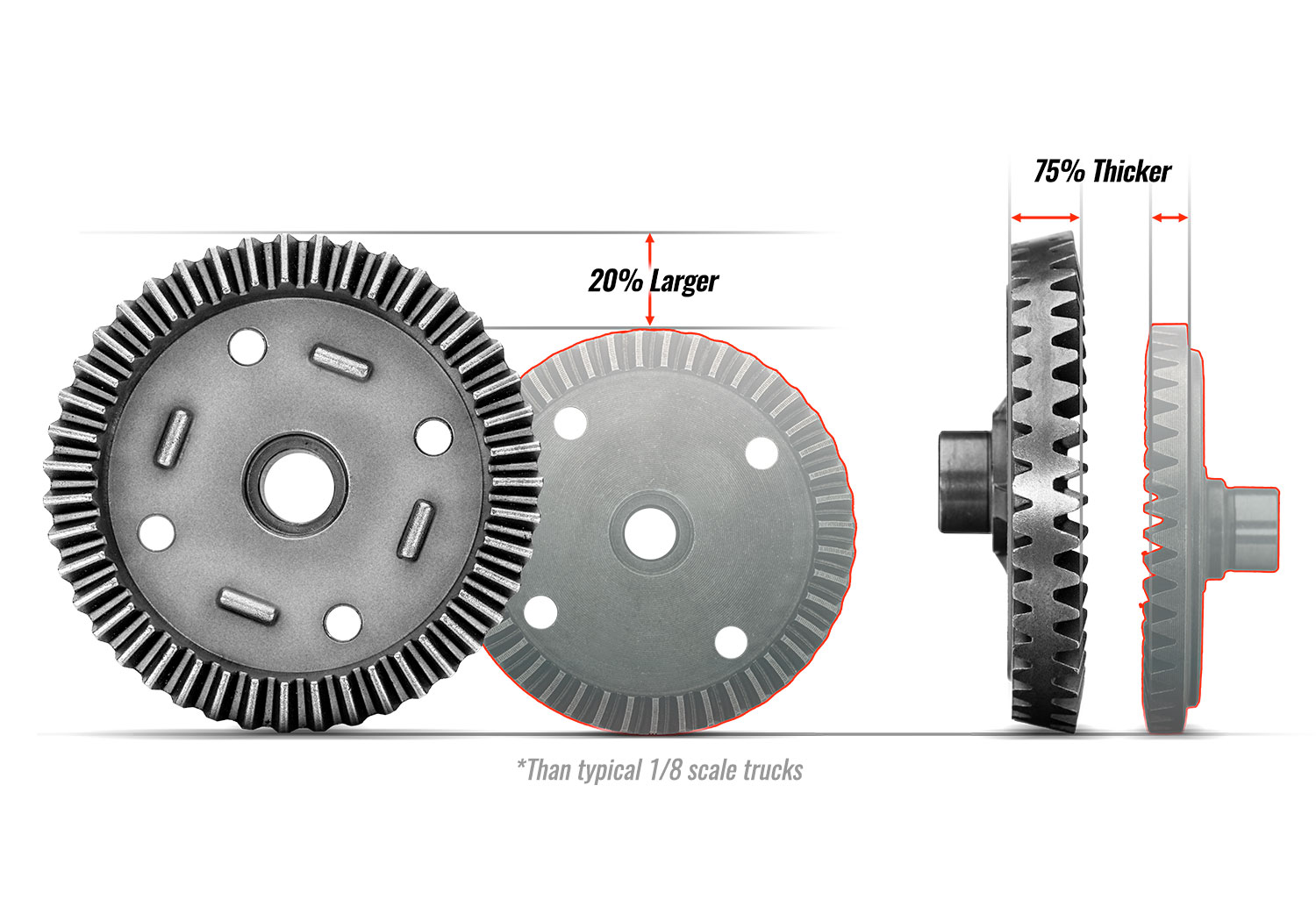

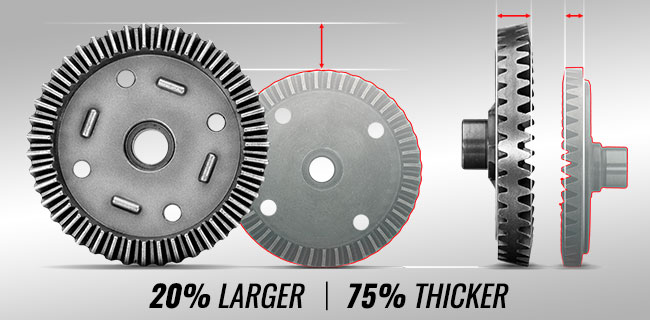

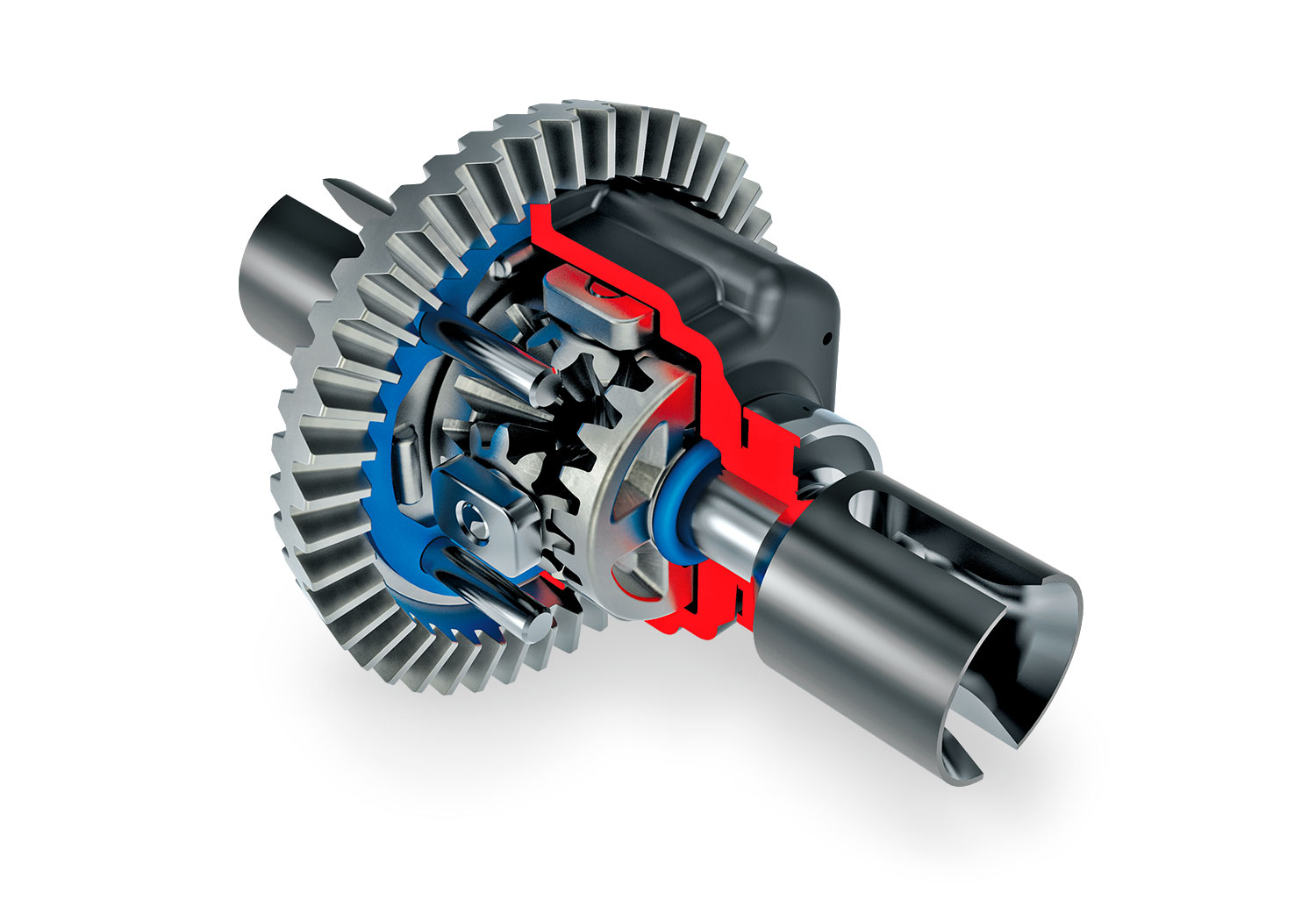

Steel-Gear Differentials
Sledge uses true 6s differentials to handle its ferocious power. Oversized coarse-pitch steel gears are 20% larger and 75% thicker than traditional 1/8 scale components for lasting performance.
Photo Gallery
Make sure you don’t miss any of the latest Sledge® news, accessories, and updates.
Sledge® Data
| Length (including wing): | 23.78 inches (604 mm) |
|---|---|
| Front Track: | 18.10 inches (459 mm) |
| Rear Track: | 18.10 inches (459 mm) |
| Ground Clearance: | 1.95 inches (50 mm) |
| Weight (no battery): | 12.74 pounds (5.77kgs) |
| Height (overall): | 8.43 inches (214 mm) |
| Wheelbase: | 15.10 inches (384 mm) |
| Shock Length (front): | 5.12 inches (128 mm) |
| Shock Length (rear): | 5.67 inches (144 mm) |
| Tire Diameter: | 6.7 x 3.3 inches (170 mm x 84 mm) |
| Wheel Diameter: | 3.8 inches (97 mm) |
| Speed Control: | Velineon® VXL-6s (3485) |
| Motor (electric): | Velineon® 2000 kV Brushless |
| Overall Drive Ratio: | 17.2 (13/52 motor pinion and spur gear) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | Module 1.0 |
| Chassis Structure/Material: | 3.2 mm aluminum plate |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank w/metal servo arm |
| Wheels & Tires: | 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8 |
| Radio System: | 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver |
| Servo: | 2275 Waterproof, metal-gear (347 oz-in torque) |

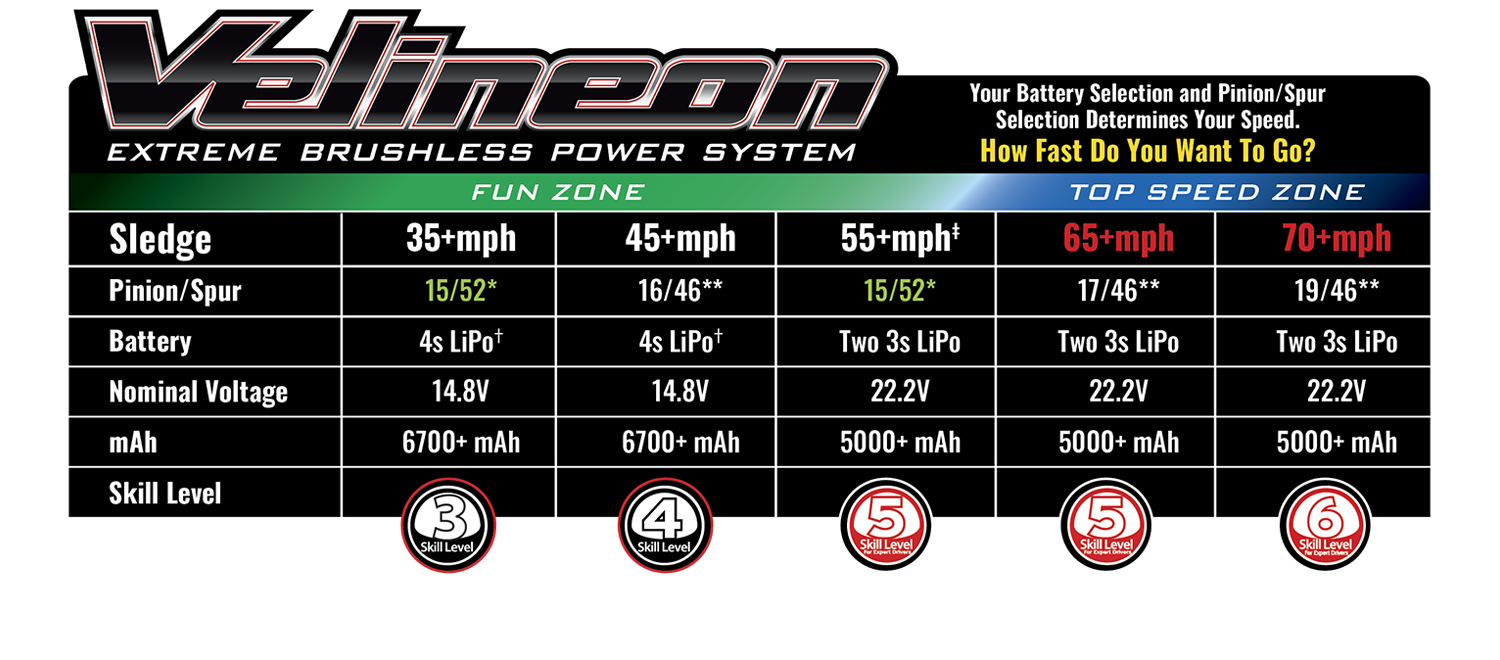

| Top Speed: | 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately) |
| Skill Level: | 4 |
| Battery Tray: | Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm* Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm* |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |
| Type: | 2000 kV sensorless brushless |
|---|---|
| Weight: | 14.32 ounces (406 g) |
| Length: | 2.97 inches (76 mm) |
| Diameter: | 1.65 inches (42 mm) |
| Connector Type: | Traxxas 6.5 mm bullet connectors |
| Input Voltage (cells): | 4s–6s LiPo (max: 25.2 volts) |
|---|---|
| Case Size: | 2.28 inches (58 mm) x 2.83 inches (72 mm) x 1.81 inches (46 mm) |
| Weight: | 7.30 ounces (207 g) |
| BEC Voltage: | 6.0 volts |
| BEC Current Continuous: | 10 amps |
| BEC Current Peak: | 20 amps |
| Reverse Delay: | Yes, with lockout |
| Ports: | RX input, auxiliary fan, Traxxas accessory port |
| Motor Type: | Brushed | |
|---|---|---|
| Operating Voltage: | 6.0 V | 7.4 V |
| Torque: | 347 oz-in | 486 oz-in |
| Speed: | 0.25 sec/60° | 0.16 sec/60° |
| Weight: | 67 g | |
| Gears: | Metal | |
| Output Spline: | 25T | |
| Case: | Plastic top/bottom, anodized aluminum center | |
| Controller: | Digital | |
- VXL-6s Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Patented Traxxas High-Current Connectors
- Velineon® 2000 kV Brushless Motor
- 4-pole 2000 kV brushless motor
- 5 mm output shaft
- Finned can for better heat dissipation
- Aluminum motor cradle mount
- Supports entire motor
- Reduces flex for longer gear life
- Up to 70+ mph with Two 3s LiPo Batteries
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4 GHz High Output Radio System
- TQi™ 2-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security

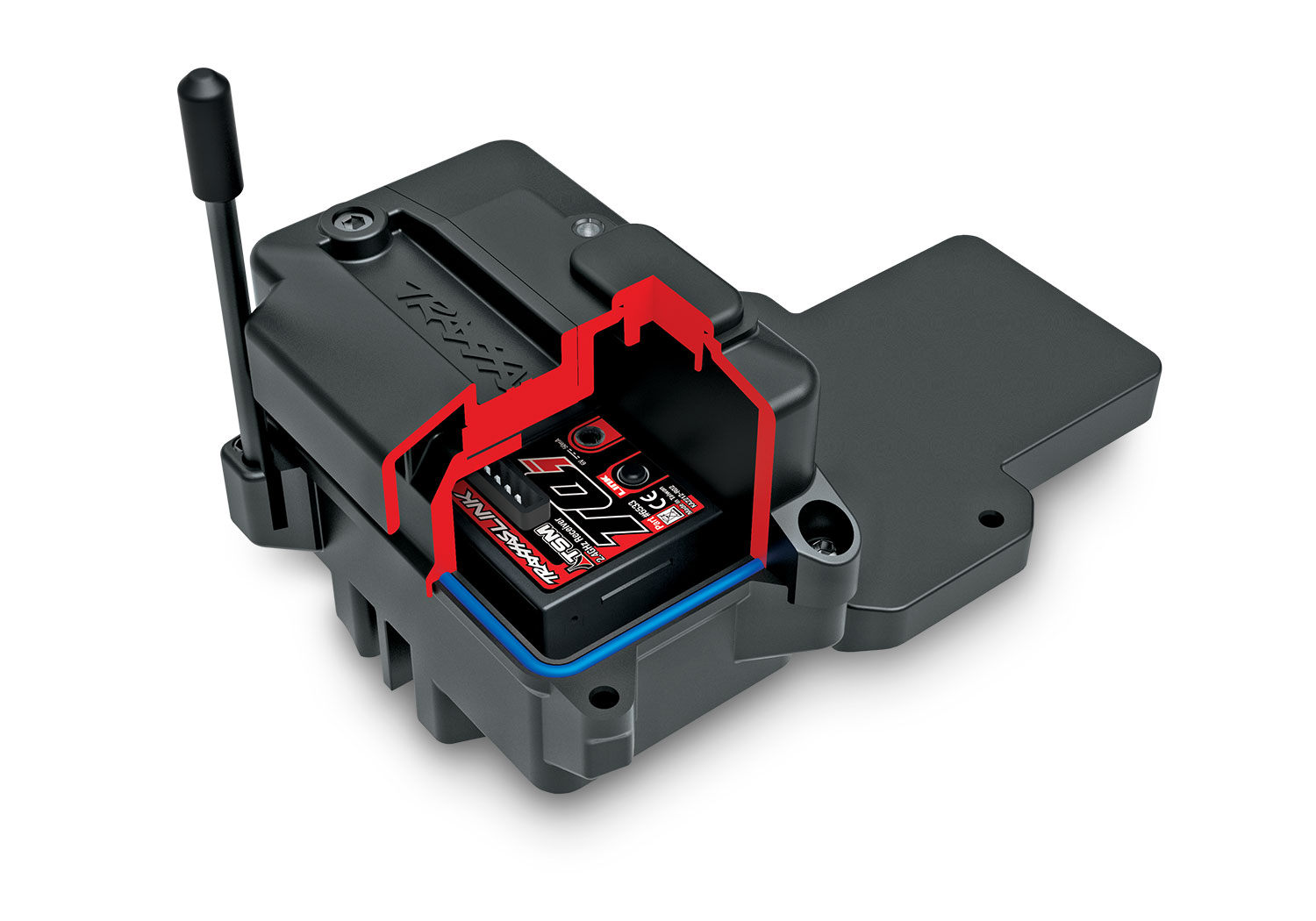

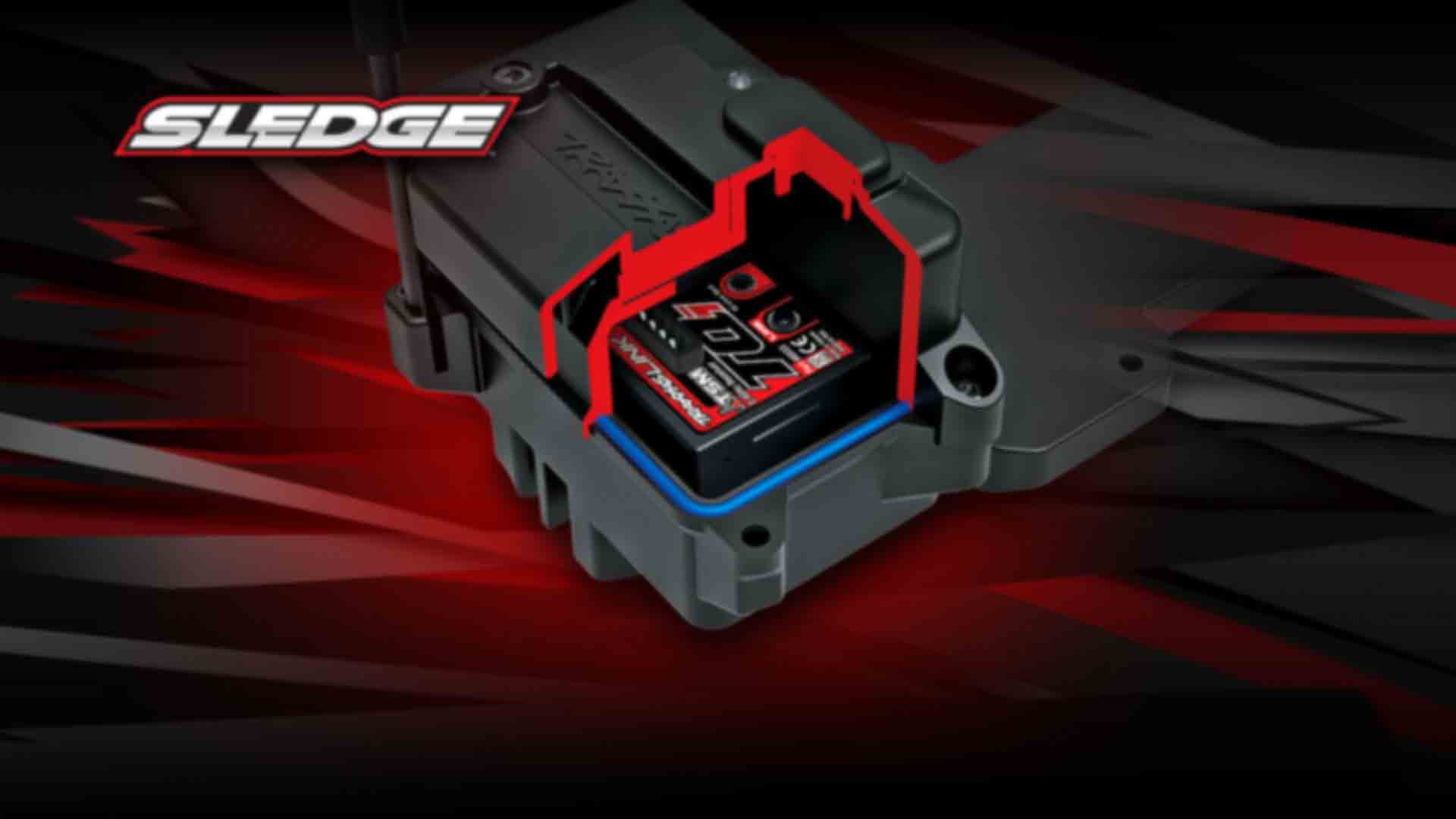

- Patented waterproof receiver box with easy-access plug
- Drivetrain
- Heavy-duty steel driveshafts
- Large 8 mm steel stub axles
- Steel dogbone center driveline
- Protective rubber boots on differential inputs
- Transmission
- Mod-1 pinion and spur gears
- Fixed gear mesh system
- Torque-Biasing Center Drive
- Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Oversize 8 mm output shafts
- Steel drive cups
- Easy-access bulkheads
- Oil-filled GT-Maxx® Shocks
- Longer rear shocks for more travel
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower cartridge with dual X-rings
- Height-adjustable spring retainer
- Lower spring perches bolted on
- Suspension
- Performance-optimized geometry
- Ultra-tough composite arms
- Made from our strongest cold-weather material
- Molded insert for clean look
- Rear rock deflectors
- Press-in hinge pins to reduce play
- Oversize molded toe and camber links
- Heavy-duty C-hubs
- Stronger than conventional designs
- Require no adjusments
- Multiple mounting points for suspension tuning
- Chassis
- 3.2 mm ribbed aluminum chassis
- Formed edges for improved strength
- Thick T-Bar™ for added rigidity
- Stronger than round bars
- High-strength buttressing on shock towers
- Ultra-thick 5 mm 6061-T6 aluminum shock towers
- Rugged locking battery compartment with quick-release door
- Low-CG design for improved handling
- Interlocking components for tight tolerances
- Tough front and rear bumpers double as skid plates
- Hidden wire management for clean appearance
- ProGraphix® Body
- Clipless body mounting system
- Rigid internal frame
- Molded body reinforcements for tear-through protection
- Protective roof skids
- Rugged high-downforce rear wing
- Wheels and Tires
- Huge 6.7″ Belted Sledgehammer® all-terrain tires
- Virtually eliminates ballooning at high speeds
- Open tread block design
- 2-piece foam insert
- Tough 3.8″ black wheels
- Splined 17 mm aluminum axle hubs
- Huge 6.7″ Belted Sledgehammer® all-terrain tires
- Steering
- High-throw bellcrank steering design
- Heavy-duty servo saver with aluminum posts
- Metal servo horn
- Powerful 2275 metal gear servo
- 347 oz-in torque
- Fully waterproof
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating

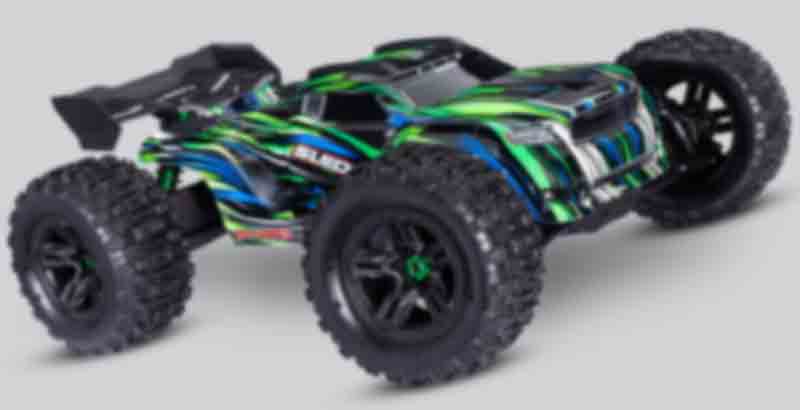

What’s In The Box:
- Sledge, Ready-To-Race® monster truck with Traxxas 2000 kV brushless motor
- VXL-6s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
- Jumper plug (for 4s battery use)
What You’ll Need:
- LiPo Batteries
Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD™
Traxxas EZ-Peak® Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
