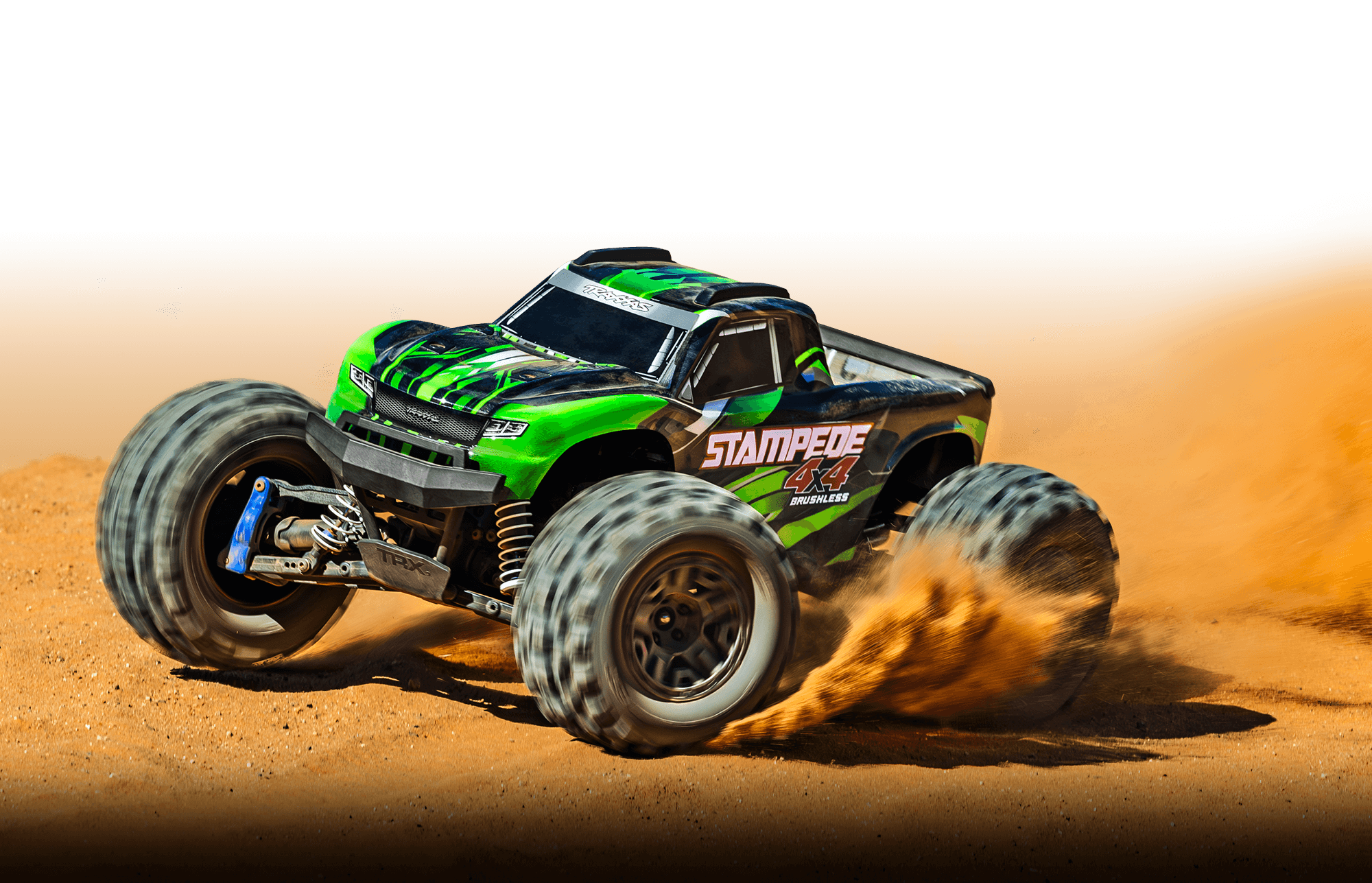

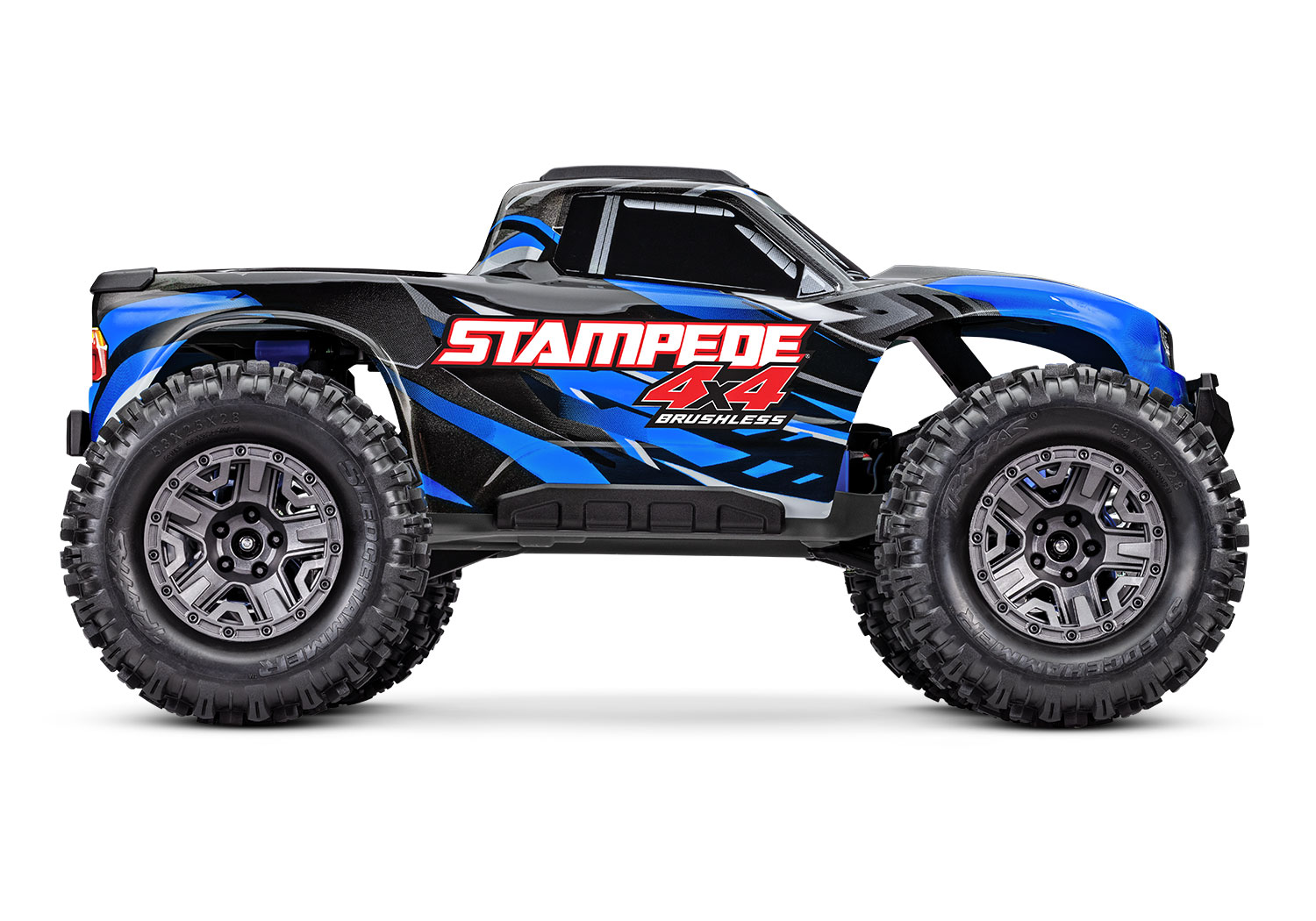

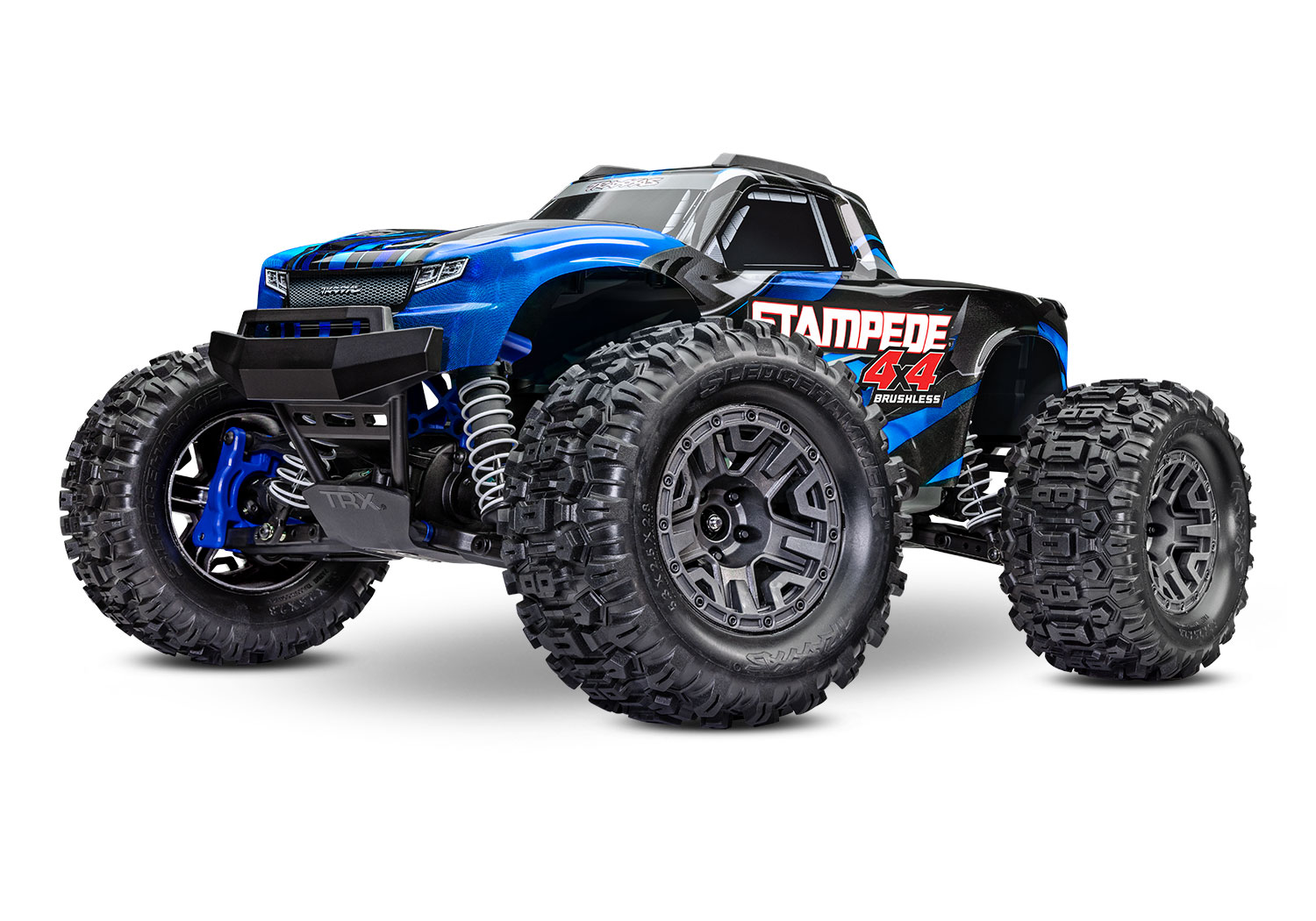

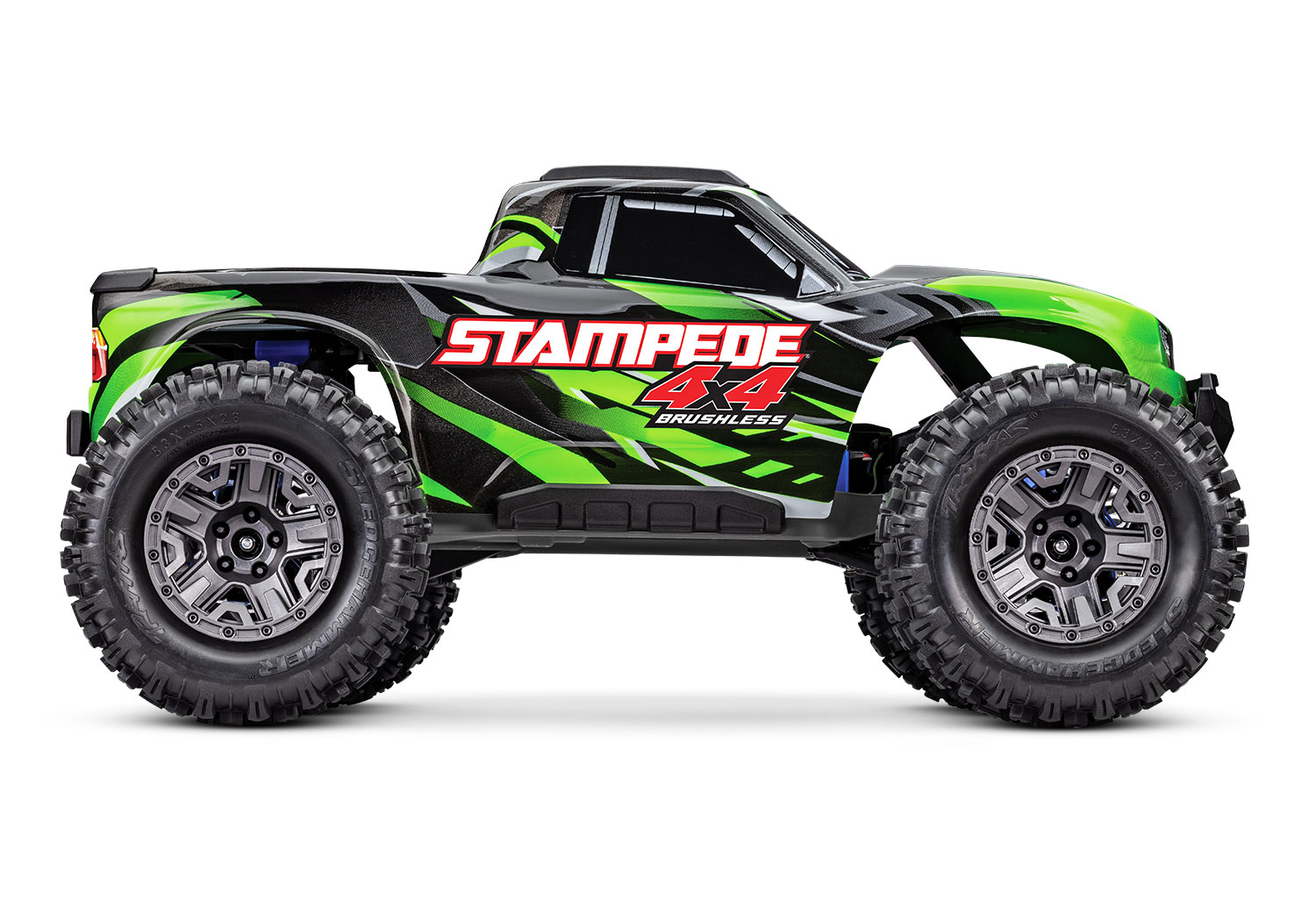

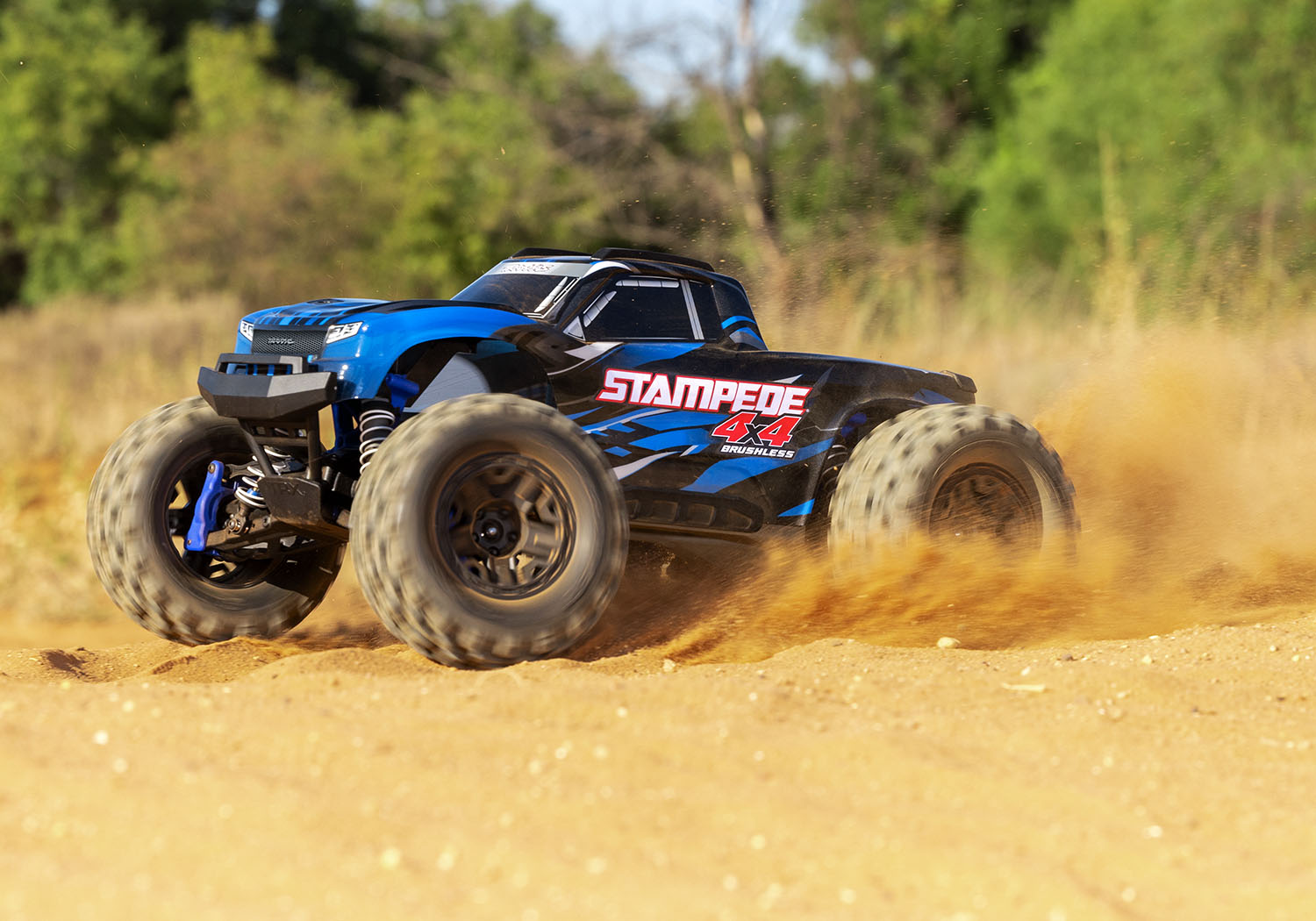

Bigger and Stronger than Ever!
Stampede® 4X4 is bigger and stronger than ever with a new clipless body, extended chassis, and huge 5.3″ Sledgehammer® tires for an aggressive monster truck stance. Stampede’s all-new BL-2s™ brushless power system delivers effortless power for all-day fun with an added boost of torque for terrain-shredding burnouts and powerful acceleration. Stampede 4X4 also comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

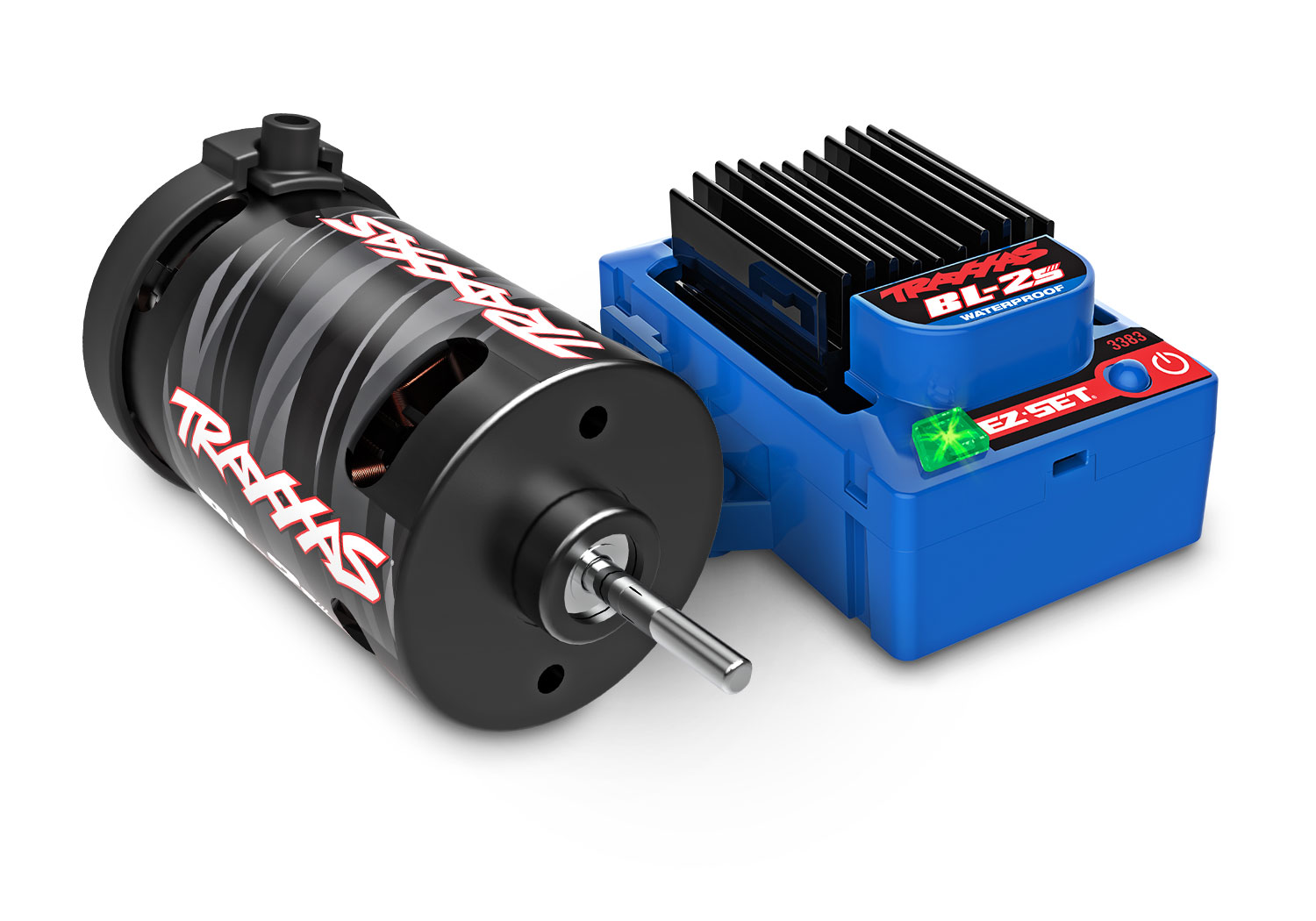

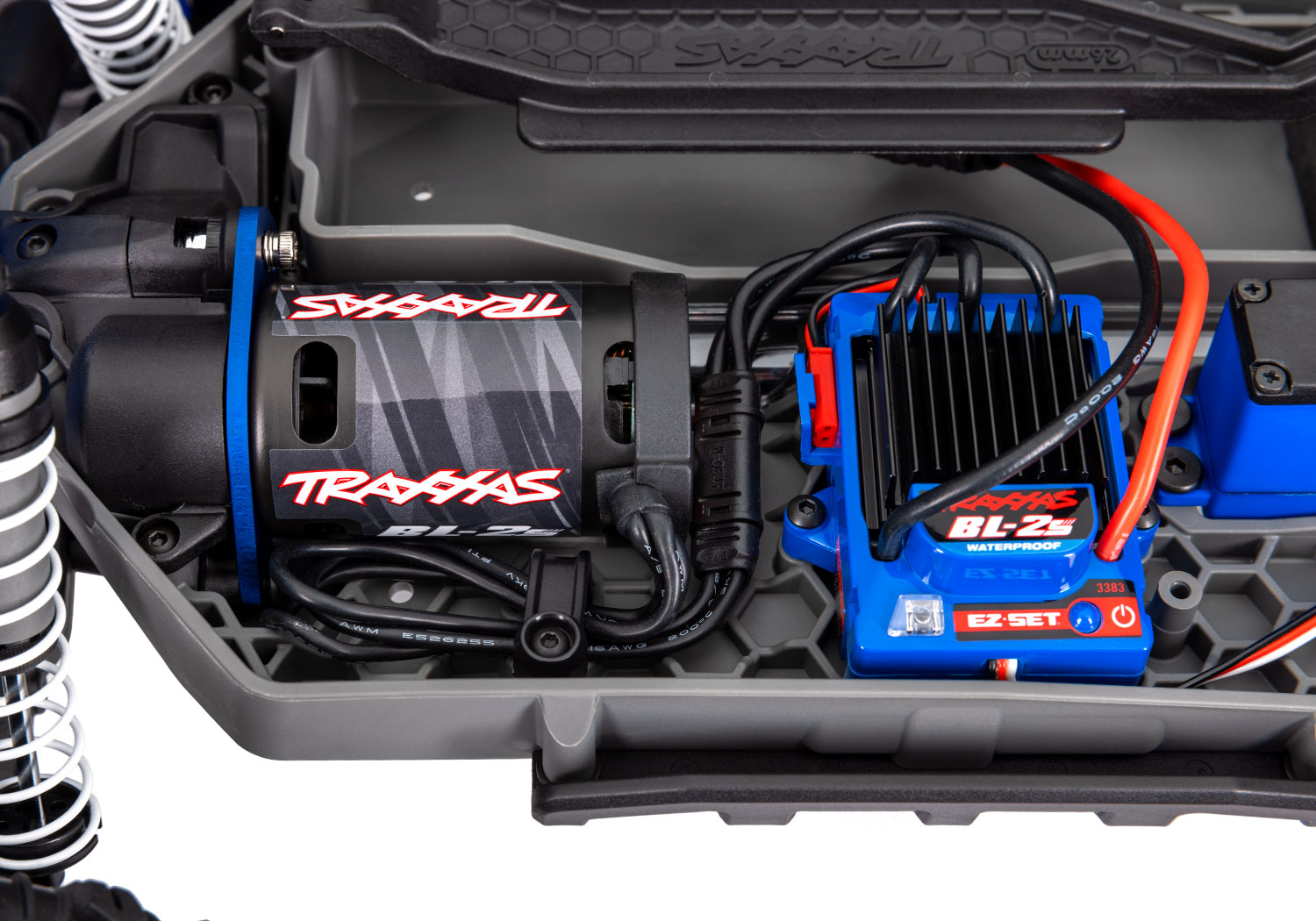

New BL-2s Brushless Power System
Stampede 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Stampede 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.

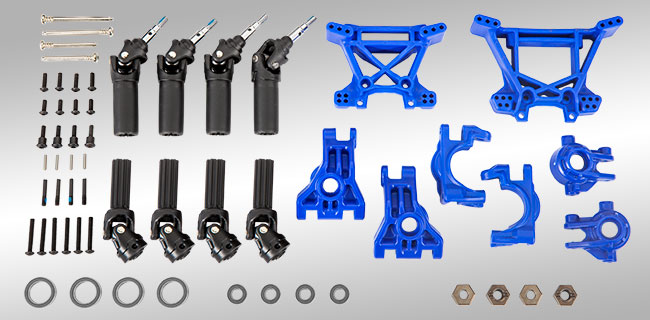

Extreme Heavy Duty Upgrade Kit
Stampede 4X4’s factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Stampede.

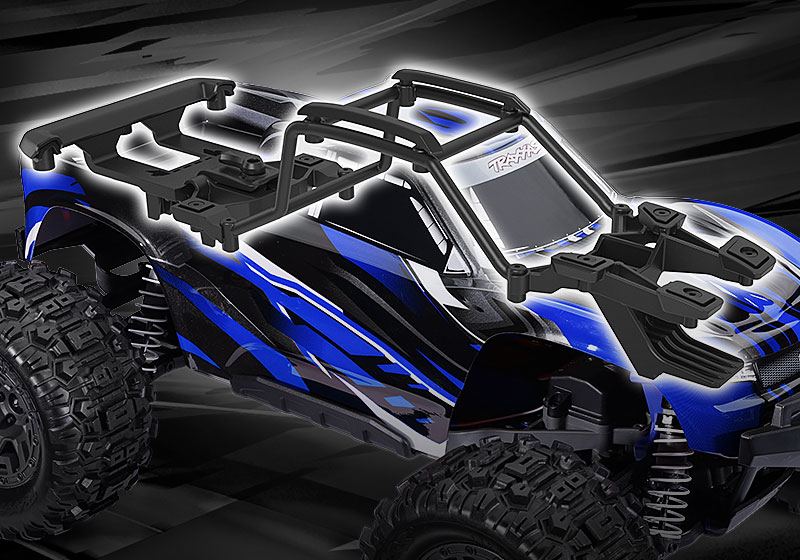

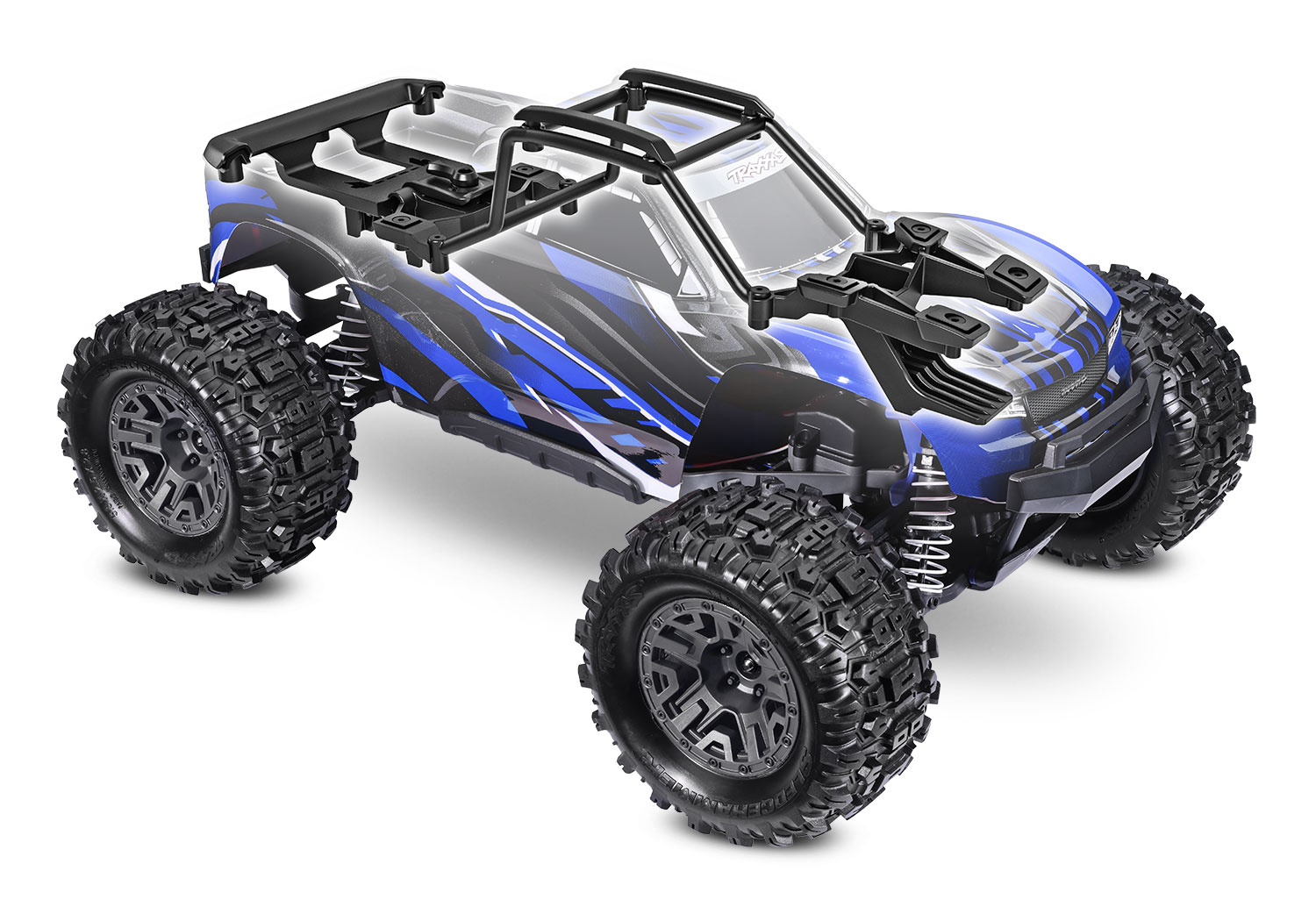

Clipless Body Mounting
Stampede 4X4 now uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. A rugged internal cage attaches to the body with molded reinforcements to prevent pull-through damage. Tough roof and tailgate skids protect the body in the event of a rollover.
BL-2s Brushless Combo
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Model #67154-4$329.95
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Video
Innovation
Details

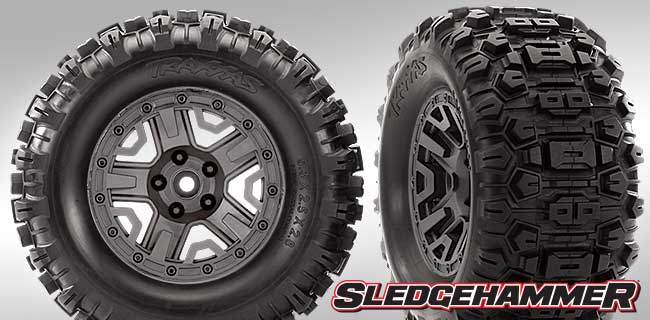

Sledgehammer Tires and 2.8″ Graphite Gray Wheels
Large 5.3″ Sledgehammer tires combine excellent ground clearance with true mud-slinging fun. The open-block tread design claws into gravel, dirt, and grass for sure-footed 4X4 traction on nearly any surface. The heavy-duty rubber compound is specially formulated to resist tearing and bonds exceptionally well to the aggressive wheels.

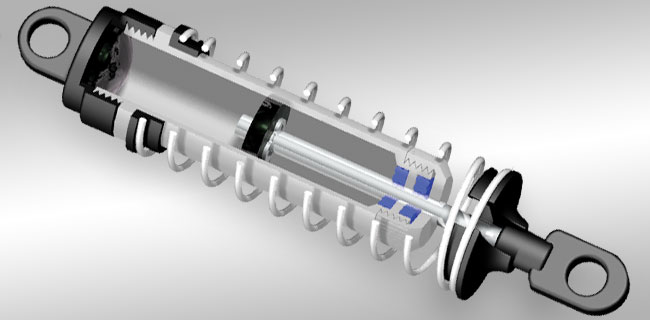

Oil-Filled Ultra Shocks™
Stampede 4X4’s oil-filled Ultra Shocks utilize dual X-ring technology for a perfect seal and silky-smooth performance. The large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.

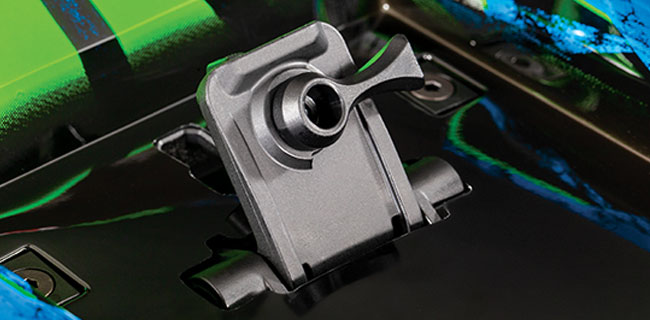

Secure Body Latch™
Stampede 4X4’s clipless ProGraphix® body mounts on specially designed shock towers. The easy-to-use latch unlocks instantly with the quick swipe of a thumb and locks again with a noticeable detent to let you know it’s securely fastened.

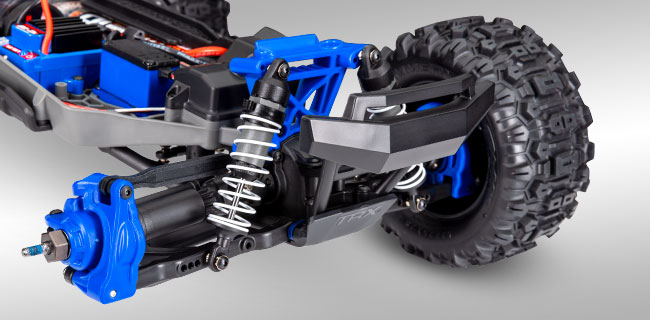

Long-Travel Suspension
Stampede 4X4 has huge amounts of seemingly bottomless, ultra-plush suspension travel to swallow up jumps and delivers incredible control. Performance-optimized suspension components provide maximum articulation without binding or interference.

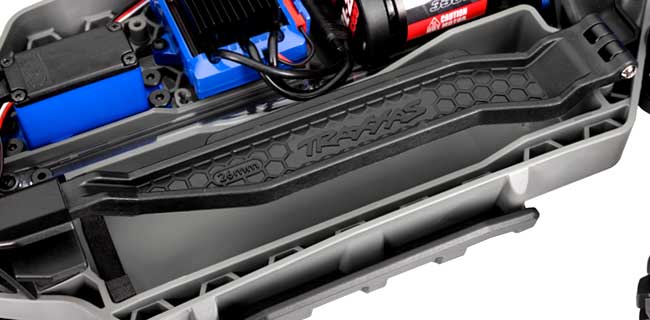

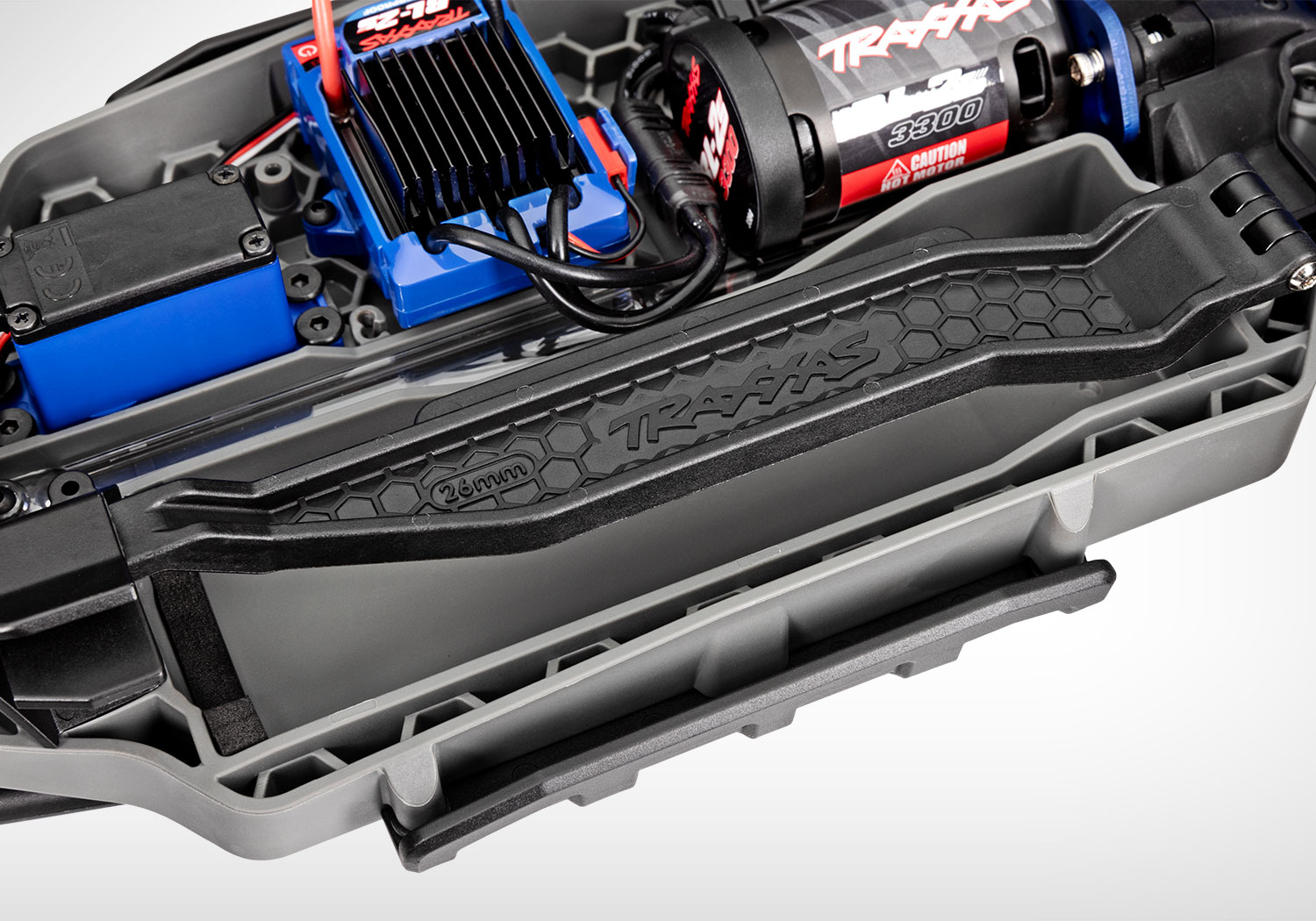

Extended Battery Tray and Hold-Down
Stampede 4X4’s new extended chassis accommodates long-format batteries for greater flexibility. A rugged battery hold-down secures the battery safely in the chassis without flimsy straps or clips to lose. They battery latch provides solid locking action to keep batteries safe no matter how wild the action gets.

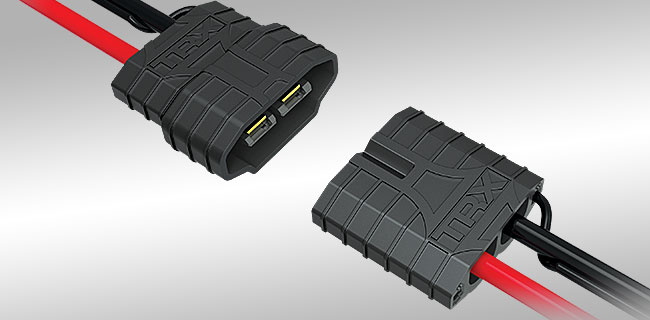

Traxxas High-Current Connector
The patented High-Current Connectors funnel maximum power to the vehicle’s electronics. High-Current Connectors also provide the quickest, safest charge for Traxxas batteries.

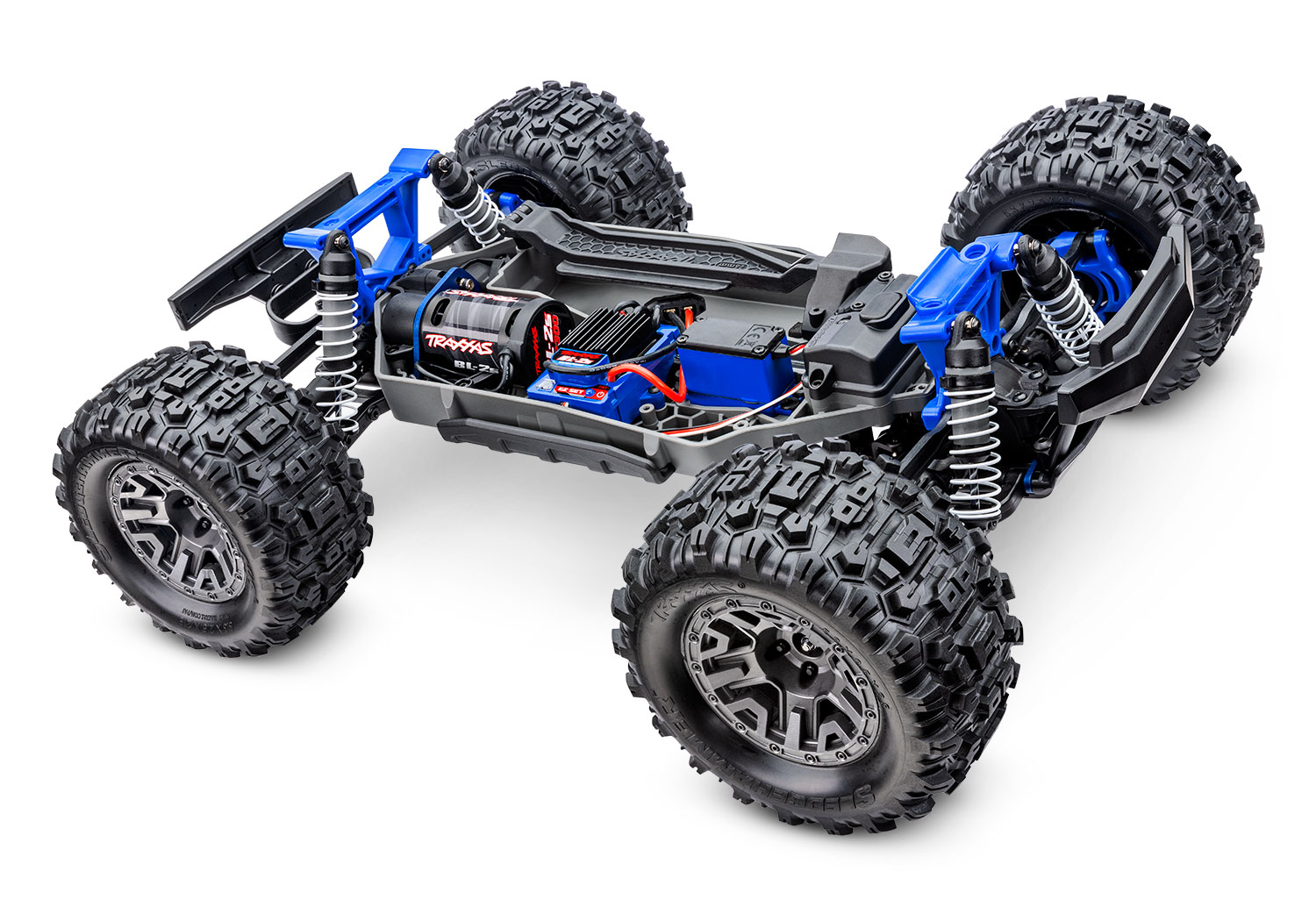

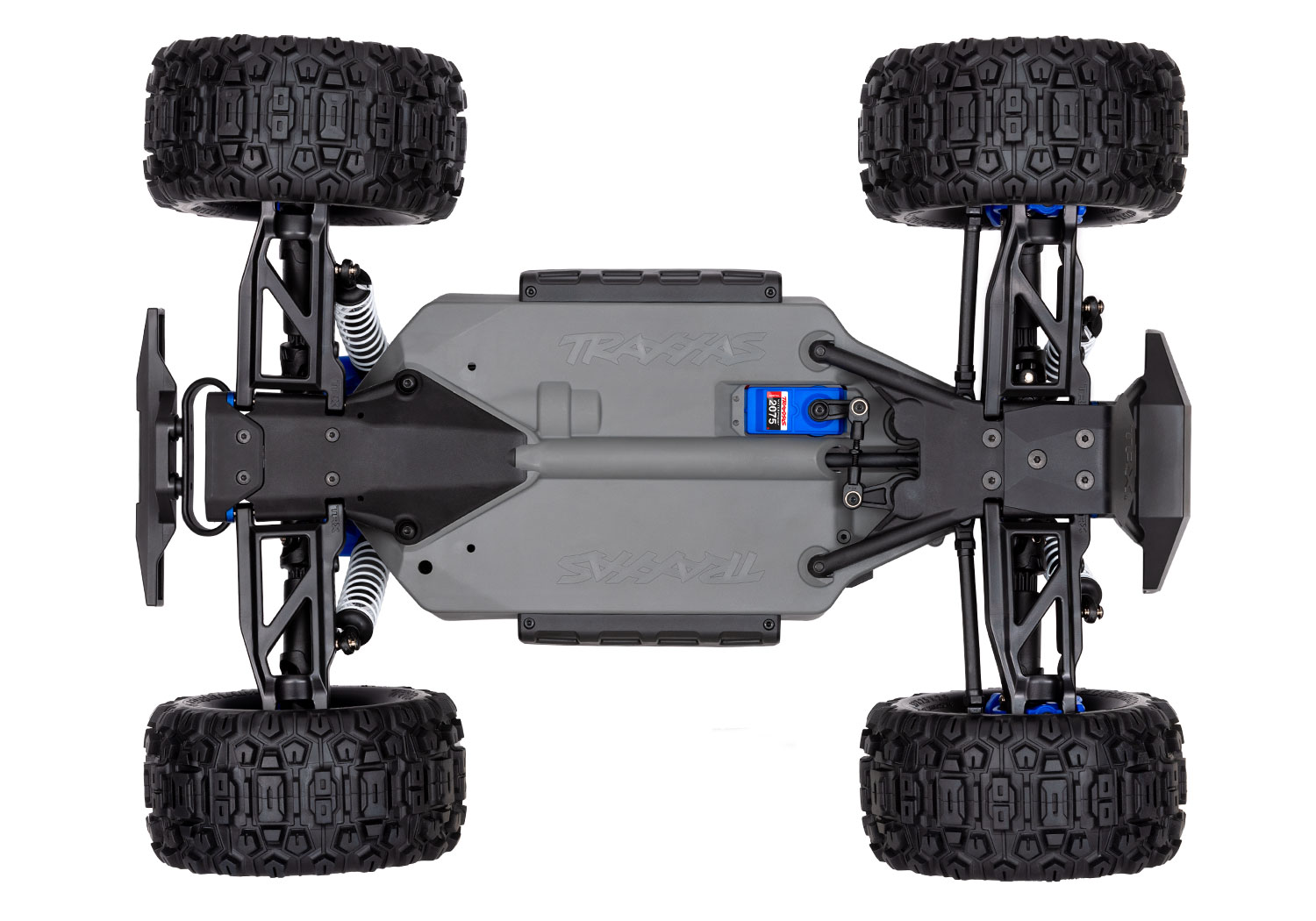

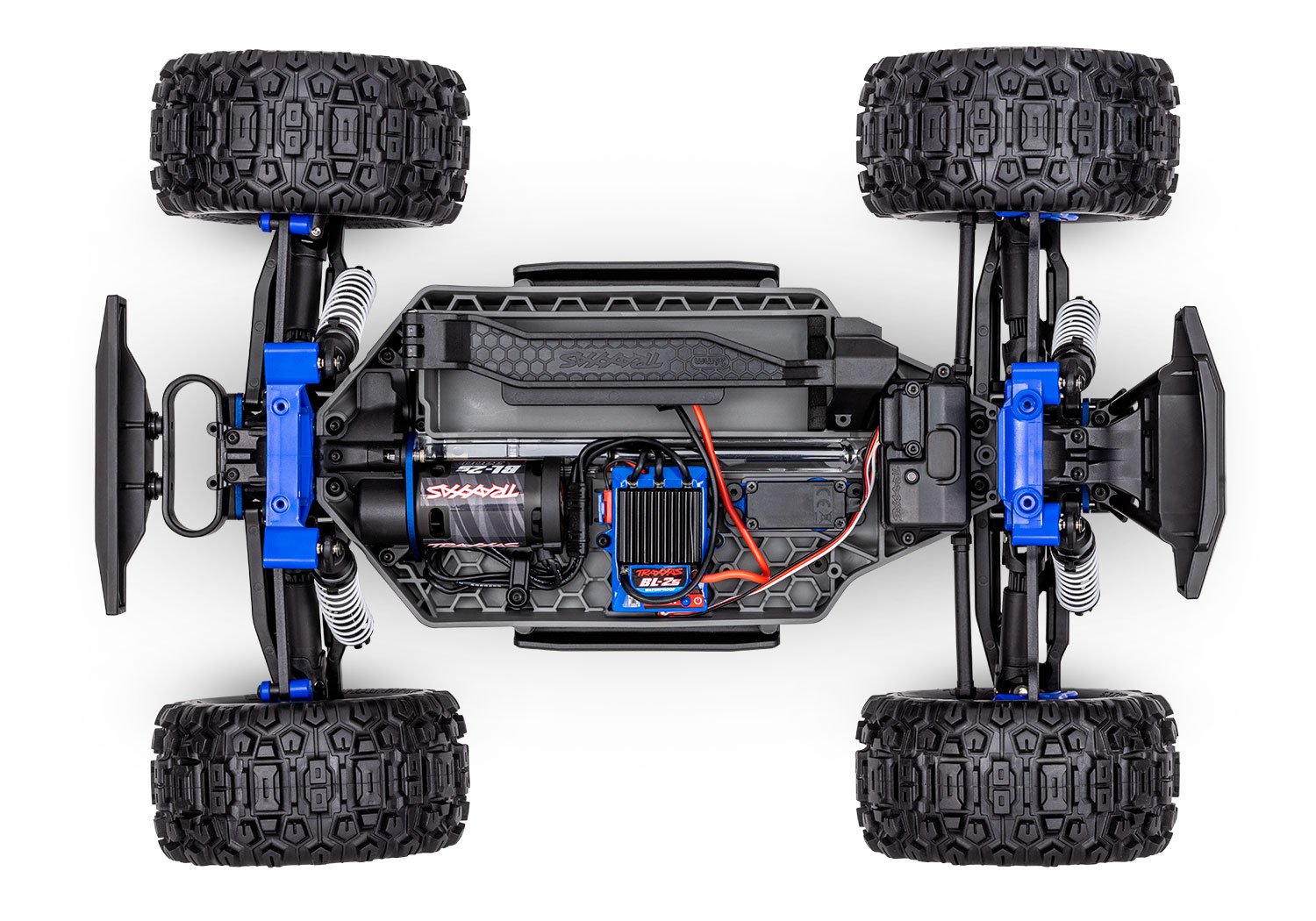

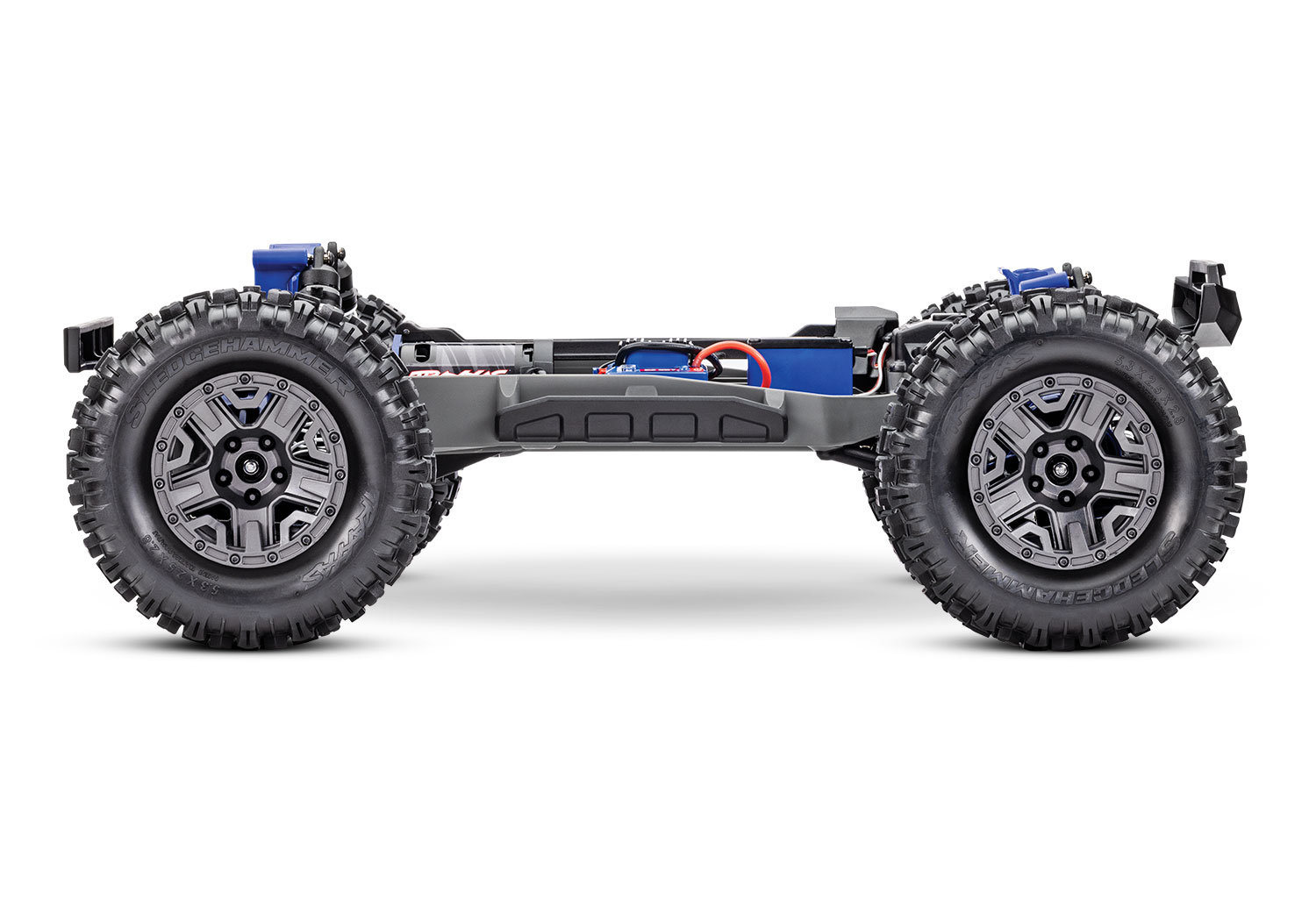

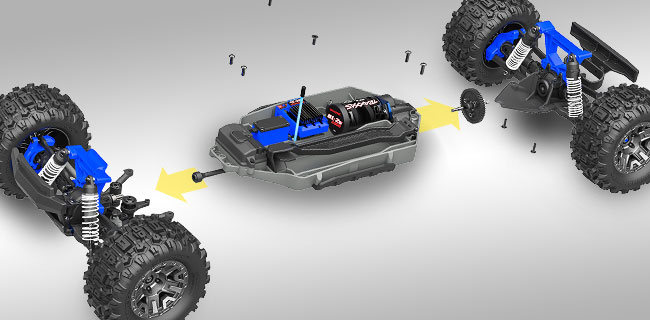

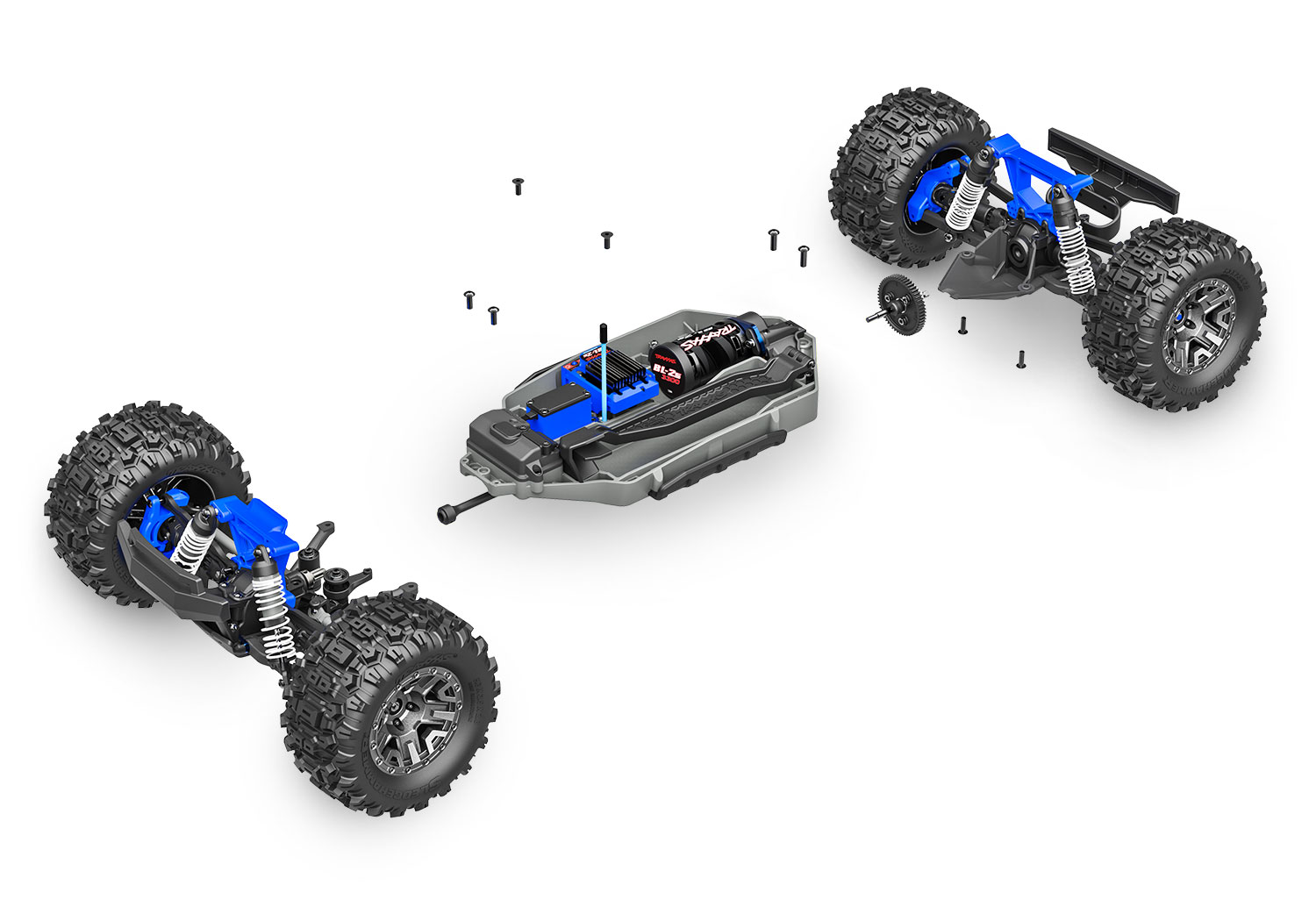

Modular Chassis
Stampede 4X4’s modular design creates a chassis that’s both strong and easy to maintain. The front and rear bulkheads remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.

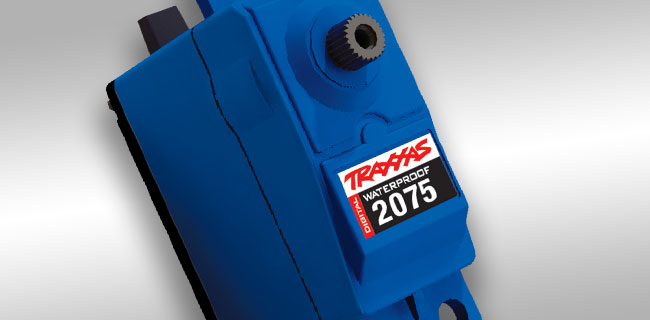

Digital High-Torque Waterproof Steering Servo
Stampede 4X4’s extreme speed and tall Sledgehammer tires require a steering servo that’s both strong and durable. The waterproof 2075 digital high servo provides robust steering authority with ball bearings for precise control and quick reflexes.

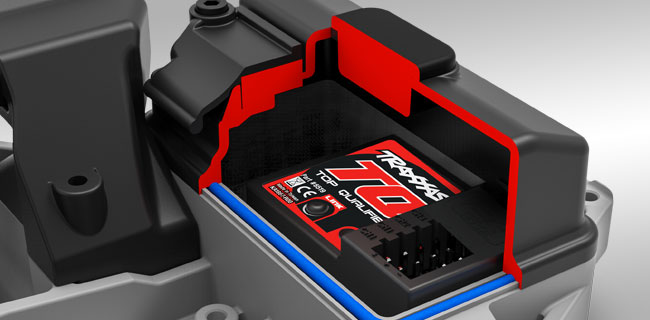

Waterproof Receiver Box
Stampede 4X4 incorporates a waterproof receiver box in the nose of the chassis to save weight and provide a clean, high-tech appearance. The antenna and servo wires route neatly through a patented watertight seal to protect the receiver from water. No matter what the weather, Stampede is ready for action!

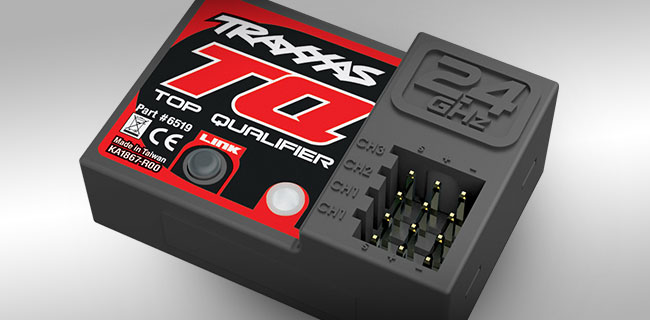

3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.

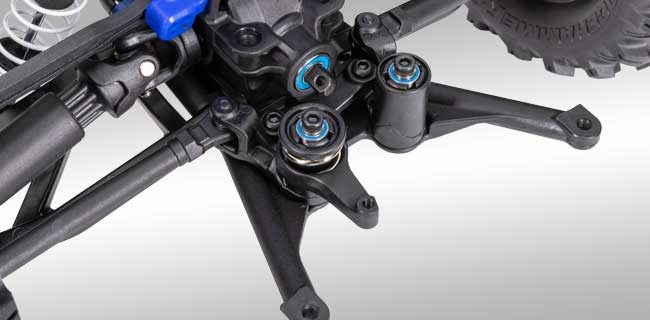

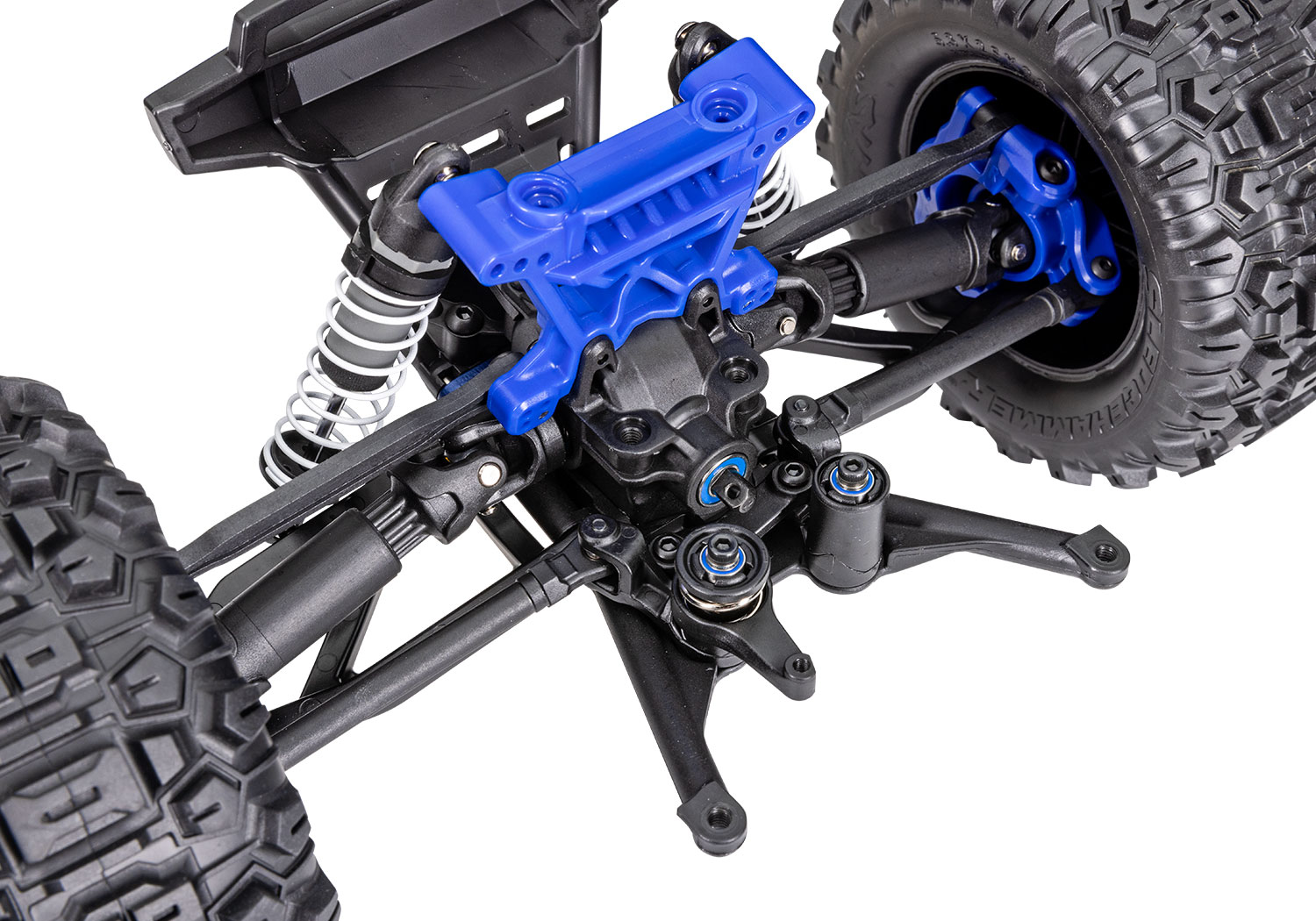

Dual Bellcrank Steering with Servo Saver
Stampede 4X4’s dual-bellcrank design pivots smoothly even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.

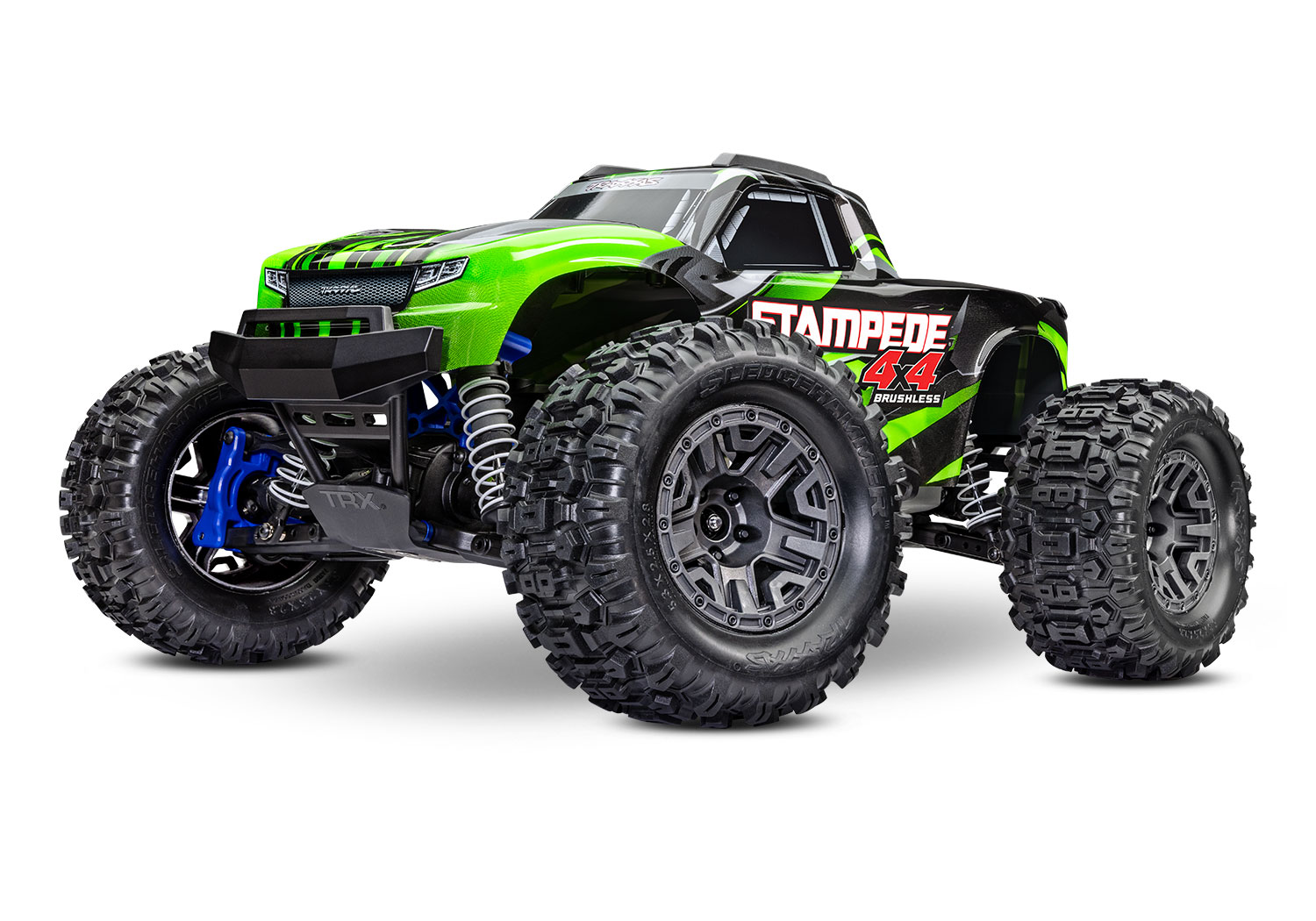

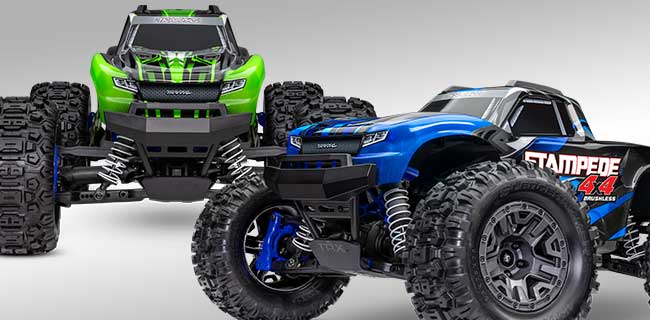

New ProGraphix Body
Stampede 4X4’s aggressive monster truck ProGraphix™ body comes trimmed and pre-painted with the decals already applied. Tough internal reinforcements maintain the body’s integrity while roof skids provide rollover protection to keep the body looking fresh.

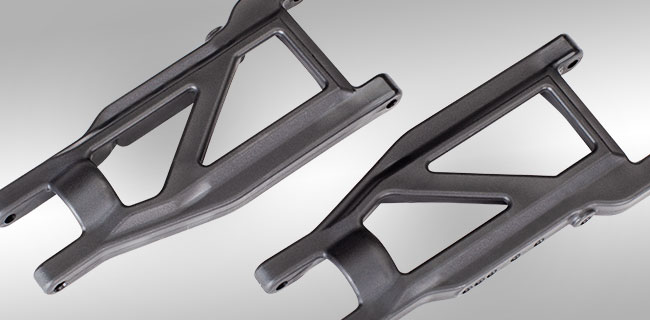

Heavy Duty Suspension Arms
Molded from our toughest composite material, Stampede 4X4’s heavy duty suspension arms provide just the right amount of flex to resist breaking—even in cold weather! From skate parks to 10-foot ramps, these suspension arms stand up to even the most punishing drivers for non-stop fun behind the wheel.

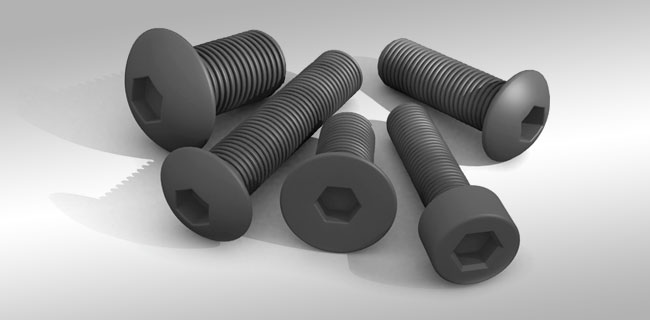

Hex Hardware
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.

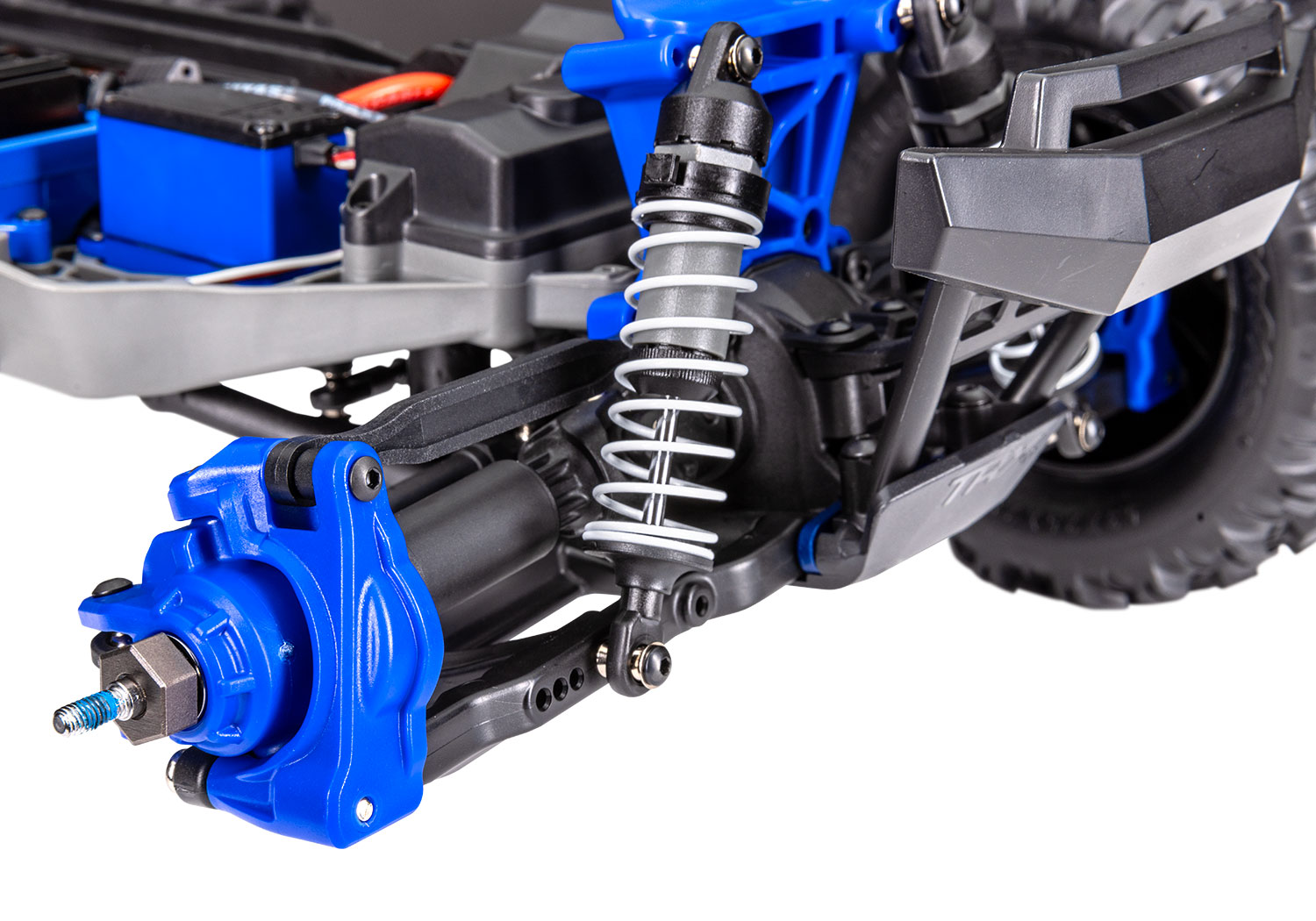

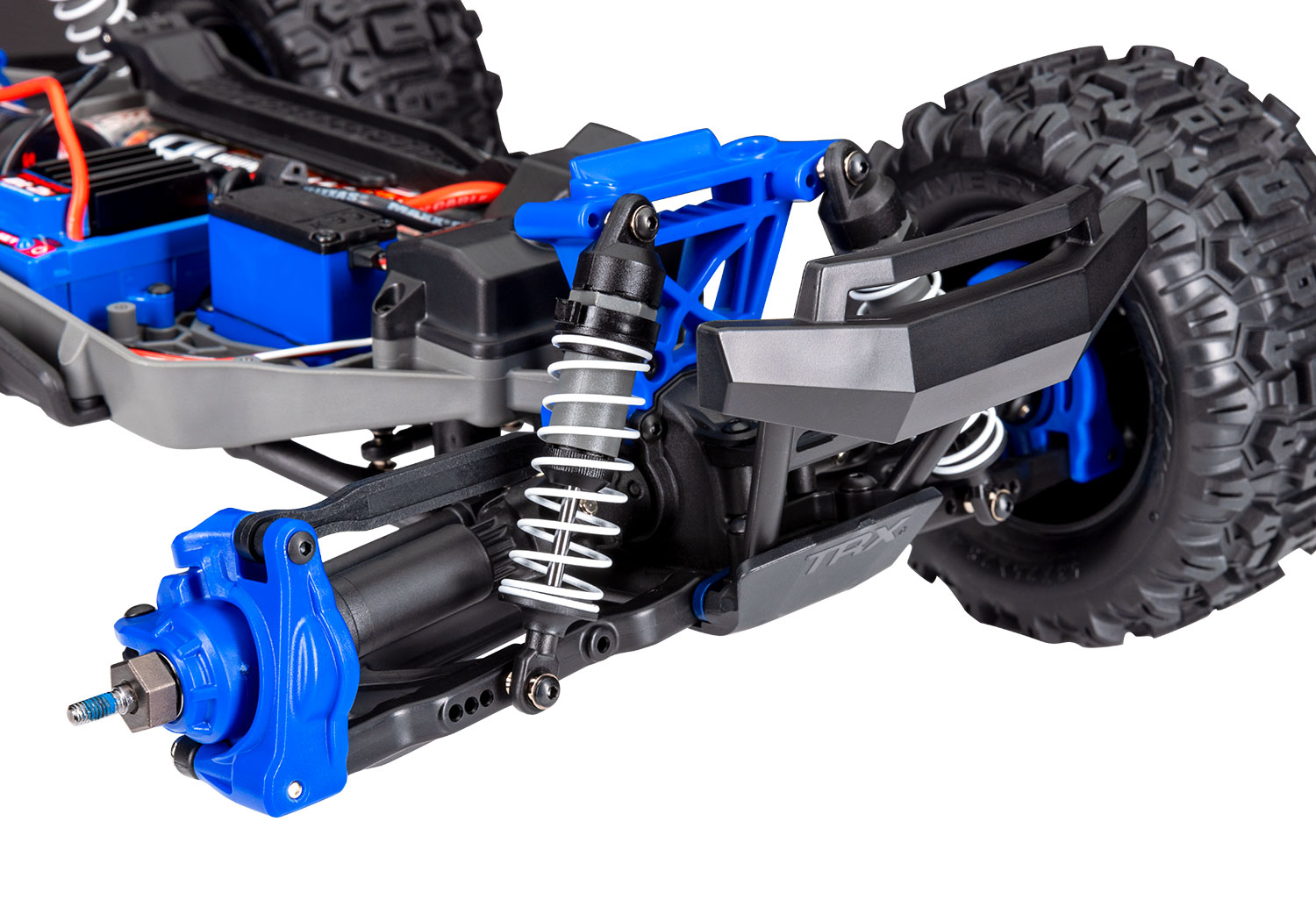

Extreme Suspension Components
Stampede 4X4 comes outfitted with the Extreme Heavy Duty Upgrade Kit already installed for ultimate strength and durability. The axle carriers, C-hubs, and steering blocks are beefed-up with more material and stronger construction.

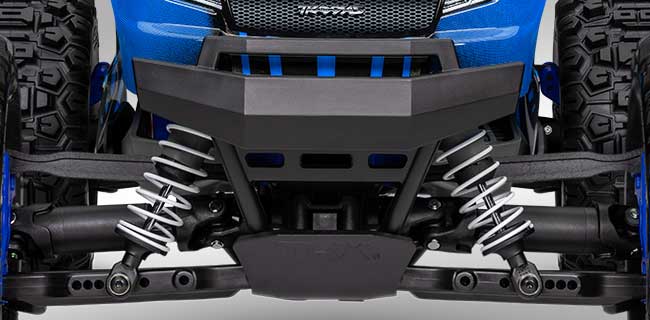

Reinforced Front and Rear Bumpers
Tough reinforced bumpers protect the chassis against impacts. The specially designed front bumper provides a high approach angle that allows the Stampede 4X4 to climb up and over obstacles with ease.

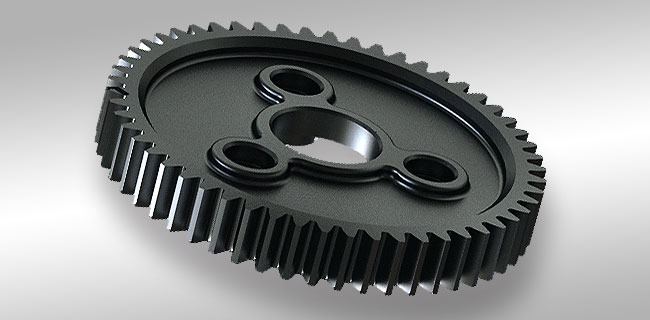

Large 32-Pitch Gears
Stampede 4X4’s driveline is built to handle standard brushless horsepower power and even the extreme Velineon 3s brushless power upgrade down the road. The spur gear features large 32-pitch teeth for total reliability no matter how much power you pour on.

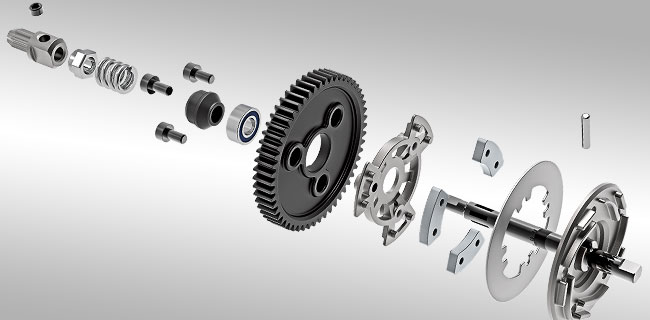

Upgraded Slipper Clutch
Stampede 4X4’s slipper clutch features larger alloy pressure plates and high-temperature aluminum pads for superior power handling. The slipper clutch delivers equal power distribution front to rear for instant throttle response through the drive system and aggressive four-wheel grip from the Sledgehammer tires.

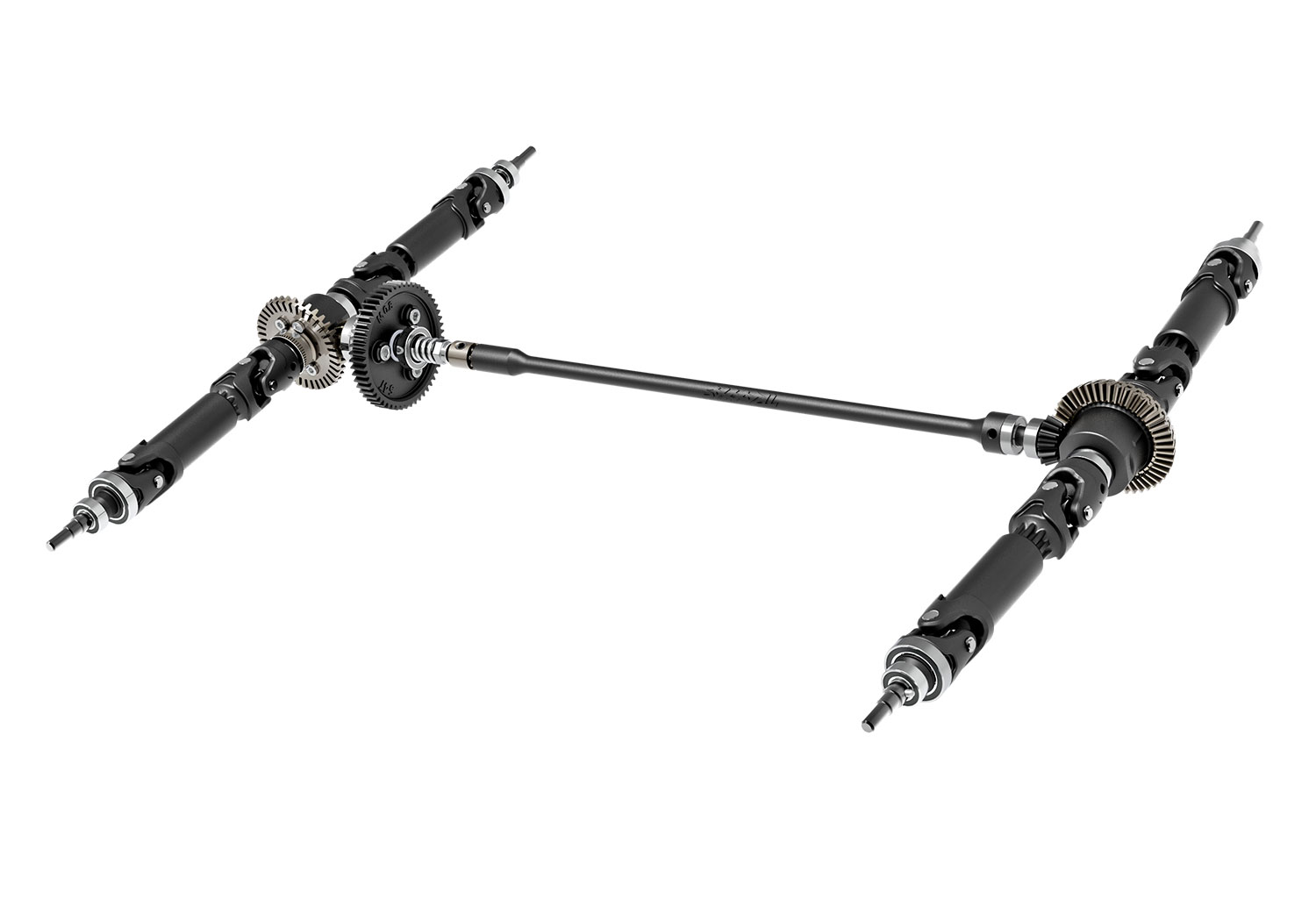

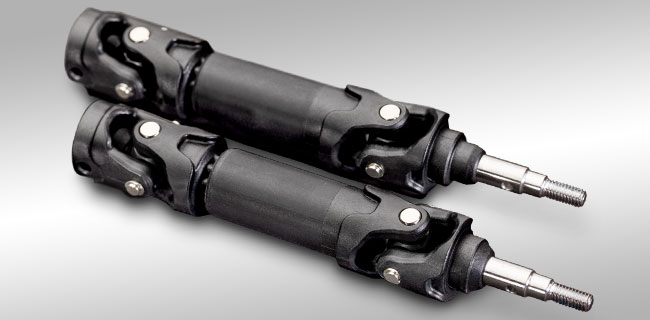

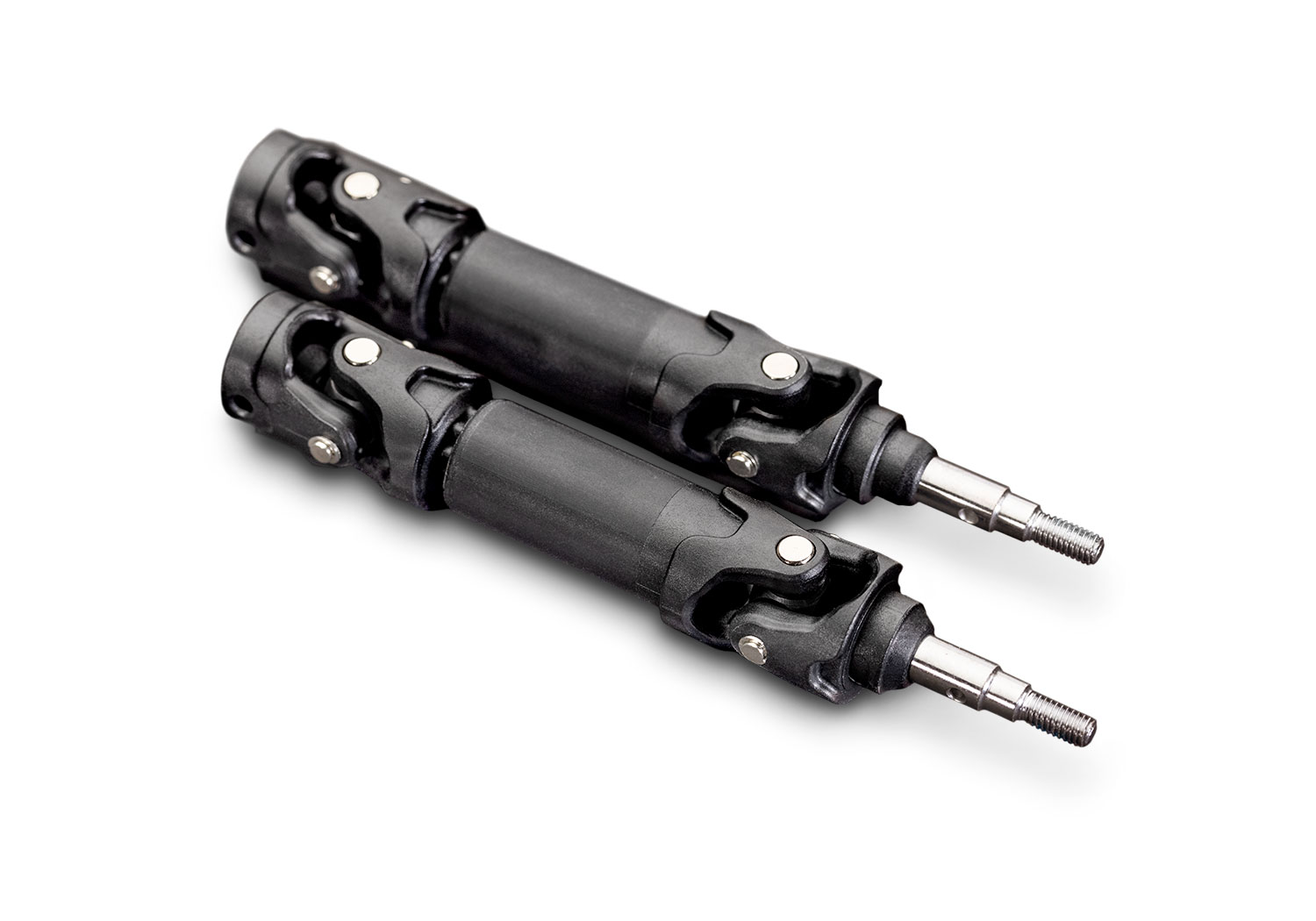

Maxx-Duty® Driveshafts
Stampede 4X4’s Maxx-duty driveshafts with beefed-up U-joints are built to handle brushless power without breaking a sweat. Large 6mm axles key into the included steel wheel hexes for unmatched strength and durability.

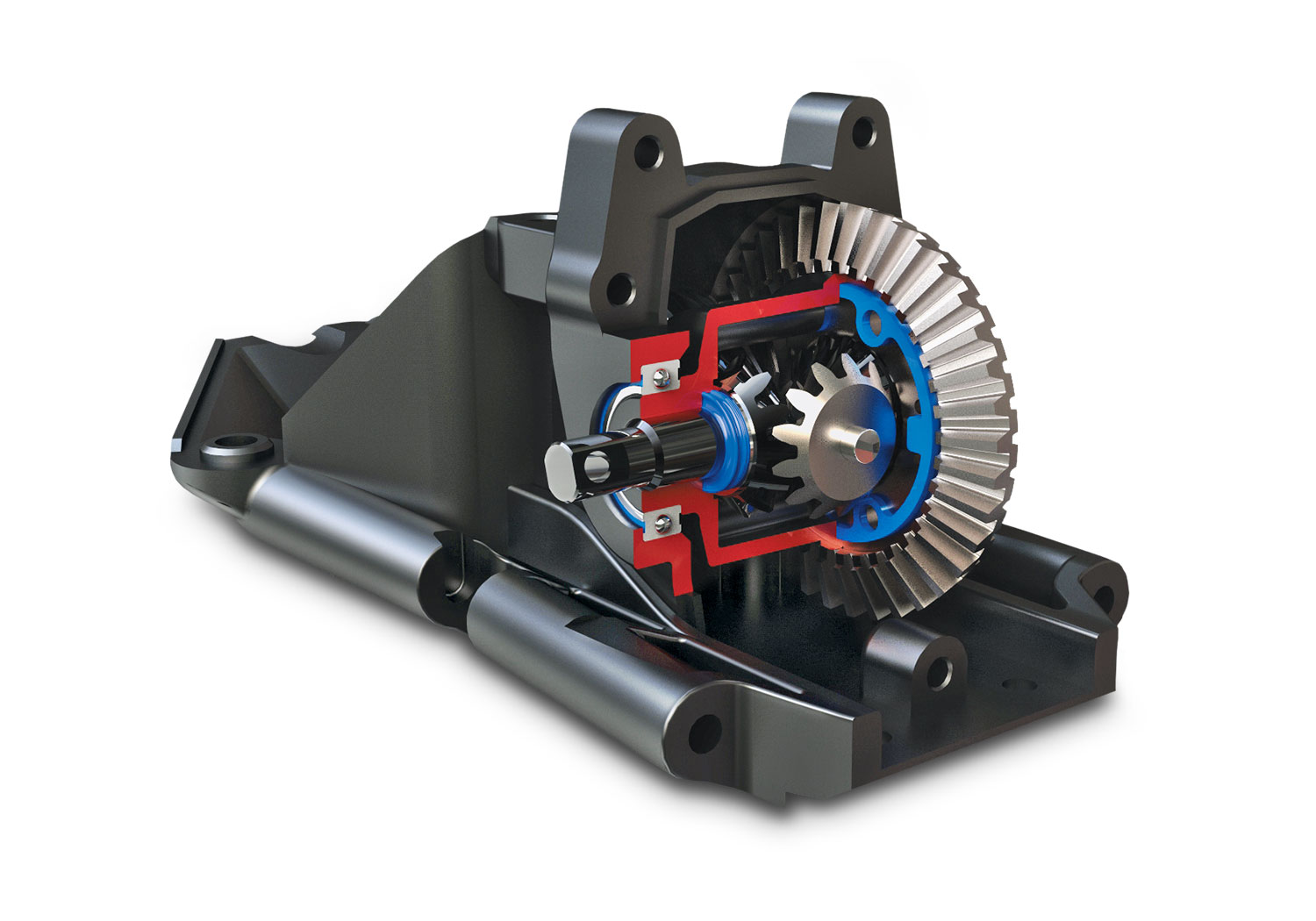

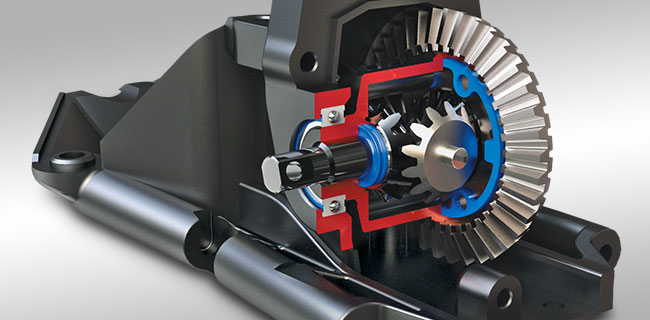

Sealed Steel-Gear Differentials
Sealed steel-gear differentials are ready to handle brushless power without costly upgrades. Silicone gaskets and X-ring seals allow the differentials to be tuned for specific running conditions by varying the viscosity of the oil inside them. Stampede 4X4’s modular chassis design makes differential access quick and easy.
Photo Gallery
Make sure you don’t miss any of the latest Stampede 4X4 Brushless news, accessories, and updates.
Stampede 4X4 Brushless Data
| Length: | 17.87 inches (454 mm) |
|---|---|
| Width: | 13.10 inches (333 mm) |
| Ground Clearance: | 2.44 inches (62 mm) |
| Weight: | 5.98 pounds (2.7 kg) without batteries |
| Height: | 8.34 inches (212 mm) |
| Wheelbase: | 11.62 inches (295 mm) |
| Front Shock Length: | 3.45 inches (88 mm) - Long |
| Rear Shock Length: | 3.98 inches (101 mm) - XX-long |
| Tires (pre-glued): | 5.3 inches (133 mm) tall Sledgehammer® |
| Wheels: | 2.8 inches (71 mm) graphite gray wheels |
| Speed Control: | BL-2s™ electronic speed control |
| Motor (electric): | BL-2s™ 3300 kV sensorless brushless |
| Gear Pitch: | 32 pitch |
| Overall Drive Ratio: | 15.36:1 |
| Differentials: | Hardened steel bevel, sealed, limited slip |
| Chassis Structure / Material: | Modular composite tub |
| Brake Type: | Electronic |
| Drive System: | Shaft driven 4WD |
| Steering: | Dual bellcrank with integrated servo saver |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof 2075 |
| Skill Level: | 1 |
| Battery Compartment: | 162 mm x 47 mm x 26 mm |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |

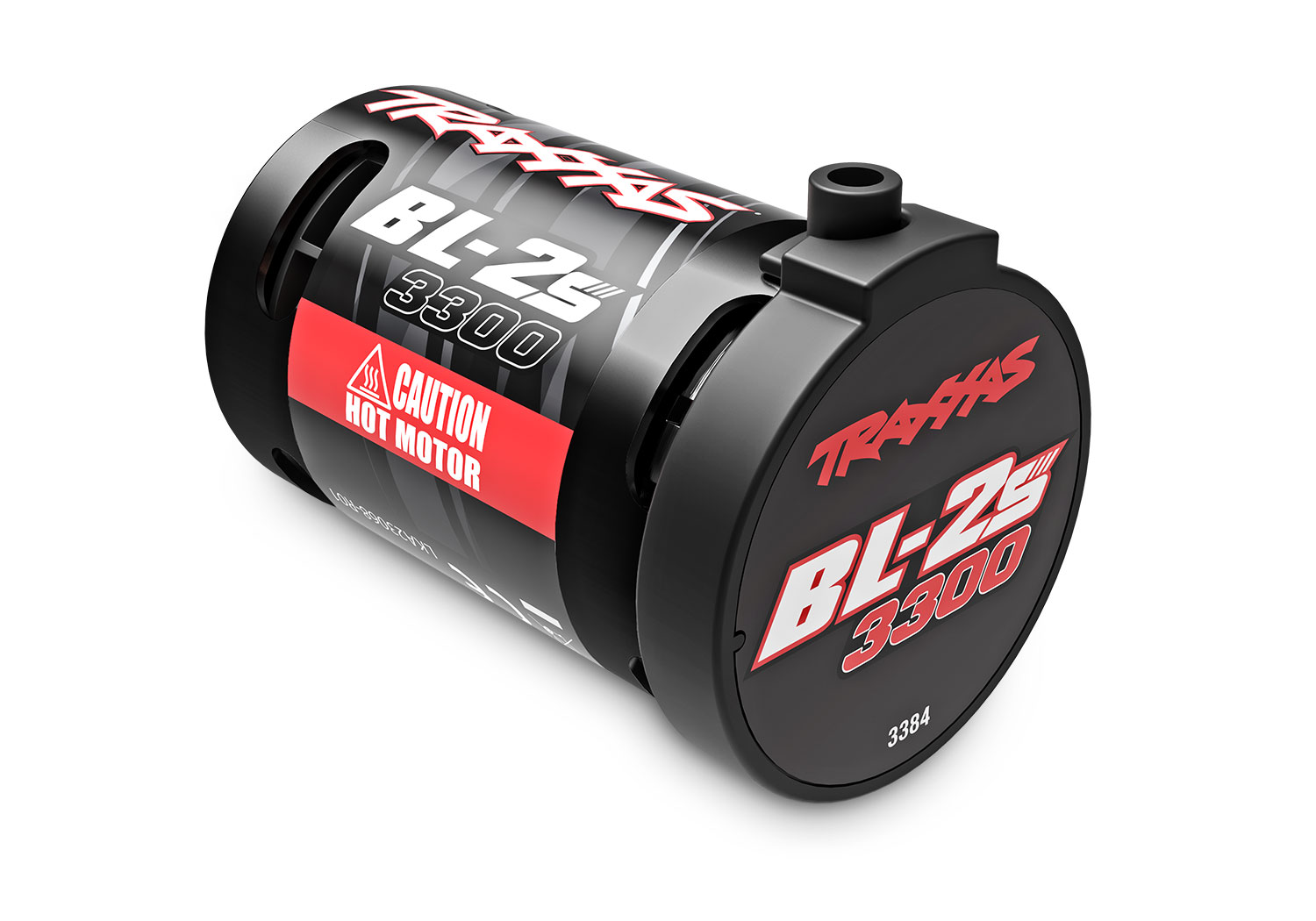

| Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |

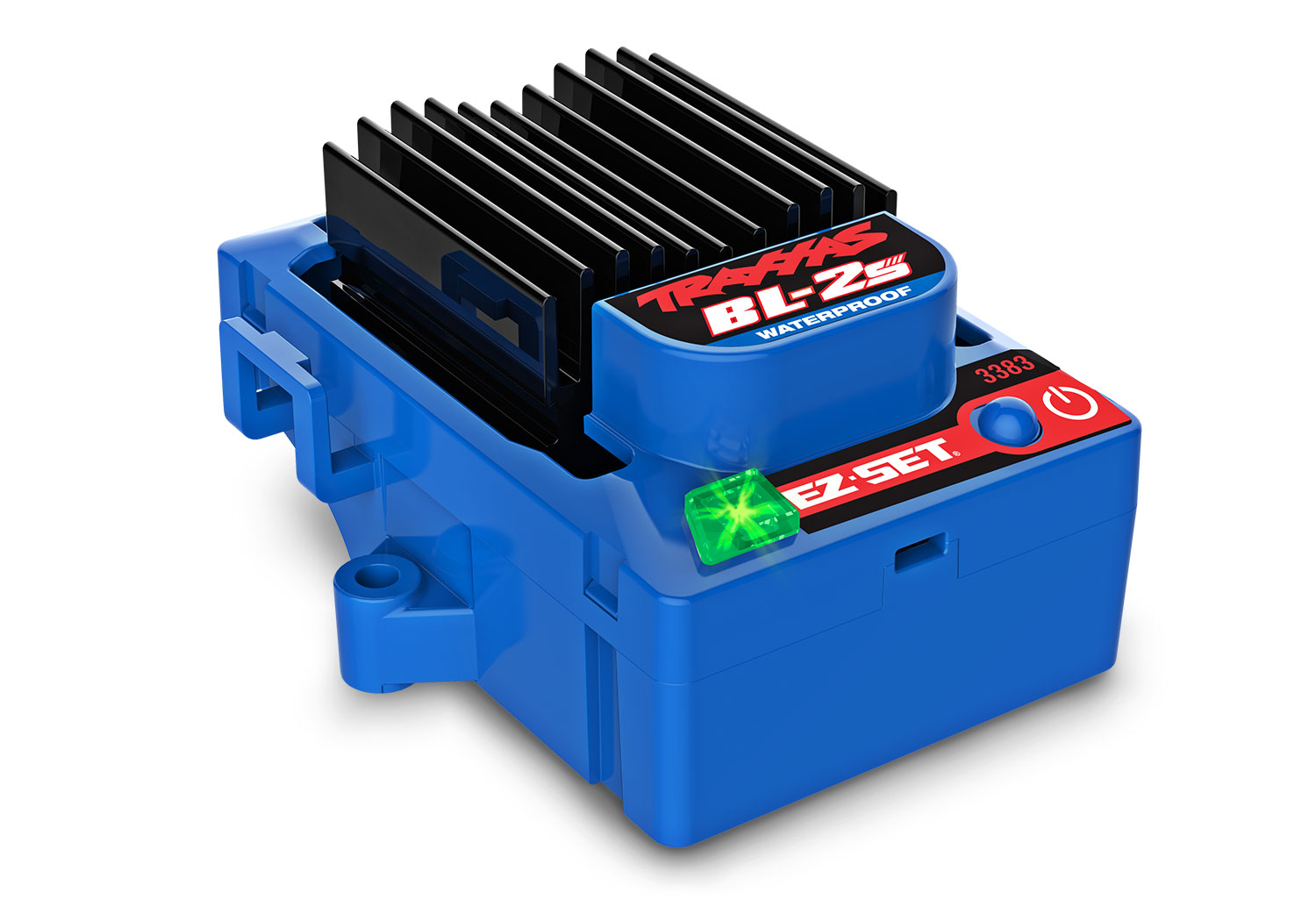

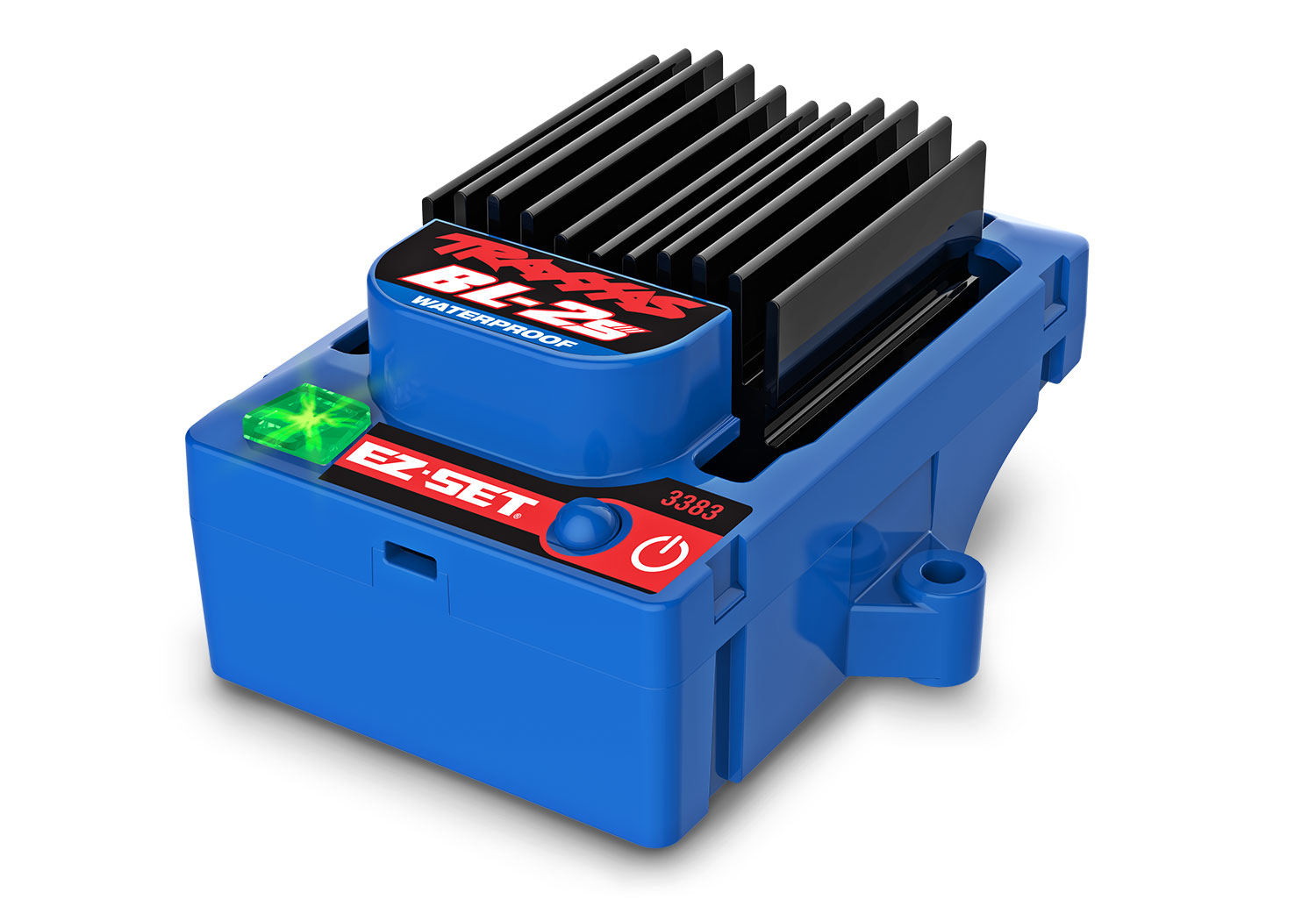

- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

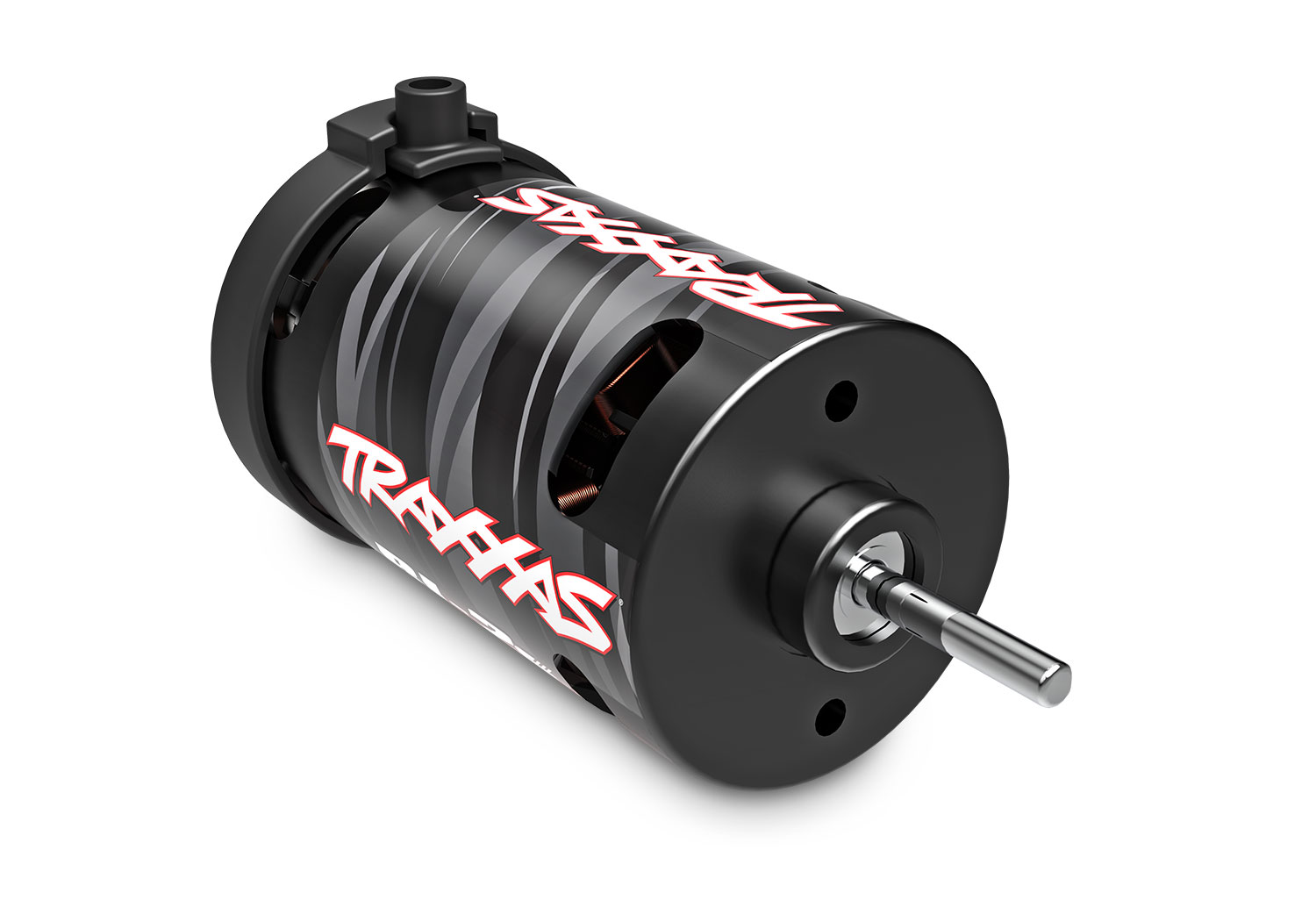

- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Extreme Heavy-Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy-duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- Clipless ProGraphix® Body
- Tough reinforced bumpers
- Reinforced inner cage
- Rugged roof rollover protector
- Tailgate protector
- Holds tight for intense action
- Quick and easy removal
- Chassis
- Modular composite tub design
- Secure battery hold-down latch
- High angle bumpers
- Suspension
- HD-composite suspension arms
- Oil-filled Ultra Shocks
- White powder-coated springs
- Steering
- Chassis-mounted #2075 servo
- Dual bellcrank design with integrated servo saver
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch steel spur gear
- Wheels and Tires
- Large 2.8″ graphite gray wheels
- Tall 5.3″ Sledgehammer® tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- Stampede 4X4 with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Stampede 4X4 requires a single NiMH or LiPo battery. See full list of batteries
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
