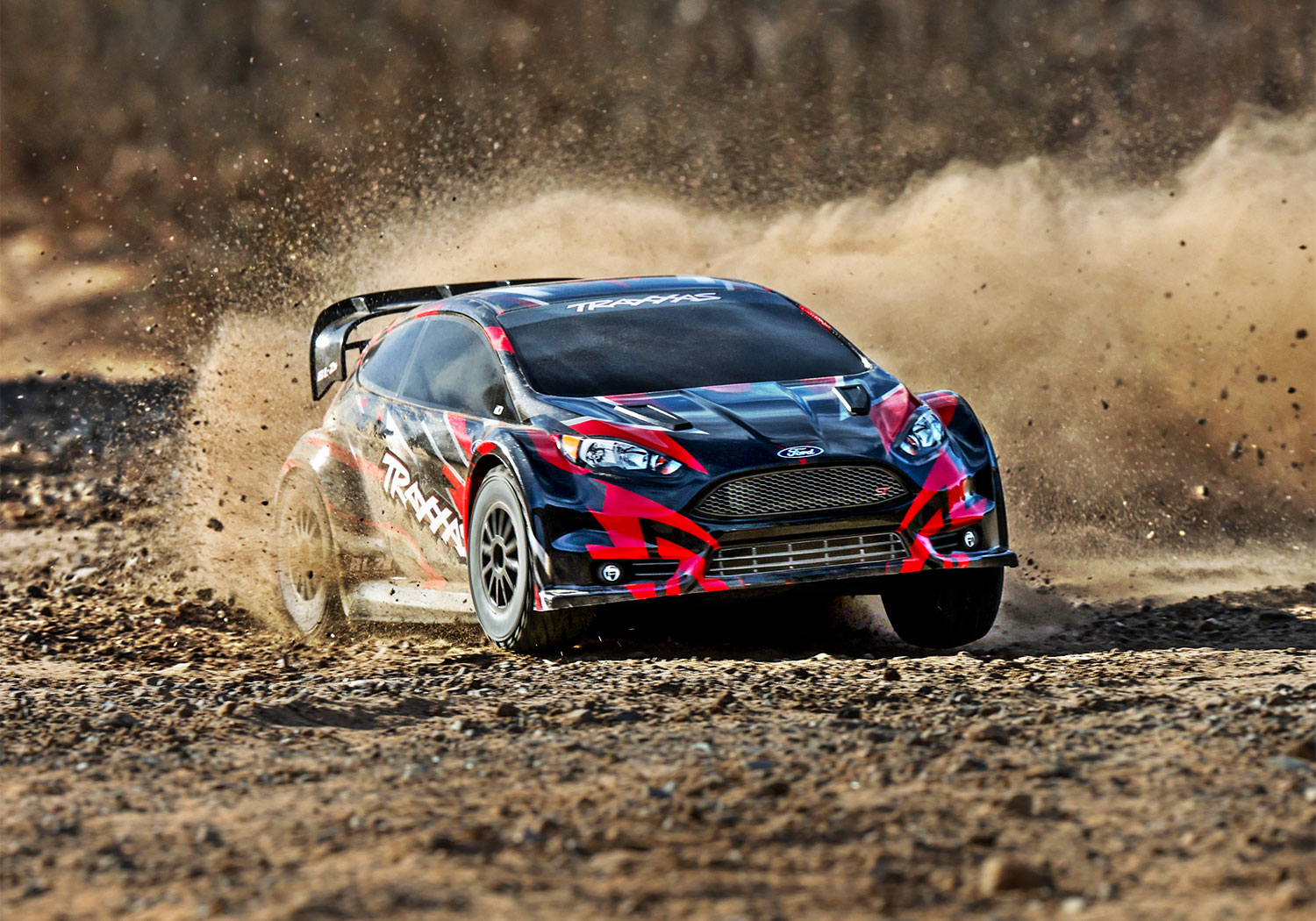

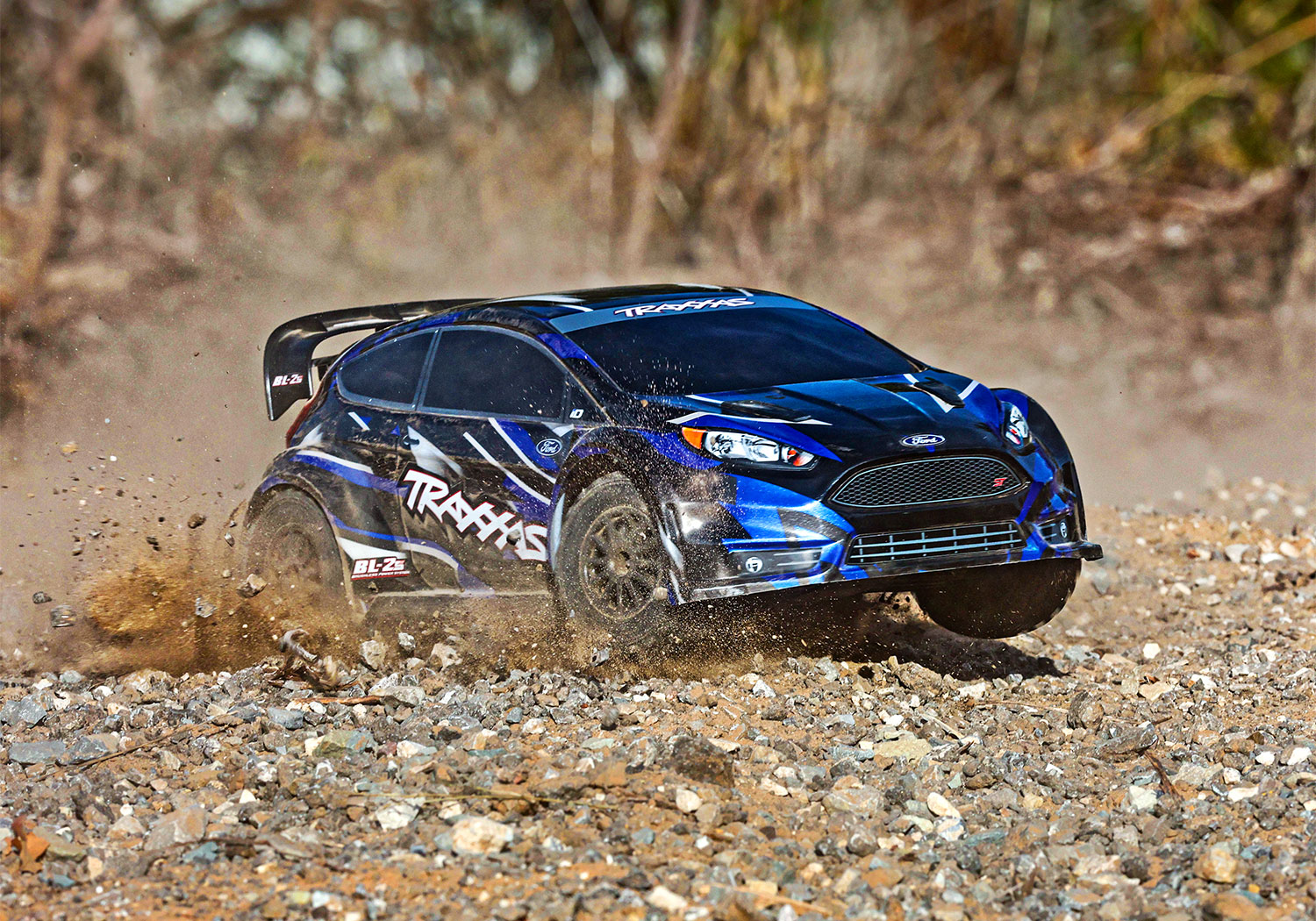

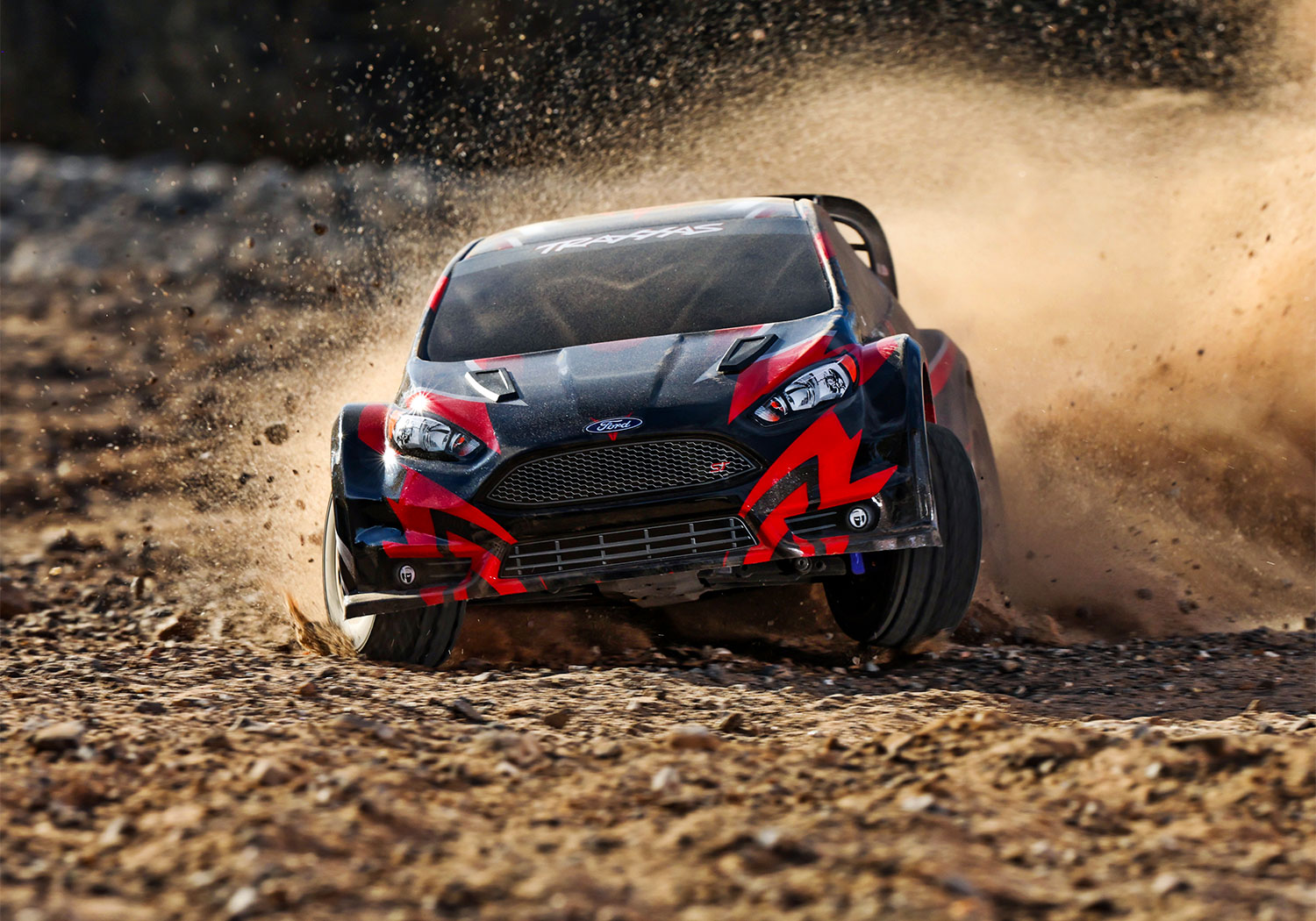

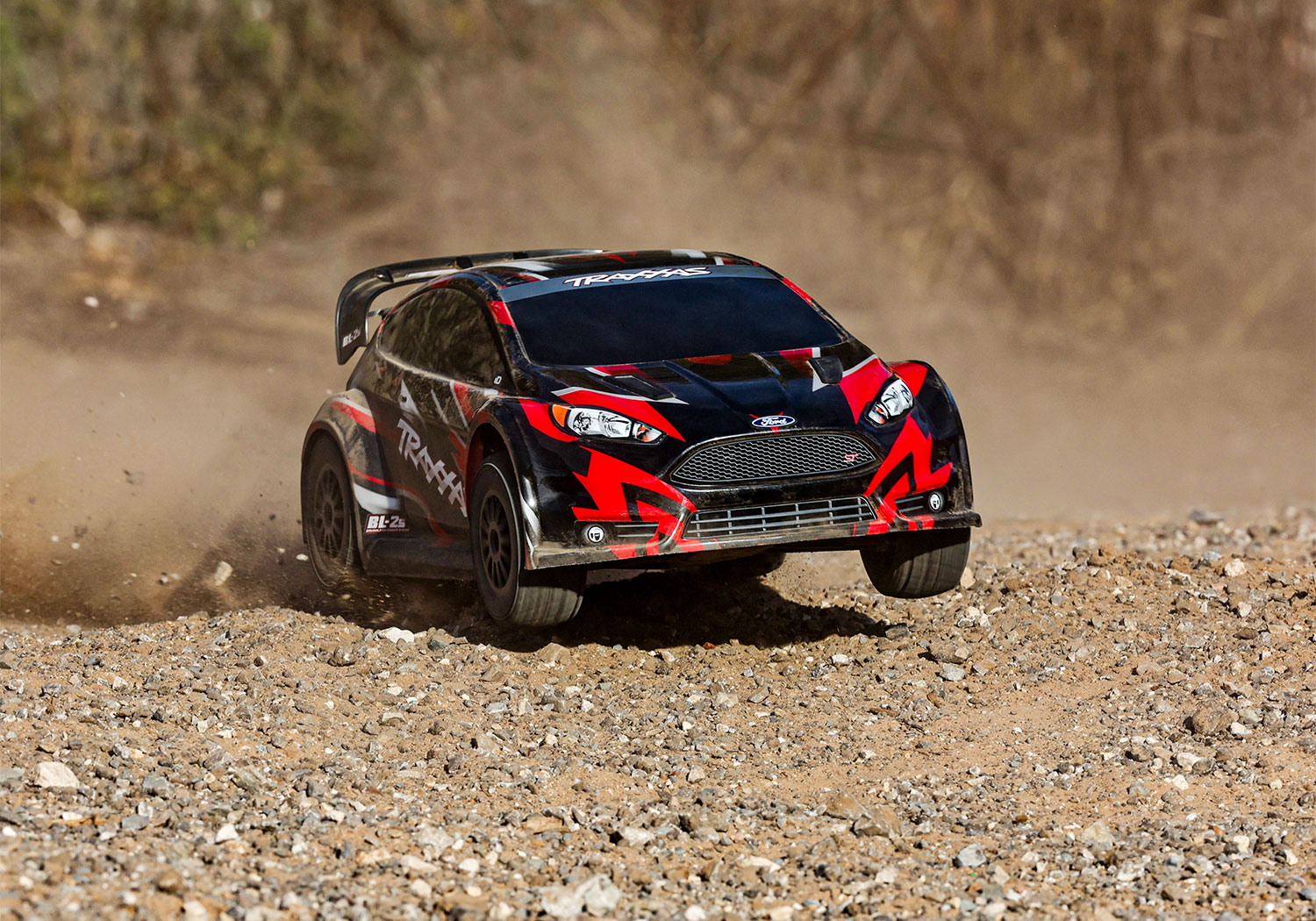

Rally-Bred Performance with New BL-2s Brushless Power

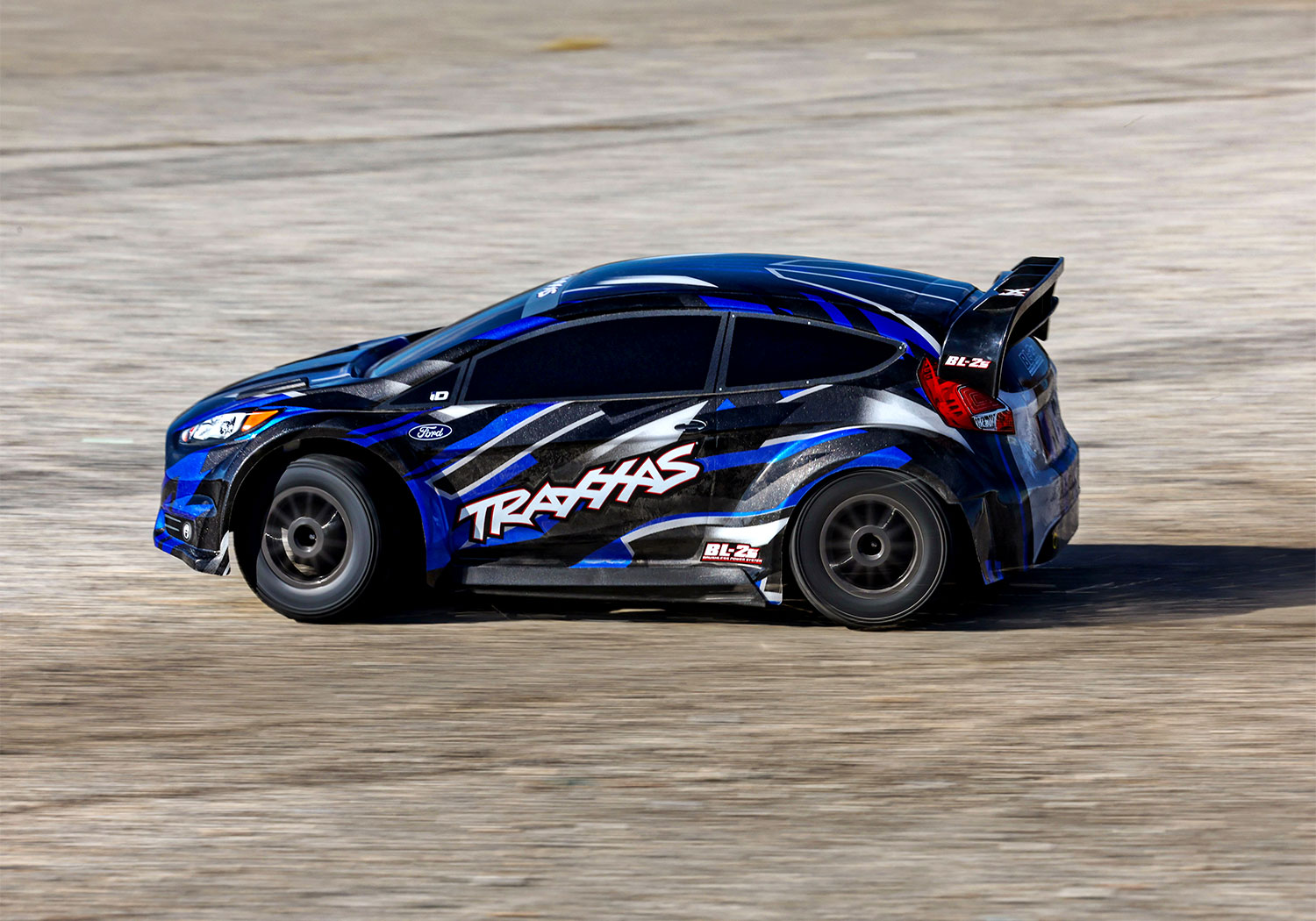

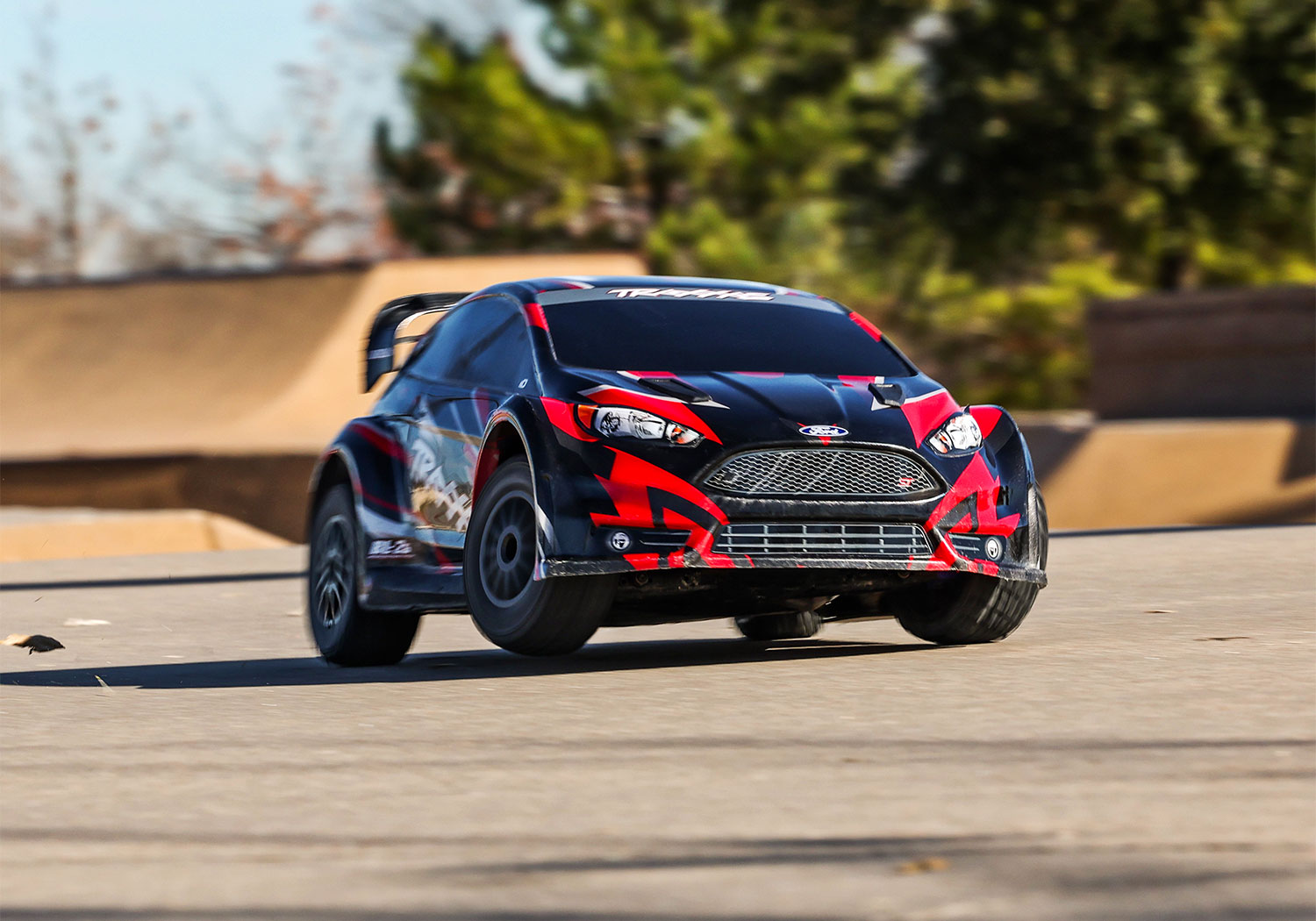

The Traxxas Ford® Fiesta® ST Rally dominates the track with agile handling and superior AWD traction. Rally’s officially licensed clipless body and high-grip gravel tires offer the full rally racing experience. Rally’s new BL-2s™ brushless power system delivers effortless high-speed power with an added boost of torque for powerful acceleration. Additionally, Fiesta ST Rally now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit for game-changing strength and durability.
BL-2s Brushless Combo
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Model #74154-4$329.95
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.

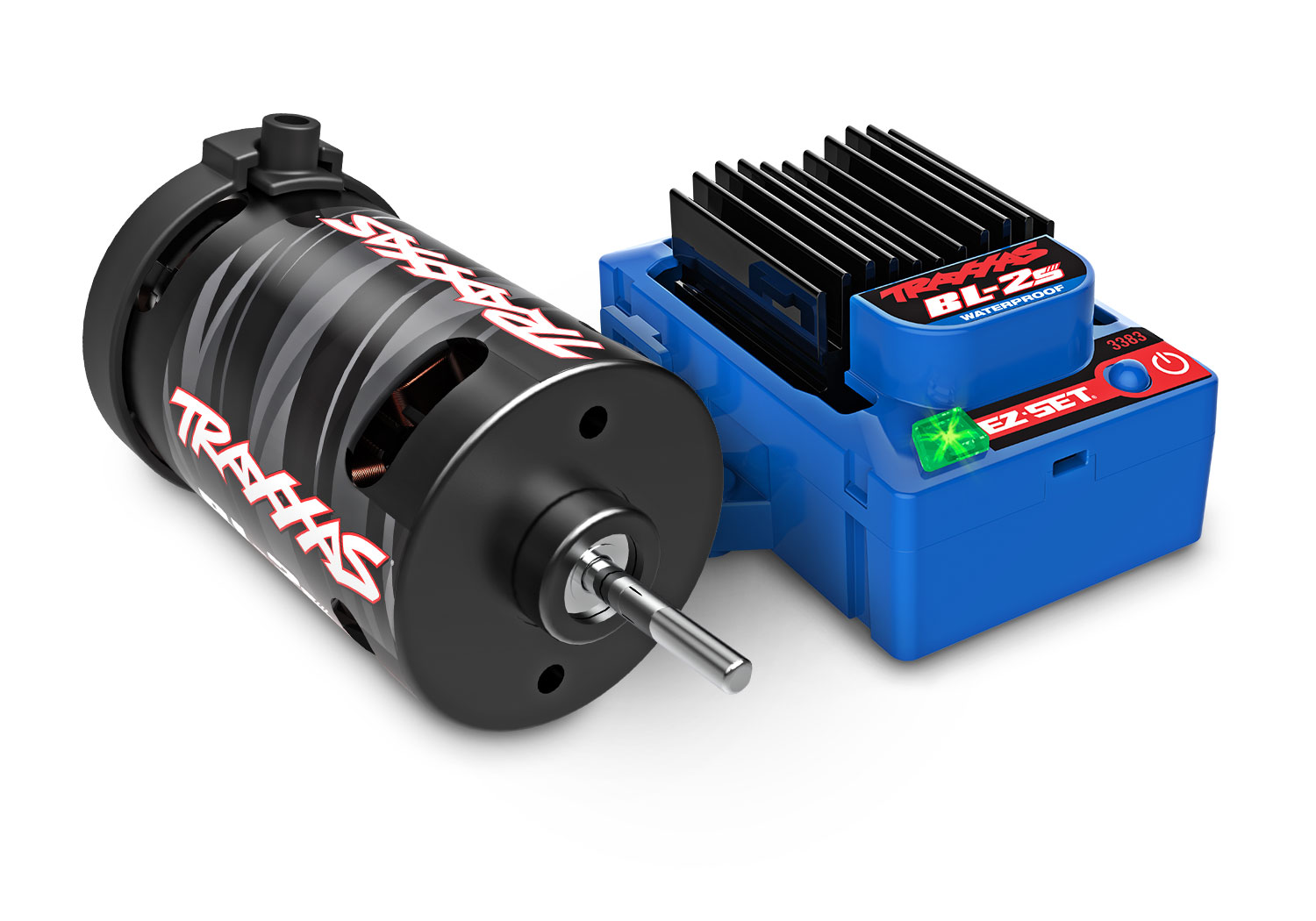

New Brushless Power
Rally’s new BL-2s brushless power system gets you to the finish line first with more speed, quicker acceleration, and a more responsive throttle. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Fiesta ST Rally to run battery after battery for all day fun. With no brushes to wear out, the BL-2s 3300 kV motor is long-lasting and requires virtually no maintenance.

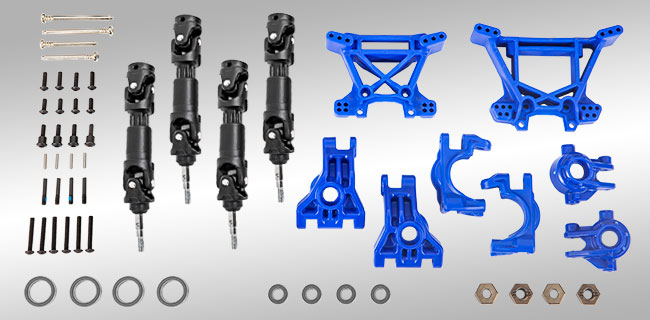

Extreme Heavy Duty Upgrade Kit
Rally’s factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD shock towers to the steel wheel hubs, this is the strongest driveline ever offered in a Rally.

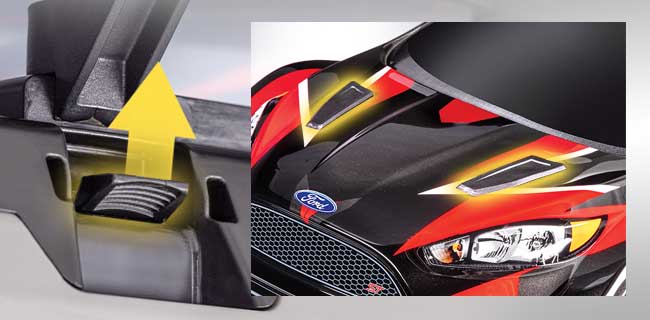

Clipless Convenience
Rally’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, release the side tabs and lift up to access the chassis in just seconds.
Innovation
Details

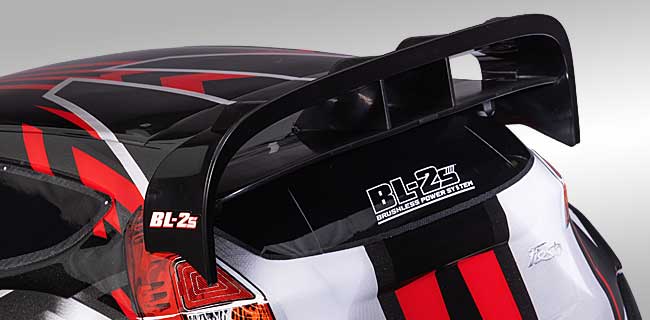

Dual-Profile Rear Wing
Fiesta ST Rally’s prominent dual-profile rear wing is optimized to reduce drag while providing downforce for high-speed stability. The injection-molded wing features multiple reinforced mounting points for increased durability in case of rollovers.

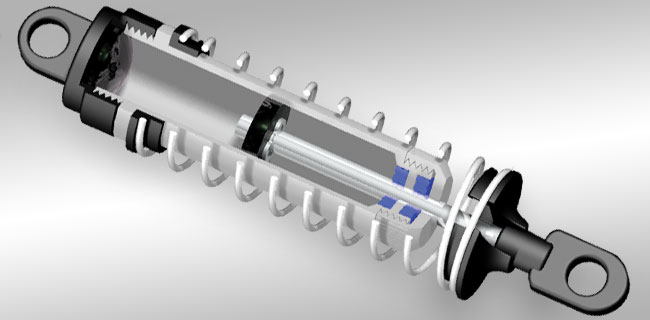

Oil-Filled Ultra Shocks™
Rally’s oil-filled Ultra Shocks utilize X-rings for a perfect seal and super-smooth performance. Adjust the ride height and pre-load on the white powder-coated springs with the included spacer clips. Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons available.

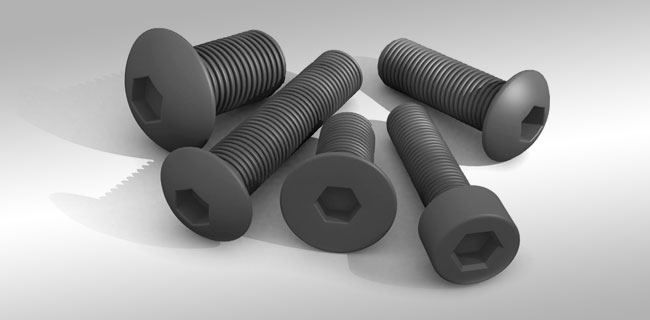

Hex Hardware
Rally's hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.

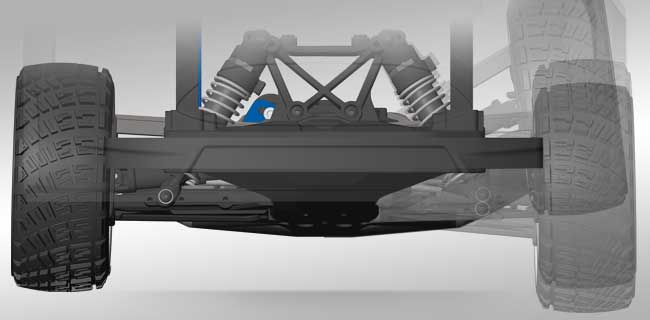

Long-Travel Suspension
Fiesta ST Rally has huge amounts of seemingly bottomless, ultra-plush suspension travel to swallow up jumps and delivers incredible control. Performance-optimized suspension components provide maximum articulation without binding or interference.

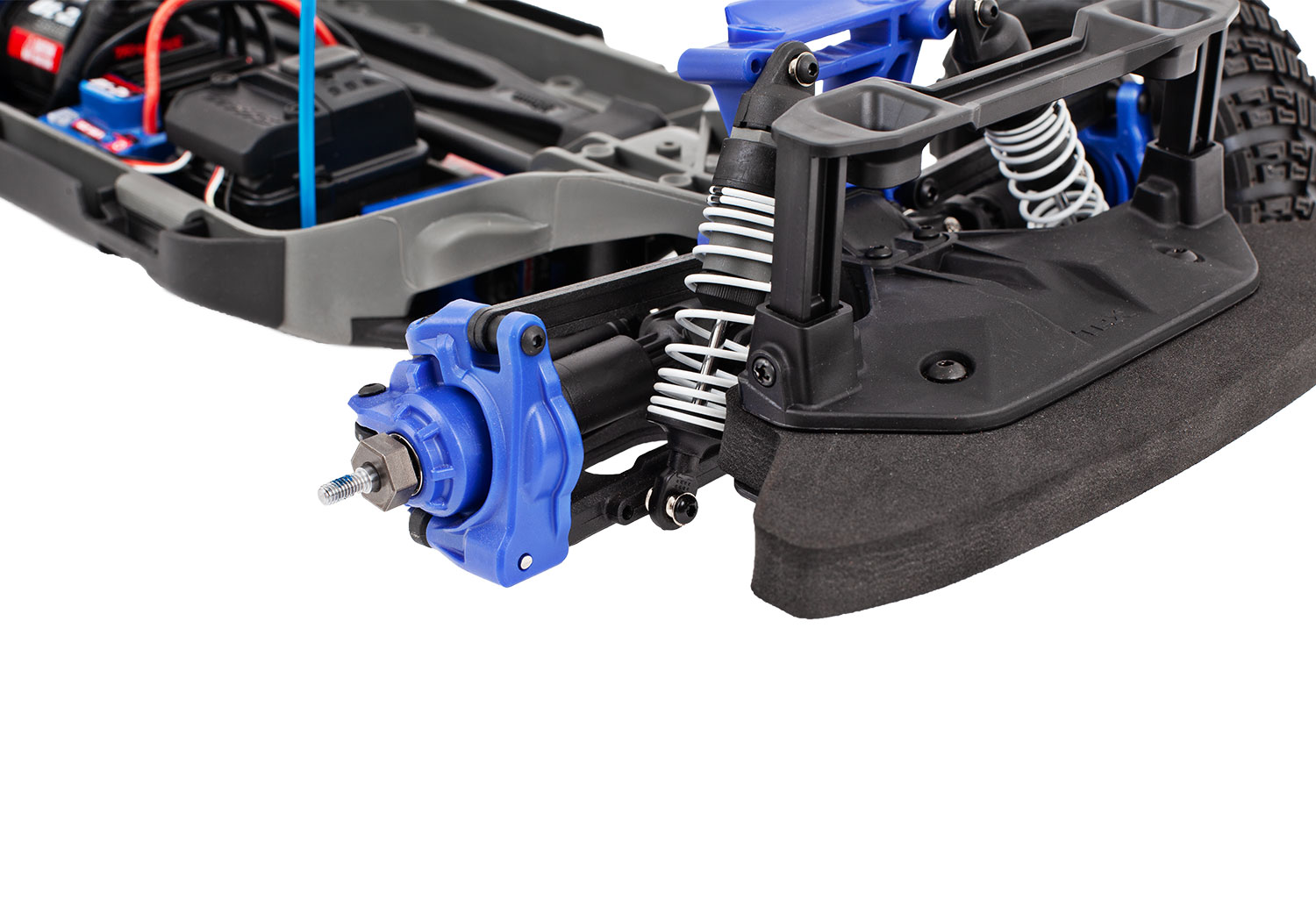

Extreme Suspension Components
Rally comes outfitted with the Extreme Heavy Duty Upgrade Kit already installed for ultimate strength and durability. The axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

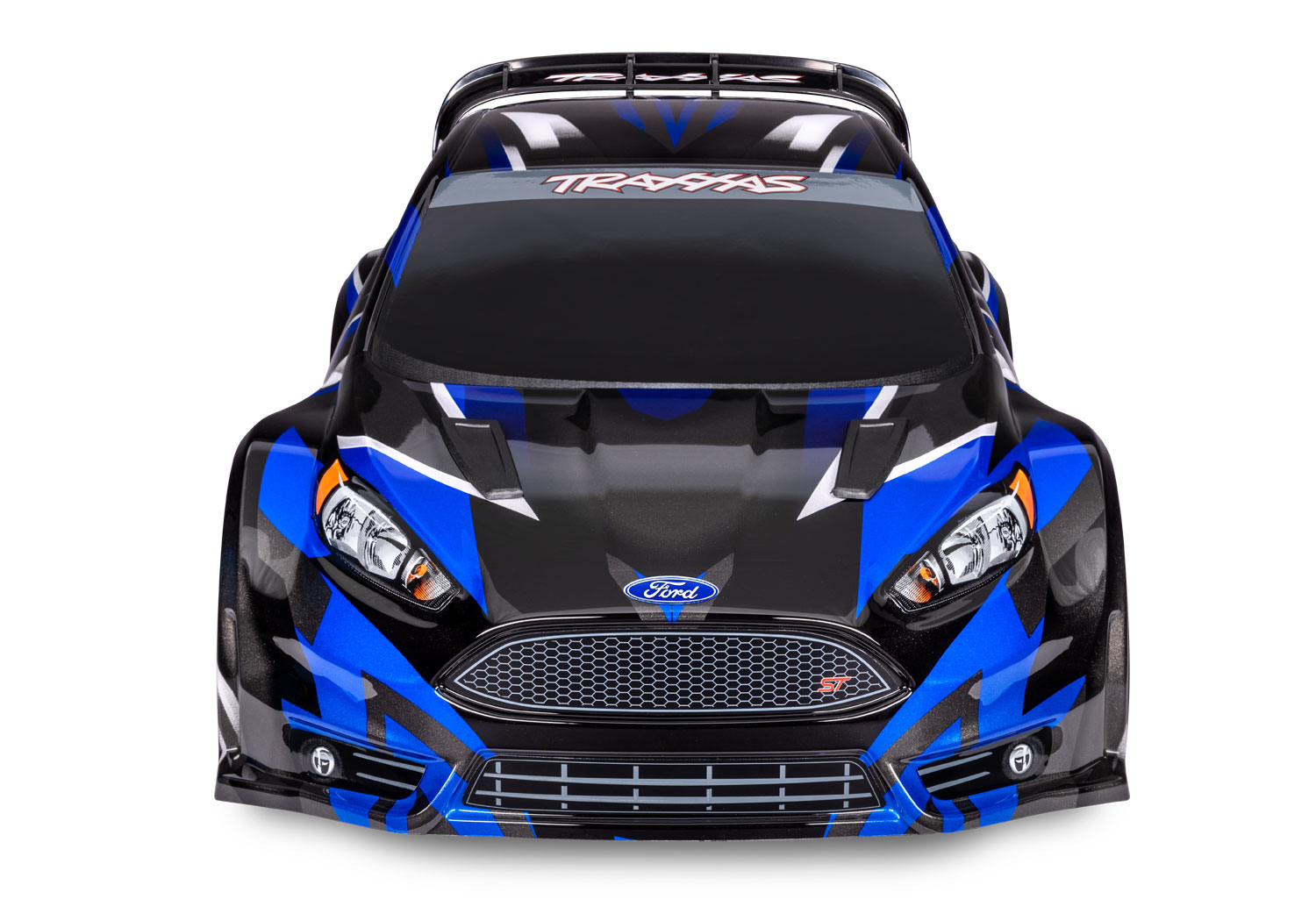

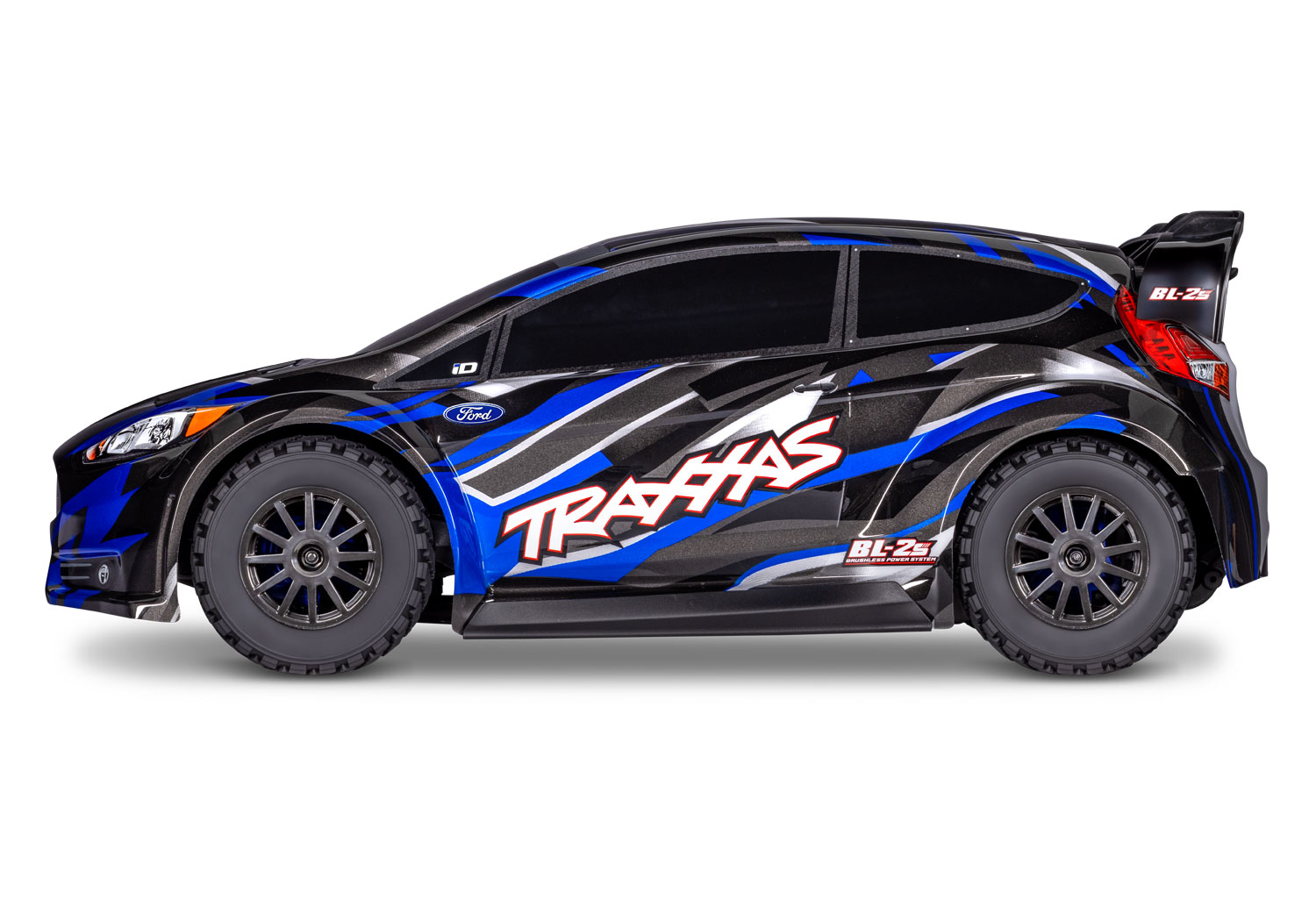

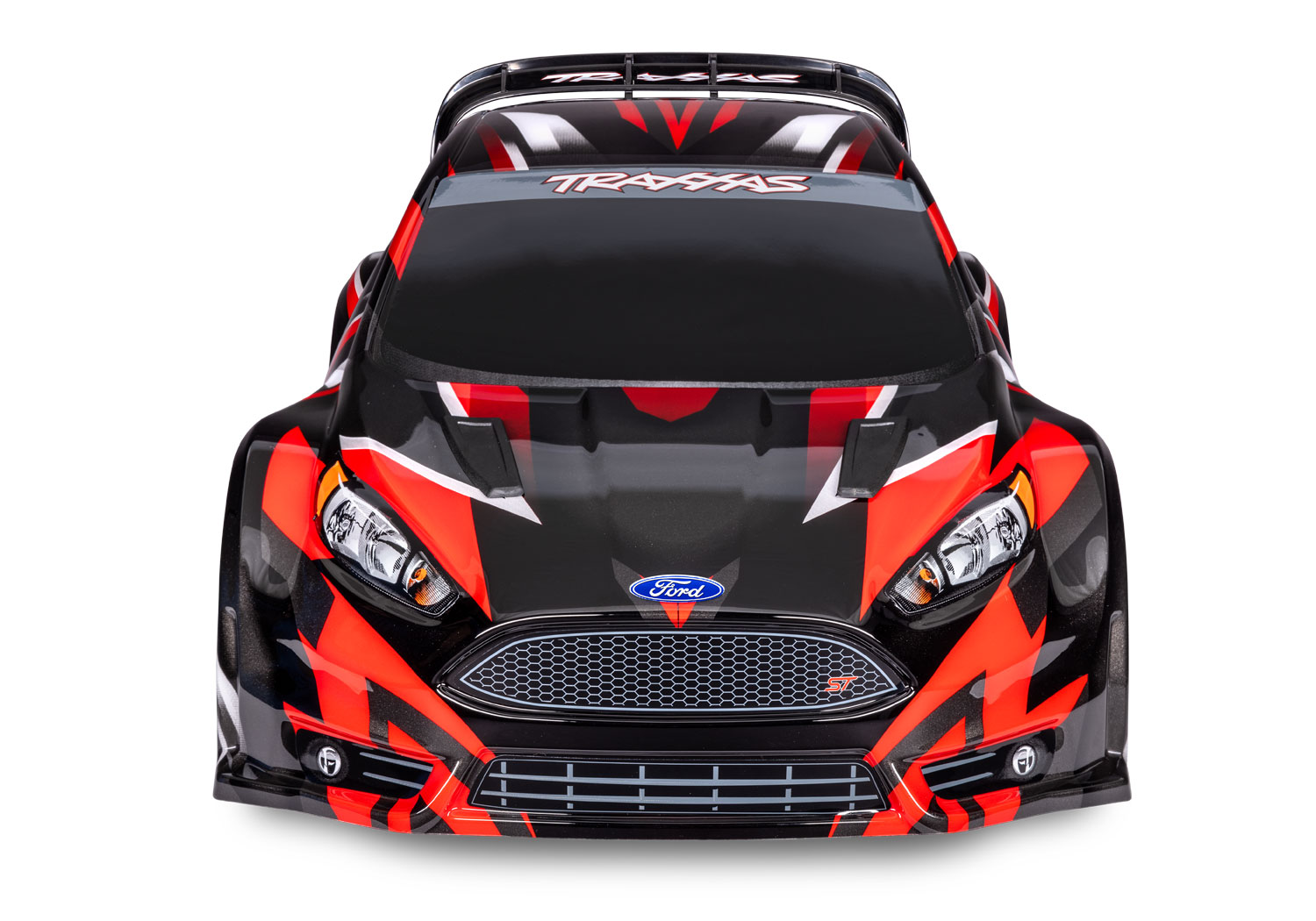

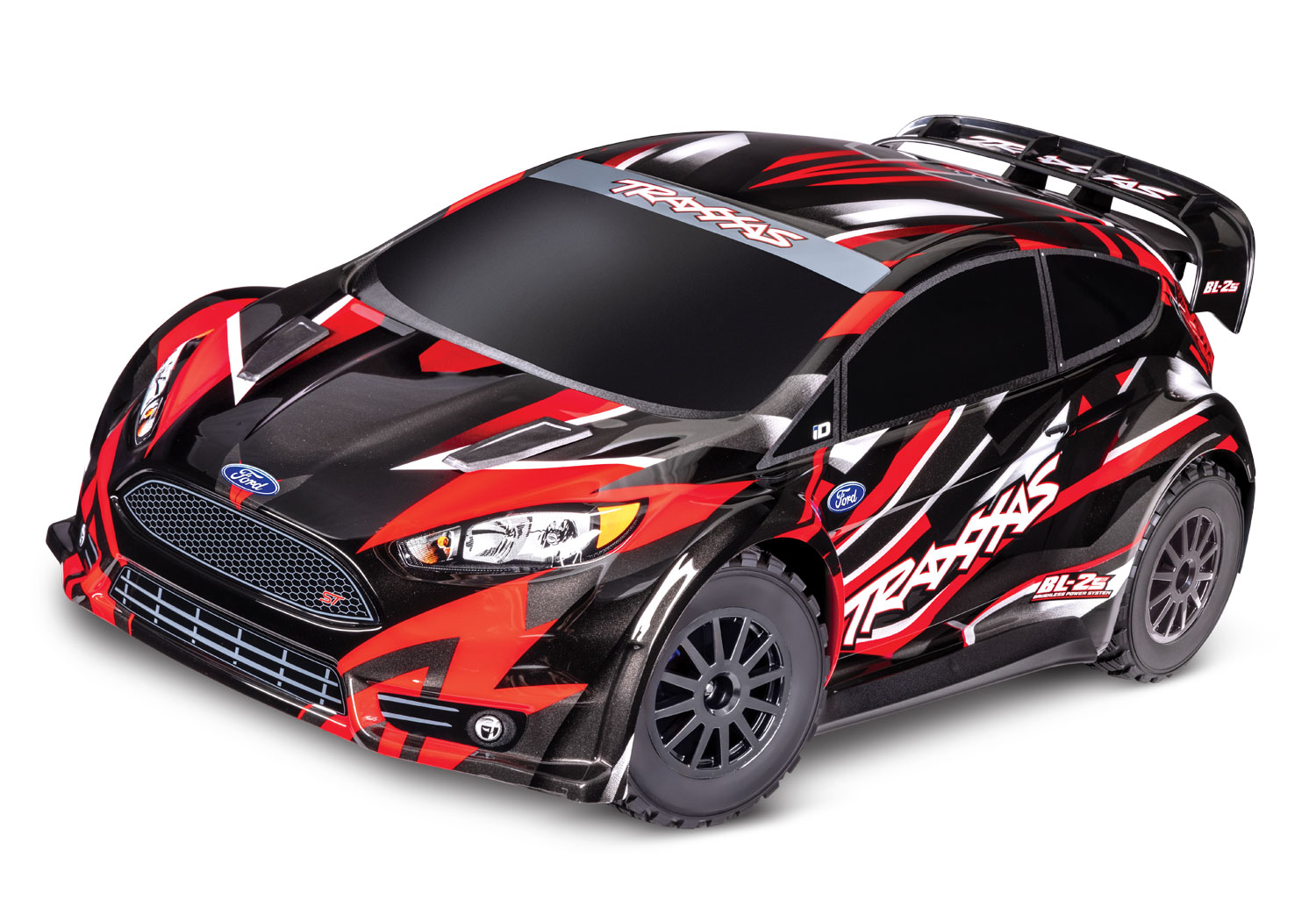

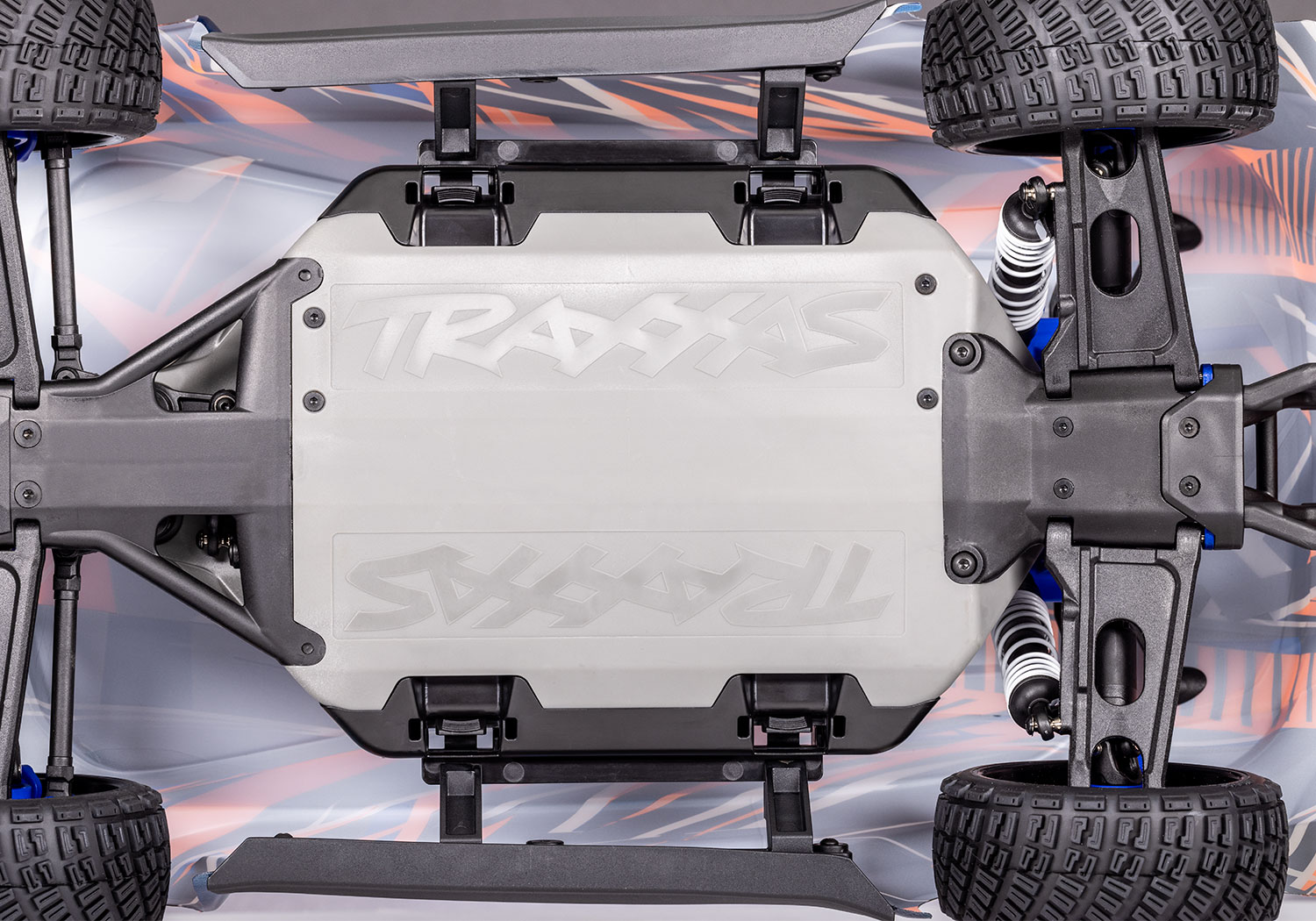

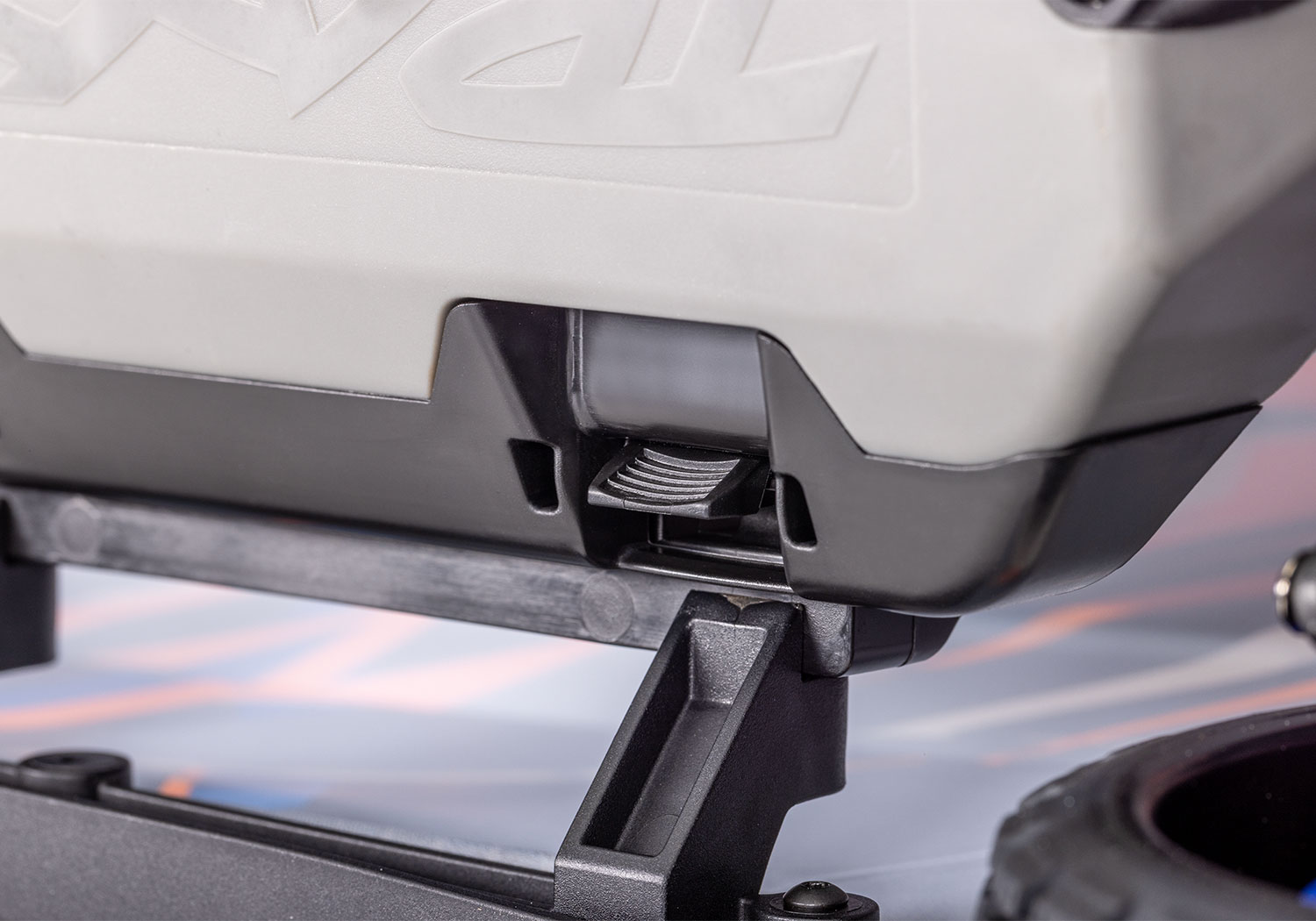

Clipless Body
Rally uses a rugged clipless body latching system for secure mounting and easy one-handed removal. The latching system incorporates an internal body cage that greatly strengthens the body for long life. The body comes pre-painted and cut with decals already applied.

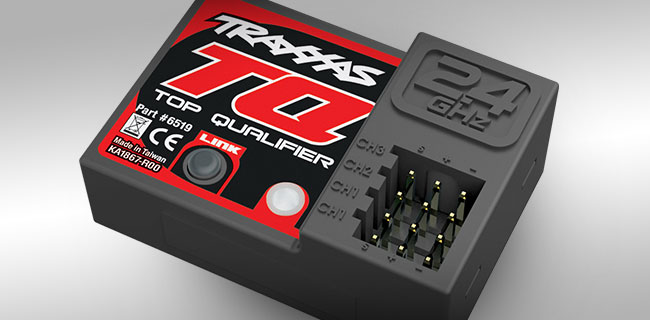

3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.

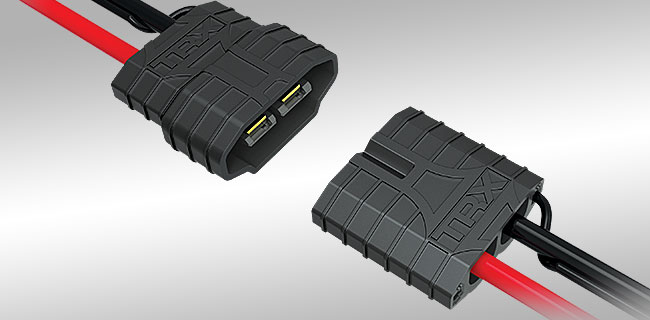

Traxxas High-Current Connector
The patented High-Current Connectors funnel maximum power to the vehicle’s electronics. High-Current Connectors also provide the quickest, safest charge for Traxxas batteries.

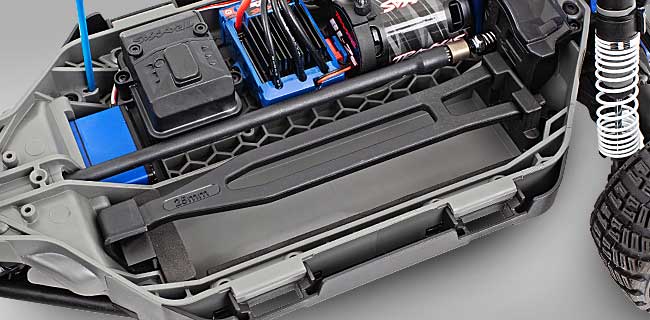

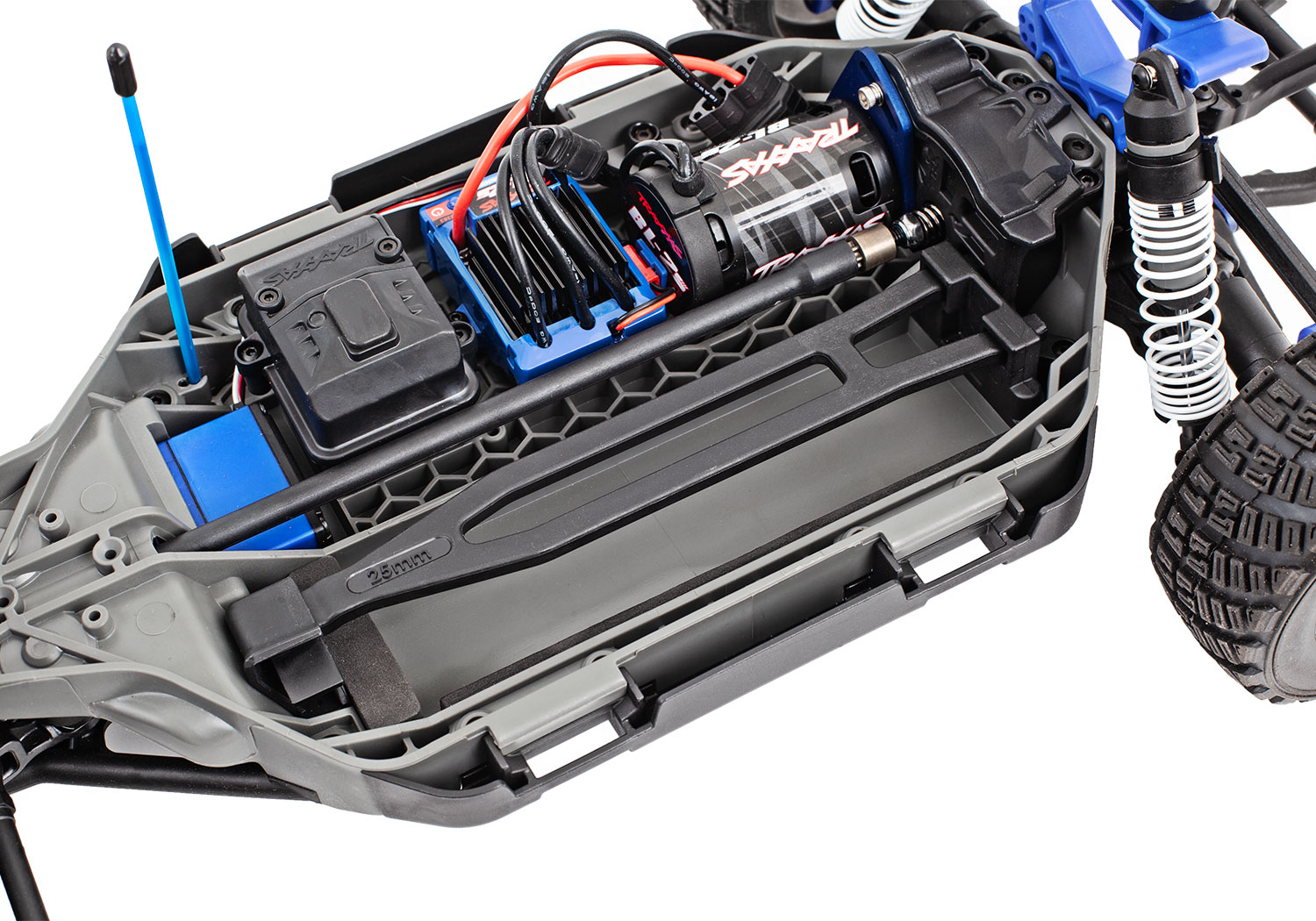

Rugged Battery Hold-Down
An innovative battery hold-down features a tough latch for solid locking action to keep batteries secure no matter how wild the action gets.

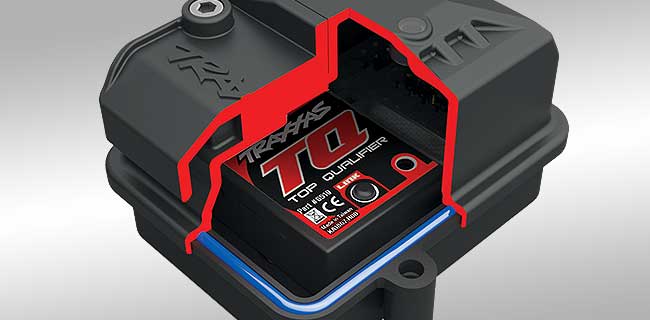

Waterproof Receiver Box
Rally’s waterproof receiver box keeps the receiver safe and dry while still allowing easy access for maintenance. The antenna and servo wires route neatly through a patented water-tight seal for true all-weather fun.

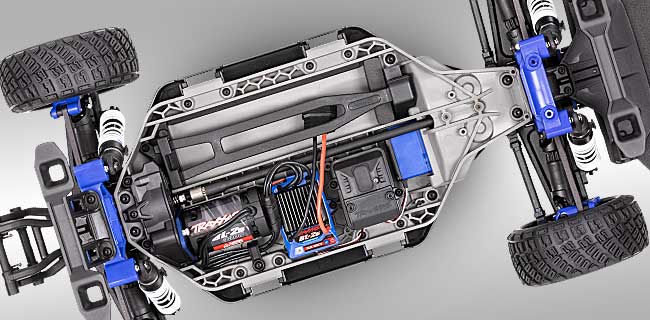

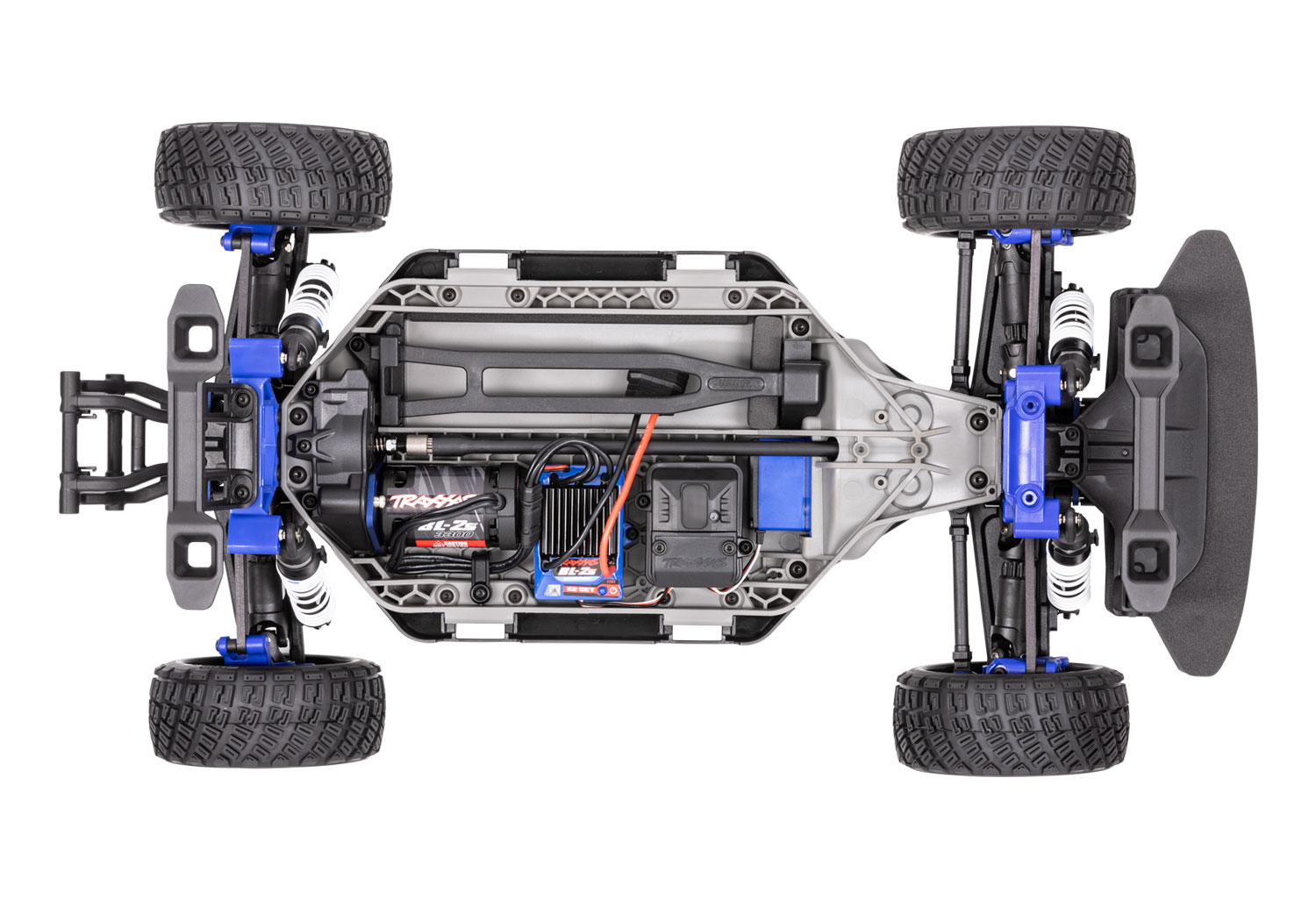

Perfect Weight Bias
Each component on the Rally chassis is positioned for optimal weight distribution and space utilization. The result is perfect weight bias for neutral handling precision. The bulk of the mass is distributed down the centerline of the chassis for smooth, stable cornering.

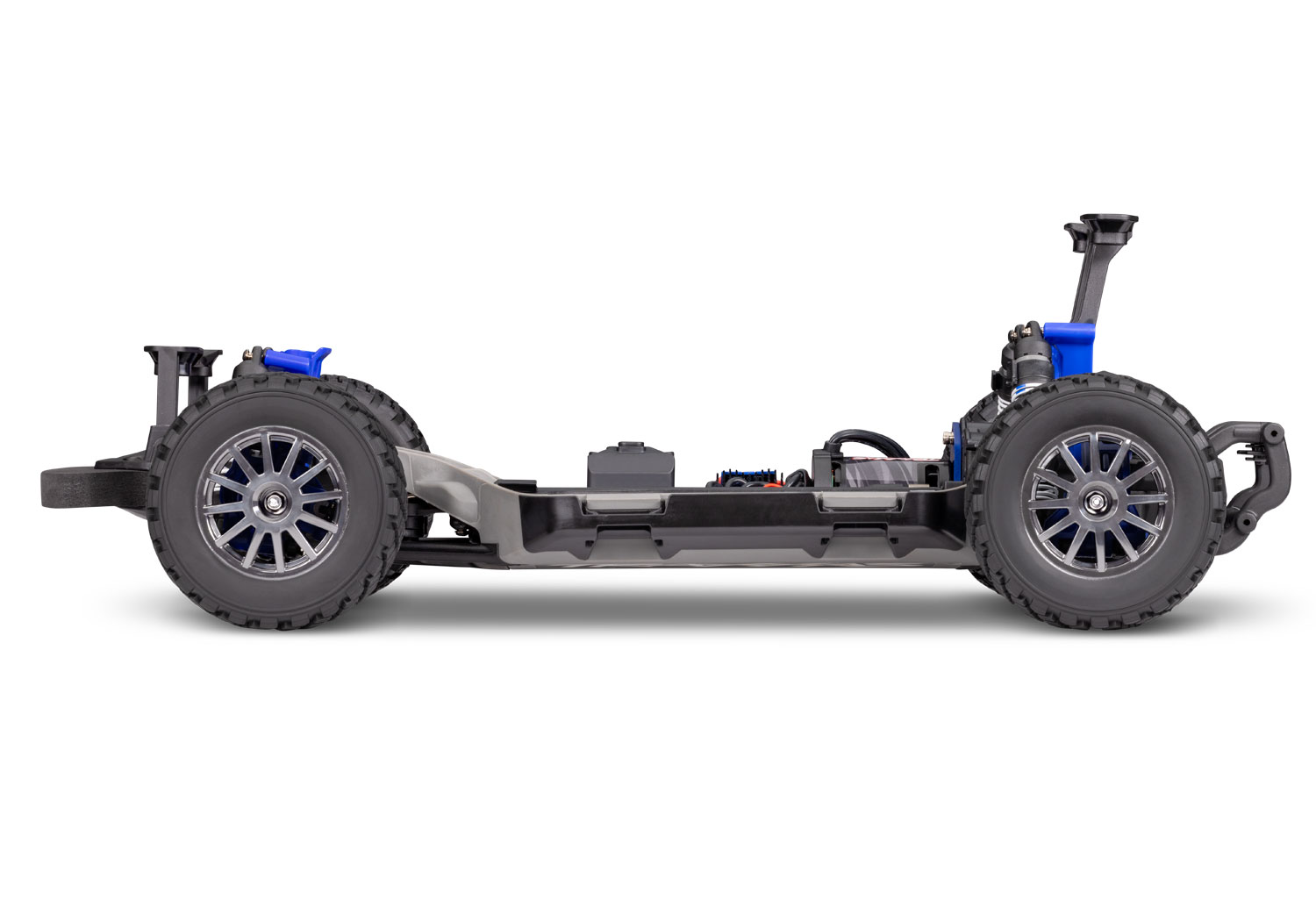

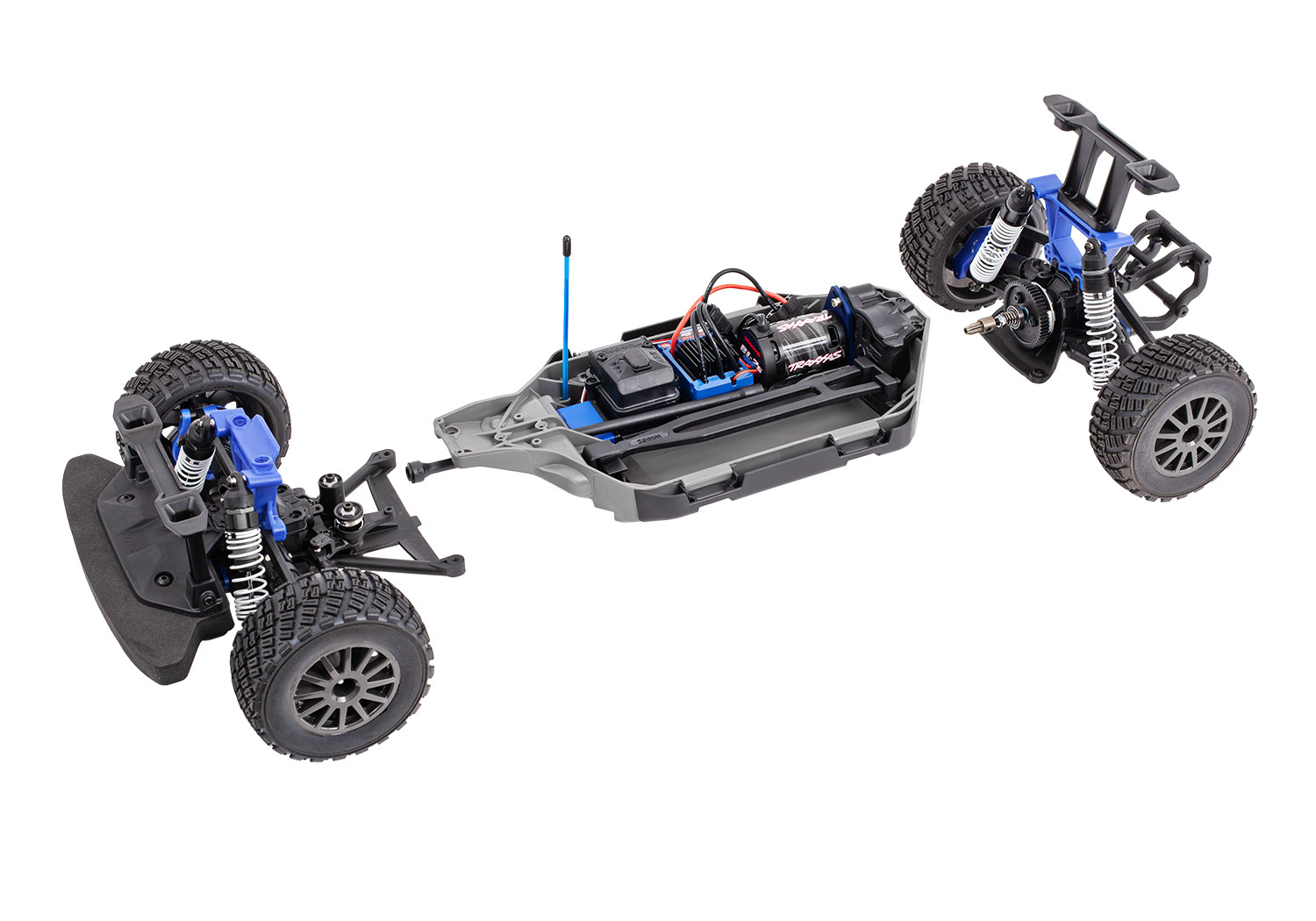

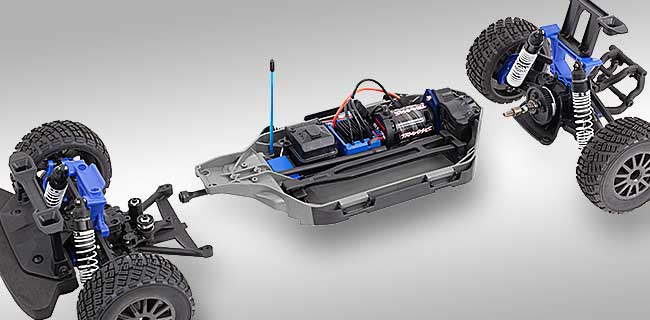

Innovative Chassis
Rally’s modular chassis design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

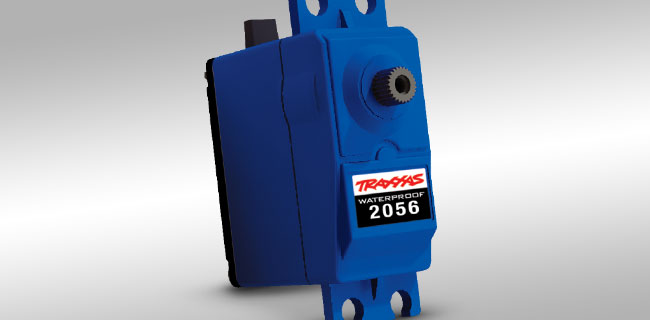

Digital Steering Servo
The Traxxas 2056 steering servo provides powerful steering authority on tough terrain with 80 oz-in of steering muscle. The fully-waterproof servo uses special O-ring seals to keep the fun going even when things get wet.

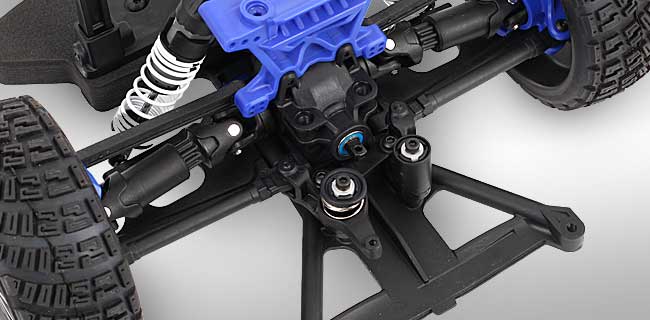

Dual Bellcrank Steering with Servo Saver
Rally’s dual-bellcrank design pivots smoothly even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.

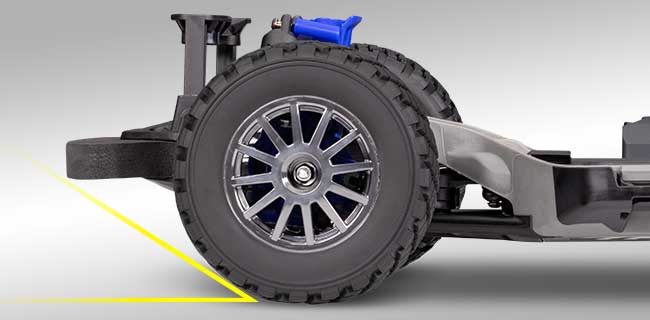

High Approach Angle Bumper
Rally’s smooth under tray reduces snags while the high approach angle front bumper allows the vehicle to clear driveways and expansion joints without raising the overall height of the vehicle or its low center of gravity.

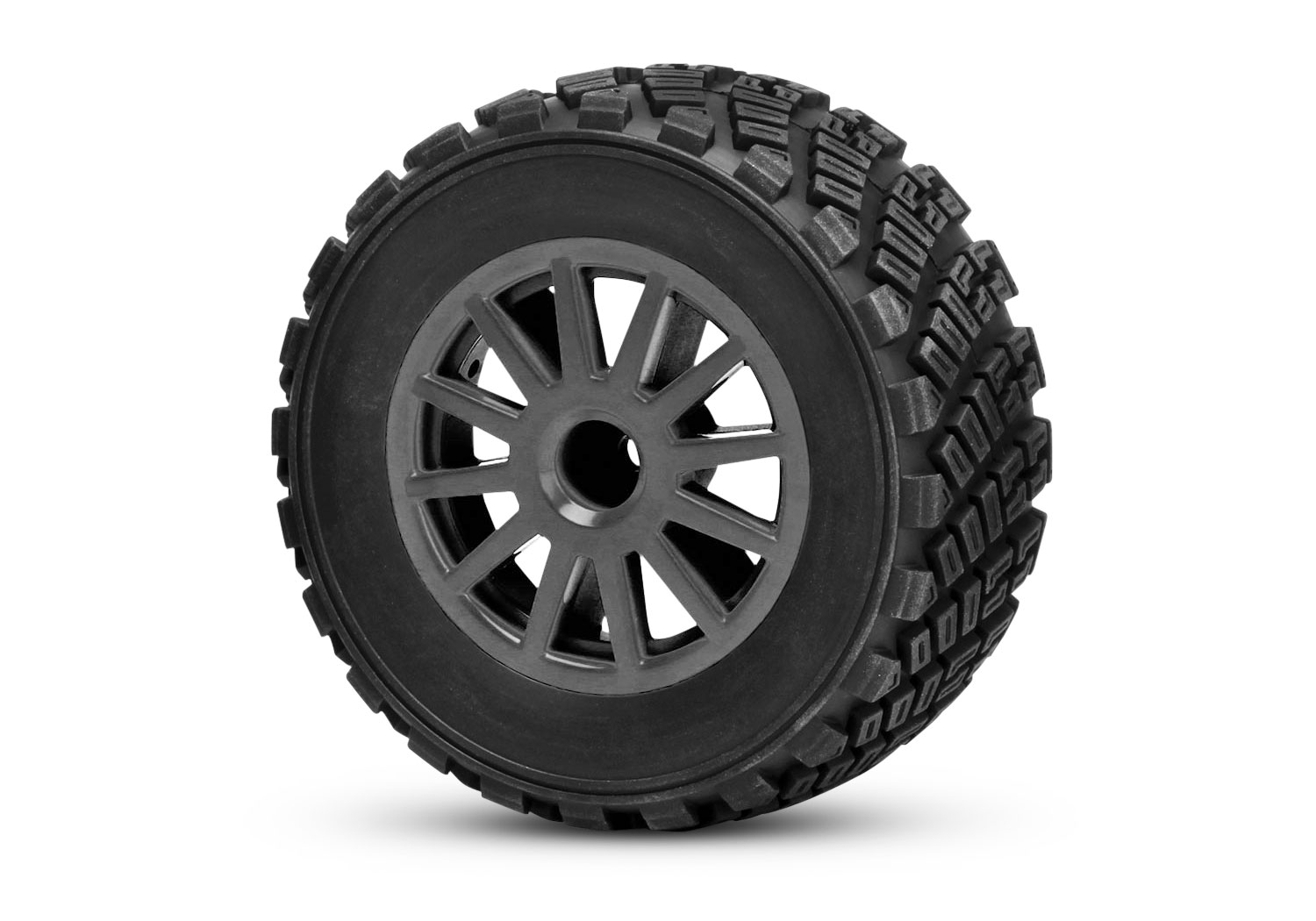

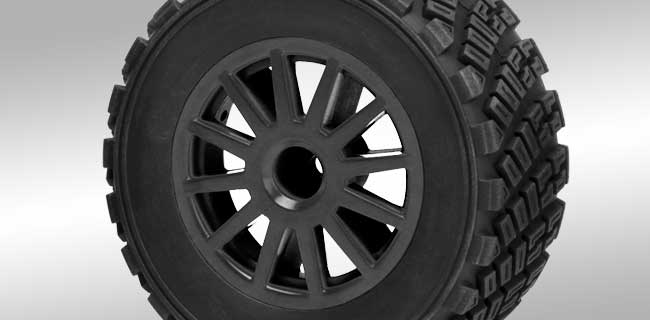

Race Inspired Tires and Wheels
Rally’s unique directional tire tread pattern is captured in high-grip rubber for the ultimate bite on or off the pavement. Equal parts style and strength, the rugged rally wheels feature a 12-spoke rally replica design in the same offset as Slash 4X4 wheels.

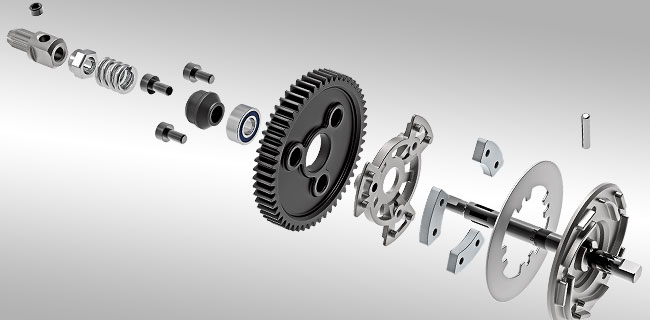

Upgraded Slipper Clutch
Rally’s slipper clutch features larger alloy pressure plates and high-temperature aluminum pads for superior power handling. The slipper clutch delivers equal power distribution front to rear for instant throttle response through the drive system and aggressive four-wheel-drive grip.

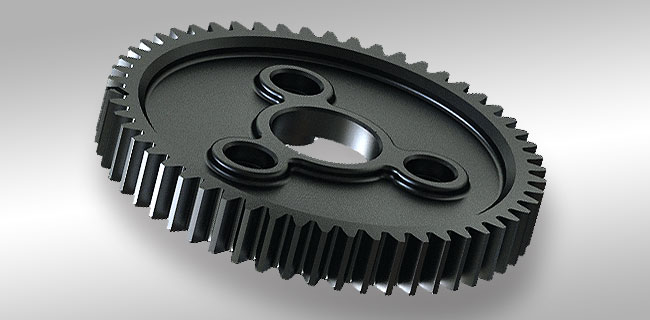

32-Pitch Gears
Rally’s driveline is built to handle standard brushless horsepower power and even the extreme Velineon® 3s brushless power upgrade down the road. The spur gear features large 32-pitch teeth for total reliability no matter how much power you pour on.

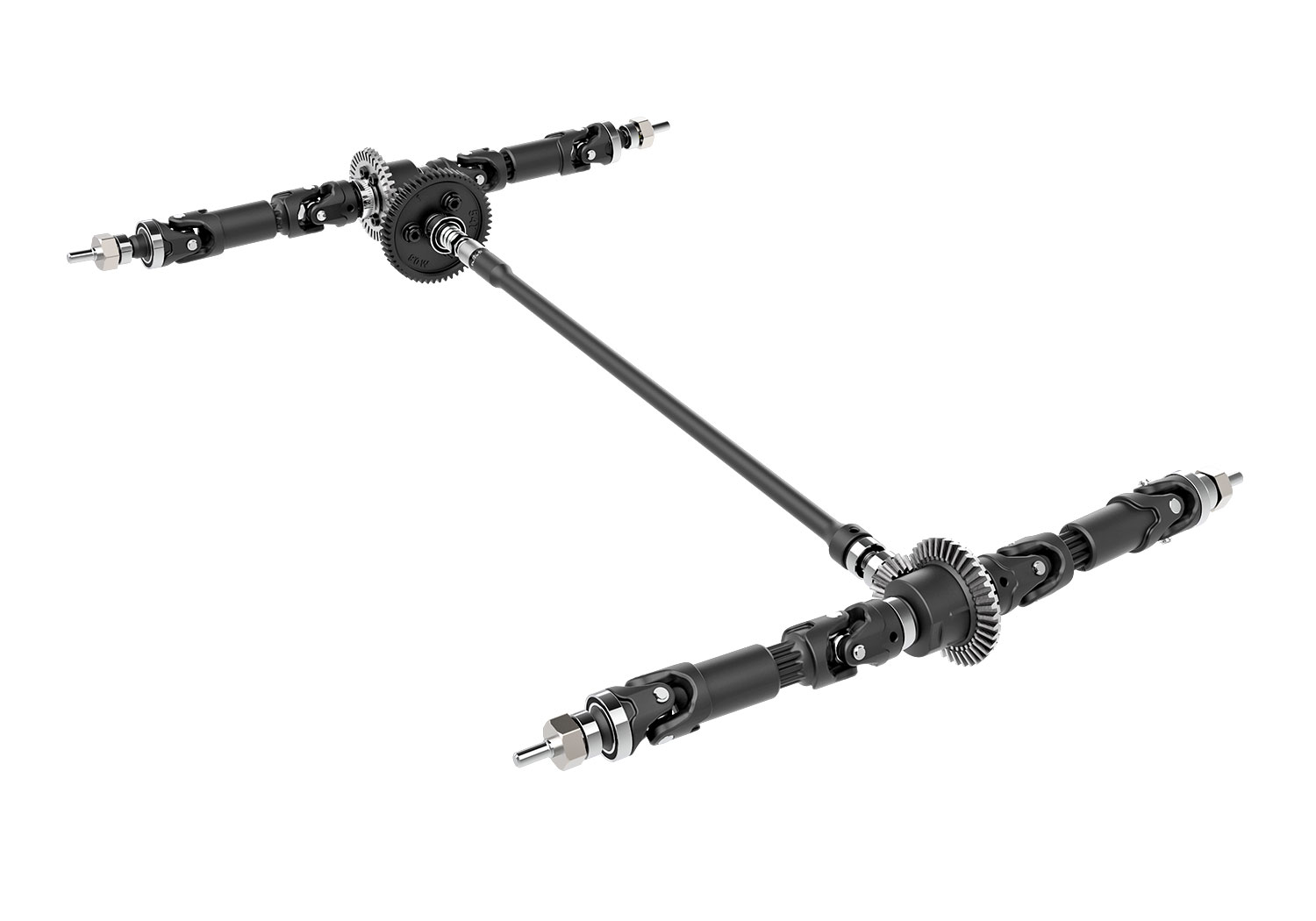

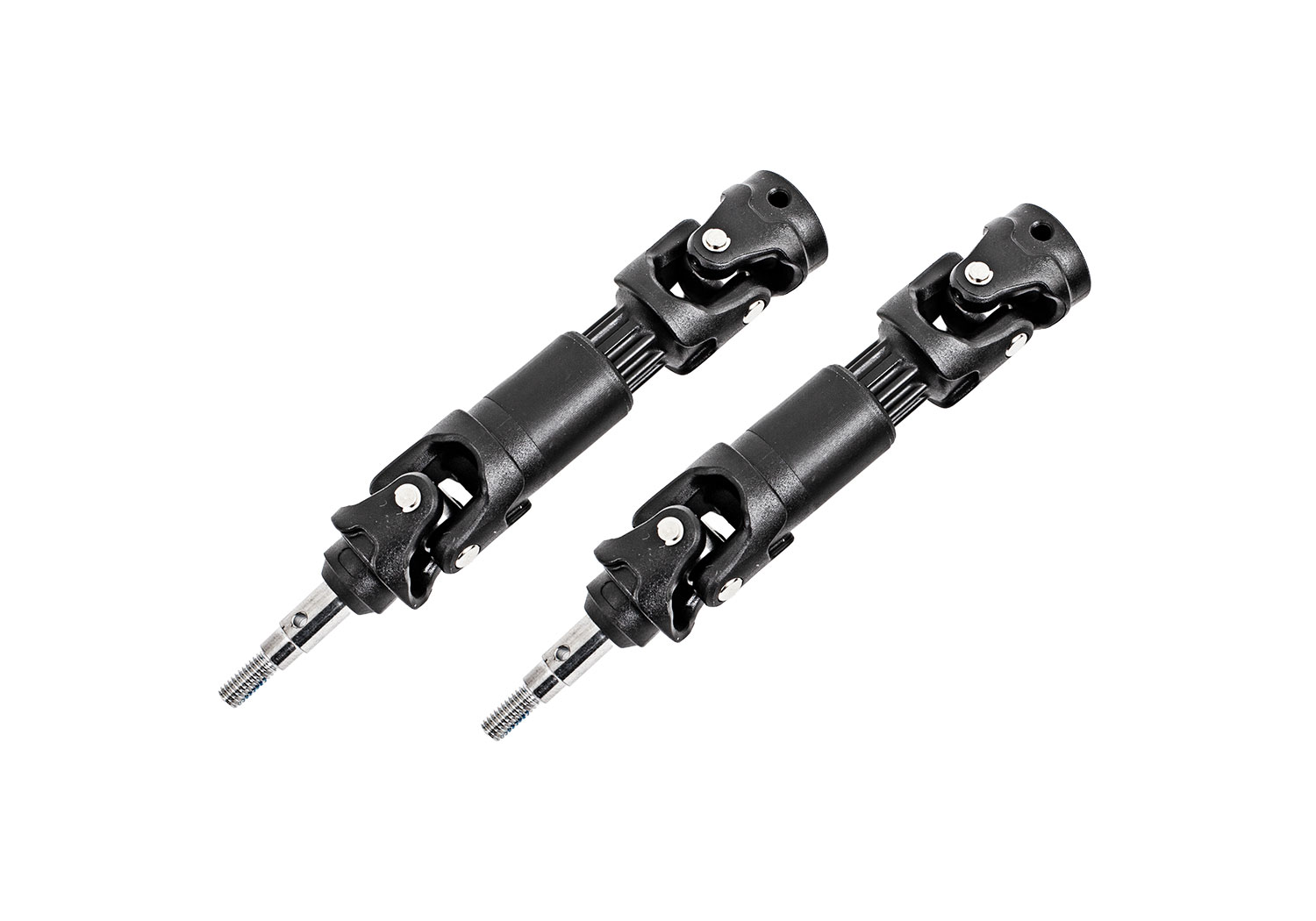

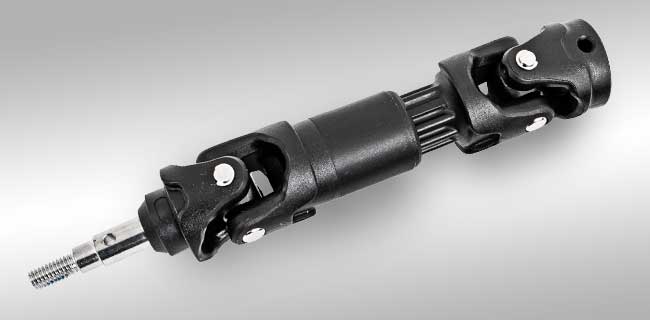

Maxx-Duty Driveshafts
Rally’s Maxx-duty® driveshafts with beefed-up U-joints are built to handle brushless power without breaking a sweat. Large 6mm axles key into the included steel wheel hexes for unmatched strength and durability.

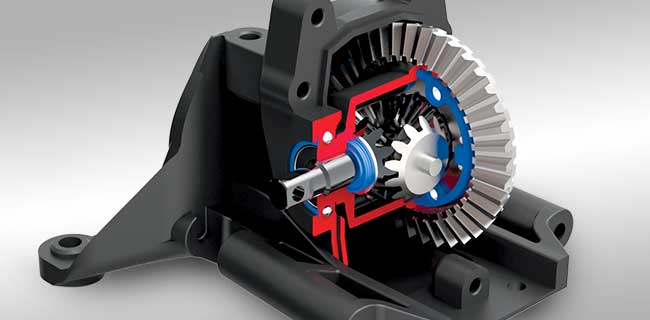

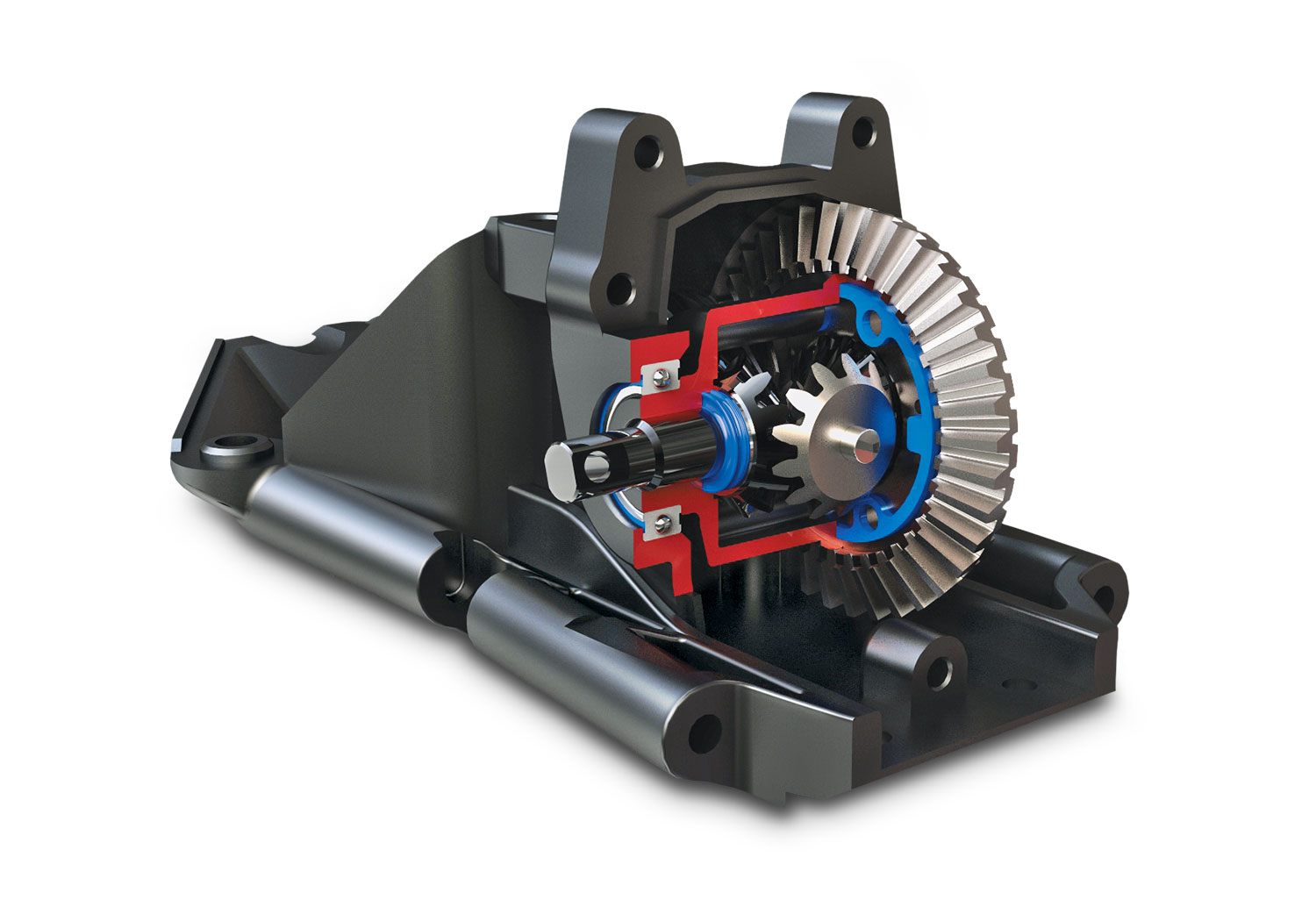

Sealed Steel-Gear Differentials
Sealed steel-gear differentials are ready to handle brushless power without costly upgrades. Silicone gaskets and X-ring seals allow the differentials to be tuned for specific running conditions by varying the viscosity of the oil inside them. Rally’s modular chassis design makes differential access quick and easy.

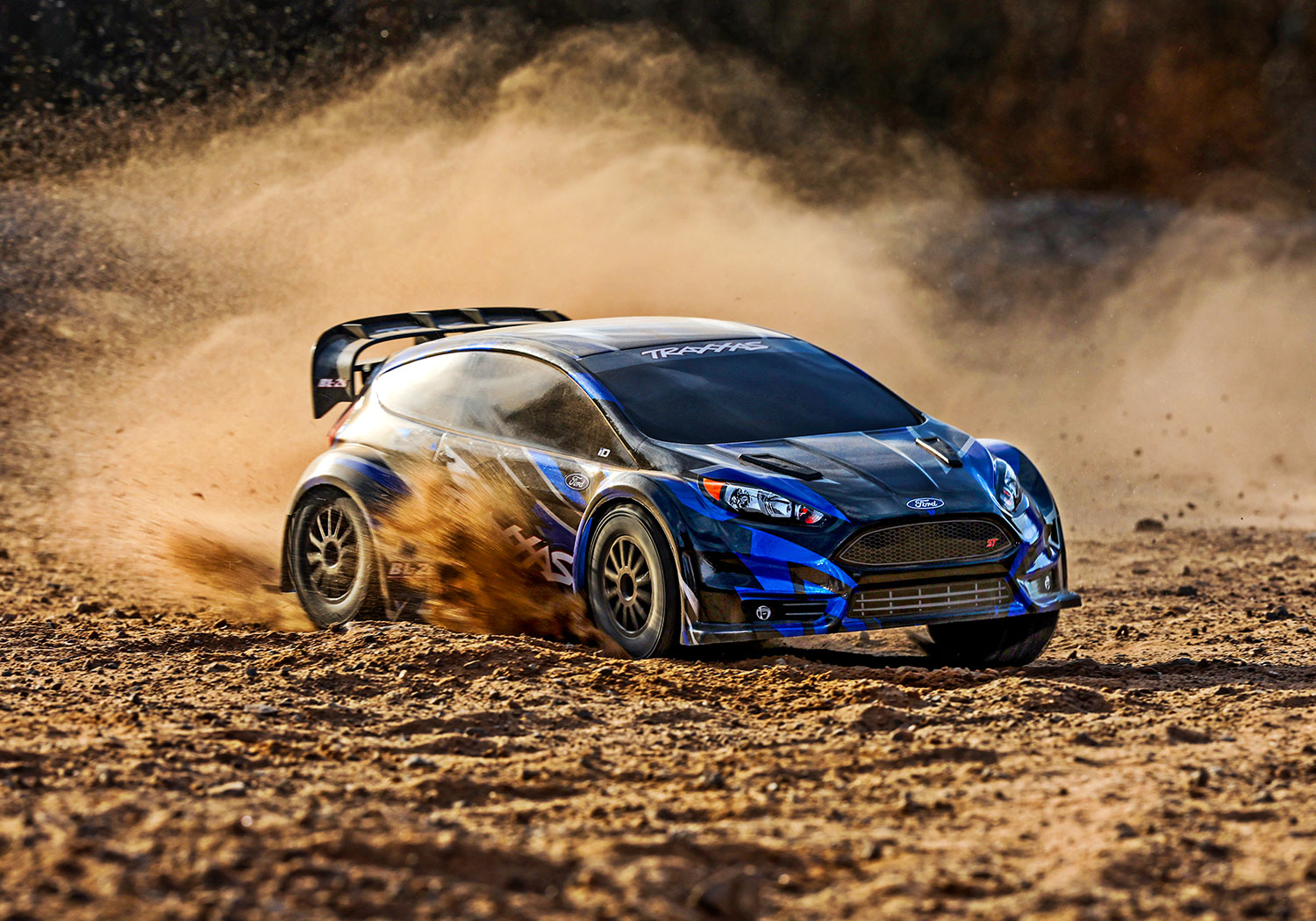

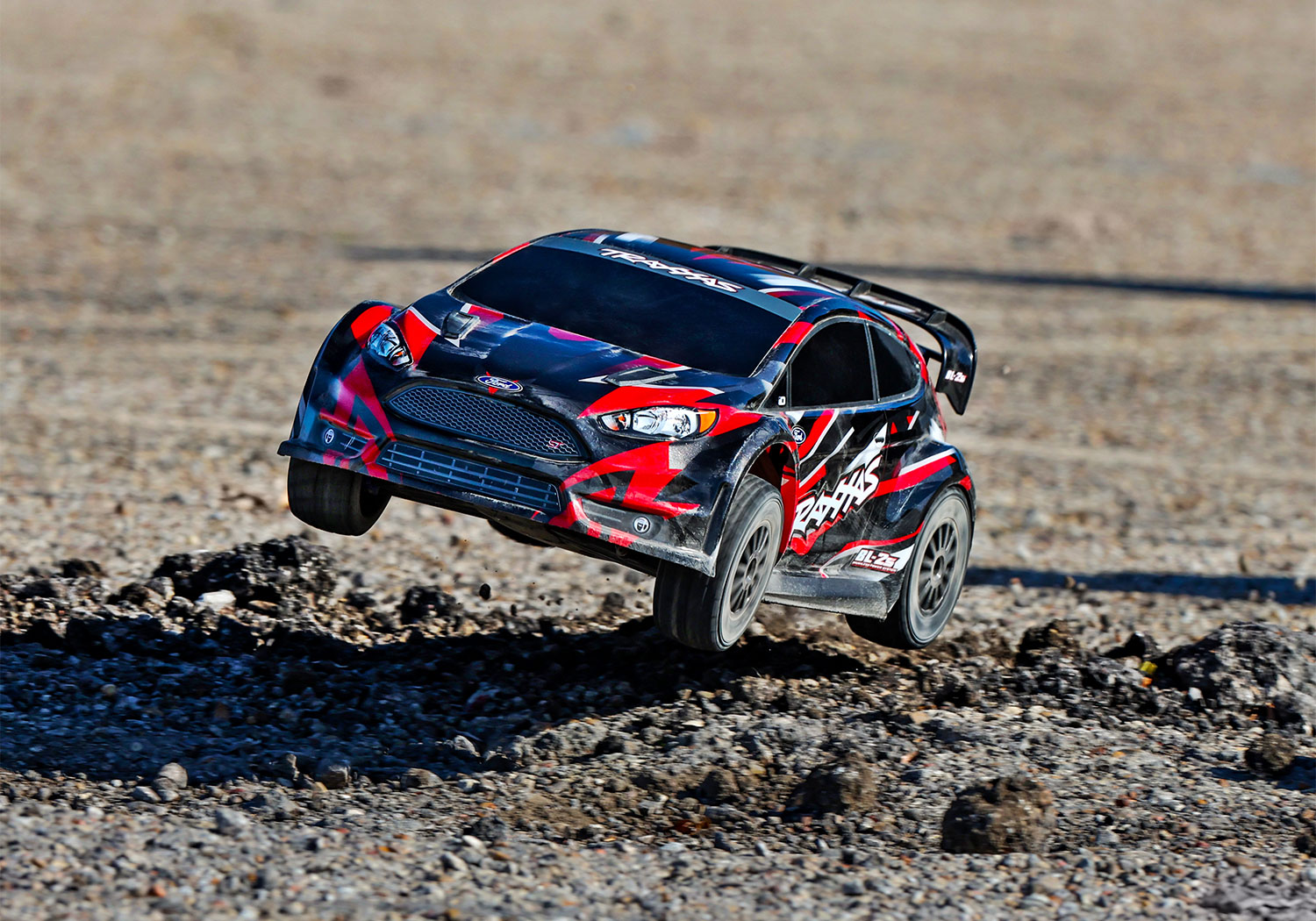

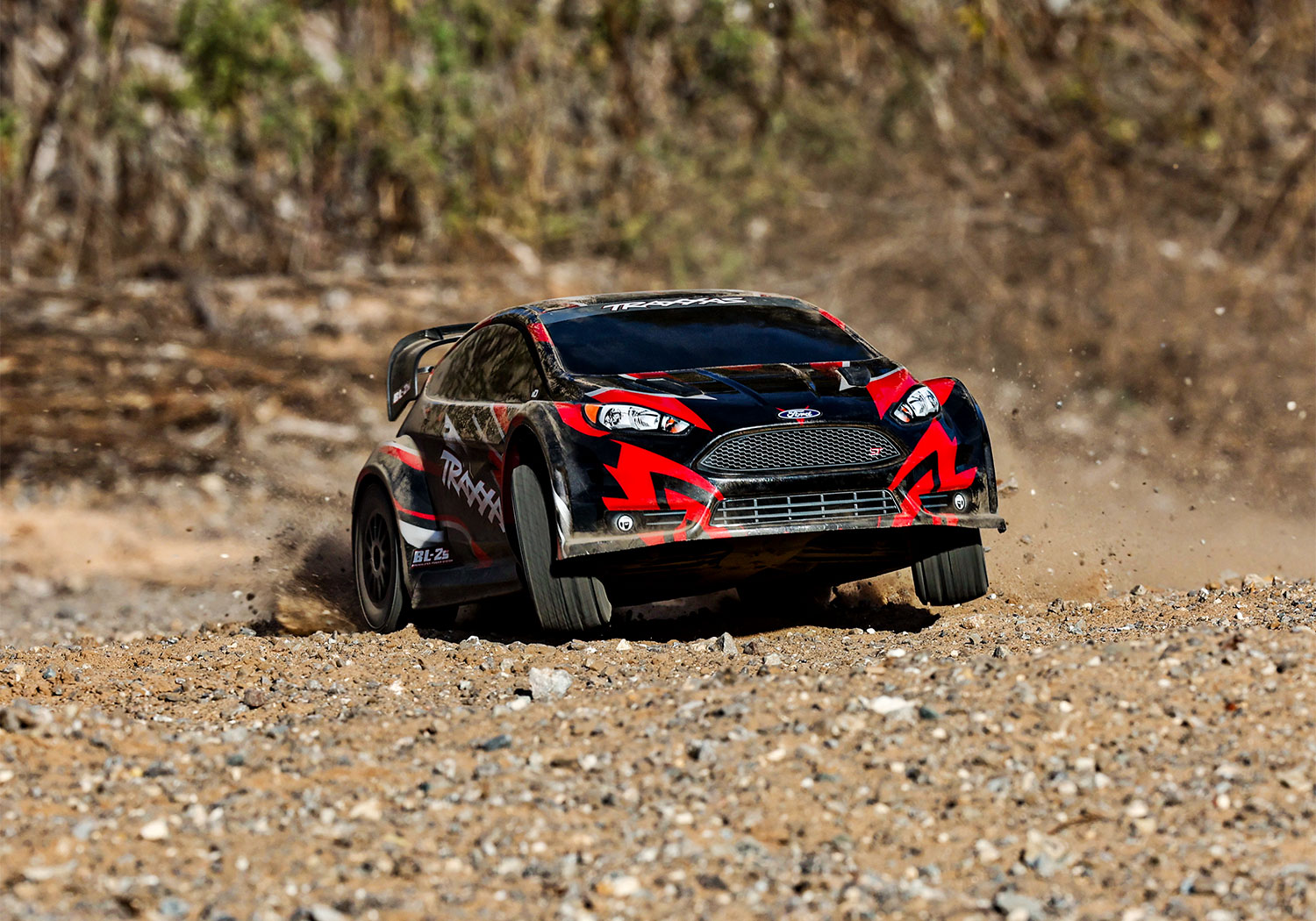

Photo Gallery
Make sure you don’t miss any of the latest Fiesta ST Rally Brushless news, accessories, and updates.
Fiesta ST Rally BL-2S Data
| Length: | 21.00 inches (535 mm) |
|---|---|
| Front Track: | 11.00 inches (281 mm) |
| Rear Track: | 11.00 inches (281 mm) |
| Ground Clearance: | 0.80 inches (21 mm) |
| Weight (no battery): | 5.8 pounds (2.63 kg) |
| Height (overall): | 8.10 inches (206 mm) |
| Wheelbase: | 12.8 inches (324 mm) |
| Shock Length (front): | 3.45 inches (88 mm) - Long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-long |
| Speed Control: | BL-2s™ electronic speed control |
| Motor (electric): | BL-2s™ 3300 kV sensorless brushless |
| Overall Drive Ratio: | 11.82:1 |
| Differential Type: | Hardened steel bevel, sealed, limited slip |
| Gear Pitch: | 32 pitch |
| Chassis Structure/Material: | Composite tub |
| Drive System: | Shaft-driven 4WD |
| Steering: | Dual bellcrank with integrated servo saver |
| Tires: | Gravel pattern directional with foam inserts |
| Tire Diameter: | 3.0 inches (76 mm) (front and rear) |
| Wheels (front/rear): | 12-spoke rally wheels |
| Wheel Diameter: | 2.2″ (56 mm) (outer), 3.0″ (76 mm) (inner) |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof digital 2056 servo (80 oz-in torque) |
| Skill Level: | 1 |
| Battery Compartment (L/W/H): | 165 x 50 x 23/26 mm |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |
| Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
- Clipless Body
- Officially licensed Ford® Fiesta® ST body
- Pre-painted with applied decals
- Tough composite rear wing
- High approach angle front bumper
- Internal reinforcement with integrated nerf bars
- Holds tight for intense action
- Quick and easy removal
- Extreme Heavy Duty Upgrade Kit Installed
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

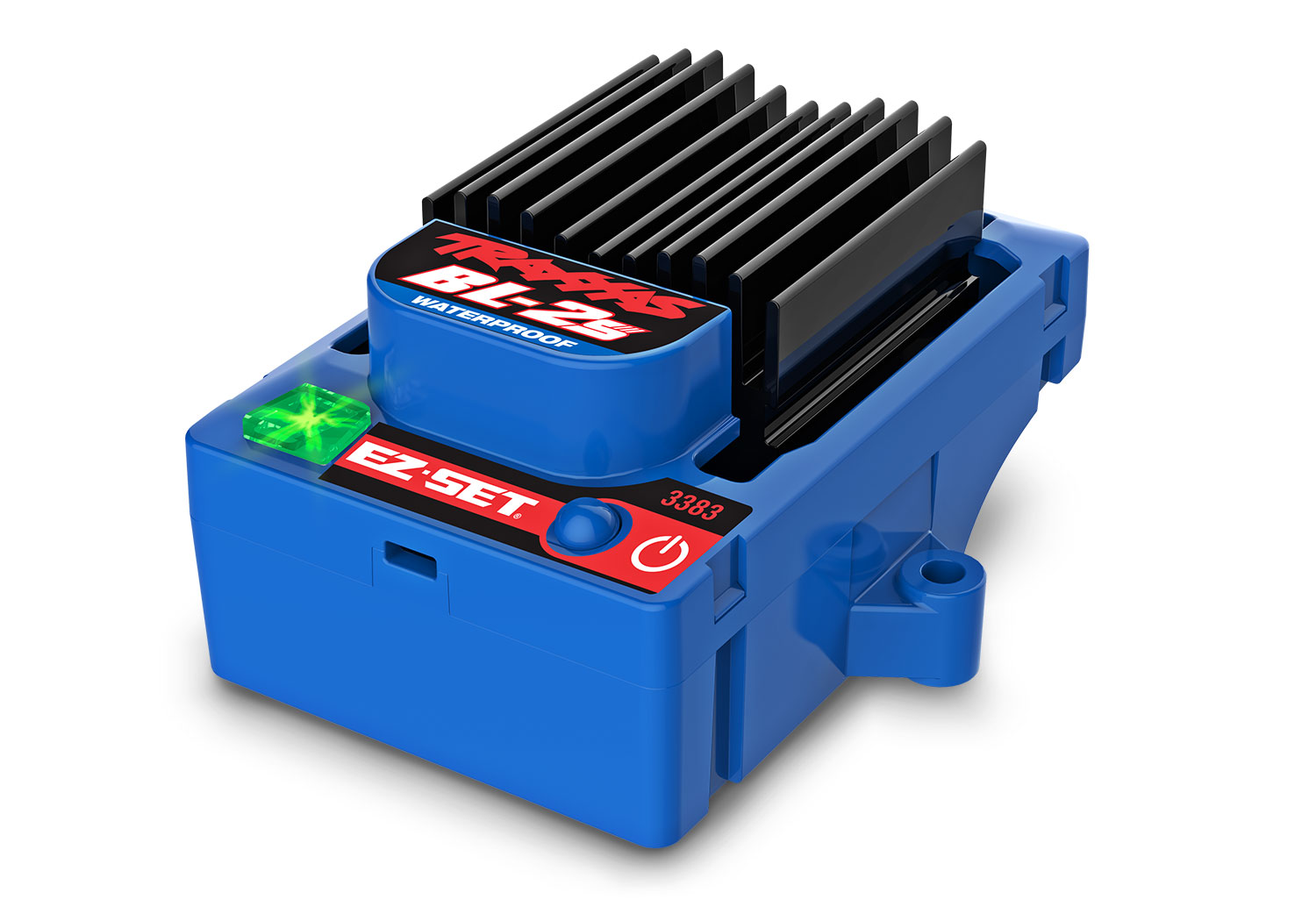

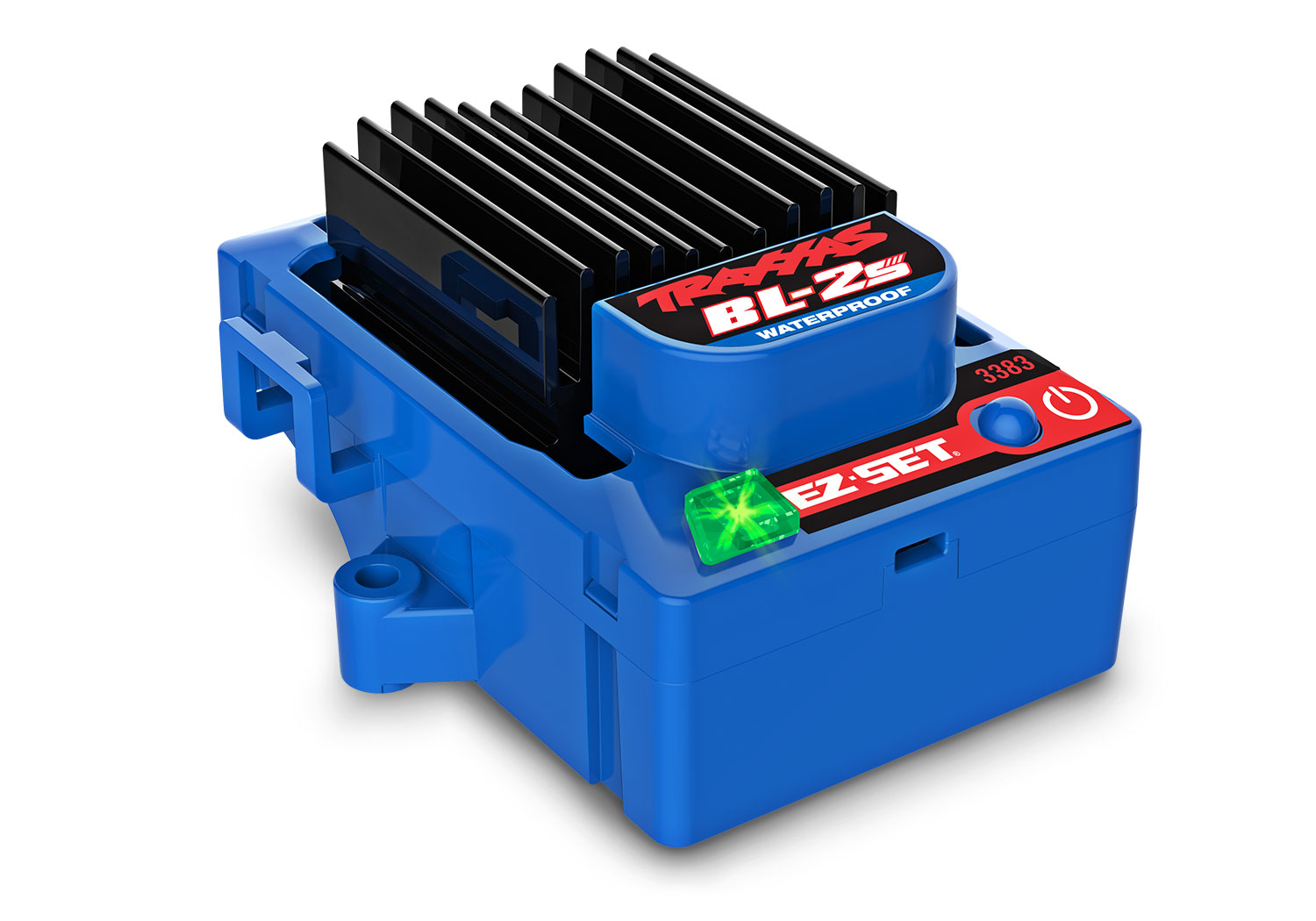

- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

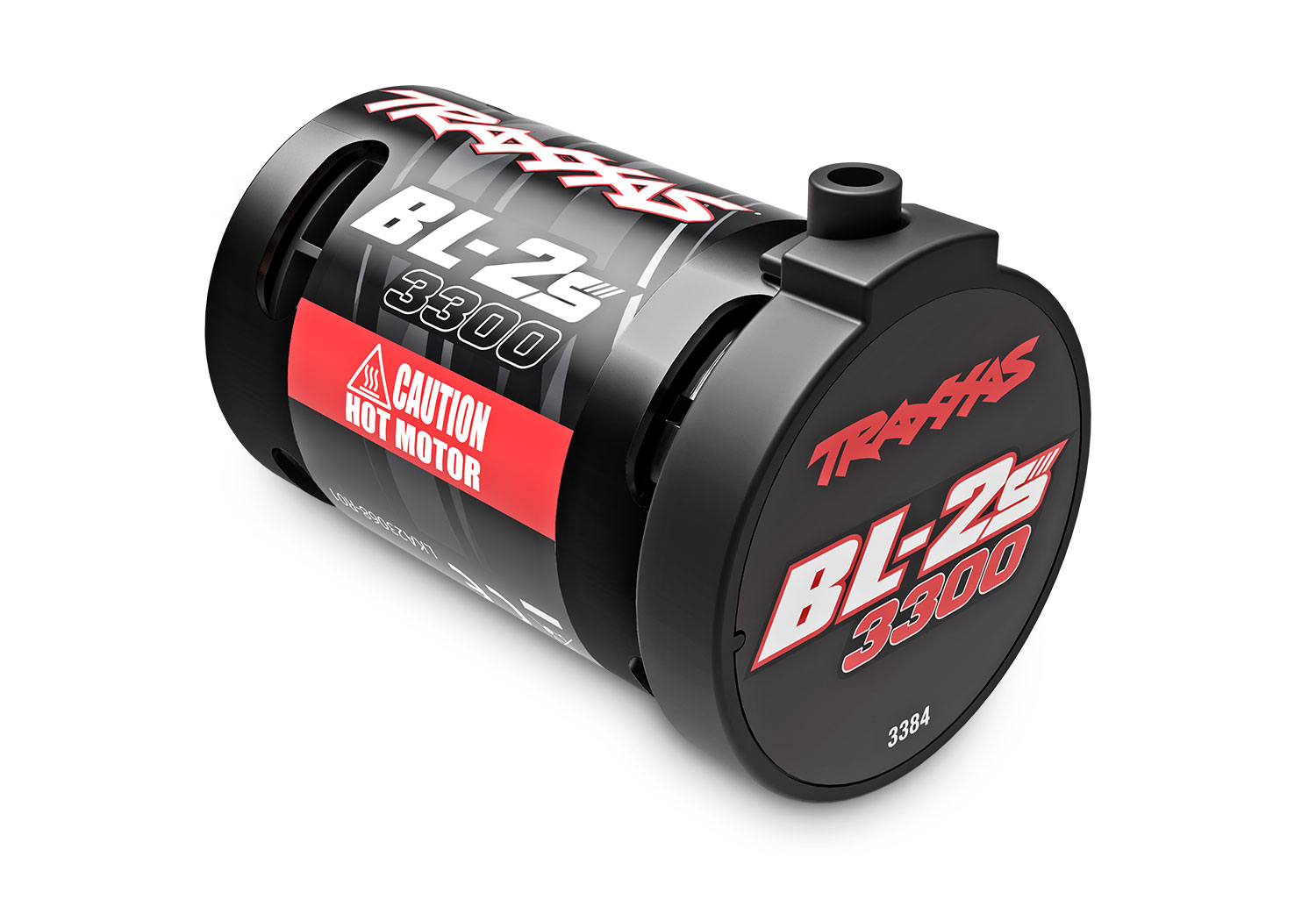

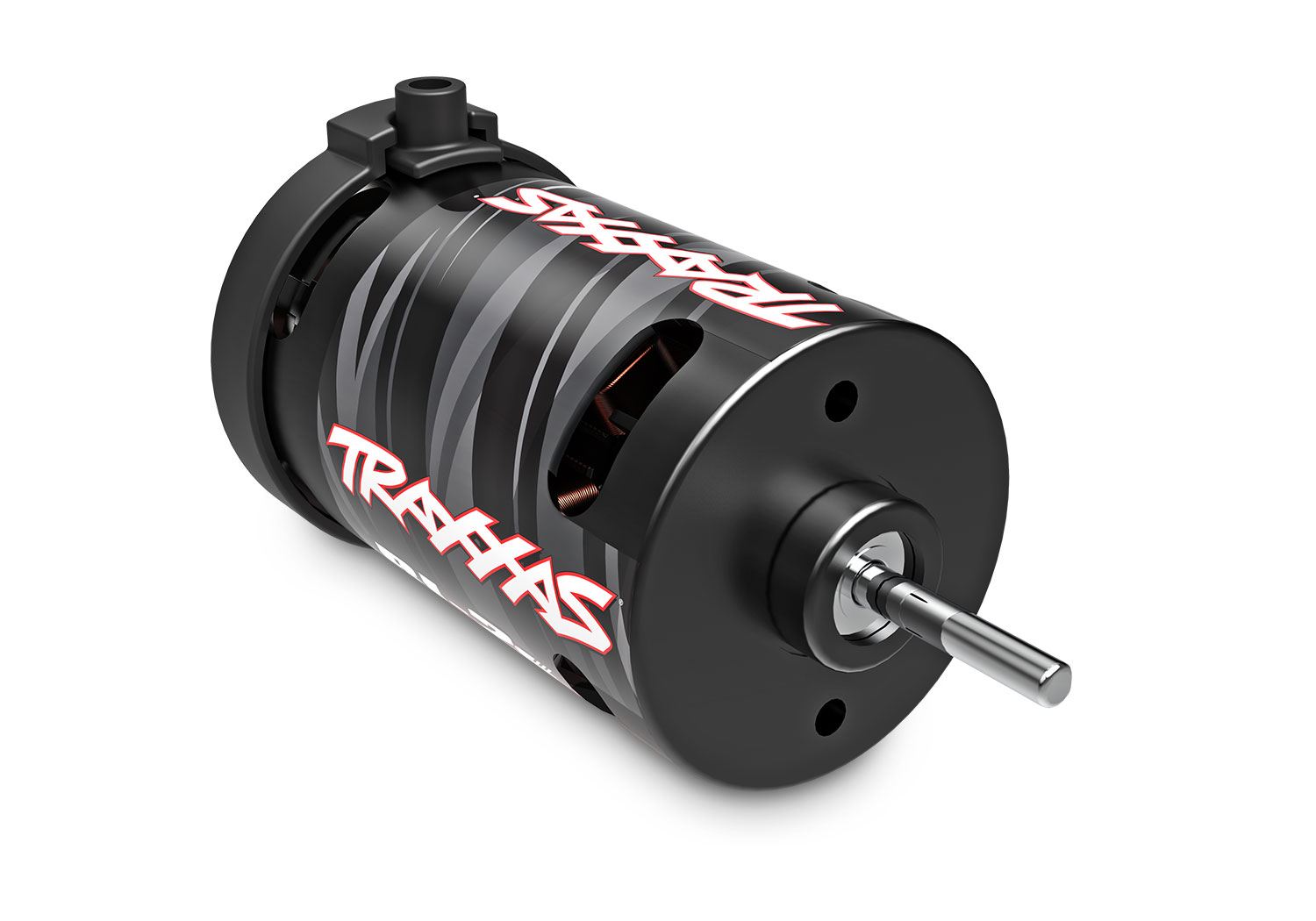

- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- Steering
- Chassis-mounted 2056 servo
- Dual bellcrank design with integrated servo saver

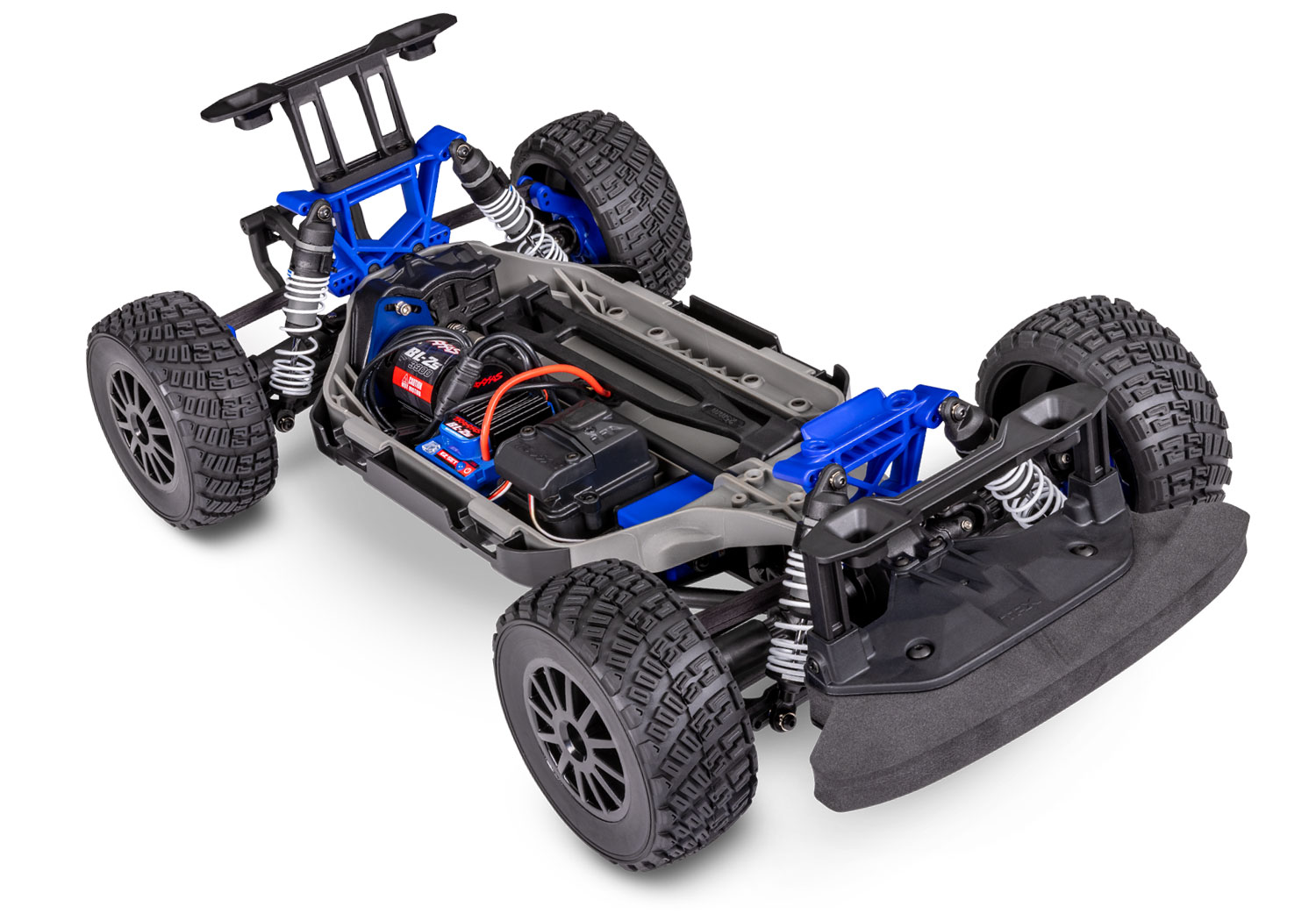

- Chassis
- Modular composite tub design
- Secure battery hold-down latch
- Low-CG design
- High-angle bumpers
- Suspension
- Oil-filled Ultra Shocks™
- White powder-coated springs
- Drivetrain
- Heavy-duty slipper clutch
- Full-time shaft-driven 4-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch spur gear
- Wheels and Tires
- 2″ outer, 3″ inner diameter dual-profile 12-spoke rally wheels
- Pre-glued all-terrain rally tires with performance foam inserts
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- Fiesta ST Rally with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Rally requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
