Rustler 4X4 Brushless Logo

A New Breed of Stadium Truck

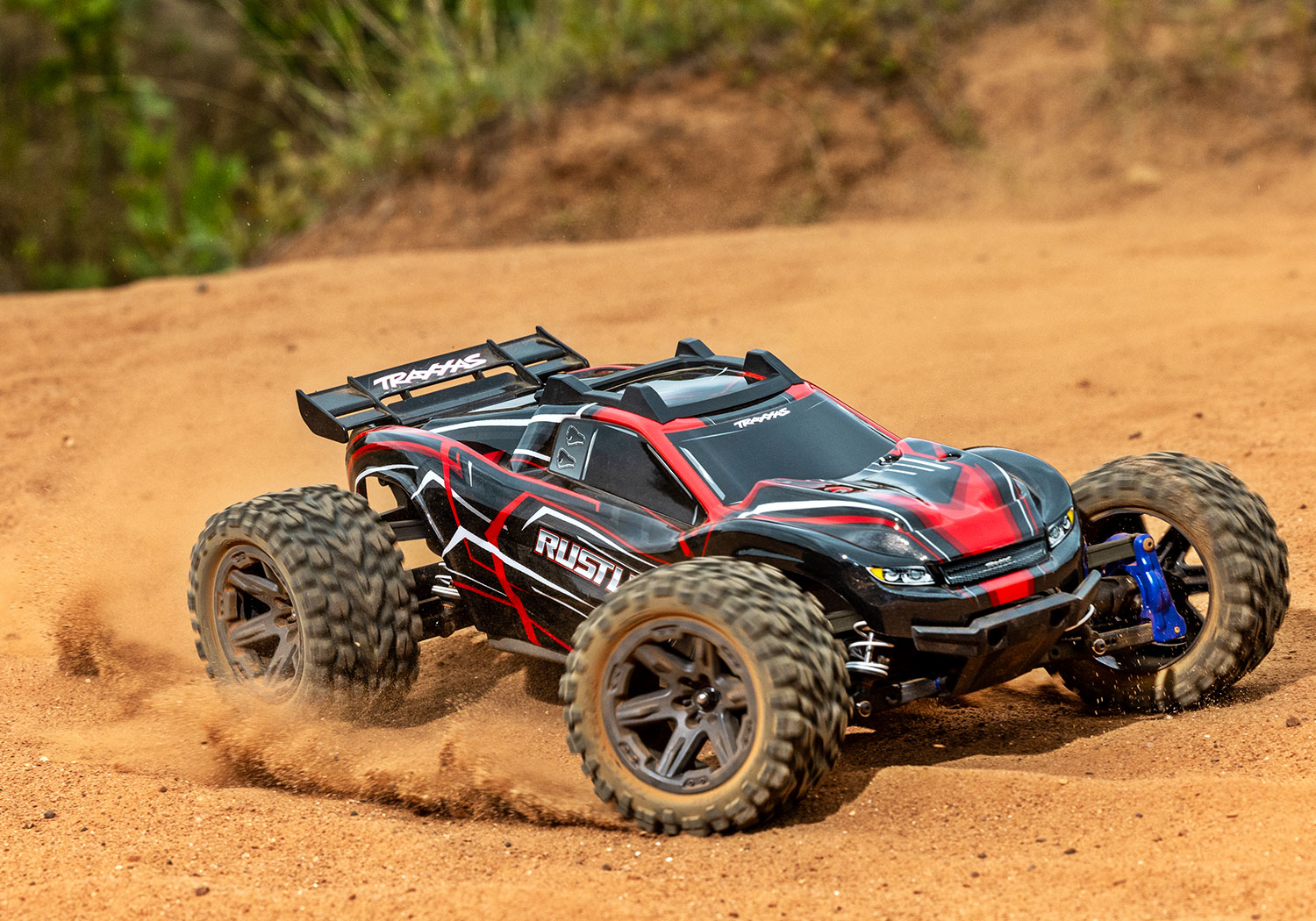

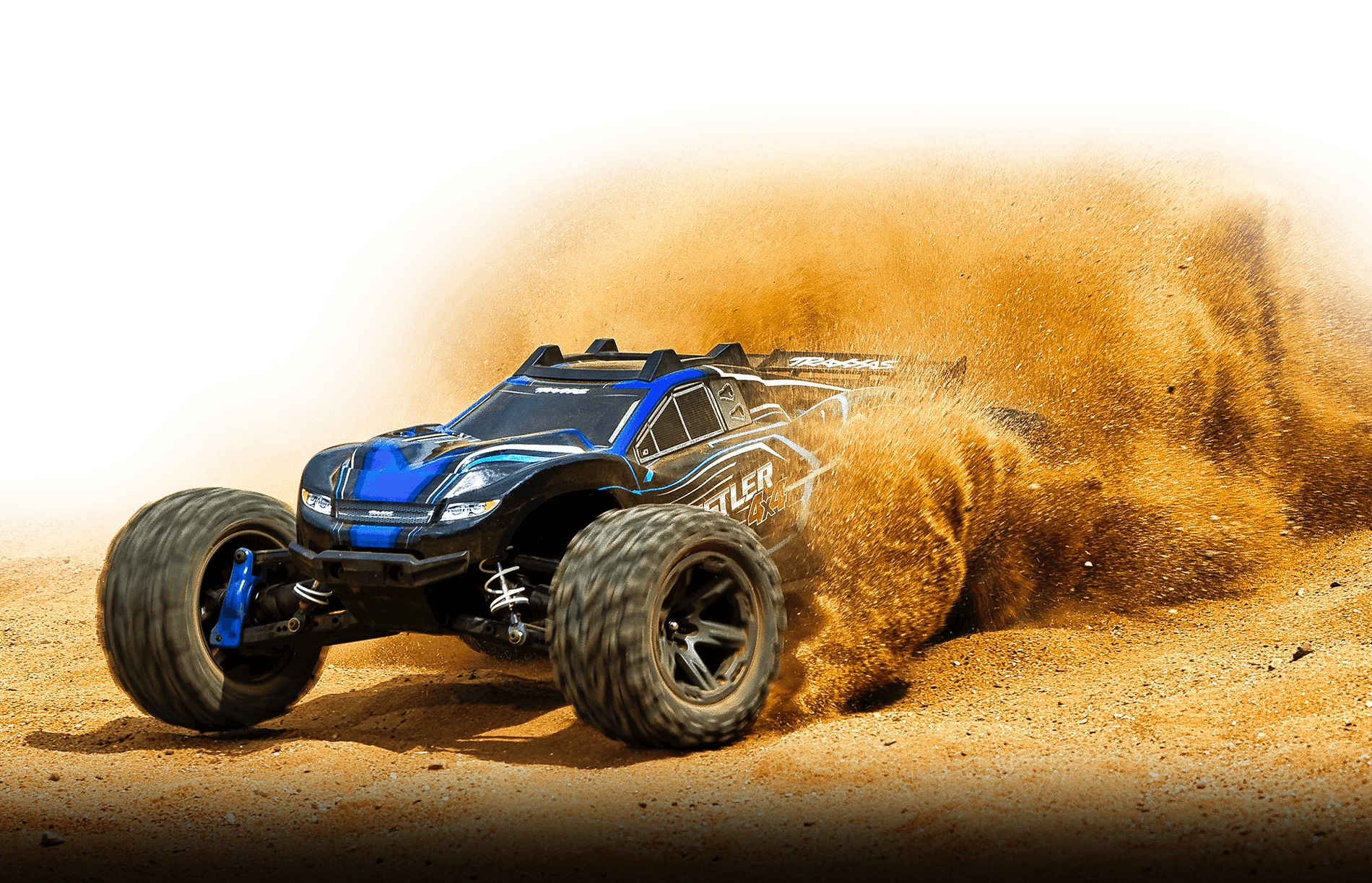

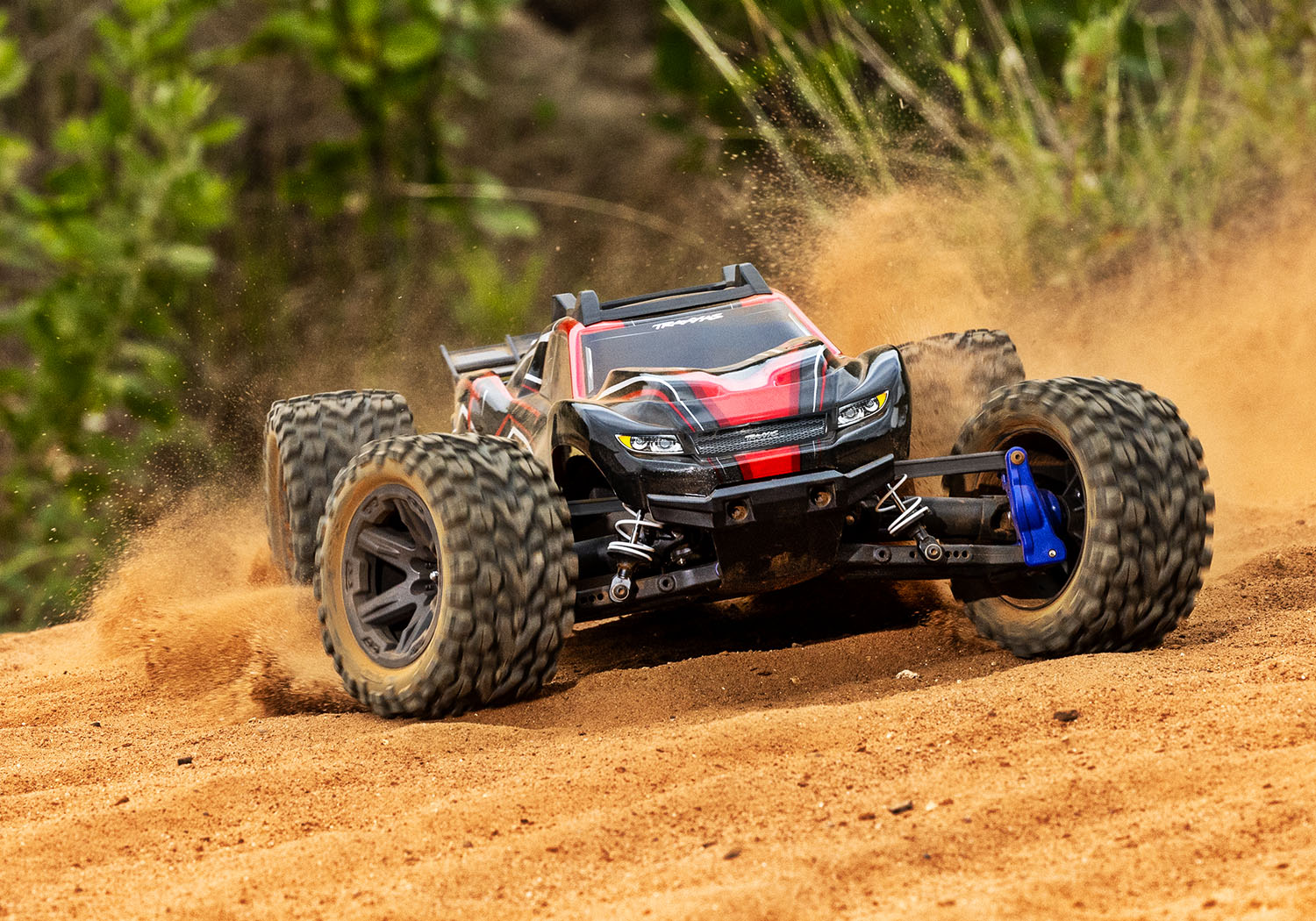

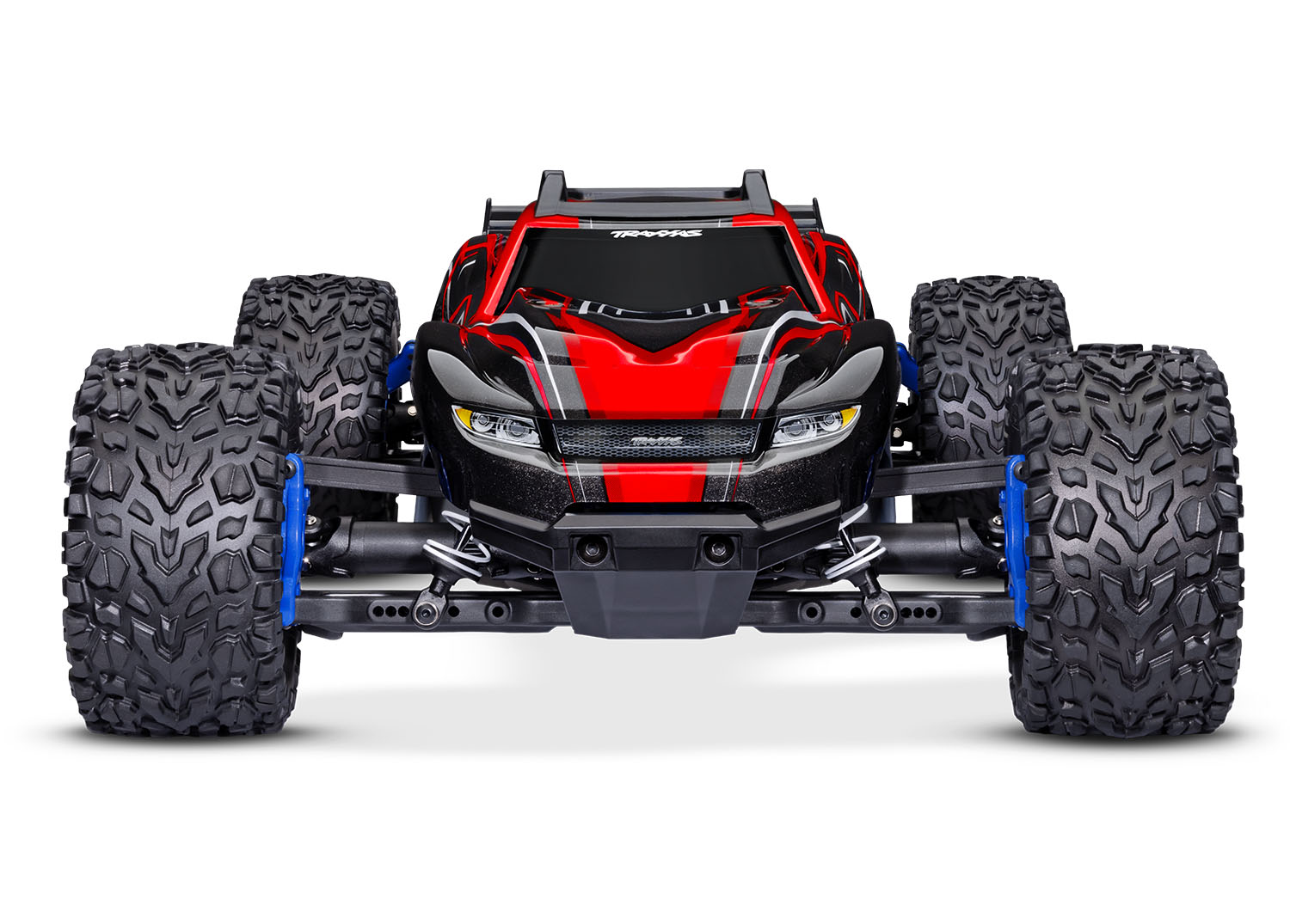

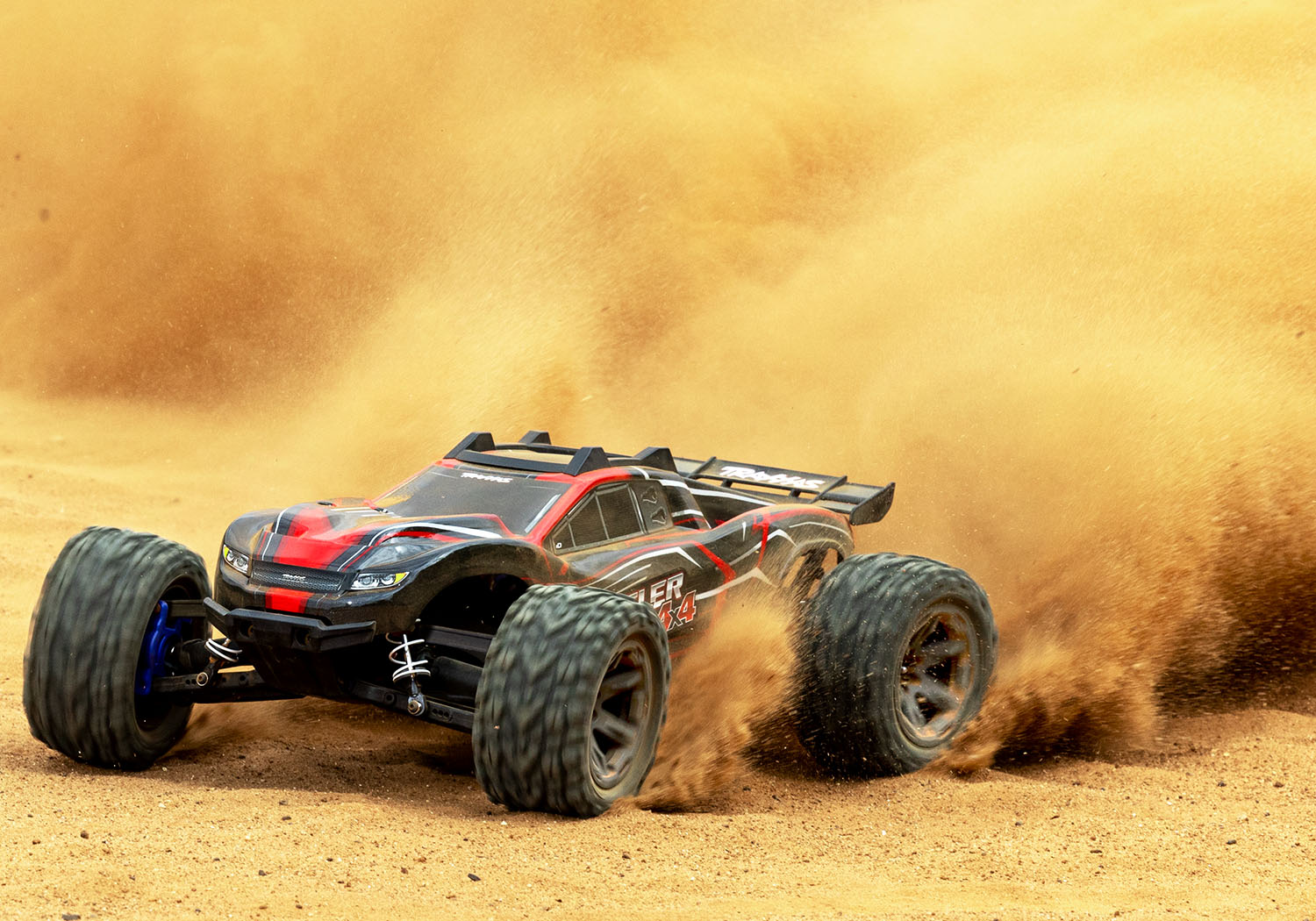

Rustler® 4X4 is the definitive go-to machine for speed, agility, and unstoppable 4WD traction. Beneath the reinforced clipless body, Rustler’s chassis sits low and wide for increased stability and sharp handling. Rustler’s all-new BL-2s brushless power system delivers effortless power for all-day fun with an added boost of torque for 4-wheel burnouts and lightning-fast acceleration. Additionally, Rustler 4X4 now comes standard with Traxxas’ Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

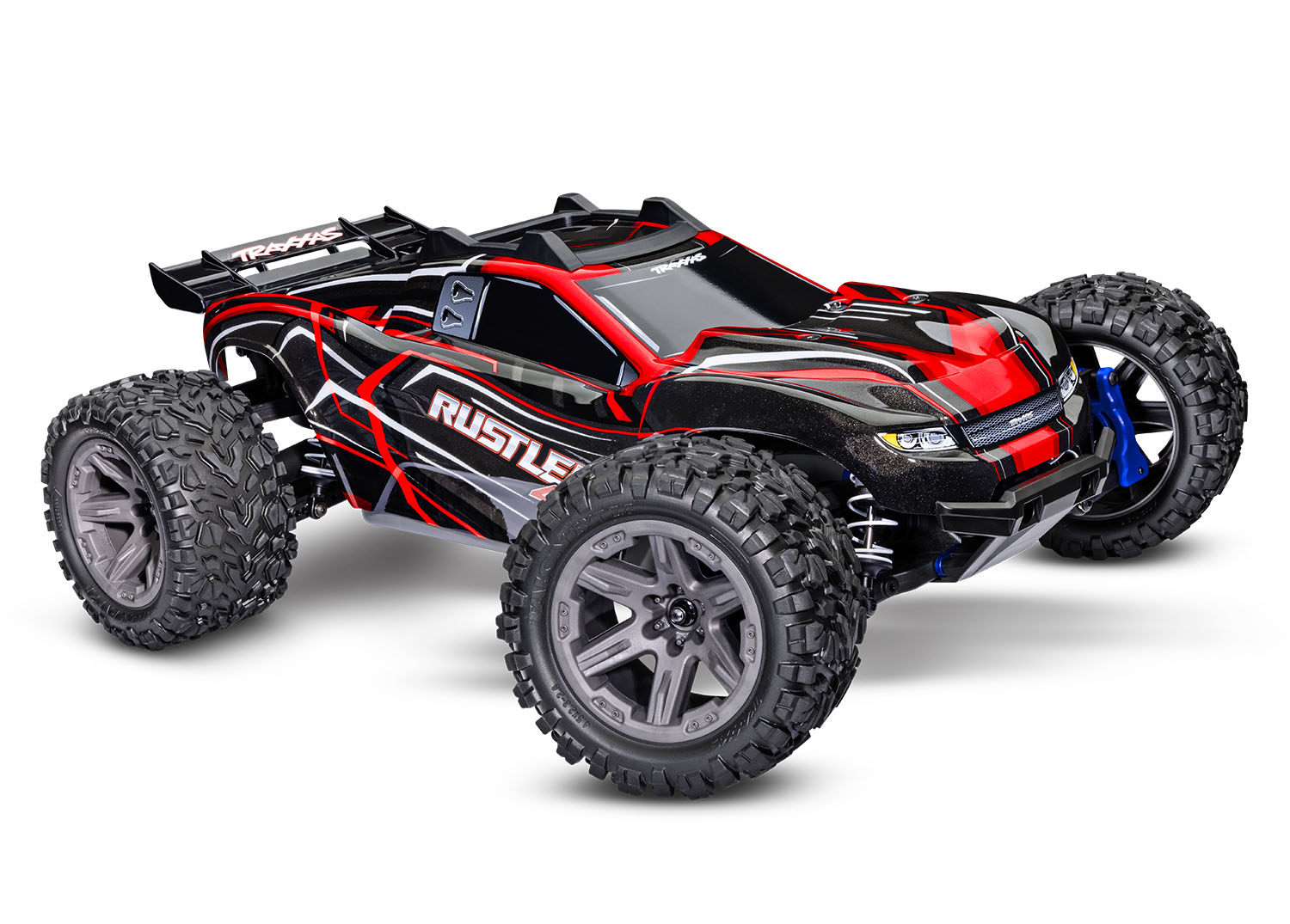

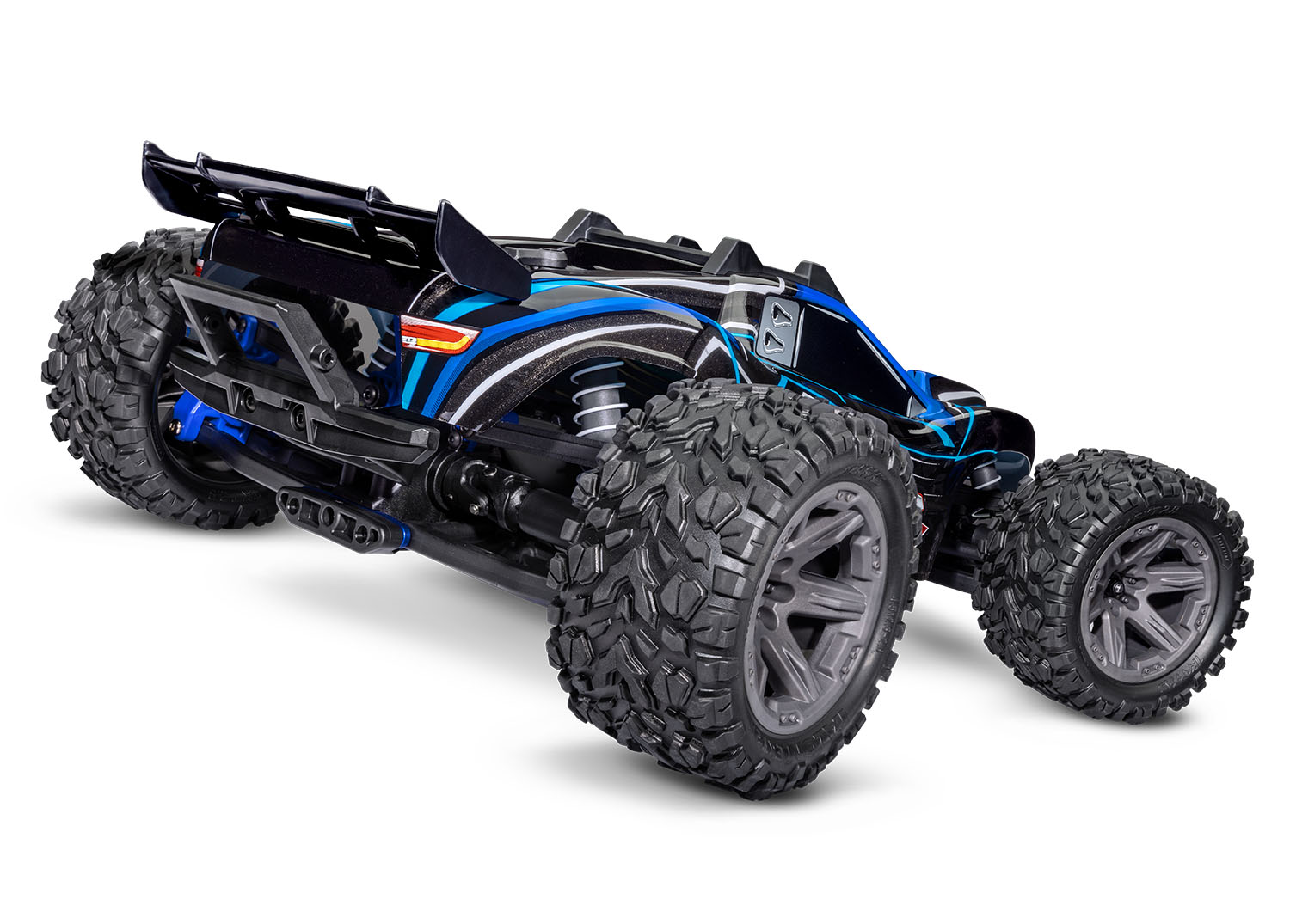

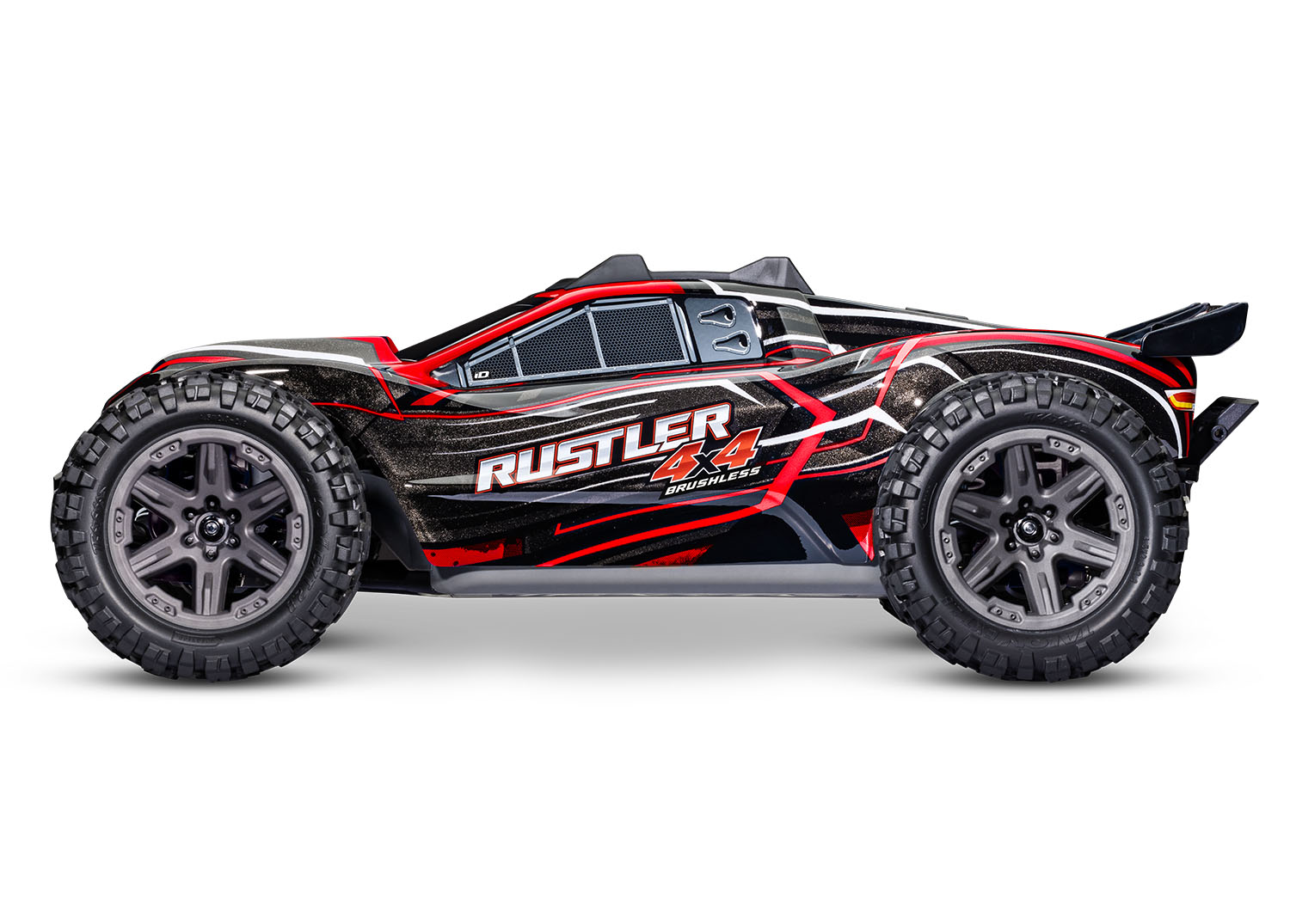

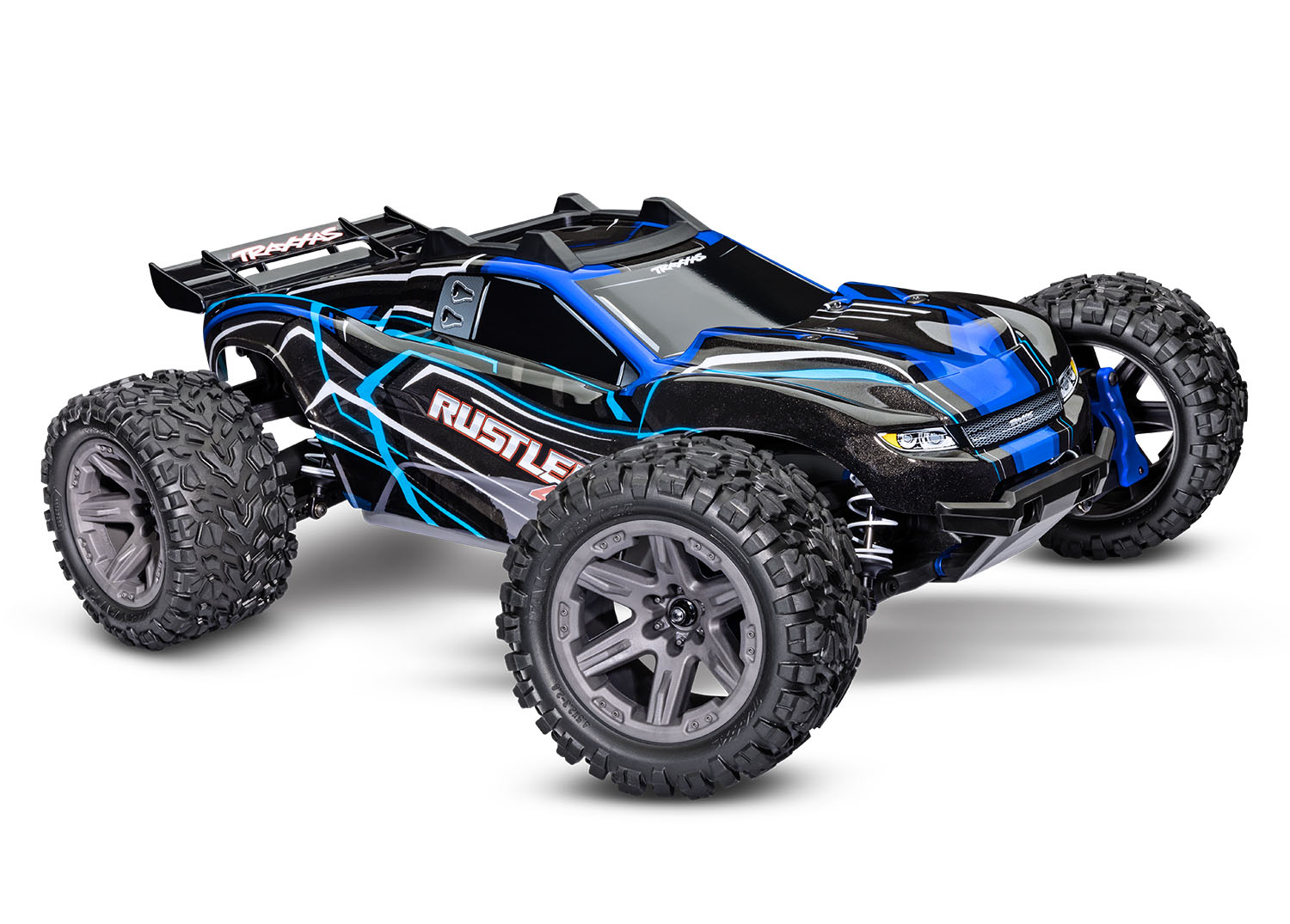

Rustler 4X4 Brushless (#67164-4)

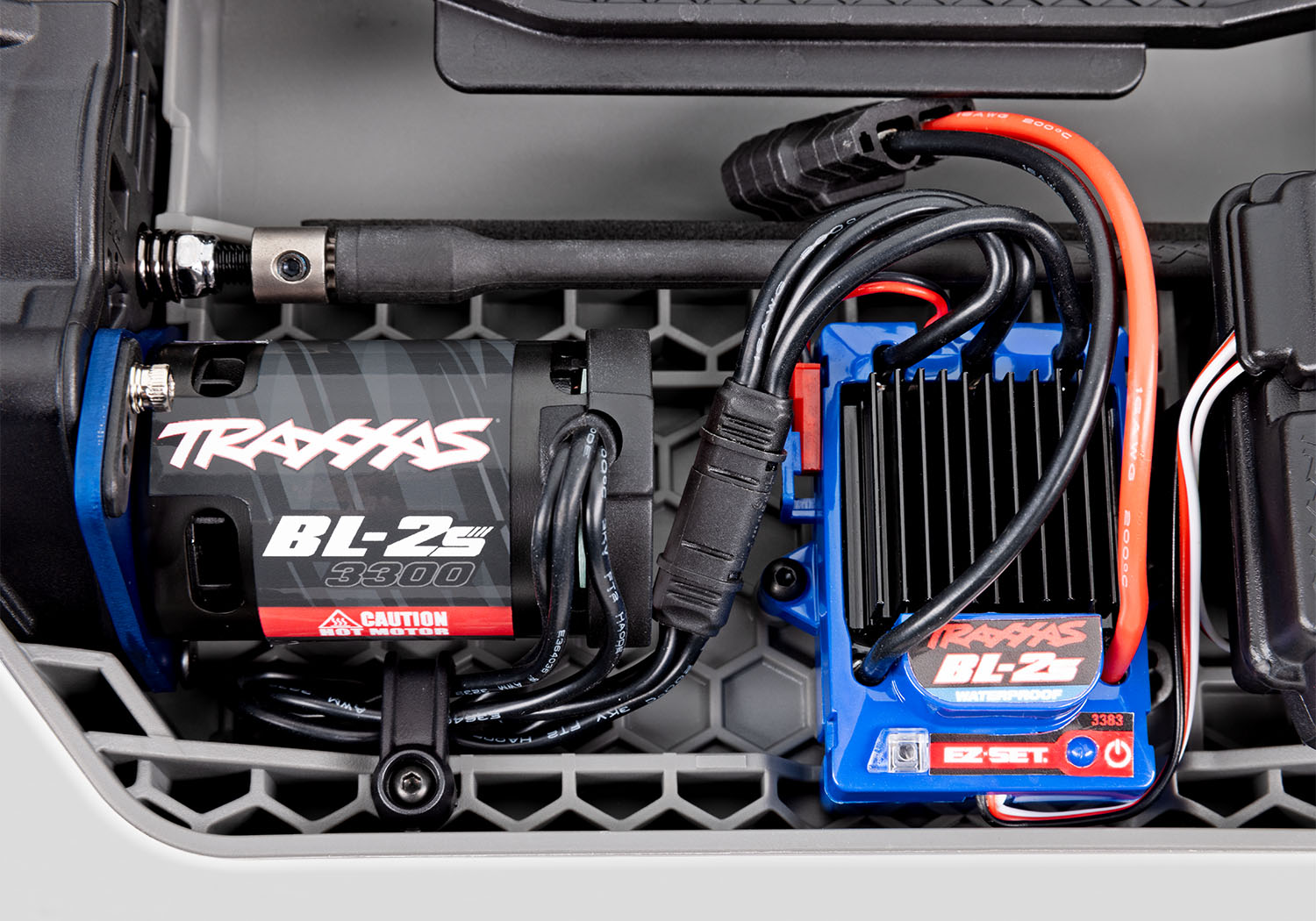

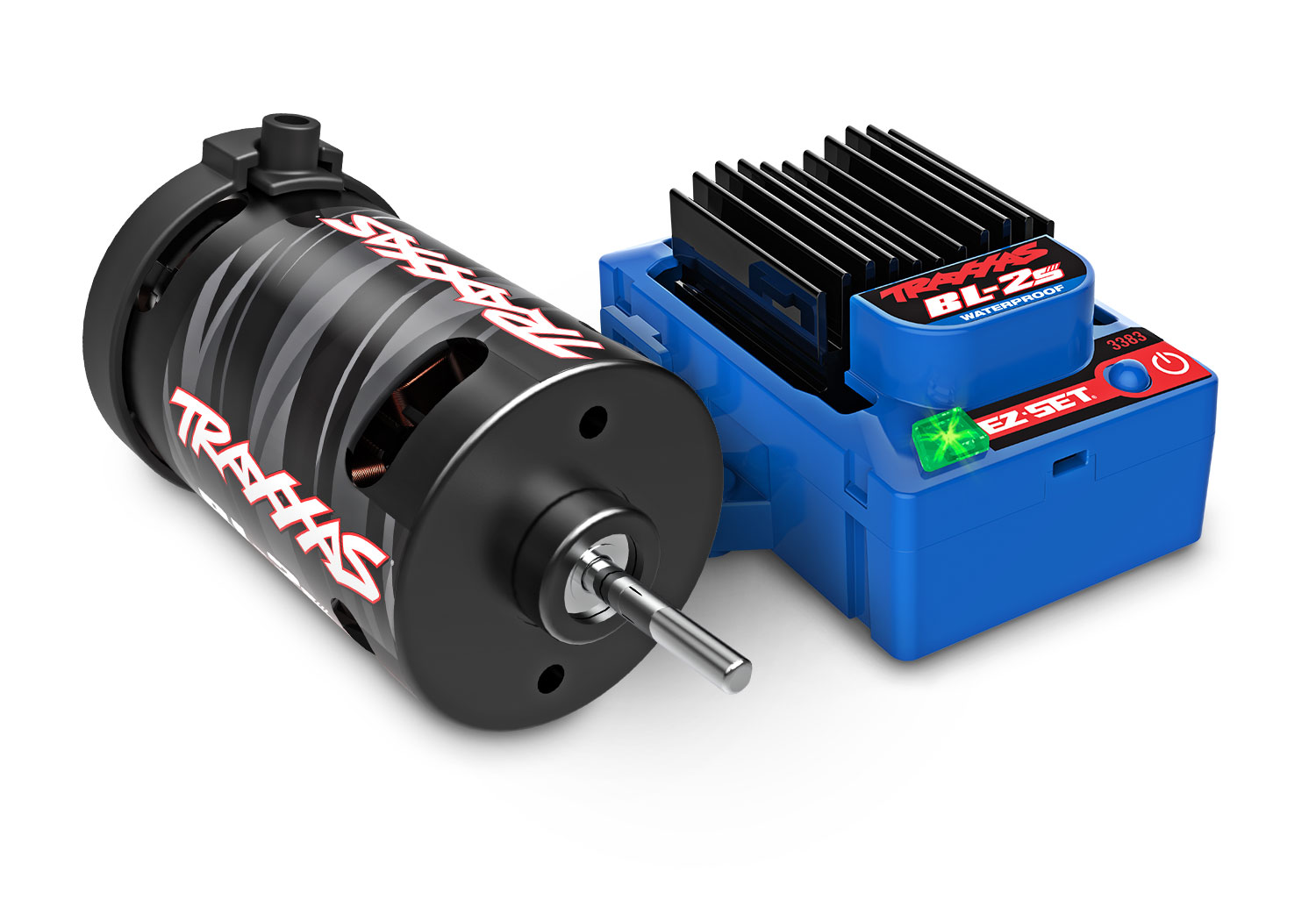

BL-2s Brushless Power System

New BL-2s Brushless Power System

Rustler 4X4’s BL-2s brushless power system ramps up the fun with up to 60% more speed and faster acceleration than comparable brushed power systems. Improved efficiency, high-speed ball bearings, and an internal cooling fan allow Rustler 4X4 to run battery after battery for all-day fun. With no brushes to wear out, the BL-2s 3300 kV is long-lasting and requires virtually no maintenance.

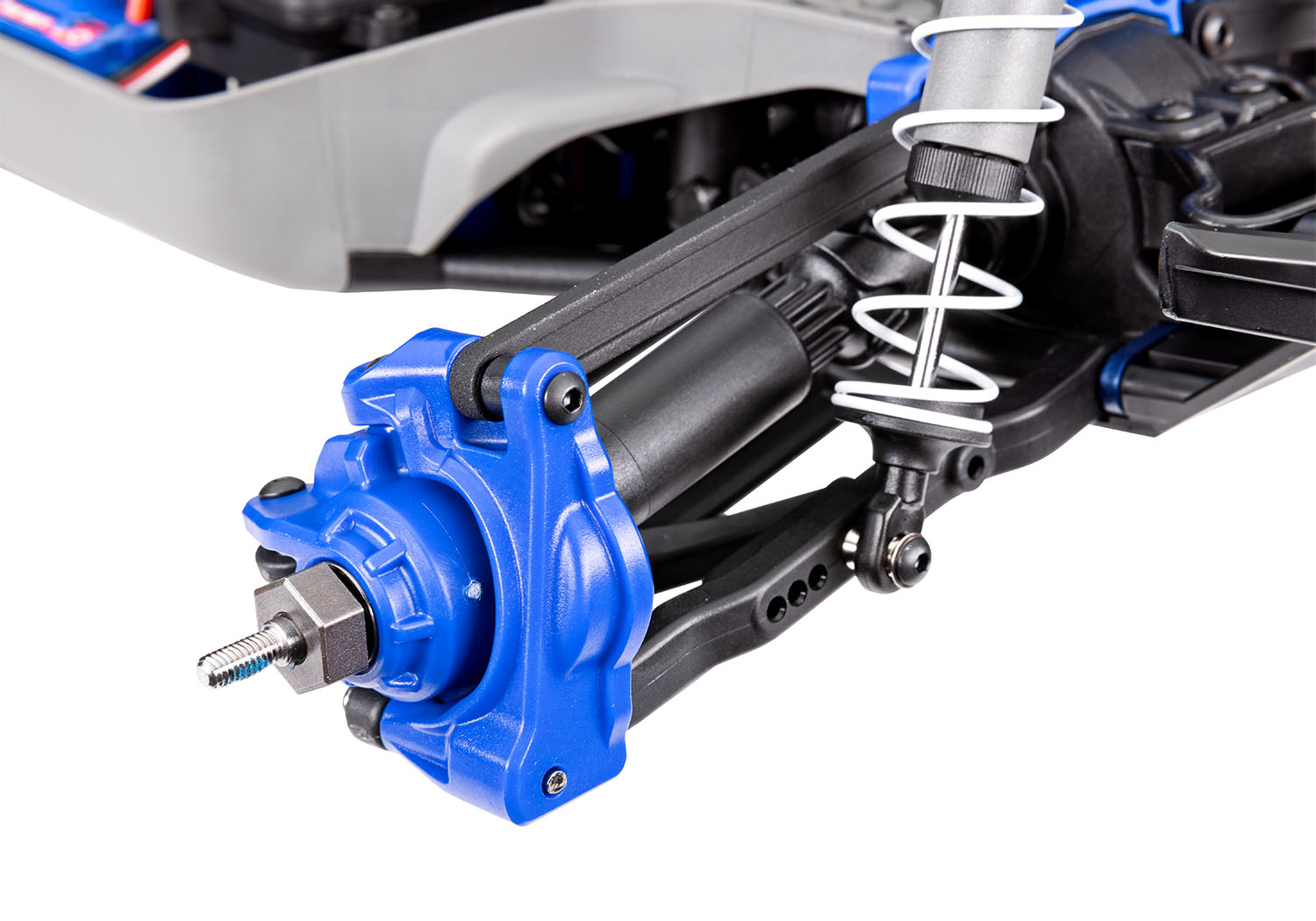

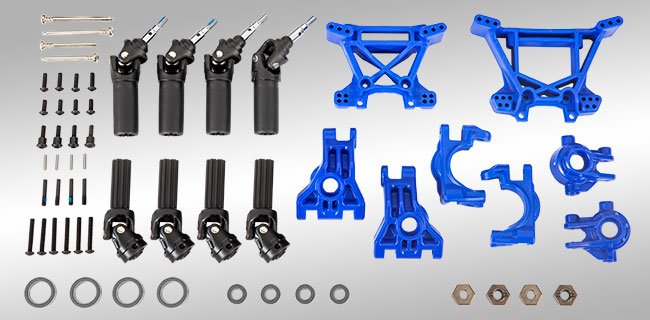

Extreme Heavy Duty Upgrade Kit

Extreme Heavy Duty Upgrade Kit

Rustler 4X4’s factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.

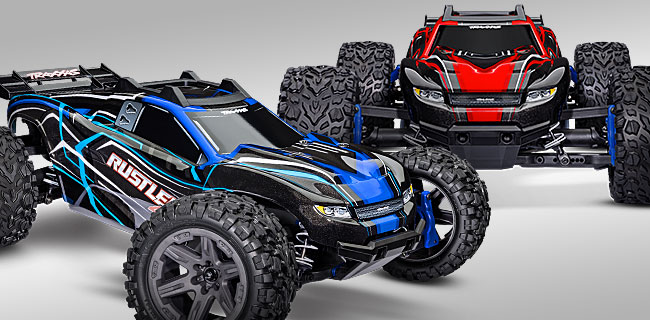

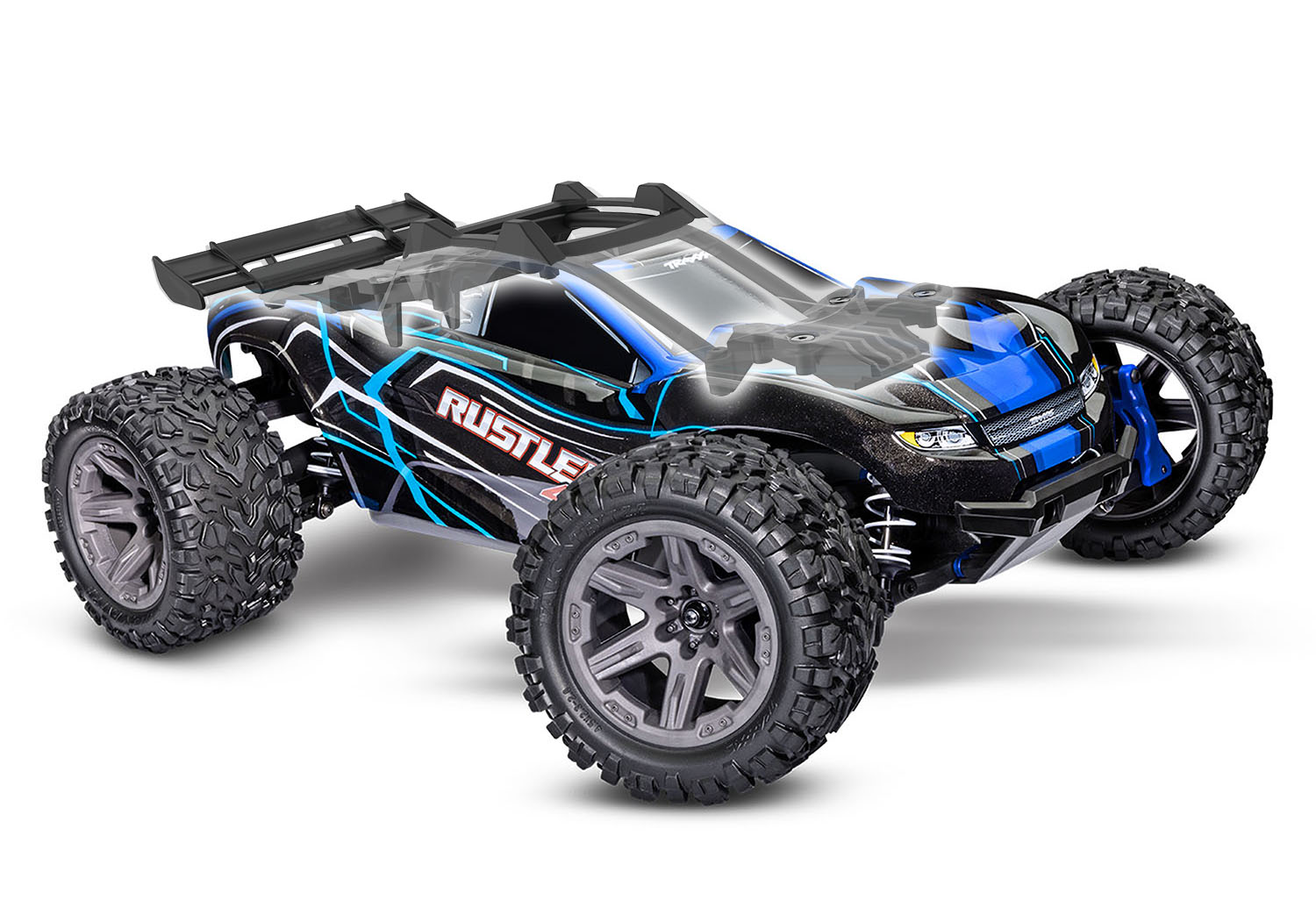

Clipless Body Mounting

Clipless Body Mounting

Rustler 4X4 uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-ToughTM durability.

BL-2s Brushless Combo
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!

Use code BL2SCOMBO at checkout.
Model #67164-4$329.95

Video

Innovation

Details

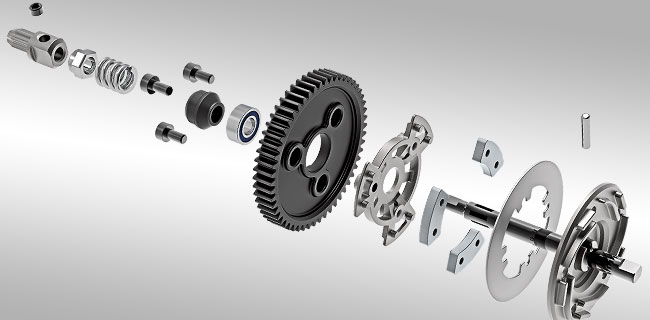

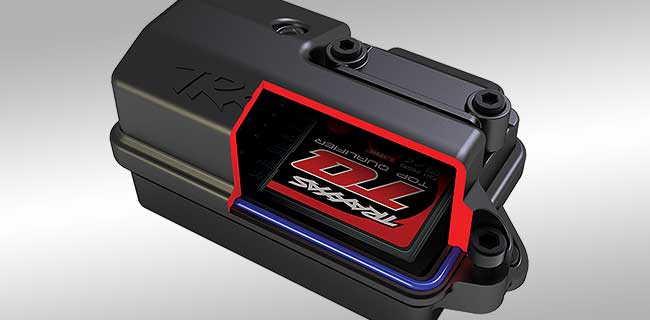

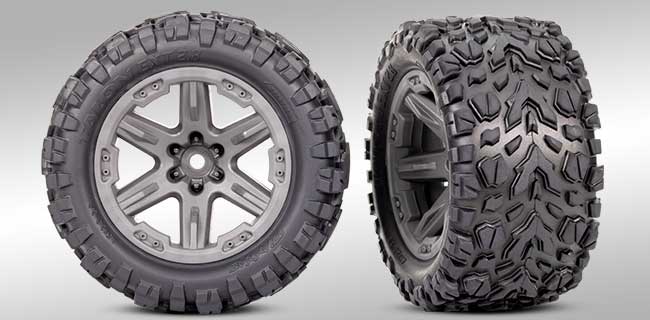

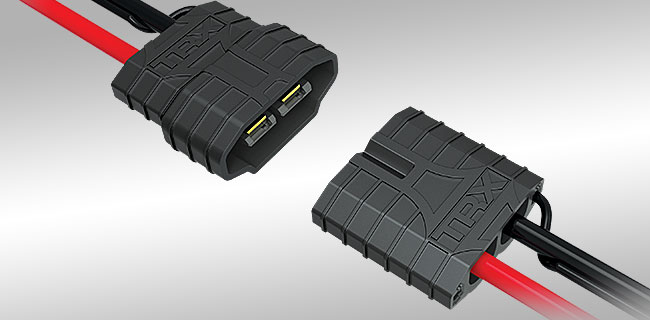

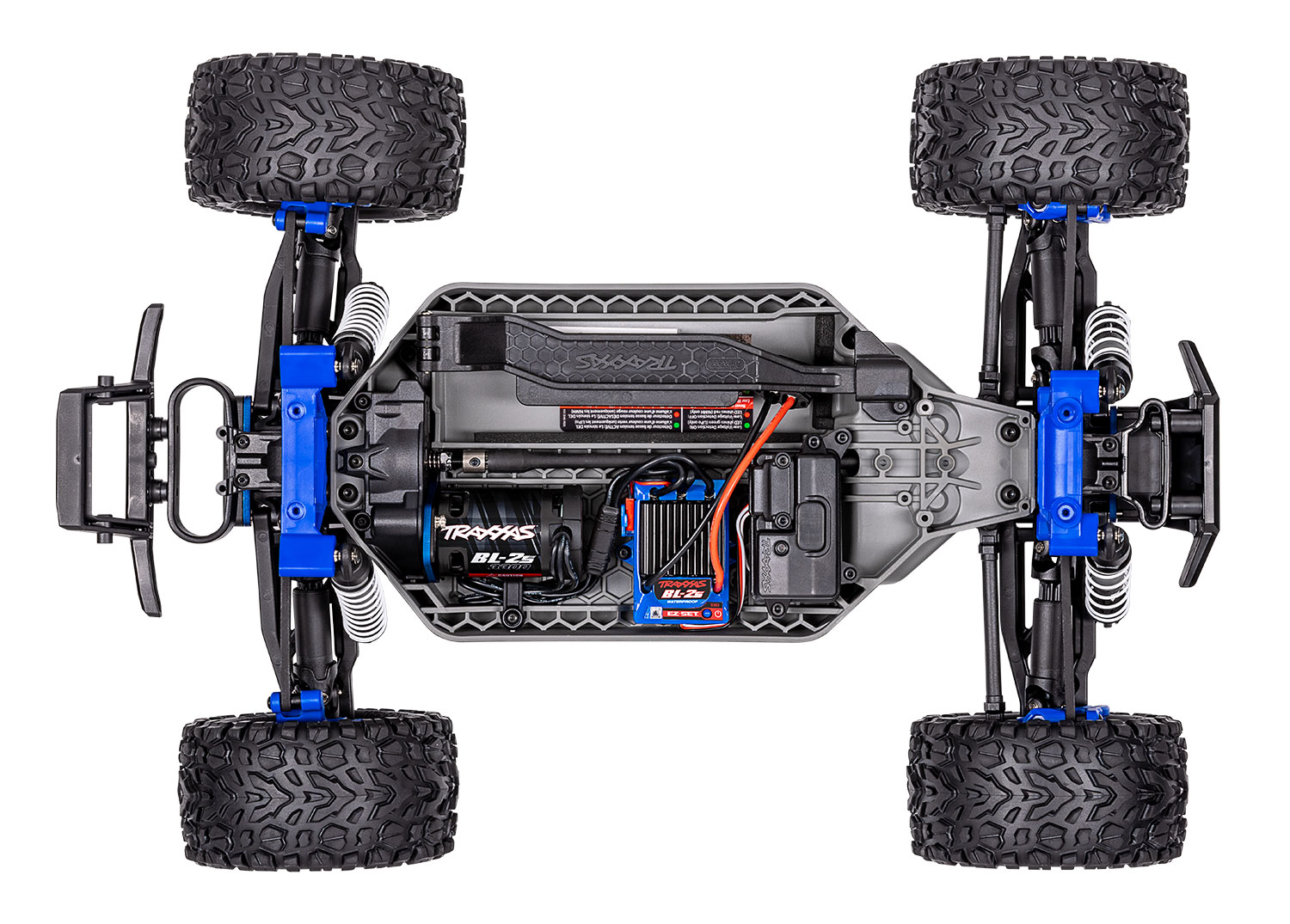

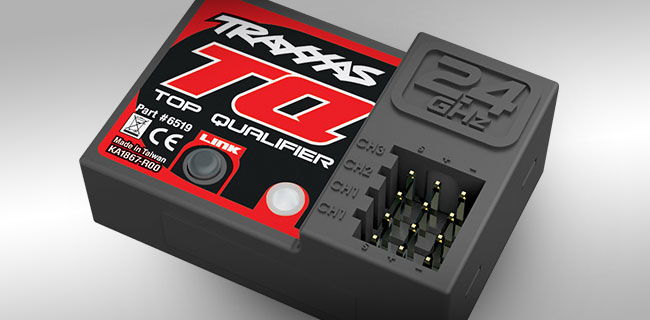

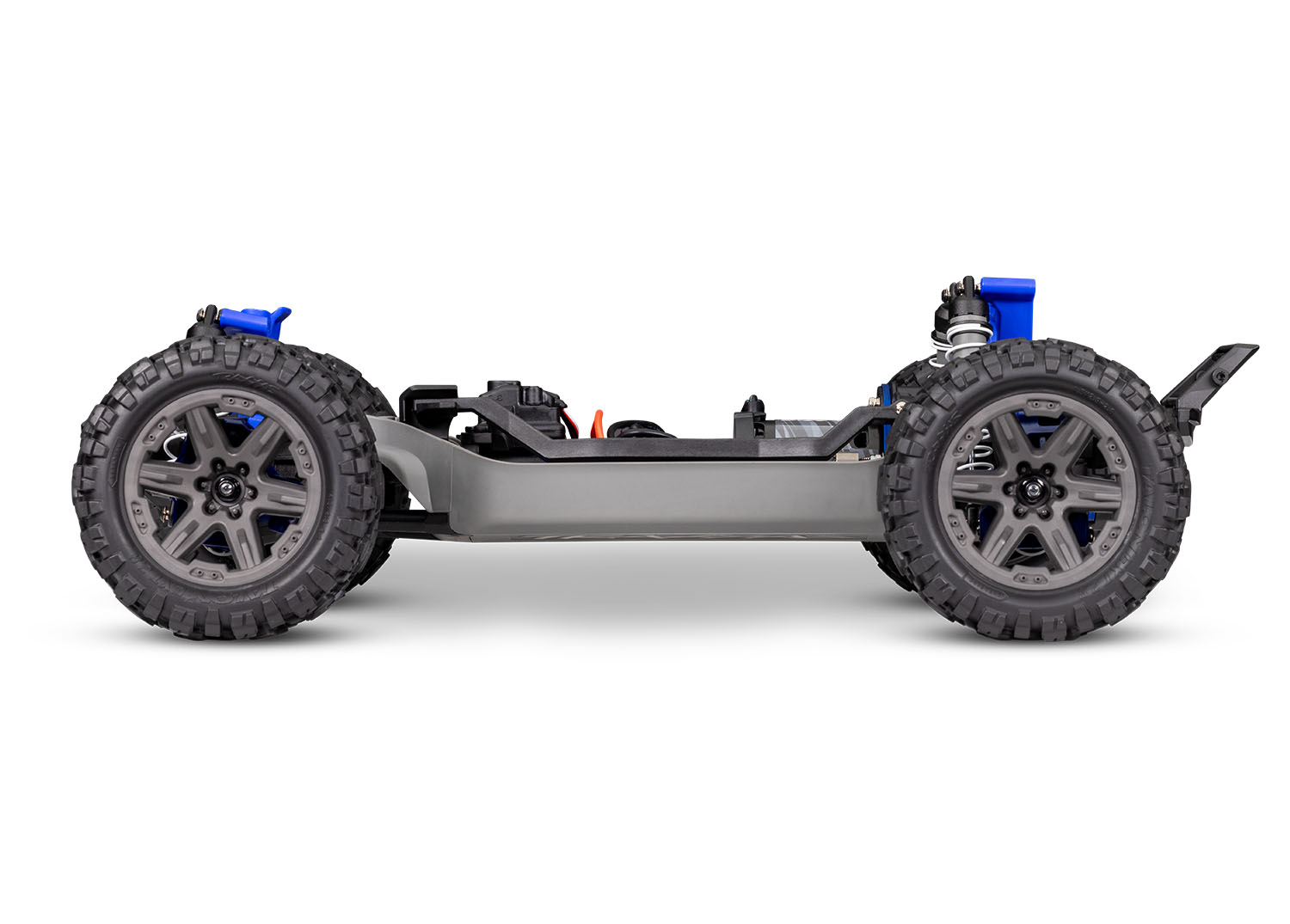

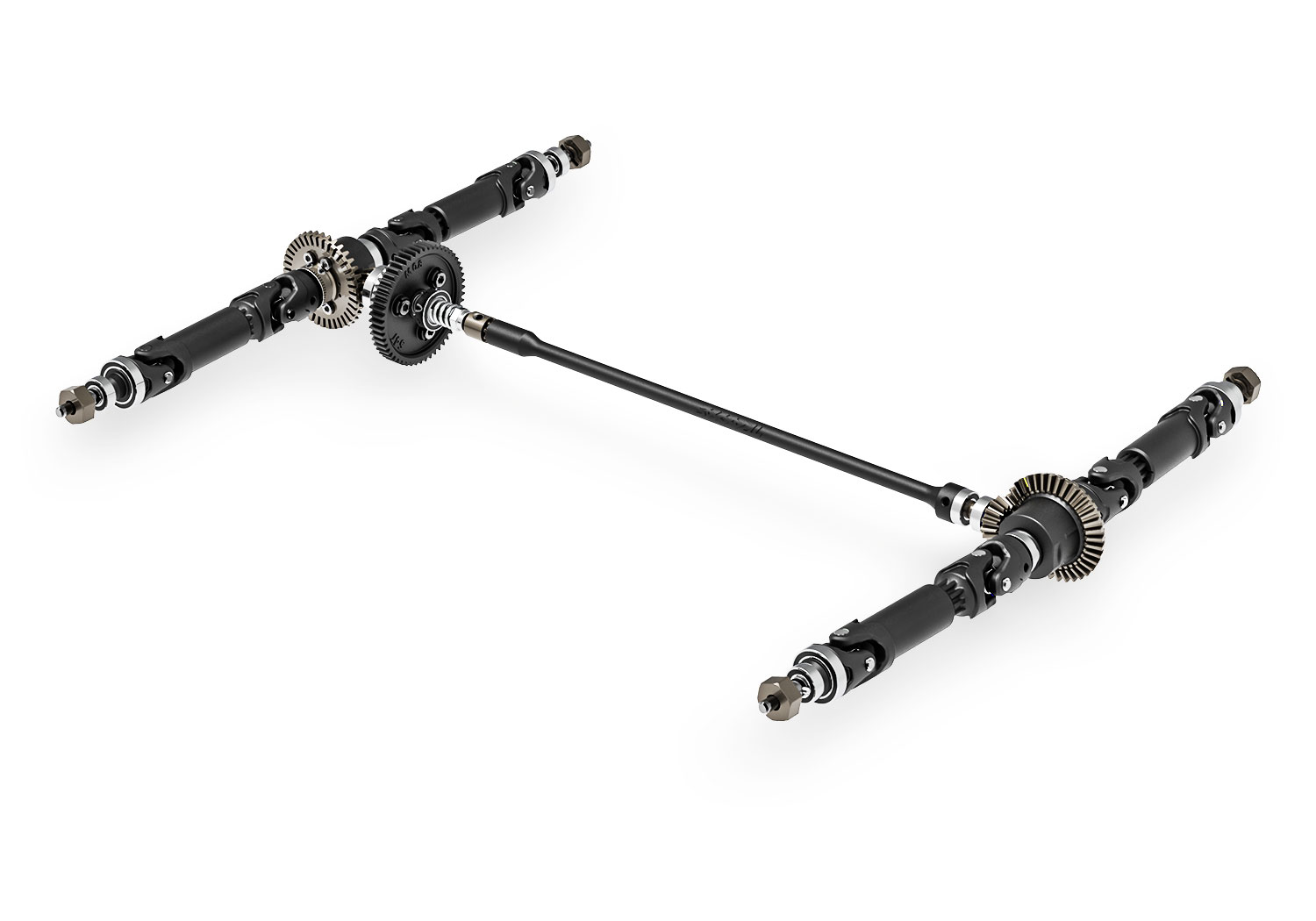

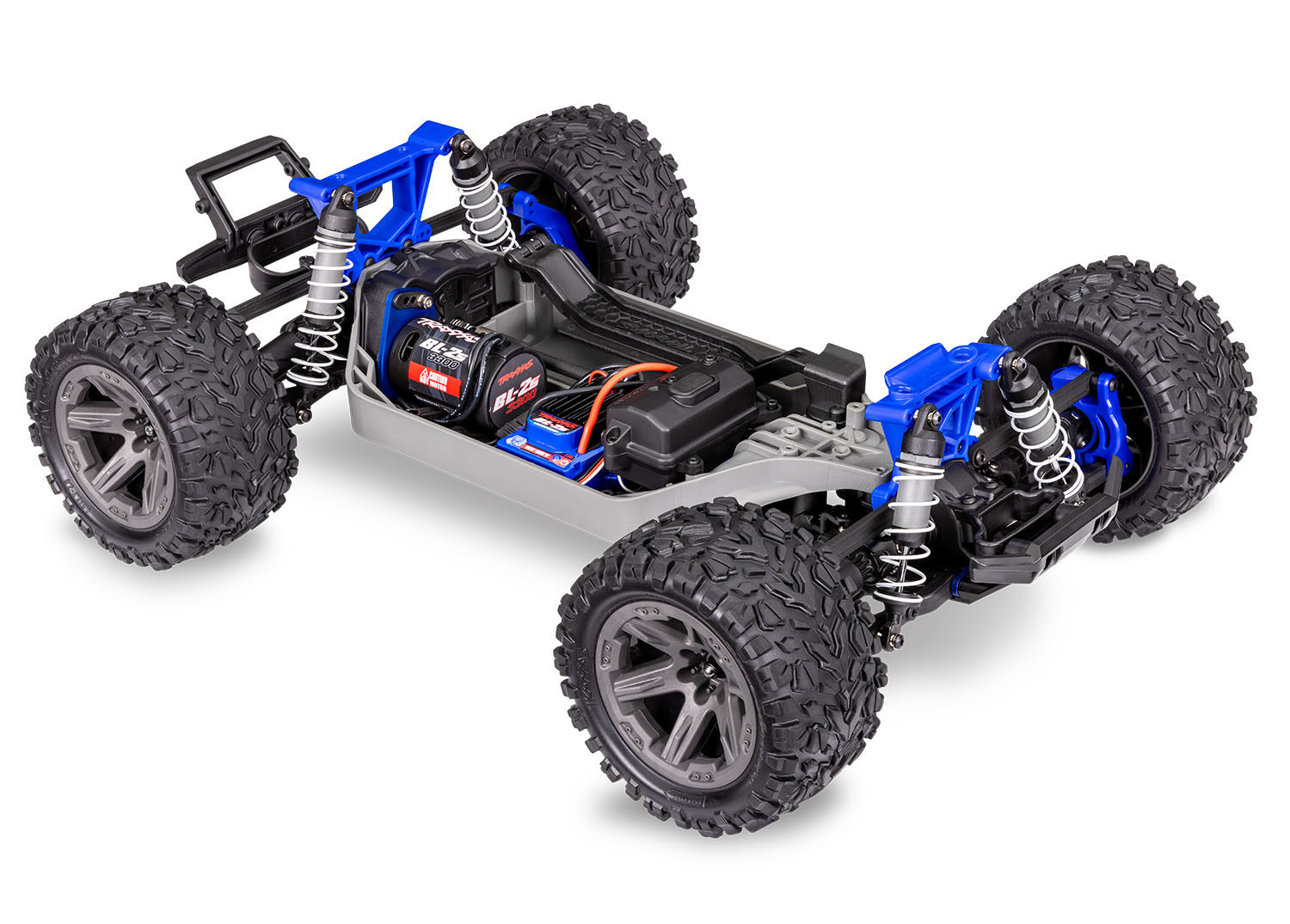

Rustler 4X4 Chassis Click for Details Gray 2.8 RXT Wheels and Talon EXT Tires Hex Hardware Long-Travel Suspension Oil-Filled Ultra Shocks Innovative Chassis Rugged Battery Hold-Down Traxxas High-Current Connector Waterproof Receiver Box 3-Channel Receiver with Fail-Safe Security Digital Steering Servo Dual Bellcrank Steering with Servo Saver Clipless Body Heavy Duty Suspension Arms Tough Reinforced Bumpers Extreme Suspension Components Rustler 4X4 Driveline Click for Details Large 32-Pitch Gears Upgraded Slipper Clutch Maxx-Duty® Driveshafts Sealed Steel-Gear Differentials

Make sure you don’t miss any of the latest Rustler 4X4 Brushless news, accessories, and updates.

Rustler 4X4 Brushless Data

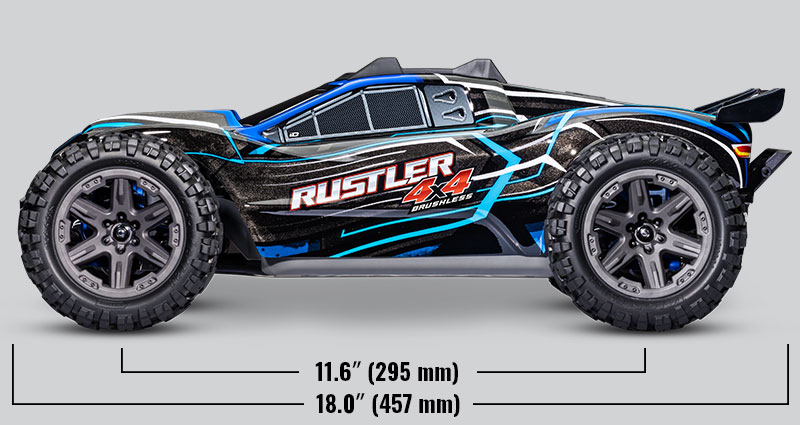

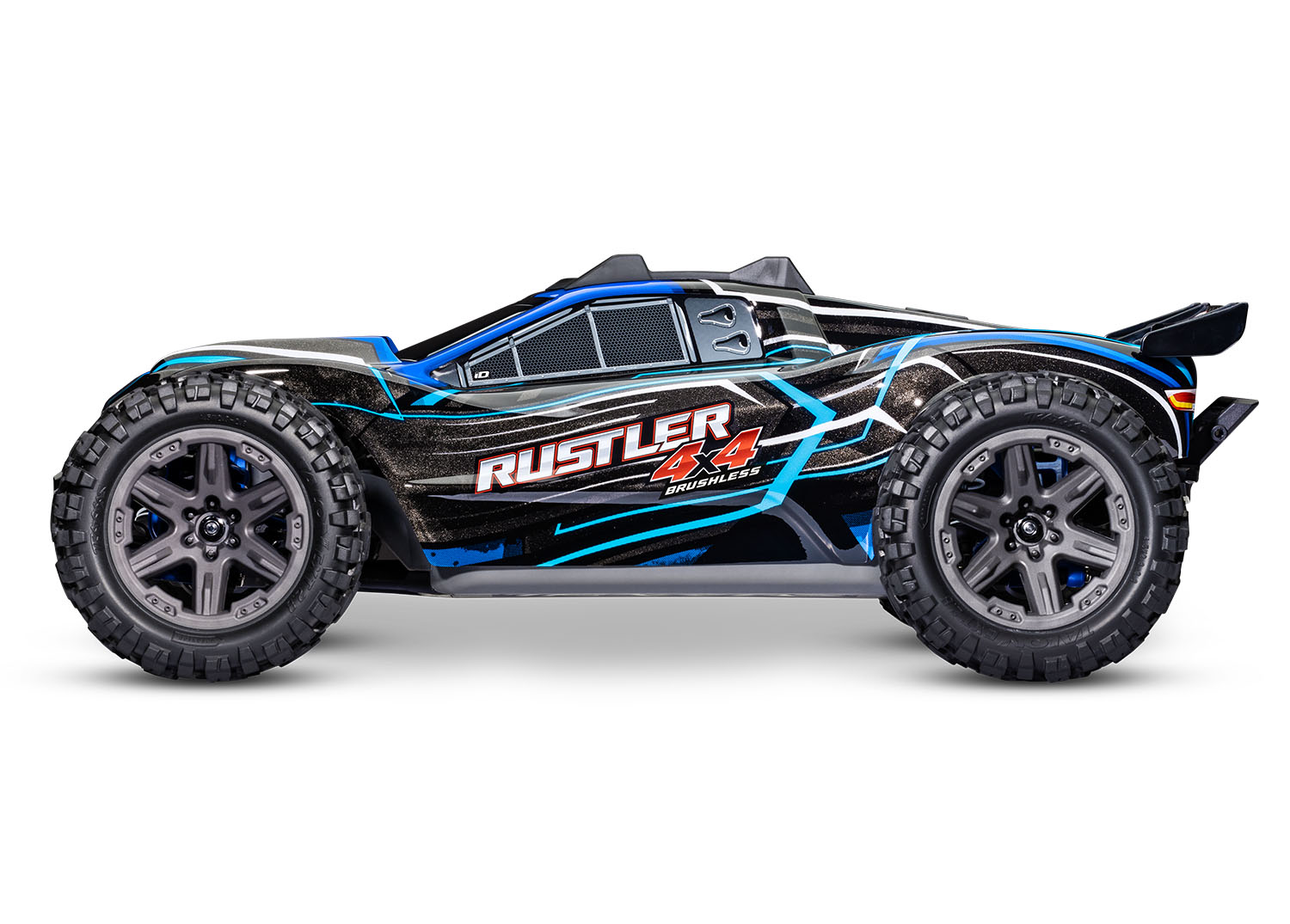

Rustler 4X4 Brushless - Specs Side

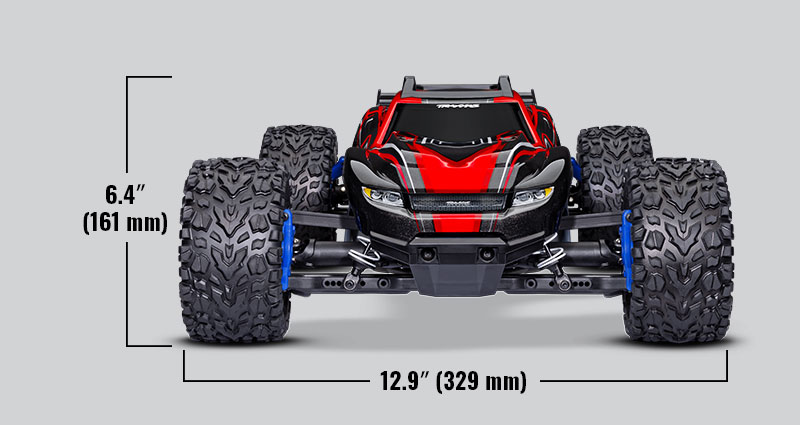

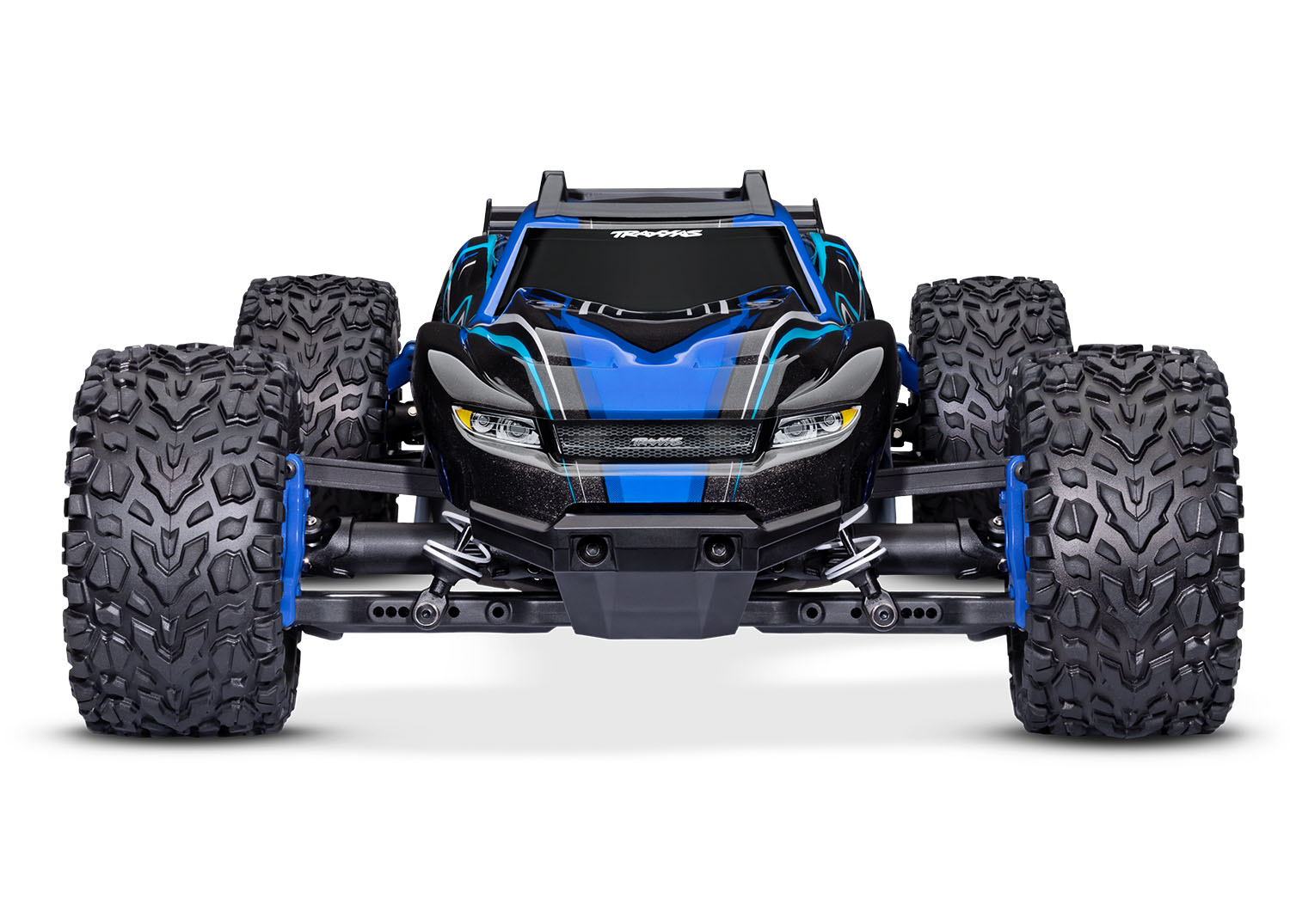

Rustler 4X4 Brushless - Specs Front
Length: 18 inches (457 mm)
Front Track: 12.94 inches (329 mm)
Rear Track: 12.94 inches (329 mm)
Ground Clearance: 1.10 inches (27 mm) (center)
Weight (no battery): 5.13 pounds (2.33 kg)
Height (overall): 6.35 inches (161 mm)
Wheelbase: 11.6 inches (295 mm)
Shock Length (front): 3.45 inches (88 mm) - Long
Shock Length (rear): 3.98 inches (101 mm) - XX-long
Speed Control: BL-2s electronic speed control
Motor (electric): BL-2s 3300 kV sensorless brushless
Overall Drive Ratio: 12.81:1

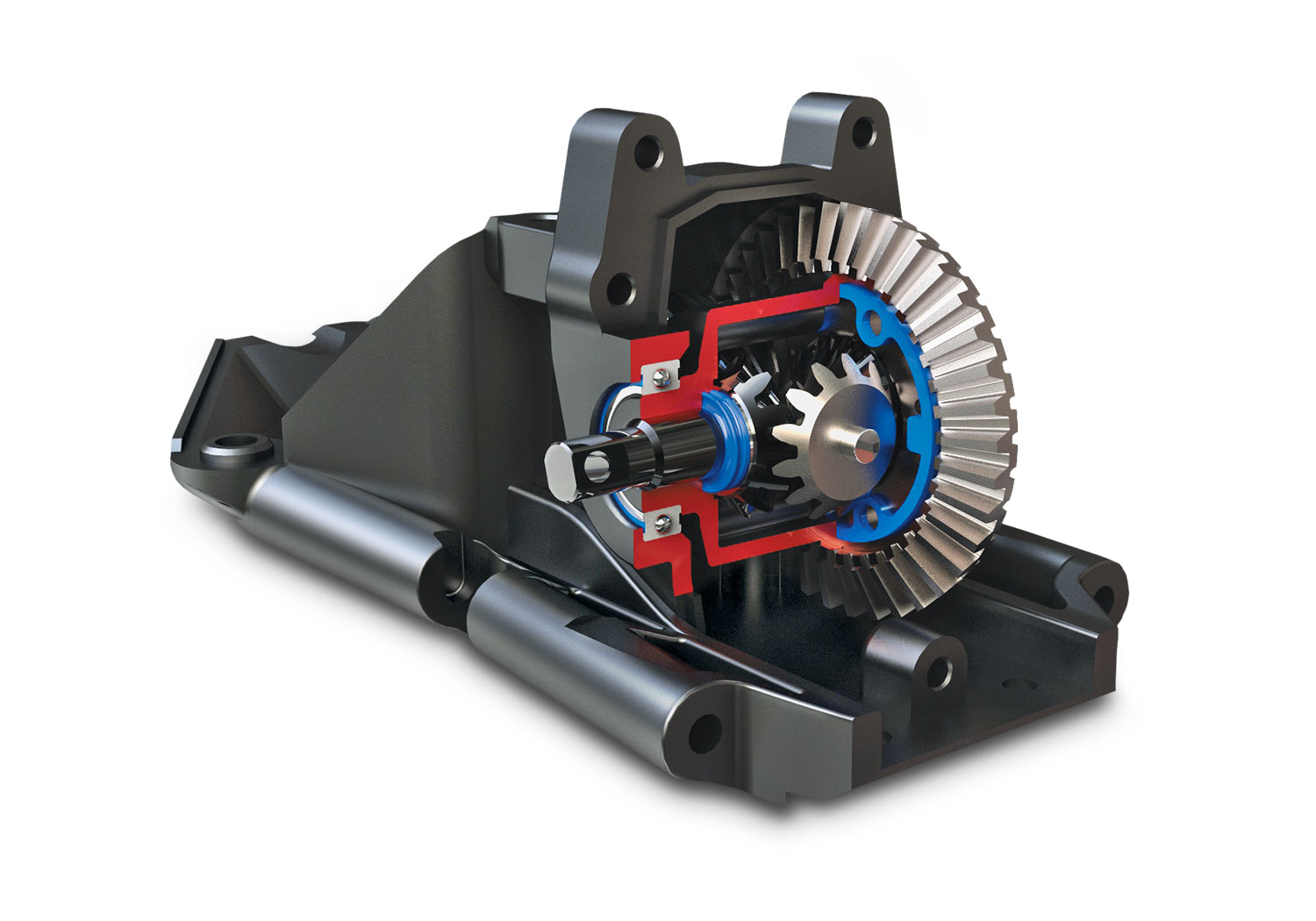

Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32 pitch
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual bellcrank with integrated servo saver
Tires: Talon EXT with foam inserts
Tire Diameter: 4.5 inches (114 mm) (front and rear)
Wheels (front/rear): 2.8″ Gray RXT wheels
Wheel Diameter: 2.8 inches (71mm)
Radio System: TQ 2.4 GHz (2-channel)
Servo: Waterproof digital 2056 servo (80 oz-in torque)
Skill Level: 1
Battery Compartment (L/W/H): 162 mm (6.38″) x 50 mm (1.97″) x 25 mm (0.98″)
Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

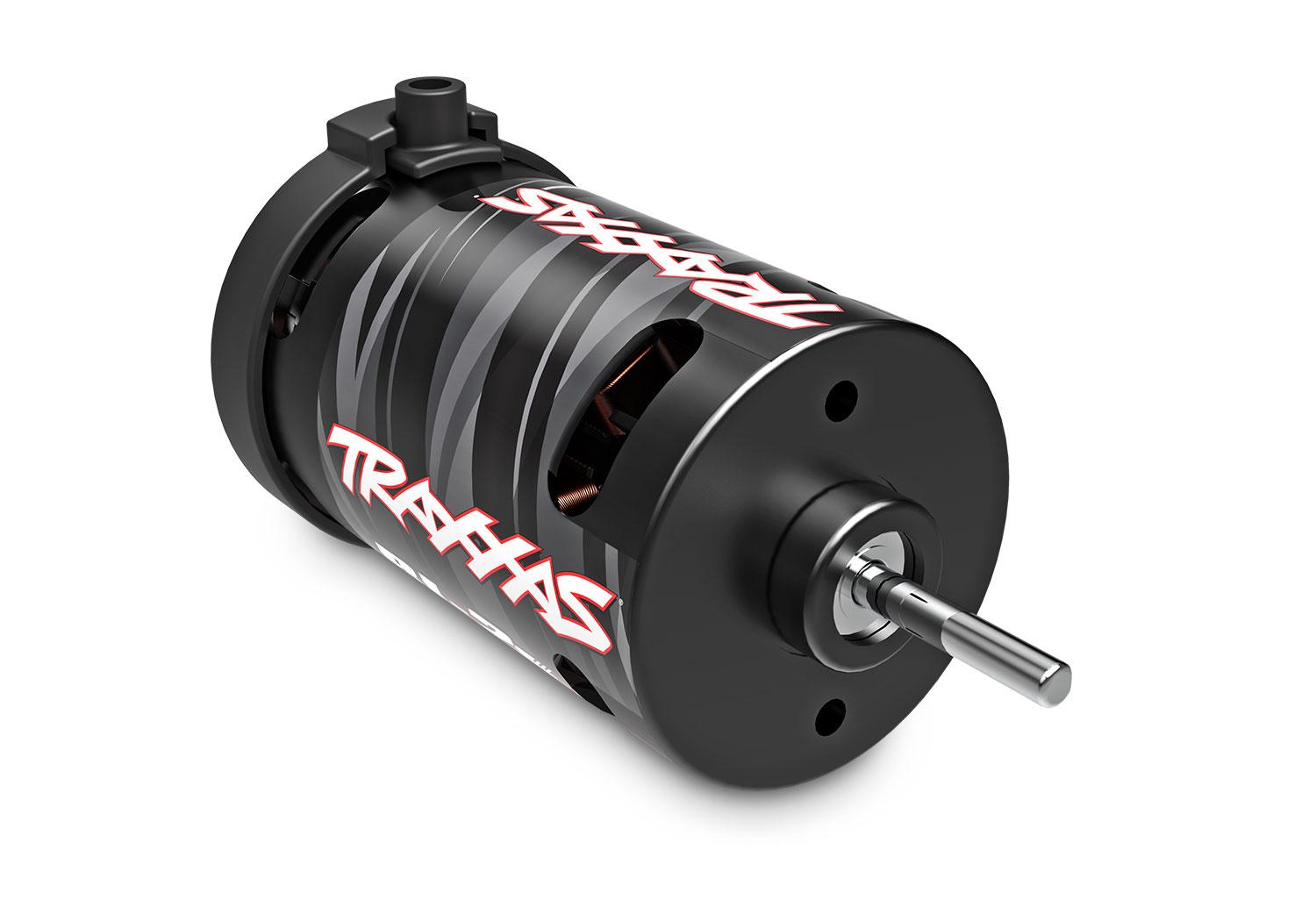

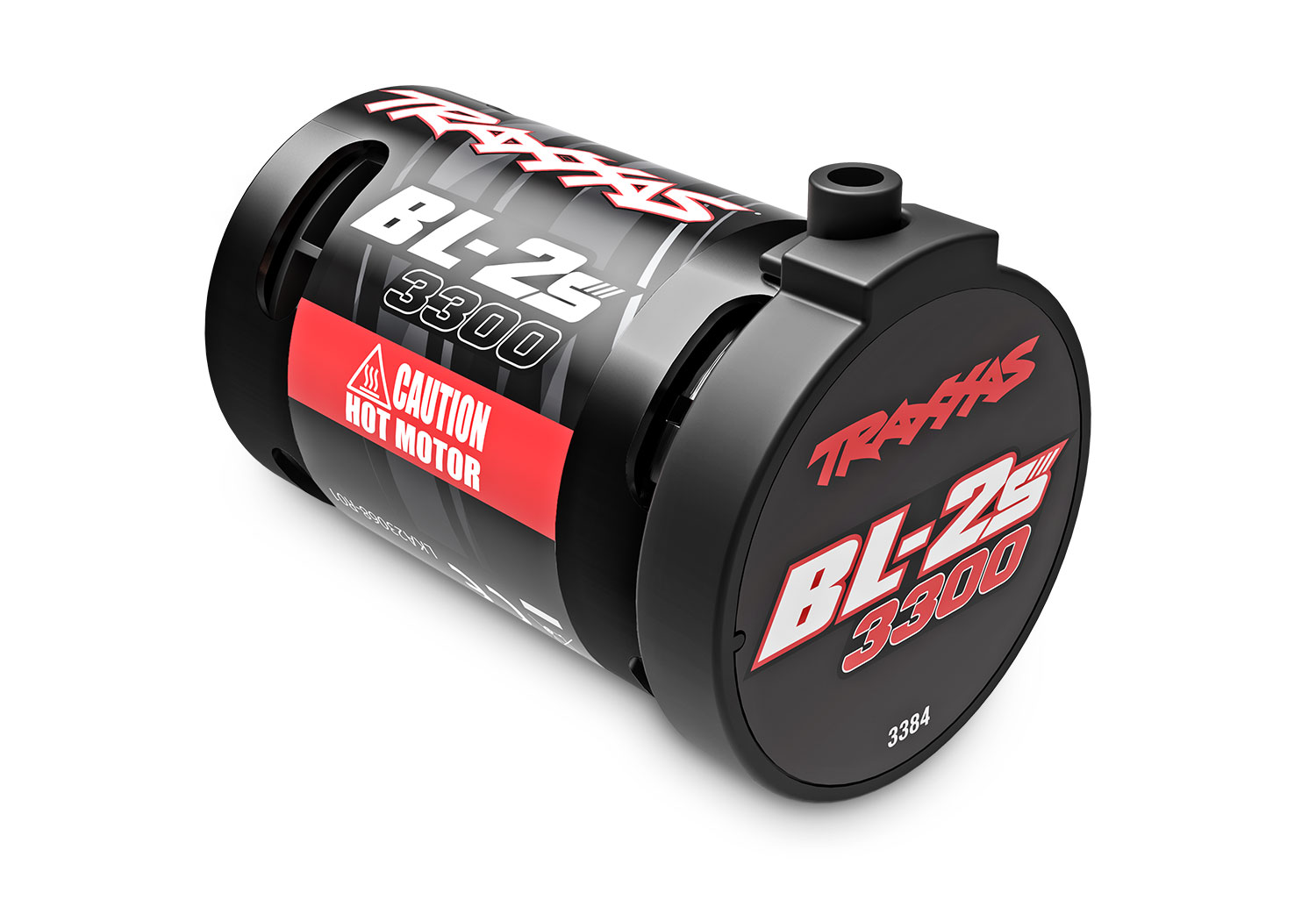

Traxxas BL-2s 3300 Brushless Motor (#3384)
Type: BL-2s 3300 kV sensorless brushless motor
Weight: 7.51 ounces (213 g)
Length: 3.15 inches (80 mm)
Diameter: 1.42 inches (36 mm)
Connector Type: Traxxas Quick Connect Motor Plug

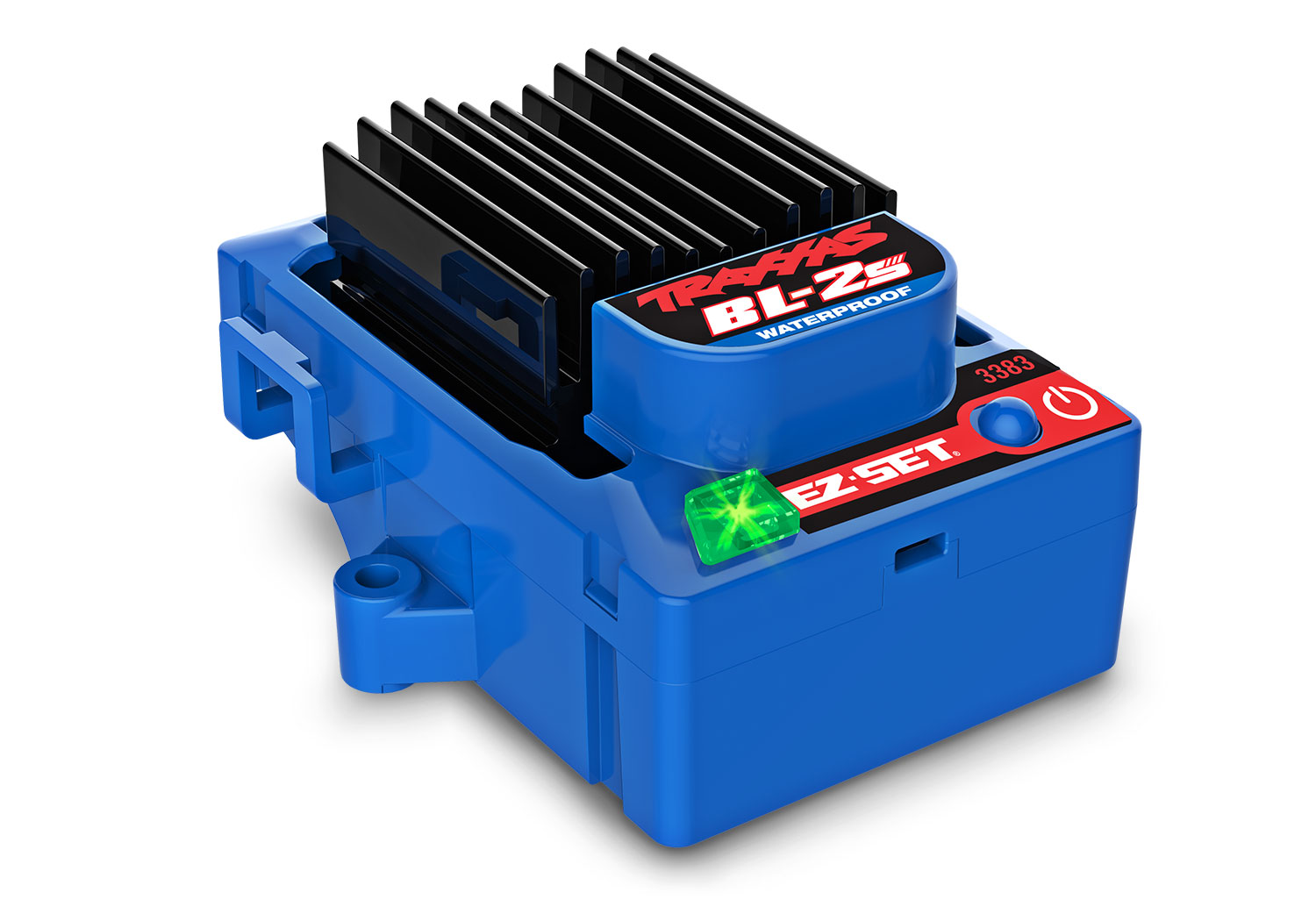

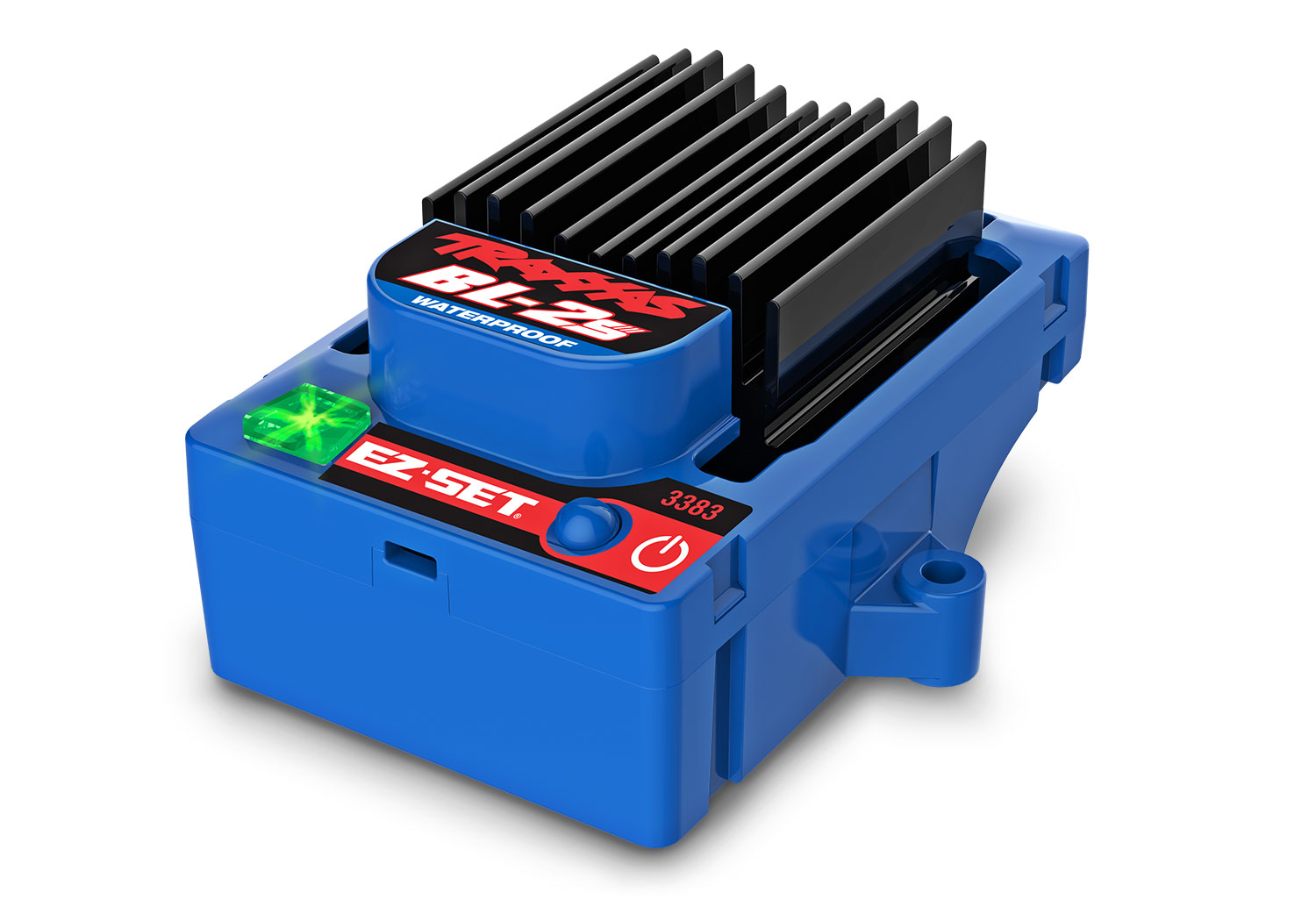

Traxxas BL-2s Waterproof ESC (#3383)
Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
Weight: 3.07 ounces (87 g)
BEC Voltage: 6.0 volts
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
  • Clipless Body

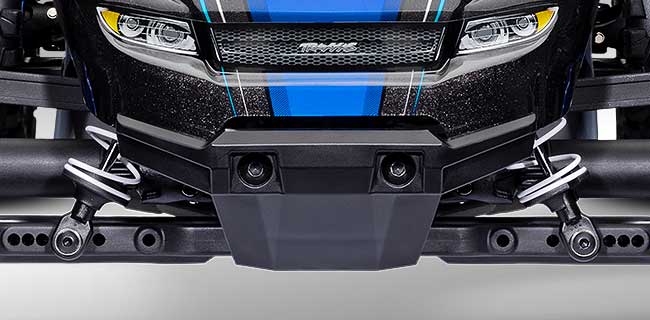

    • Tough front and rear bumpers
    • Reinforced inner cage
    • Rugged roof rollover protector
    • Holds tight for intense action
    • Quick and easy removal
  • Extreme Heavy Duty Upgrade Kit Installed

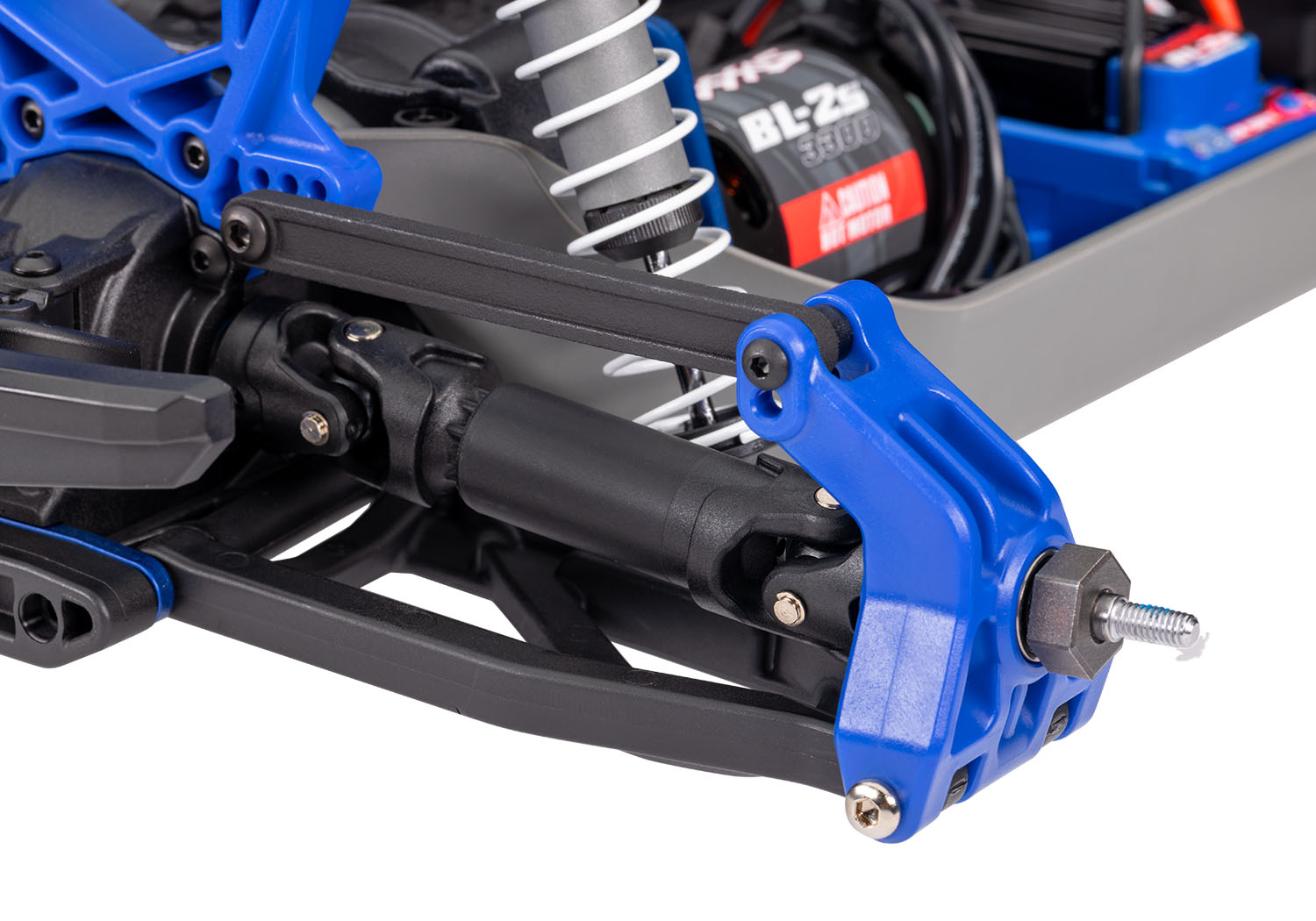

    • Strengthened C-hubs, axle carriers, and steering blocks

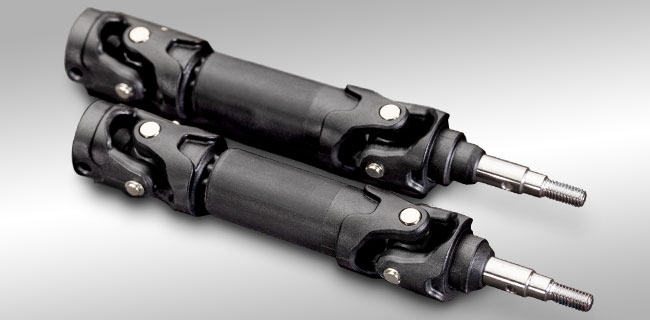

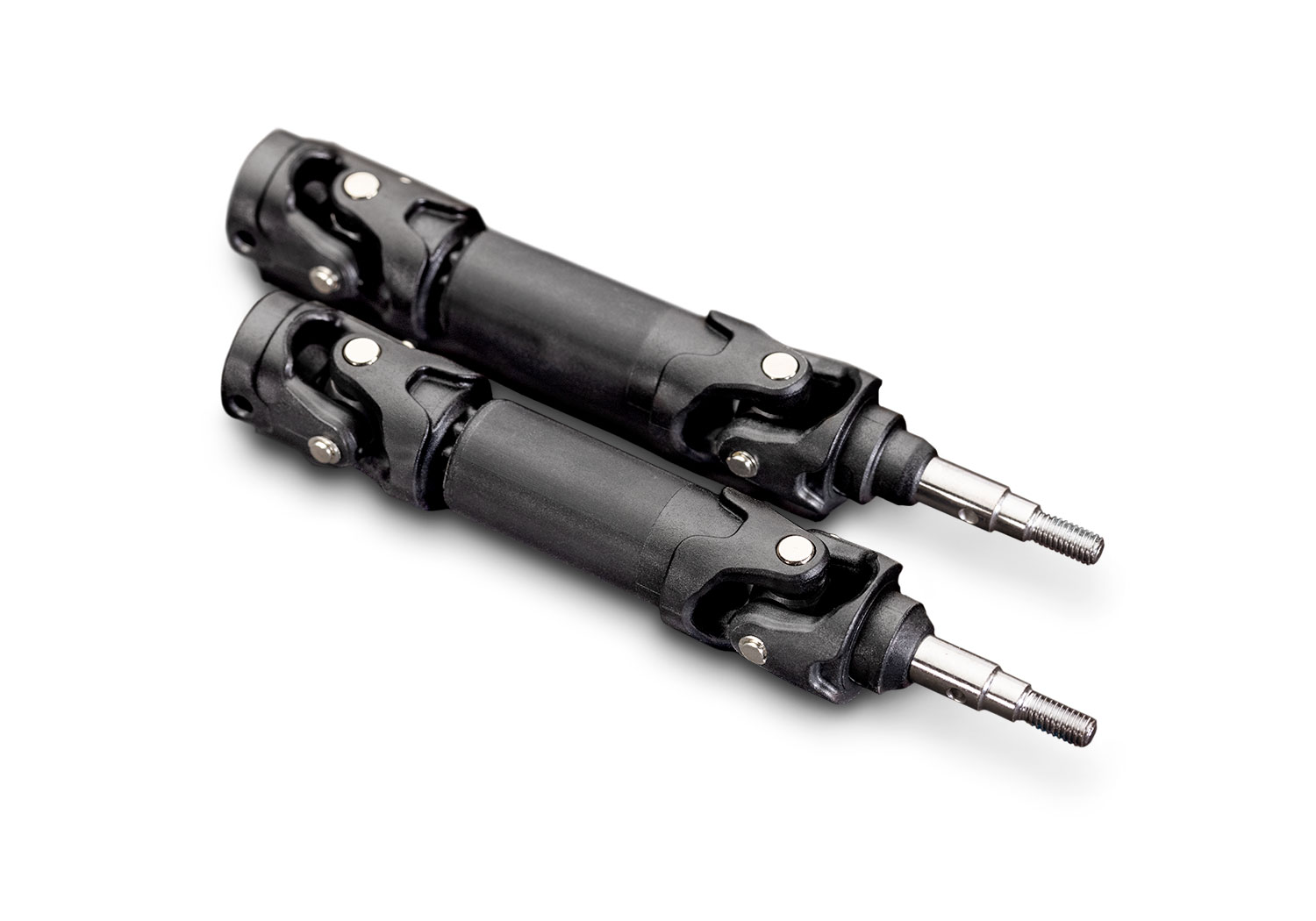

    • Extreme heavy duty driveshafts
      • Oversize diameter
      • 6 mm axles
      • Steel wheel hexes
  • TQ 2.4 GHz Transmitter
    • Full-size 2-channel transmitter
    • All-day comfort with precise long-range control
  • BL-2s Waterproof Electronic Speed Control
    • Heat sink accepts accessory cooling fan (3340)
    • Three Programmable Drive Profiles
      • Sport Mode - Forward / Brake / Reverse
      • Race Mode - Forward / Brake
      • Training Mode - 50% Forward / Brake / 50% Reverse (patented)
    • Traxxas EZ-Set® one-button setup
    • Built-in two-stage low-voltage detection for LiPo batteries
    • NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
    • LiPo battery packs: 2 cells (7.4 volts)
  • 3300 kV Brushless Motor
    • Integrated cooling fan
    • Low-maintenance design
    • Efficient ball bearings
    • 3300 kV

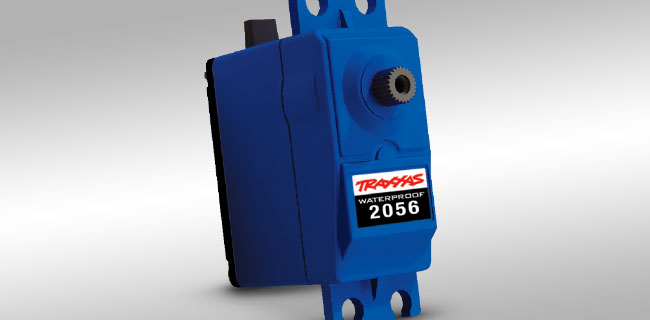

  • Steering
    • Chassis-mounted 2056 servo

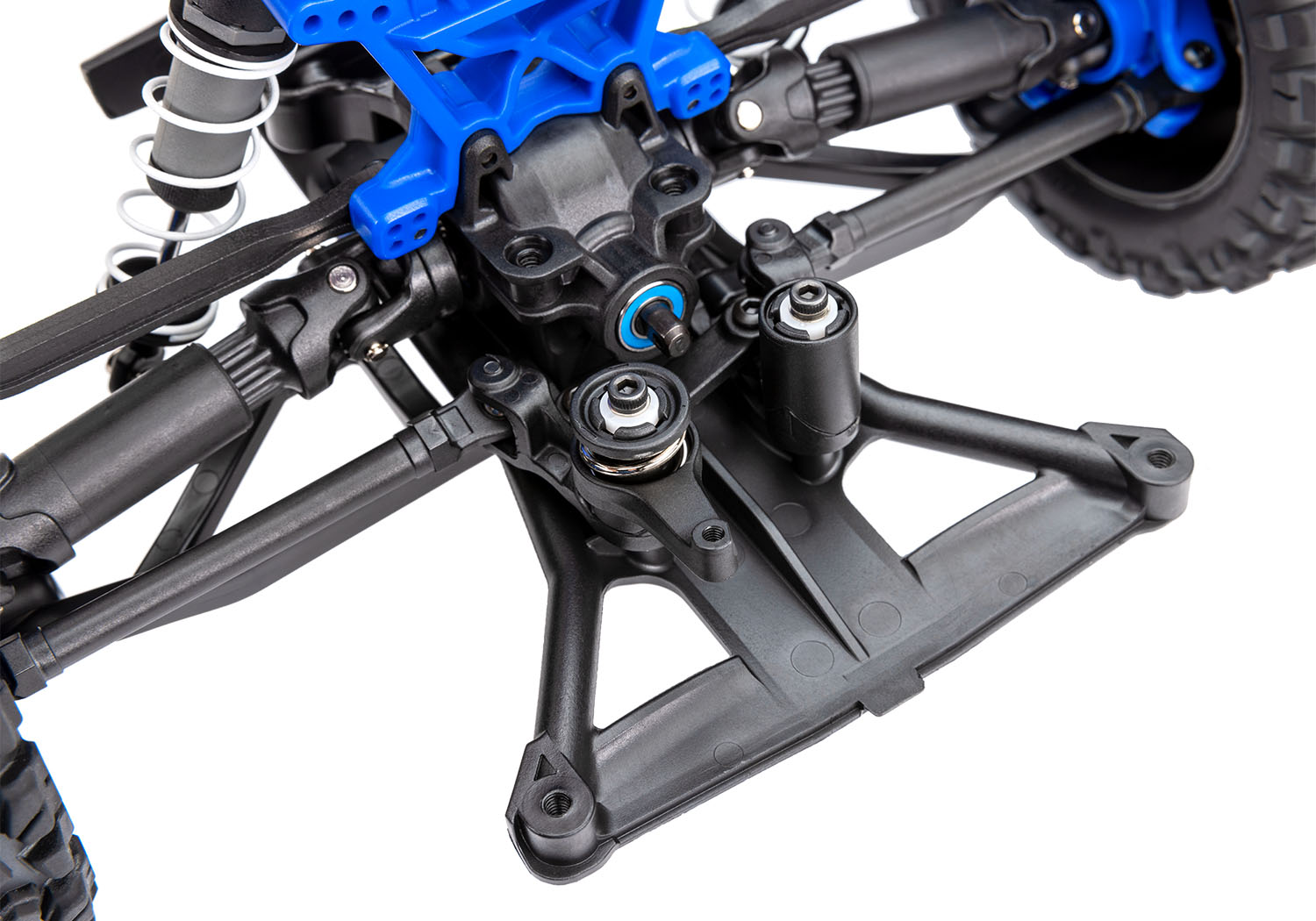

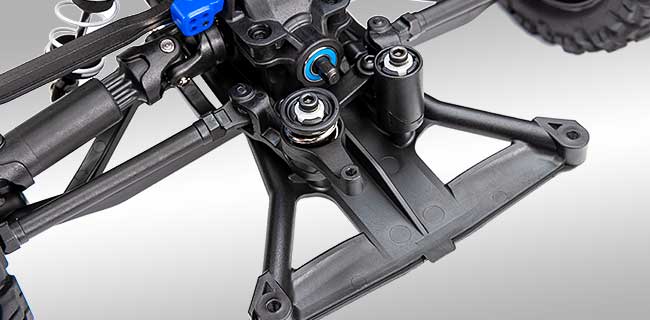

    • Dual bellcrank design with integrated servo saver

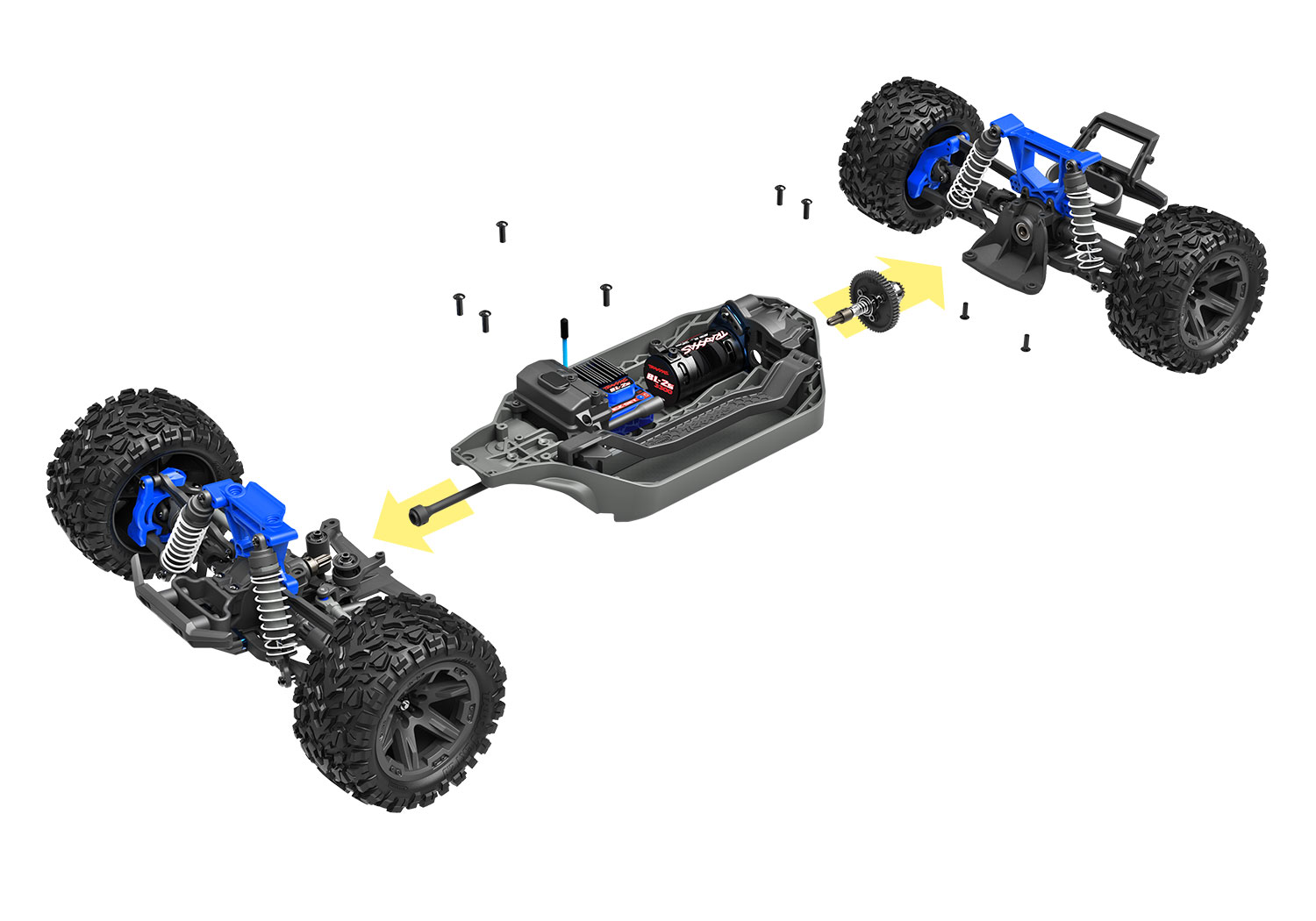

  • Chassis

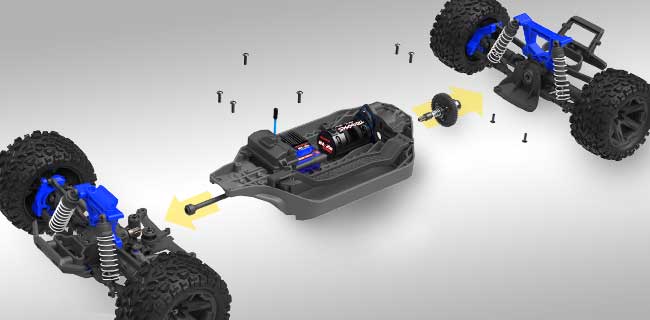

    • Modular composite tub design

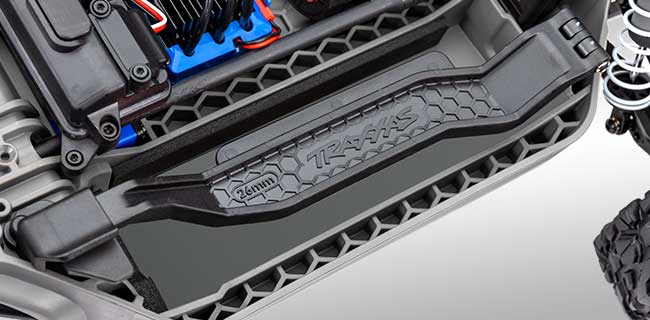

    • Secure battery hold-down latch
    • Low-CG design
    • High-angle bumpers

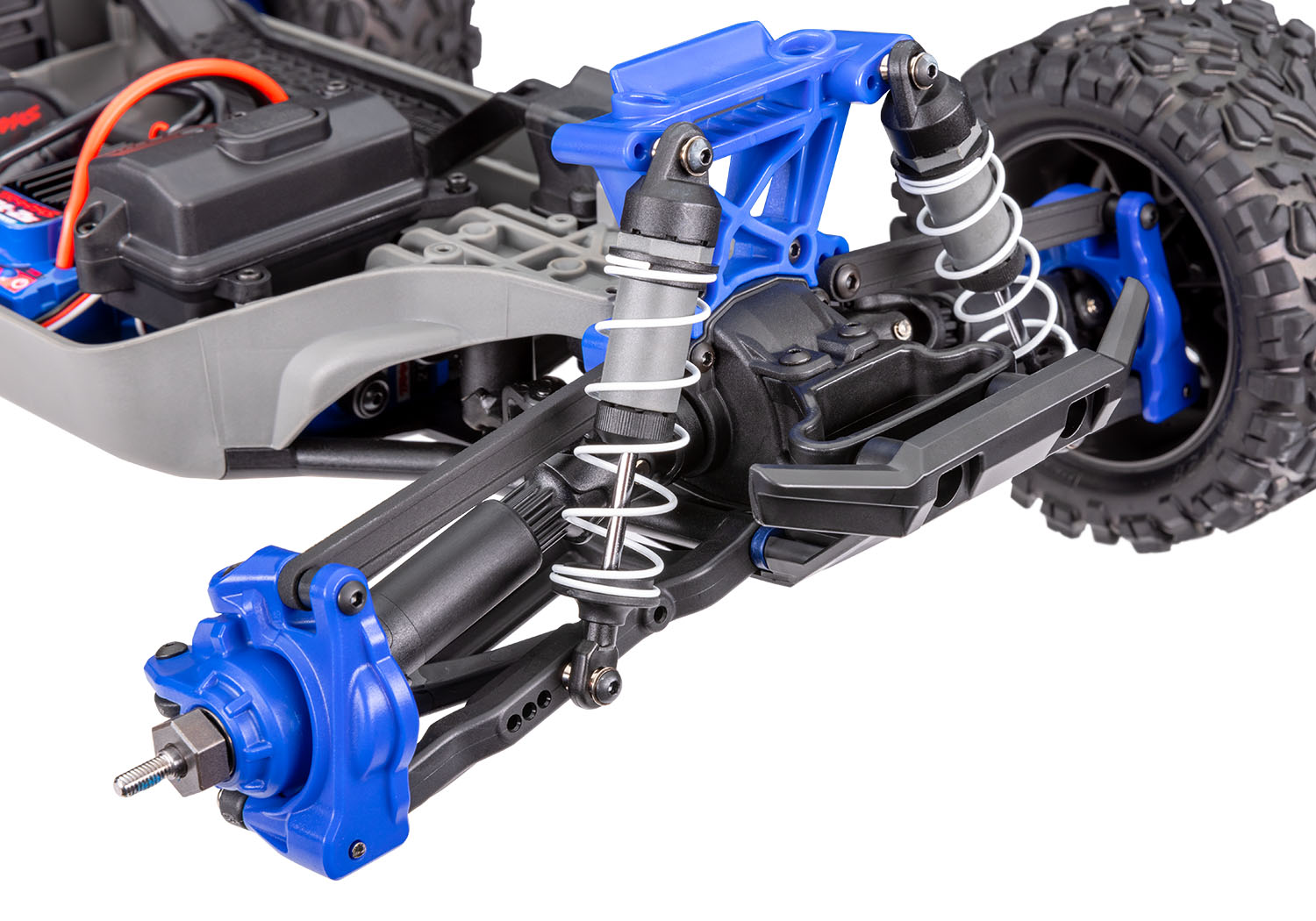

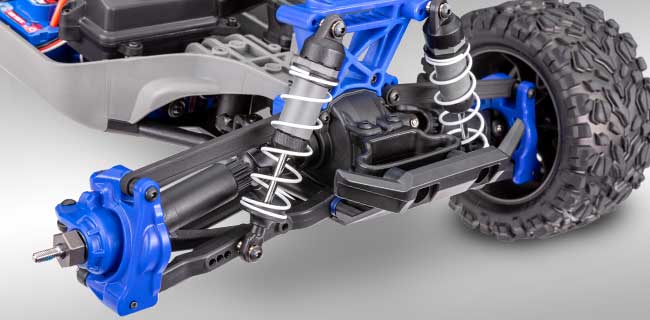

  • Suspension

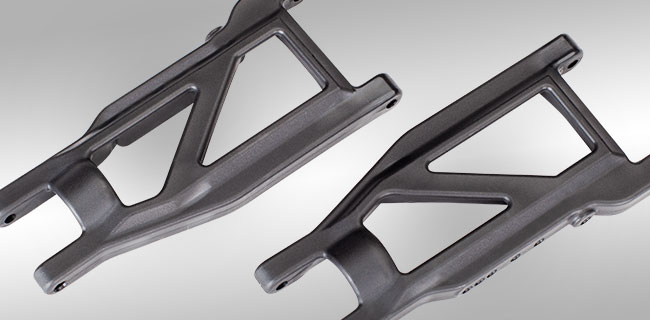

    • Heavy duty suspension arms

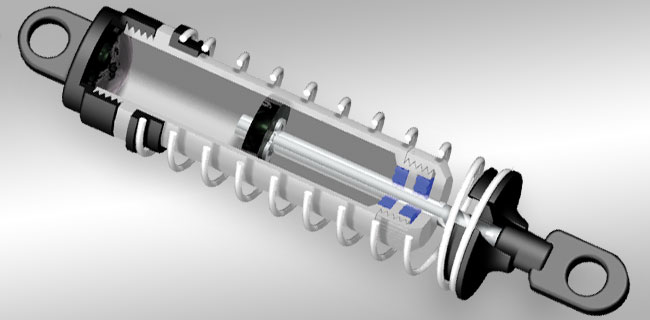

    • Oil-filled Ultra Shocks
    • White powder-coated springs
  • Drivetrain
    • Full-time shaft-driven 4-wheel drive

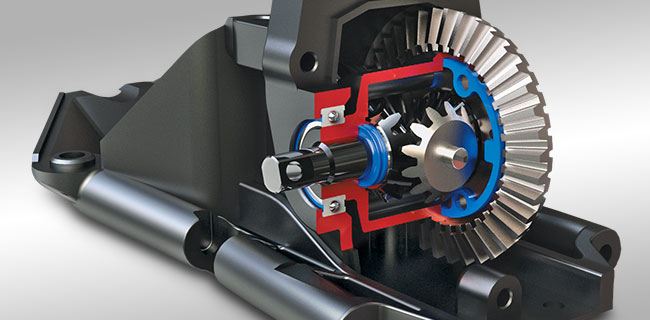

    • Sealed steel gear front and rear differentials

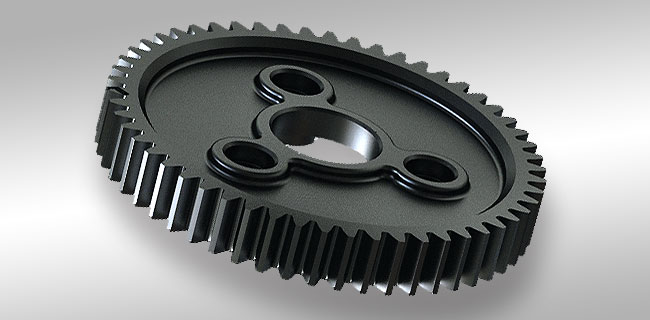

    • Large 32-pitch spur gear

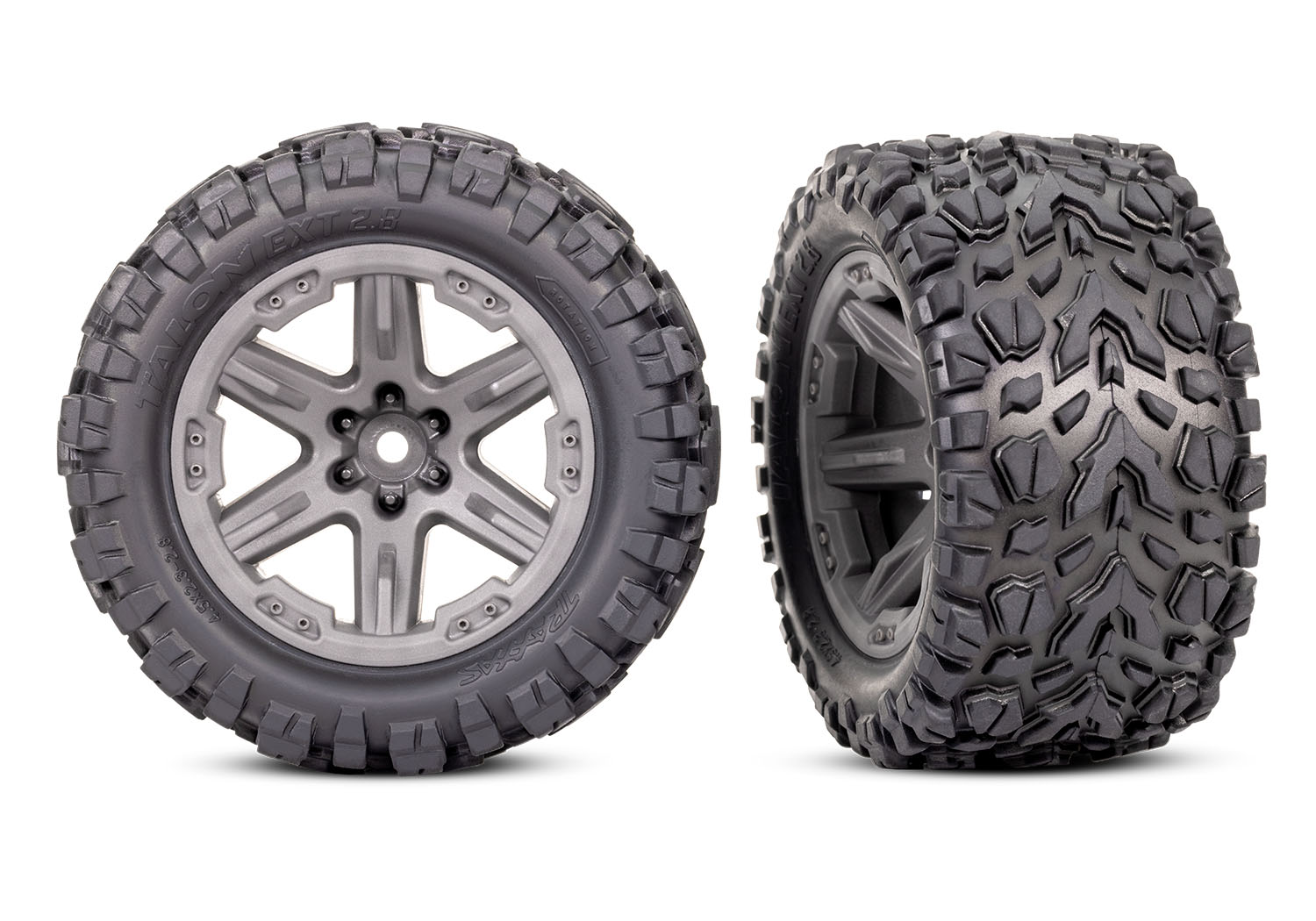

  • Wheels and Tires
    • 2.8″ gray RXT wheels
    • All-terrain Talon EXT tires
  • Sealed Ball Bearings

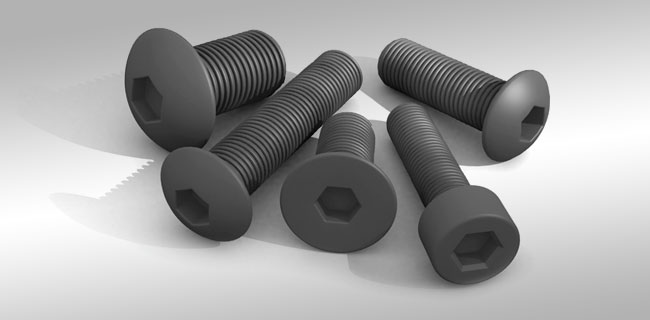

  • Hex hardware with Rust-Resistant Black Oxide Coating
Rustler 4X4 Brushless (#67164-4)
Rustler 4X4 Brushless (#67164-4)

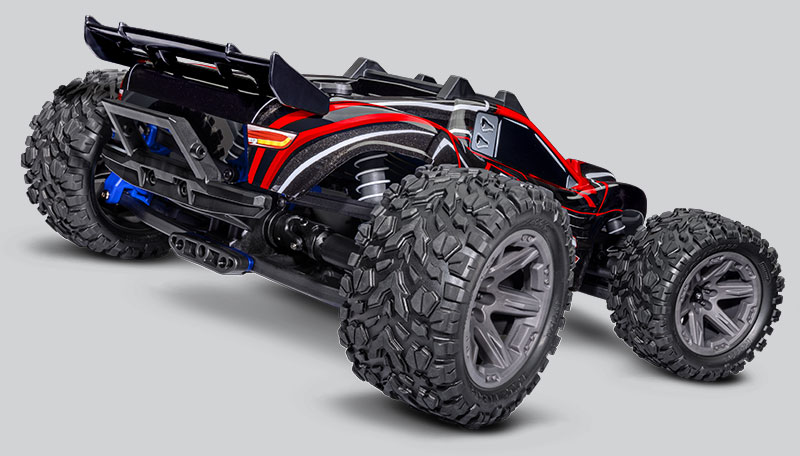

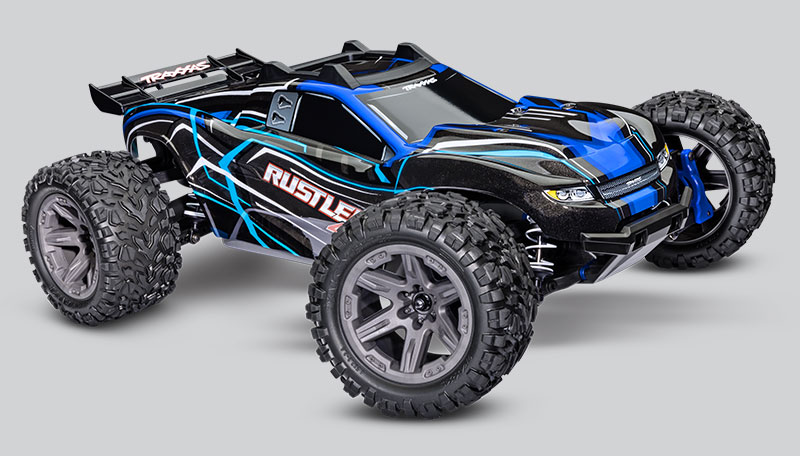

MODEL 67164-4: Rustler® 4X4 BL-2s: 1/10 scale 4X4 brushless stadium truck, fully-assembled, waterproof electronics, Ready-To-Race®, with TQ 2.4 GHz 2-channel radio system, BL-2s speed control, and clipless painted body. Requires: battery and charger.

What’s In The Box:

  • Rustler 4X4 with BL-2s ESC and 3300 kV motor
  • Quick Start Guide
  • TQ 2.4 GHz radio system
  • High quality maintenance tools

What You’ll Need:

  • Batteries

    Rustler 4X4 requires a single NiMH or LiPo battery. See full list of batteries.

  • Charger

    Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance.

  • AA Alkaline Batteries

    Four AA alkaline batteries for the transmitter.
