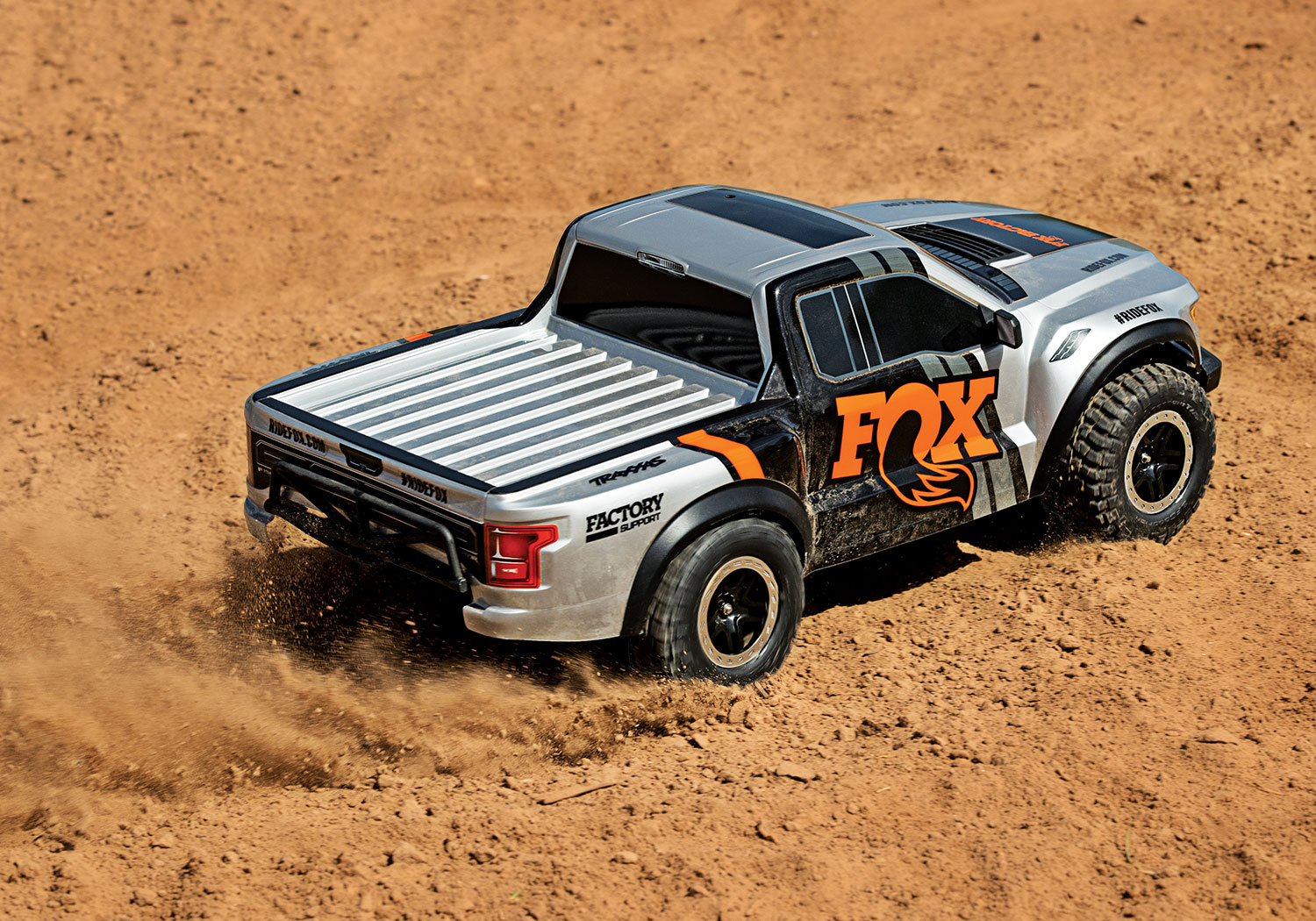

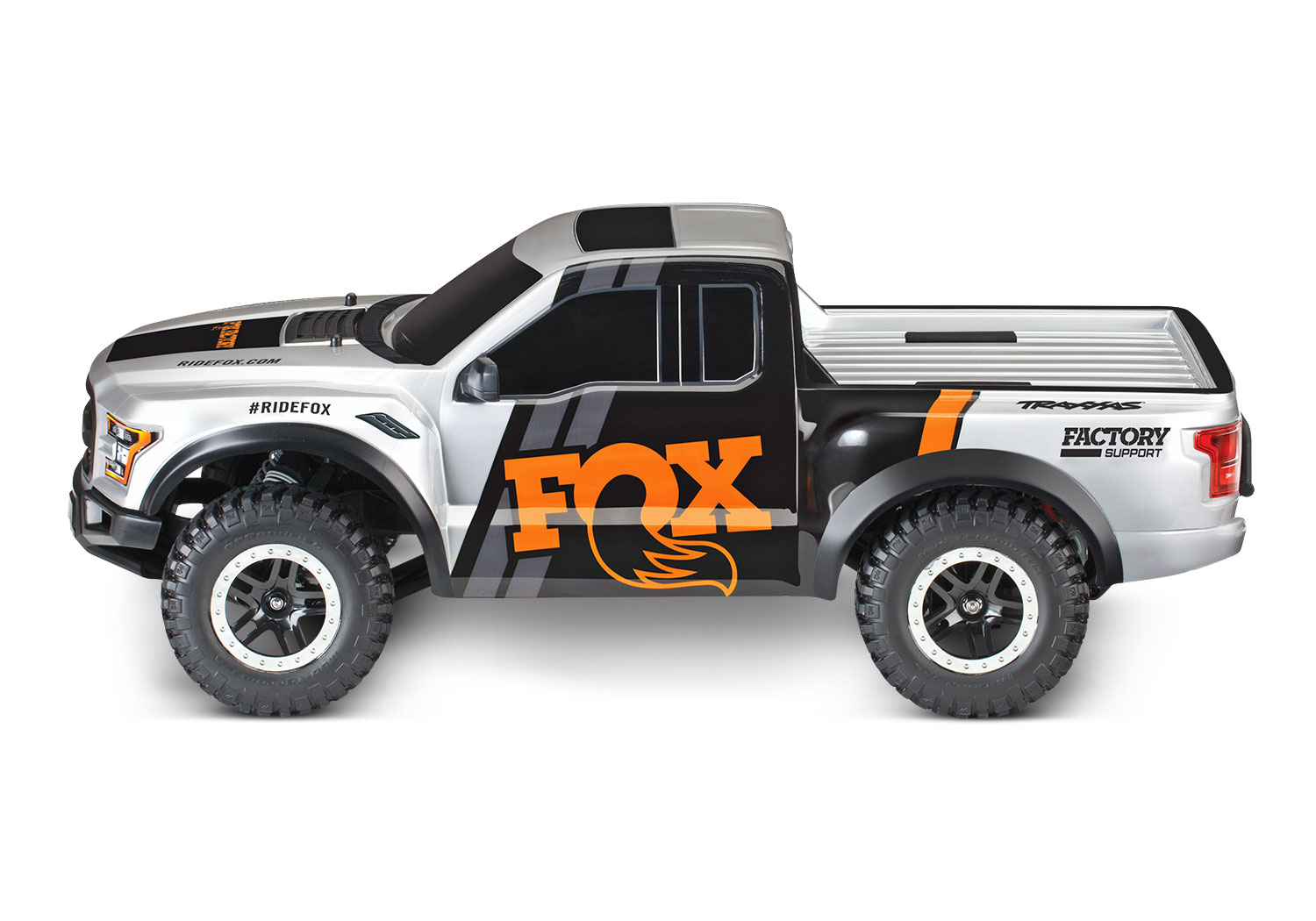

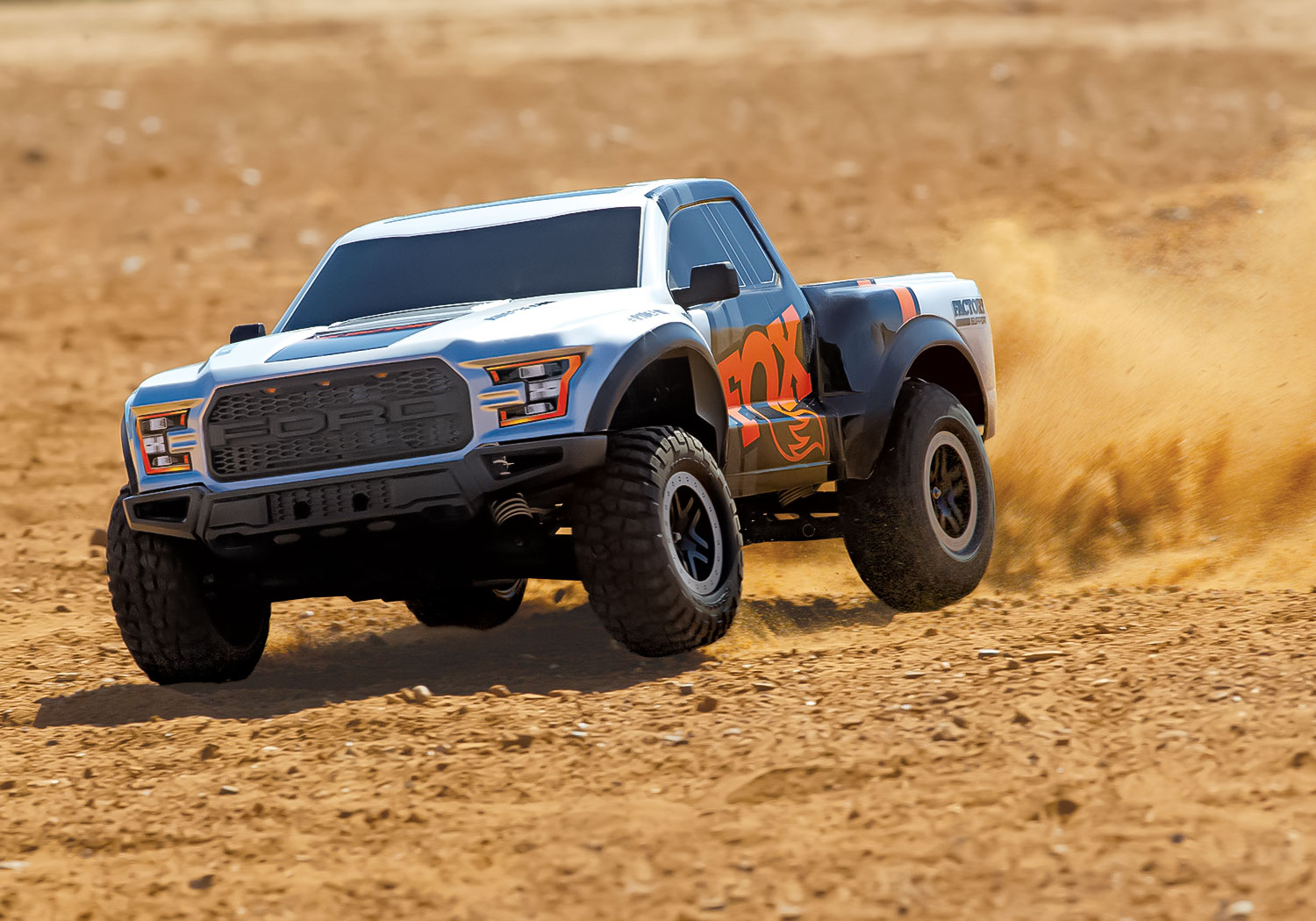

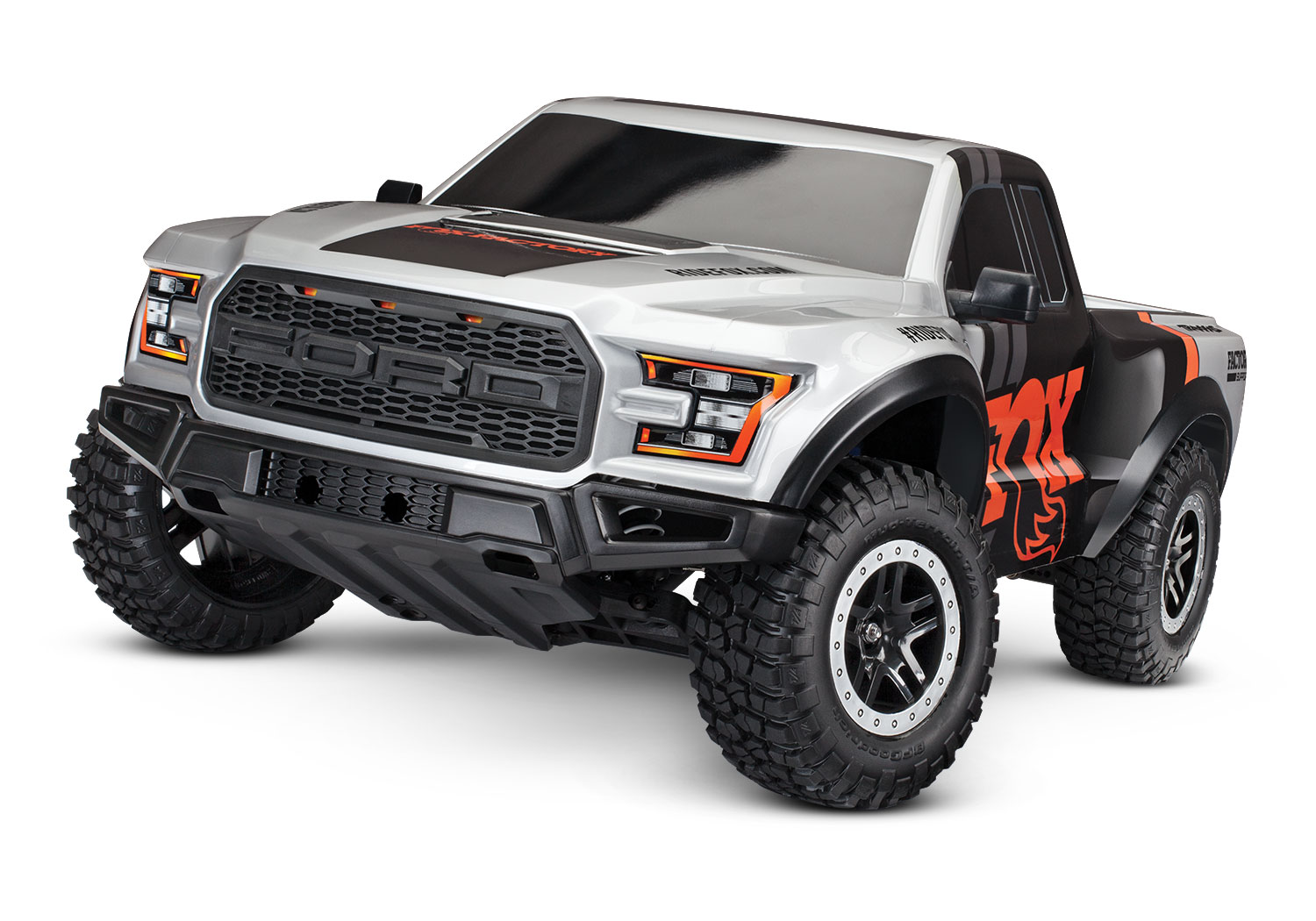

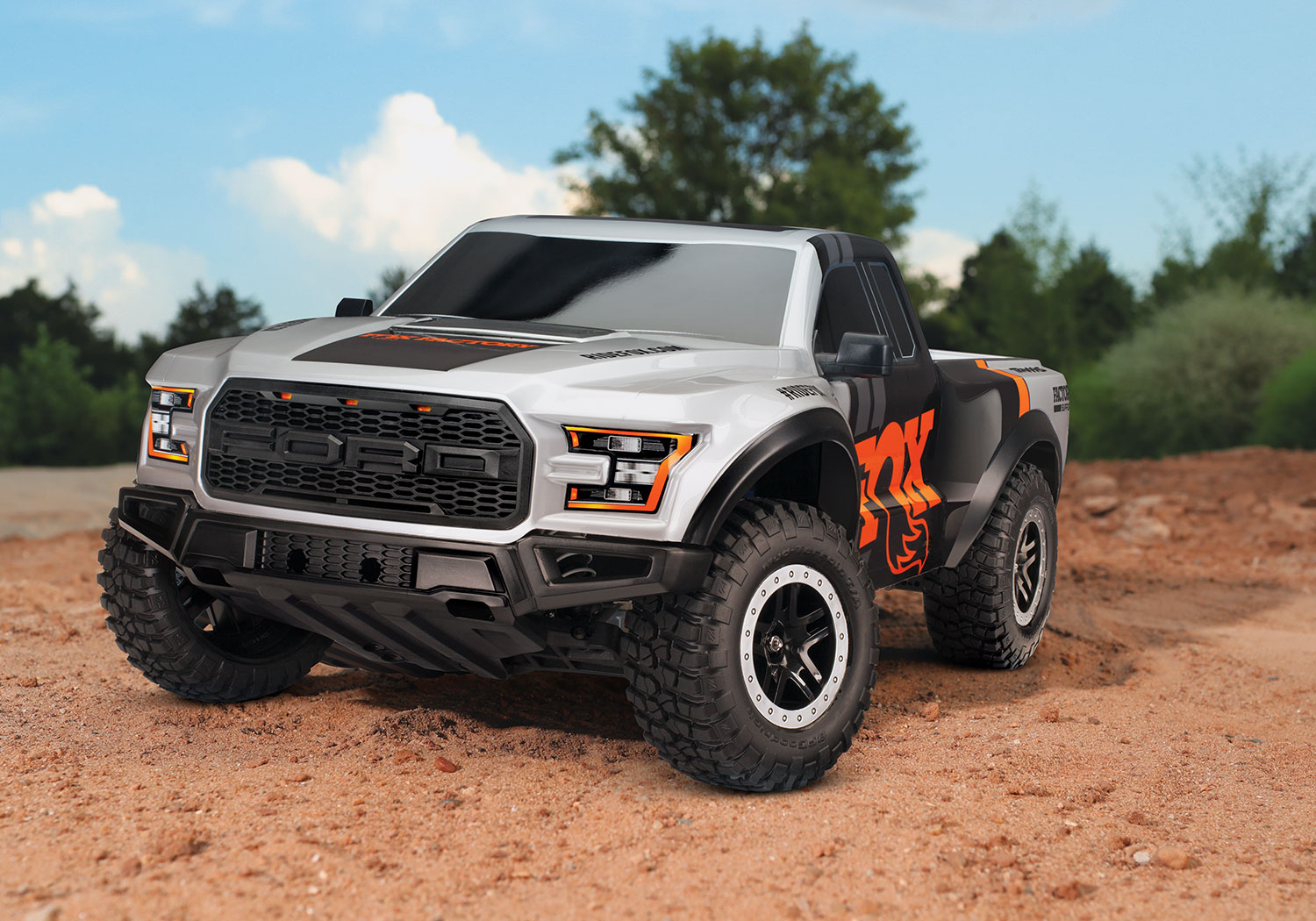

Ford F-150 Raptor Styling
Award-Winning Slash Performance
Based on the award-winning Slash®, the Traxxas Ford® F-150® Raptor® combines show-stopping looks with legendary Slash toughness. Now Raptor comes standard with the BL-2s™ brushless power system for a more responsive throttle, powerful acceleration, and all-day fun. Raptor comes fortified with Traxxas’ Extreme Heavy Duty components to take even the most brutal punishment in stride.

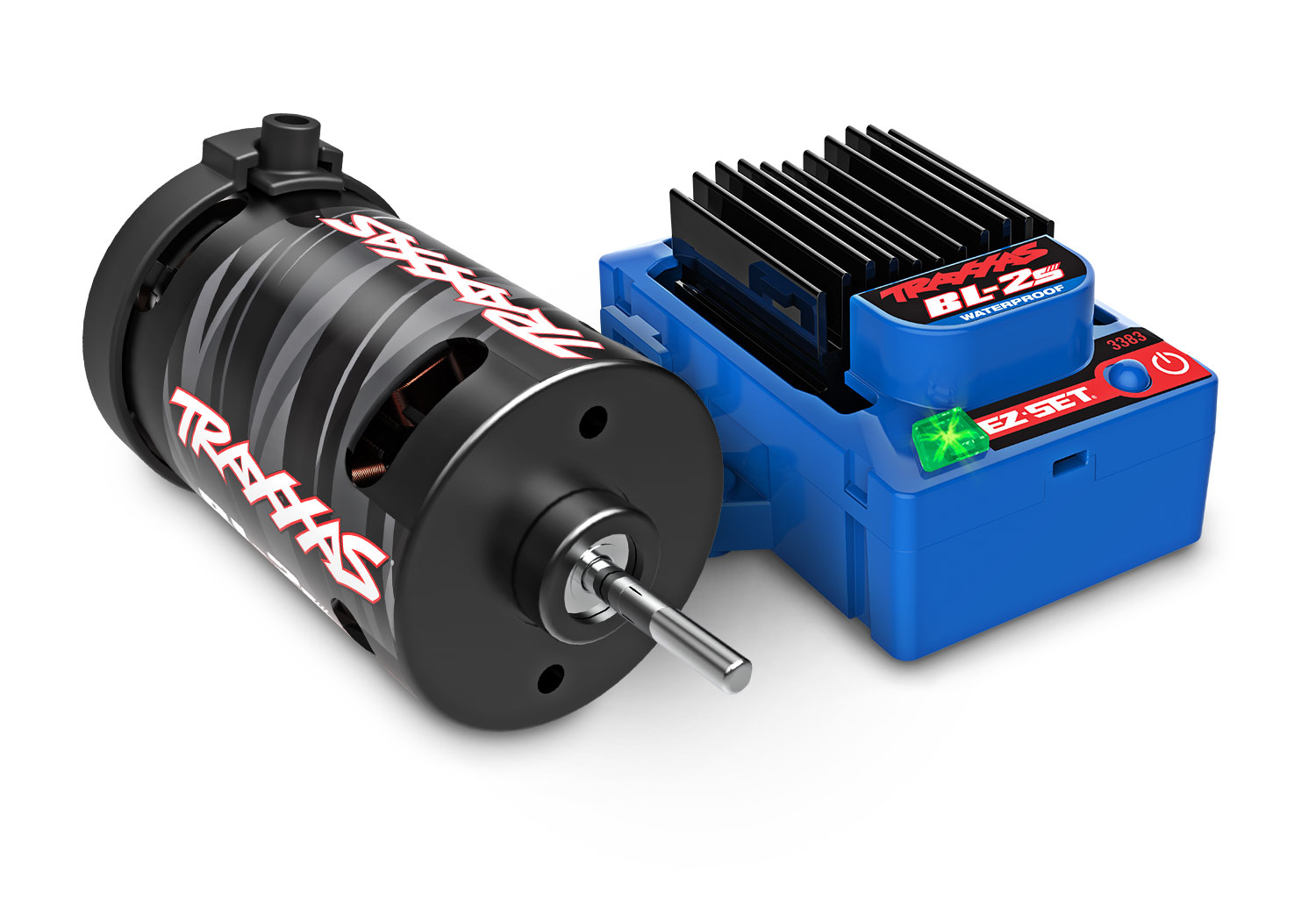

BL-2s Brushless Power System
Raptor’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.
Extreme Heavy Duty Components
Extreme Heavy Duty components come factory-installed on Raptor for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for unbeatable strength. From HD suspension arms to upgraded driveshafts, Raptor sets a new standard for durability for your off-road adventures.
Clipless Ford F-150 Raptor Body
Raptor’s sleek clipless body comes fully detailed with an injection molded grille, front bumper, and body accessories to capture the full depth and detail of Ford’s original design. Raptor’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
BL-2s Brushless Combo
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Model #58394-4$289.95
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Details

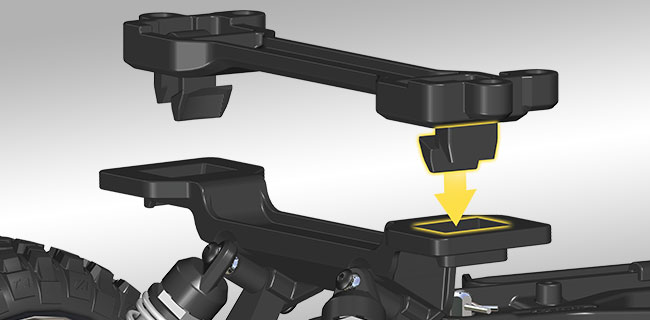

Clipless Body Mounting
Raptor’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds.

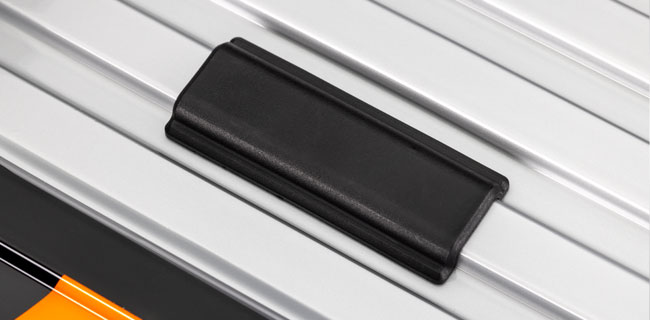

Molded Body Reinforcements
Raptor’s clipless body latches are neatly integrated into molded body reinforcements that look great and protect the body. Unlike traditional posts and clips, Raptor’s body reinforcements spread impact forces over a wide area to minimize the risk of pull-through damage.

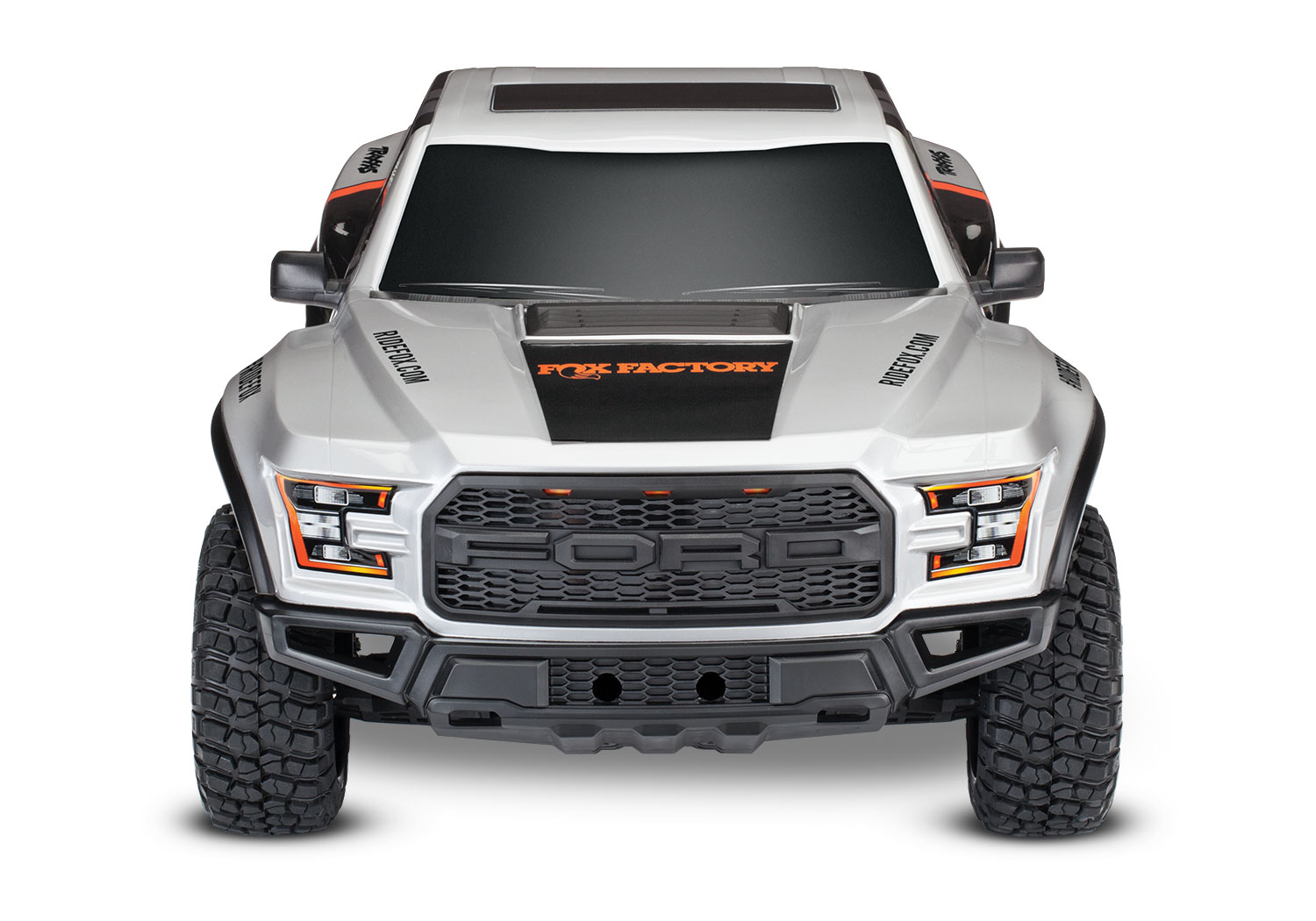

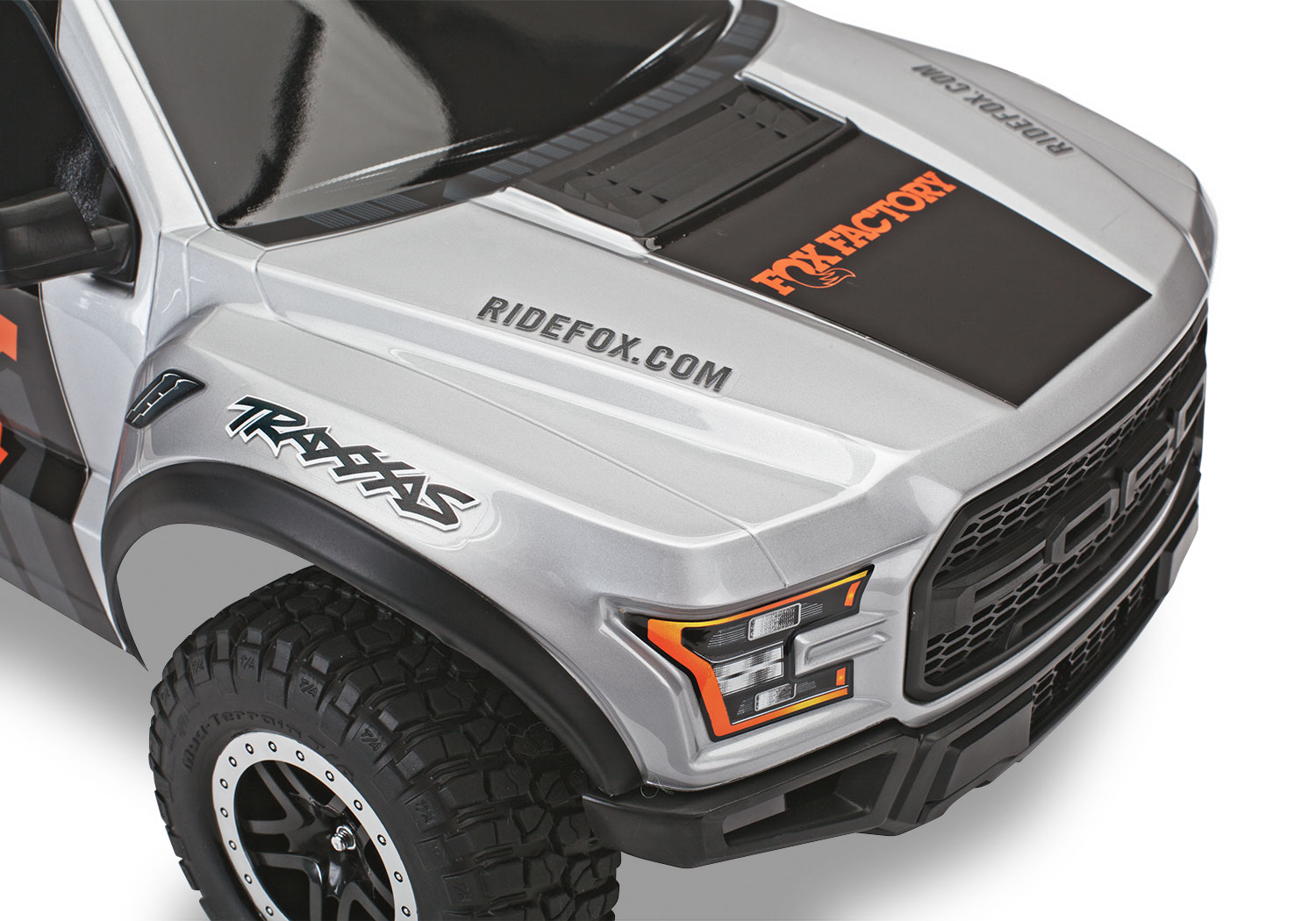

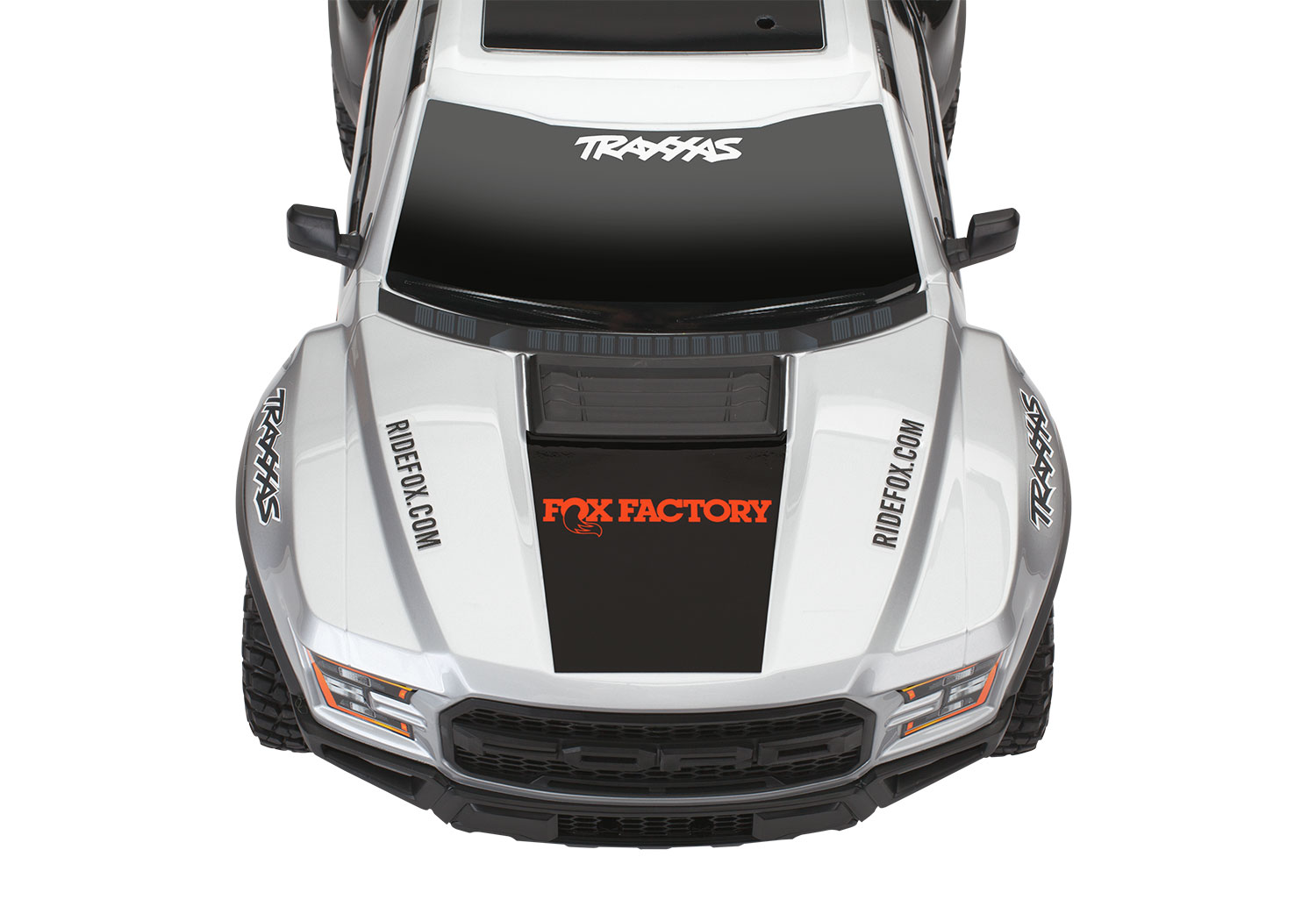

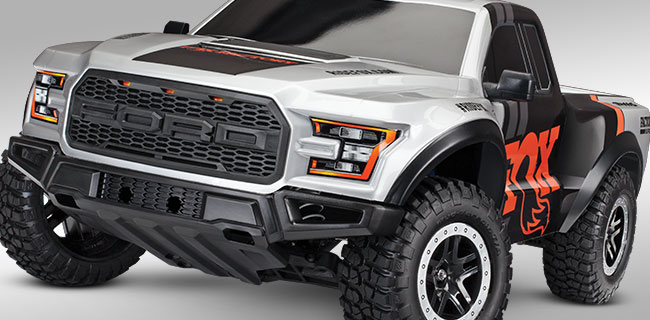

Detailed Raptor Body
The Traxxas Ford Raptor takes you off-road with a whole new level of scale realism. The highly detailed Raptor body features an injection molded grille, front bumper, hood vents, and side mirrors to complete the look. The heavy duty body is built extra tough for all your off-road adventures.

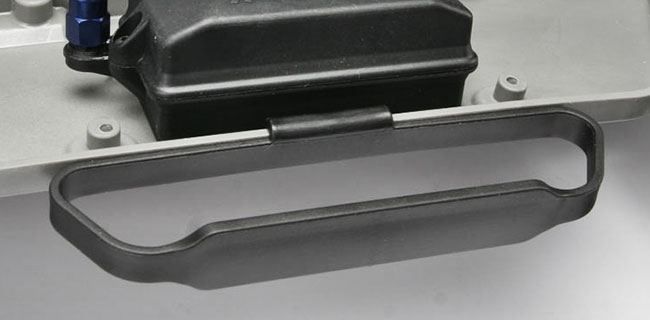

Integrated Chassis Nerf Bars
Tough integrated chassis nerf bars offer side body support and help absorb the shocks that occur during door-to-door racing action.

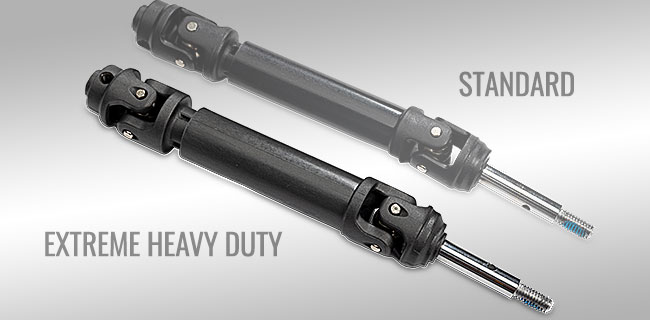

Extreme Heavy-Duty Driveshafts
Raptor’s extreme heavy-duty driveshafts are beefed up in critical areas for outrageous power handling. The large-diameter half shafts offer excellent articulation and suspension travel and hold up to the BL-2s brushless system’s tire-shredding torque with ease.

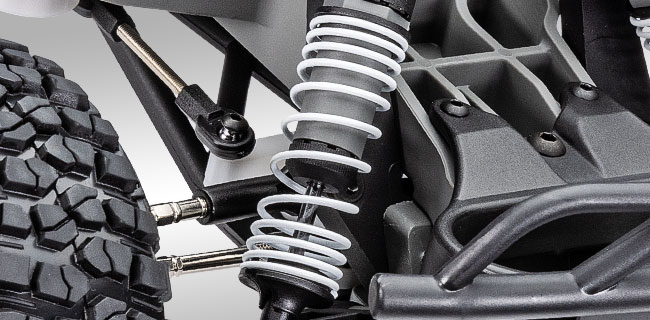

Oil-Filled Ultra Shocks™
Raptor’s oil-filled Ultra Shocks utilize X-rings for a perfect seal and super-smooth performance. Adjust the ride height and pre-load on the white powder-coated progressive springs with the included spacer clips. Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons available.

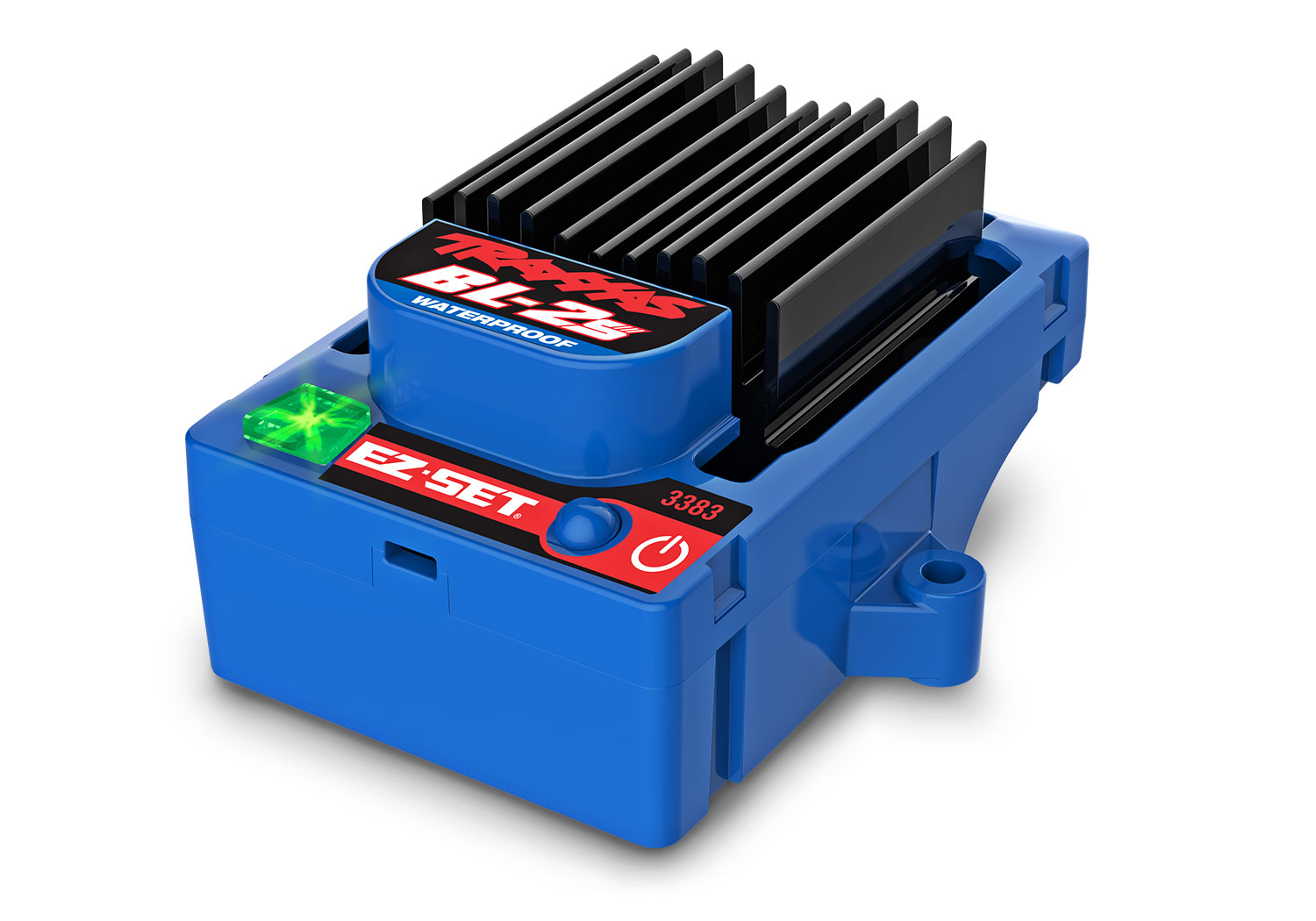

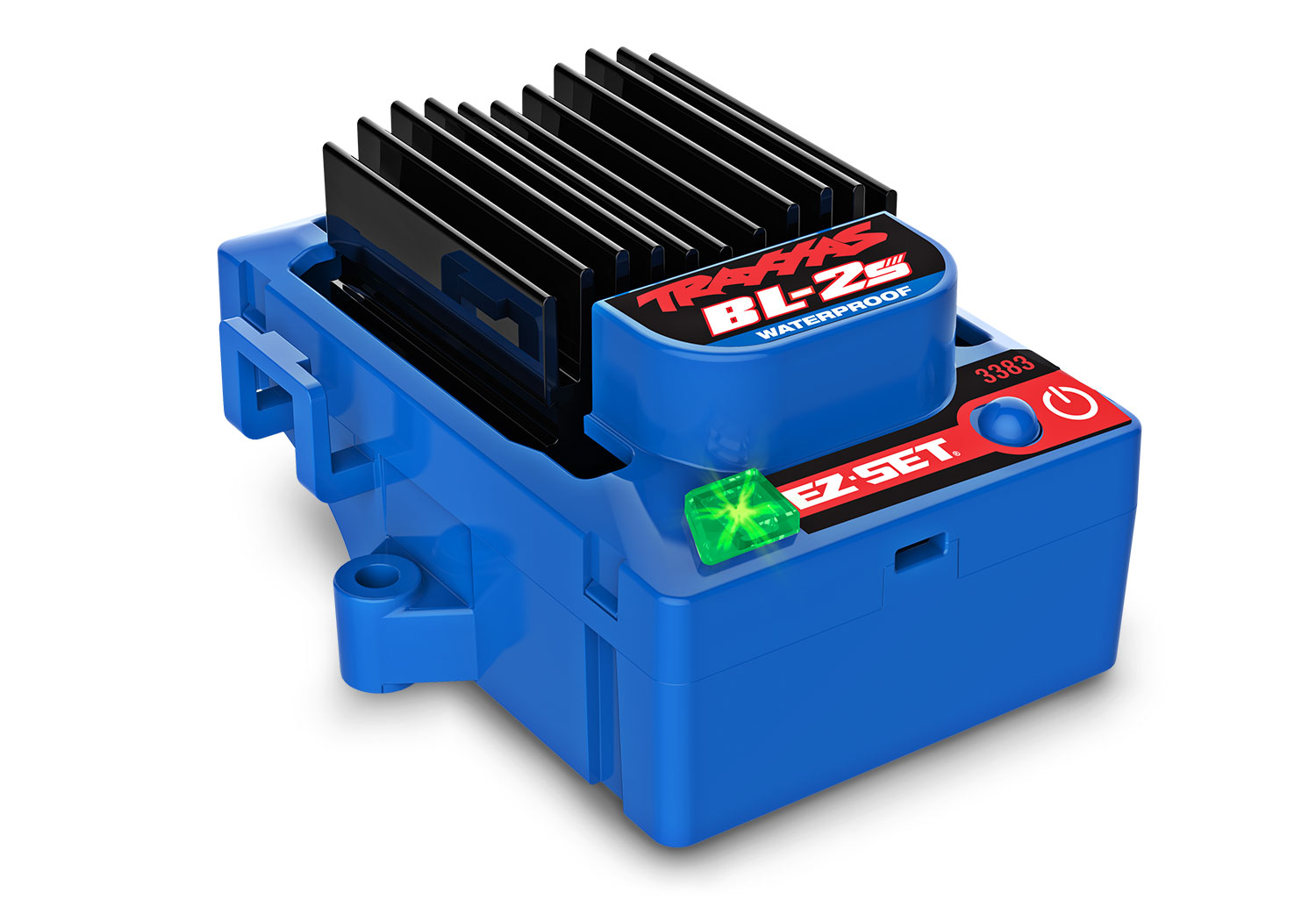

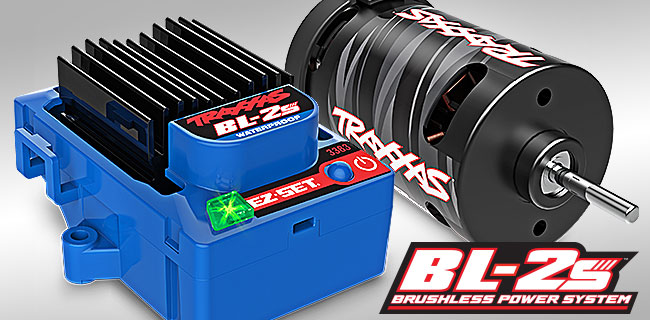

BL-2s Brushless Power System
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 kV motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.

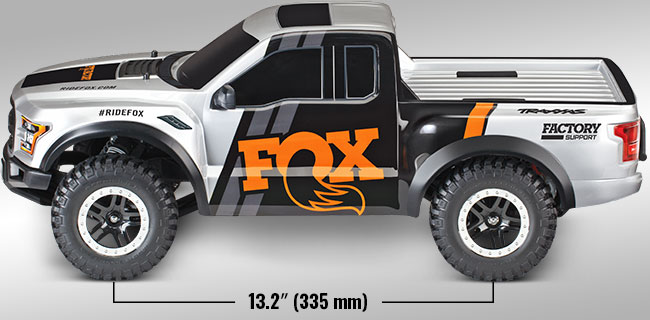

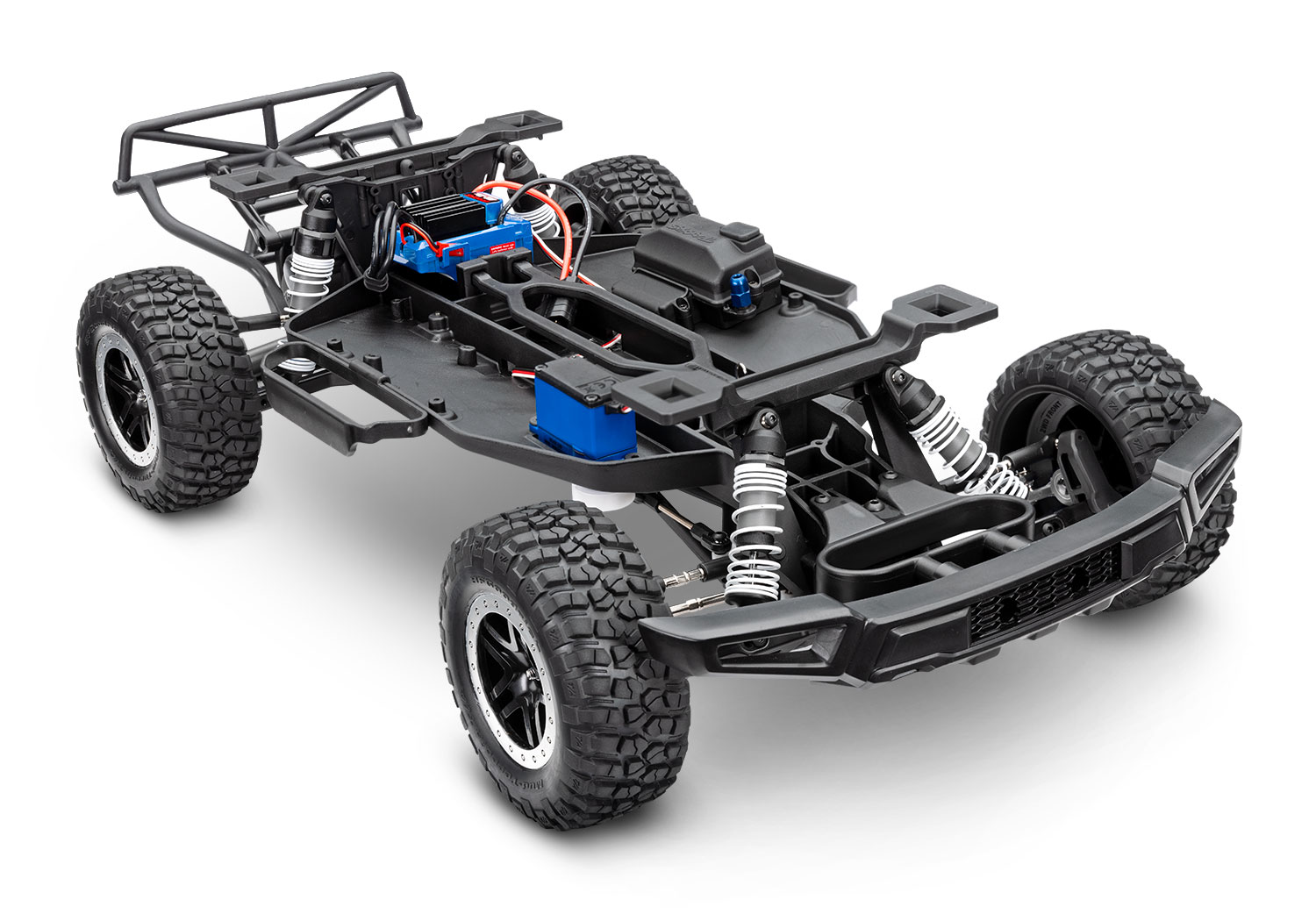

Long Wheelbase Chassis
Raptor’s long 13.2″ wheelbase chassis increases high-speed stability with 3.5″ of center ground clearance to avoid high centering. The chassis includes drain holes, a channel for servo wires, and bosses for mounting the optional Velineon 3s Brushless Power System.

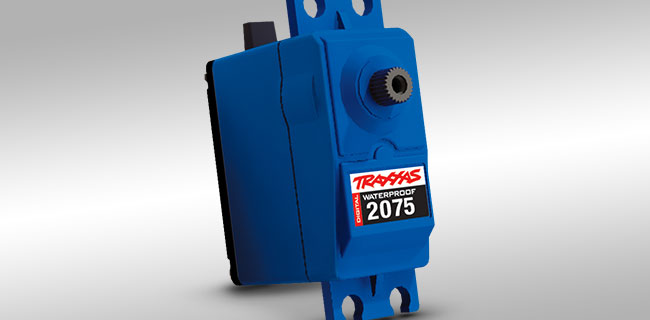

Digital Steering Servo
A high-performance truck needs a powerful steering servo for responsive performance. The 2075 waterproof steering servo uses O-ring seals to keep the fun going when things get wet. The Traxxas digital high-torque servo provides precise steering authority and speed for wheel-to-wheel racing in the back yard or on the track.

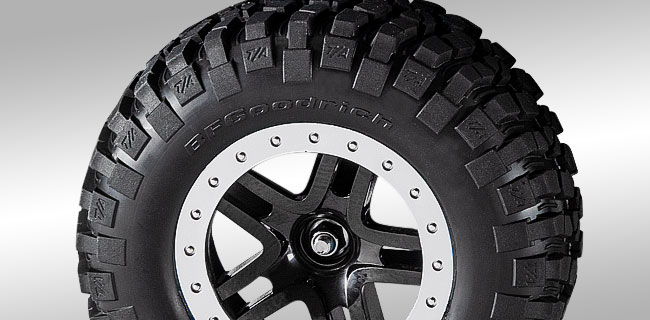

Replica All-Terrain Tires
Realistic looks, realistic performance. Raptor’s replica BFGoodrich® Mud Terrain T/A® tires have excellent grip in the dirt, just the right amount of slide on pavement. The tires come mounted and glued to black dual-diameter SCT wheels with distinctive satin chrome “beadlock” rings.

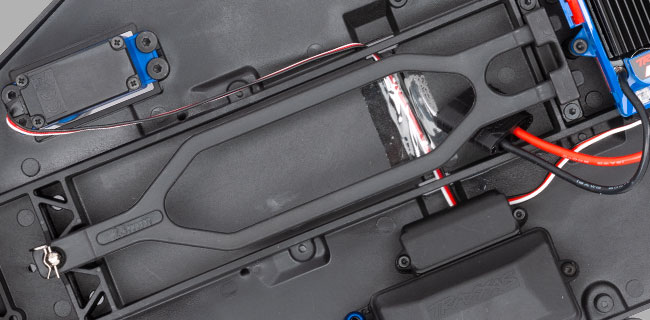

Adjustable Battery Hold-Down
Raptor’s battery hold-down accommodates either 6 or 7-cell flat battery packs or 7-cell hump packs for maximum versatility. An optional tall battery hold-down kit part 5827X (sold separately) accommodates oversized batteries.
Waterproof Electronics
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.

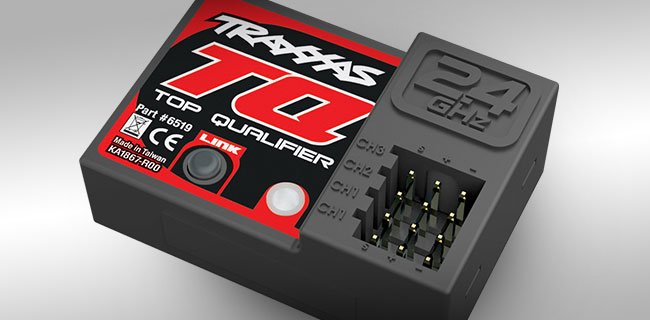

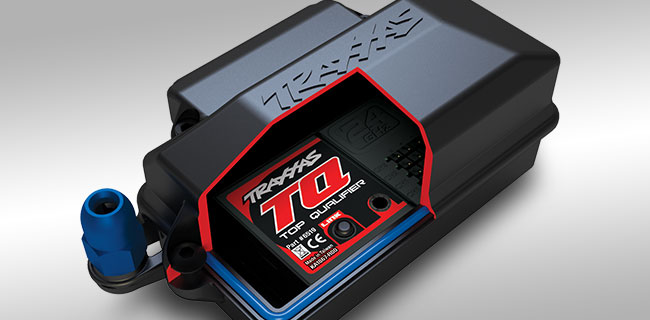

3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.

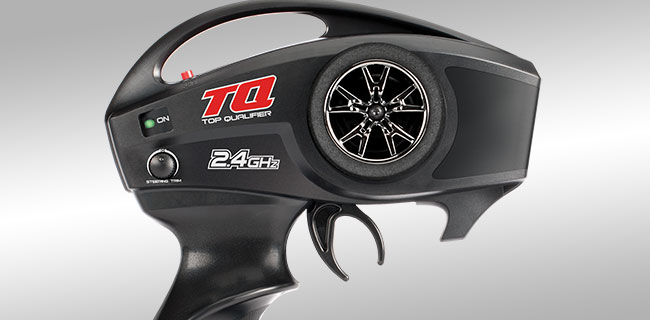

TQ™ 2.4 GHz Transmitter
The TQ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.

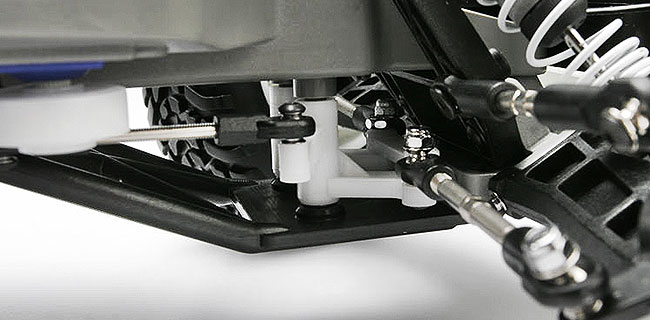

Dual Bellcrank Steering with Servo Saver
Raptor’s dual bellcrank design pivots smoothly, even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.

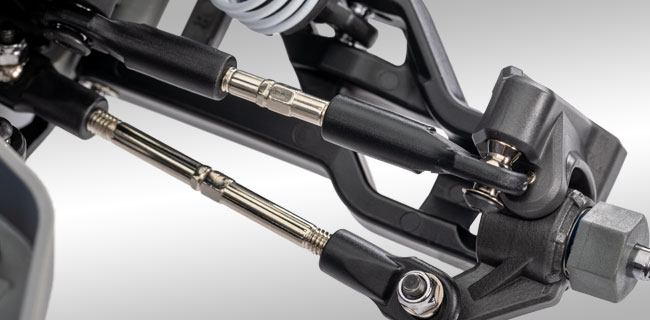

Adjustable Steel Turnbuckles
Factory fitted, heavy-duty steel turnbuckles allow camber and toe tuning. The suspension is completely adjustable right out of the box to fine tune handling agility and high-speed performance. Captured rod ends provide unmatched durability and they won't pop off.

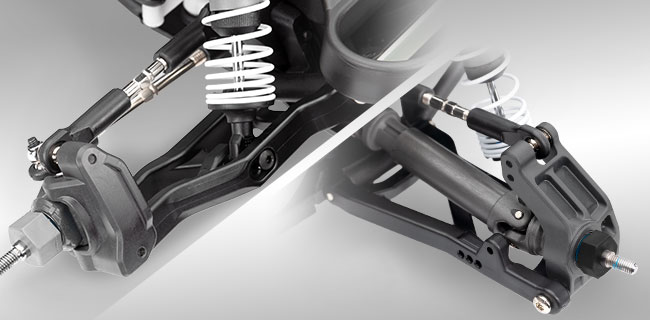

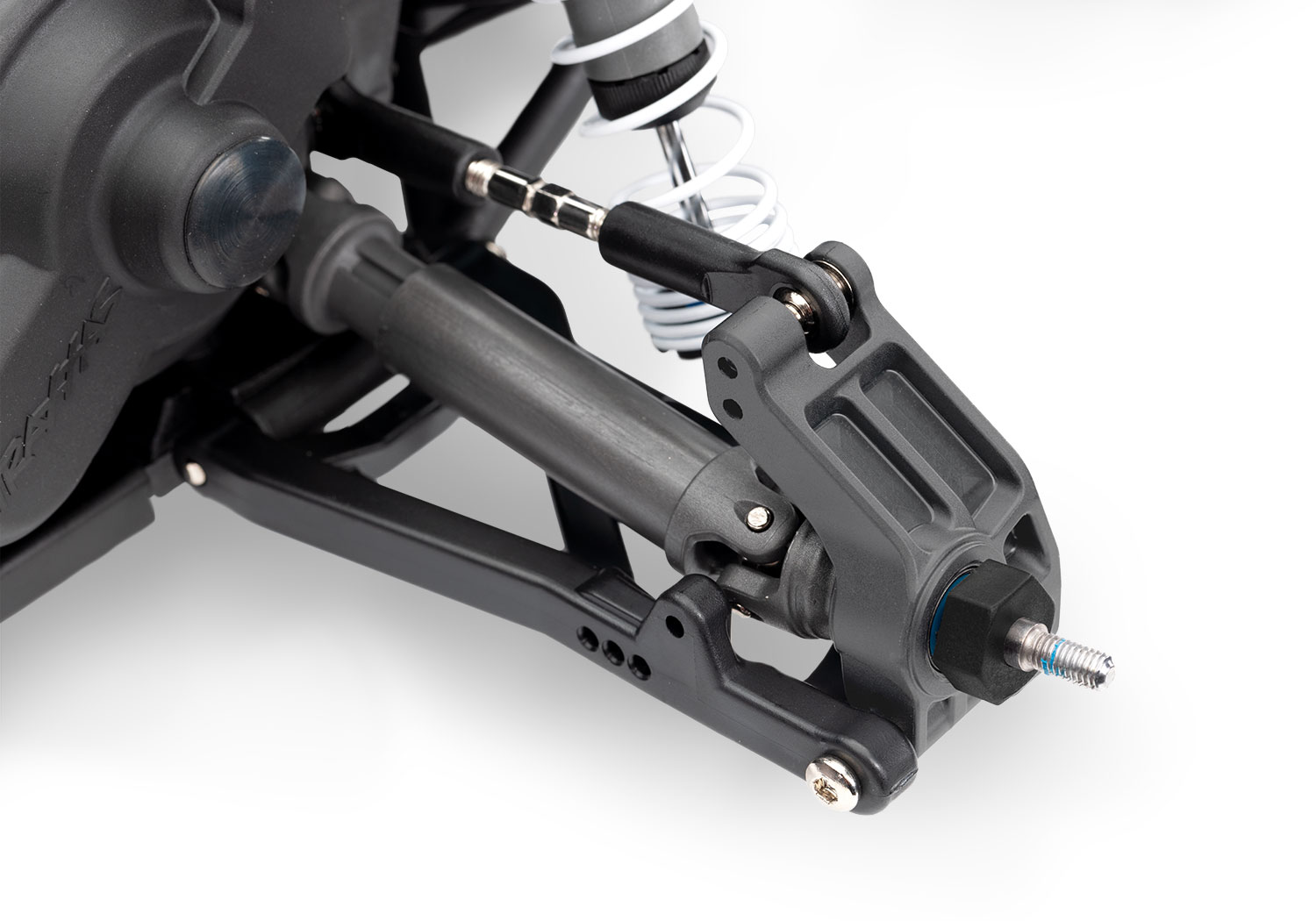

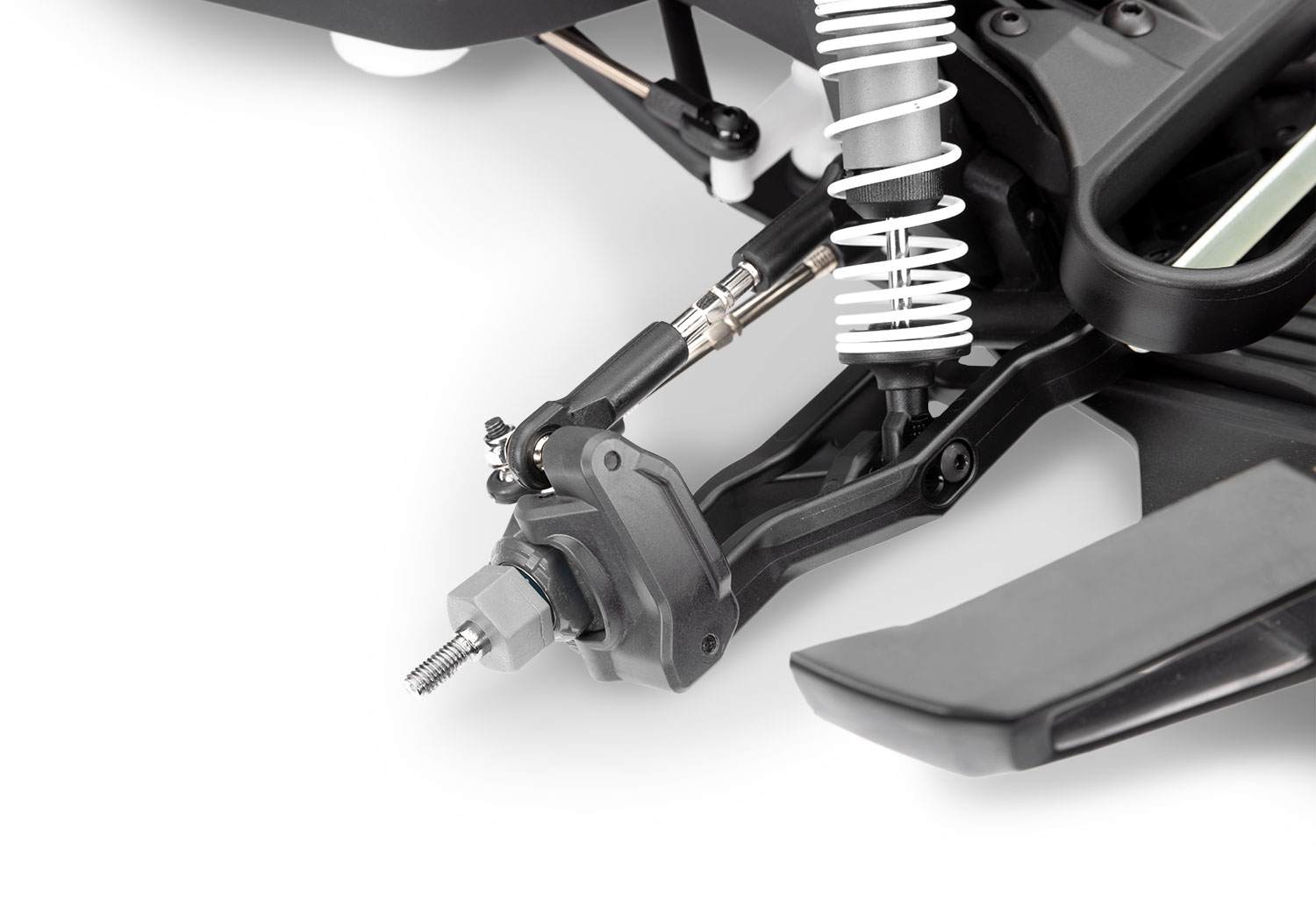

Extreme Heavy Duty Suspension Components
Raptor comes outfitted with factory-installed Extreme Heavy Duty suspension components for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

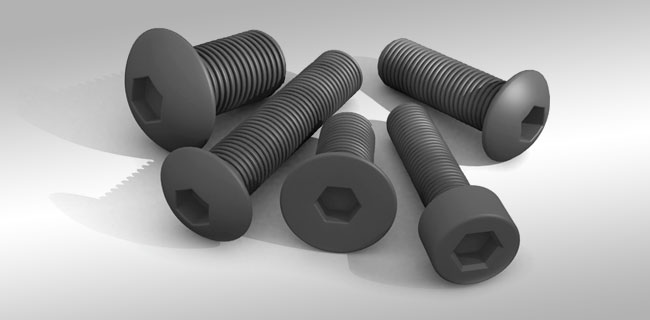

Hex Hardware
Raptor’s hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.

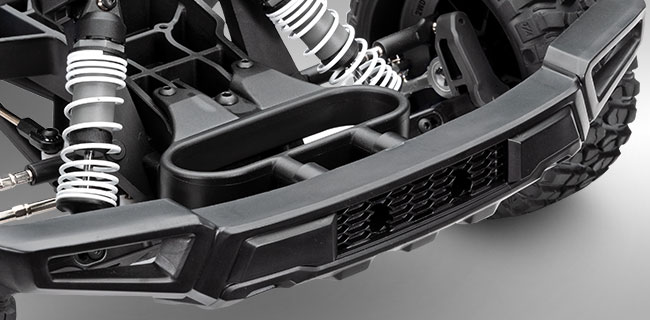

Scale Front Bumper
Engineered to handle the abuse of bumper-to-bumper bashing, the integrated front bumper is designed to absorb brutal impacts while looking the part of an aggressive off-road-ready truck.

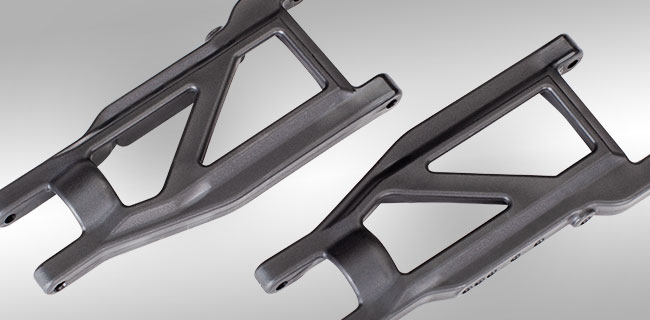

Heavy Duty Suspension Arms
Molded from our toughest composite material, Raptor’s heavy duty suspension arms provide just the right amount of flex to resist breaking. These suspension arms stand up to even the most punishing drivers for non-stop wheel-to-wheel racing.

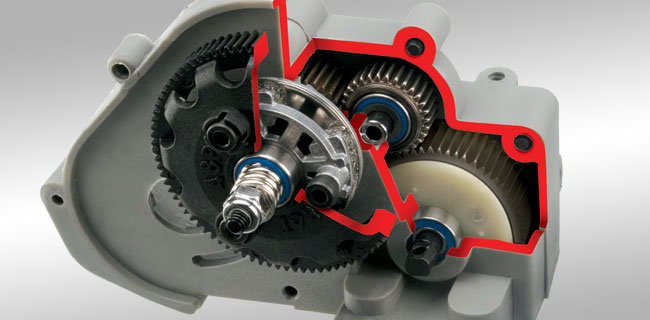

Metal Gear Magnum 272™ Transmission
The Magnum 272 transmission features all metal gear internals riding on ultra-smooth sealed ball bearings. The sealed gearbox protects the transmission components from dirt and rocks. The fortified Magnum 272 is built to handle even extreme Velineon® VXL brushless power without costly upgrades.

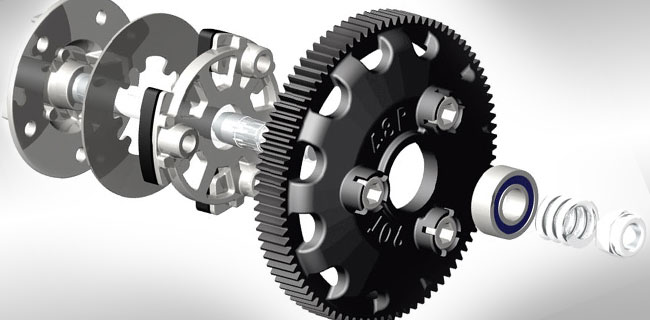

Torque-Control™ Slipper Clutch
The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. Spur gears can be removed and replaced without altering the slipper adjustment.

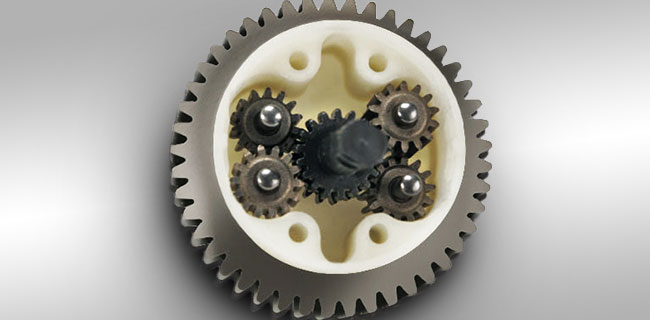

Steel-Composite Planetary Gear Differential
The composite planetary gear differential features a steel ring gear for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance, and its efficient design puts maximum tire-shredding torque to the wheels.

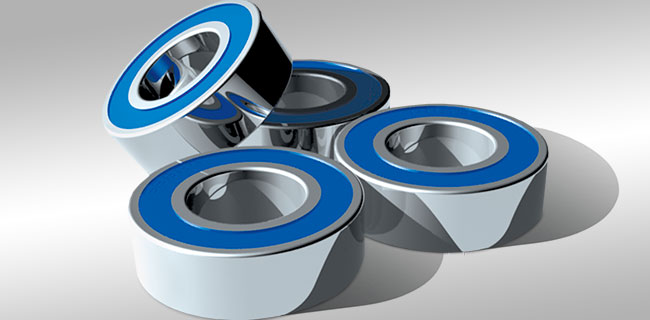

Rubber-Sealed Ball Bearings
Precision rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.
Photo Gallery
Make sure you don’t miss any of the latest Ford® F-150® Raptor® news, accessories, and updates.
Ford® F-150® Raptor® Data
| Length: | 22.36 inches (568 mm) |
|---|---|
| Front Track: | 11.65 inches (296 mm) |
| Rear Track: | 11.65 inches (296 mm) |
| Center Ground Clearance: | 3.5 inches (89 mm) |
| Weight (no battery): | 4.76 pounds (2.16 kg) |
| Height (overall): | 8.43 inches (214 mm) |
| Wheelbase: | 13.2 inches (335 mm) |
| Shock Length (front): | 3.45 inches (88 mm) - Long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-Long |
| Tires: | Replica BFGoodrich® Mud Terrain T/A® Tires |
| Tire Diameter: | 4.3″ x 1.7″ inches (109 mm x 43 mm) |
| Wheels (front/rear): | Split-Spoke SCT wheels |
| Wheel Diameter: | 2.2 inches (56 mm) (outer) 3.0 inches (76 mm) (inner) |
| Speed Control: | BL-2s™ electronic speed control |
| Motor (electric): | BL-2s™ 3300 kV sensorless brushless |
| Overall Drive Ratio: | 12.58:1 |
| Differential Type: | Planetary |
| Gear Pitch: | 48 |
| Chassis Structure/Material: | Composite tub |
| Drive System: | 2WD |
| Steering: | Dual-bellcrank with integrated servo saver |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof digital 2075 servo (125 oz-in torque) |
| Skill Level: | 1 |
| Battery Compartment (L/W/H): | 165 mm (6.49″) x 50 mm (1.95″) x 23/25 mm (1.02″/0.90″) |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |
| Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
- Licensed Ford® F-150® Raptor® Clipless Body
- Injection molded grille, side mirrors, and hood vent
- Chassis nerf bars absorb impact and support the body
- Tough front and rear replica bumpers
- Holds tight for intense action
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Extreme Heavy Duty Upgrade Components
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

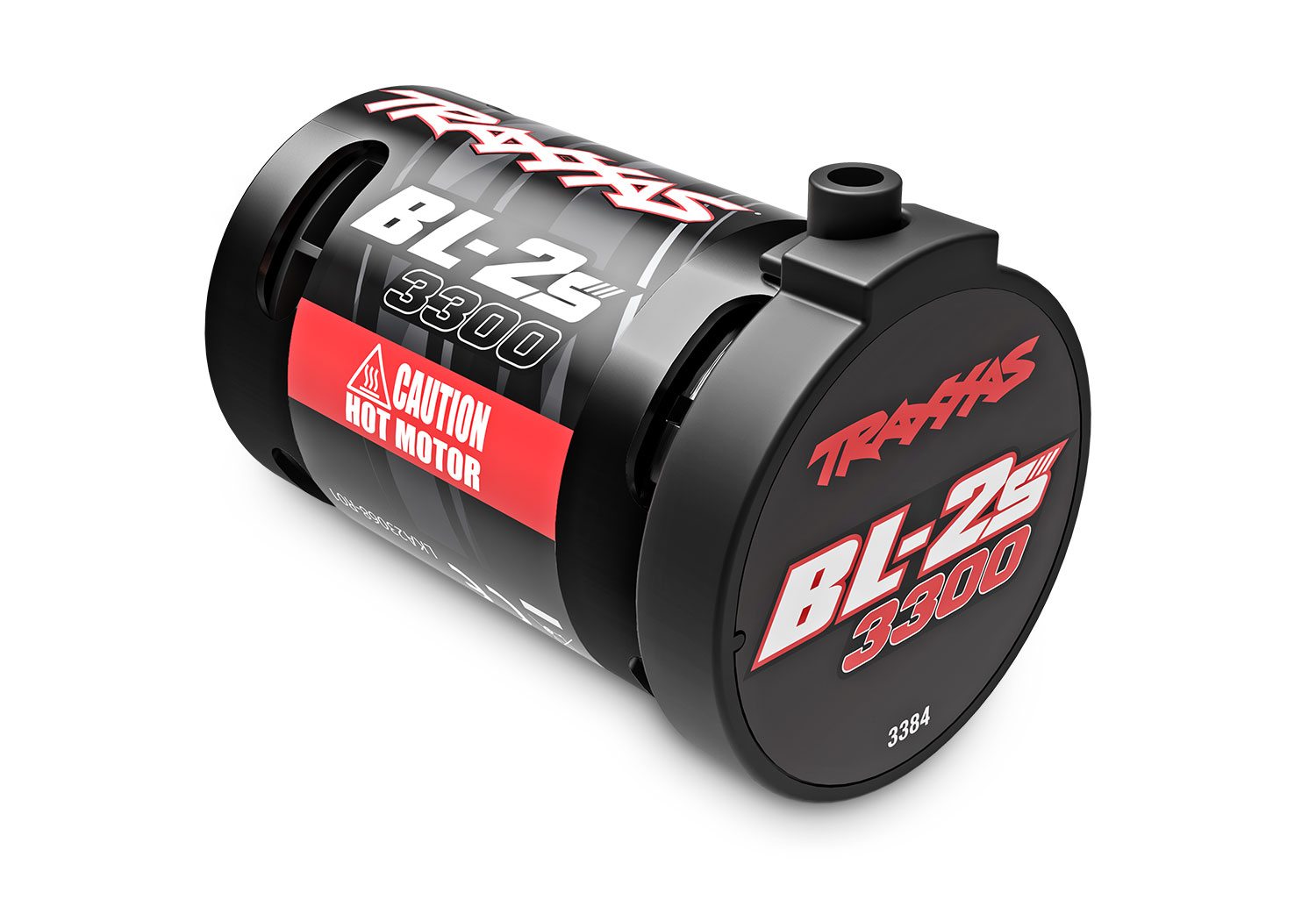

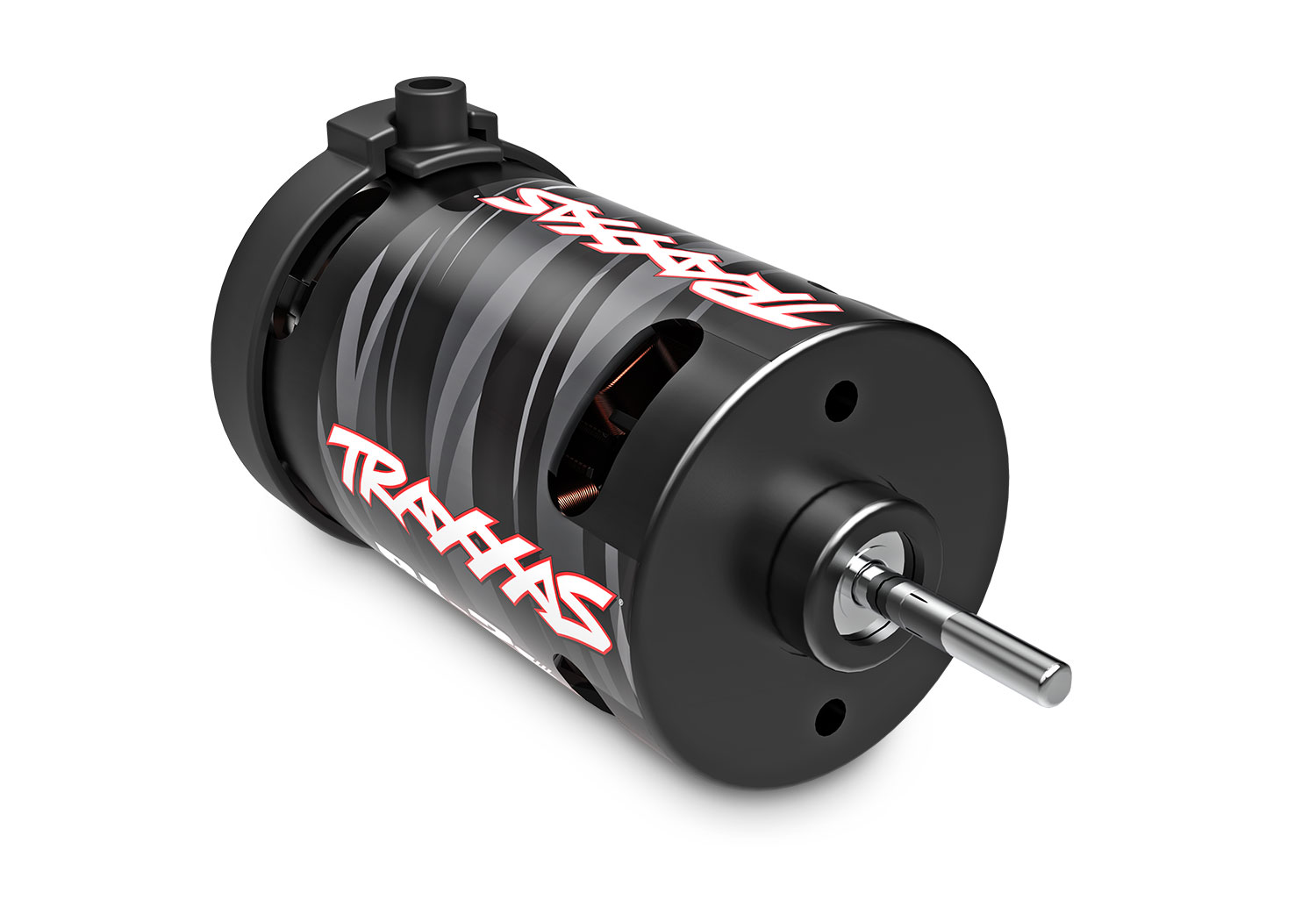

- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

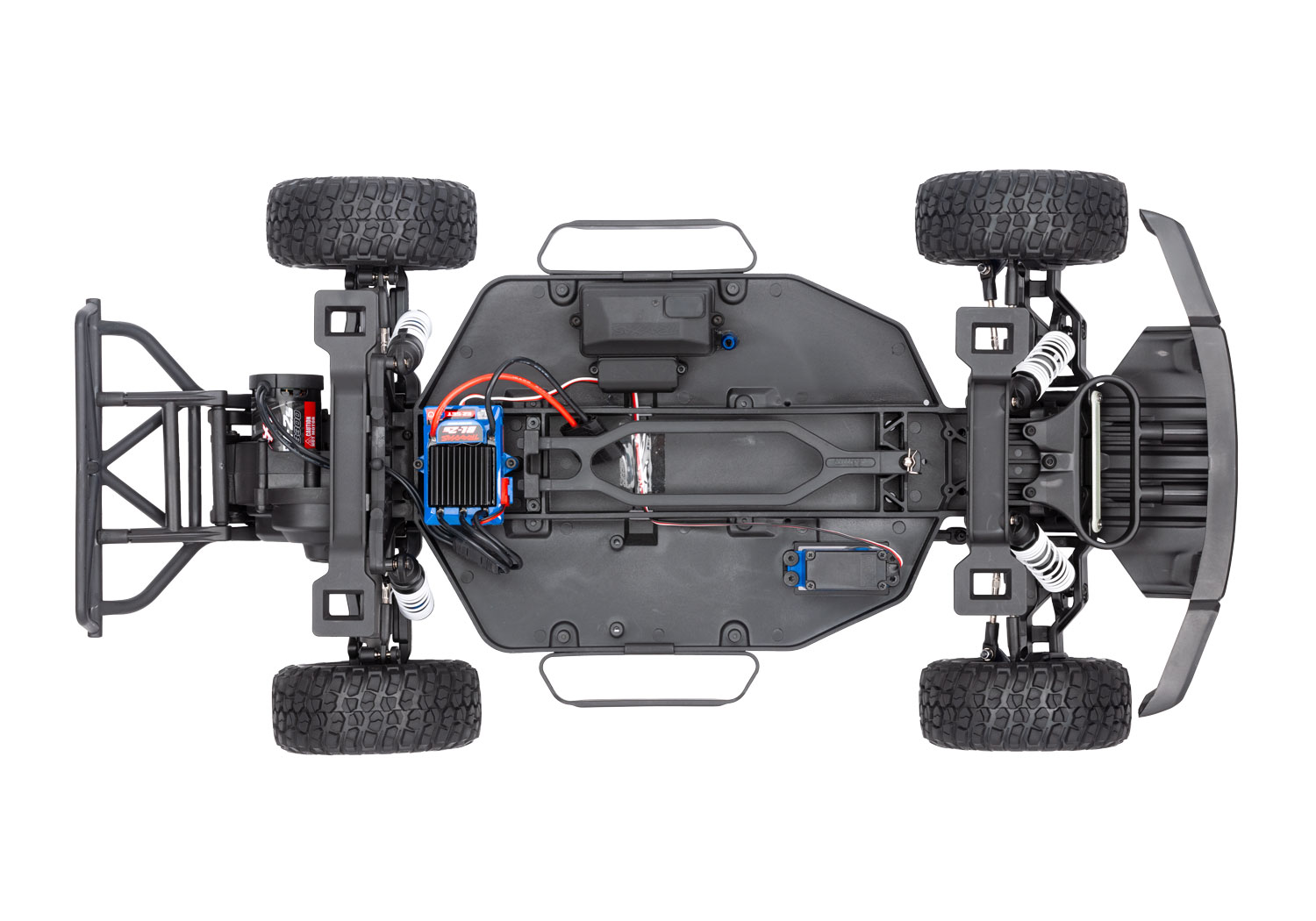

- Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
- Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
- Suspension
- Heavy-duty suspension arms
- Adjustable steel turnbuckles
- Oil-filled Ultra Shocks™
- White powder-coated springs
- Steering
- Chassis-mounted 2075 servo
- High-performance bellcrank system minimizes bump steer
- Transmission
- Velineon-ready Magnum 272™ metal-gear transmission
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission
- External gear cover with easy clutch access
- Drivetrain
- Extreme heavy-duty driveshafts
- Torque Control™ slipper clutch
- Wheels and Tires
- Split-Spoke SCT wheels
- 2.2″ outer diameter, 3″ inner diameter
- Replica BFGoodrich® Mud Terrain T/A® Tires
- Split-Spoke SCT wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- Ford F-150 Raptor BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Raptor requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
