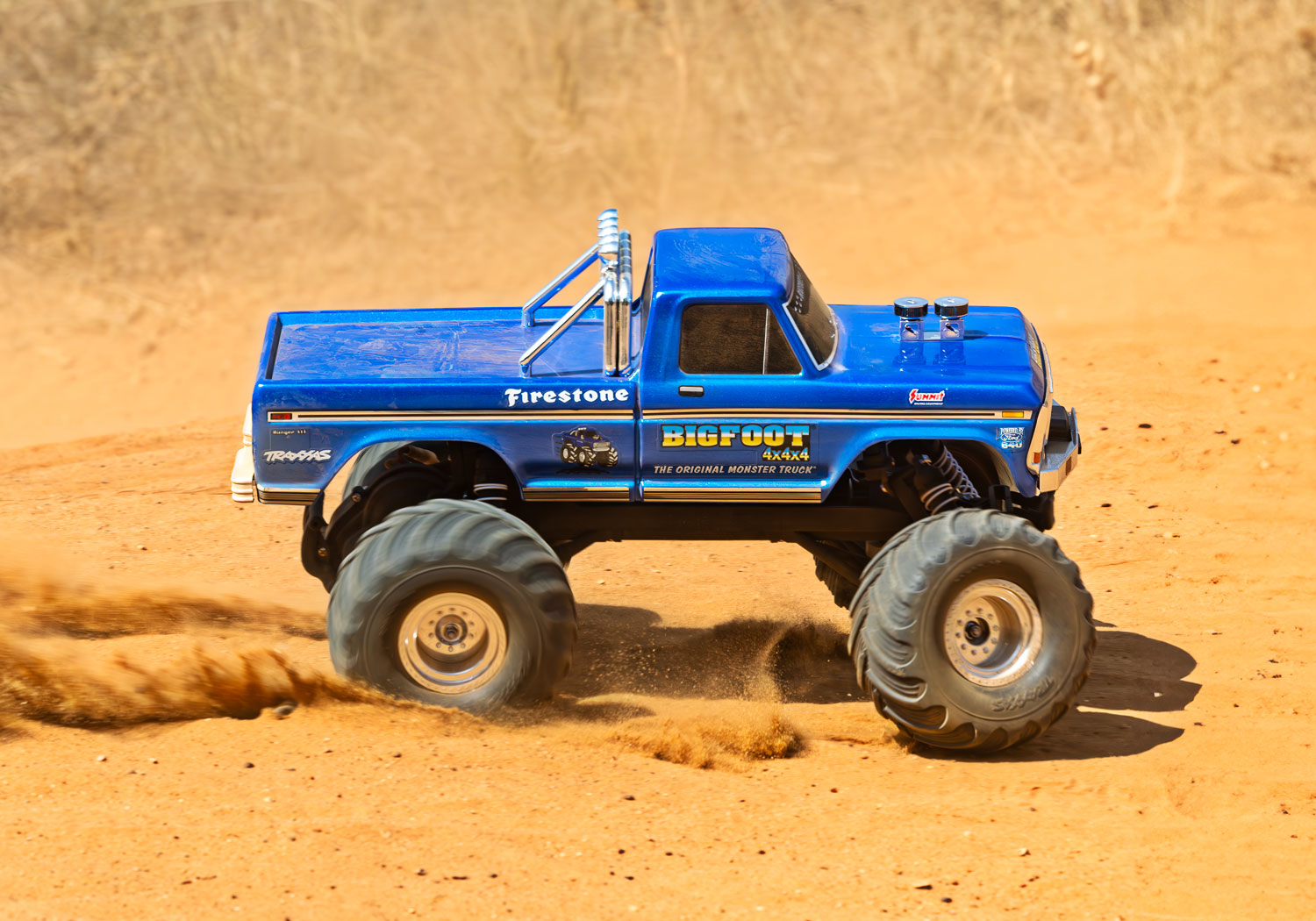

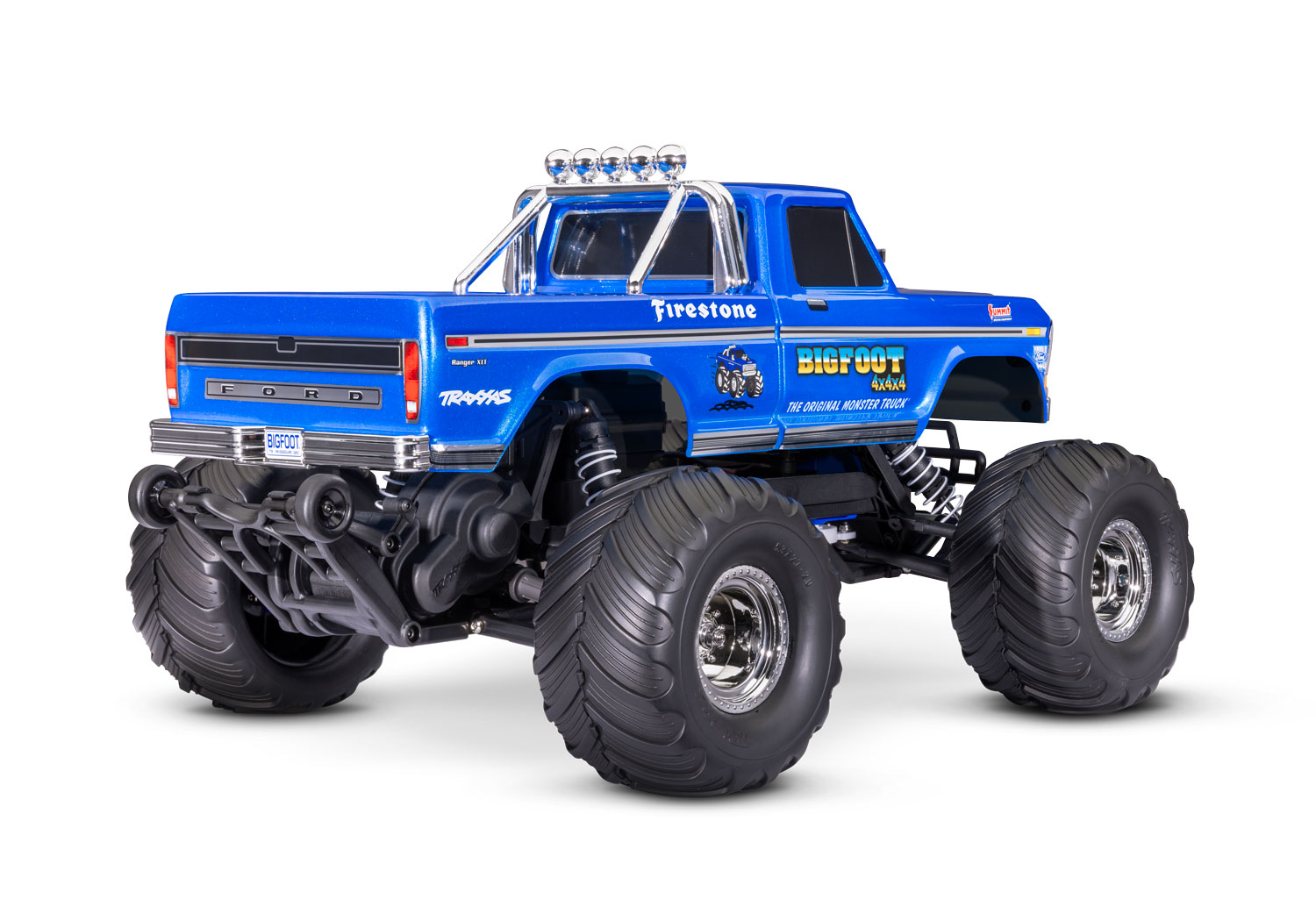

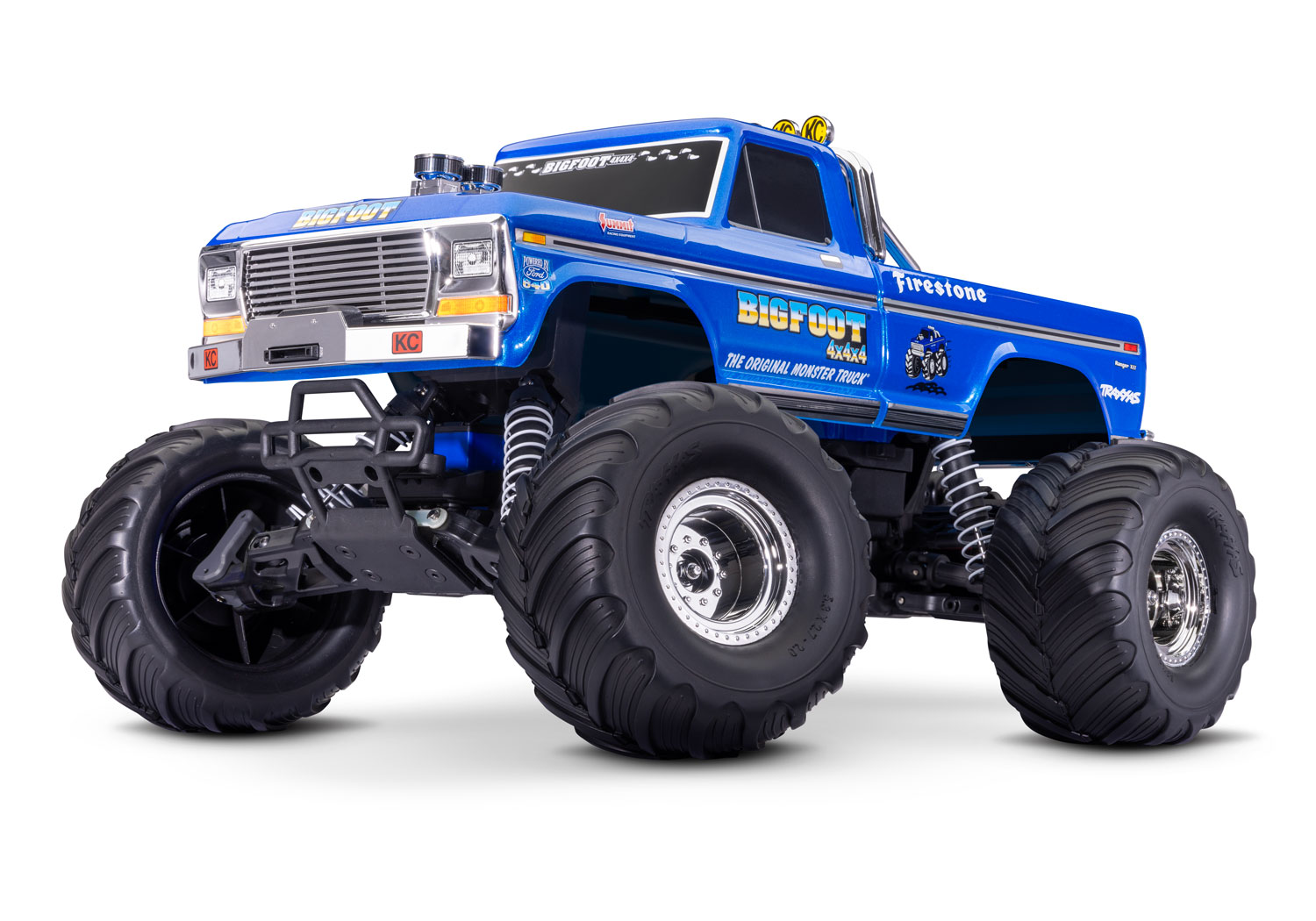

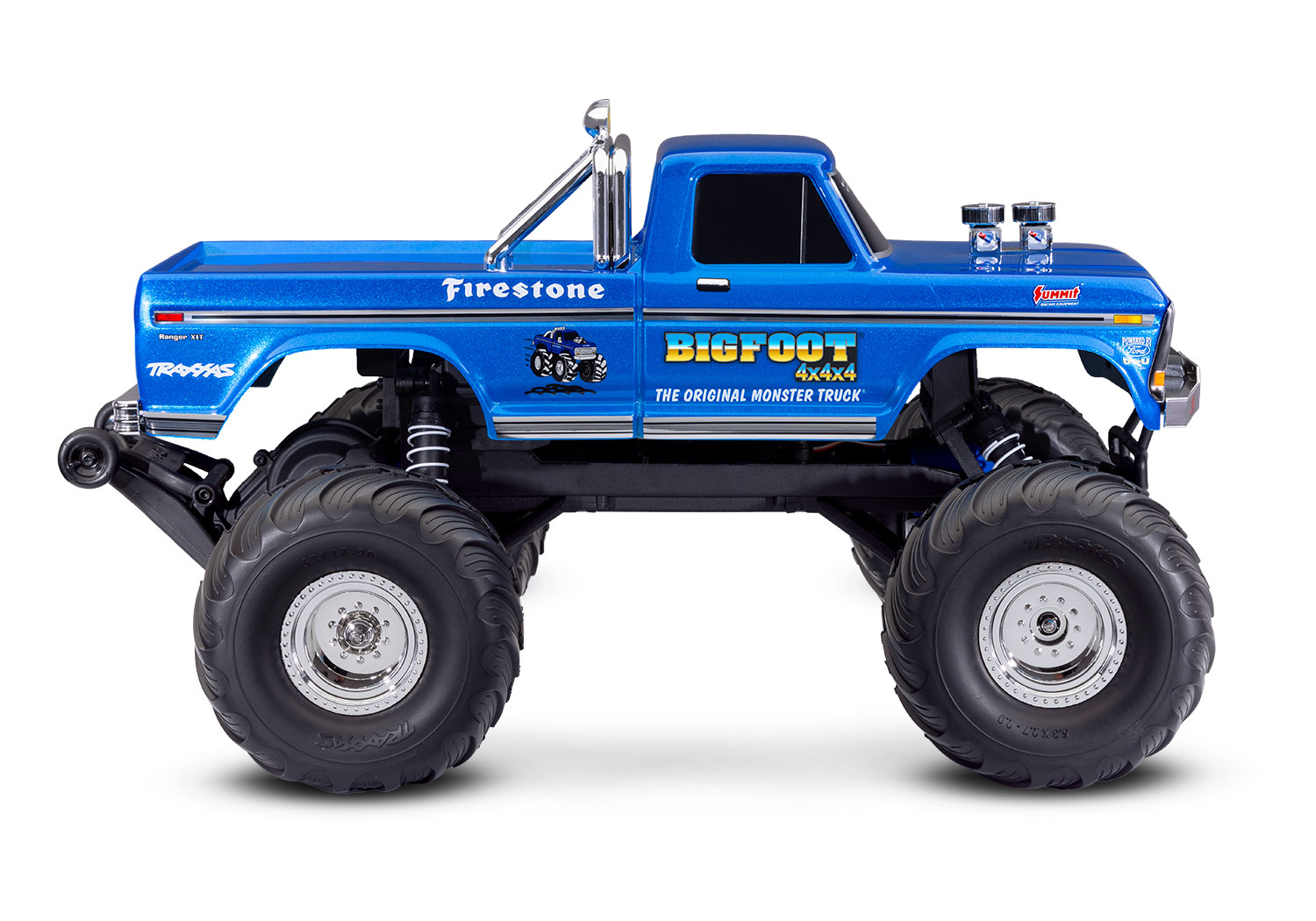

BIGFOOT No. 1
The Original Monster Truck
Traxxas faithfully captures the spirit and classic look of BIGFOOT® No. 1 “The Original Monster Truck” in amazing detail with this fully licensed replica. With its new BL-2s™ brushless power system, BIGFOOT rips non-stop wheelies all the way to its 40+ mph top speed and crushes the competition underneath its towering stance. BIGFOOT is built Traxxas Tough™ with factory-installed Extreme Heavy Duty components to take even the most brutal punishment in stride.

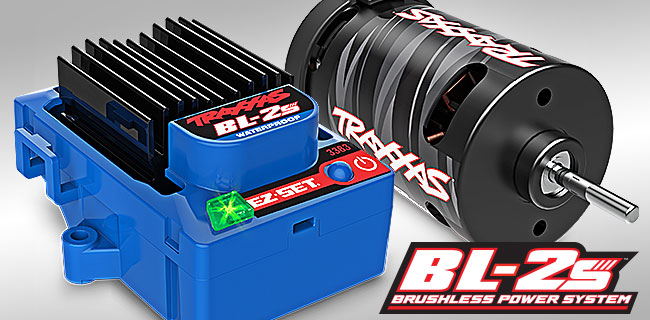

BL-2s Brushless Power System
BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.
Extreme Heavy Duty Components
Extreme Heavy Duty components come factory-installed on BIGFOOT No. 1 for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for ultimate strength. From HD suspension arms to the upgraded axles, BIGFOOT sets a new standard for durability on your off-road adventures.

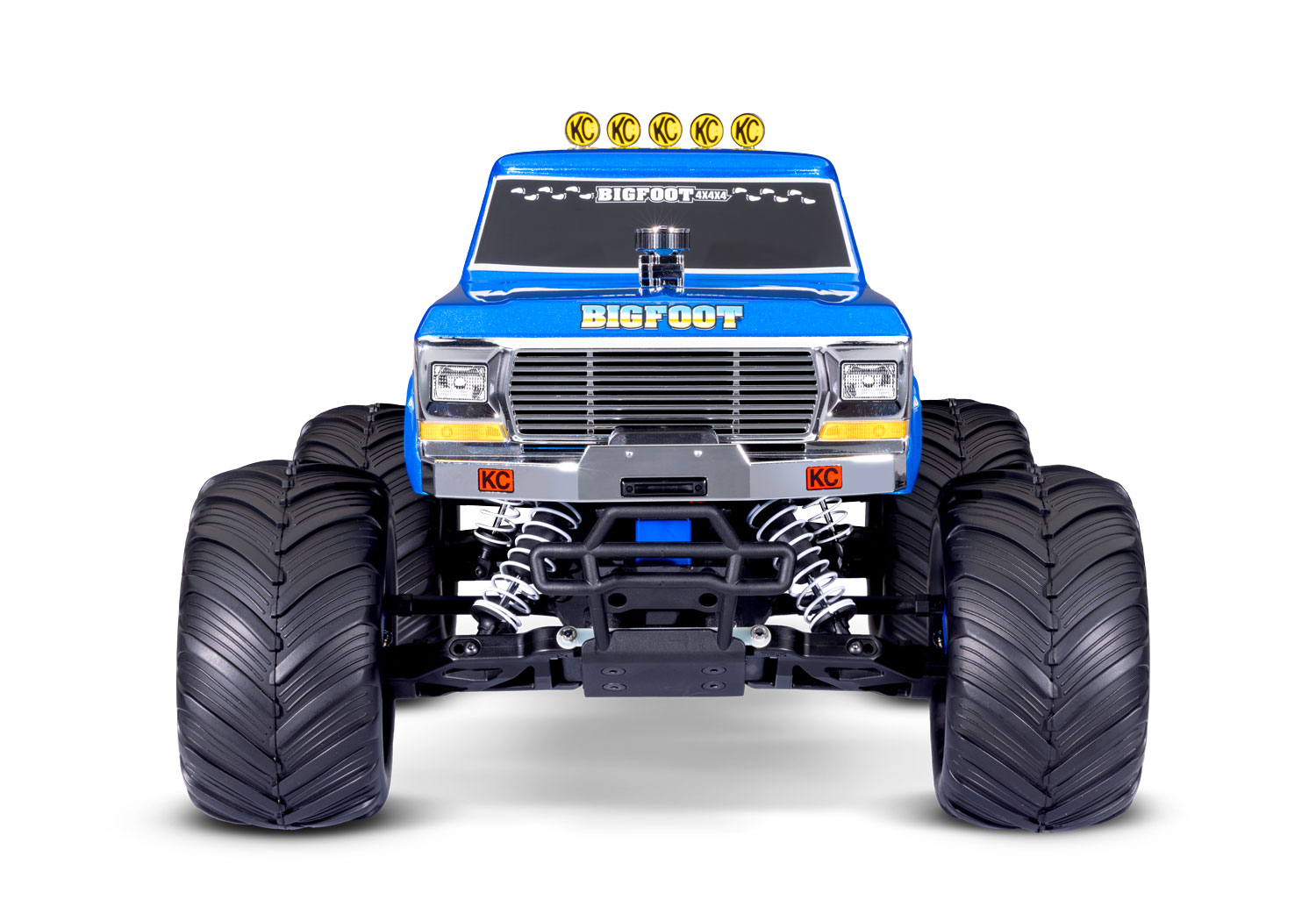

Clipless Replica Body
BIGFOOT No. 1 comes Ready-To-Race® with a beautifully detailed clipless replica body. Bright chrome bumpers, side trim, and roll bars stand out against the brilliant blue paint. A chrome front grille, replica KC lights, and dual-carb engine manifold complete the authentic look. Best of all, BIGFOOT’s convenient hidden latching system replaces traditional body clips with clean lines.
BL-2s Brushless Combo
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Model #36334-4$269.95
Buy Any BL-2s Brushless Model
and Receive a Free 2s LiPo Battery and Charger!
Use code BL2SCOMBO at checkout.
Details

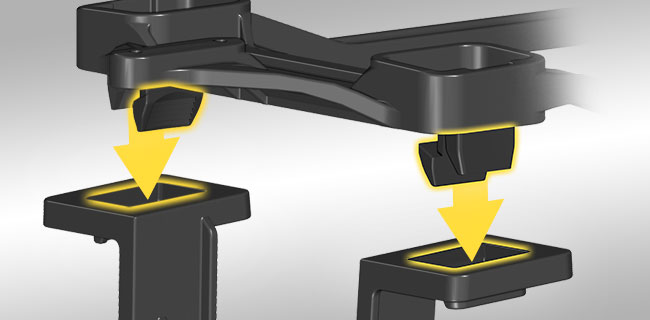

Clipless Body Mounting
BIGFOOT’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds.

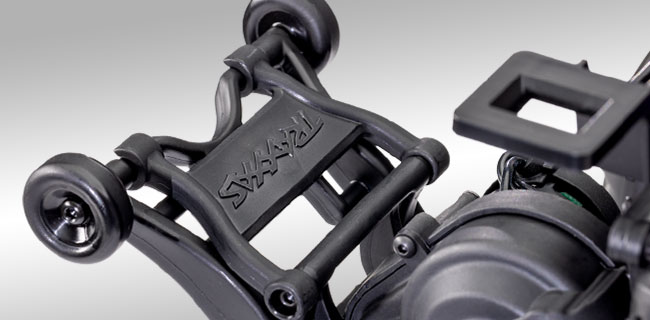

Adjustable Wheelie Bar
BIGFOOT is a wheelie machine thanks to the monstrous power of the BL-2s brushless power system. BIGFOOT’s patented wheelie bar offers four-position adjustments for complete wheelie control. The durable nylon composite mount offers an extra level of protection for the motor and transmission case.

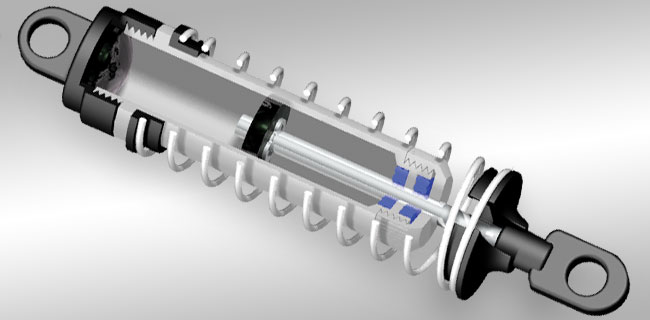

Oil-Filled Ultra Shocks™
Oil-filled Ultra Shocks utilize X-rings for a perfect seal and super-smooth performance. Adjust the ride height and pre-load on the white powder-coated springs with the included spacer clips. Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons available.

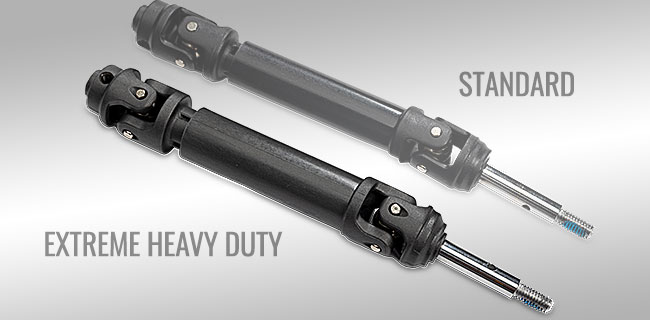

Extreme Heavy Duty Driveshafts
Extreme heavy duty driveshafts are beefed up in critical areas for outrageous power handling. The large-diameter half shafts offer excellent articulation and suspension travel and hold up to the BL-2s brushless system’s tire-shredding torque with ease.

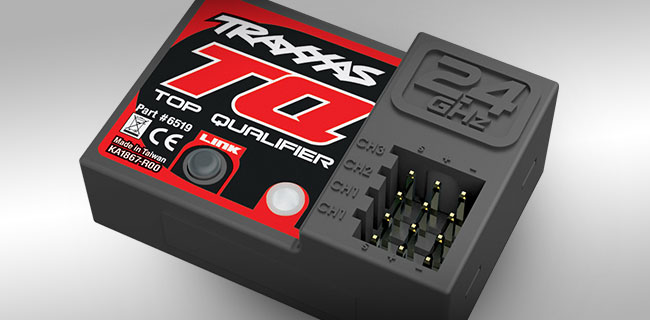

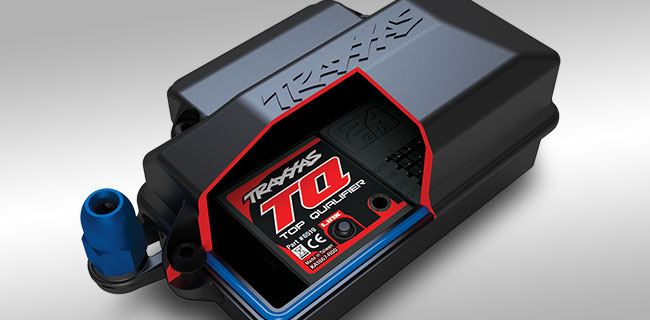

3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Waterproof Electronics
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom live out your wildest adventures, regardless of the weather.

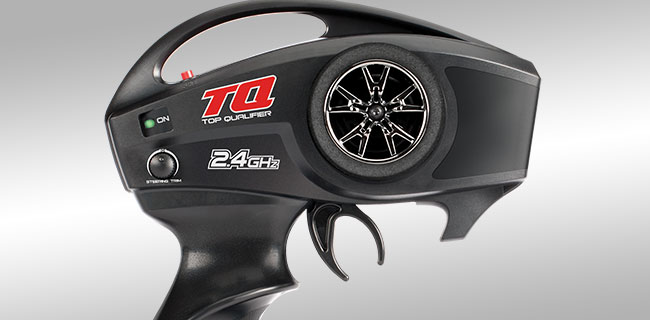

TQ™ 2.4 GHz Transmitter
The TQ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.

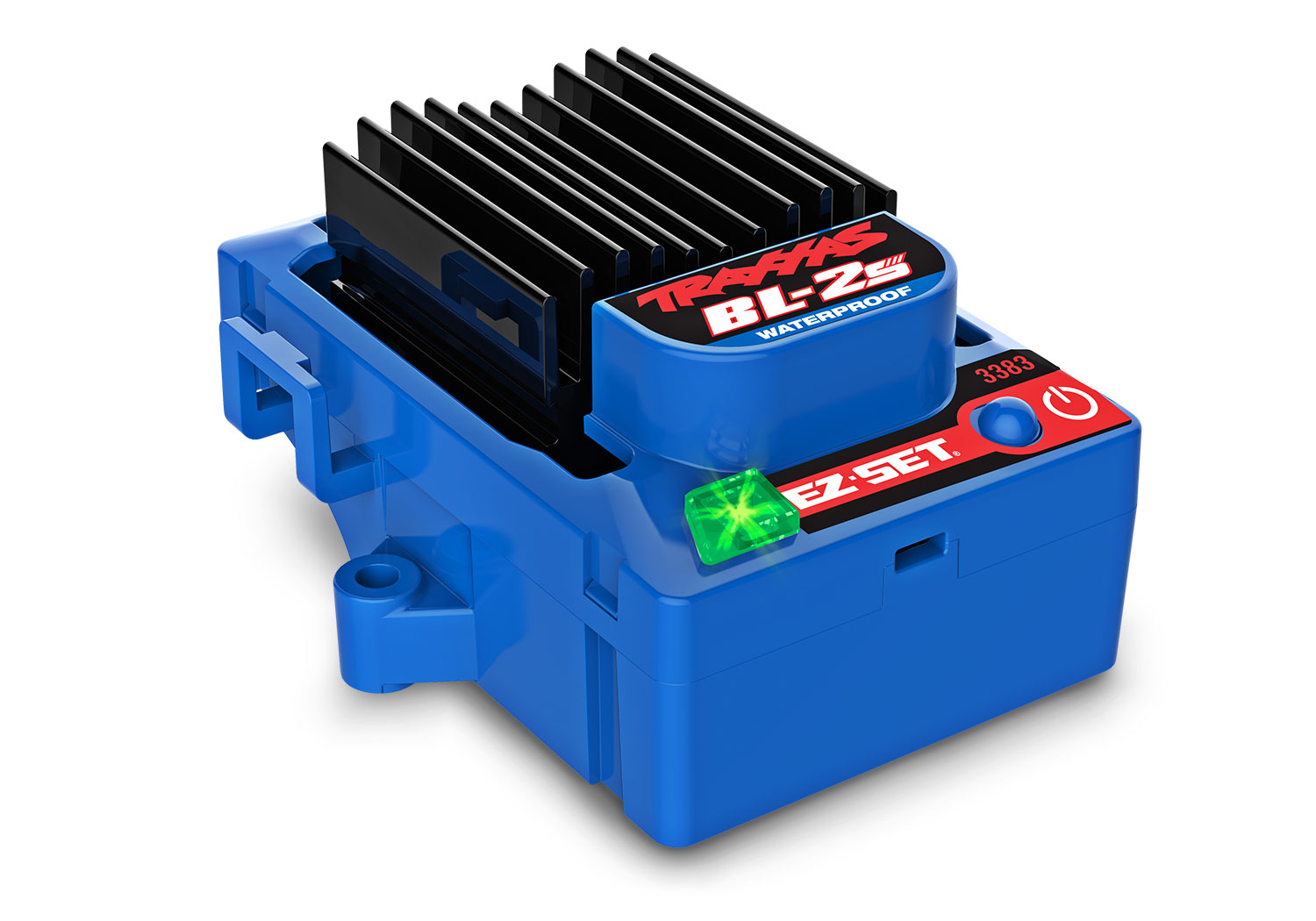

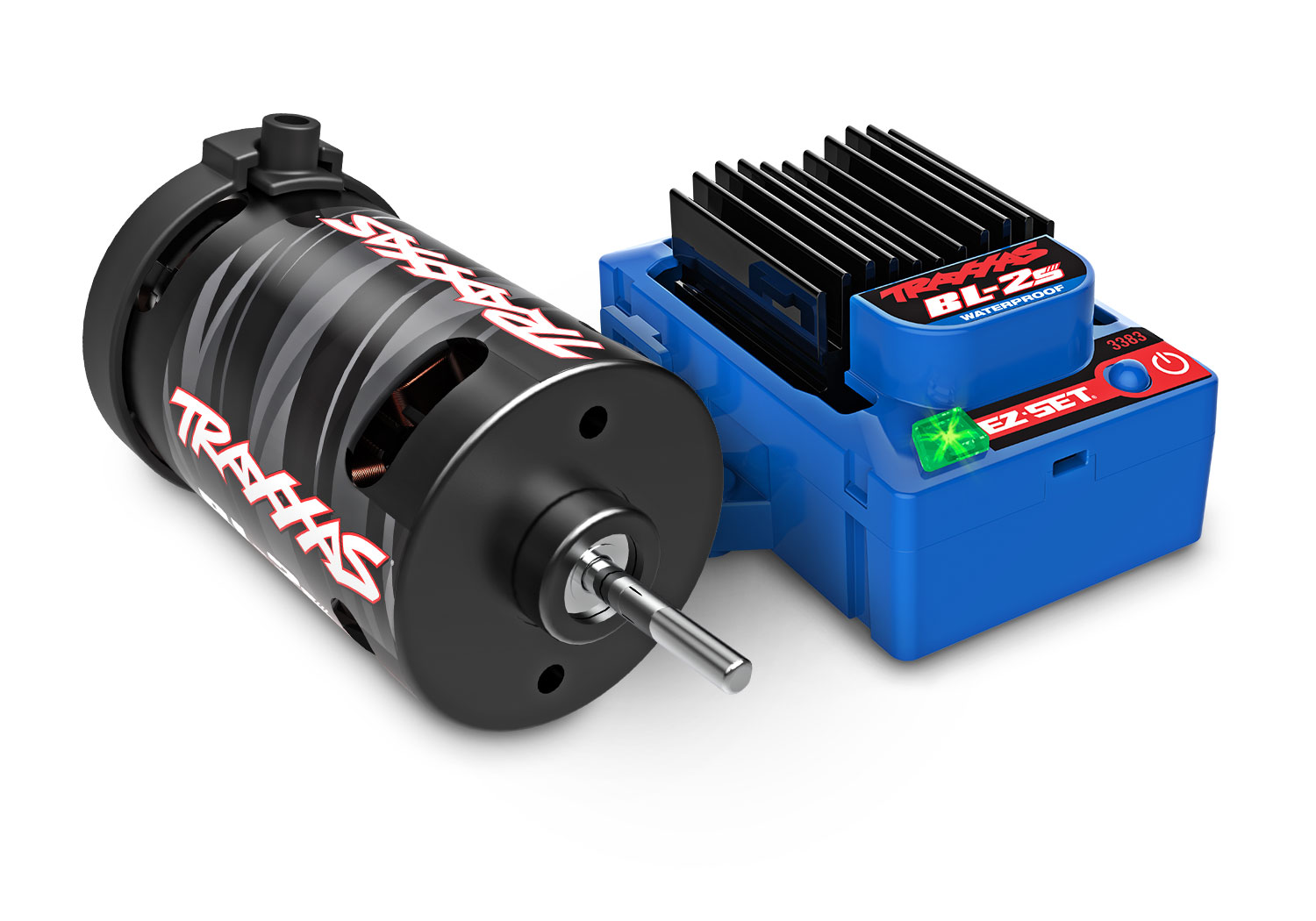

BL-2s Brushless Power System
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 kV motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.

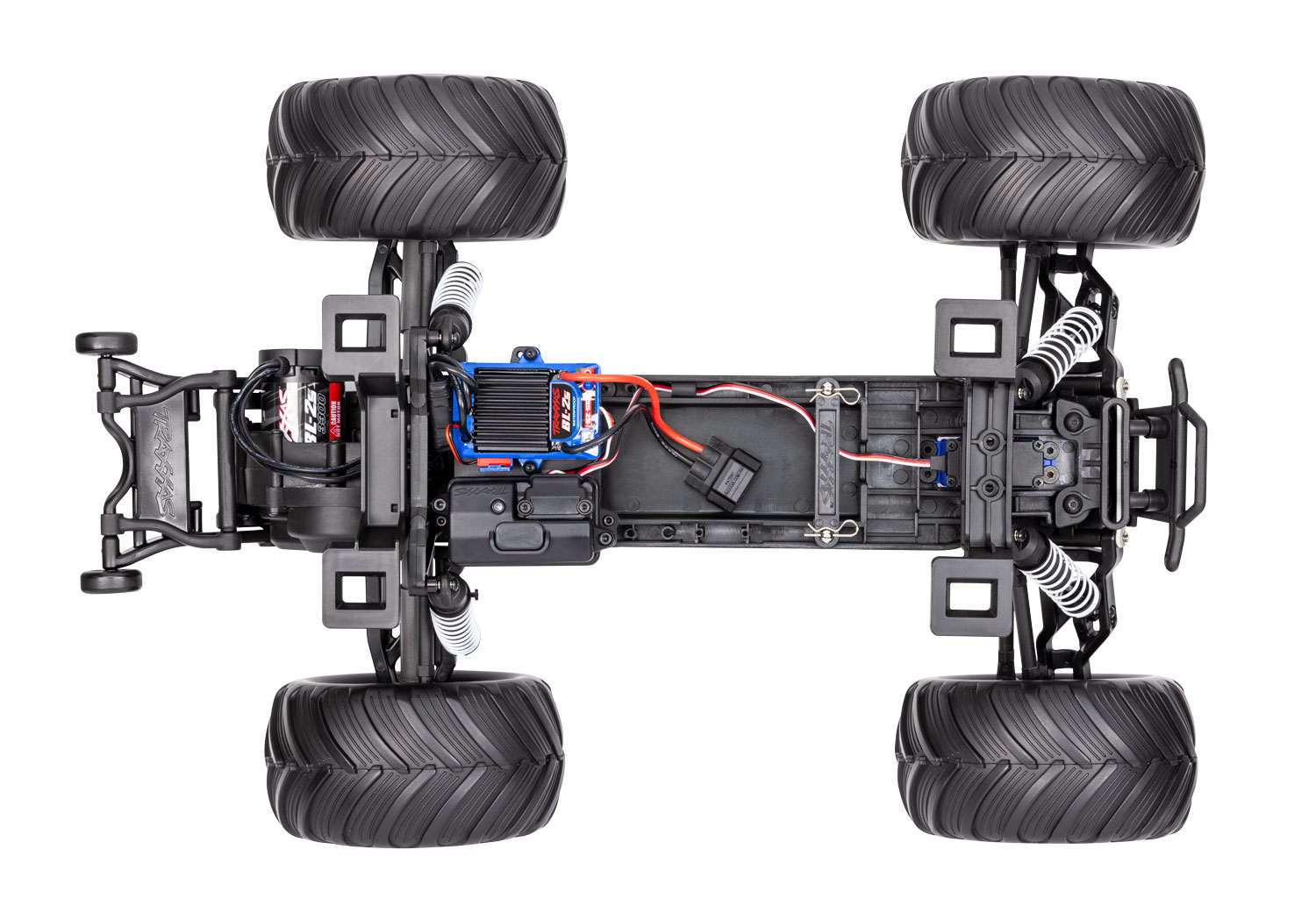

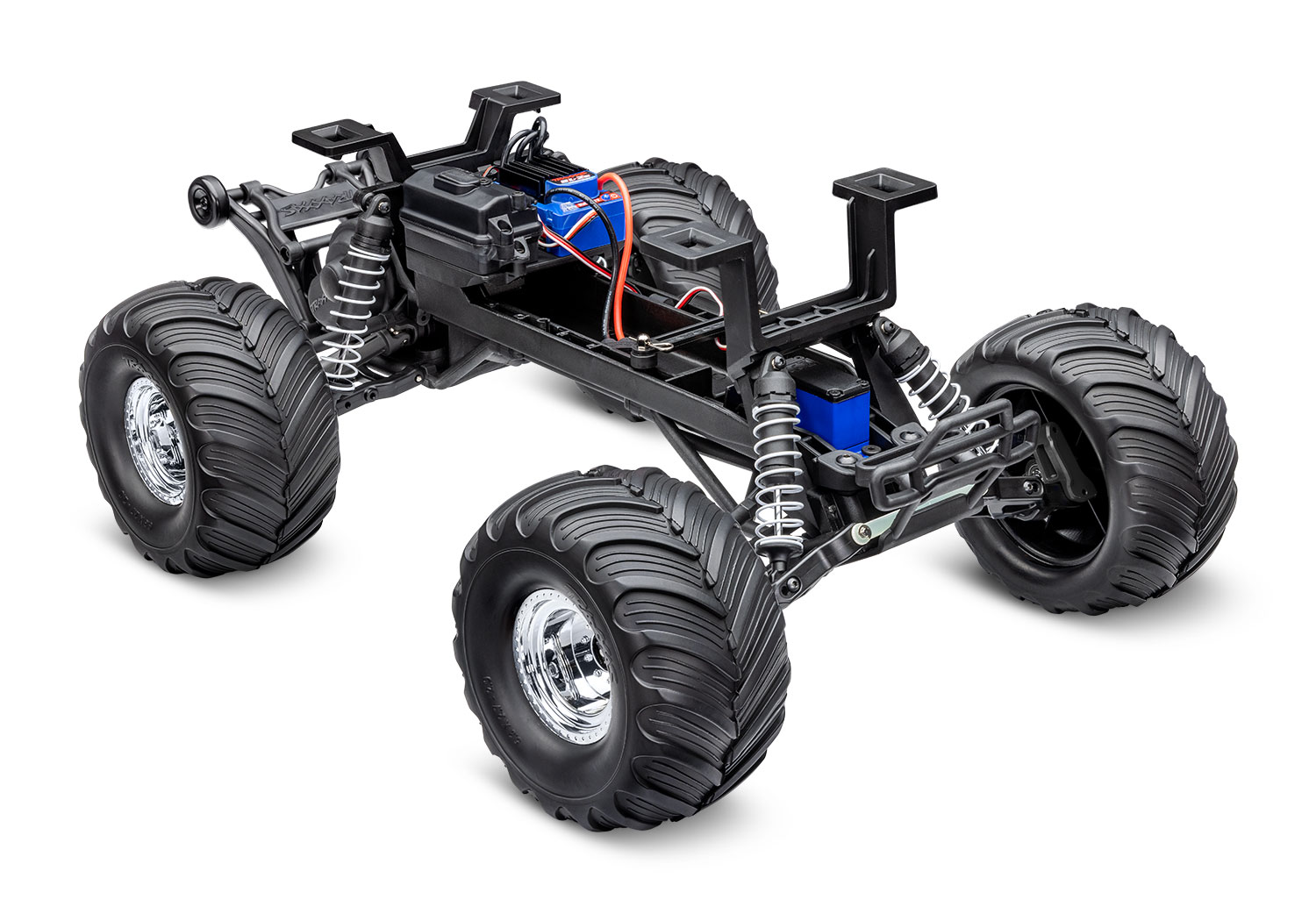

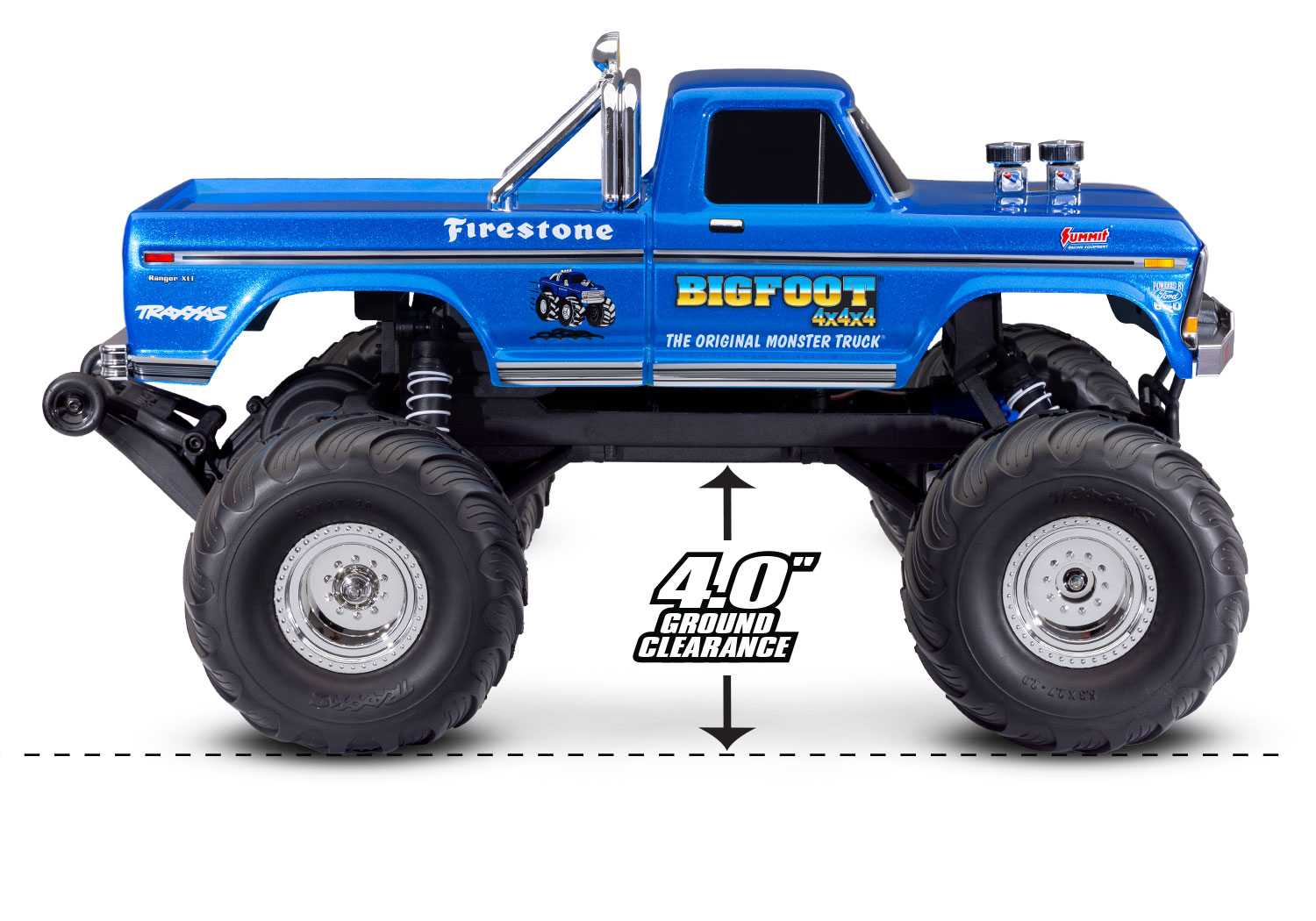

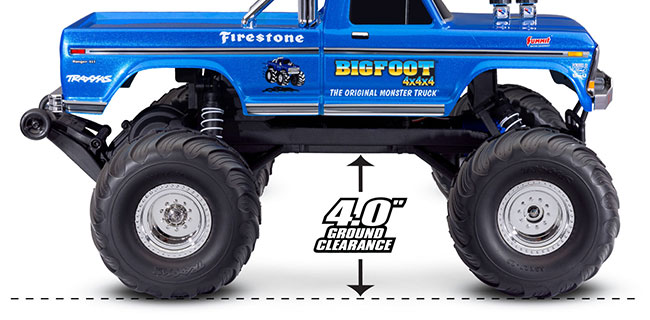

Monster 4″ Ground Clearance
With 4 inches of center ground clearance, BIGFOOT No. 1 goes places other trucks can't! BIGFOOT easily tackles real world obstacles such as tall grass, curbs, and rocks for non-stop fun no matter where you drive.

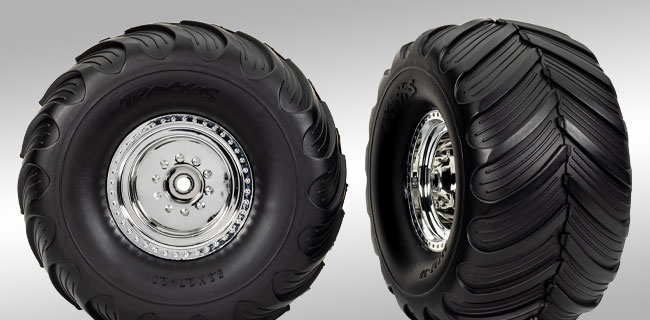

Terra Groove Tires
BIGFOOT No. 1 rides on large 2.2″ deep dish chrome wheels with beadlock trim mounted to Terra Groove tires. Terra Groove tires emulate the "hand carved" look of the full-size treads. The unique rubber compound hooks up for maximum acceleration and grip on a wide variety of surfaces including dirt, grass, pavement, and rocks.

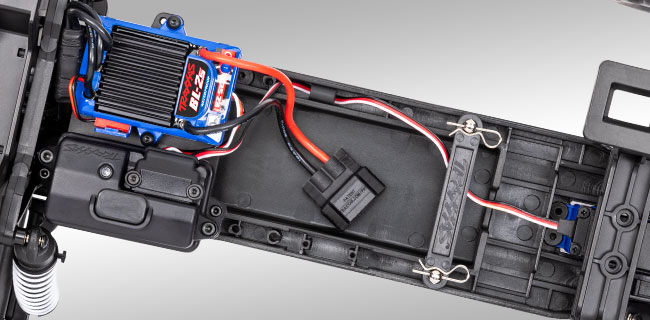

Easy Access Battery Compartment
BIGFOOT’s battery hold-down accommodates either 6 or 7-cell flat battery packs or 7-cell hump packs for maximum versatility. An optional battery expansion kit part 3725X (sold separately) accommodates oversized batteries.

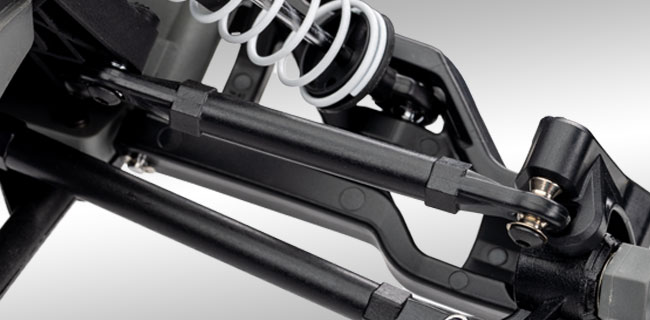

Durable One-Piece Camber Links
Durable one-piece camber links are perfect for bashing because they maintain proper suspension geometry and never require adjustments. Captured rod ends provide unmatched durability and they won't pop off.

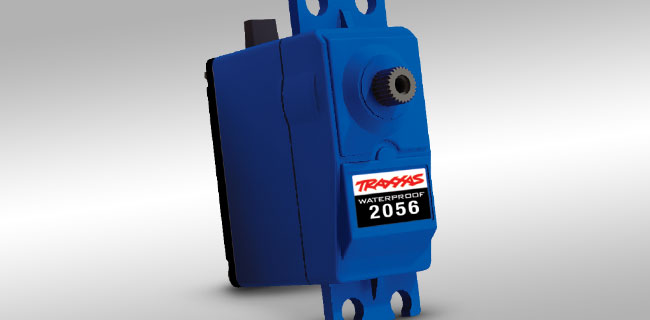

High-Torque Waterproof Steering Servo
A 40+ mph monster truck needs a powerful steering servo for responsive performance. BIGFOOT’s powerful 2056 high-torque servo uses O-ring seals to keep the fun going when things get wet. A robust servo saver limits impact shocks to the servo for reliable performance and increased durability.

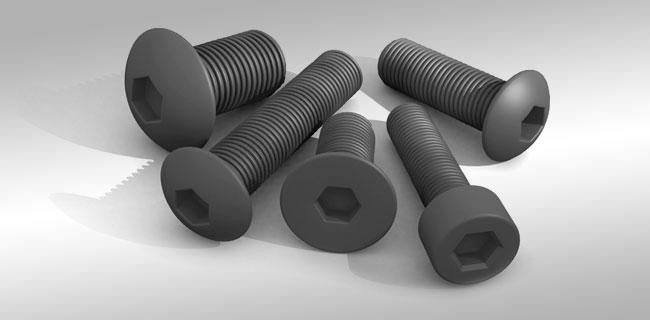

Hex Hardware
BIGFOOT’s hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.

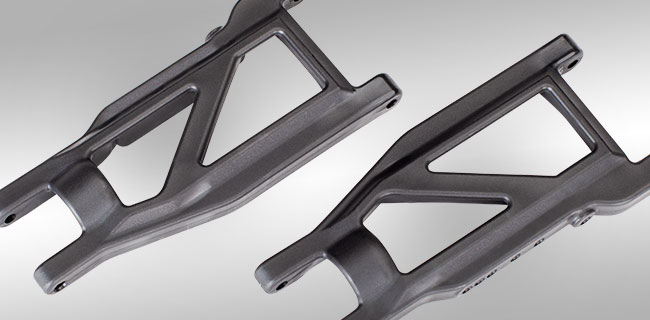

Heavy Duty Suspension Arms
Molded from our toughest composite material, BIGFOOT’s heavy duty suspension arms provide just the right amount of flex to resist breaking. These suspension arms stand up to even the most punishing drivers for non-stop wheel-to-wheel racing.

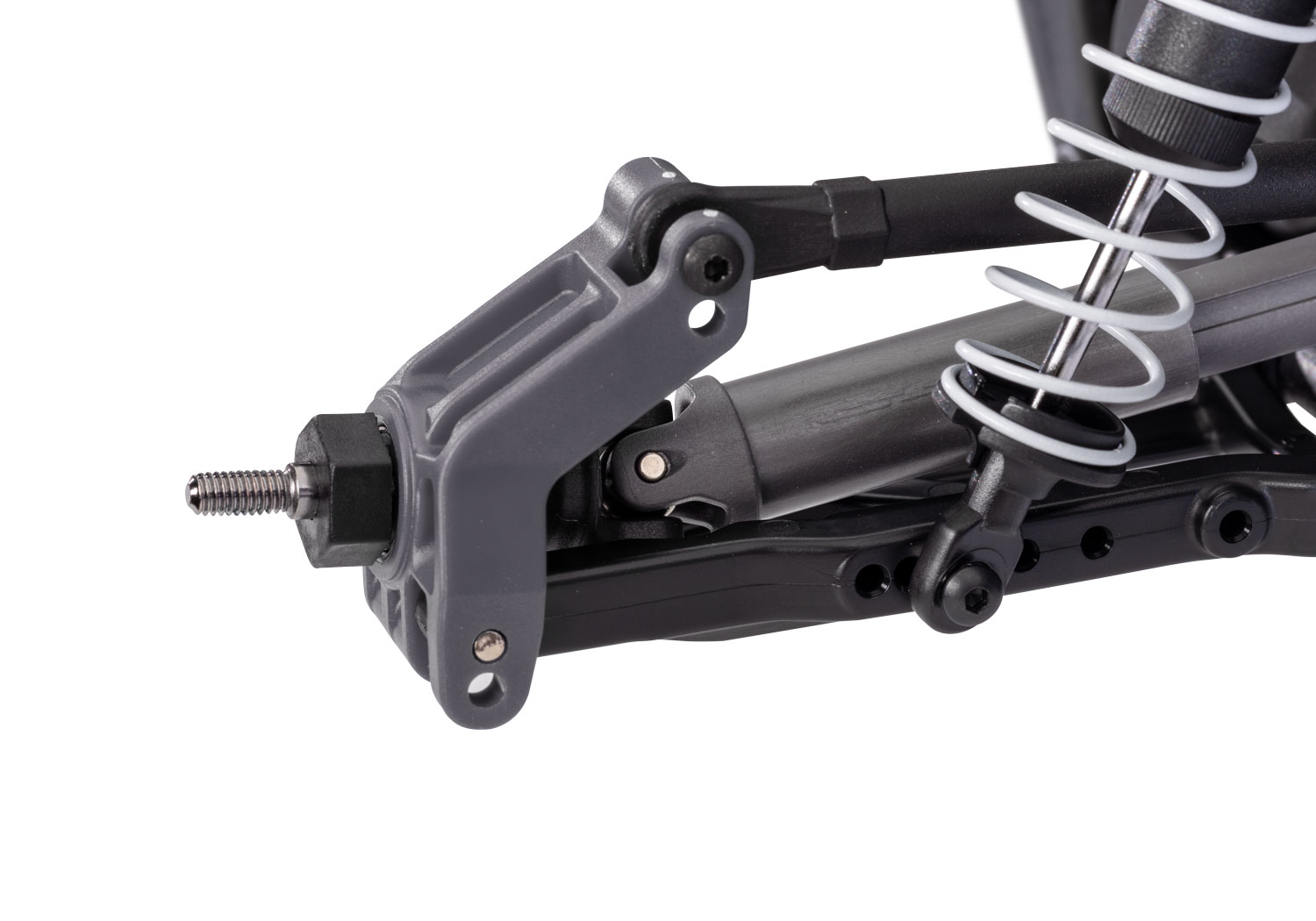

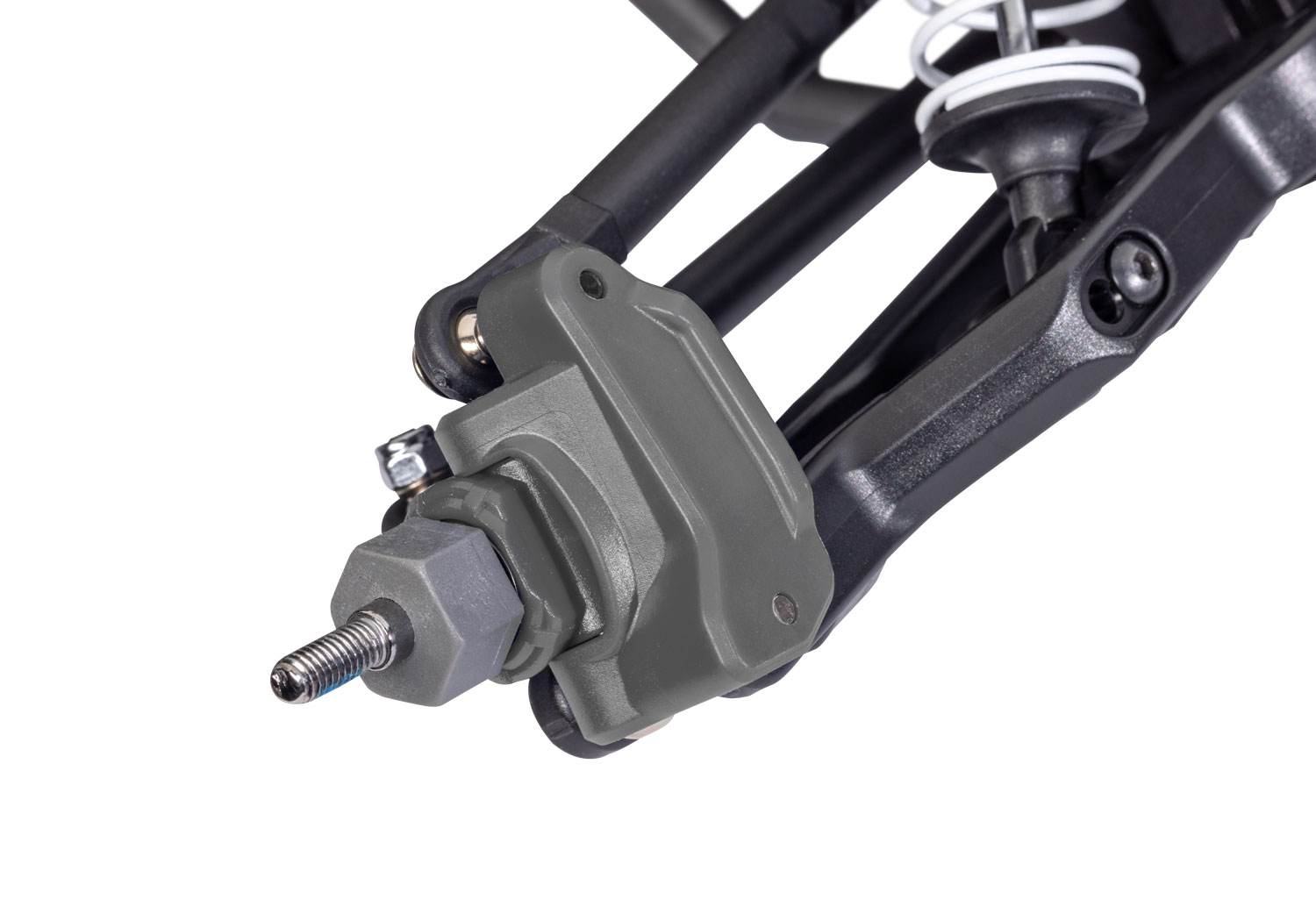

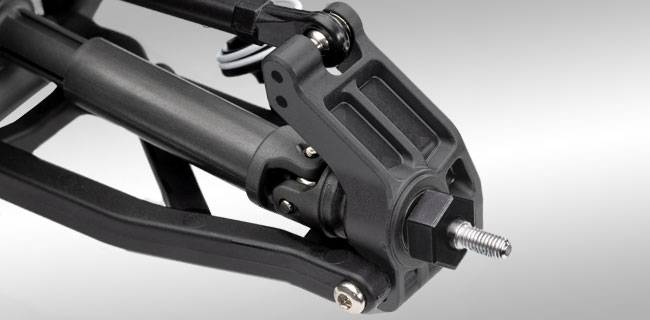

Extreme Heavy Duty Suspension Components
BIGFOOT comes outfitted with factory-installed Extreme Heavy Duty suspension components for ultimate strength and durability. The rear axle carriers, C-hubs, and steering blocks are beefed up with more material and stronger construction.

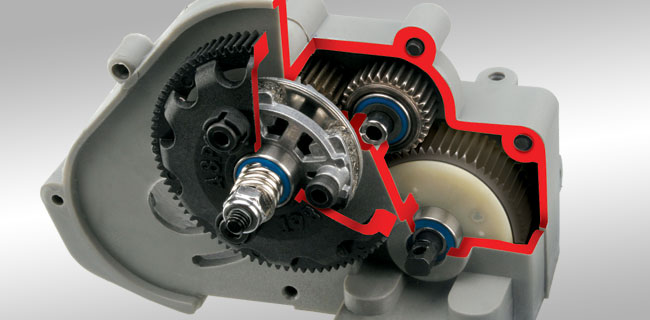

Metal Gear Magnum 272™ Transmission
The Magnum 272 transmission features all metal gear internals riding on ultra-smooth sealed ball bearings. The sealed gearbox protects the transmission components from dirt and rocks. The fortified Magnum 272 is built to handle even extreme Velineon® VXL brushless power without costly upgrades.

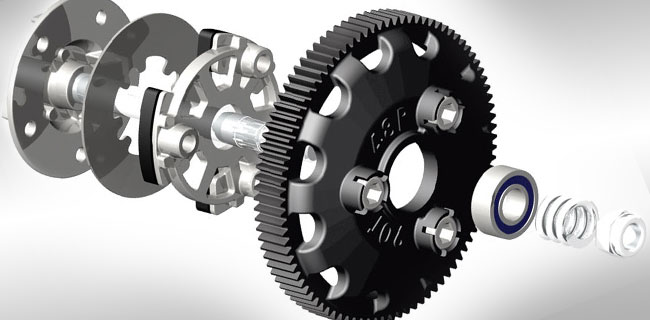

Torque-Control™ Slipper Clutch
The Torque-Control slipper clutch uses special semi-metallic friction material and finned aluminum alloy pressure plates to dissipate heat and provide consistent traction control. Spur gears can be removed and replaced without altering the slipper adjustment.

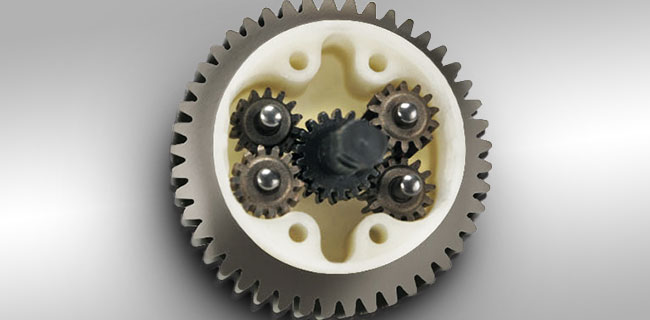

Steel-Composite Planetary Gear Differential
The composite planetary gear differential features a steel ring gear for long life. It uses hardened steel internal gears for maximum strength during rigorous off-road bashing. This type of differential requires virtually no maintenance, and its efficient design puts maximum tire-shredding torque to the wheels.

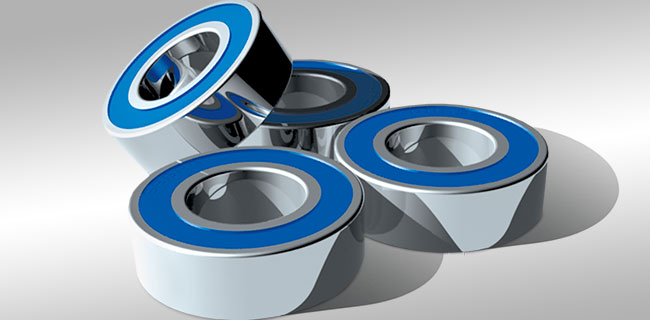

Rubber-Sealed Ball Bearings
Precision rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.
Photo Gallery
Make sure you don’t miss any of the latest BIGFOOT No. 1 news, accessories, and updates.
BIGFOOT No. 1 Data
| Length: | 18.1 inches (459 mm) |
|---|---|
| Front Track: | 12.75 inches (324 mm) |
| Rear Track: | 12.75 inches (324 mm) |
| Weight (no battery): | 4.08 pounds (1.85 kg) |
| Height (overall): | 9.5 inches (241 mm) |
| Wheelbase: | 10.6 inches (270 mm) |
| Shock Length (front): | 3.45 inches (88 mm) - Long |
| Shock Length (rear): | 3.98 inches (101 mm) - XX-Long |
| Tires: | Terra Groove 2.2″ all terrain |
| Wheels (front/rear): | 2.2″ chrome deep dish |
| Wheel Diameter: | 2.2 inches (71 mm) |
| Overall Drive Ratio: | 12.34:1 |
| Speed Control: | BL-2s™ electronic speed control |
| Motor (electric): | BL-2s™ 3300 kV sensorless brushless |
| Differential Type: | Planetary |
| Gear Pitch: | 48 |
| Chassis Structure/Material: | Composite modified tub |
| Drive System: | 2WD |
| Steering: | Bellcrank |
| Radio System: | TQ™ 2.4 GHz (2-channel) |
| Servo: | Waterproof 2056 servo (80 oz-in torque) |
| Skill Level: | 1 |
| Battery Compartment (L/W/H): | 165 mm (6.49″) x 48 mm (1.89″) x 28 mm (1.10″) |
| Required Batteries: | 4 “AA” (transmitter), Vehicle (see battery finder) |

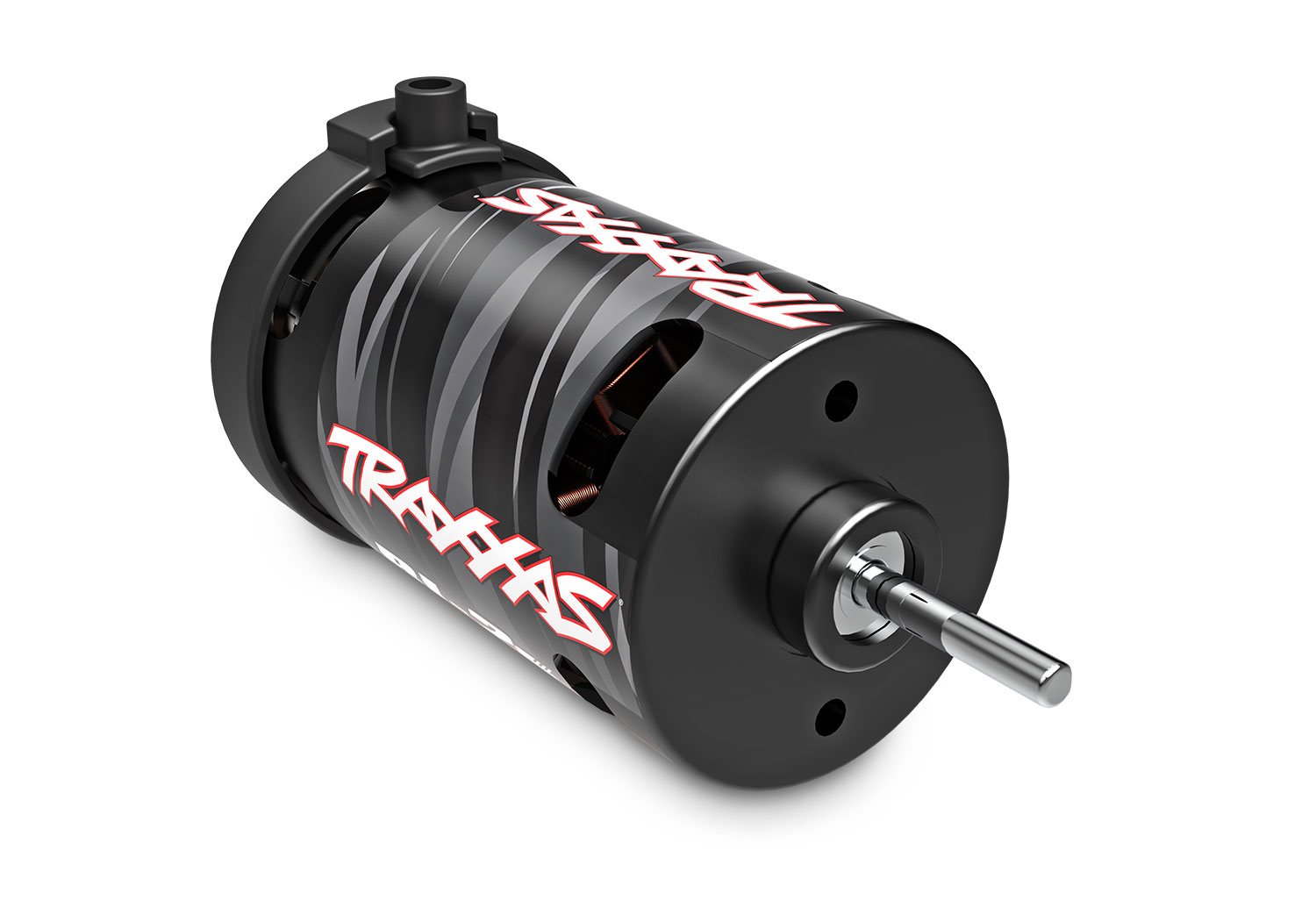

| Type: | BL-2s 3300 kV sensorless brushless motor |
|---|---|
| Weight: | 7.51 ounces (213 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.42 inches (36 mm) |
| Connector Type: | Traxxas Quick Connect Motor Plug |
| Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
|---|---|
| Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| Weight: | 3.07 ounces (87 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |
- Licensed BIGFOOT® No. 1 Clipless Body
- Brilliant blue metallic officially licensed Ford® F-250® Ranger XLT body
- Chrome front bumper with replica winch
- Chrome grille
- Replica high-rise dual-carb intake manifold
- Chrome roll bar with replica KC lights
- Holds tight for intense action
- Quick and easy removal
- 4-position adjustable wheelie bar
- Extreme Heavy Duty Upgrade Components
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts

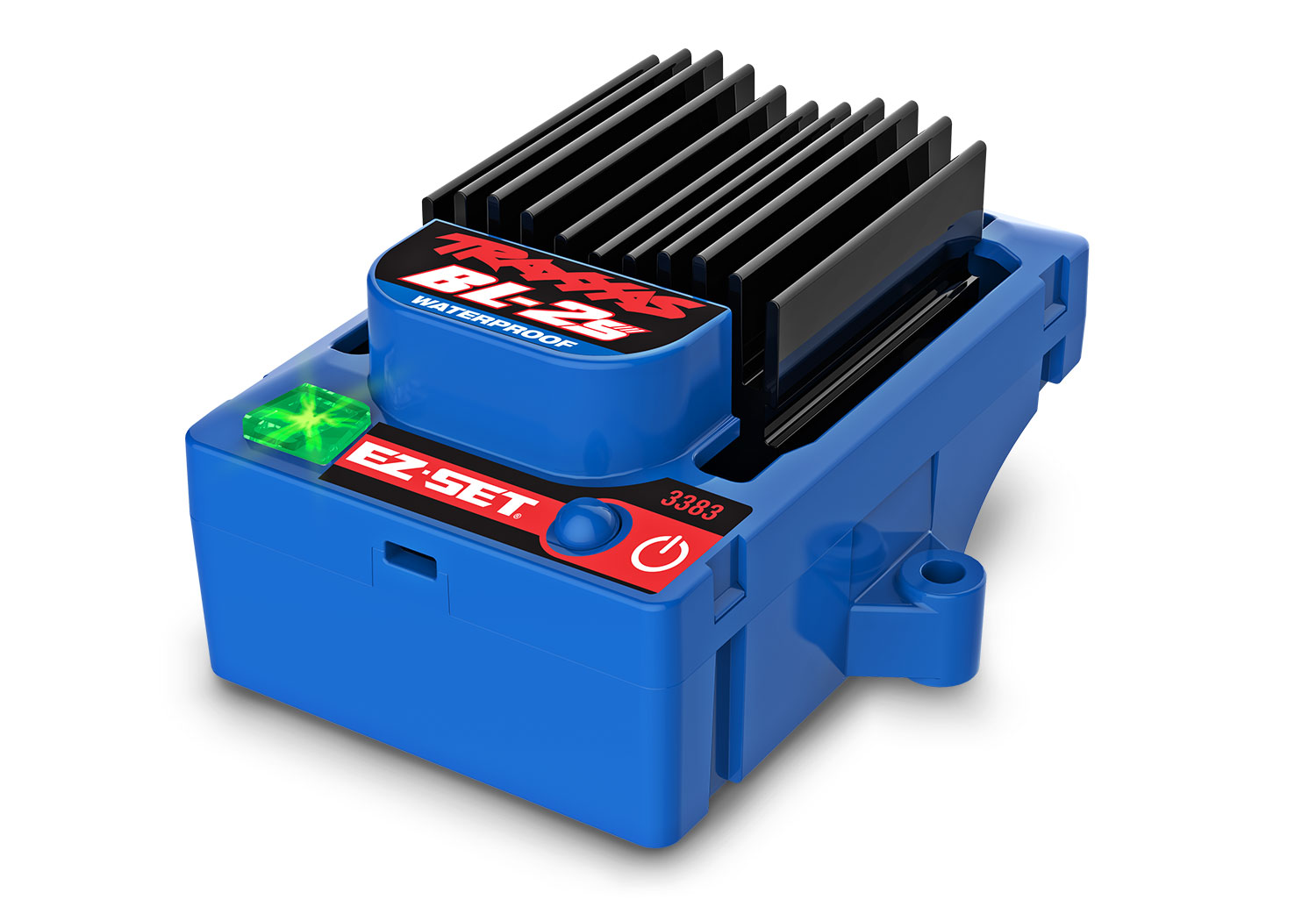

- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

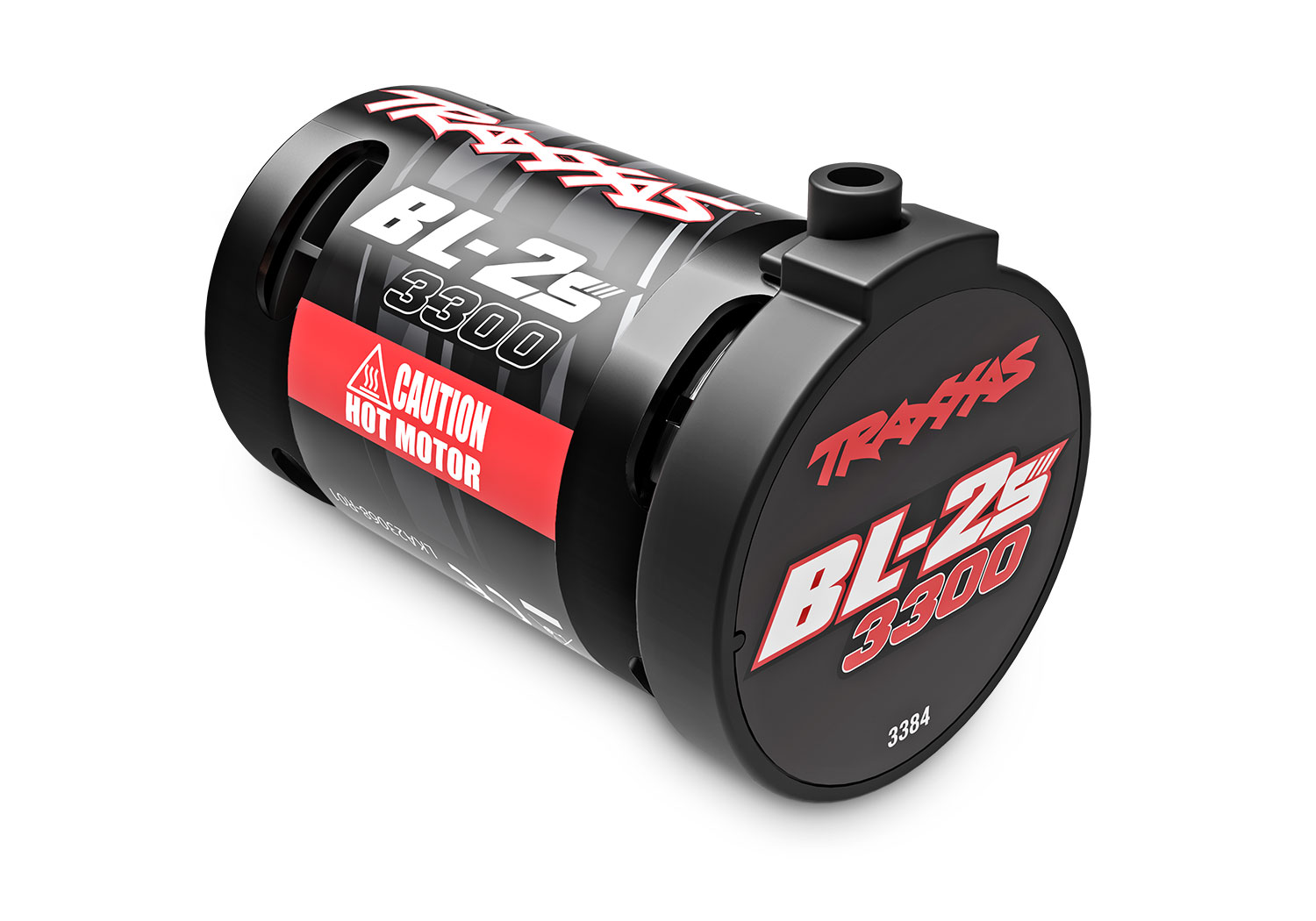

- 3300 kV Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 kV
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
- Tough Fiber-Composite Monocoque Chassis
- Tall 4″ center ground clearance to drive over obstacles
- Heavy duty servo saver
- Easy Access Battery Compartment
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
- Suspension
- Heavy-duty suspension arms
- One-piece camber links
- Oil-filled Ultra Shocks™
- White powder-coated springs
- Steering
- Chassis-mounted 2056 servo
- Heavy duty servo saver
- Transmission
- Velineon-ready Magnum 272™ metal-gear transmission
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission
- External gear cover with easy clutch access
- Drivetrain
- Extreme heavy-duty driveshafts
- Torque Control™ slipper clutch
- Wheels and Tires
- Pre-glued high profile Terra Groove shaved monster truck tires
- 2.2″ chrome deep dish beadlock-style wheels
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- 2WD BIGFOOT monster truck with BL-2s ESC and 3300 kV motor
- Quick Start Guide
- TQ™ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
BIGFOOT BL-2s requires a single NiMH or LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® charger (2970) is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
