Engineered to Win™
Traxxas Drag Slash® delivers the ultimate drag racing experience for racers of all skill levels. Innovative performance features like the exclusive Drag Mode with Trans Brake get Drag Slash off the line in record time. Proven Velineon® horsepower delivers strong, reliable launches through the fortified Pro Series Magnum 272R™ transmission for race-winning performance. Drag Slash does it all with your choice of classic Chevrolet® C10 or Ford® Fox-body Mustang style. This is no prep racing the Traxxas way.

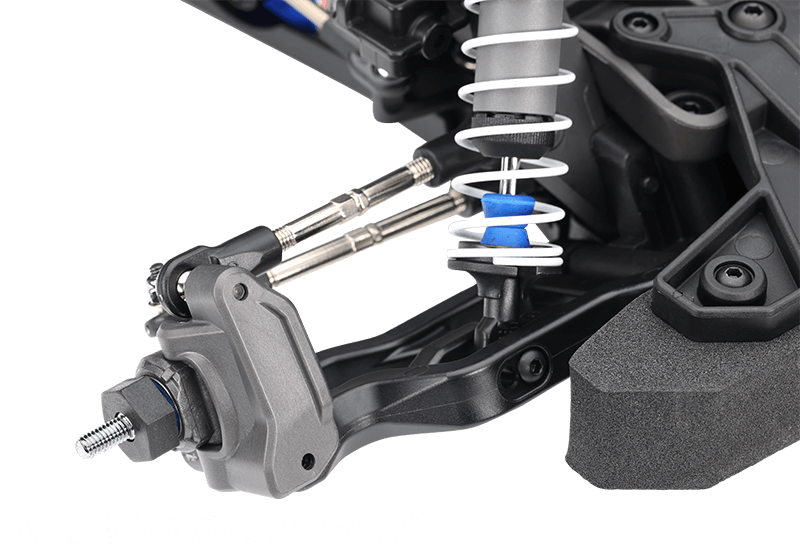

Now with Extreme Heavy Duty Components
Extreme Heavy Duty components come factory-installed on Drag Slash for game-changing durability. Key drivetrain and suspension components are beefed-up with extra material for unbeatable strength. From HD suspension arms to upgraded axle carriers, Drag Slash sets a new standard for durability.

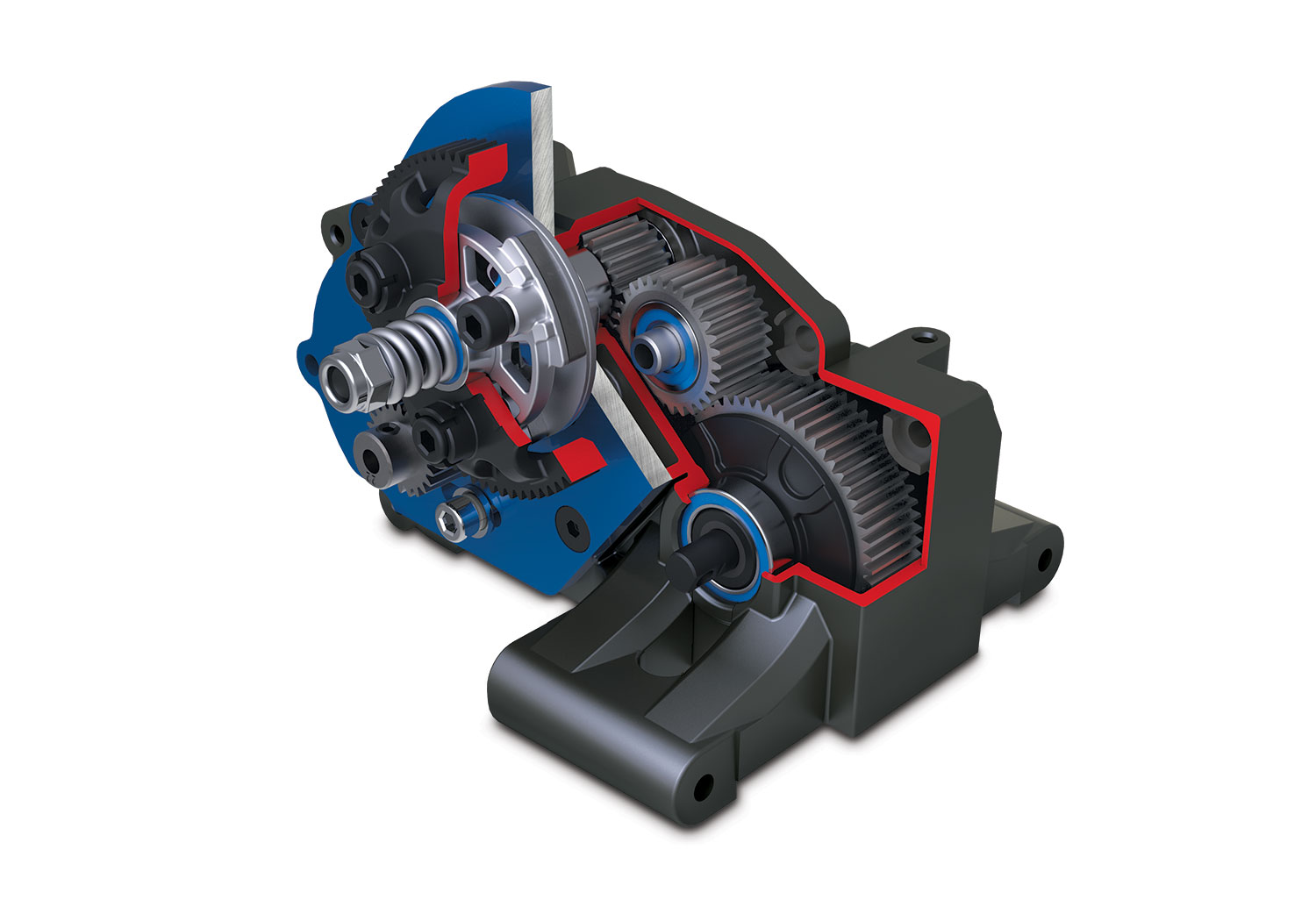

All-New Pro Series Magnum 272R
The Magnum 272R transmission is built for hard-hitting torque. The 272R features a blue-anodized aluminum motor plate, all-metal gears, and a sealed silicone-filled 4-gear differential tuned specifically for drag racing with 500K heavy-weight diff fluid.
TSM with Drag Race Mode
It’s easy to drive like a pro with Traxxas Stability Management. TSM® makes racing more fun by allowing the driver to experience the fastest possible straight line acceleration with incredible stability and precise control. After you cross the finish line, TSM dramatically improves braking performance and helps prevent spin outs.
Traxxas Trans Brake
Think you’re quick on the trigger? This is quicker. Hold the TQi transmitter’s Trans Brake switch and set the throttle at the starting line – when the flag drops, release the switch for the quickest launch every time.

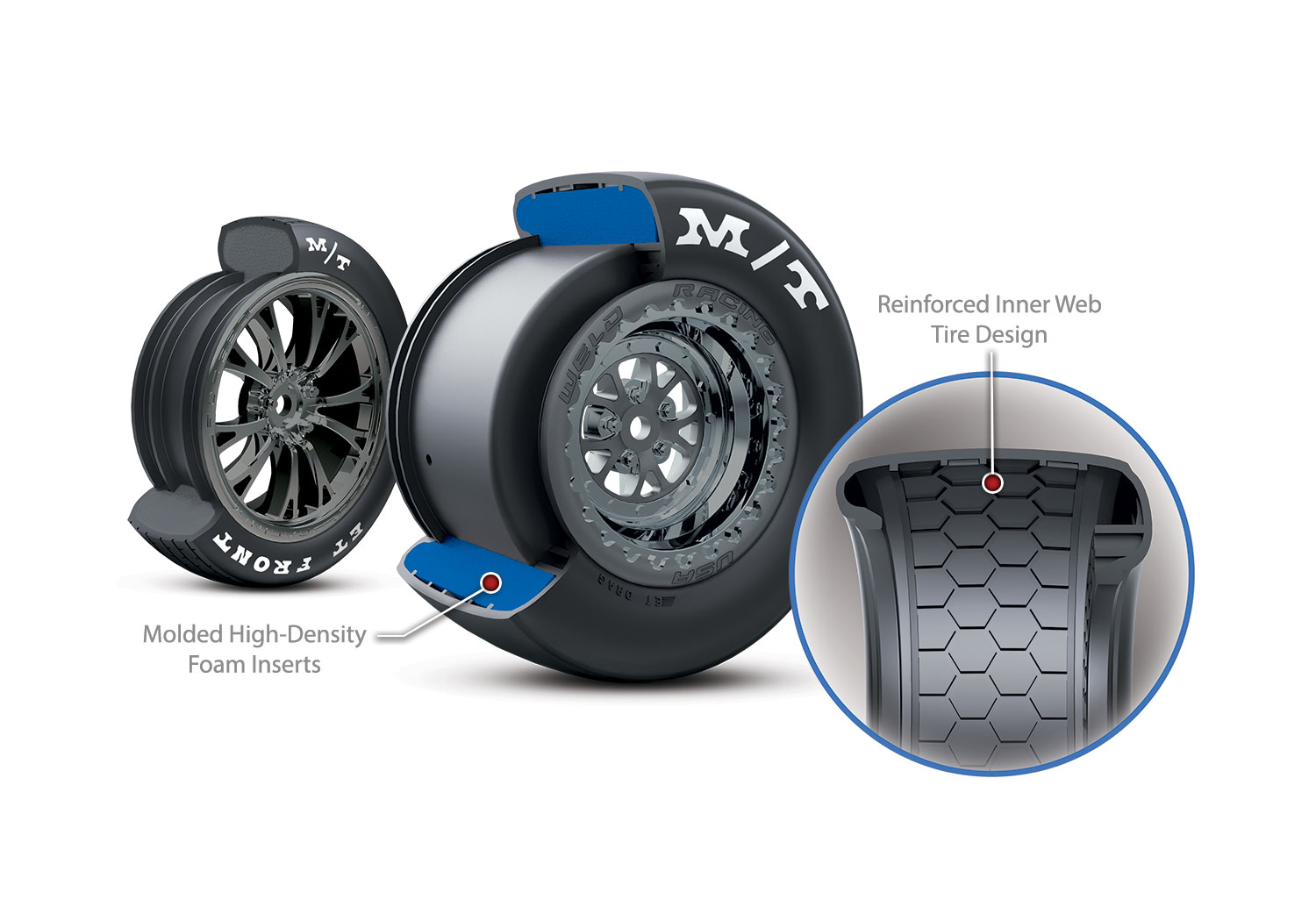

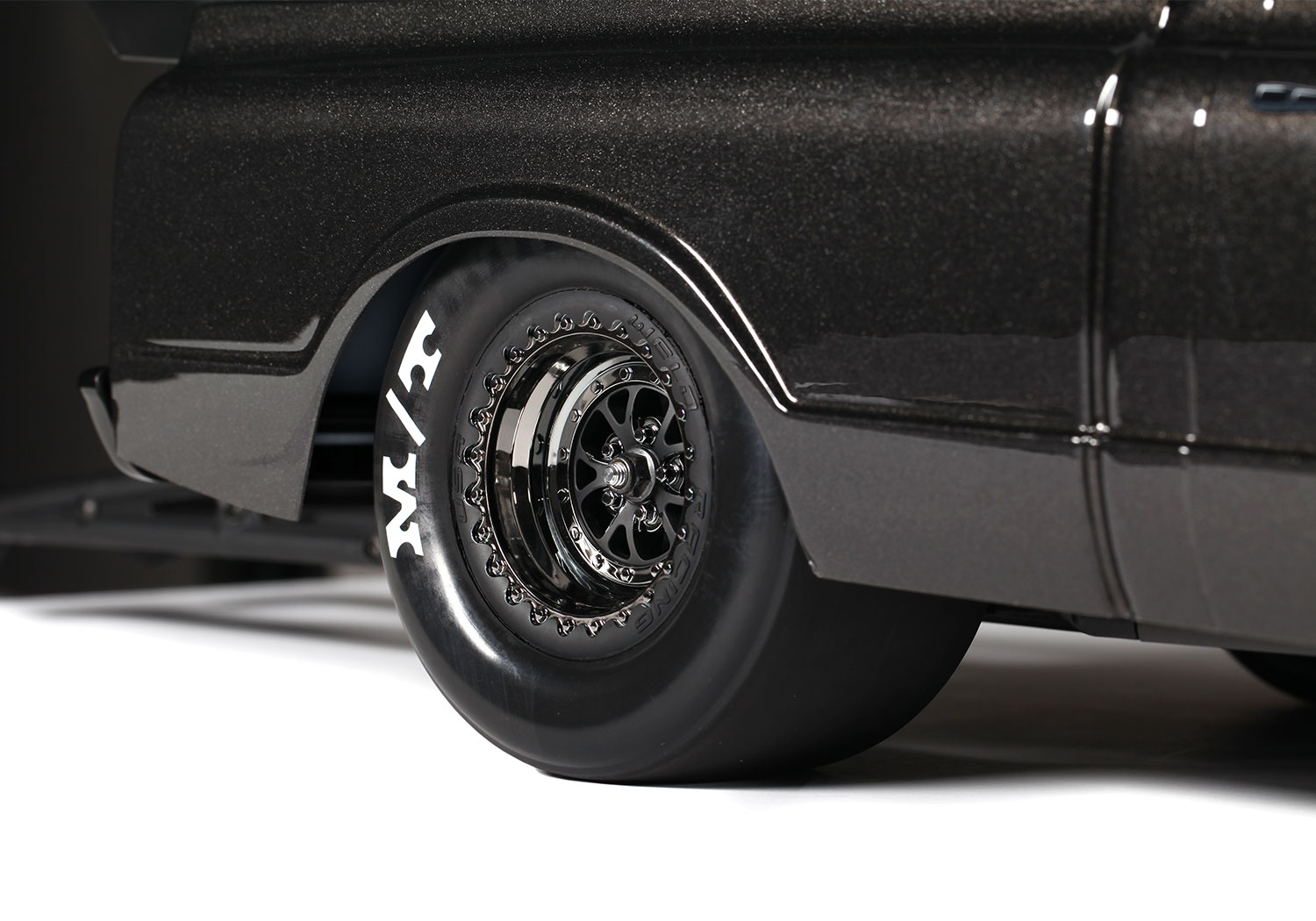

Ultimate Traction and Control

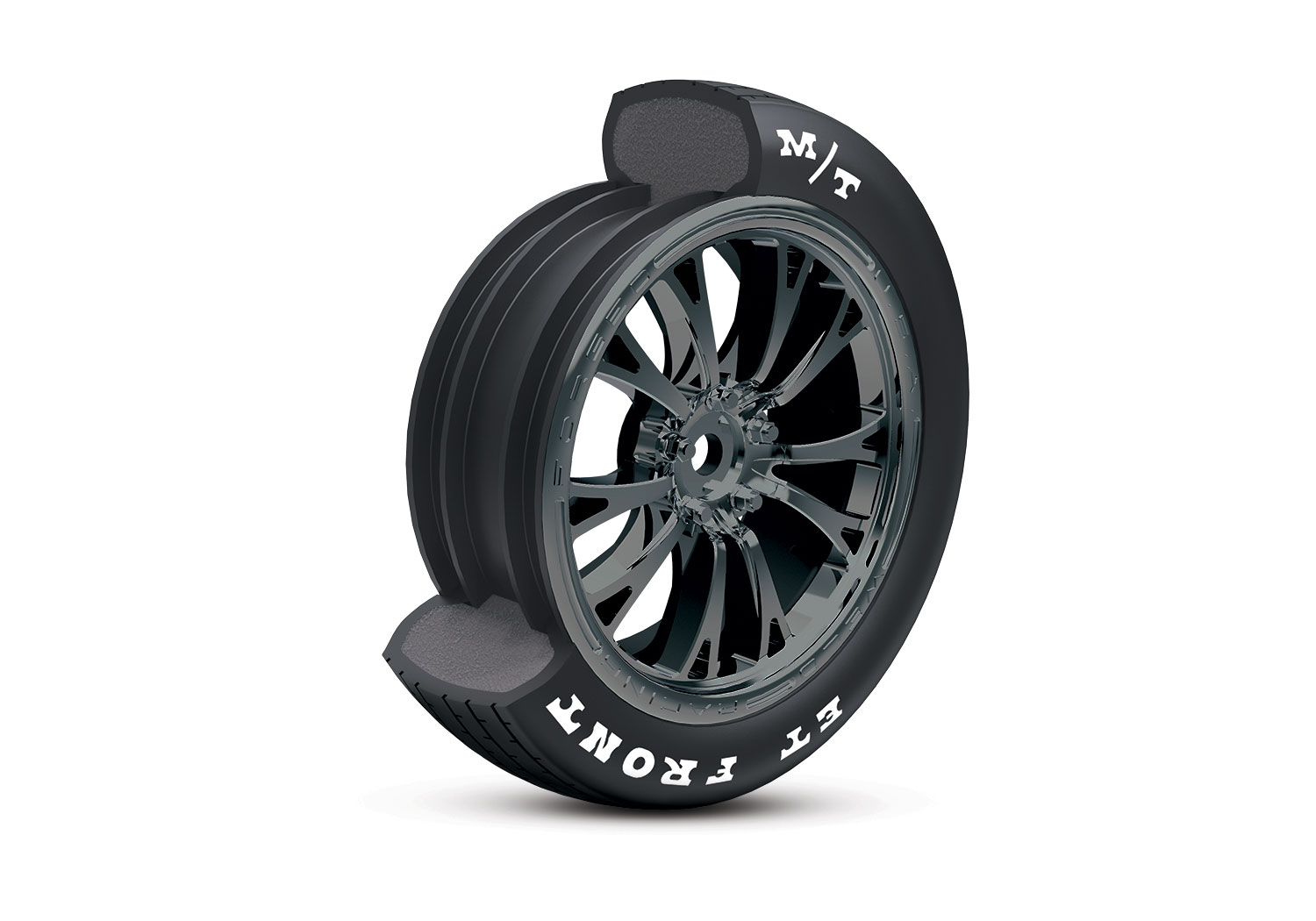

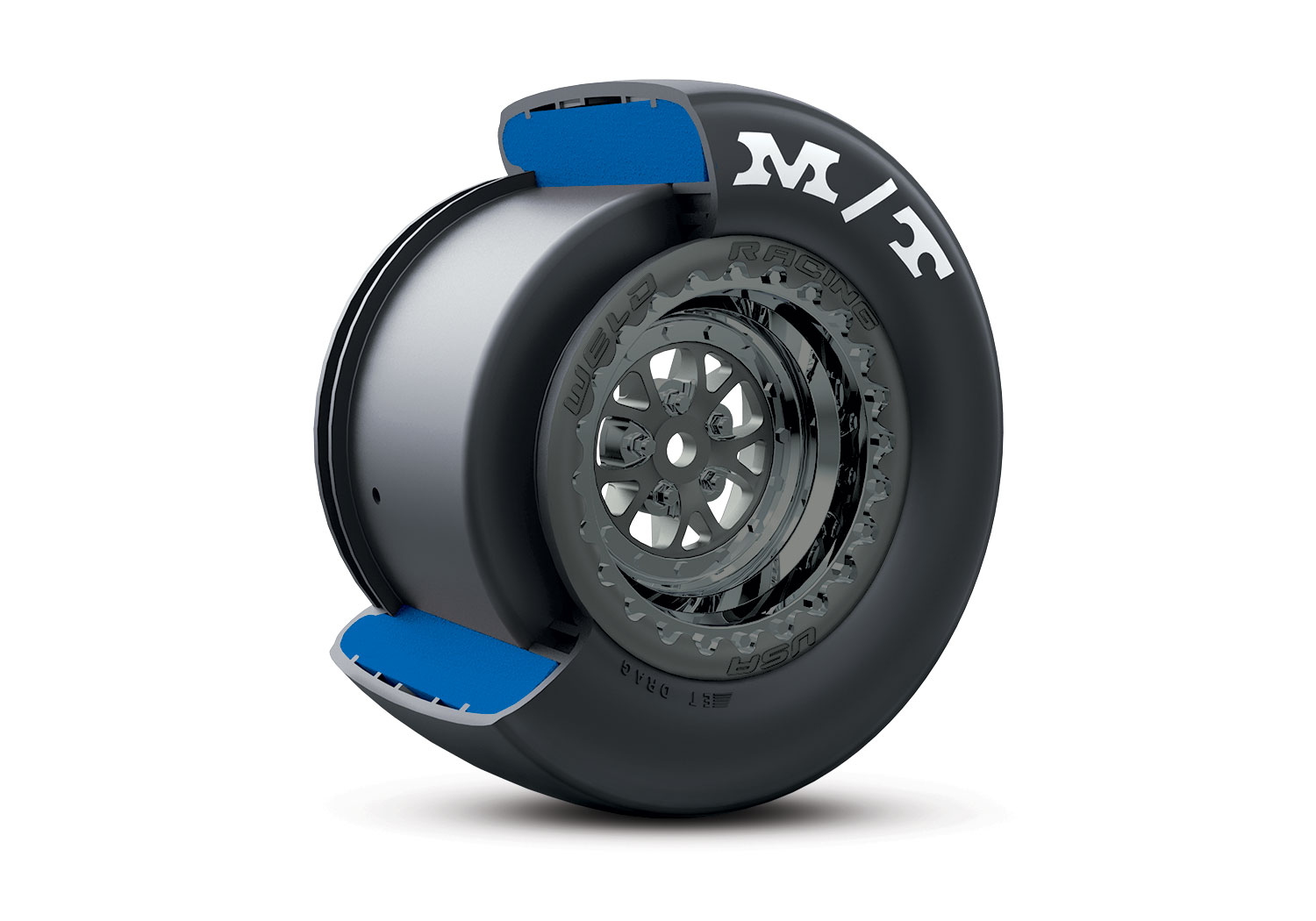

Scale realism meets engineered performance. Ultra-wide Mickey Thompson® ET Drag® Slicks feature an innovative carcass design and molded high-density foam inserts for massive traction off the line and down the track.
Video
Innovation

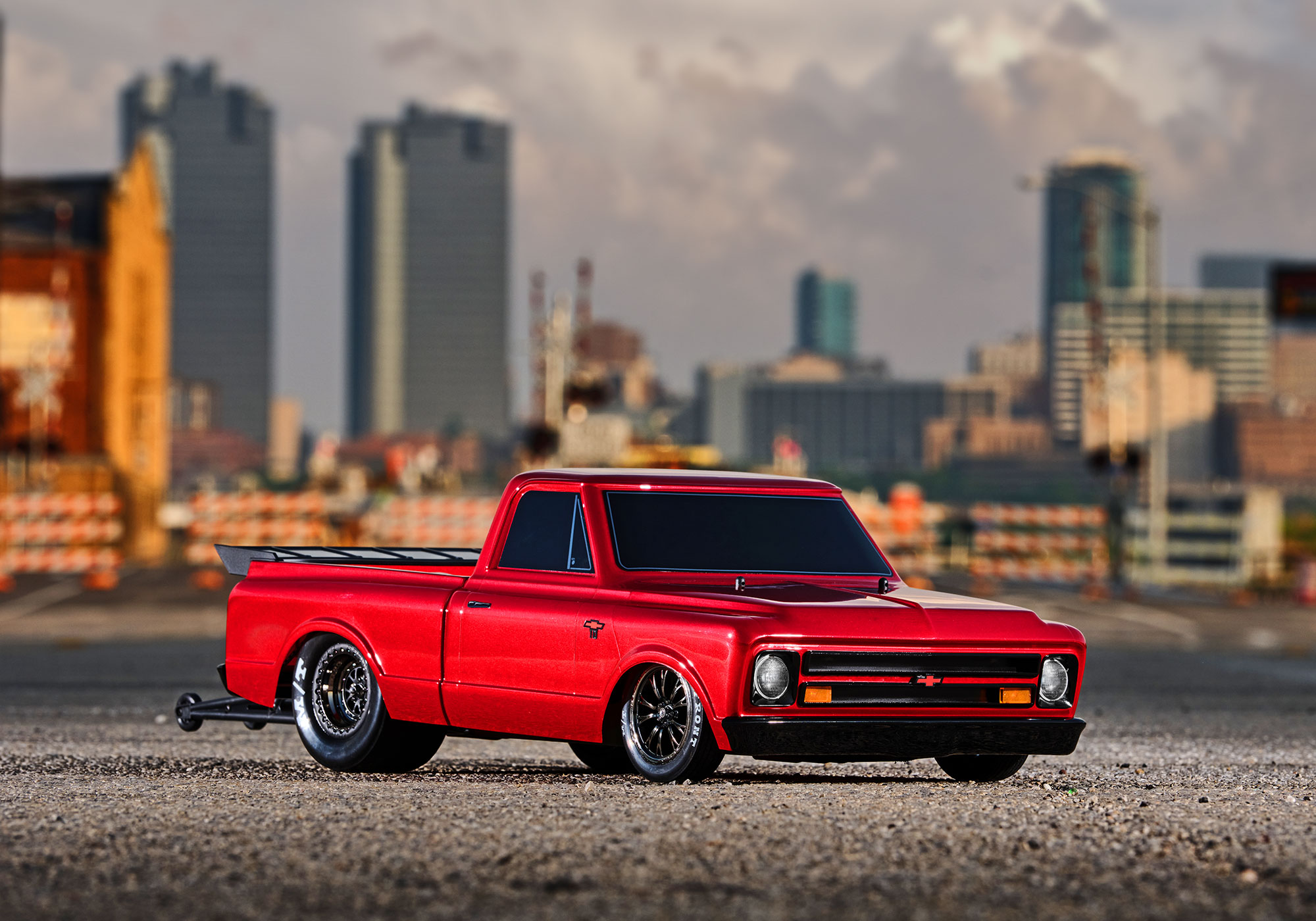

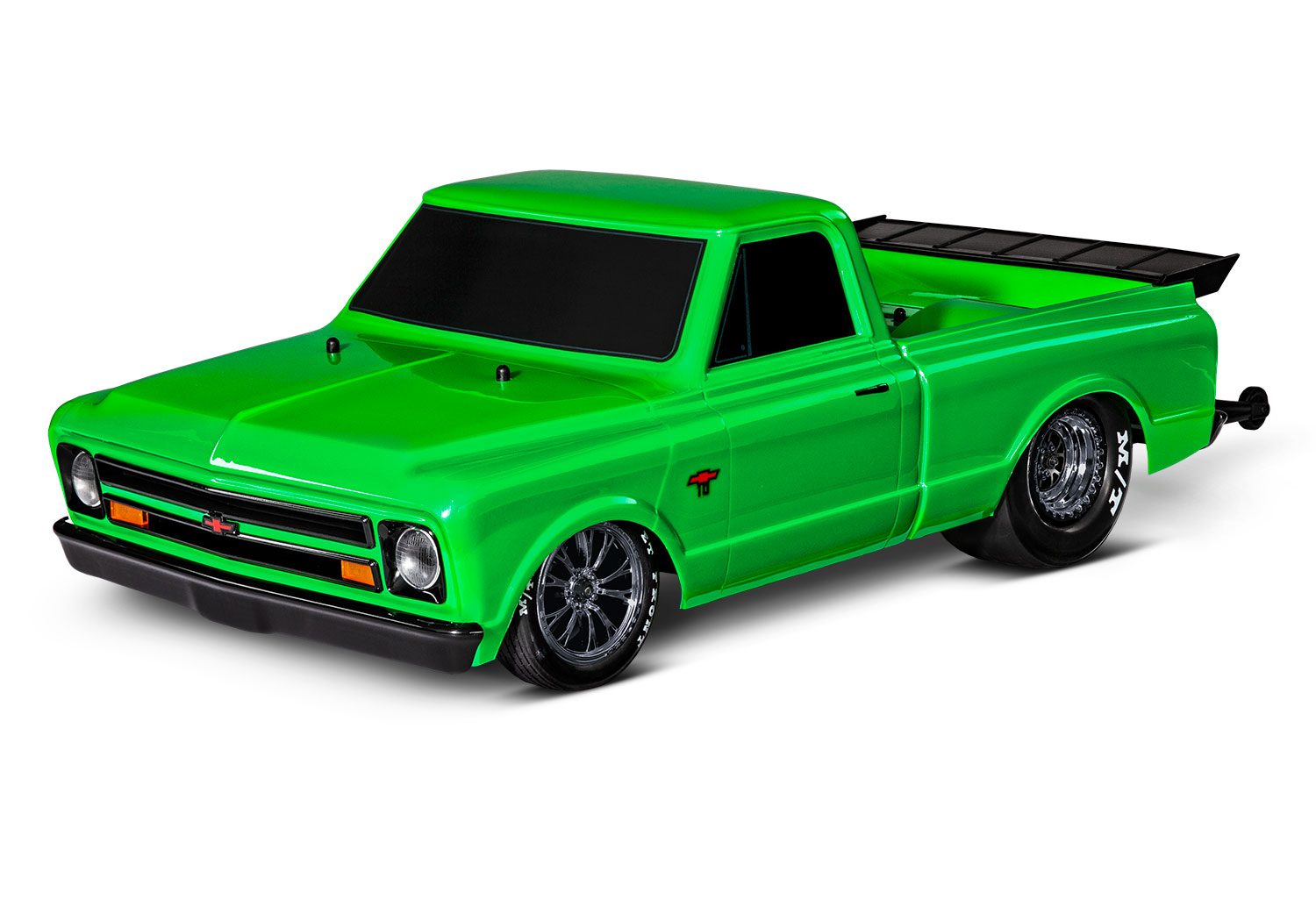

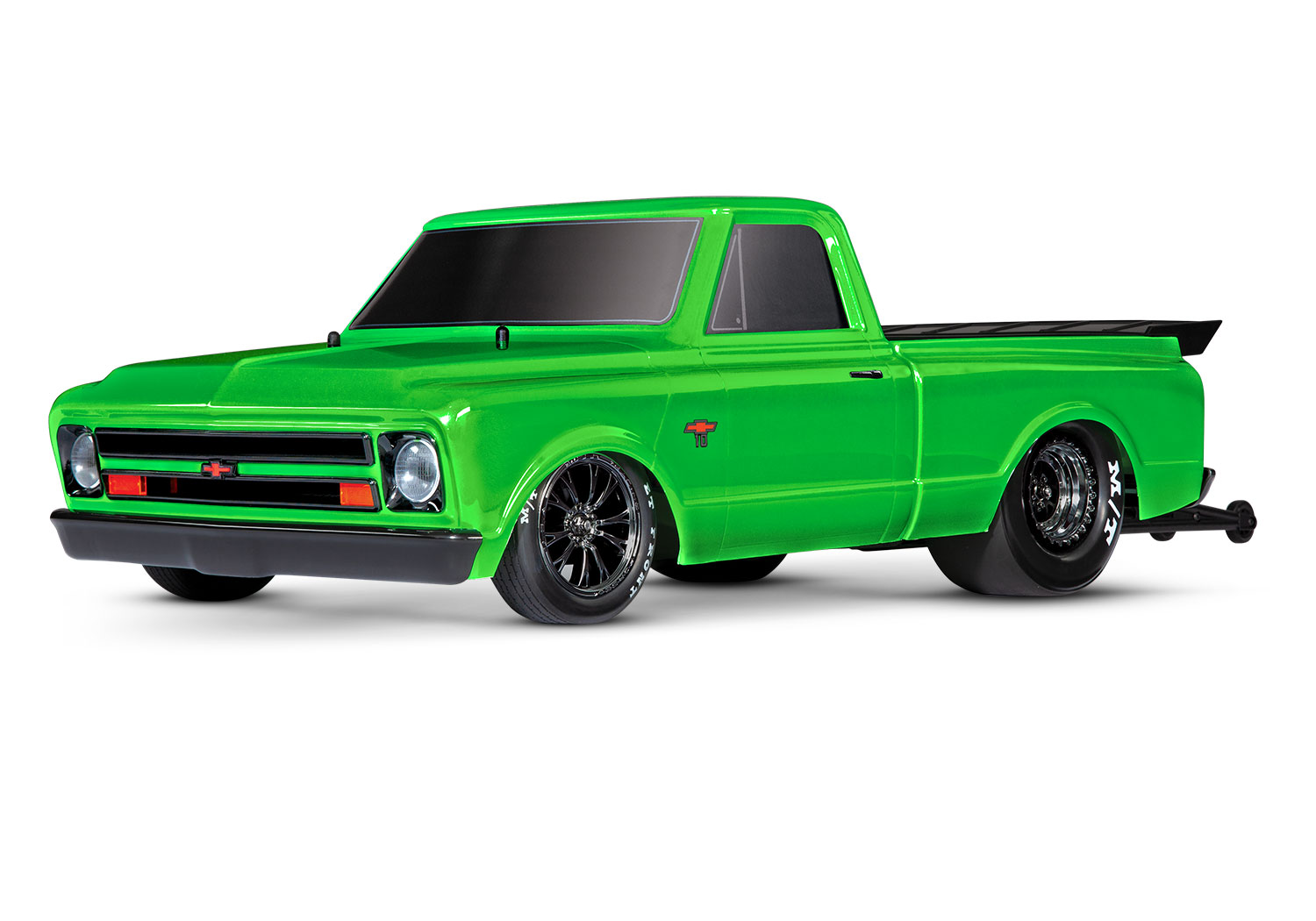

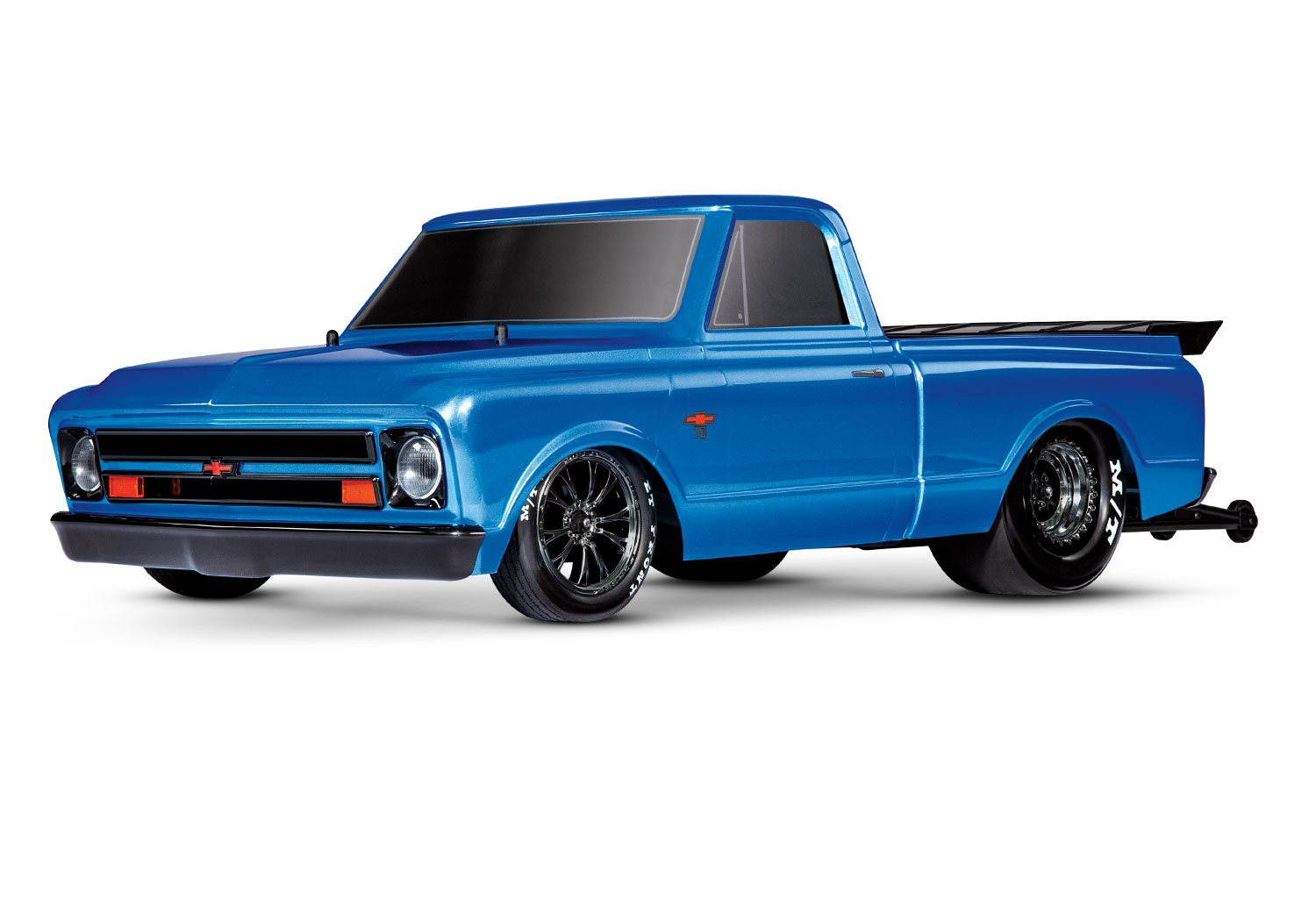

Traxxas combines legendary Slash durability with the latest high-tech features to create a world-class drag racer. Wrapped in a beautiful fully-detailed Chevrolet® C10 or Ford® Fox Mustang body, the result is nothing short of perfection.
Details
Look beneath Drag Slash’s striking body to reveal the design details that make Drag Slash the Quickest on the Street™. Traxxas examined every detail in order to create a dynamic, high-tech vehicle that’s as fast on the strip as it is fun to drive.

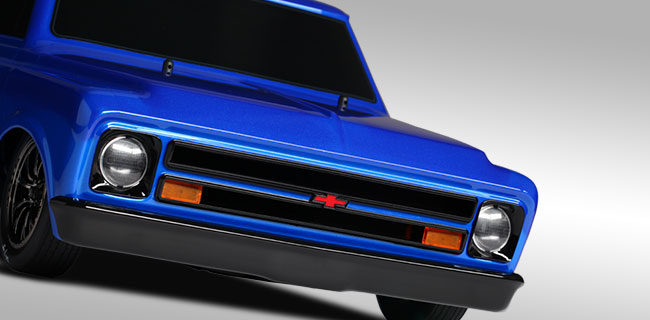

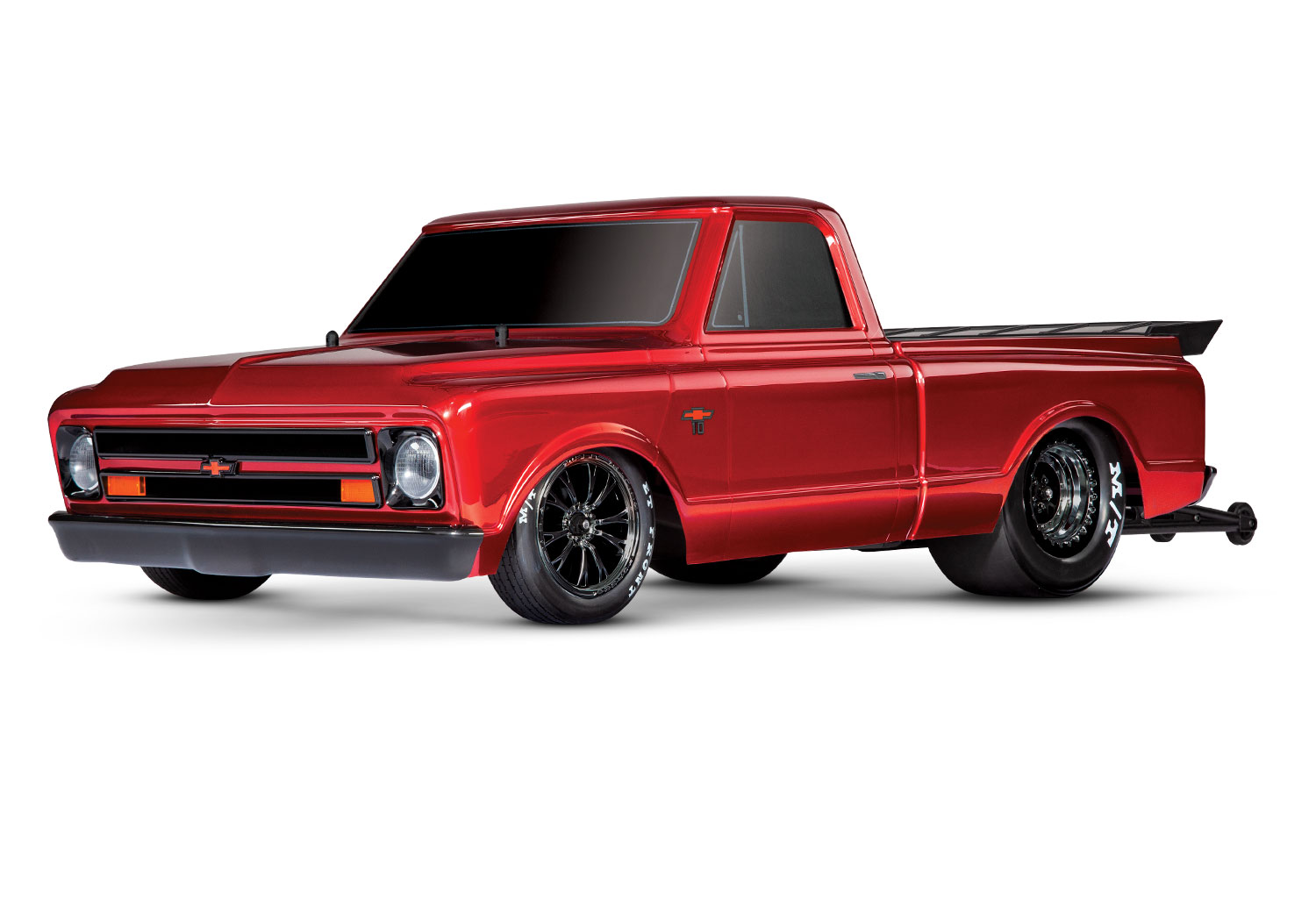

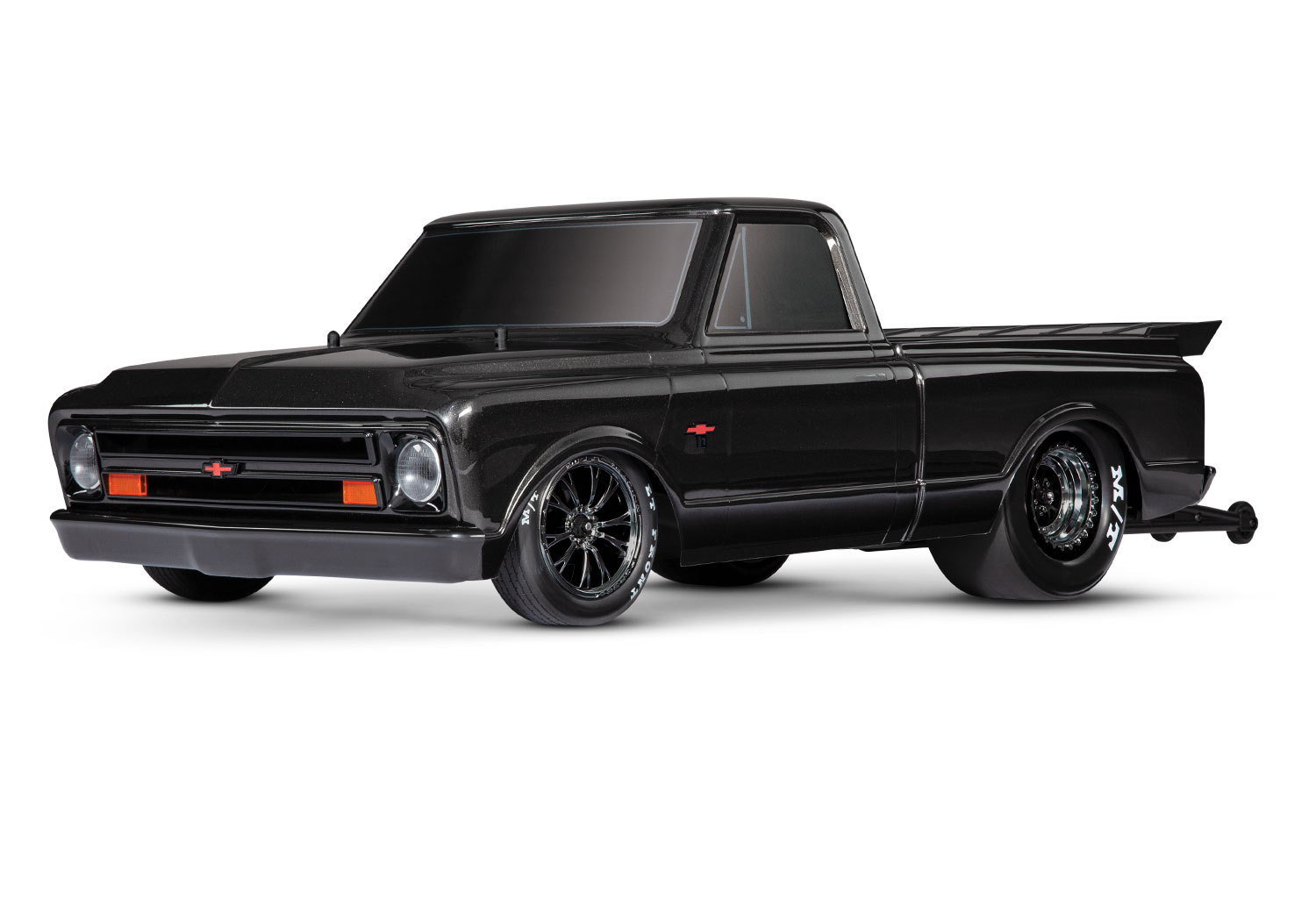

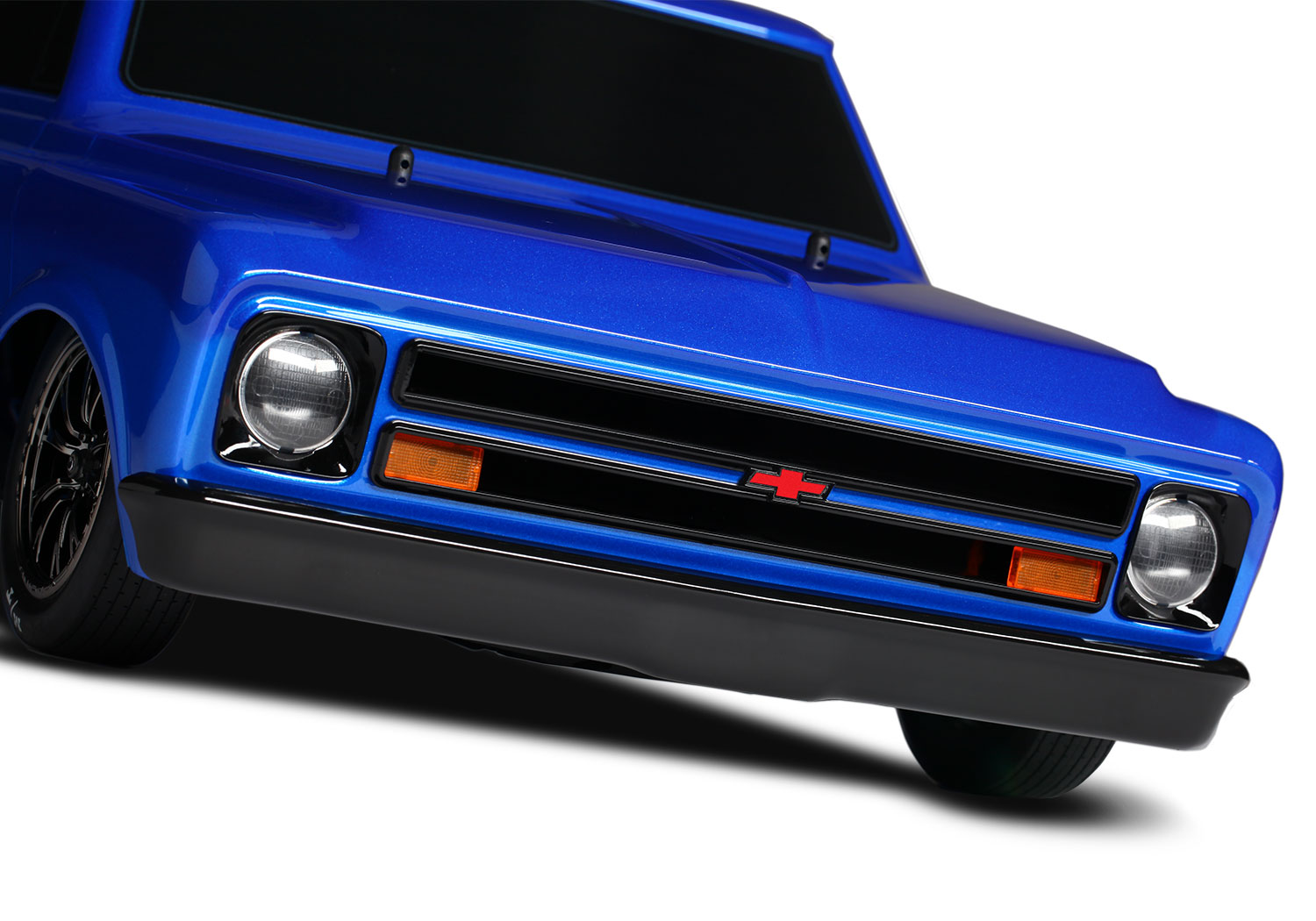

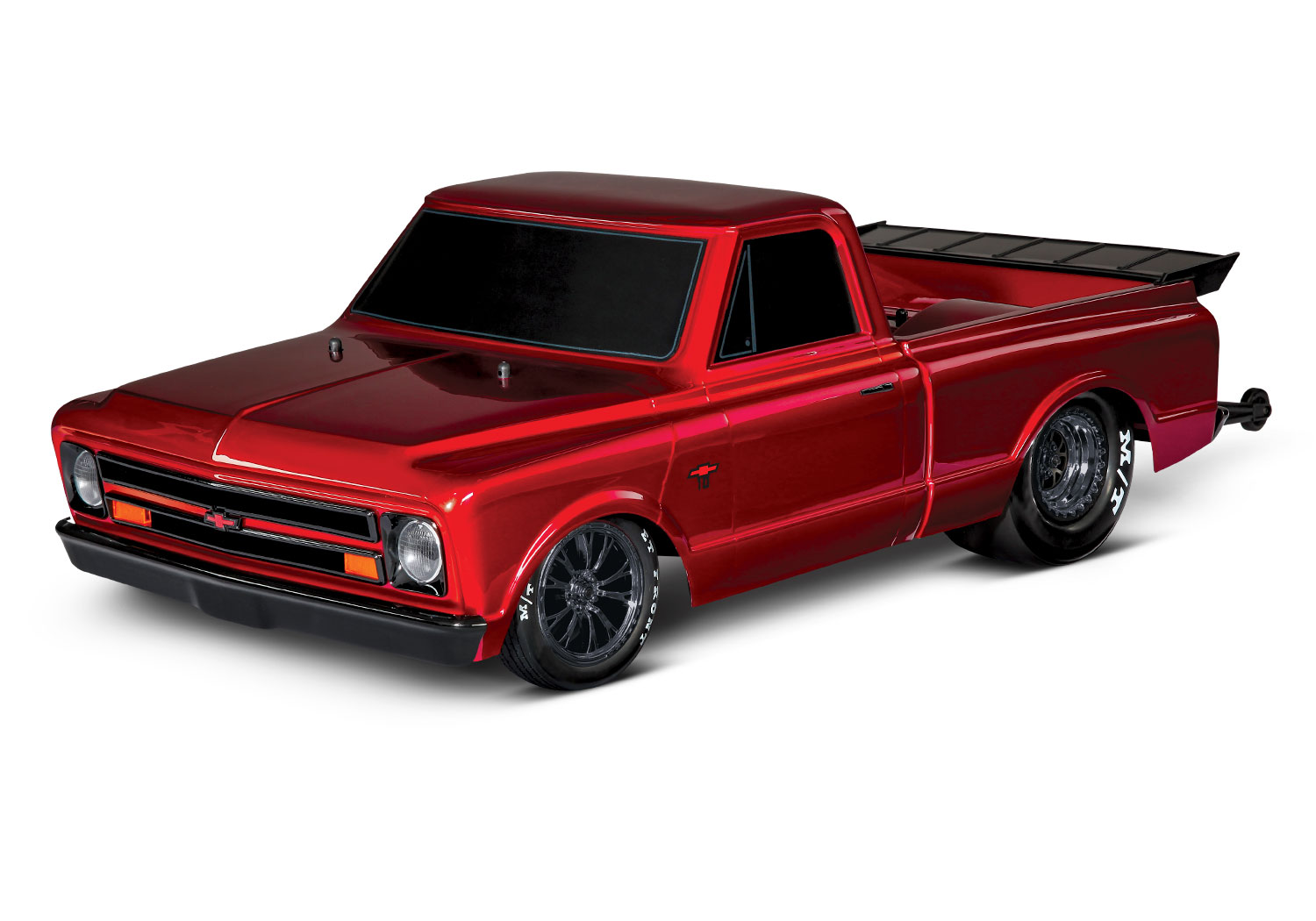

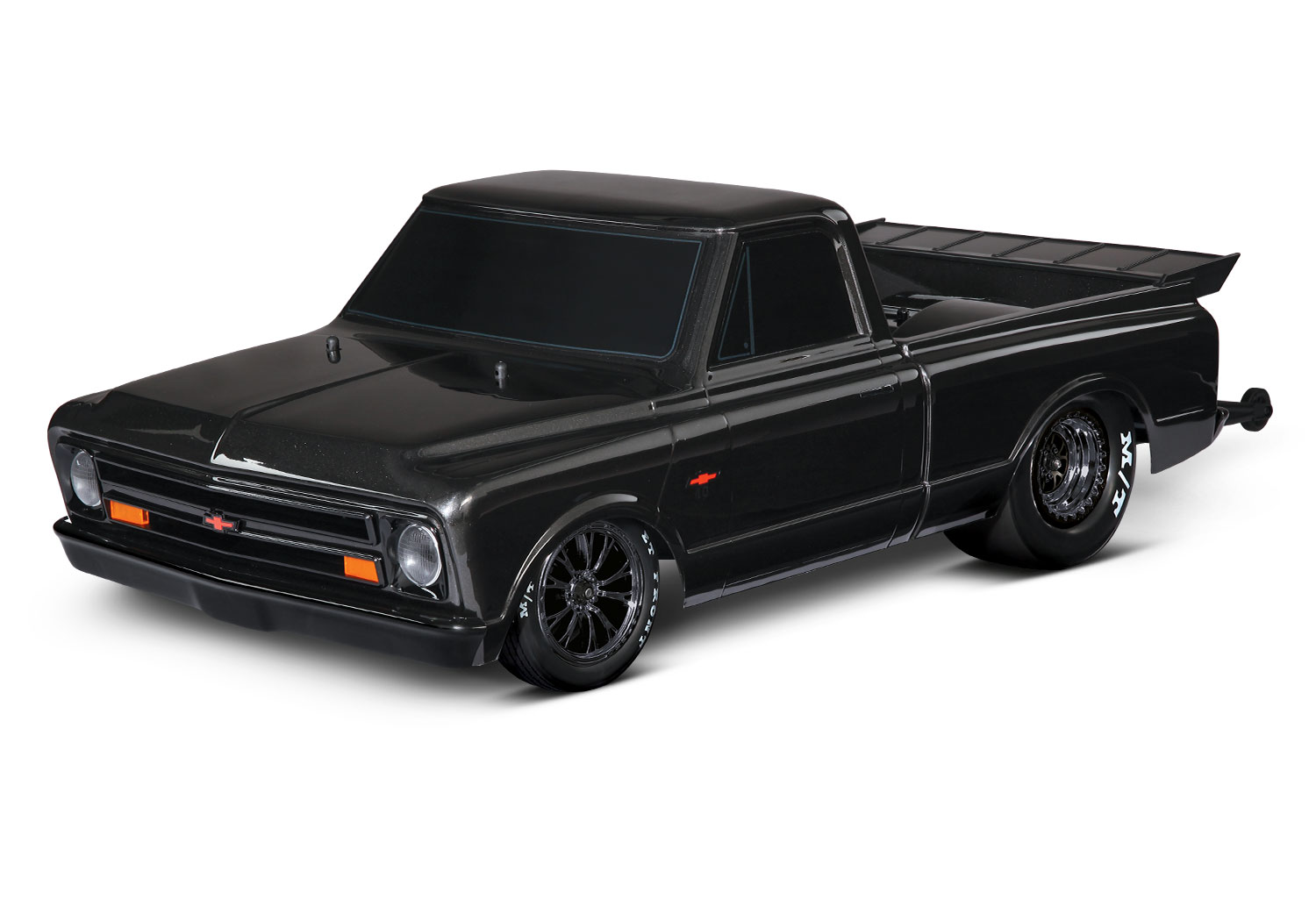

Molded Scale Details

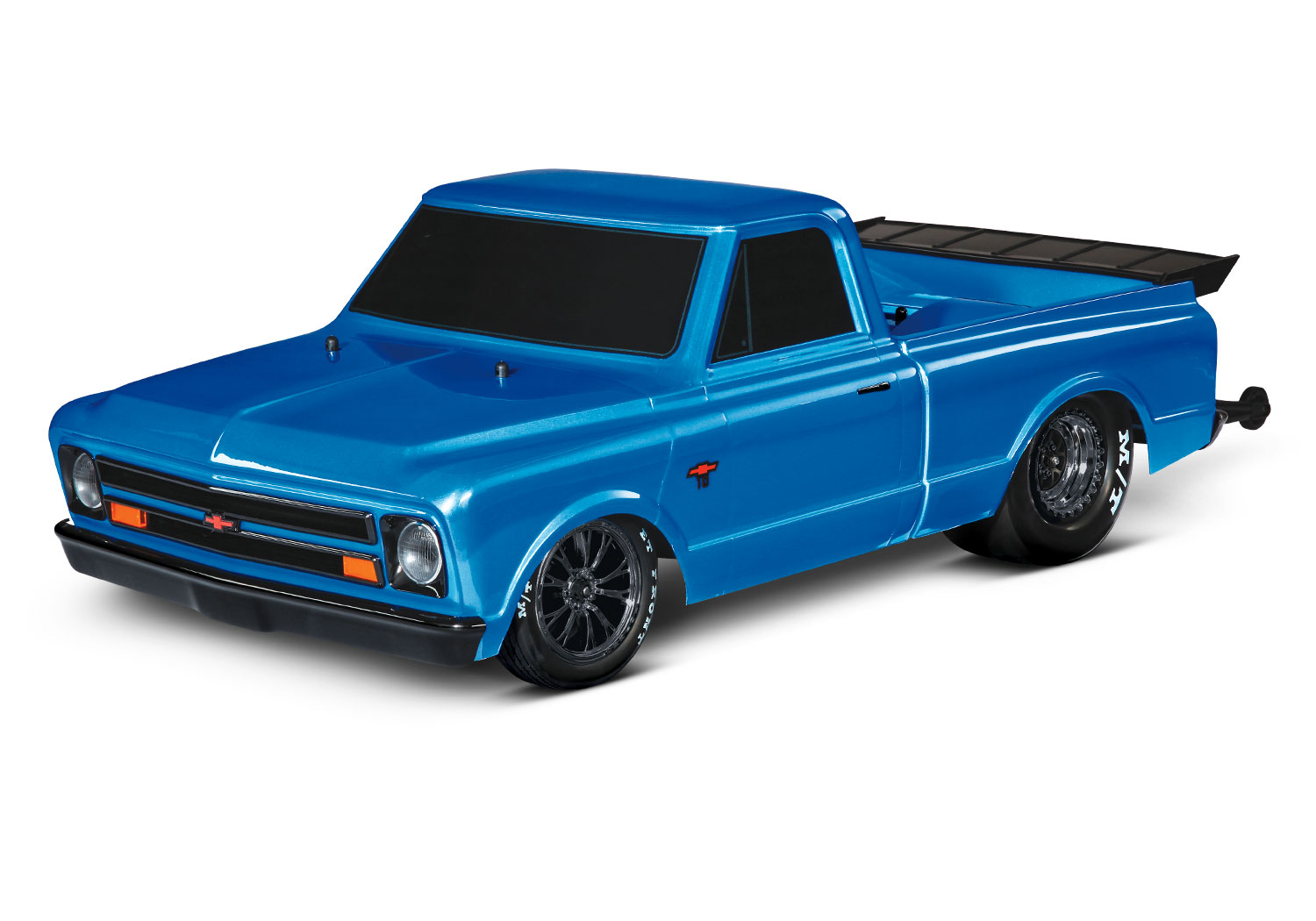

Exclusive to the Chevy C10 body, a bi-level grille and LED-ready headlight surrounds are separately molded to replicate the “real thing” and deliver display model detail with durability for high speed street action. Injection molded side mirrors give the Mustang extra scale detail and an authentic scale appearance.
Rich ProGraphix® Paint
Drag Slash’s lustrous paint shines with a deep gloss and light-catching good looks beneath the durable, polycarbonate body. From the stand to the strip, the C10 and Fox Mustang Bodies turns heads with their dramatic presence.

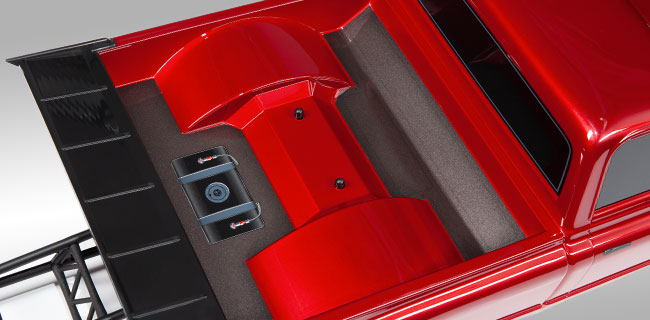

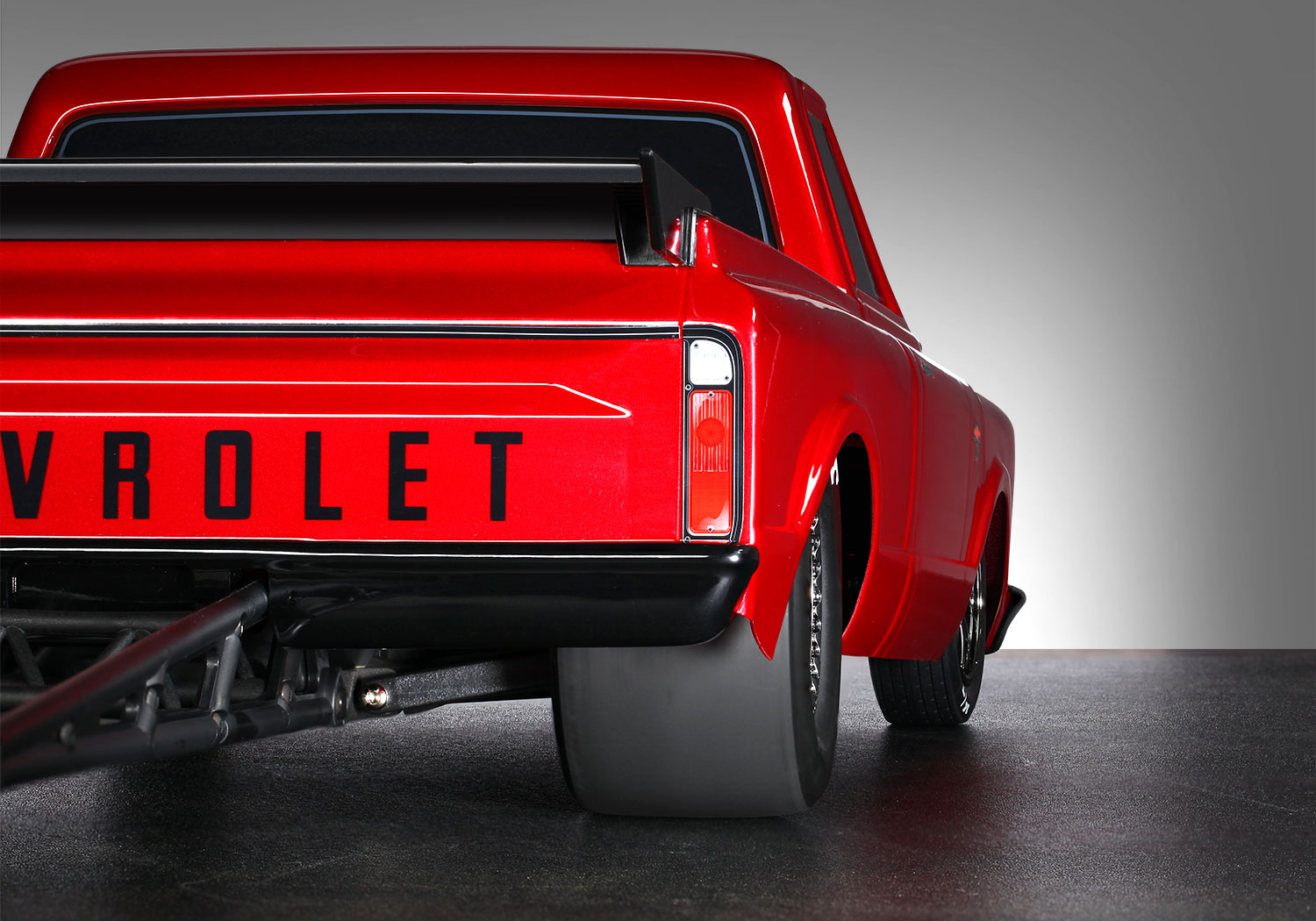

Deeply Recessed and Detailed Bed
Drag Slash’s Chevy C10 body recreates the flat-plate tinwork of full-size draggers with a recessed bed that’s realistically “tubbed” to hug wide Mickey Thompson slicks. Functional, authentic details like this make Drag Slash the best-looking no-prep racer on the strip.

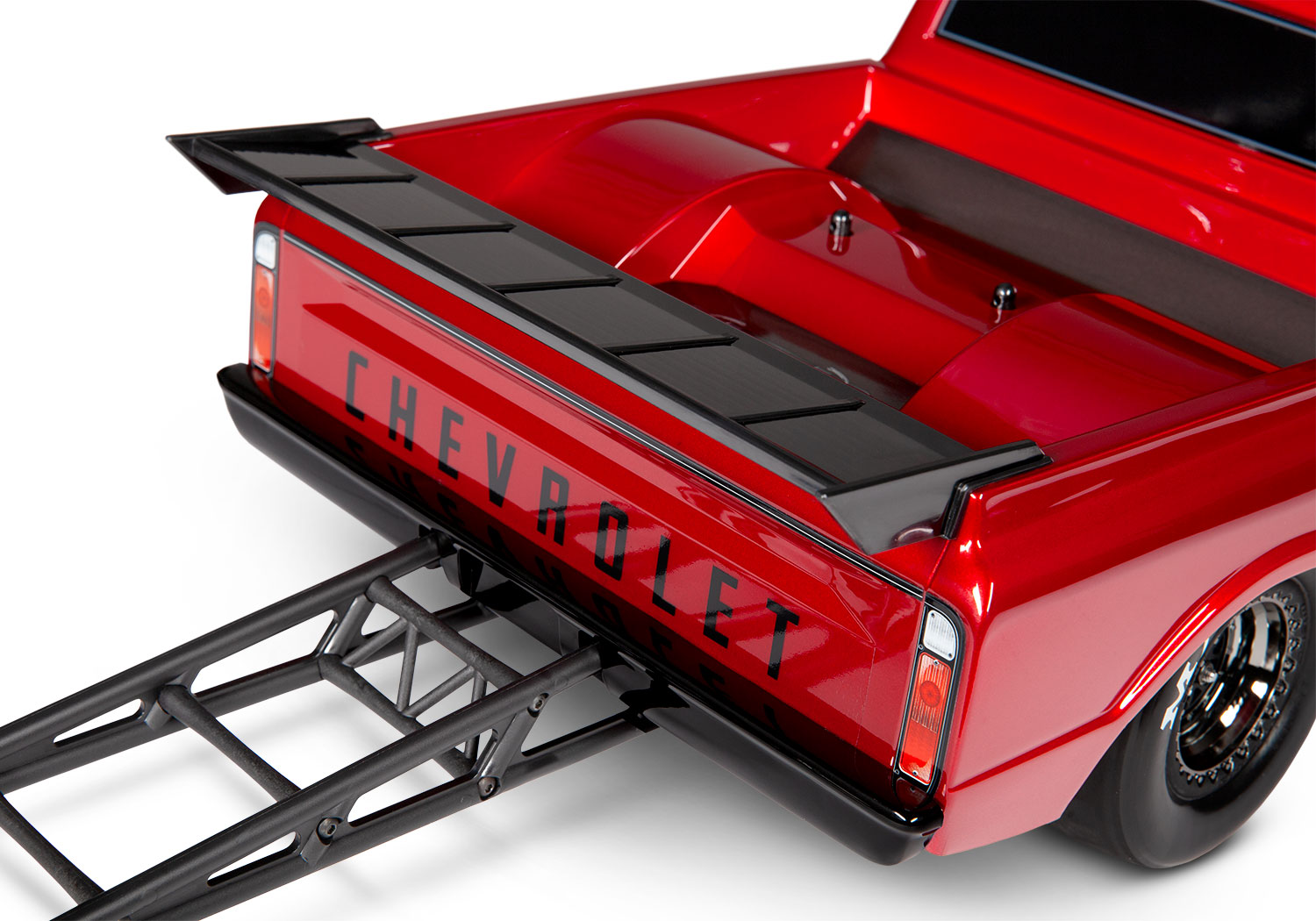

High-Performance Wing
Drag Slash’s large Pro Street-style wing is a functional part of its drag-prepped design. The wing is injection molded for durability and strength. At speed, the wing generates traction-enhancing downforce and reduces drag-inducing turbulence.

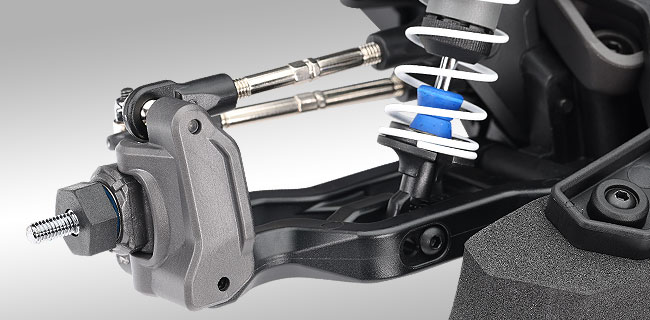

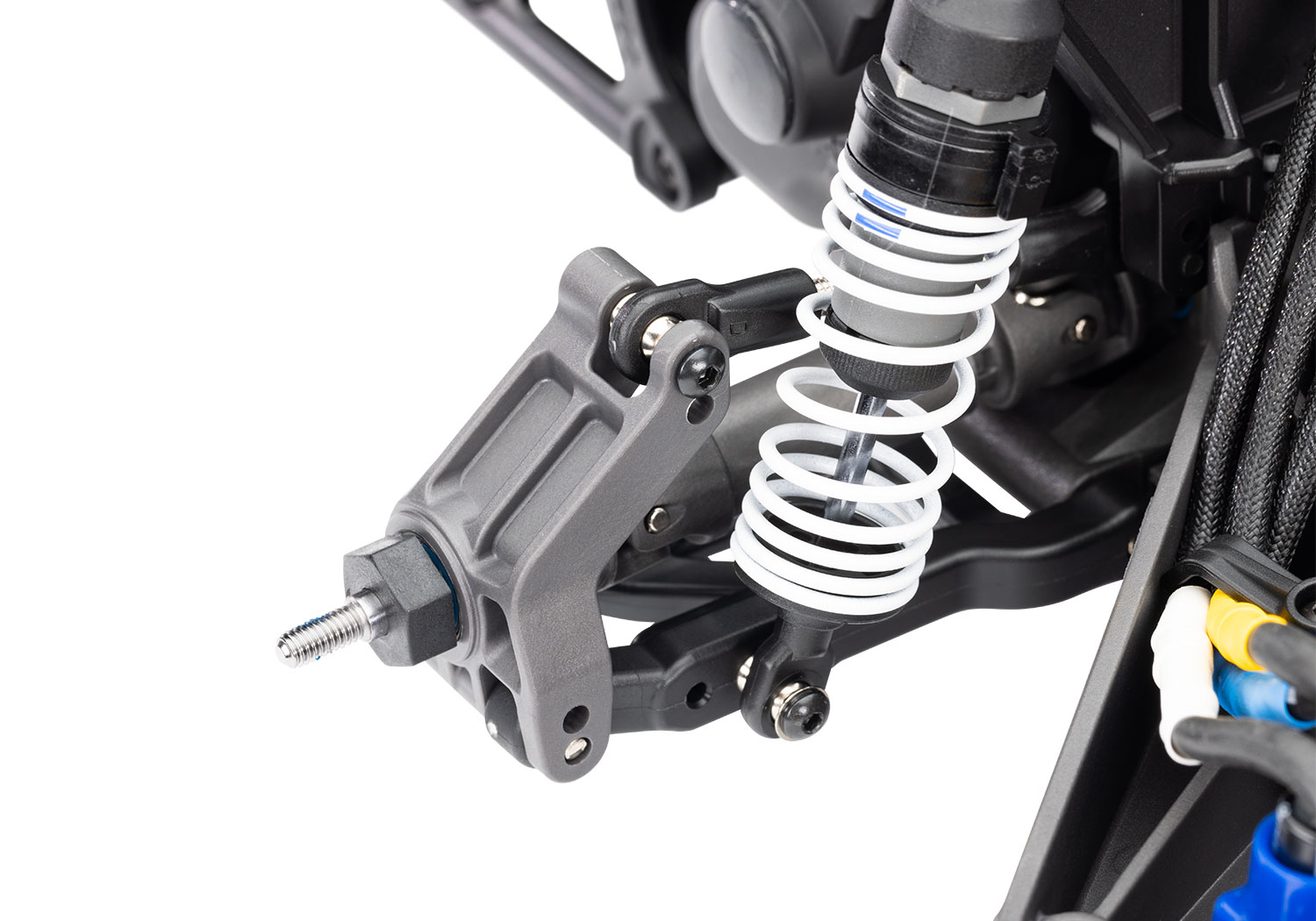

Extreme Heavy Duty Components
Drag Slash comes outfitted with Extreme Heavy Duty suspension upgrade components already installed for ultimate strength and durability. The axle carriers, C-hubs, and steering blocks are beefed-up with more material and stronger construction.

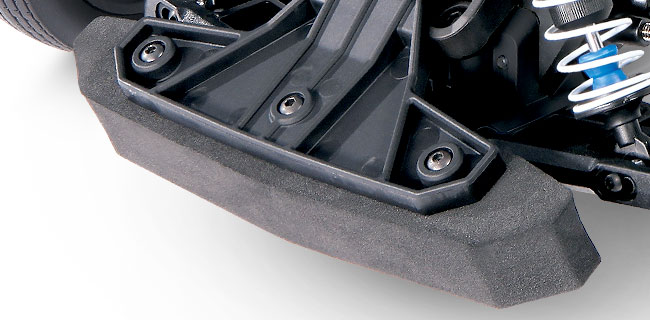

Integrated Bumper
If a run goes wrong, Drag Slash can take the hit with its chassis-mounted front bumper. Firm foam pads the body as the heavy-duty upper and lower bumper supports protect the front suspension.

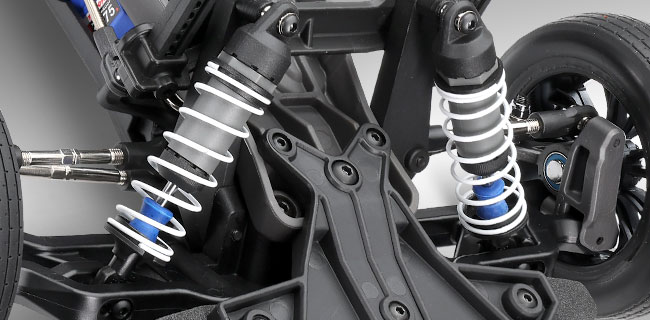

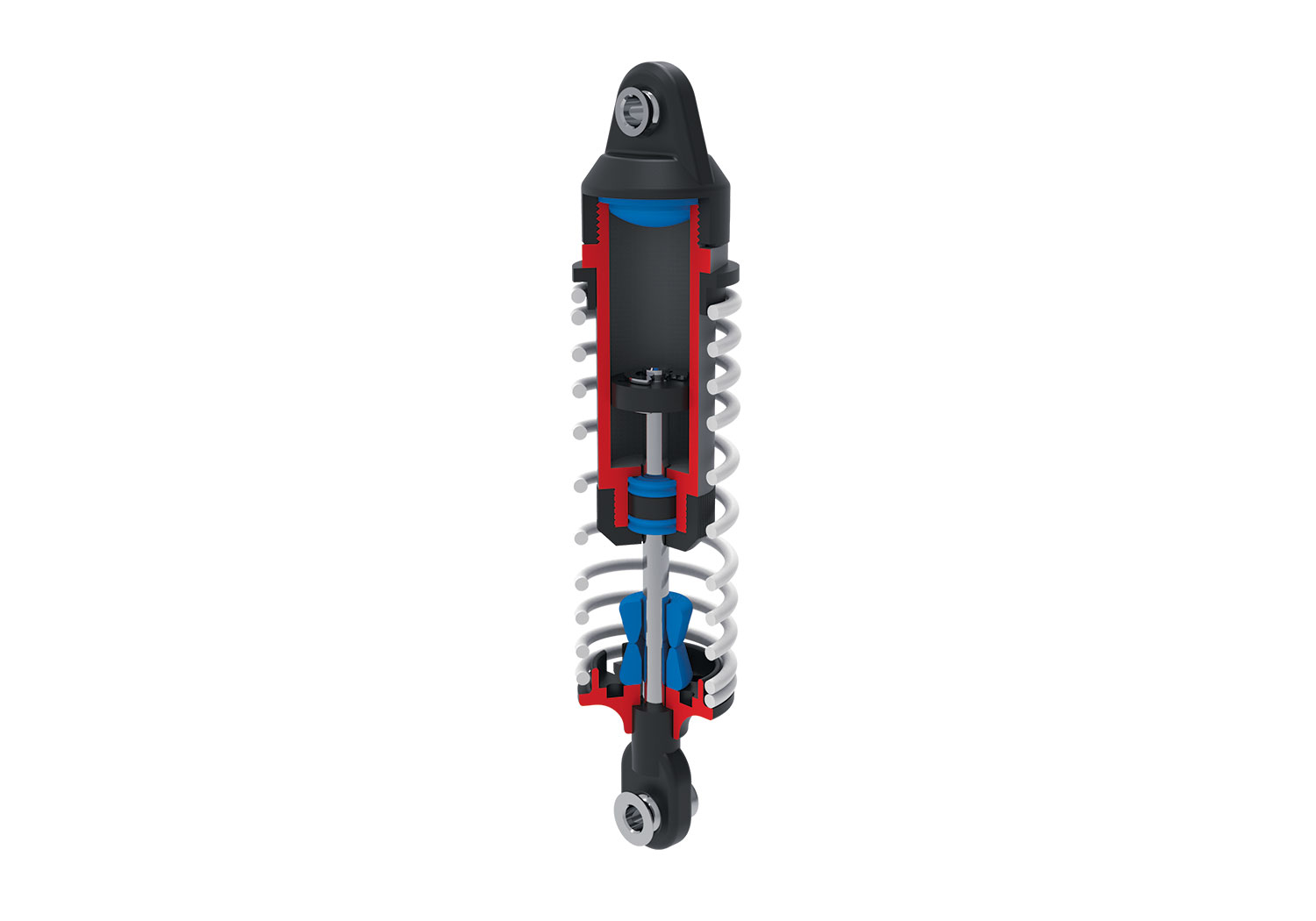

Drag-Tuned Ultra Shocks
Ultra Shocks are proven performers on Traxxas’ hardest-hitting off-roaders. Drag Slash’s Ultra Shocks are strip-ready with stiffer springs, thicker silicone oil, and custom bump stops optimized to provide smooth ride control and race-winning grip.

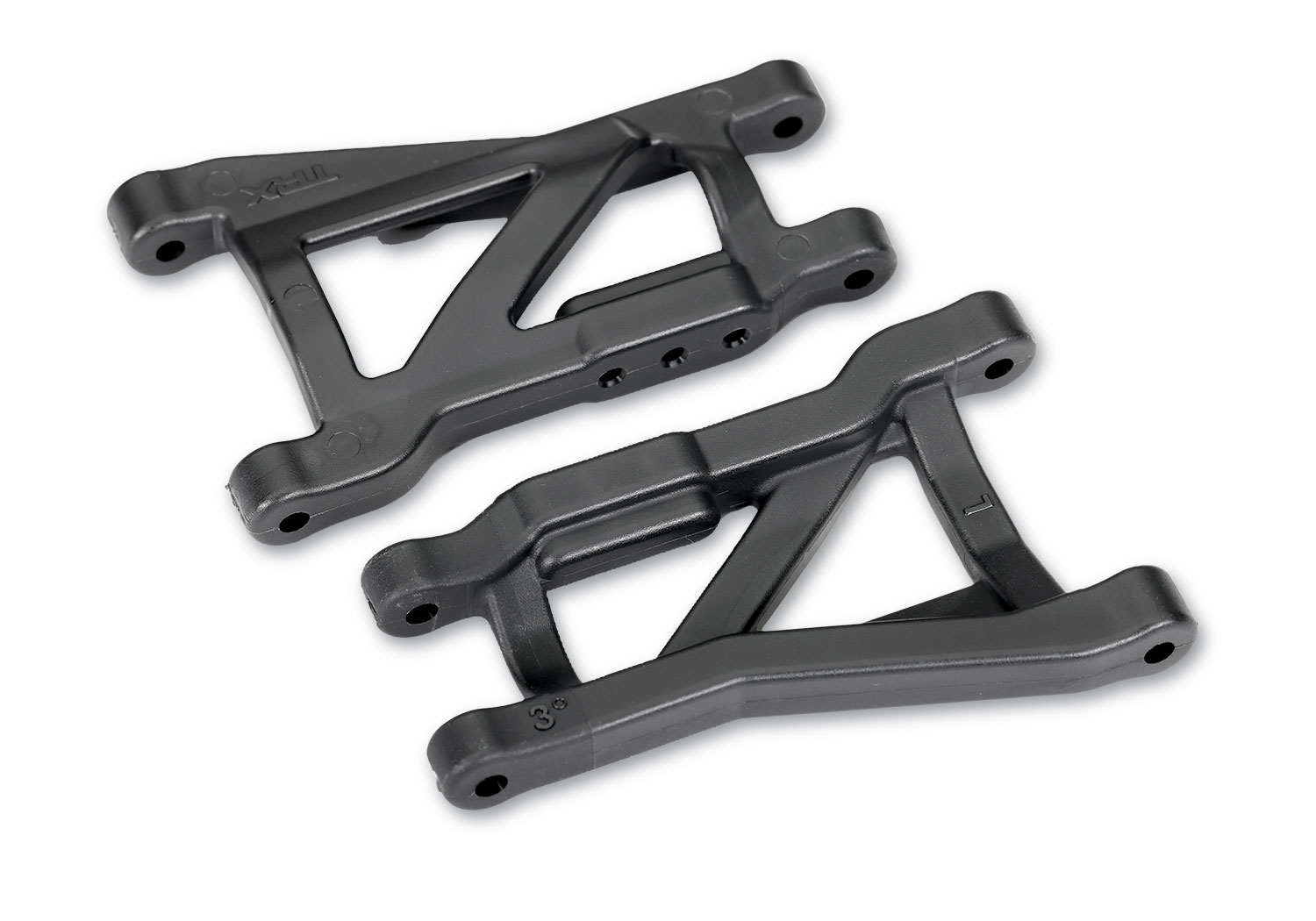

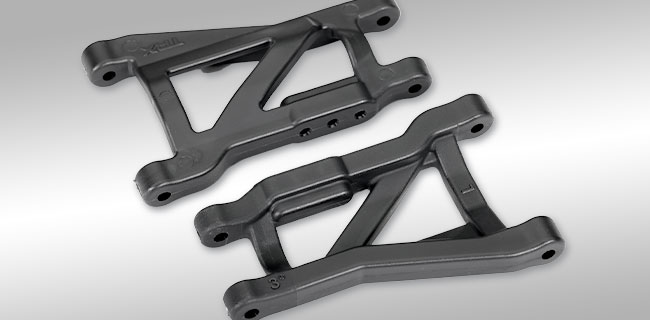

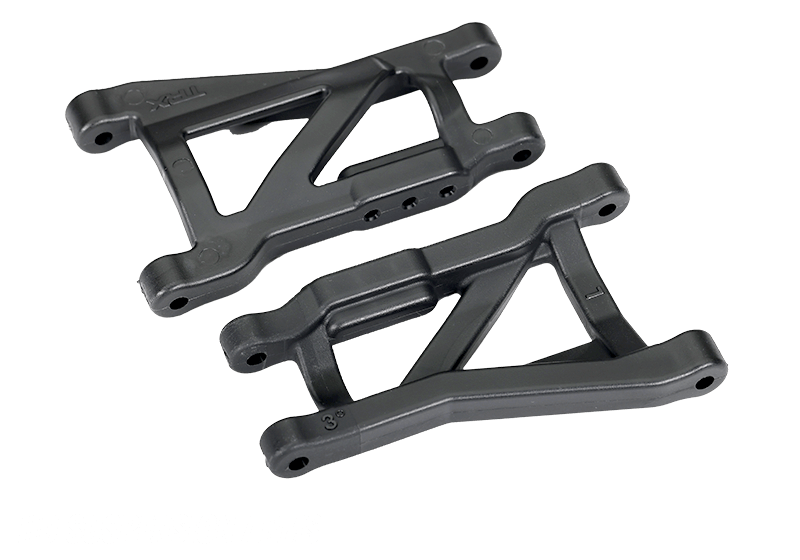

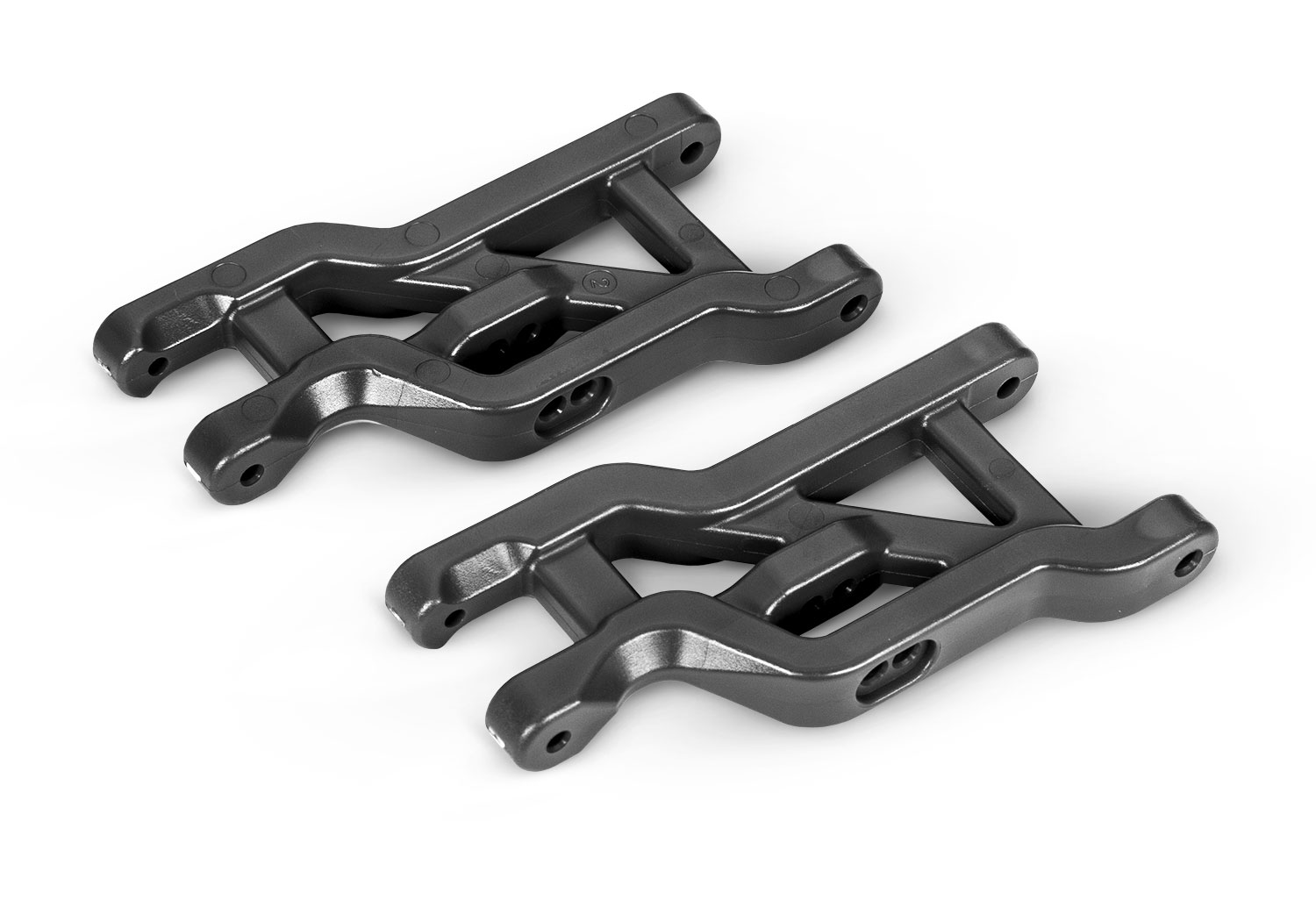

Heavy-Duty Composite Arms
Molded from our toughest composite material, Drag Slash uses heavy-duty suspension arms with just the right amount of flex to resist breaking—even in cold weather! These heavy-duty arms are built to stand up to even the most punishing drivers for non-stop fun behind the wheel.

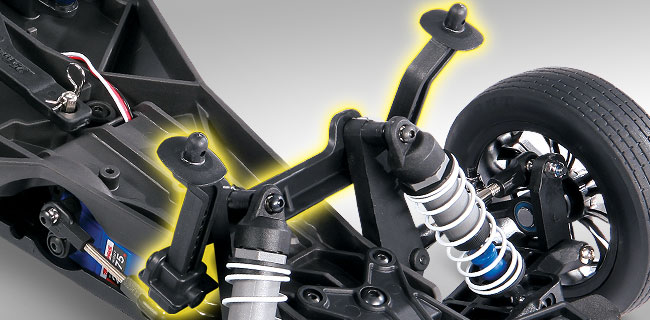

Adjustable Body Posts
Slam the body low for smooth tracks or raise it for rougher surfaces. Drag Slash lets you set the perfect ride height to suit track conditions. The front body posts are fully adjustable, and adjustable rear body posts are available as an accessory.

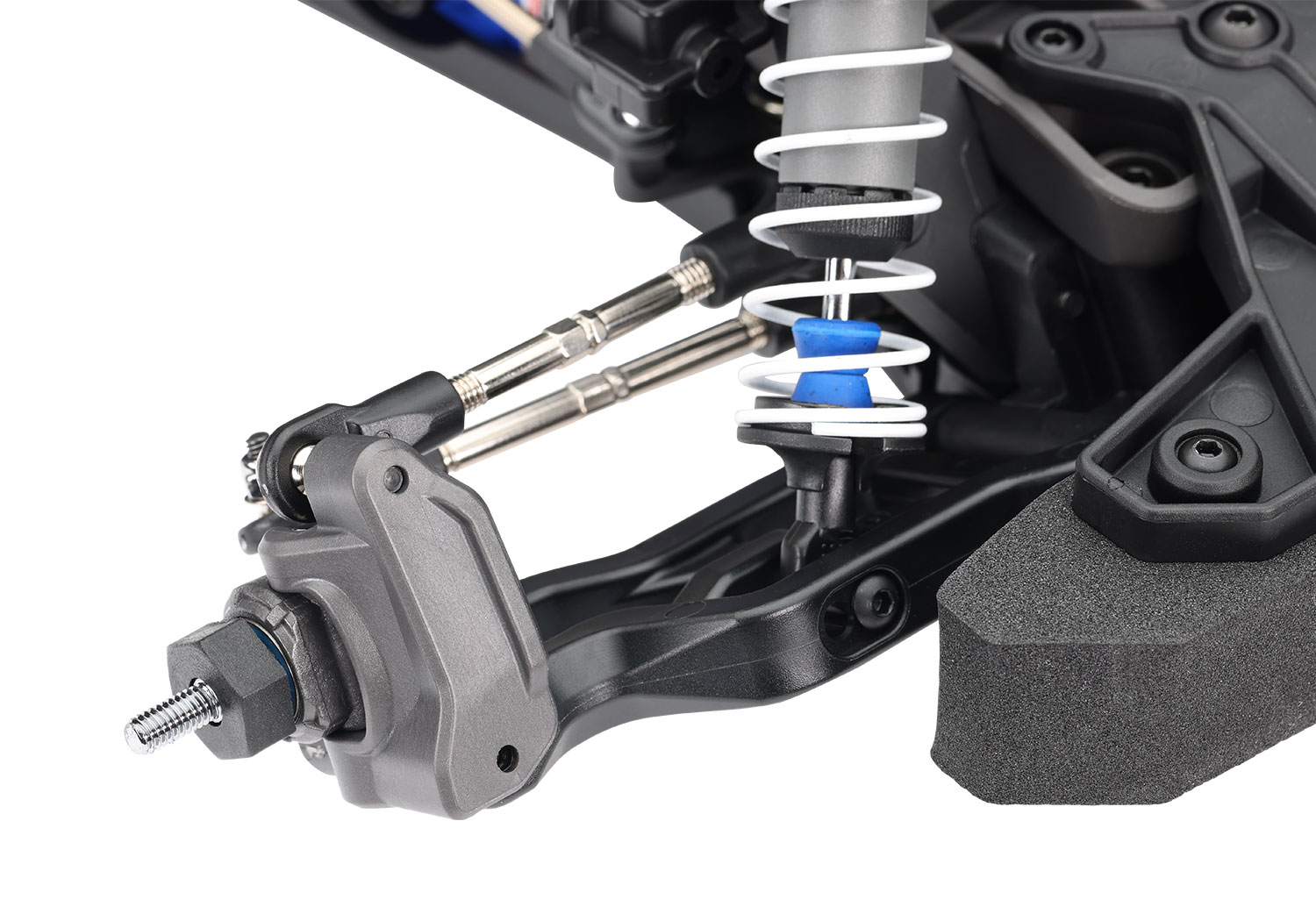

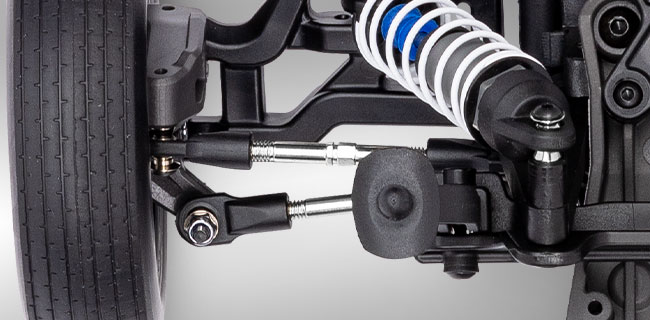

Suspension Tuning
Rugged 4mm steel turnbuckles make it easy to experiment with Drag Slash’s camber and toe-in, no disassembly required. Heavy-duty rod ends and captured, large-diameter pivot balls assure race-ready durability, and an adjustment wrench is included.

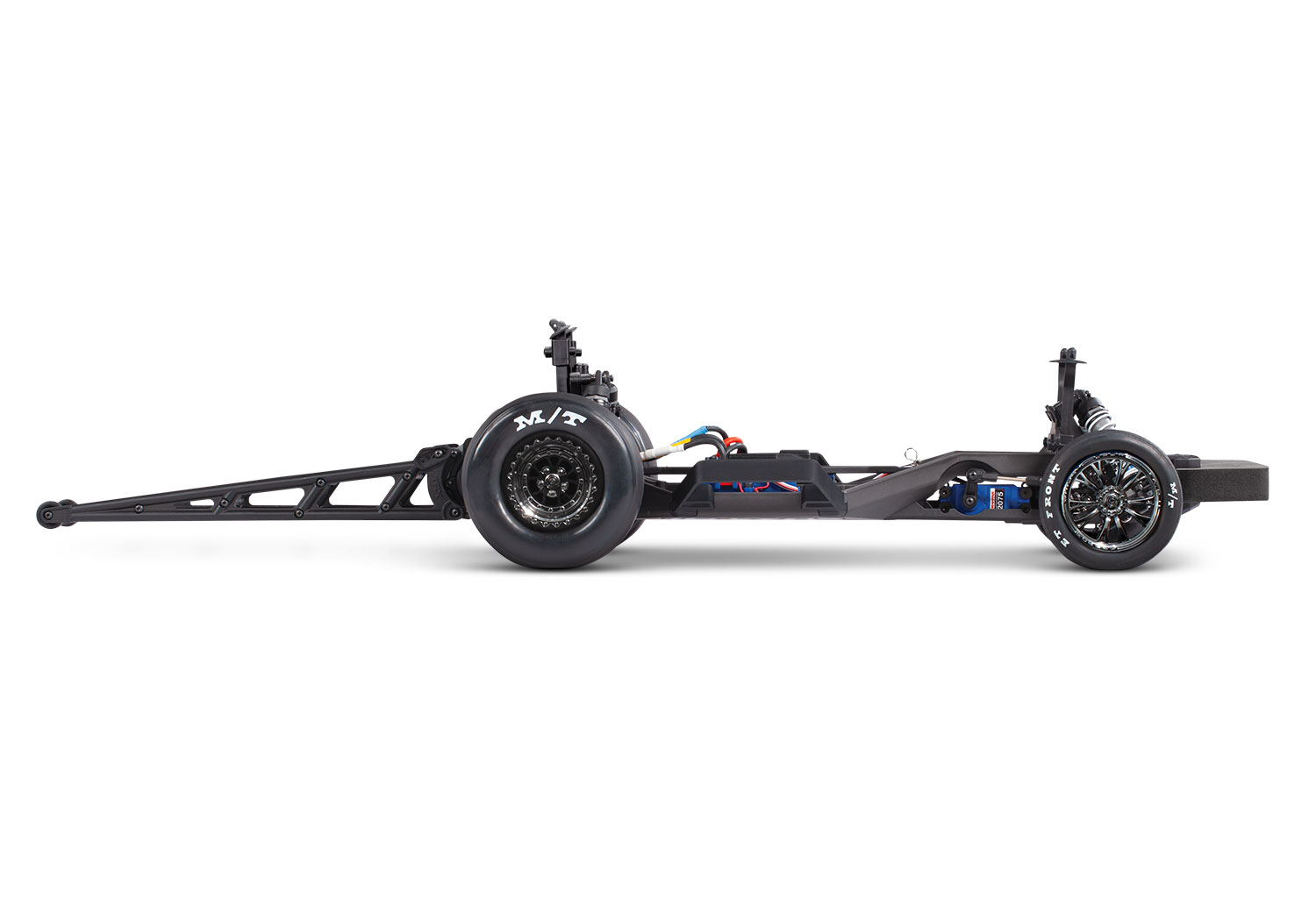

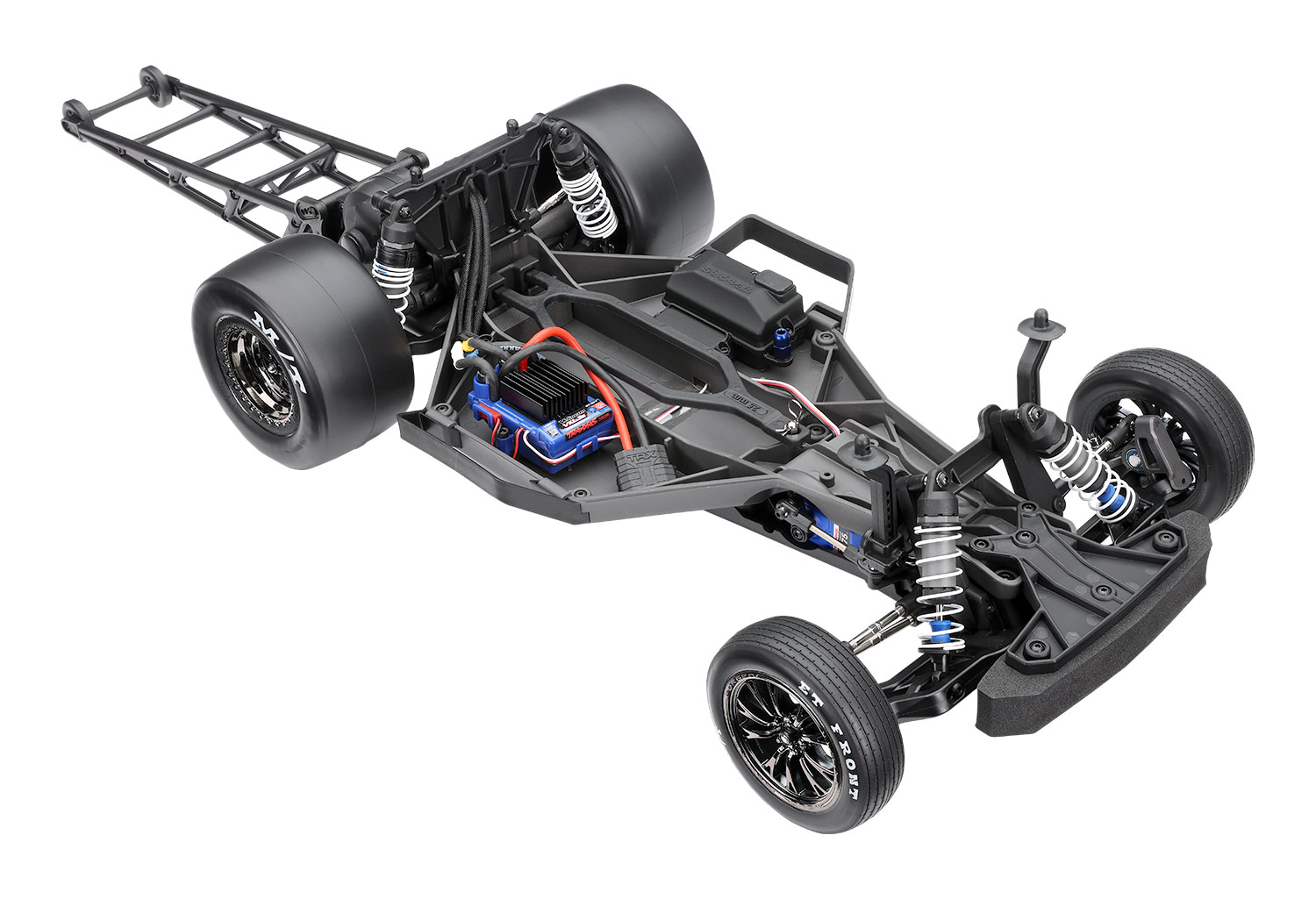

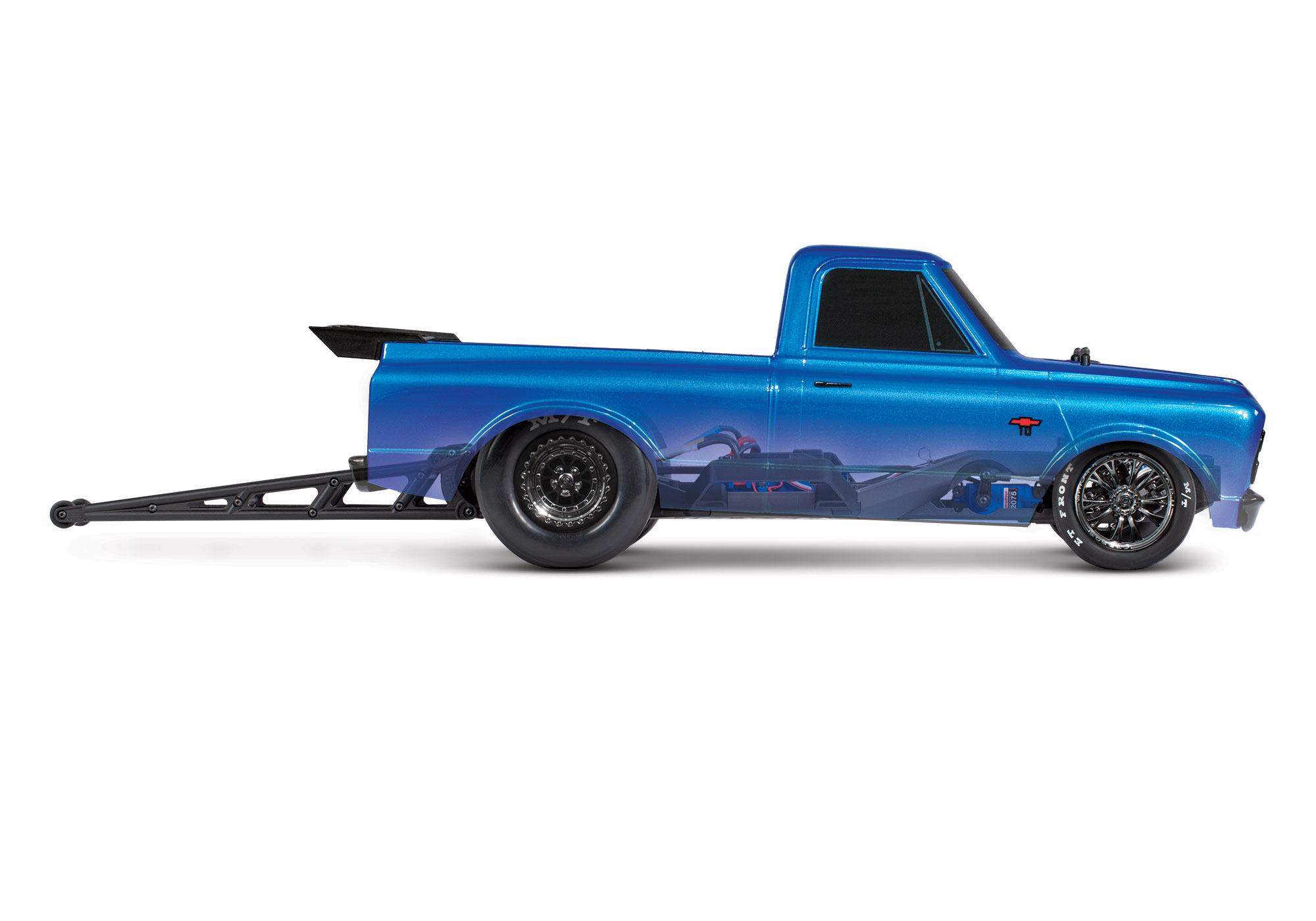

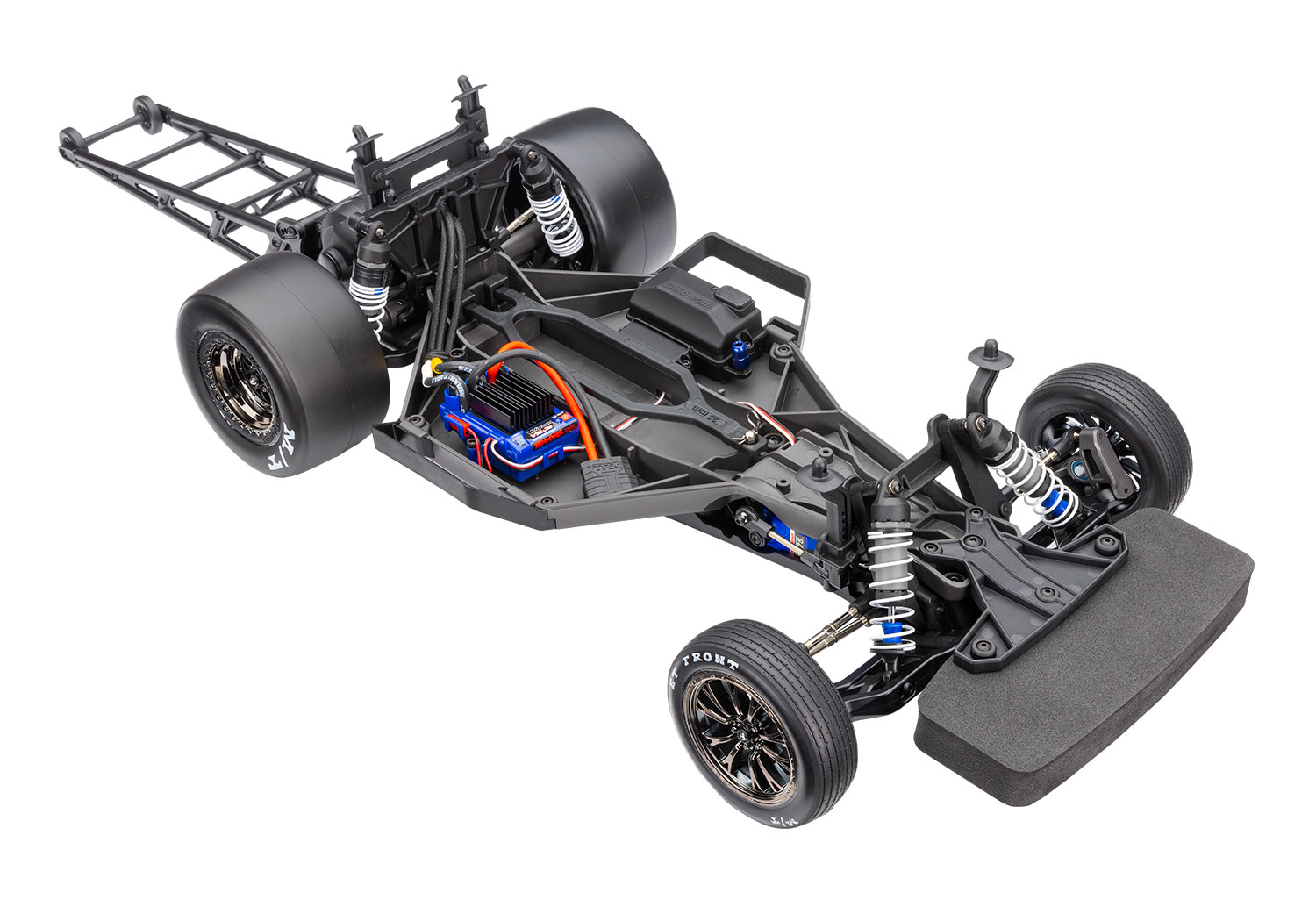

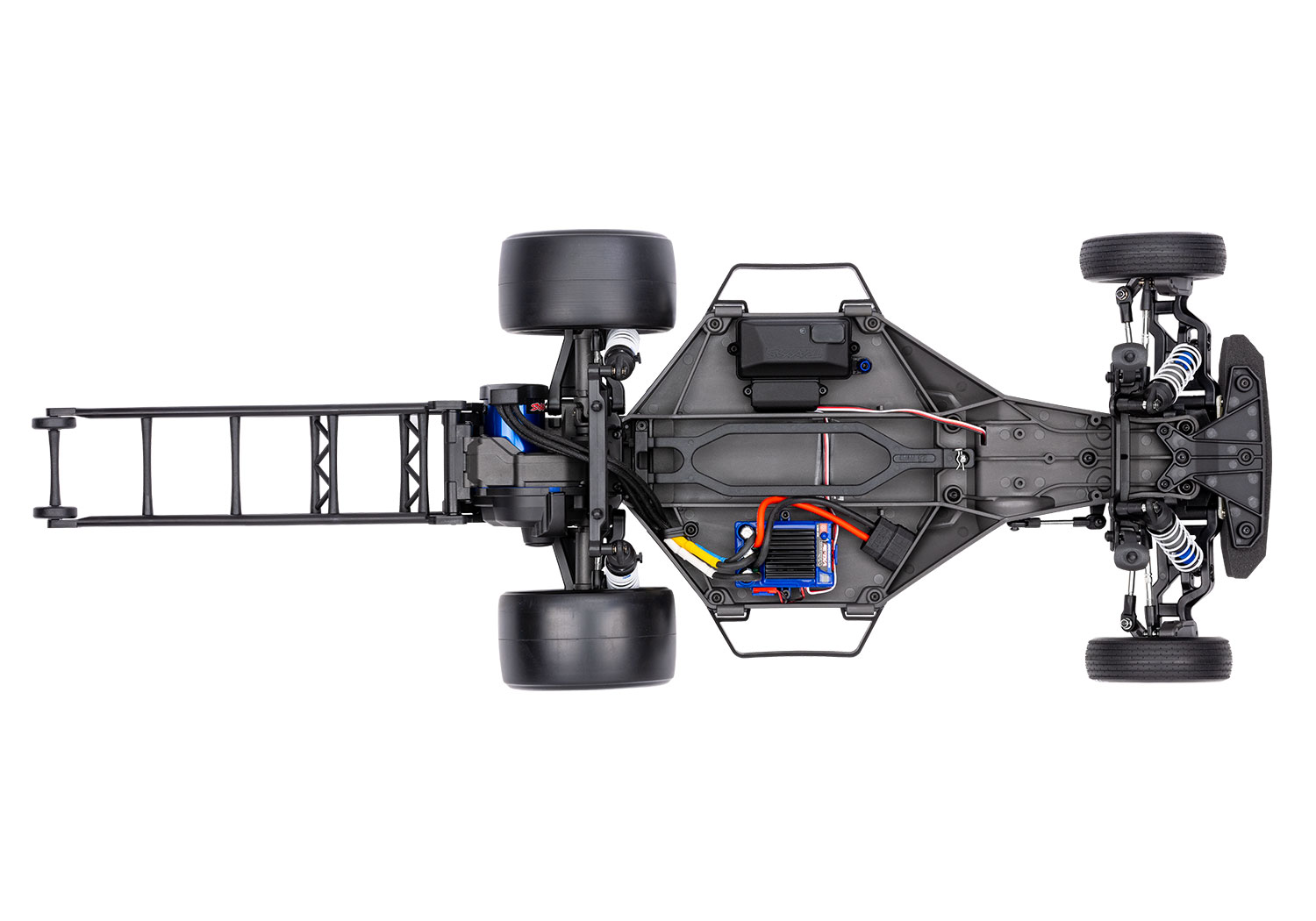

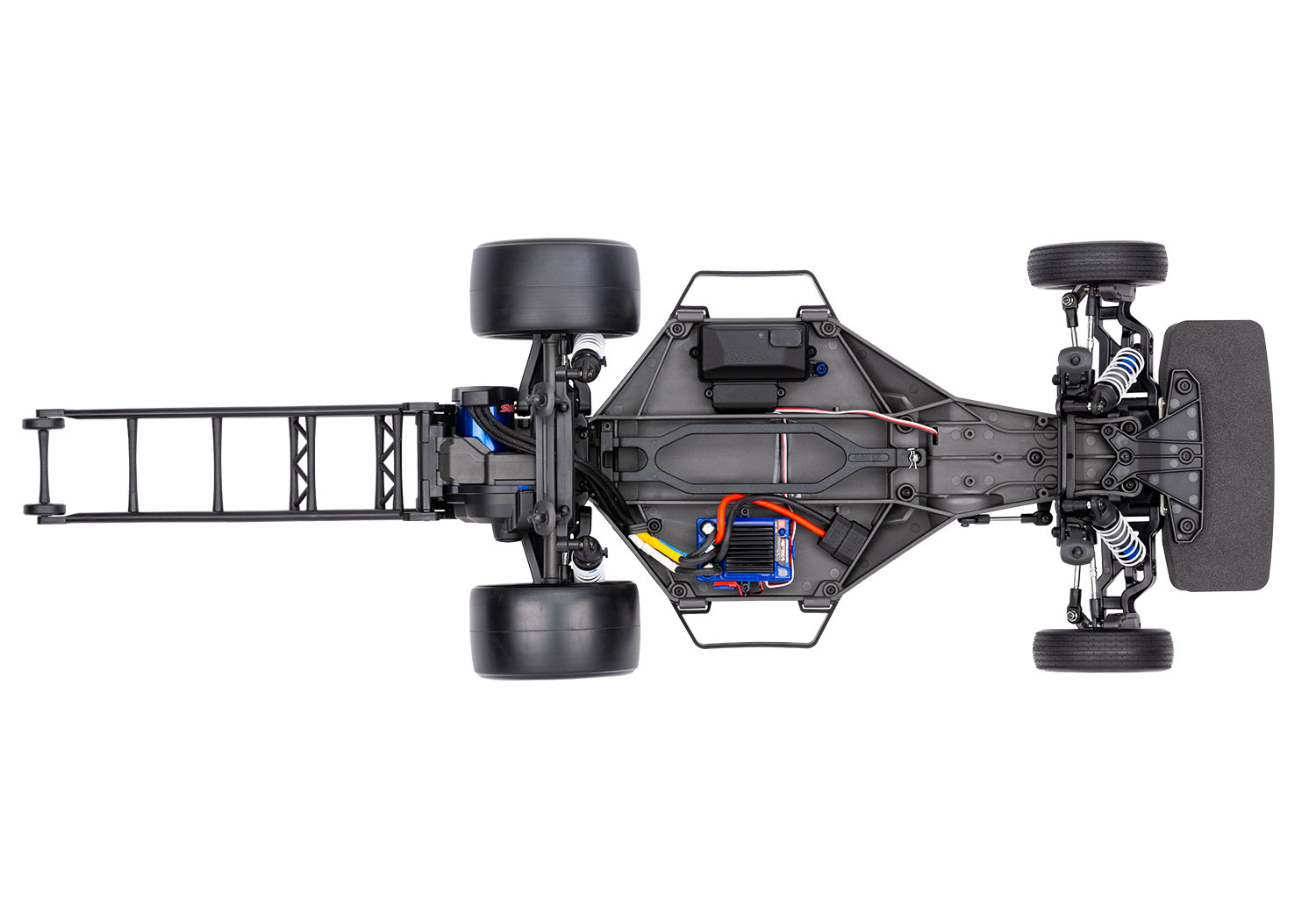

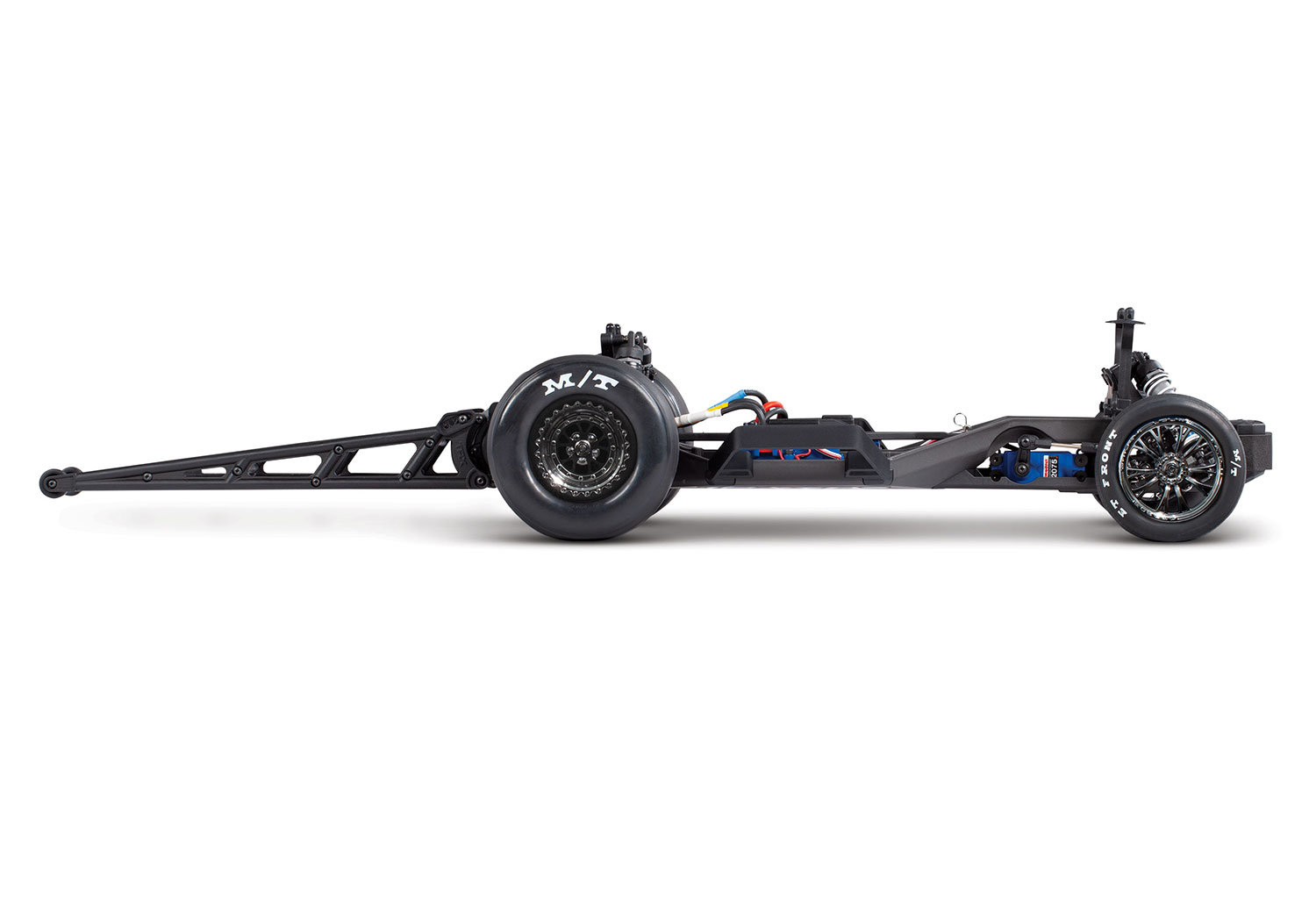

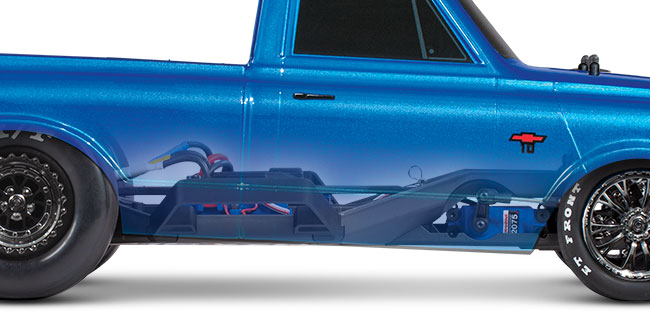

Low-CG Chassis
A low center of gravity improves stability and handling precision. The low-slung chassis allows the body to hug the track with an aggressive, aero stance for peak drag-racing performance, and sleek, modular design simplifies maintenance.

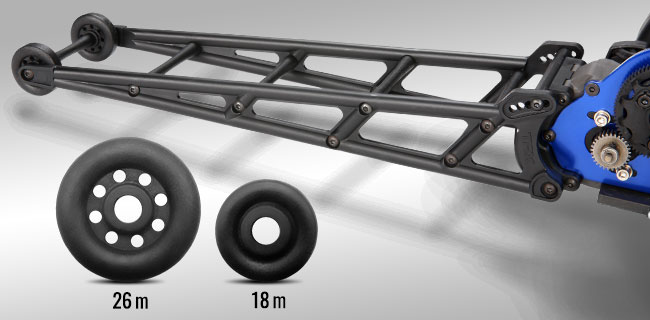

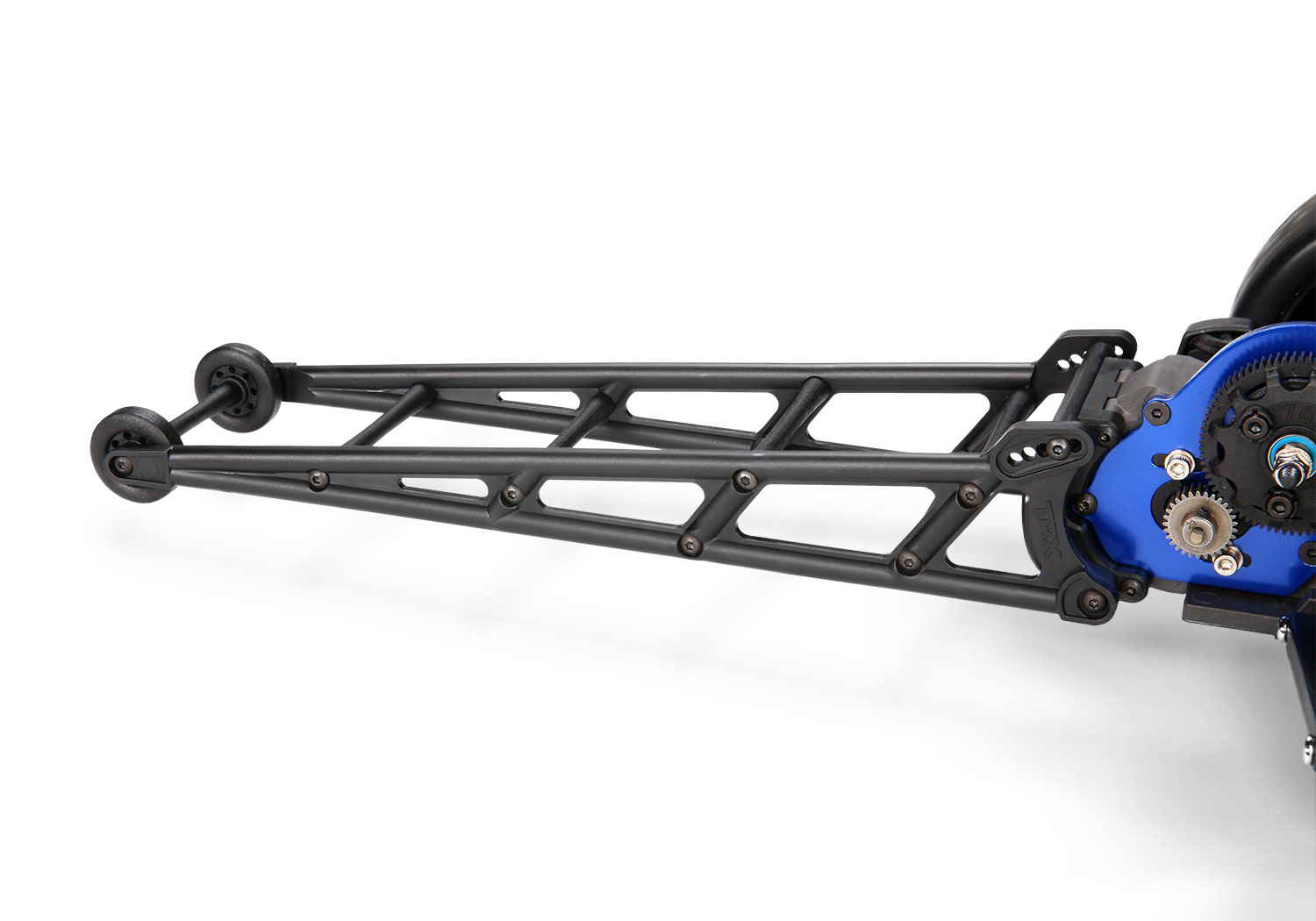

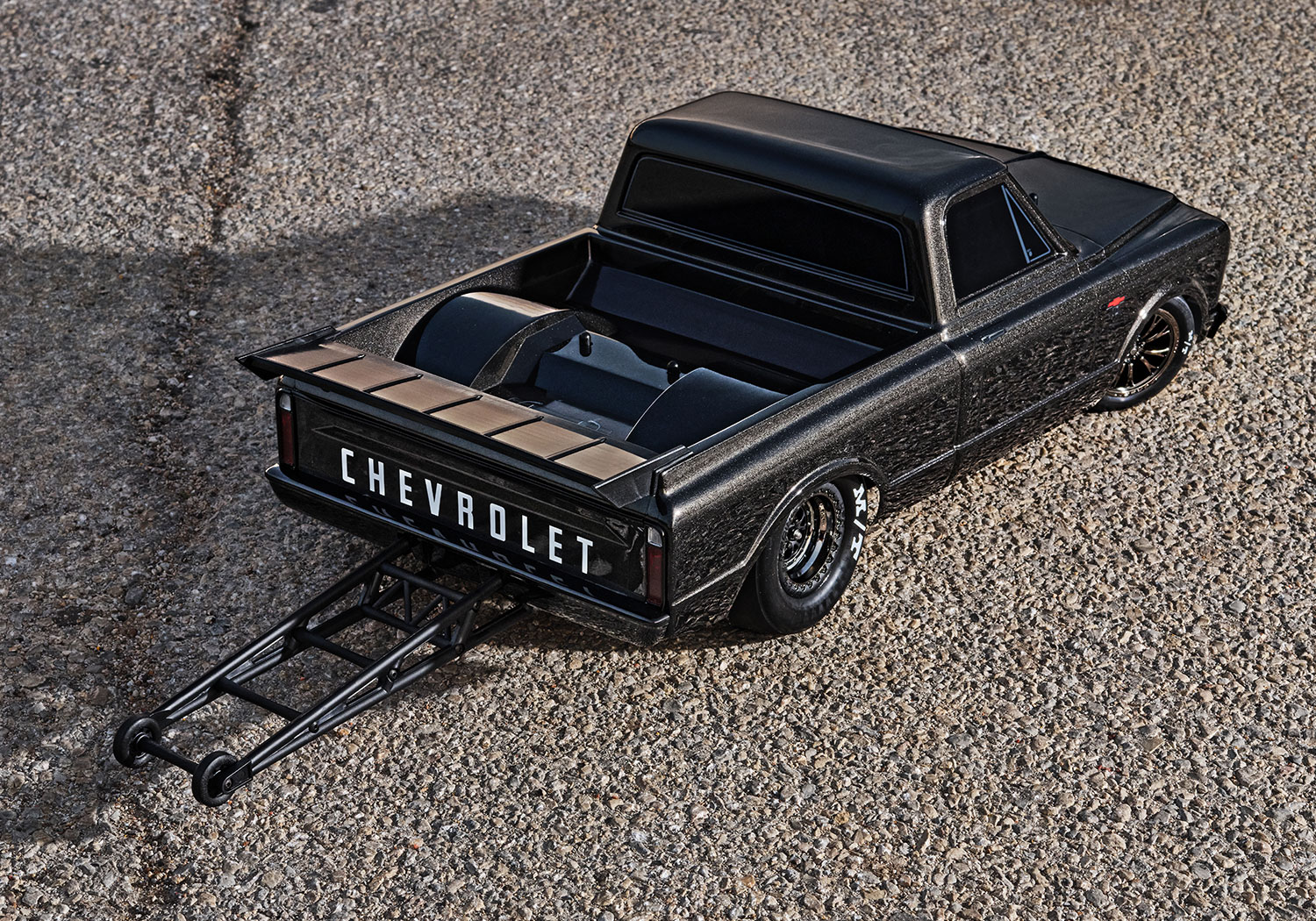

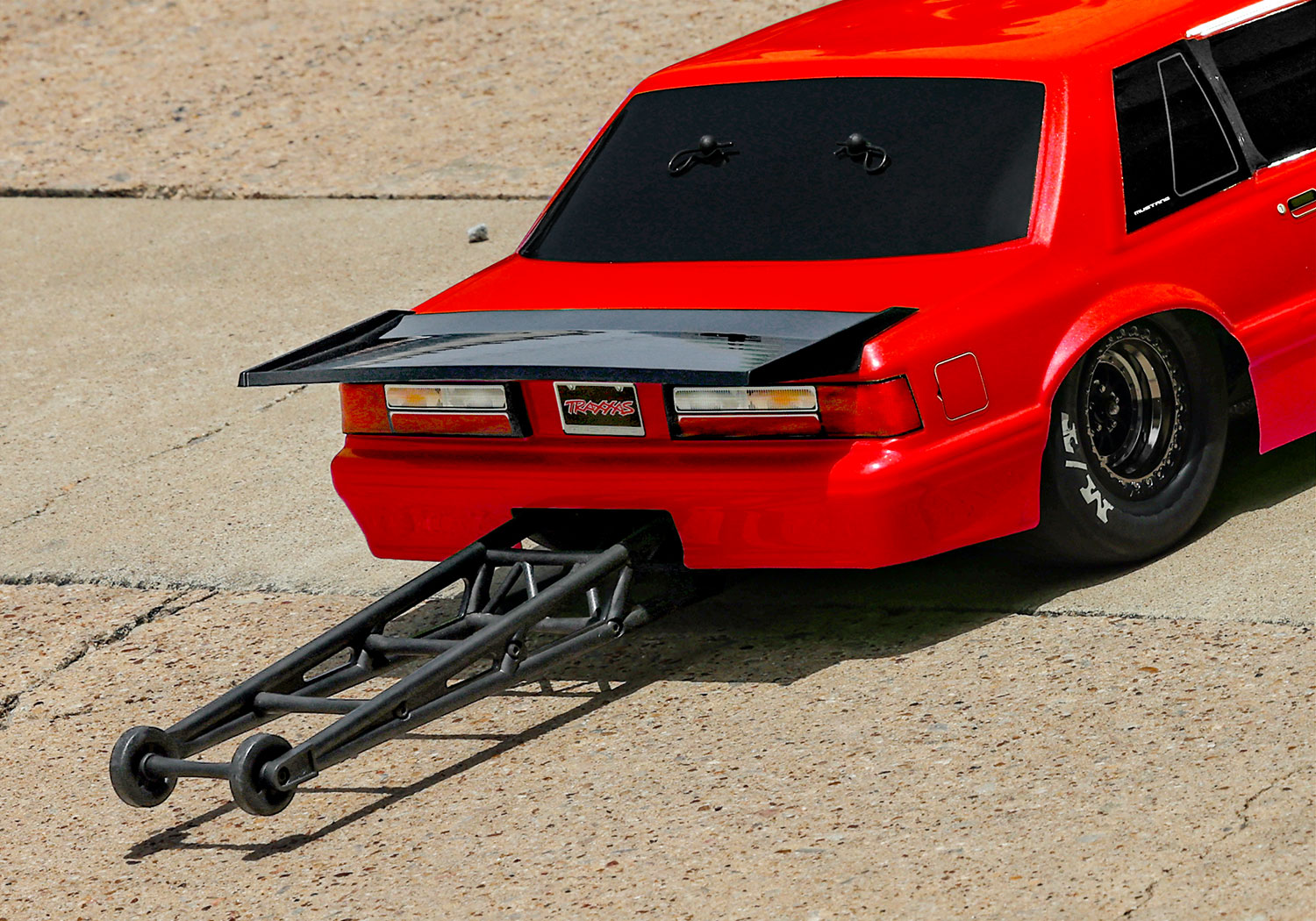

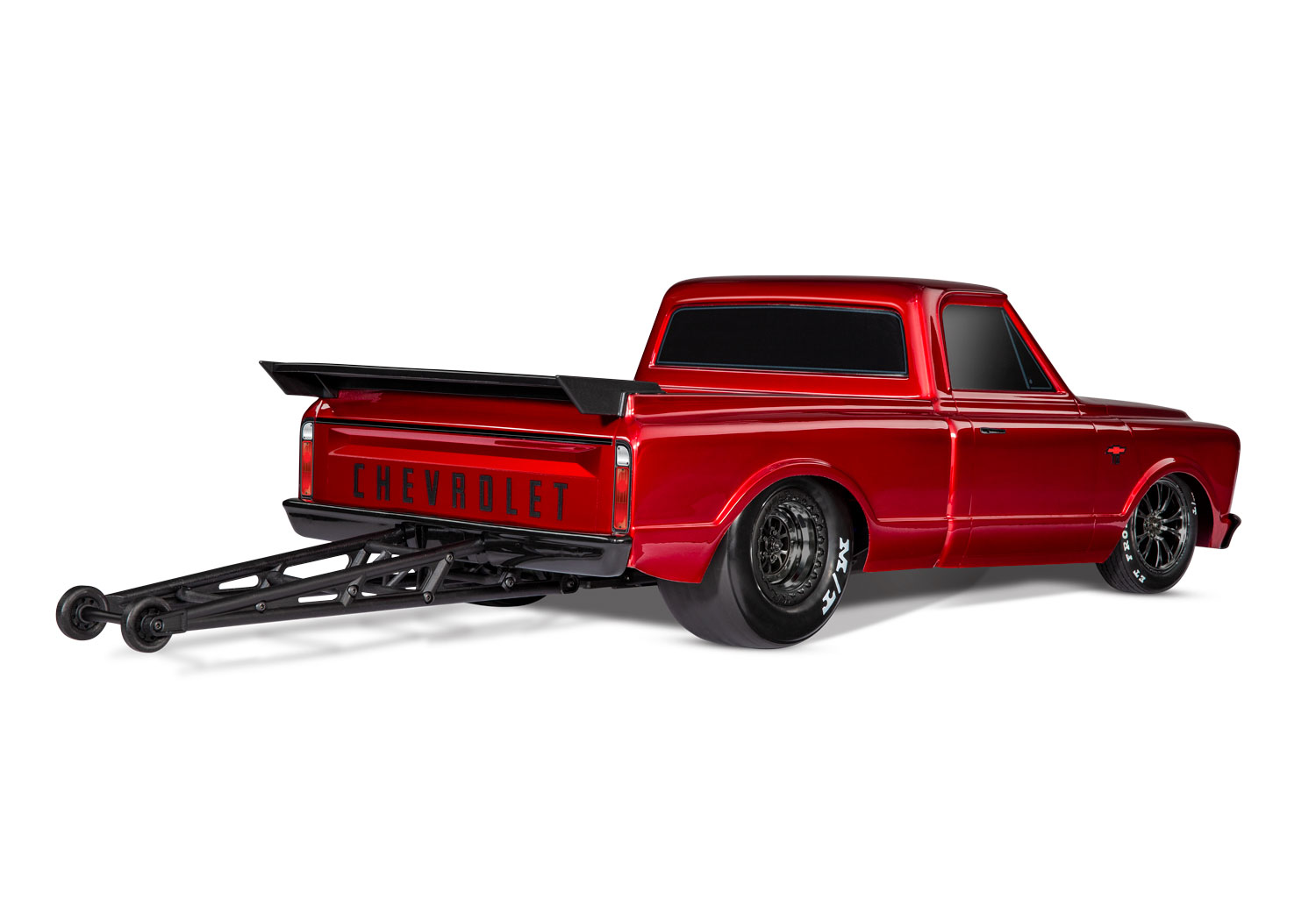

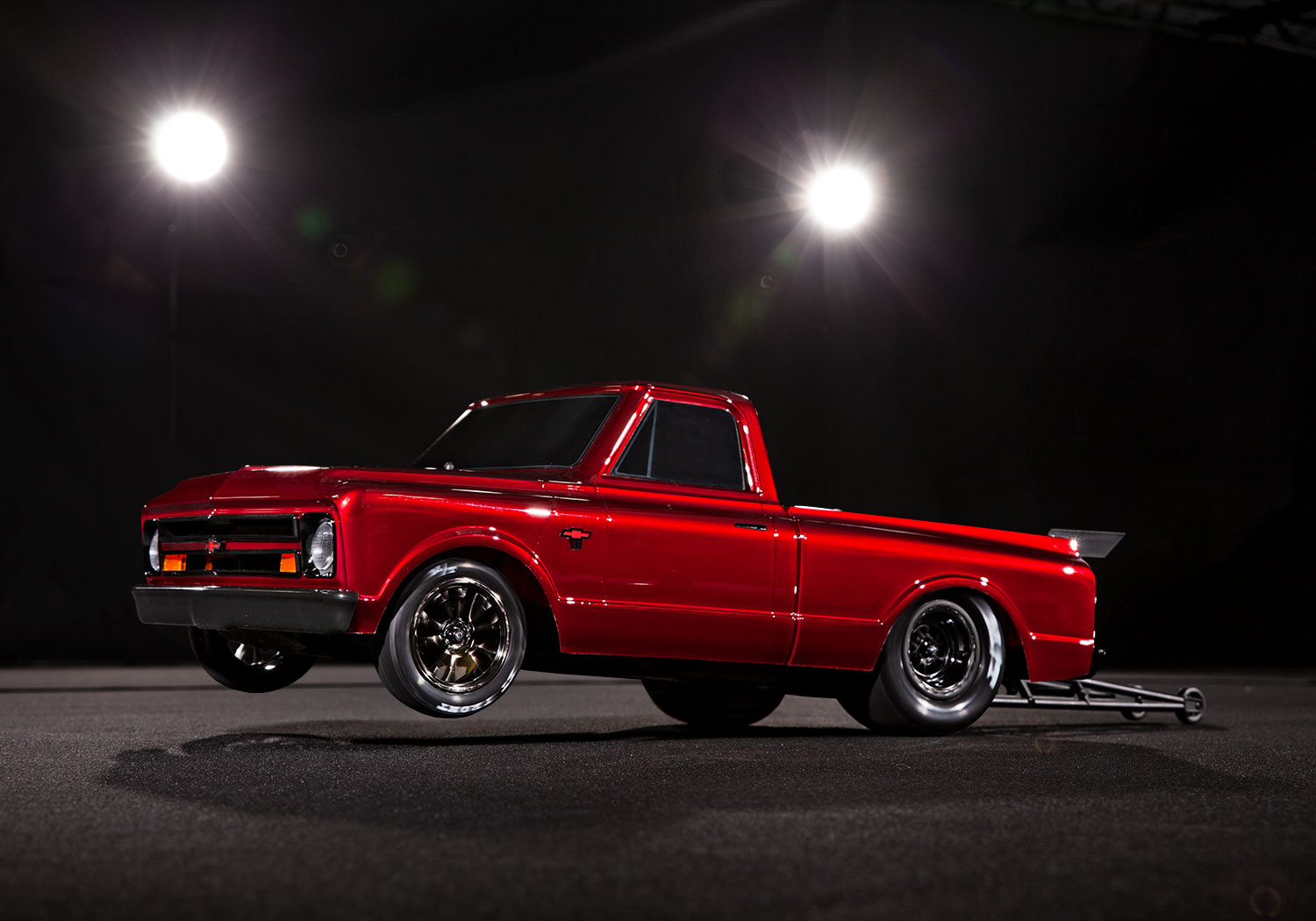

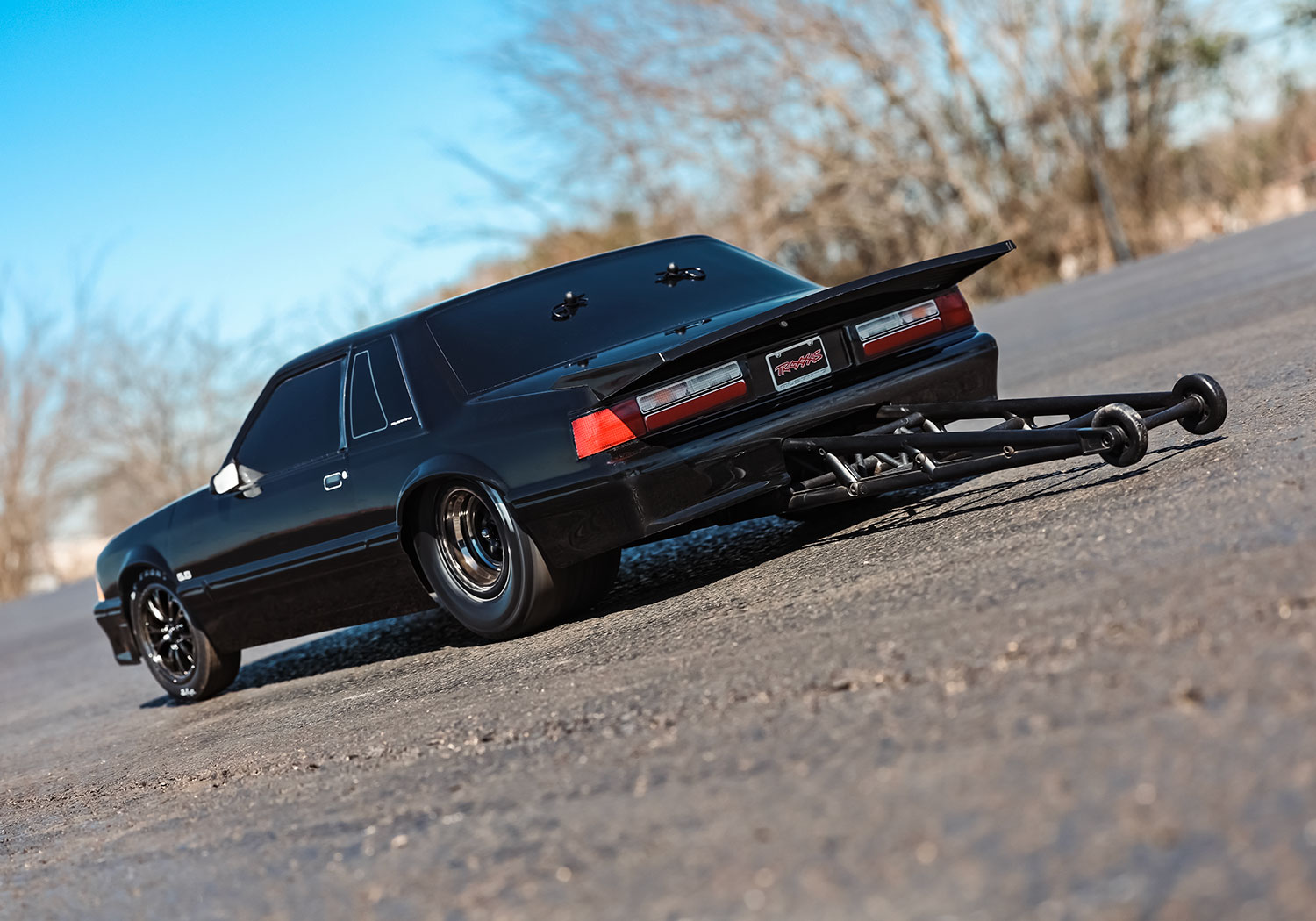

Wheelie Bar
The difference between advancing and going home early boils down to traction off the line. Drag Slash gives you maximum control with a five-position wheelie bar and two choices of wheel size. The wheelie bar’s reinforced dual-ladder frame provides maximum rigidity to get the holeshot—and the win!

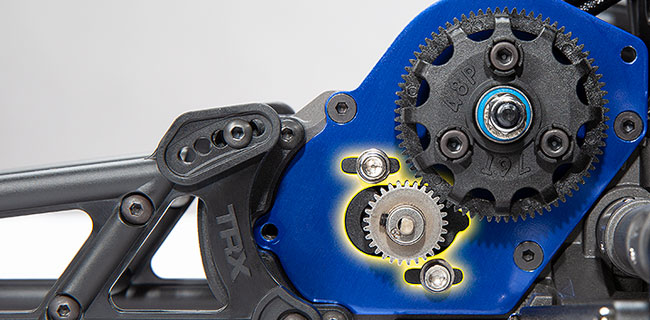

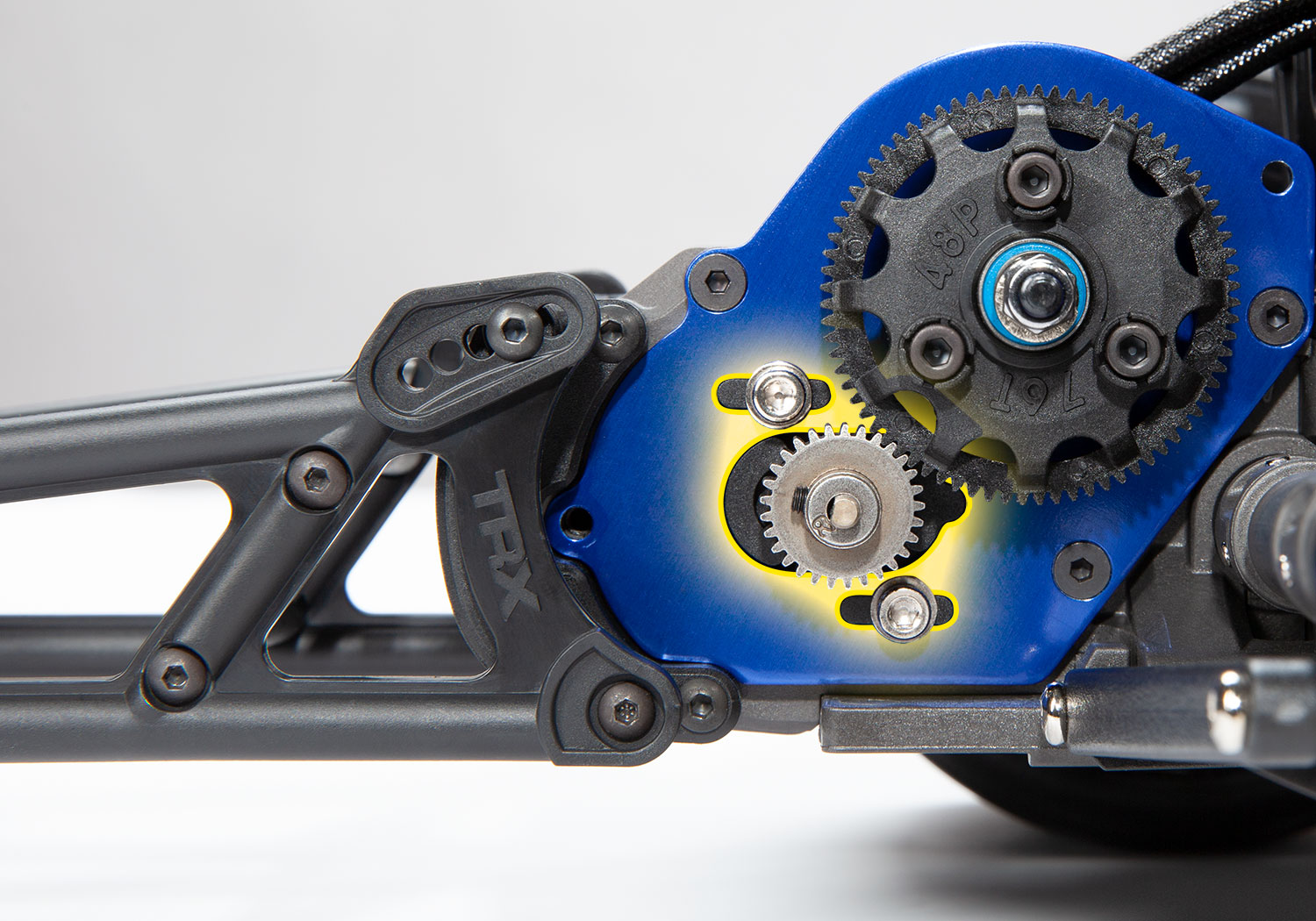

Fixed Gear Mesh
Drag Slash’s gear mesh stays perfectly set launch after launch, even as high-power drag launches try to force the gears apart. The rigid aluminum motor plate and fixed-mesh insert prevents motor movement for maximum reliability and precise gear mesh.

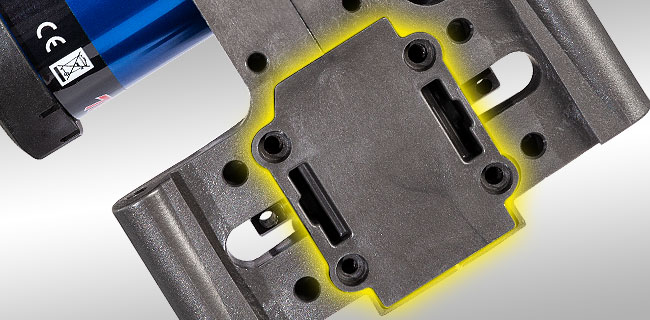

Removable Differential
Different tracks require different levels of grip, that’s just part of no-prep racing. Drag Slash makes it easy to change your differential’s locking action by varying the fluid viscosity inside. Disconnect the driveshafts and open the hatch; you’ll be on your way to victory in minutes.

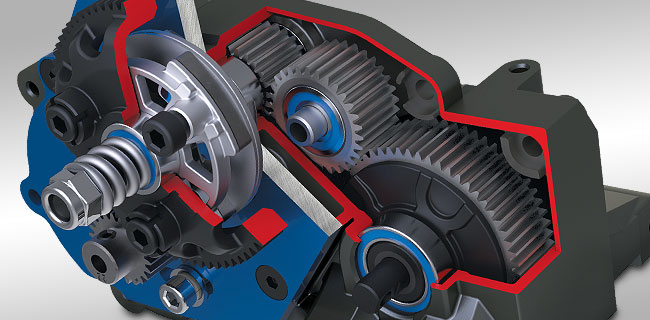

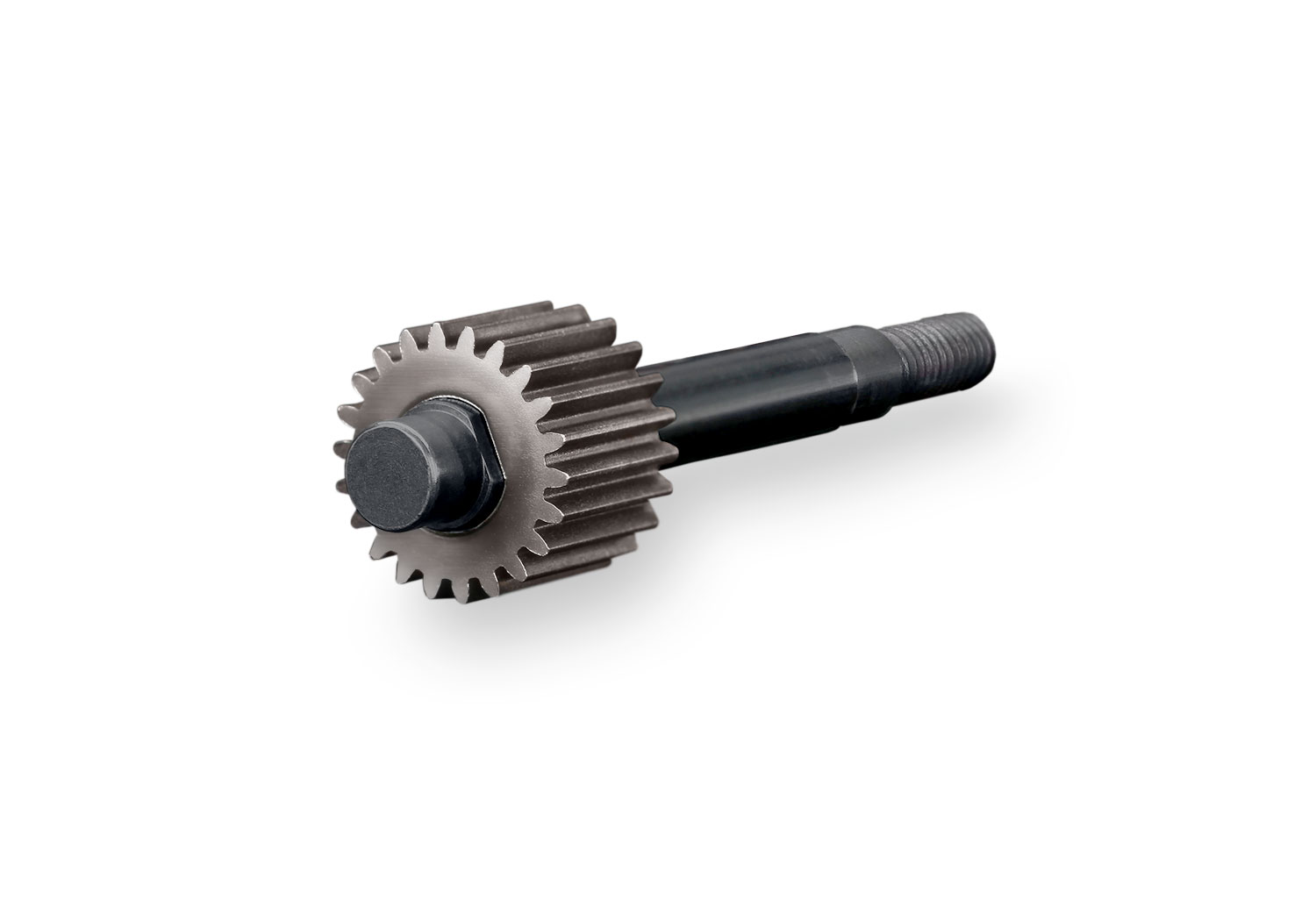

All-Metal Internal Gears
The race-ready transmission is built for massive torque with high-strength steel input, idler, and differential gears and large-diameter bearings. The input gear is keyed and press fit onto the top shaft for greater precision and strength than a pin-mounted gear.

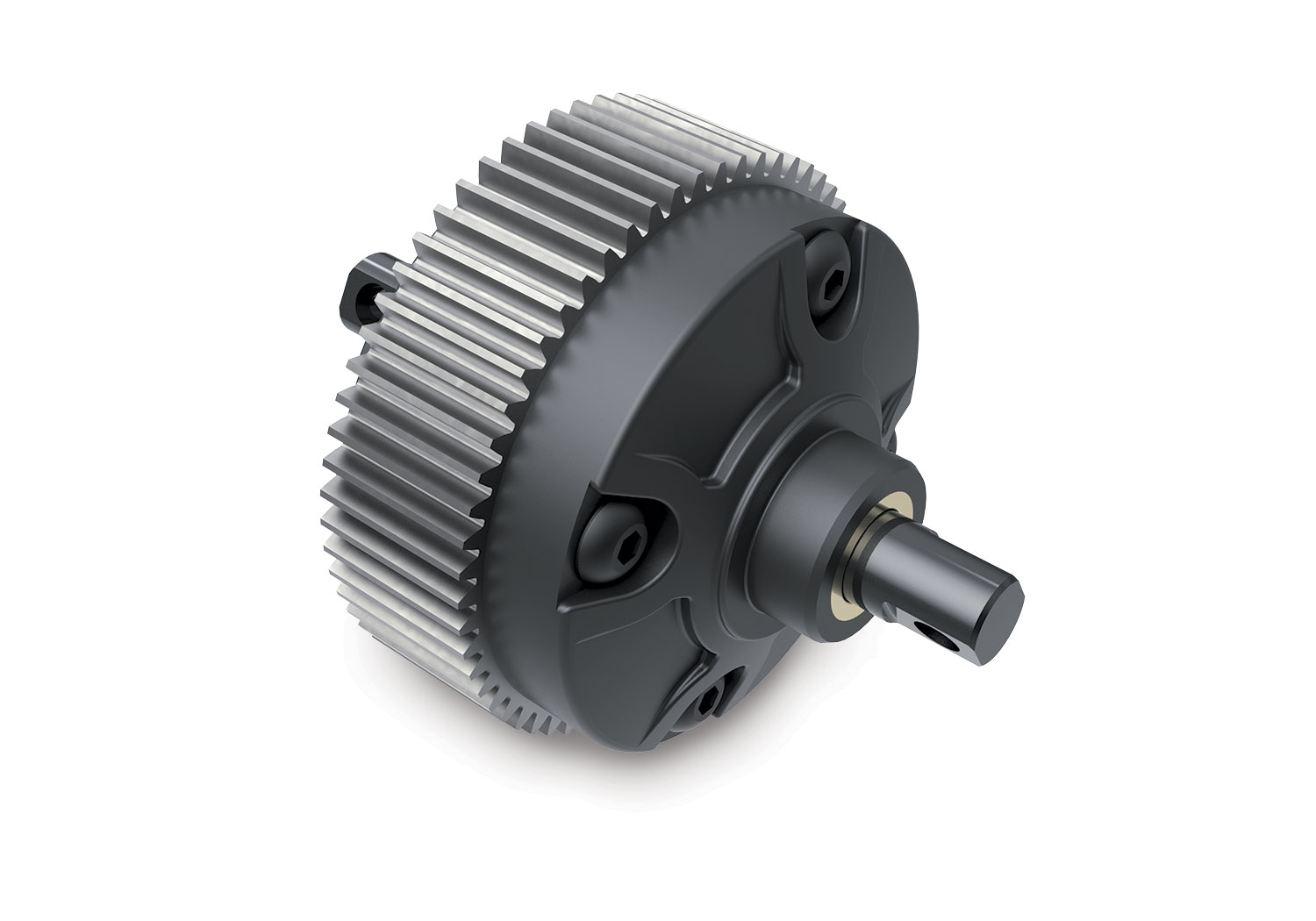

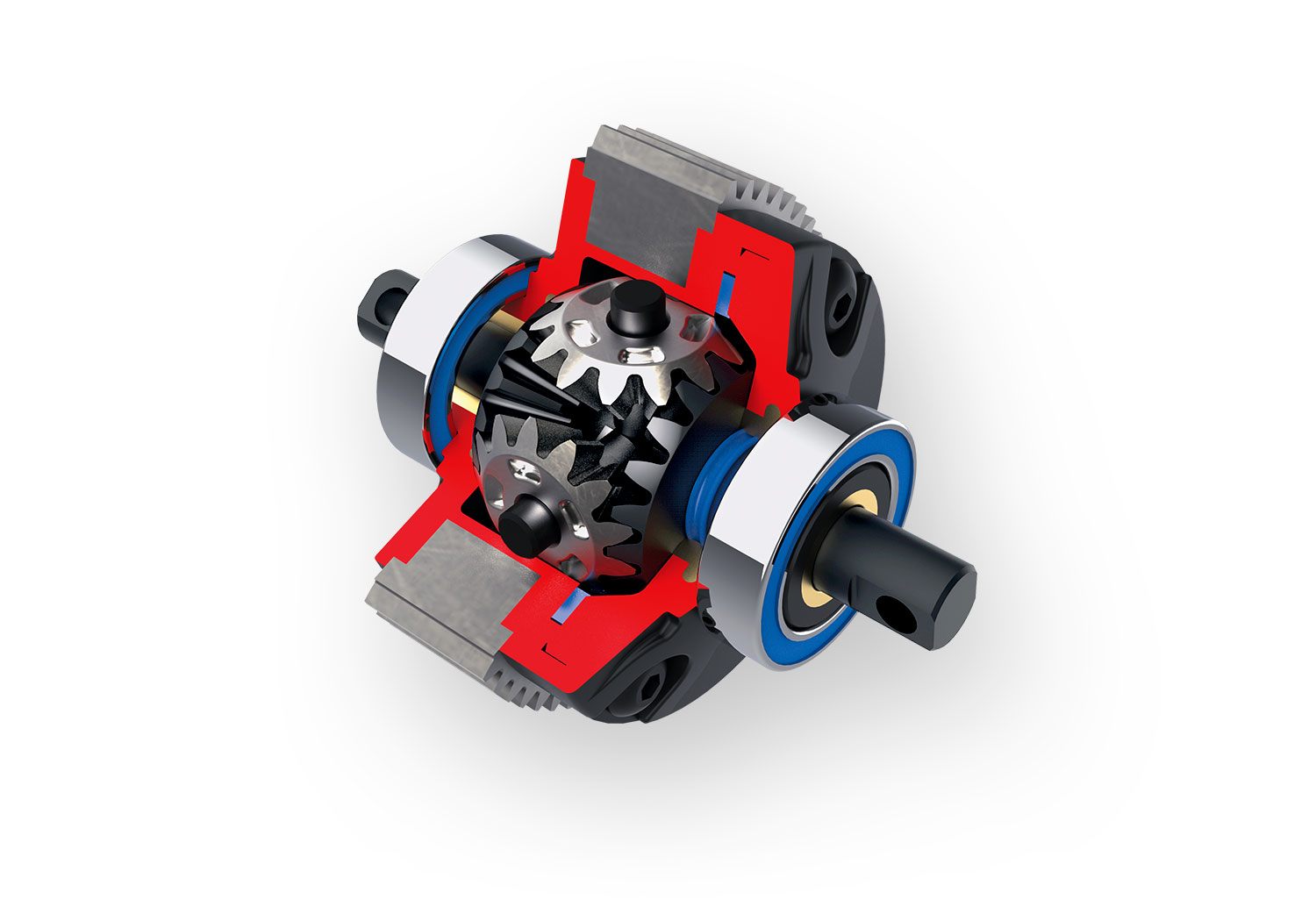

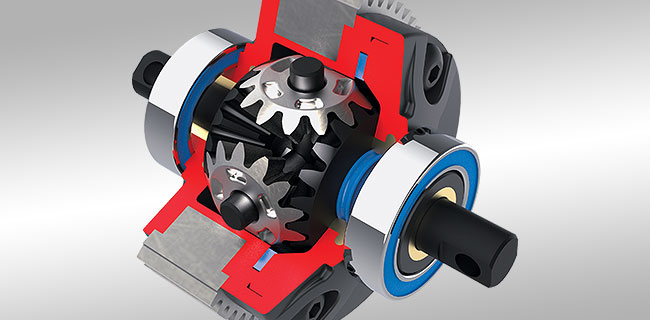

Sealed Bevel-Gear Differential
The heavy-duty steel-gear differential is X-ring and gasket-sealed and silicone-filled to resist unloading under power. Oil viscosity is optimized for drag racing, and the diff is easy to refill with thicker or thinner fluid to suit track conditions.

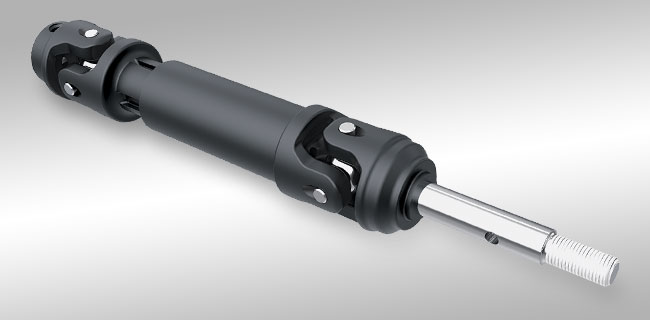

Extreme-Duty Driveshafts
Fortified for hard launches and superior durability, the Drag Slash’s Extreme-Duty driveshafts are 20% larger than standard Slash driveshafts for outrageous power handling. The larger diameter shafts offer the same articulation and suspension travel, but are rated for even more tire-shredding torque.

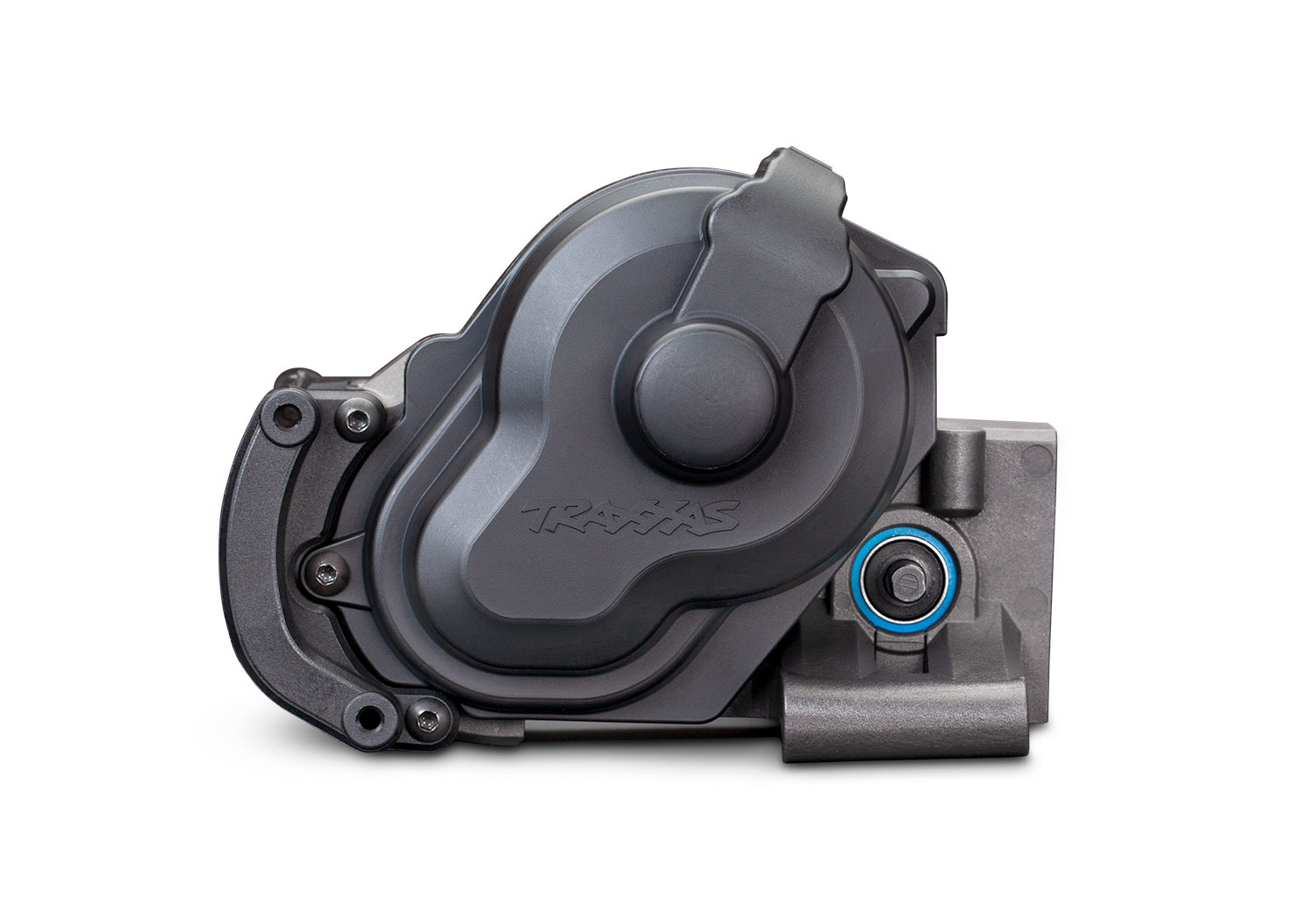

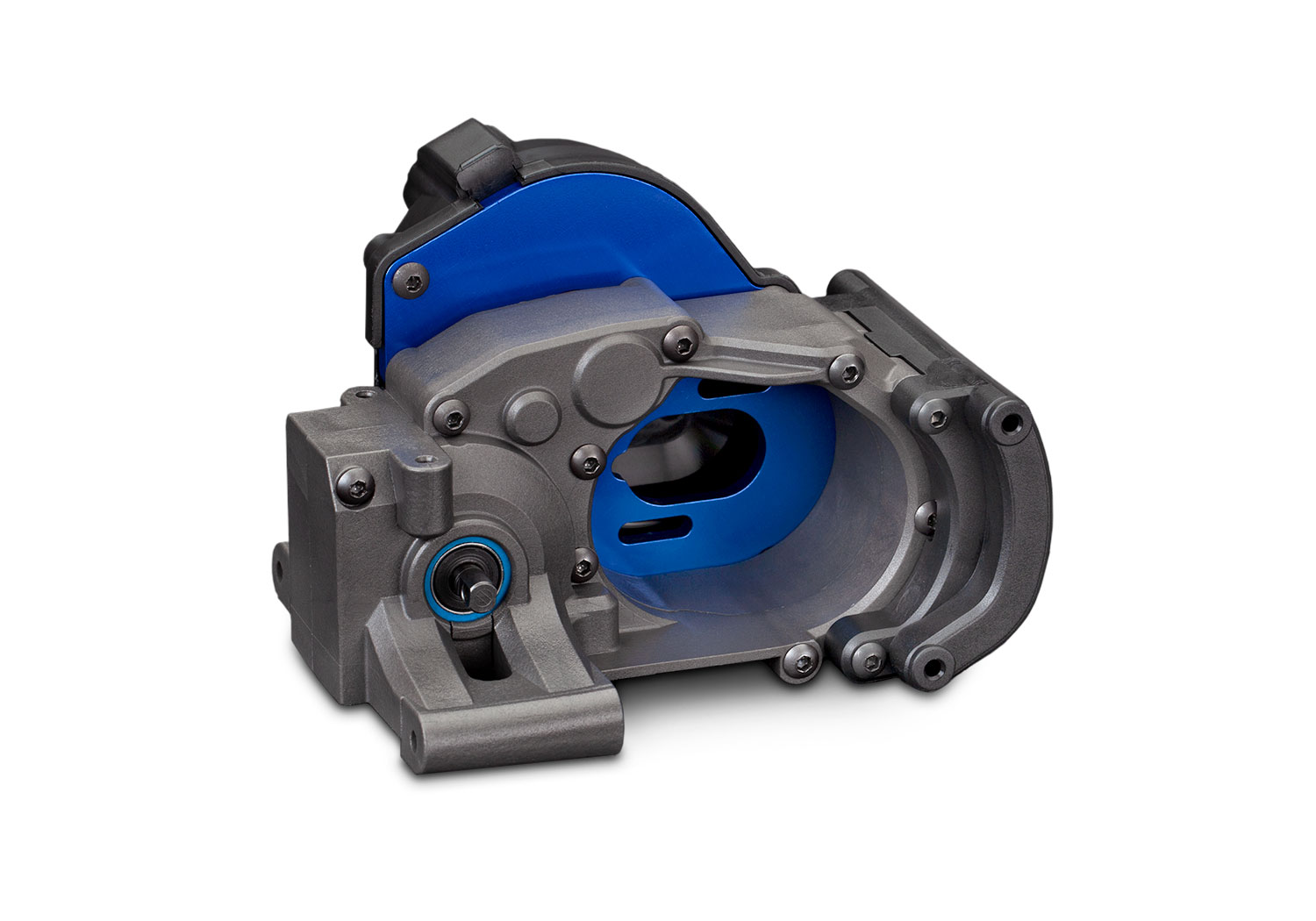

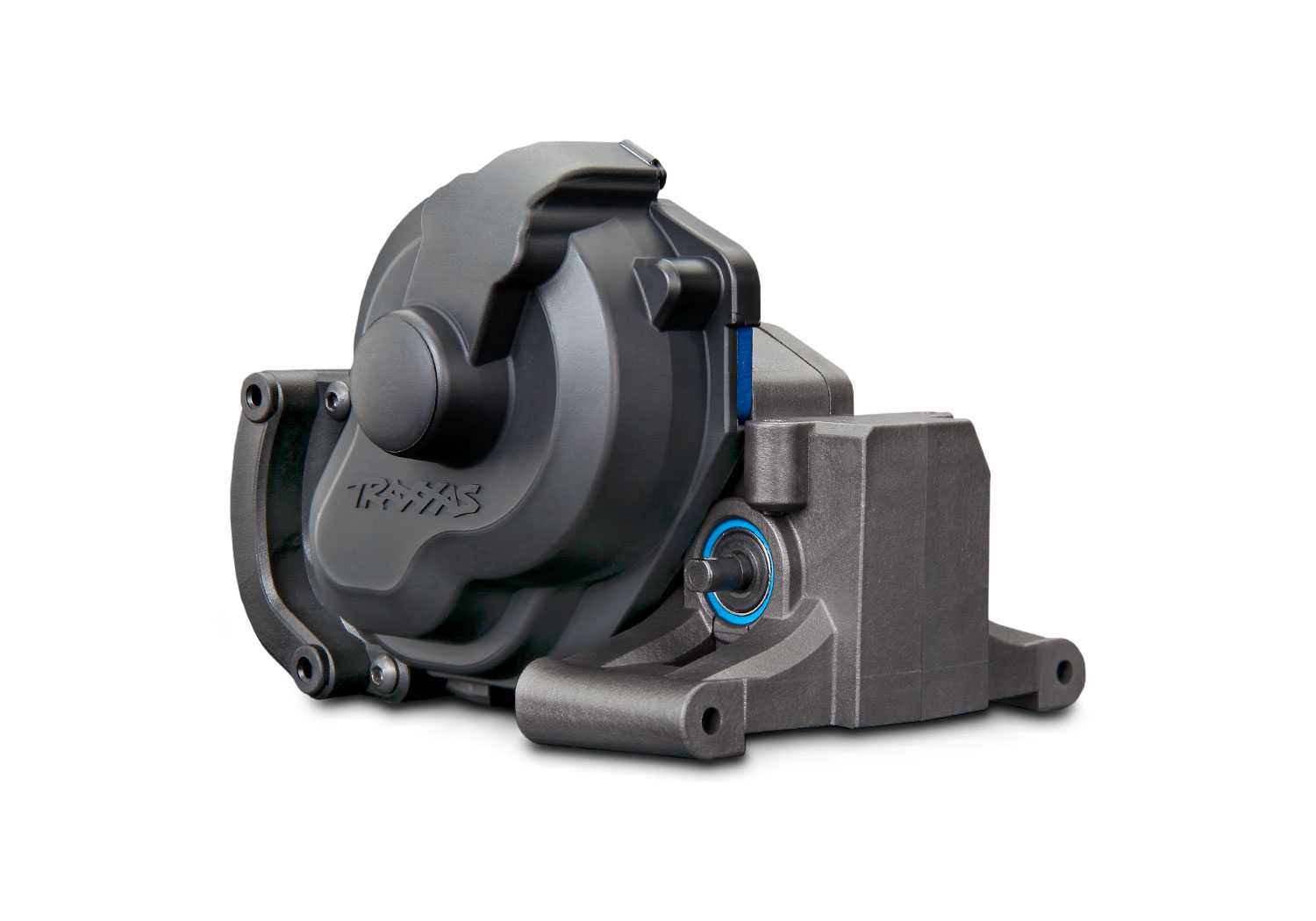

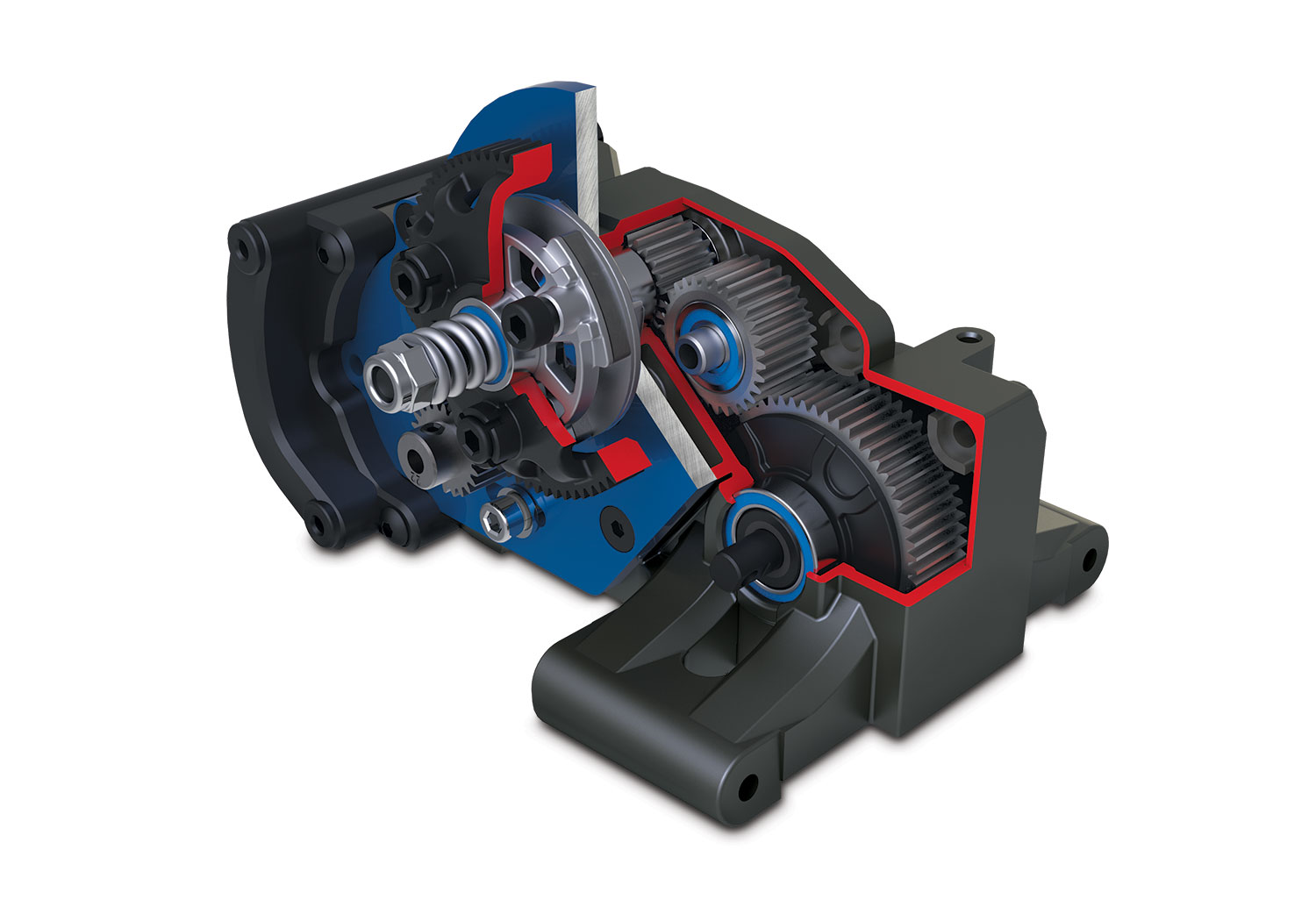

Precision Transmission Case
The Pro Series Magnum 272R transmission is engineered for strength with its rugged, reinforced case. The case halves engage precisely to seal out dirt and debris, and create a rigid structure to support the motor, suspension arms, and wheelie bar. The thick T-6 aluminum motor plate resists flex and acts as a heatsink.
Case-Supported Outputs
The Pro Series differential is ball-bearing supported directly at the differential case, rather than mounting bearings on the differential outputs. This design better supports the differential, reduces bearing drag, and isolates differential action.
Make sure you don’t miss any of the latest Traxxas Drag Slash news, accessories, and updates

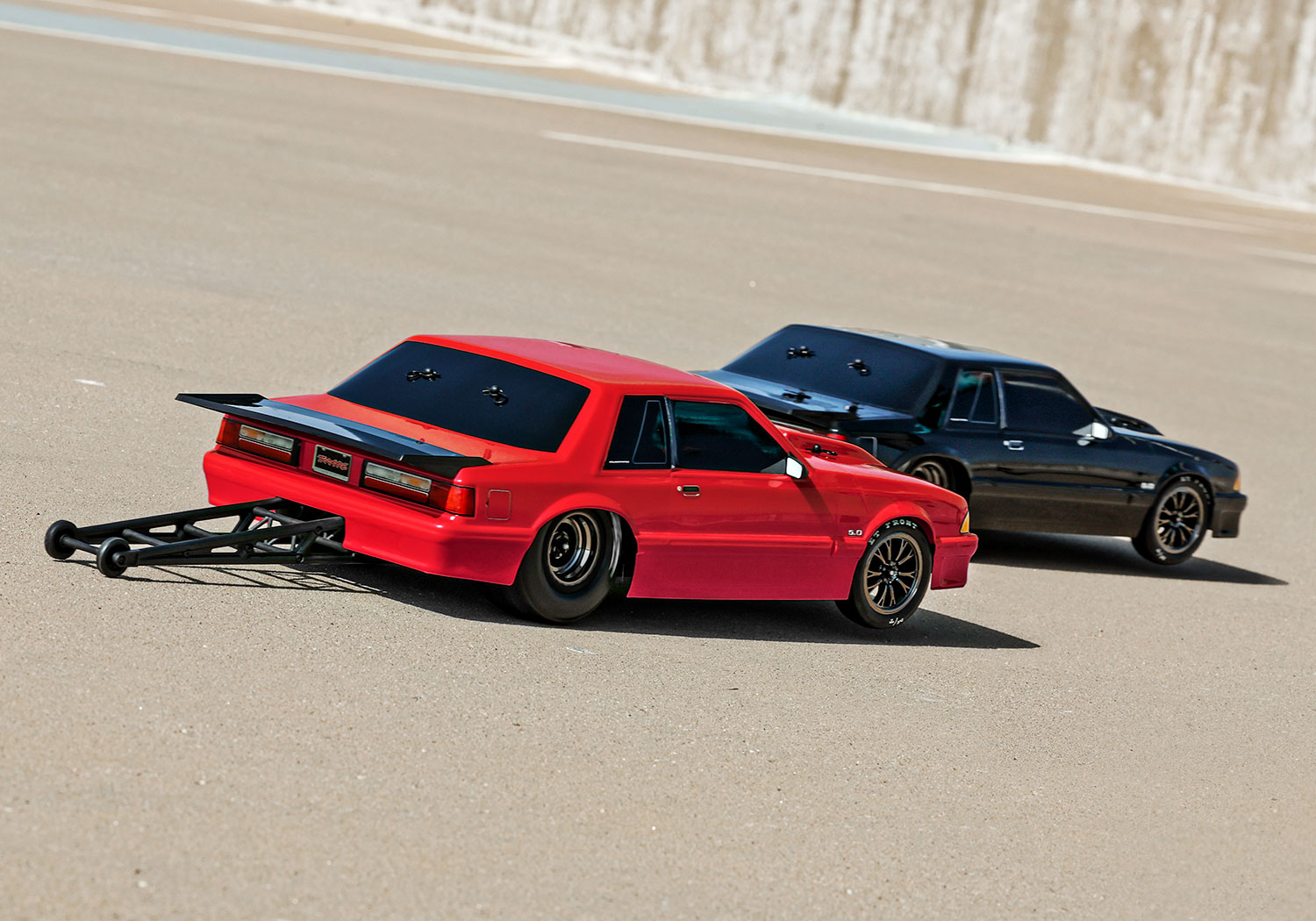

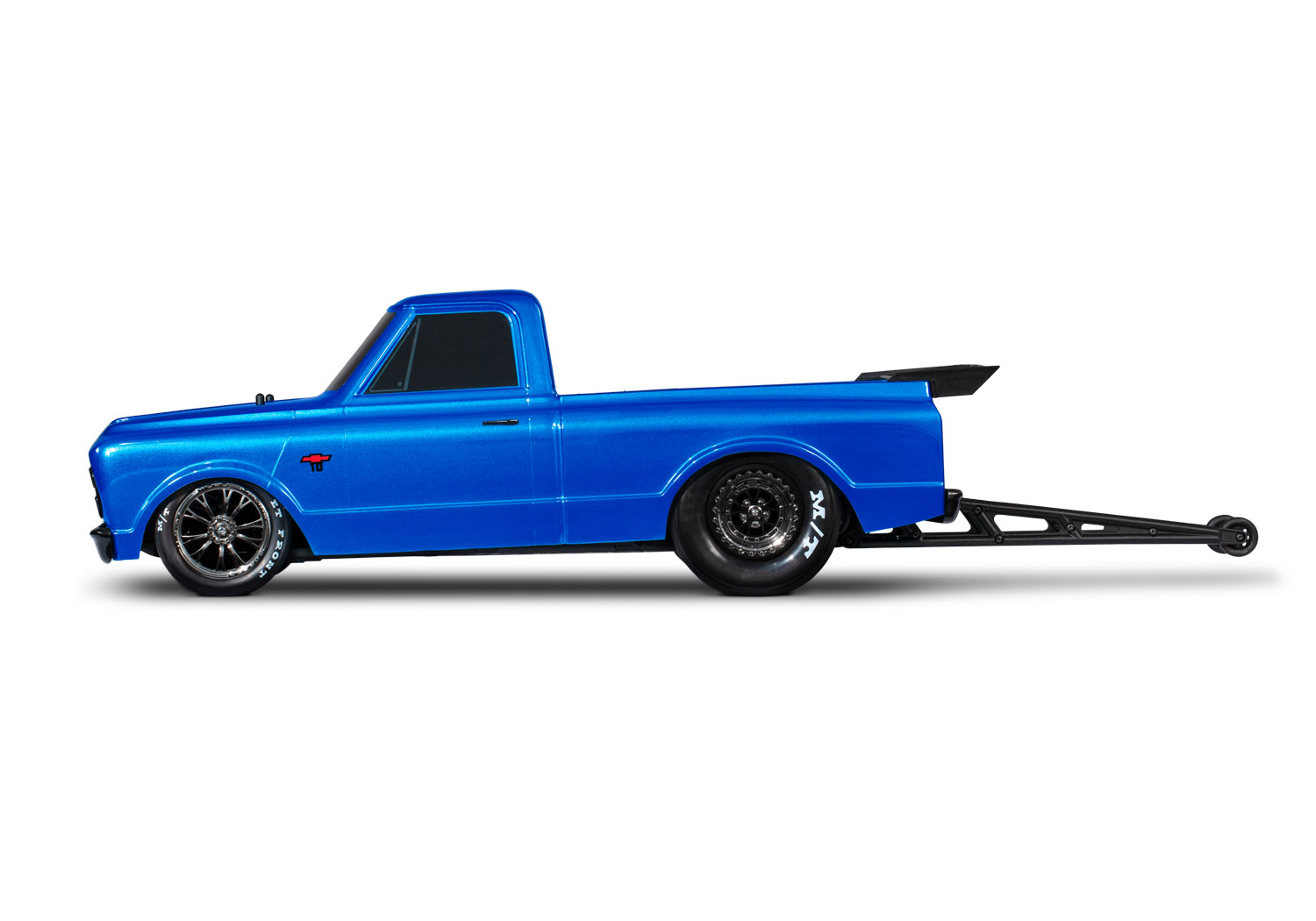

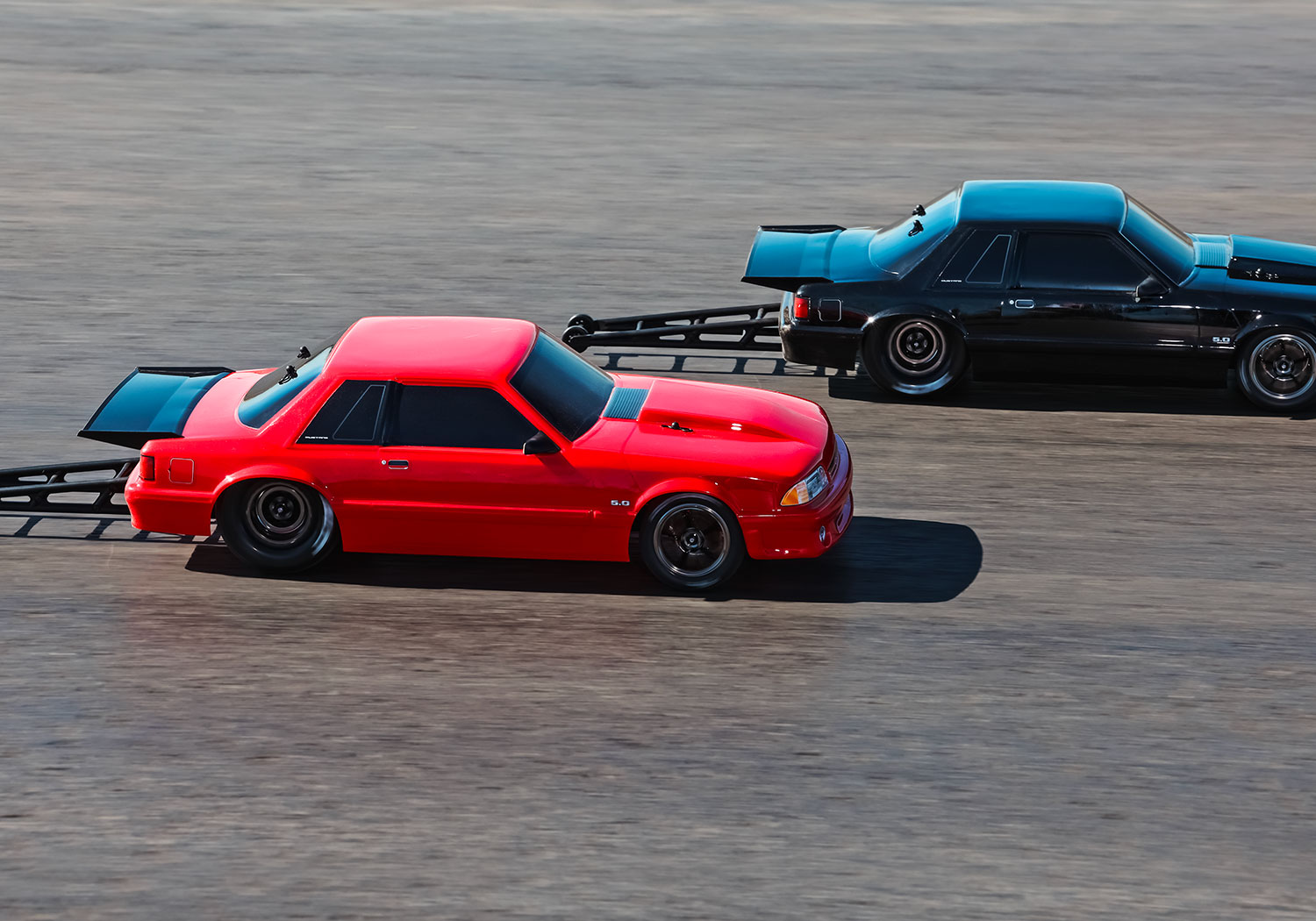

Photo Gallery
Traxxas 1/10 Scale Drag Slash Data
| Length (with wheelie bar): | 29.7 inches (754 mm) - C10 30.7 inches (779 mm) - Mustang |
|---|---|
| Length (body only): | 22.6 inches (574 mm) - C10 23.9 inches (608 mm) - Mustang |
| Front Track: | 9.3 inches (236 mm) |
| Rear Track: | 8 inches (205 mm) |
| Width: | 11 inches (279 mm) |
| Weight: | 5.23 pounds (2.37 kg) - C10 5.05 pounds (2.29 kg) - Mustang |
| Height: | 7.7 inches (196 mm) - C10 6.7 inches (170 mm) - Mustang |
| Wheelbase (at ride-height): | 12.9 inches (327 mm) |
| Tire Diameter (front): | 3.35 inches (85 mm) |
| Tire Diameter (rear): | 4.13 inches (105 mm) |
| Tire Width (front): | 1.04 inches (27 mm) |
| Tire Width (rear): | 2.25 inches (57 mm) |
| Wheel Diameter (front): | 2.2 inches (56 mm) |
| Wheel Diameter (rear): | 2.2/3.0 inches (56 mm/76 mm) |
| Shocks: | Ultra Shocks™ – long (front and rear) |
| Speed Control: | VXL-3s™ electronic speed control |
| Motor (electric): | Velineon® 3500 Kv (10-turn) |
| Transmission: | Pro-Series Magnum 272R™ |
| Overall Drive Ratio: | 9.82:1 |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
| Gear Pitch: | 48 pitch |
| Chassis Structure/Material: | Molded tub / Nylon composite |
| Brake Type: | Trans brake, electronic |
| Drive System: | Shaft-driven 2WD |
| Steering: | Dual bellcrank |
| Radio System: | TQi™ 2.4 GHz 3-channel |
| Servo: | 2075 high torque waterproof |
| Skill Level: | 4 |
| Battery Tray: | 165 mm x 50 mm x 23 mm/25 mm |
| Type: | Velineon® 3500 kV sensorless brushless |
|---|---|
| Weight: | 9.24 ounces (262 g) |
| Length: | 2.20 inches (56 mm) |
| Diameter: | 1.41 inches (36 mm) |
| Connector Type: | 3.5 mm bullet |
| Input Voltage (cells): | 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo |
|---|---|
| Case Size: | 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm) |
| Weight: | 3.84 ounces (109 g) |
| BEC Voltage: | 6.0 volts |
| Reverse Delay: | Yes, with lockout |
| Thermal Protection: | Two-stage thermal shutdown |
| Ports: | Auxiliary fan |

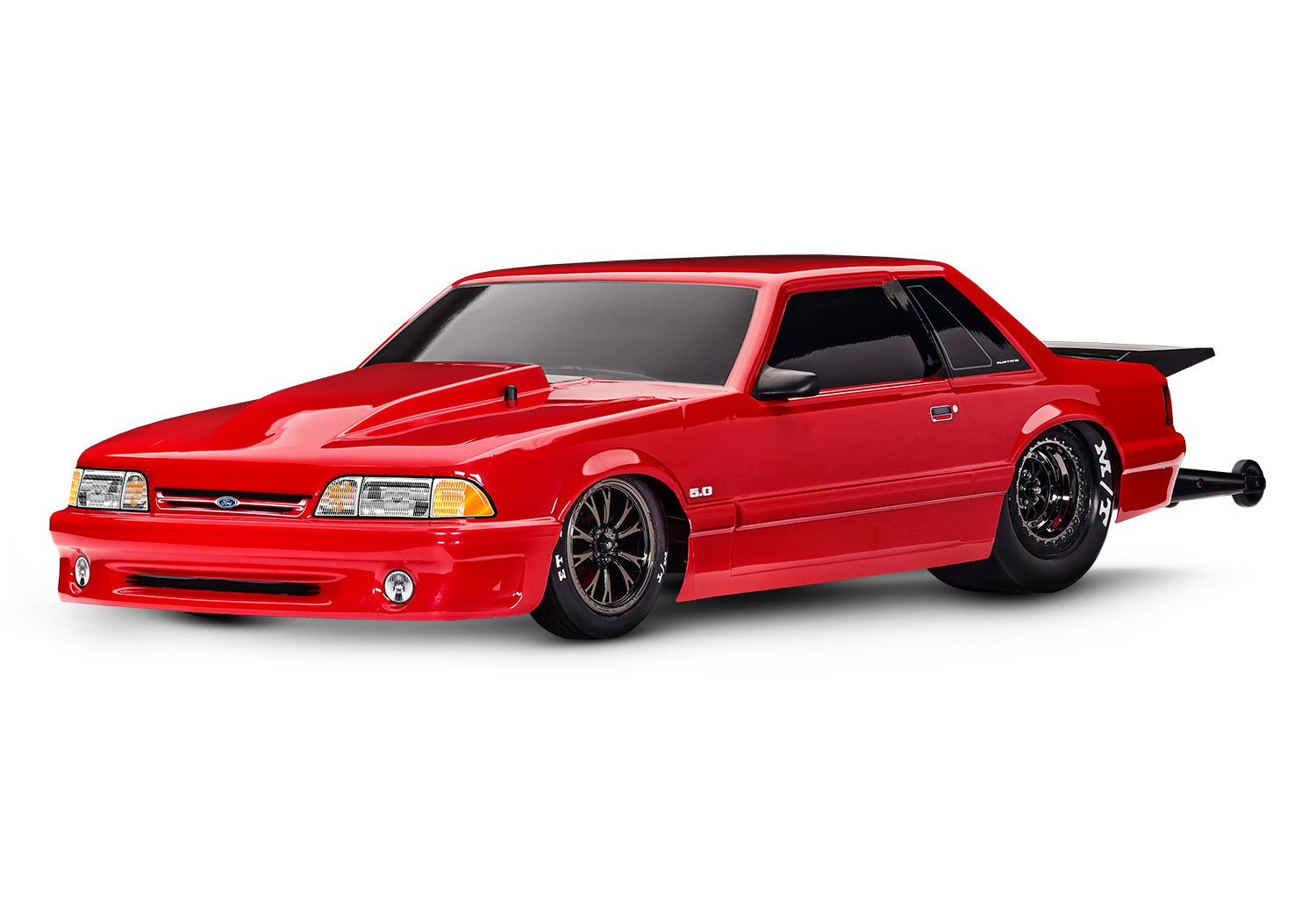

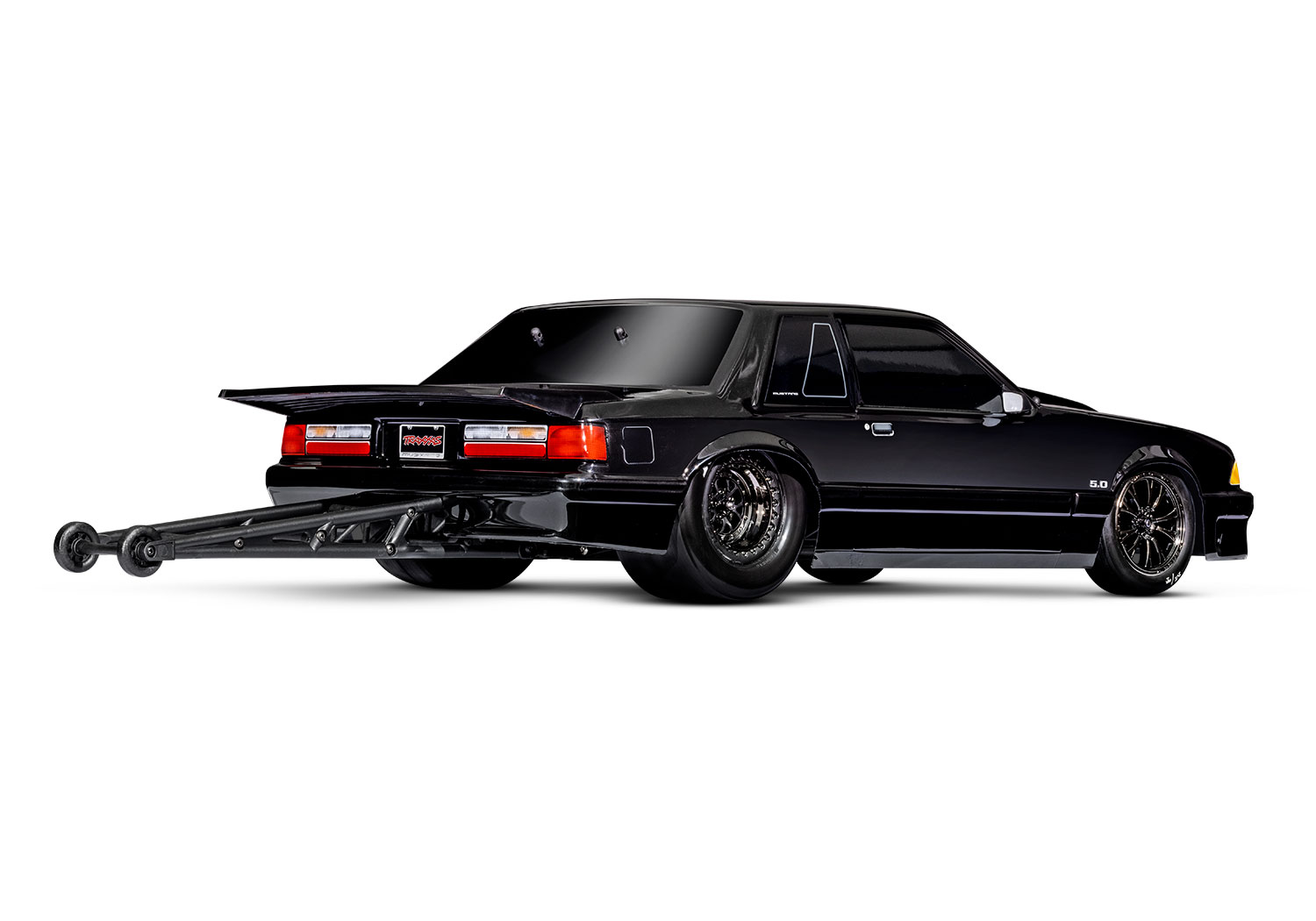

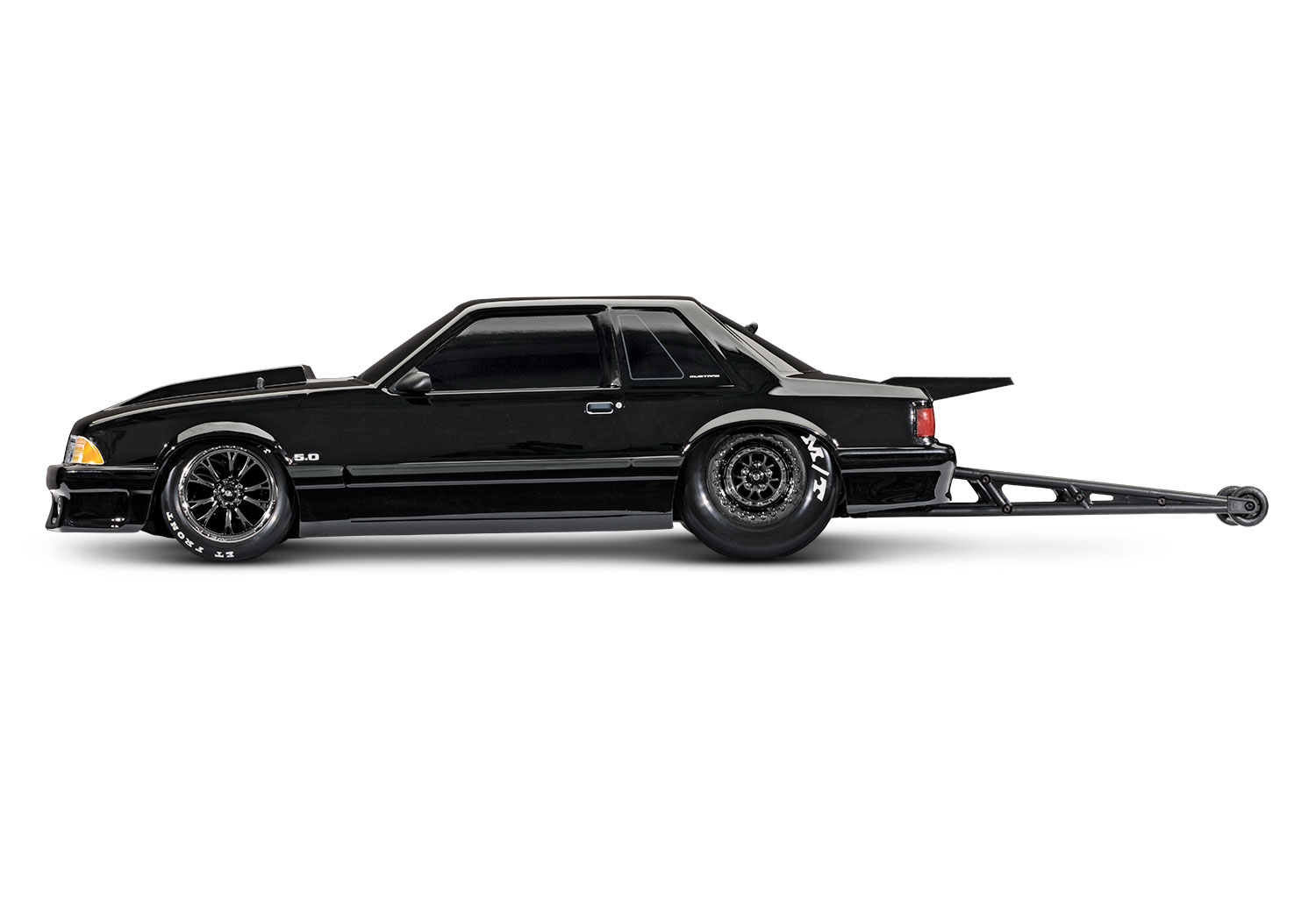

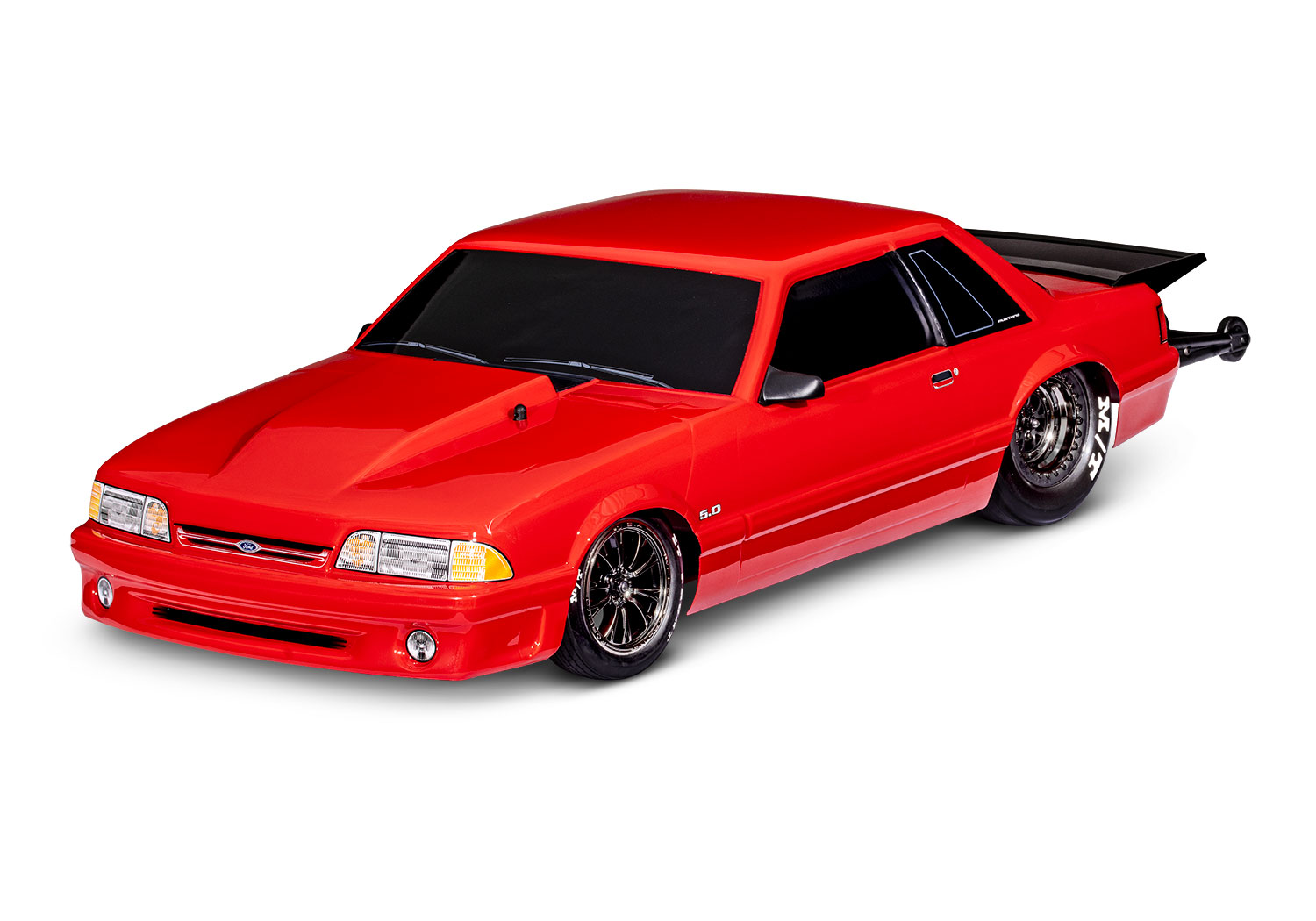

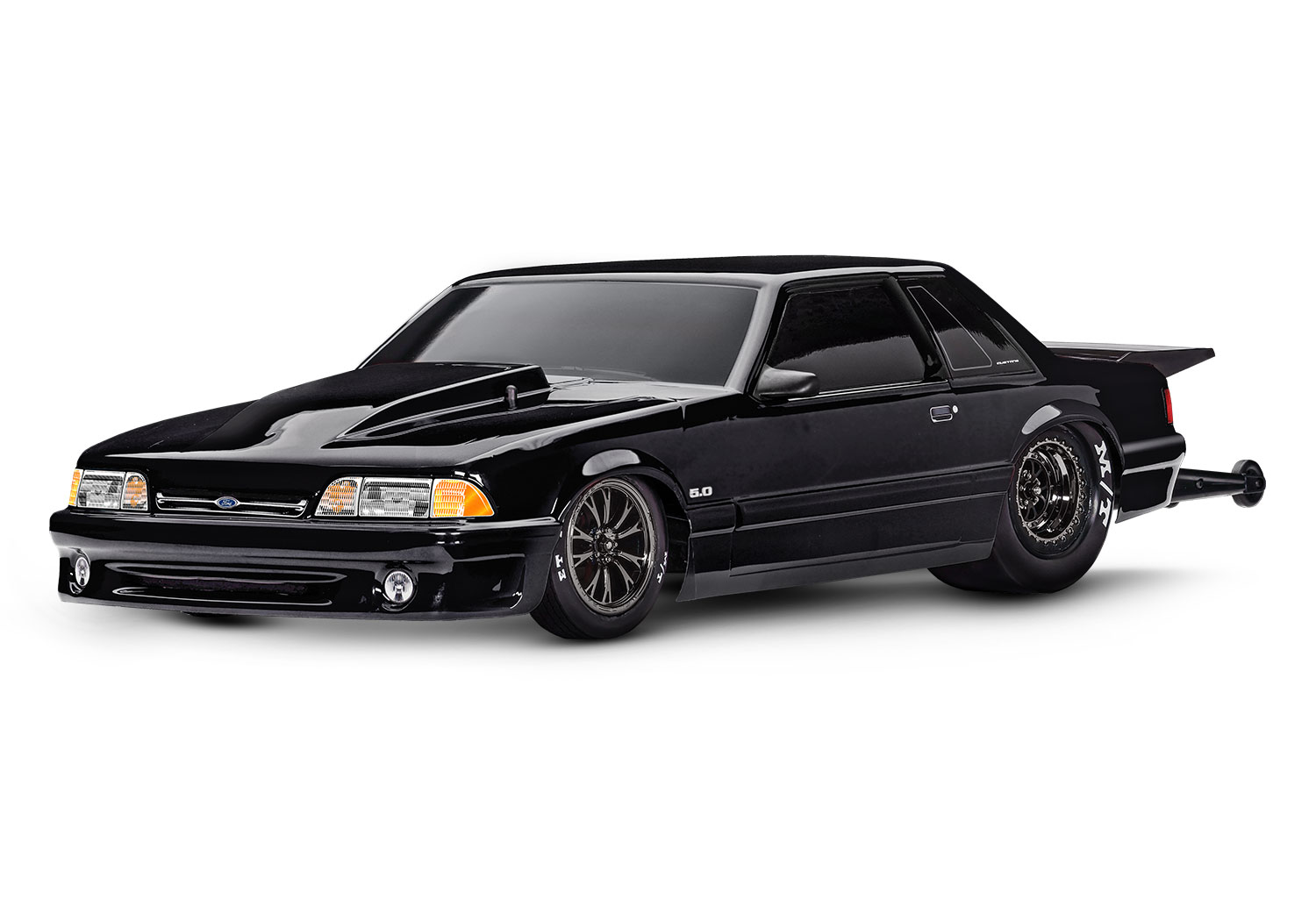

- Officially Licensed Ford® Mustang or Chevrolet® C10 Body
- Durable ProGraphix® polycarbonate body
- Rich high-gloss colors
- Injection-molded bi-level grille (C10)
- High-performance injection-molded rear wing
- Provides traction-enhancing downforce
- Reduces drag and turbulence
- LED-ready headlight surrounds (C10)
- Deeply recessed bed recreates “tubbed” look (C10)
- Durable ProGraphix® polycarbonate body
- VXL-3s™ Waterproof Electronic Speed Control
- Three Programmable Drive Profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- High-efficiency heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Click here for more info
- Three Programmable Drive Profiles:
- Velineon® 3500 kV Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- Brilliant blue-anodized finish
- Extended Wheelie Bar
- 5 position adjustability
- Reinforced double-ladder construction
- Large and small wheels included to refine tuning
- All-New Magnum 272R Transmission
- Redesigned heavy-duty low-CG case
- Heavy-duty 3.2 mm aluminum motor plate
- Case supported bearings
- Fixed gear mesh
- High-strength steel gears
- Sealed bevel-gear differential
- Easy differential access
- Redesigned heavy-duty low-CG case
- Traxxas Stability Management® (TSM)
- Improves straight line acceleration on low-traction surfaces
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
- Drag Race Mode to disable TSM where prohibited
- Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
- Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved stability
- Smooth underside reduces drag
- Chassis-mounted front bumper
- Heavy-duty bumper supports for extra protection
- High Performance Suspension
- 4 mm adjustable steel turnbuckles
- Heavy-duty captured links won’t pop off
- Drag-Tuned Ultra Shocks™
- Fully adjustable and oil-filled with X-ring technology
- Stiffer springs and silicone oil for improved traction
- Custom bump stops provide solid ride control
- TQi™ 2.4 GHz High Output Radio System
- TQi 3-channel transmitter
- Trans Brake switch for lightning-fast launches
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver with fail-safe security

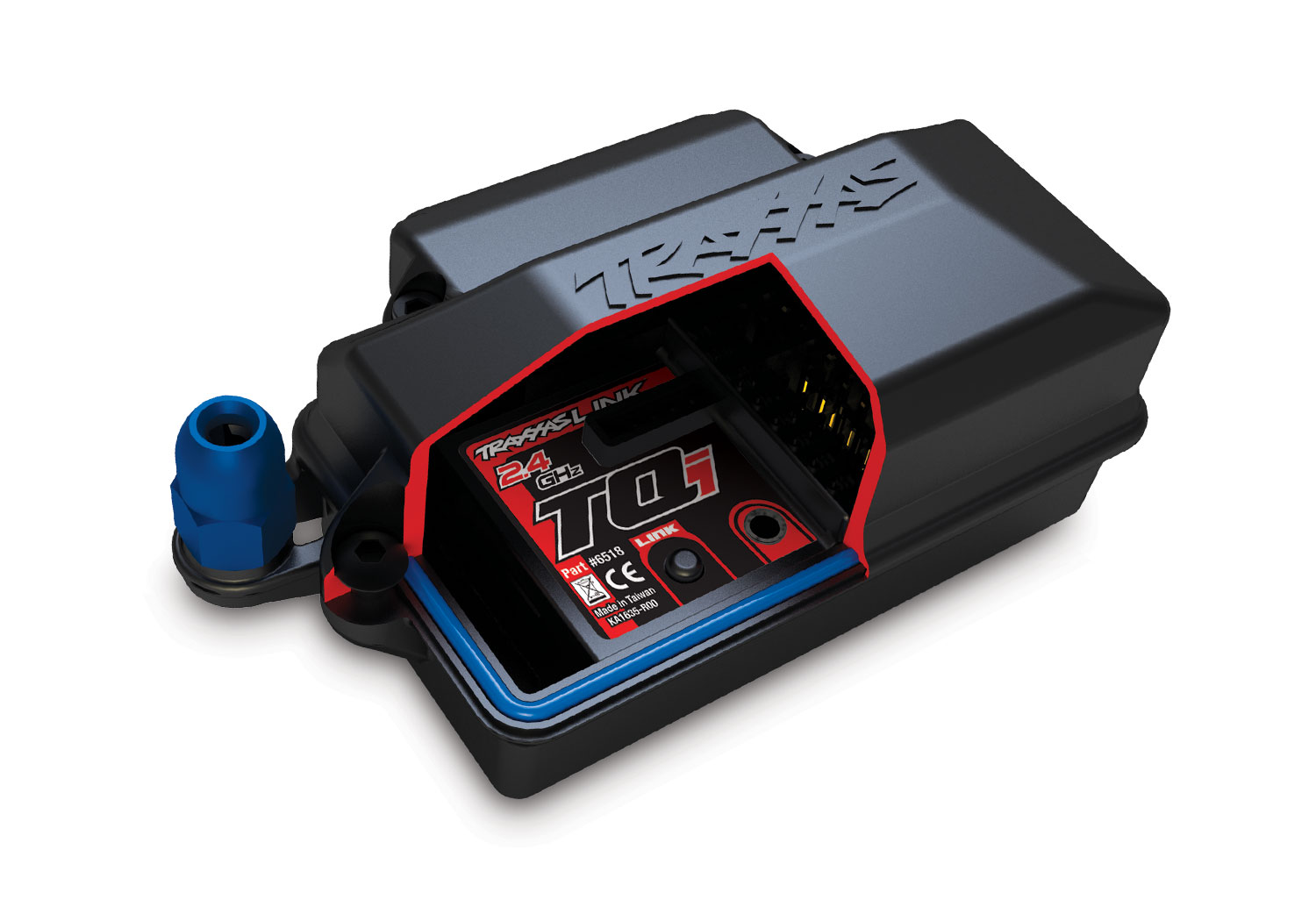

- Patented waterproof receiver box with easy-access plug
- Drivetrain
- Modified extreme-duty driveshafts
- Torque Control™ slipper clutch
- Wheels and Tires
- Replica Weld Racing® wheels for a classic look
- Replica Thompson® ET Drag® slick tires
- Unique compound balances long life and superior grip
- Molded high-density tire foam
- Webbed inner structure for increased durability

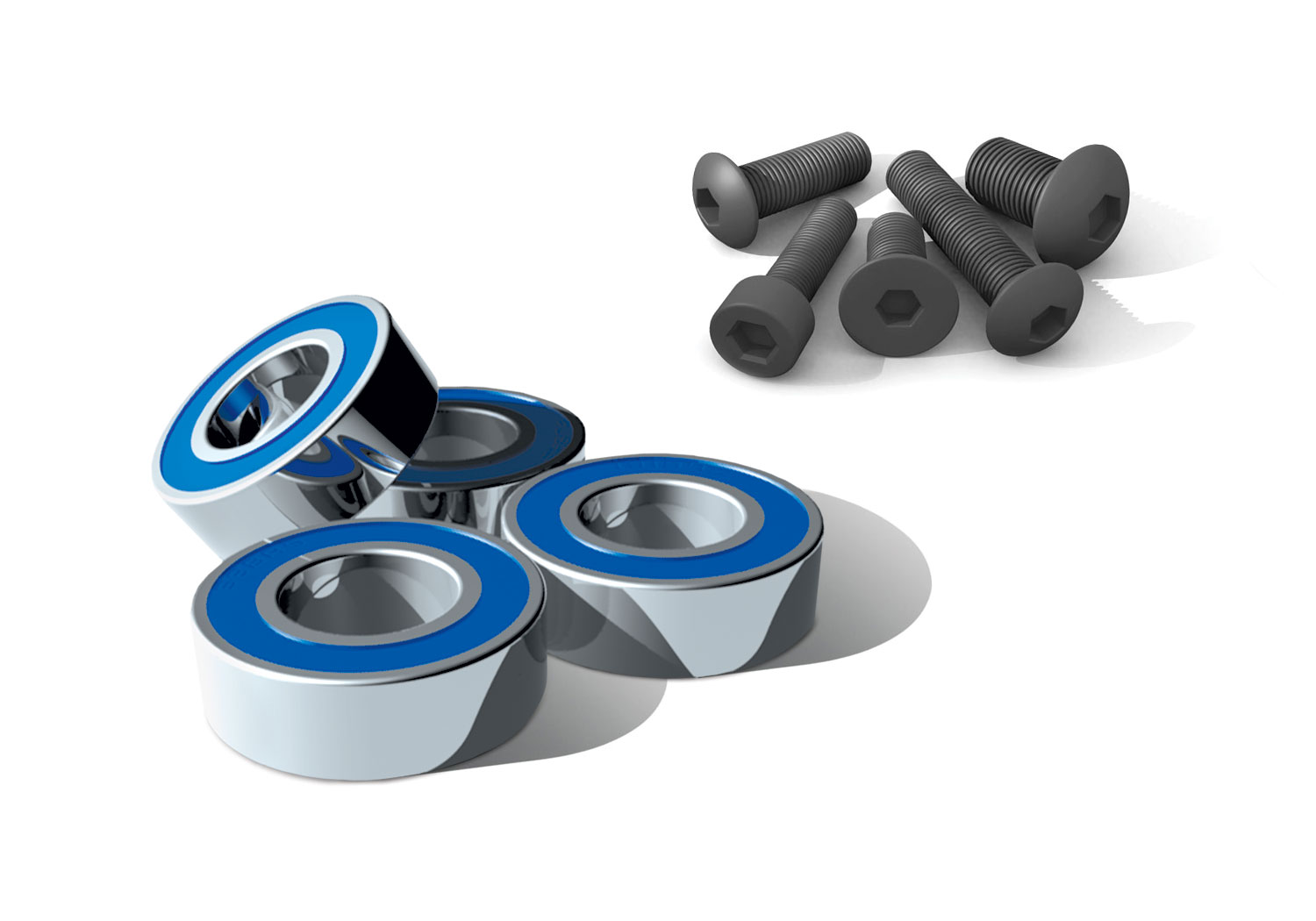

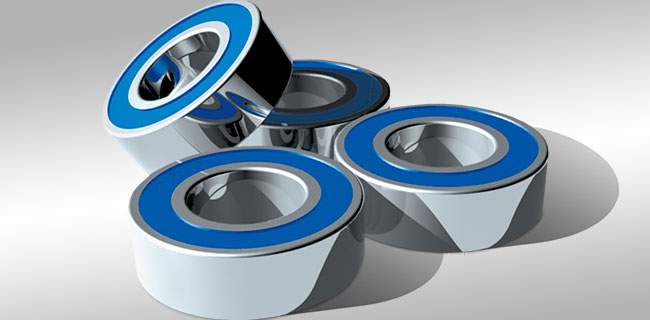

- Rubber-Sealed Ball Bearings
- Backed by Unparalleled Traxxas Support and Parts Availability
What’s In The Box:
- Traxxas Drag Slash, Ready-To-Race model with Velineon VXL-3s and 3500 kV motor
- TQi 3-channel 2.4GHz radio system with Trans Brake
- Quick Start Guide
- Optimized 2s high-speed pinion gear
- High quality maintenance tools

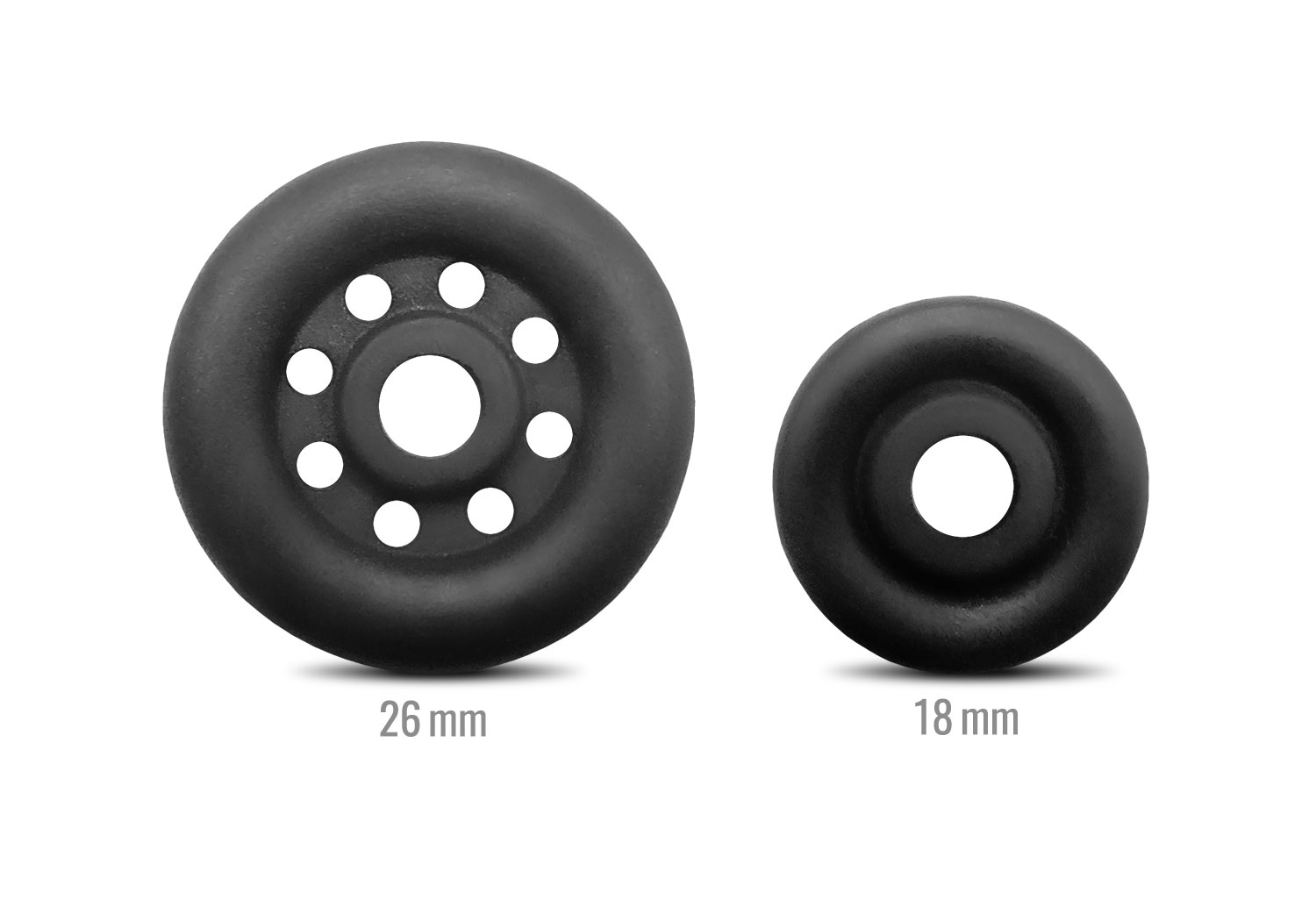

- 26 mm and 18 mm wheelie bar wheels
What You’ll Need:
- Battery Pack
Drag Slash performs best with a 2869X 2-cell LiPo battery. See full list of batteries.
- Charger
Traxxas EZ-Peak® Live charger (model 2971) is recommended for easy and fast charging performance. Click here for a full list of Traxxas chargers.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
